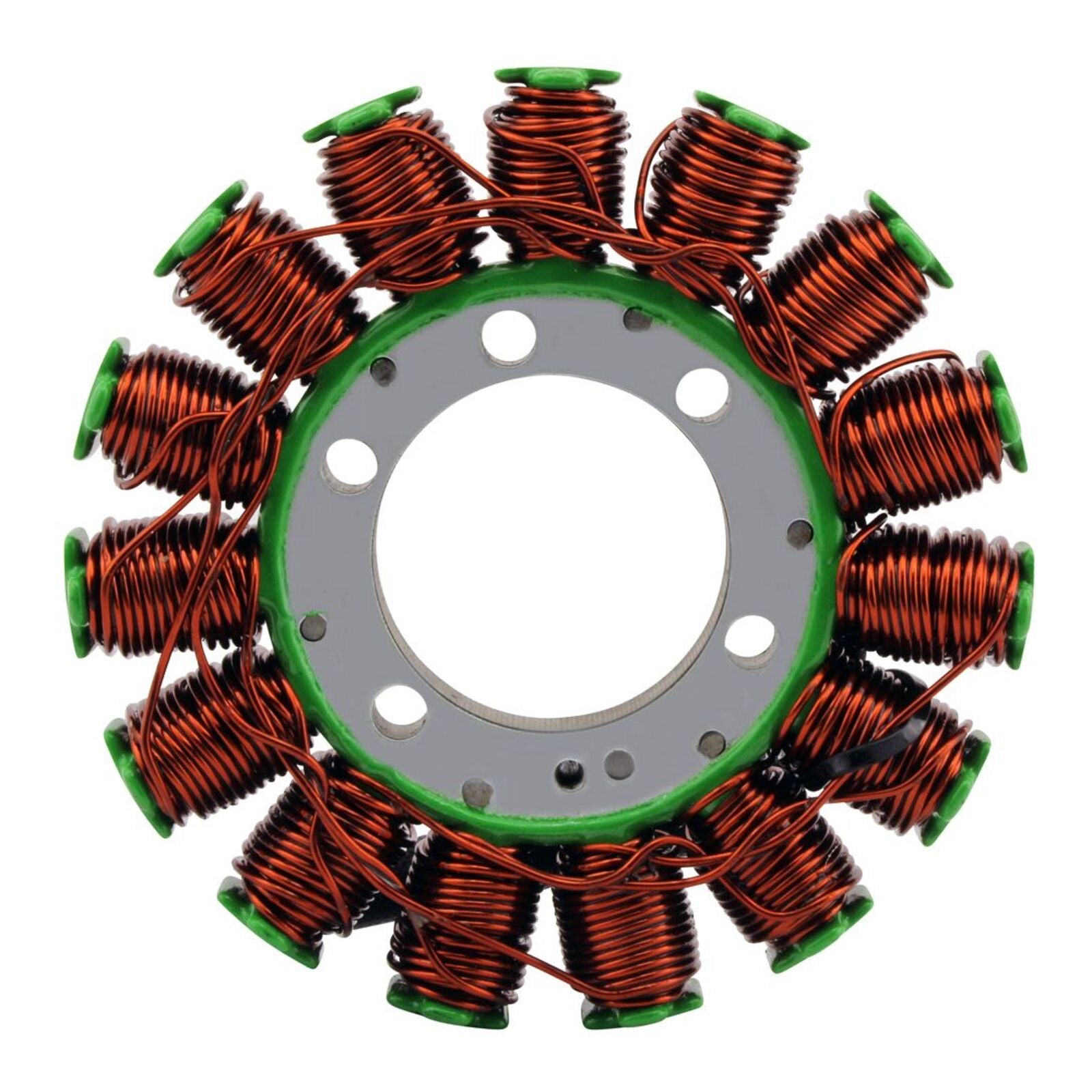

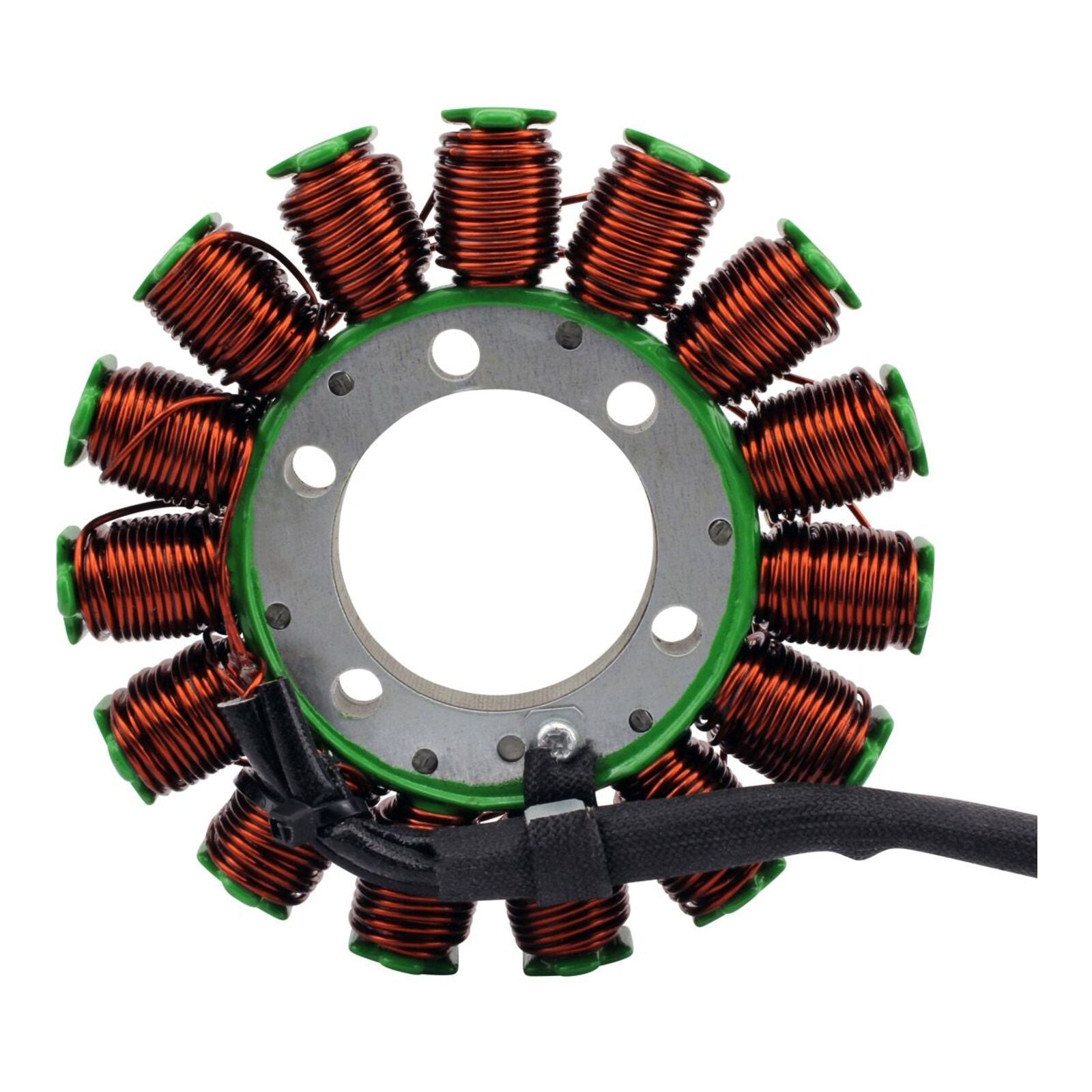

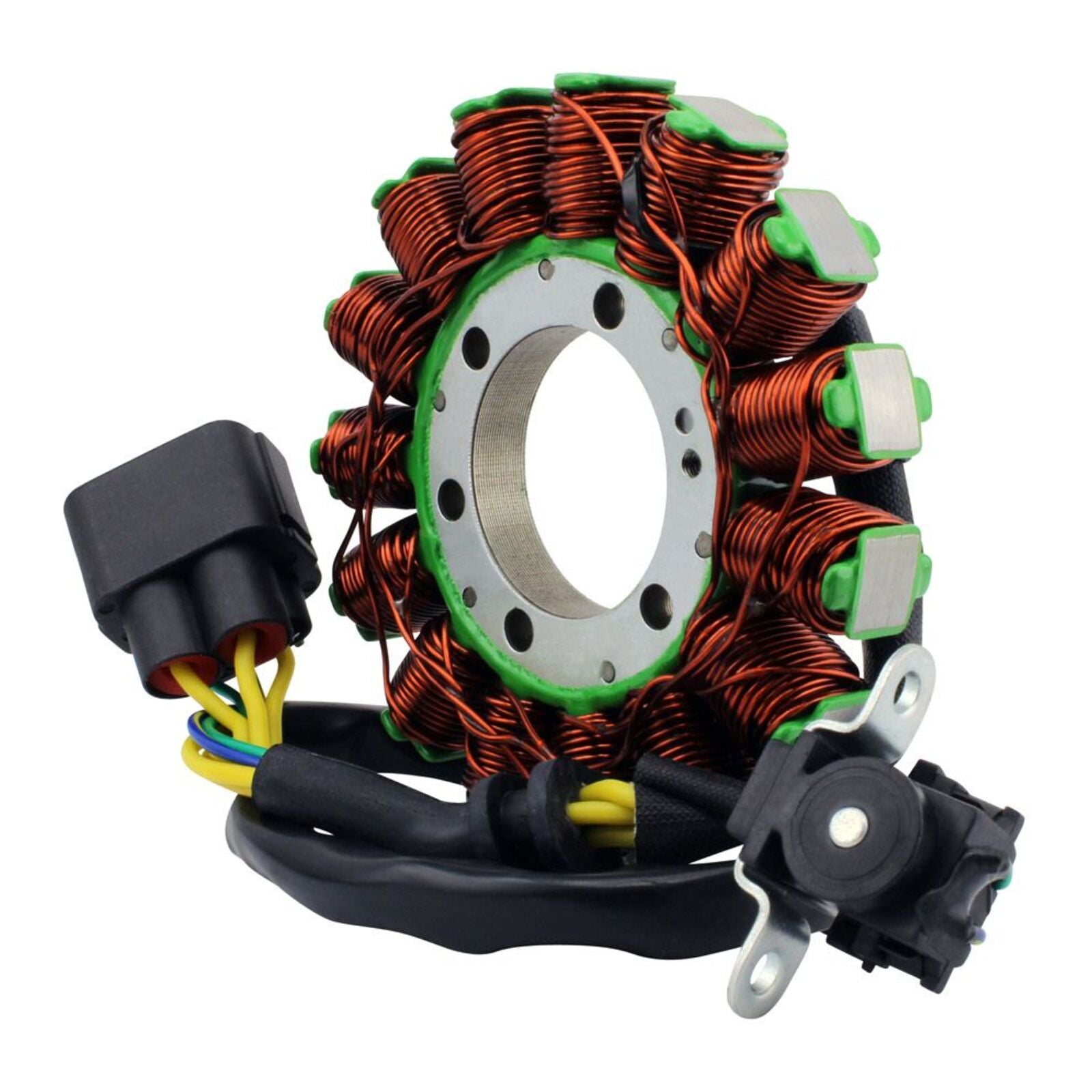

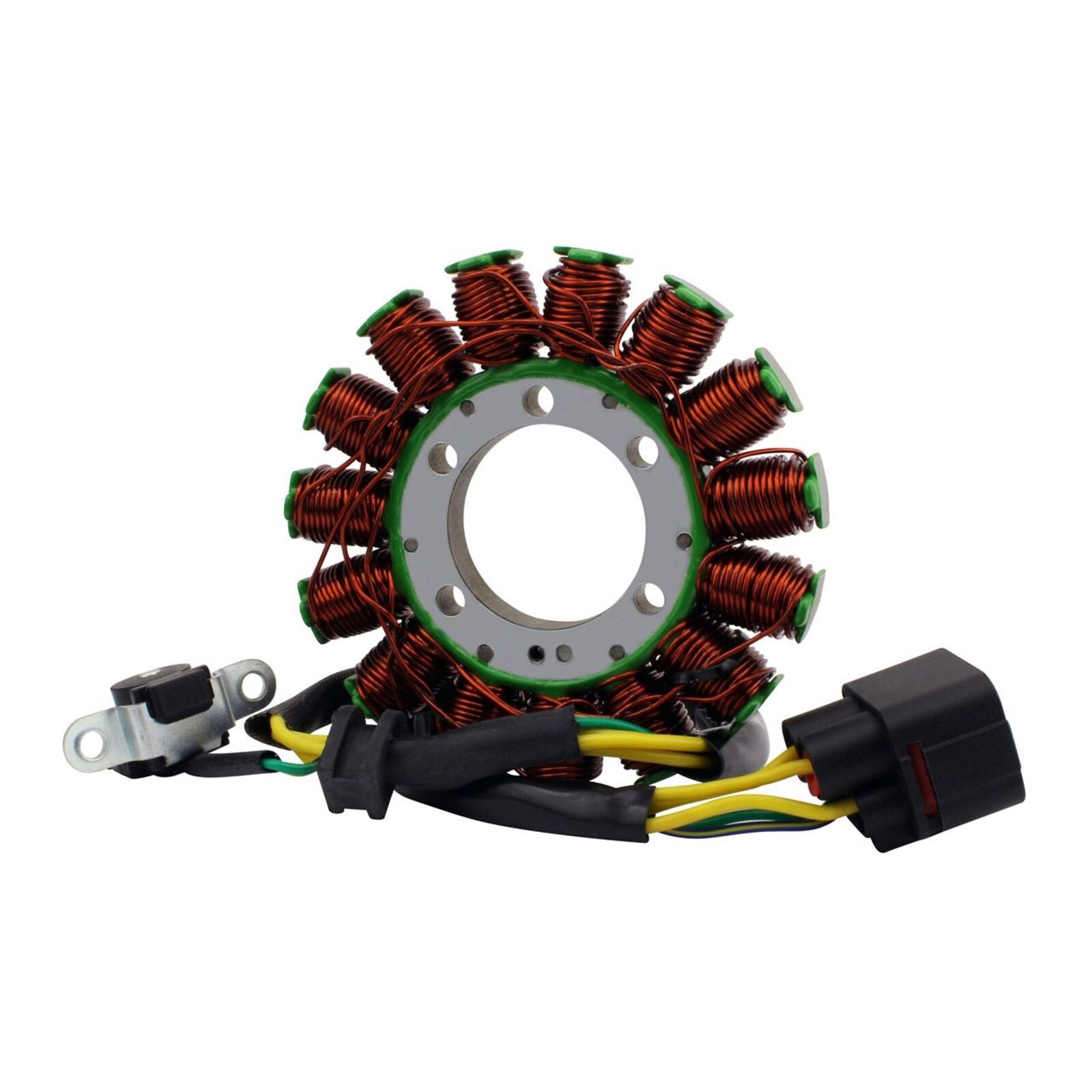

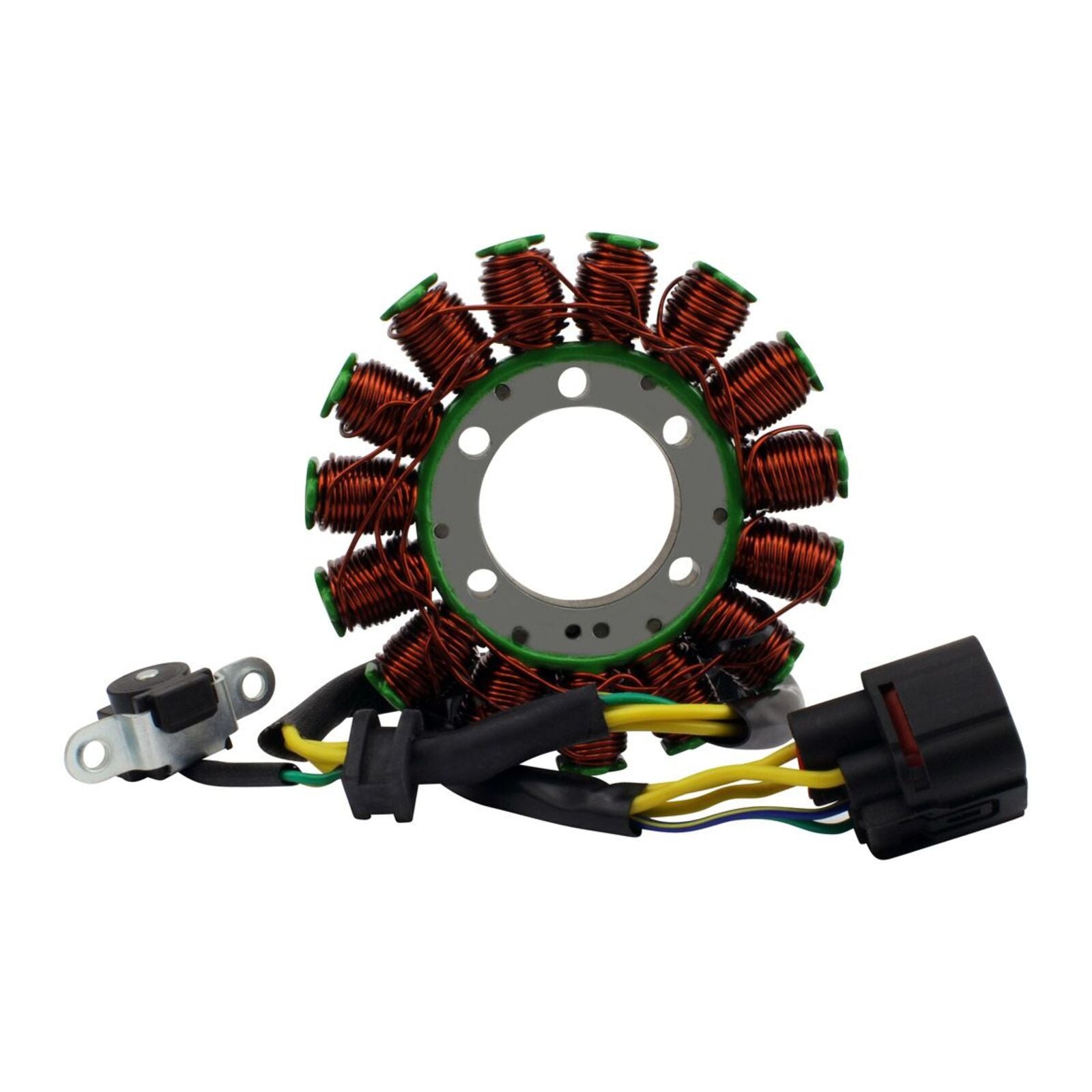

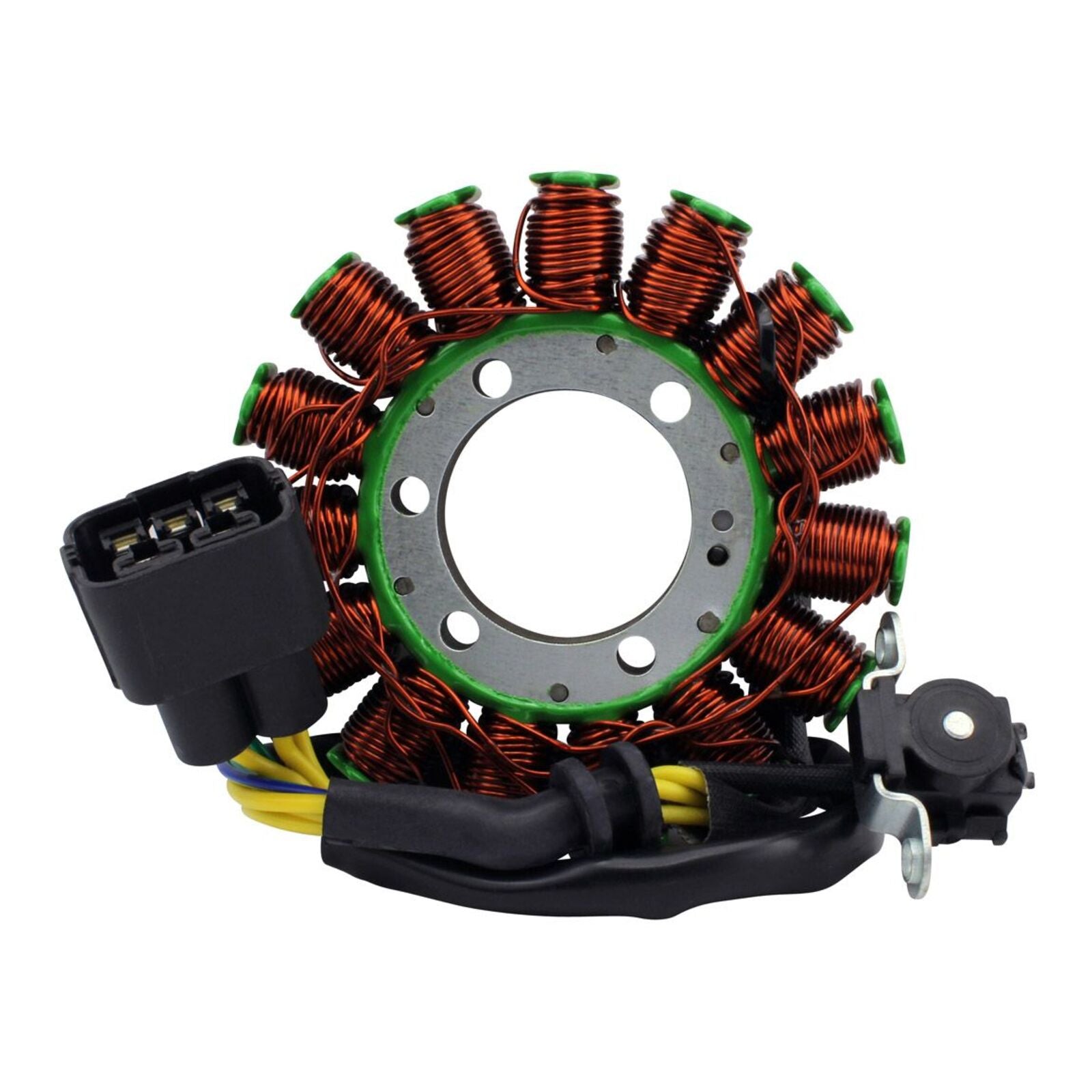

Stator for Honda SXS700 Pioneer (2014–2024) - RMS010-108248

(0)
SKU: RMS010108248
Barcode: RMS010-108248

$409.99

Direct replacement to your original unit.

Features:

  • Plug-and-play, direct fit, easy installation.
  • Highest grade of lamination materials.

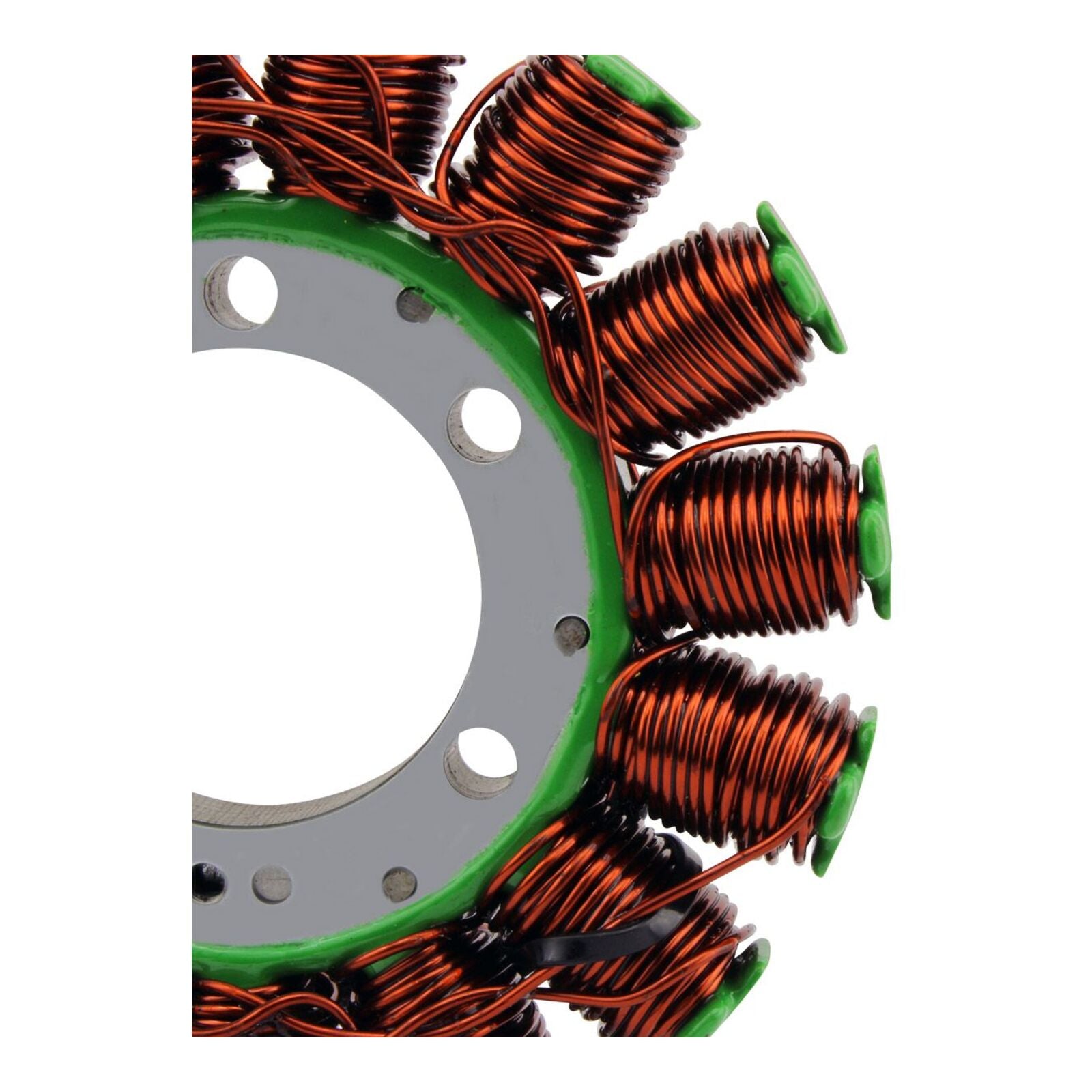

  • Highest grade of copper winding, resistant to 200 degrees Celsius.

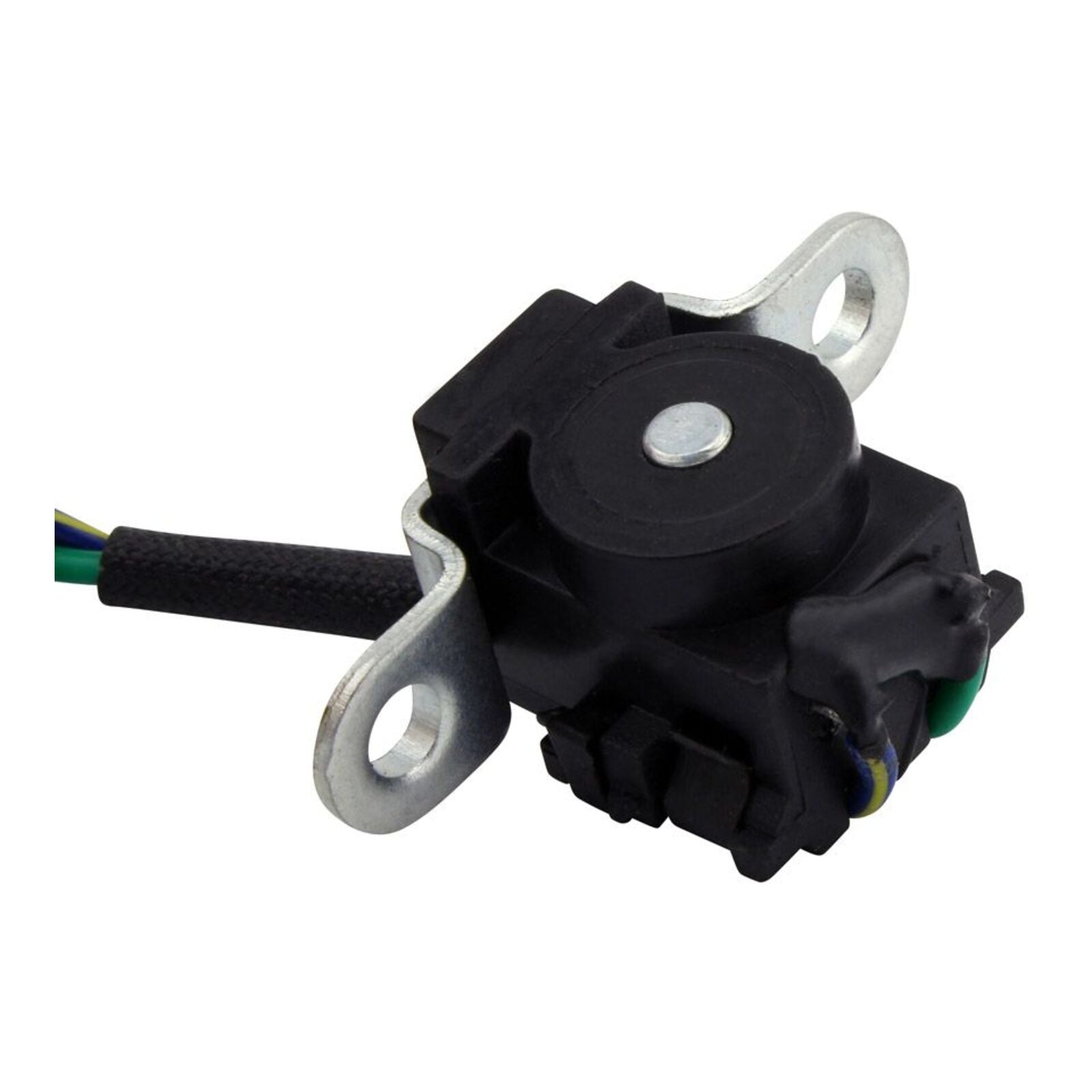

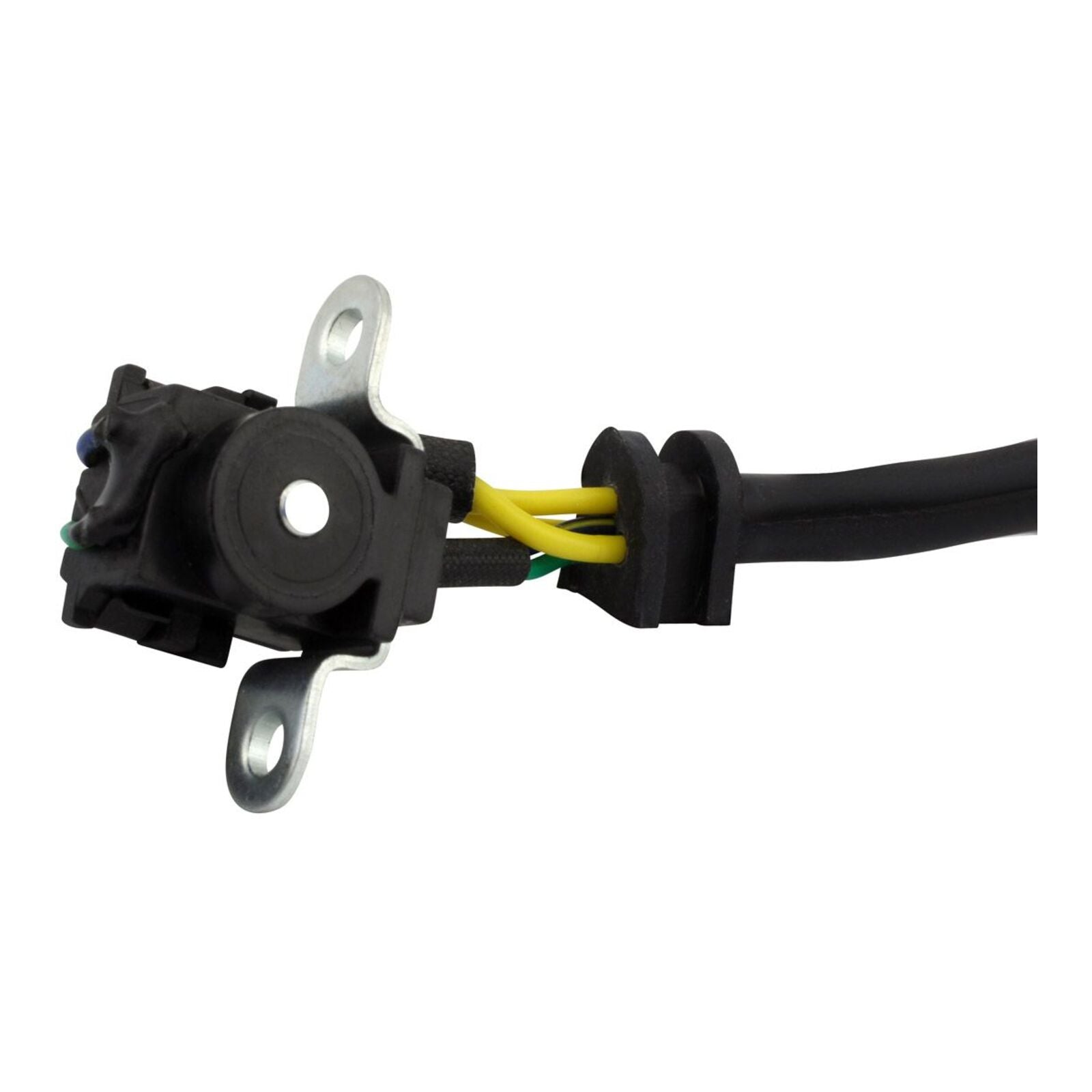

  • Pickup pulsar coil included.

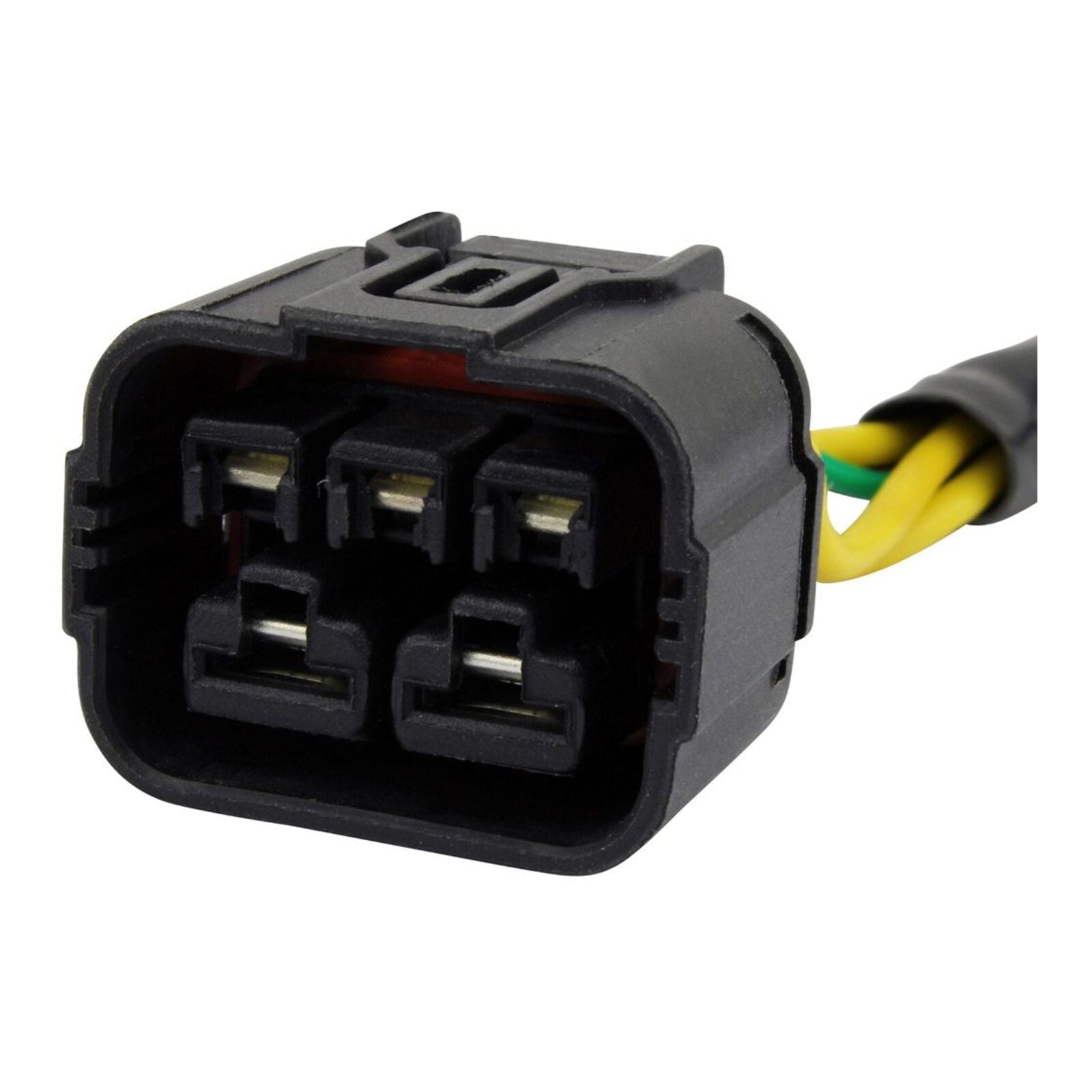

  • Connectors included.

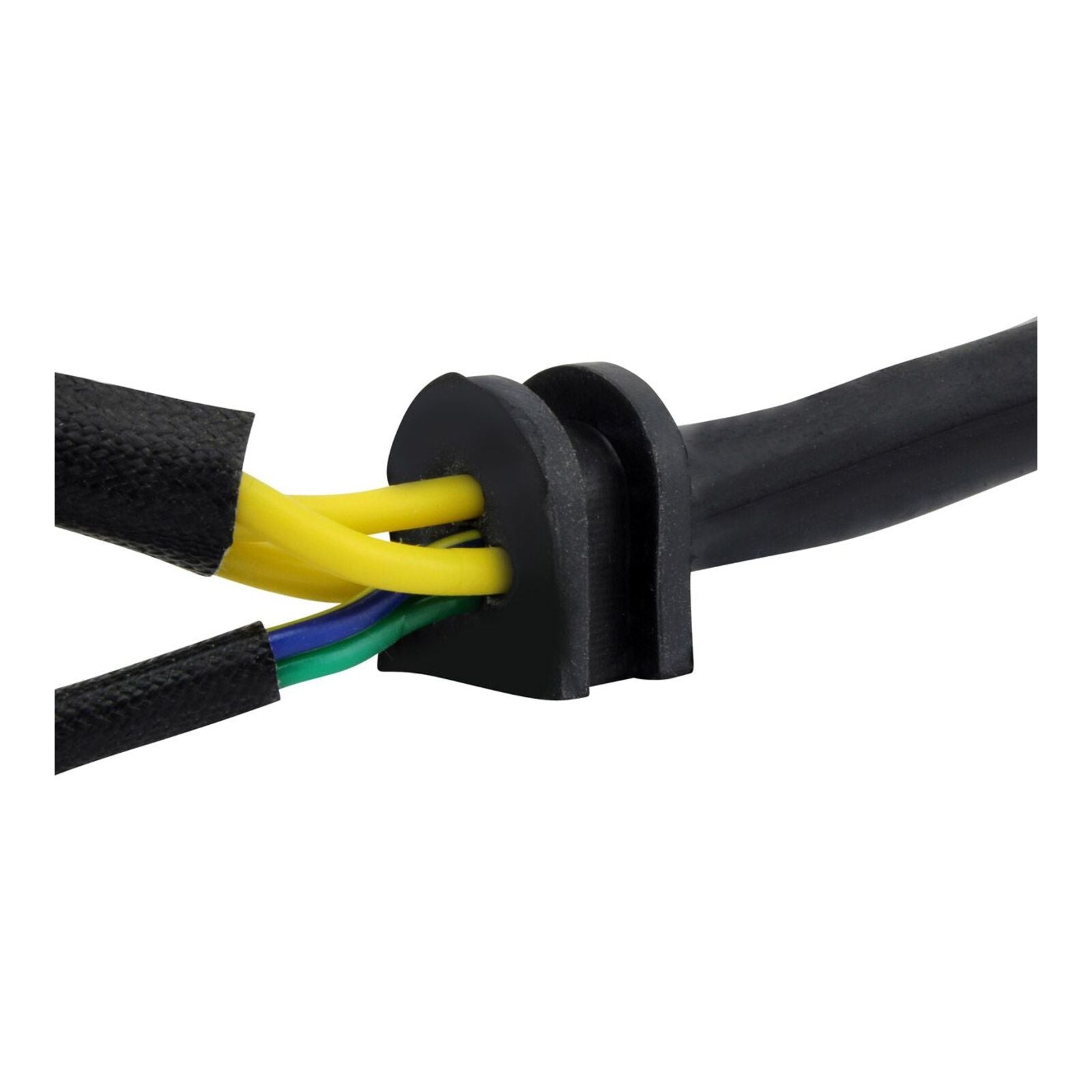

  • Rubber grommet included.
  • All products shipped are tested.

Dimensions:

  • Interio r Diameter: 42 mm
  • Exterior Diameter: 115 mm

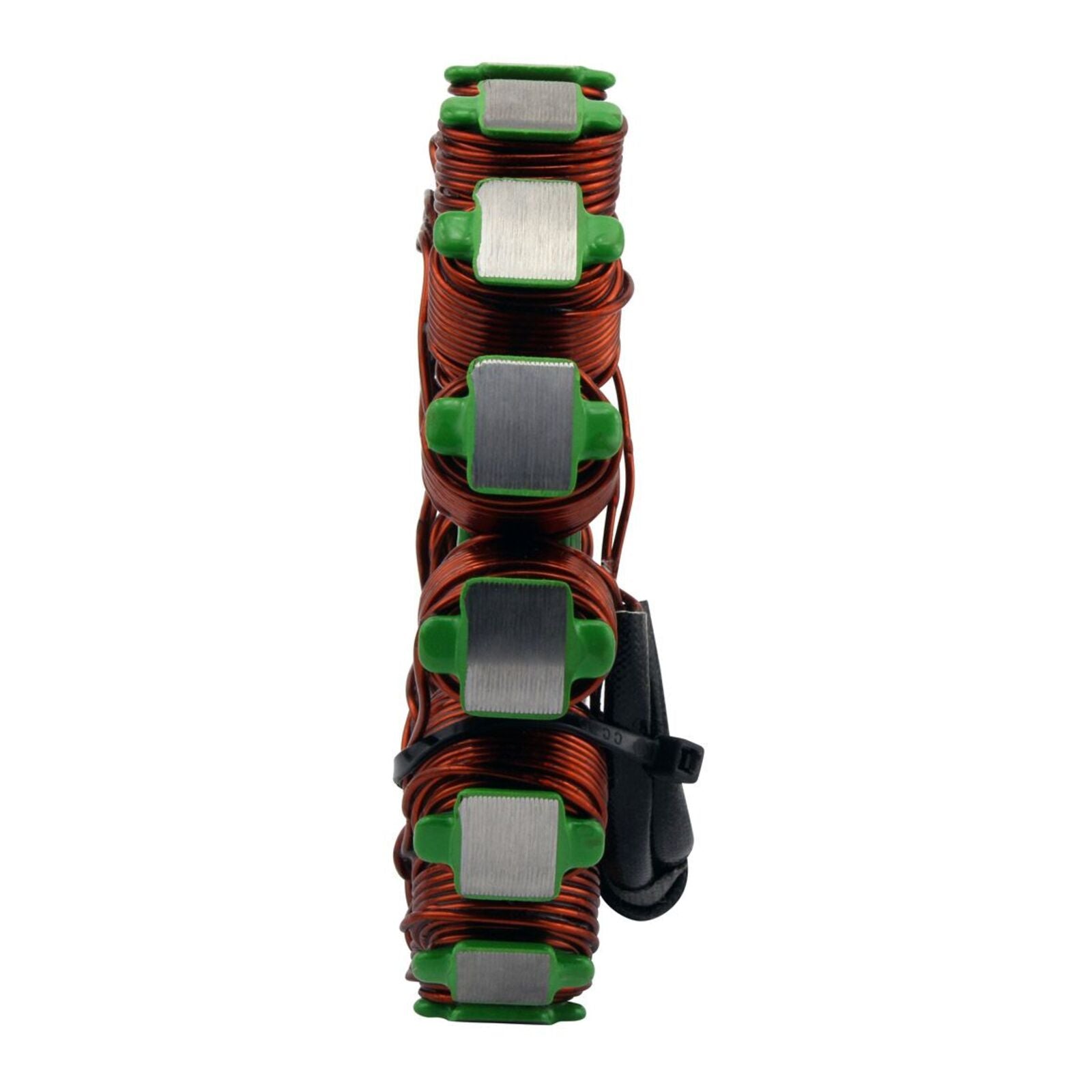

  • Thickness: 10 mm
  • Length of Wires (Stator to Grommet): 90 mm
  • Length of Wires (Grommet to Plug): 40 mm
  • Length of Pickup Coil's Wire to Grommet: 320 mm

Other Specifications:

  • Number of Wires: 5
  • Number of Plugs: 1
  • Number of Pins: 5
  • Number of Poles: 15
  • Alternator (Yellow to Yellow): 0.4 ohms ± 20%
  • Pickup (Blue/Yellow to Green): 240 ohms ± 20%
Low in stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

Estimated delivery between June 10 and June 13.
