HARD PARTS

K&N's Universal Air Filters are designed and manufactured for a wide variety of applications, including racing vehicles, radio-controlled cars, generators, snowmobiles, tractors, and other applications. Regardless of the angle or offset diameter of the air intake, there is probably a K&N Universal air filter for your equipment. All filters are constructed with ultra-strong moulded pliable rubber flanges that absorb vibration and allow for secure attachment and can also be stretched for up to 1/16 of an inch (1.5mm) to fit in-between sizes. K&N universal air filters are washable and reusable.

Features:

• Designed to increase horsepower and acceleration.
• Hundreds of sizes and shapes for most applications.
• High air flow with excellent filtration.
• Clamp-on washable and reusable air filter.
• Malleable flanges.

Specifications:

• Ai r Filter Shape: Round Tapered
• Washable: Yes
• Air Filter Material: Cotton Gauze
• Flange Type: Centered
• Flange Inside Diameter: 70 mm (2.75 in)
• Top Style: Rubber
• Top Material: Rubber
• Top Outside Diameter: 114 mm (4.5 in)
• Height: 127 mm (5 in)
• Flange Length: 19 mm (0.75 in)
• Flanges: 1
• Base Outside Diameter: 149 mm (5.875 in)
• Air Filter Large End Diameter: 149 mm (5.875 in)
• Weight: 1.2 lb (0.5 kg)
• Filter Re-Oiling Amount: 39 ml (1.33 oz)

Features a black PVC outer jacket for maximum flexibility and durability, steel inner casing that is tightly coiled for low compression, pre-lubricated nylon inner sleeve, bird-caged wire ends, EPDM moulded rubber for high UV resistance and injection moulded components manufactured from high-strength POM material.

Features:

• Flexible and durable with steel inner casing that is tightly coiled for low compression.
• Pre-lubricated nylon inner sleeve.
• Bird caged wire ends.
• EPDM moulded rubber for high UV resistance and injection moulded components made from high-strength POM material.

Note: Kit contents may vary by fitment and are subject to change.

Whites aluminium radiators make great replacements to your bent, cracked, and damaged radiators. They offer exceptional cooling and maximum efficiency to ensure your machine's top performance. Based on the OEM specs, a hand-welded aluminium design offers both a great fit and styling. All cap-side radiators will include a new radiator cap.

Exceptional cooling and maximum flow efficiency to ensure your machine's top performance.

Features:

• Utilizes stock mounting hardware (not included) for a great fit.
• Hand-welded aluminium design for a great look and functionality.
• Includes a new radiator cap.

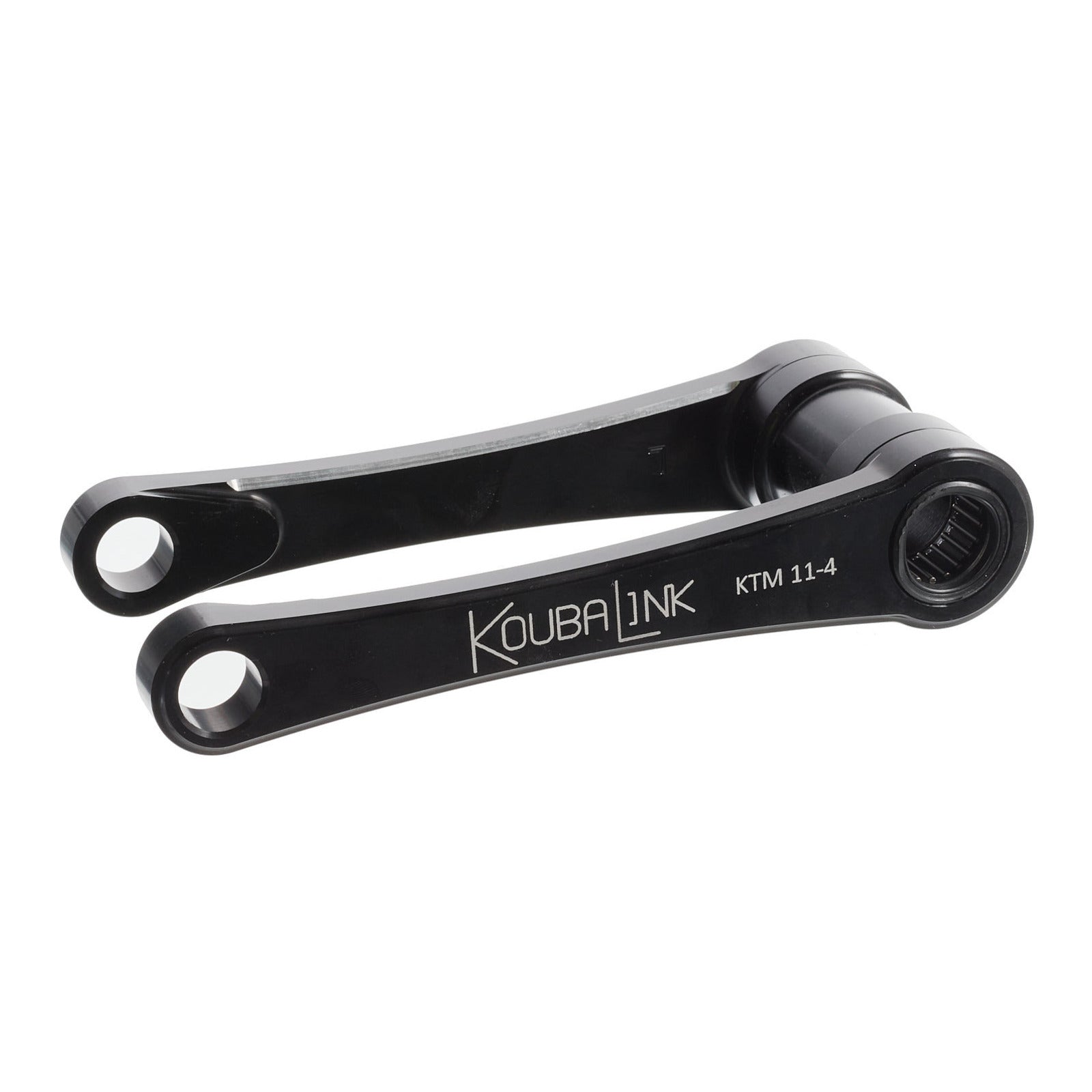

KoubaLink specialises in motorcycle lowering and performance linkages for off-road and dual-sport rear suspension systems. Compromise is not an option at KoubaLink. Listening to riders from all over the world explain where and how they use their off-road and dual-sport bikes. With their input, Koubalink manufacture products that add to your motorcycling experience and make it a little more enjoyable.

Features:

• Provides better front-end stability by lowering rear suspension geometry.
• Machined from billet aluminium.
• Stronger than OEM.
• Pre-installed OE style bearings included.
• Replace linkage like its OEM.
• Includes all required bearings and seals for assembly (Excluding Dog Bone styled linkages that do not include bearings and seals from factory).

Features a black PVC outer jacket for maximum flexibility and durability, steel inner casing that is tightly coiled for low compression, pre-lubricated nylon inner sleeve, bird-caged wire ends, EPDM moulded rubber for high UV resistance and injection moulded components manufactured from high-strength POM material.

Features:

• Flexible and durable with steel inner casing that is tightly coiled for low compression.
• Pre-lubricated nylon inner sleeve.
• Bird caged wire ends.
• EPDM moulded rubber for high UV resistance and injection moulded components made from high-strength POM material.

Note: Kit contents may vary by fitment and are subject to change.

4-pack of replacement Fuel Star fuel line clamps for the All Balls Complete OEM Style Fuel Line Clamp Kit.

• Inside Diameter: 12mm
• Clamp Style: Band
• Quantity: 4

Quality carburettor rebuild kit from All Balls.

• Kits include all of the necessary components to repair a carburettor. ATV models with two carburettors include components to repair two carburettors.
• Kit includes necessary all O-rings, gaskets, jets, needle, mixture screw, float bowl screws, float valve needles and seat. (Needle jet and other pressed-in jets are not included in the kit.)
• OEM jet sizes are included in the kit. NBR rubber material is used on all O-rings and rubber gaskets NBR has excellent resistance to the ethanol used in today’s fuels.
• Applications that use paper float bowl gaskets are upgraded to High-Performance Interface Gasket material.
• Components included in the kits are based on US models and discretion must be used when attempting to install the kit on a non-US model.
• Off-road use only.

Wossner

For more than 35 years, Wössner successfully design and produce high-performance pistons and connecting rods.

In order to offer their customers the best of Wössner Power, their products are produced by using state-of-the-art technology and are subject to continuous quality control.

Performance, quality and longevity - this is what Wössner stands for with high-quality products.

Con Rod Kits

The Wössner 2-stroke connecting rods are always supplied with lifting pins, needle bearings, connecting rod bearings and spacers.
The Wössner 4-stroke connecting rods include crank pins and connecting rod bearings.
Please use our Fitments Tool to ensure the correct part is ordered.

Up to 40% stronger than OE axles, these complete axles feature enlarged CV joints, bearing cages, and chromoly axle shafts. All internal components are precision ground and utilize molybdenum grease.

Features:

• 40% stronger than OEM.
• Larger 4340 chrome-moly steel axle bar.
• Precision ground components.
• Low profile clamps.
• Neoprene boots.
• Engineered in the USA.
• Manufactured in an ISO facility.
• Assembled with 3% moly grease.
• Black oxide coating to resist rust and corrosion.

Wossner

For more than 35 years, Wössner successfully design and produce high-performance pistons and connecting rods.

In order to offer their customers the best of Wössner Power, their products are produced by using state-of-the-art technology and are subject to continuous quality control.

Performance, quality and longevity - this is what Wössner stands for with high-quality products.

Con Rod Kits

The Wössner 2-stroke connecting rods are always supplied with lifting pins, needle bearings, connecting rod bearings and spacers.
The Wössner 4-stroke connecting rods include crank pins and connecting rod bearings.
Please use our Fitments Tool to ensure the correct part is ordered.

GOLDfren began manufacturing sintered disc brake pads for a wide range of off-road and road motorcycles in 1991, nearly three decades on from their first motorcycle brake pads GOLDfren has become one of the largest aftermarket manufacturers in the motorcycle brake disc pad industry. Their development of next-generation products has kept them at the technological forefront of Sintered Friction Braking providing you with confidence in the performance, durability and reliability of your brakes.

K5 Series:

The K5 sintered compound is optimal for off-road motorcycles and ATVs. It is recommended for riders who demand great off-road stopping power and brake pad durability when riding on tough off-road terrains. The K5 series is designed for low abrasive interaction with the rotor, long life and self-cleaning capabilities necessary in off-road riding conditions. Friction materials contain metal-ceramic with a sophisticated bronze-graphite and full-metal mixture formulation with fine friction particles to achieve optimal friction properties.

Features:

• High static friction coefficient
• Good abrasive resistance
• Self-cleaning capability
• Low abrasive interaction with the brake rotor material
• Up to 3 times longer operational life compared to organic and Kevlar composite materials

Application:

• Developed specifically for off-road motorcycles & ATVs
• Can be used on both front and rear brakes
• Could be used on the rear brake of road racing motorcycles

Operating Parameters:

• Specific pressure: 2.0 Mpa
• Sliding velocity: 20 m/s
• Constant maximum temp: 500°C
• Short time maximum temp: 750°C
• Counter-surfaces: steel disks

What is a sintered brake pad?

GOLDfren only manufacturers sintered brake pads that contain metal-ceramic and ceramic-carbon friction materials, these materials allow for less brake dust and a quieter braking experience. Sintered brake pads are made by fusing together metallic particles under high temperature and pressure which enhances friction properties and pad life, resulting in longer life and stronger braking. Sintered brake pads experience no brake fade when operating at high temperatures and in wet conditions. They also last up to 5 times longer than organic pads and provide additional braking strength. All materials used are environmentally friendly and do not contain any lead, asbestos, fibreglass or formaldehyde.

Reminder: one set of brake pads services one brake disc, if you are servicing multiple discs you will need multiple sets of brake pads.

Premier PR Series Brake Pad - SINTERED PADS FOR OFF-ROAD USE

Off-Road "Sintered" Premier "PR" pads have been upgraded to a HIGH DENSITY sintered metal compound suitable for all types of MX and ATV use.

Not for highway use.

Note: One set of brake pads services one brake disc, if you are servicing multiple discs you will need multiple sets of brake pads.

A quality pair of fork oil and dust seals from All Balls Racing.

Features:

• Dyno tested to last 3 to 4 times longer than OEM seals.
• Directional ribs outside of the seal allow easy installation.
• Dual-sealing lips guarantee oil stays in and dirt stays out.

A High Quality Caliper rebuild kit from All Balls. Kit includes evrything required to rebuild a caliper, Washers, Cup seals, Boots and Bolts. Save lots on OEM parts! A High Quality Caliper rebuild kit from All Balls. Kit includes evrything required to rebuild a caliper, Washers, Cup seals, Boots and Bolts. Save lots on OEM parts!

P SERIES - Street Bikes

Premier's most successful general use material, our P series pads, are a tough Kevlar based organic material giving superb brake effect on all sportbikes and cruisers. This material is preselected by the catalogue when you order P prefix disc pads.

P SERIES - Off-Road

Part numbers relating to off-road machines are supplied in carbon graphite compound for medium durability, good brake effect and minimum heat generation.

100% brand new aftermarket tie rod only kit. Meets or exceeds OEM specs for fit and performance.

Each pack of Premier CSK Clutch Springs contains a complete set of heavy-duty springs. Up to 15% stronger than the original.

Customer should be advised that after installation of a CSK kit the clutch lever will feel slightly ‘heavier’ than standard

NOTE: This complete Vertex Gasket Set contains all parts as pictured.

Produced in the U.S.A. with the latest materials and technology in gasket production to Vertex specifications. Vertex gaskets ensure long-lasting performance and leak prevention for your rebuild needs. Vertex's replacement gaskets and seals are available as top-end kits, complete engine kits, or as an oil seal kit.

• One kit containing all of the gaskets, O-rings, and valve seals necessary to rebuild the entire engine and transmission.
• Includes transmission seals.

OEM spacers typically wear out within a year of hard riding. The wheel spacers should be checked and replaced as needed with every bearing service. Water and dirt act as a grinding compound between the seal face and the mating surface of the spacer. Once the grooves are deep enough, the sealing surface is lost, allowing water and dirt to pass through and contaminate the bearing.

Wheel Spacer Kits are designed to restore the proper sealing surface between the wheel seal and spacer, helping protect wheel bearings from premature wear and failure. Manufactured to precise tolerances for a direct replacement fit, All Balls spacers provide a smooth, durable surface for the seal to run against, reducing the risk of contamination and extending bearing life. Ideal for routine maintenance or during wheel bearing replacement, a quality wheel spacer kit ensures reliable wheel performance in harsh riding conditions.

Upgrade rubber bushings found in Utility ATV A-Arms to AB's redesigned HD Delrin bushings.
This kit is designed to replace worn out rubber bushings and provides greater suspension travel and performance.
Quality design and construction of every All Balls piece meets the toughest standards and conditions - from daily commuting to full-on racing, all older bearing and seal designs are upgraded to the best and latest specs and designs.

Brand new aftermarket voltage regulator rectifier

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.
• The quality exceeds the OEM equipment
• All products shipped are tested

RMSTATOR have included the opposite connector (main harness side) as they know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

Dimensions:

• Width: 38 mm
• Length: 57 mm
• Height: 19 mm
• Wires length: 122 mm

Other specifications:

• Number of plugs: 1
• Number of pins: 4
• Number of wires: 4
• Minimum Charging Voltage: 14.5V +- 0.5V
• Maximum Charging Current: 50A/500W
• Open Circuit Voltage: 15V
• Operation Temperature: -20° to 85°

NOTE: Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

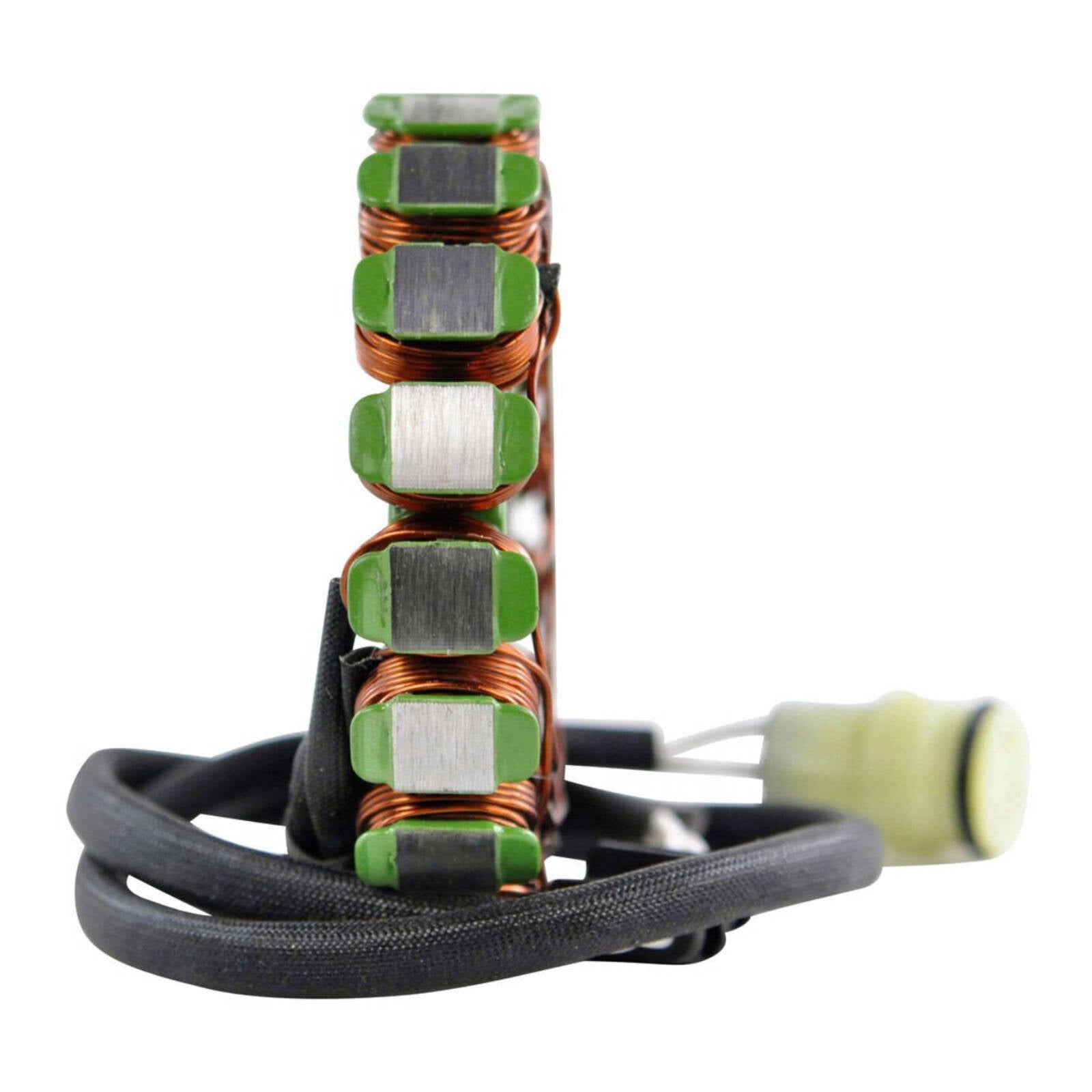

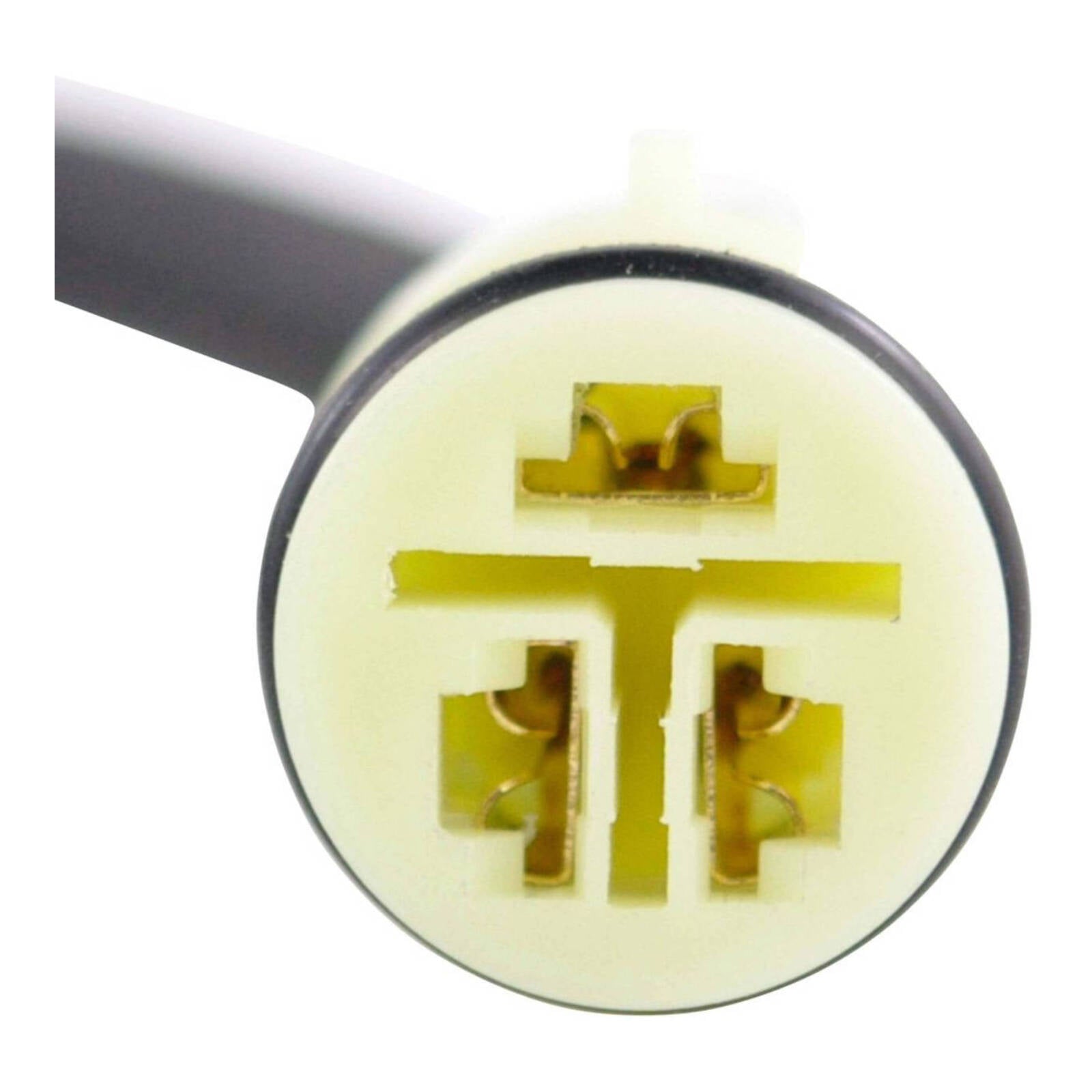

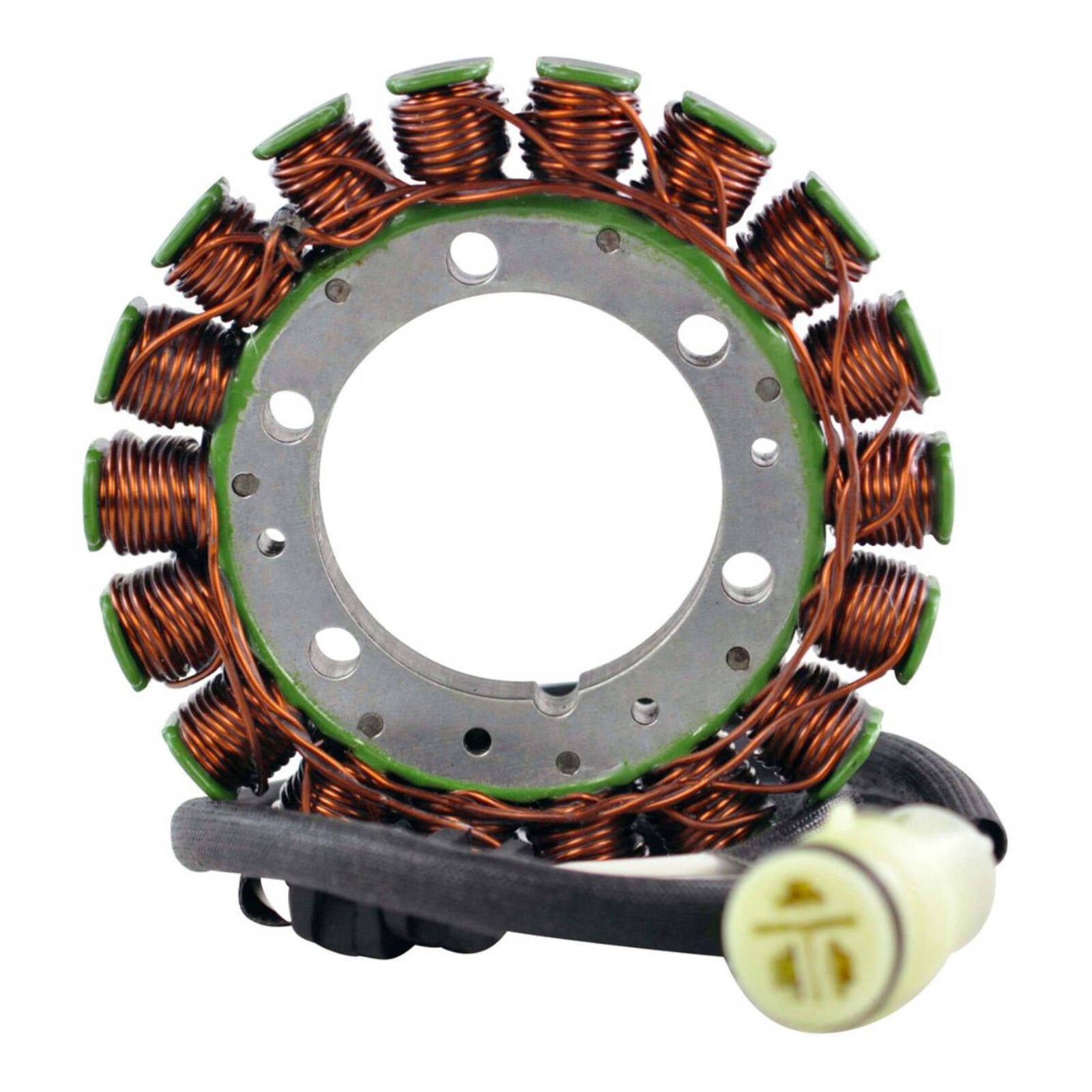

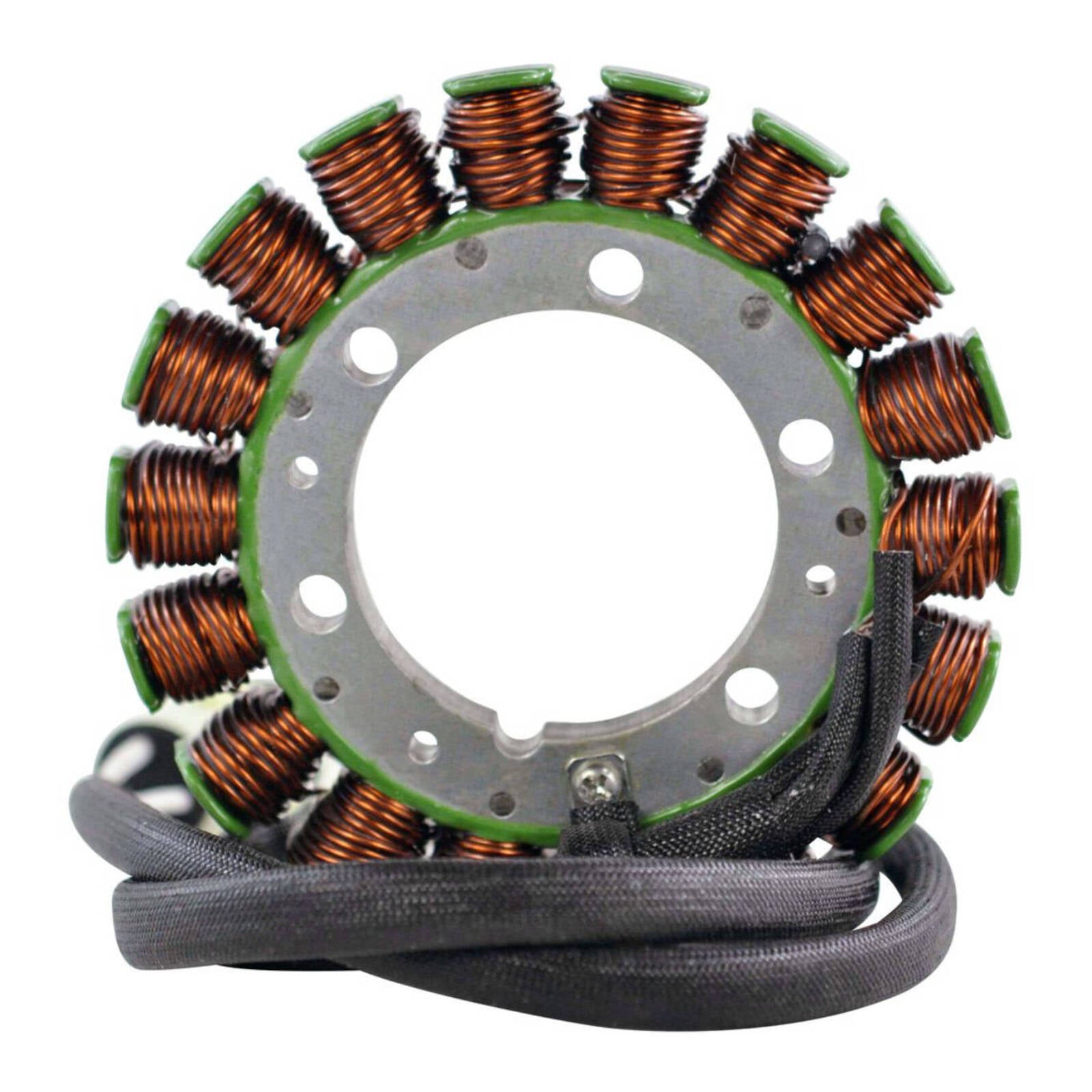

Plug-and-play, high output replacement stator from RM Stator.

Dimensions:

• Interior diameter: 53mm
• Exterior diameter: 115mm
• Thickness: 14mm
• Length of wires — stator to grommet: 90mm
• Length of wires — grommet to plug: 500mm

Other specifications:

• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3
• Wire to wire resistance:
  • Alternator: White to White = 0.4 ohms +-20%
  • Altnerator: White to Ground = O.L on Display

Details:

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included
• Includes the opposite connector (main harness side) as these are often melted/corroded/defective and a major cause for repetitive electrical issues
• Rubber grommet included
• All products shipped are tested

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest-grade lamination materials
• Highest-grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

Specifications:

Dimensions:

Other specifications:

• Number of wires: 5
• Number of plugs: 1
• Number of pins: 5
• Number of poles: 18

Wire-to-wire resistance:

• Alternator: Yellow to Yellow = 0.6 ohms +-20%
• Alternator: Yellow to ground = O.L
• Pickup: Blue/Yellow to Green= 340 ohms +-20%

Aluminium weighted bar end for standard 22mm diameter handlebars.

Features:

• Made from CNC aluminium
• Includes 5mm hex key

Wrench Rabbit Rebuild Kits have been rebranded to Vertex Rebuild Kits; all components remain unchanged however you may receive a kit that is boxed differently to the one pictured.

Vertex Complete Engine Rebuild Kits are a simple and cost-effective way to complete a top-to-bottom professional rebuild for your 2 or 4-stroke motorcycle or ATV/UTV. The one easy to order kit will not only save you time by offering a one-stop-shop in a box, but they also save you money when compared to purchasing all items individually.

Vertex kits include quality components from Vertex, Hot Rods & Hot Cams.*

All parts are manufactured in the USA from the highest quality material.

Features:

• Crafted to deliver unbeatable levels of quality
• High-grade materials for exceptional performance
• Superior in durability and reliability
• Kits available for many 2 & 4-stroke motorcycles, ATVs & UTVs
• Cost-effective solution
• Saves time sourcing individual components
• Vertex pistons & gaskets*
• Hot Rods crank & bearing kits*
• Hot Cams cam chain*

Includes:

• Crankshaft
• Piston Kit
• Complete Engine Gasket Kit
• Oil Seal Kit
• Main Bearing and Seal Kit
• Water Pump Rebuild Kit
• Transmission Bearing Kit
• Countershaft Bushing/Seal Kit
• Cam Chain

*Specific parts vary by kit (see included parts above).
