Phone & Accessory Mounts

The RAP-B-379-HA1U consists of a 1/4"-20 X 1" thread, connected to a 1" diameter ball, female blind barrel nut and nylon washer.

Specifications:

• BALL SIZE: B Size (1", 25.4mm)

Hardware Included:

• x1 1/4"-20 x .87" Barrel Nut
• x1 0.77" Nylon Washer

The RAP-B-379U-252025 consists of a 1" diameter rubber ball connected to a 1/4"-20 x .25" male threaded post. The male thread matches most standard camera and camcorder female threads found on the bottom of these devices.

Features:

• RAM® Tough-Ball™ features a 1/4"-20 x .25" male threaded post for connection to a variety of devices
• Included B size 1" RAM® rubber balls allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of high-strength composites with stainless steel thread post for durability and reliability in the most demanding environments

Specifications:

• THREAD PITCH: 1/4"-20 x .25"
• BALL SIZE:B Size (1", 25.4mm)

The RAM-B-230, double ball joiner, consists of a 1" rubber ball on both ends that allow the connection of two 1" socket arms. When measured from ball center to ball center the arm length is 1.75". This mount is ideal if your mount arm is just too short.

Features:

• The perfect adapter for connecting two B size RAM® Mounts double socket arms for extra extension or articulation
• Consists of two B size 1" RAM® rubber balls connected by a .75" length post
• Post is made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments

Specifications:

• PRODUCT DIMENSIONS: Overall Length: 2.54" (64.5mm)
• SOCKET-TO-SOCKET LENGTH: 1.75" (44.4mm)
• BALL SIZE: B Size (1", 25.4mm)

The CLIQR action camera mounts screws onto your action camera and allows you to mount it on your chosen CLIQR system just like any other device. Perfect for motorcycle, bicycle, and other leisure activities.

What's included:

• 2 x Action Camera Mounts

The RAM locking knob, includes a brass 1/4"-20 thread, for 1" (B size) socket arms; this allowing you to disengage the screwing of the knob. Once you have set your mount in the location you need, you can lock it in place and feel safe that your mounted device will stay right where you left it.

Hardware Included:

• x2 Keys

The CLIQR car vent mount uses dual vent mounting clamps to securely hold your device in either landscape or portrait mode

What's included:

• 1x Mount
• 2x Device adaptors
• 1 x Alcohol wipe

The CLIQR 1 Inch ball mount fits any 1 inch ball cup to adapt other mounts to the CLIQR system and allow for 360° rotation.

What's included:

• 1x Mount
• 2x Device adaptors
• 1 x Alcohol wipe

The RAM-B-345 brake/clutch reservoir cover base fits cleanly over your existing reservoir cover with the 1" ball centered. Made of die cast aluminum with an over molded rubber ball, both form and function are unsurpassed. Installation is simple and all necessary hardware is included. This mount is not compatible with the 2016 BMW R1200RT.

Features:

• Utilize your existing reservoir cover with this ball base for motorcycles; hardware included
• Compatible with any B size RAM® Mounts double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments

Specifications:

• BALL SIZE: B Size (1", 25.4mm)

Hardware Included:

• x4 M4 x 20mm Machine Screws
• x4 M4 x 30mm Machine Screws
• x4 M4 x 35mm Machine Screws
• x4 M4 Flat Washers
• x4 .188" Nylon Spacers

The RAM-B-201U-C consists of a long double socket arm that accommodates 1" B size ball bases, device holders, and adapters. With an overall length 6", this is the longest B size RAM^® double socket arm size and adds more reach to your favorite mounting solution. The easy to adjust knob allows for near-infinite adjustability for your connected device.

Features:

• Provides an extended reach with an overall length of 6" and a socket-to-socket length of 5.31"
• Attaches to any B size RAM® ball component, including mounting bases and device holders; double ball and socket technology allows for near-infinite adjustability of your RAM® mounting system
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments

Specifications:

• PRODUCT DIMENSIONS: Overall Length: 6" (152.4mm)
• SOCKET-TO-SOCKET LENGTH: 5.31" (134.8mm)
• BALL SIZE: B Size (1", 25.4mm)

The RAM-B-349-1U includes an M10 x 1.5 pitch male thread connected to a 1" rubber ball. The diameter of the round flange is 14.3mm and the thread length is 10.5mm.

Specifications:

• Ball Size: B Size (1")
• Weight Capacity:
  • Standard Use: 2 lbs
  • Heavy-Duty Use: 1 lb
• Material: Marine-grade aluminum
• Packaging type: Poly Bag
• Weight: 0.07 lb

Note:

Compatible with the mirror sockets of BMW motorcycles.

The CLIQR Out-Front Mount offers the ideal aerodynamic position with a robust yet lightweight glass-filled Nylon body and durable stainless steel fixtures.

What's included:

• 1x Mount
• 2x Device Adaptors
• 2x Silicone Inserts (25.4mm - 31.8mm stem)
• 1 x Alcohol wipe

The RAM Magnetic Power Plate^™ III U-Bolt Handlebar Mount is designed to hold radar detectors securely while on the road. The magnetic plate includes two powerful rare earth magnets, composite cradle and one adhesive steel plate. To mount your device to the magnet, simply adhere the steel plate to the back of you device and lock up against the holder. This holder includes a quick-release function, where the device conventiely can be removed by twisting out of the holder in one easy motion. The brake/clutch reservoir mount includes both standard and metric mounting bolts to replace the factory bolts on your bike. The patented double ball and socket design provides infinite adjustability, so you can articulate your radar detector to the perfect viewing and operating angle. The rubber ball components provide shock and vibration damping, making this mount suitable for any rugged environment.

Specifications:

• CLAMP RANGE: 0.5" (12.7mm) - 1.25" (31.7mm) diameter
• SOCKET-TO-SOCKET LENGTH: 3" (76.2mm)
• BALL SIZE: B Size (1", 25.4mm)

Hardware Included:

• x1 50mm x 38mm Steel Adhesive Plate
• x2 M6 x 55mm Hex Bolts
• x2 #1/4-20 x 2" Hex Bolts
• x2 1/4"-20 x 2.5" Hex Bolts
• x2 1/2" Spacers
• x2 1/4" Split Lock Washers
• x1 1/4"-20 U-Bolt for .5" - 1" Rails
• x1 1/4"-20 U-Bolt for 1" - 1.25" Rails
• x2 1/4"-20 Nylock Nuts
• x2 Rubber Caps
• x1 U-Bolt Spacer

The CLIQR surface mount uses powerful 3M VHB tape to attach to any flat surface, such as motorcycle fairings dashboards, surfboards, or even around the house.

What's included:

• 1x Mount
• 2x Device adaptors
• 1 x Alcohol wipe

Ideal for motorcycle handlebars, the RAM-B-231ZU consists of a 1" B size rubber ball attached to a zinc-coated metal U-bolt base. Designed to sit at right angles to the mounting rail, the U-bolt base accommodates rails from 0.5" to 1.25" in diameter. Included are black cover caps to be placed over the exposed ends of the U-bolt as well as a composite adapter that can narrow the rail to a minimum width of 0.5".

Features:

• Zinc-coated metal U-bolt base with 1" rubber ball is designed to sit at right angles to mounting rail; includes black cover caps for exposed ends of the U-bolt
• Compatible with any B size RAM® Mounts component; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments

Specifications:

• CLAMP RANGE: 0.5" (12.7mm) - 1.25" (31.7mm)diameter
• BALL SIZE: B Size (1", 25.4mm)

Hardware Included:

• x1 1/4"-20 U-Bolt for 0.5" - 1" Rails
• x1 1/4"-20 U-Bolt for 1" - 1.25" Rails
• x2 1/4"-20 Nylock Nuts
• x2 Rubber Caps
• x1 U-Bolt Spacer

Additional device adaptors for those with multiple devices to mount

WEIGHT LIMIT: 2KG

Designed for those who want extra security when using large phones or tablets

WEIGHT LIMIT: 8KG

Connect another device to your existing RAM^® Mount with the RAM-B-273U Ball Base Adapter. This ball is made up of a 1" ball connecting to a 1/4"-20 threaded stud with a length of 1.6". The threads on this ball replace the bolt in any B-size socket arm, and the ball connects to the middle of the socket arm on the opposite side of the tightening knob. If you are looking to mount more than one device but cannot locate multiple mounting points on your motorcycle or vehicle, this base is the ideal accessory for connecting both devices off of one mounting base.

Features:

• Replace the bolt in any B size double socket arm to add another 1" B size RAM® rubber ball to your mounting setup
• Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments

Specifications:

• BALL SIZE: B Size (1", 25.4mm)

Hardware Included:

• x1 1/4"-20 x 2.25" Set Screw

The Oxford Aqua Dry Phone has been designed specifically to fit both motorcycles and cycles.
The mounting bracket U-bolts have been designed to attach the opposite way to conventional mounts so that it can be attached to motorcycle bars without coming into contact with the headstock as the mount is tightened.

Features:

• Easily fits to handlebar or stem
• Allows continued use of touch screen
• Perfect for navigation or tracking routes
• Installation guide included
• Touch Screen compatible

What's included:

• Angled adjustable bracket
• Large bracket for 31.8mm handlebars
• Bracket insert to protect handlebars
• Small bracket for 22.8mm handlebars
• Detachable lanyard
• Aqua Dry Phone Pocket


Note:

• Do not use mobile phone while bike is in motion.
• Suitable for most mobile phones.
• Mobile phone not included.

Utilises your mirror stems to create a clutter-free mounting solution.

What's included:

• 1 x Mount
• 1 x M10 bolt
• 1 x M10 reverse bolt
• 1 x M8 bolt
• 1 x M8 reverse bolt
• 1 x Alcohol wipe

CLIQR uses a dual locking, fail-safe mechanism to mount almost any device in the most convenient position for you. Simply stick the CLIQR Device Adaptor onto the back of your device and CLIQR it into the mount in the orientation that suits you.

Designed specifically for 22mm handlebars, with a hinged clamp and M5 bolt for a secure hold. The CLIQR Handlebar Mount allows you to mount your device beside your controls for convenient viewing at a glance, perfect for navigating on the move.

Features:

• Tough but lightweight mounting system provides an optimal viewing position for your device
• Quick and easy to install, with all fittings included.
• Compatible with most phones, phone cases, GPS devices and compact action cameras.
• Device adaptor uses top quality 3M adhesive.
• Dual locking mechanism with failsafe system.
• Device can rotate between landscape and portrait views.

What's included:

• 1x Mount
• 2x Device Adaptors
• 1x Silicone Insert

Assembly kit for Ram Mirrors. Without ball.

Some bikes don't have round bars, and Rocky Creek's Phone Mount with USB Charging Port needs to mount to a round bar. Here is a solution. This extension mounts under the mirror stem on "most" bikes using handlebar-mounted mirrors. The diameter of the hole in the mount is 10mm. Unscrew your mirror, position the mount at the base of the mirror mount then screw your mirror back onto the mount.

Note: Before ordering, please check that the diameter of your thread at the end of your mirror is 10mm.

The CLIQR USB Handlebar Mount allows you to mount your device beside your controls and charge it whilst on the move.

What's included:

• 1x USB Handlebar Mount
• 2x Device Adaptor
• 1x Silicone Insert (22-22.5mm stem/bar)
• 1x Alcohol Wipe

Designed to withstand the extreme forces of extreme sports.

What's included:

• 1 x Mount
• 2 x Device adaptors
• 1 x Alcohol wipe

RAM offers a wide variety of motorcycle mounts. A great new addition to this already extensive product line is our new Twist and Tilt^™ base. Made of die cast marine grade aluminum, durability won’t be a concern. The patented rubber ball dampens shock and vibration helping to maintain the performance of the mounted device. Simple to use and install, this great little product is compatible with numerous 1” ball mount systems. Designed to be compact and discrete, the Twist and Turn^™ won’t take up a lot of space but will provide a world of mounting possibilities.

Specifications:

• BALL SIZE: B Size (1", 25.4mm)

Hardware Included:

• x1 M10-1.25 x 40mm Socket Head Cap Screw
• x1 M8-1.25 x 40mm Socket Head Cap Screw
• x2 M10-1.25 Hex Nuts
• x2 M8-1.25 Hex Nuts
• x1 M10-1.25 x 20mm Socket Head Cap Screw
• x1 M8-1.25 x 20mm Socket Head Cap Screw
• x3 M10 Tooth Lock Washers

The CLIQR Handlebar Riser Mount replaces your motorcycle riser clamp bolt, allowing you to position your phone in the optimum position without sacrificing space on your bars.

What's included:

• 1x Mount
• 2x Device Adaptor
• 1x M6 x 55mm Bolt
• 1x M8 x 55mm Bolt
• 1x M10 x 55mm Bolt
• 1x 20mm x M6 Spacer
• 1x 20mm x M8 Spacer
• 1x 20mm x M10 Spacer
• 1x Alcohol Wipe

The CLIQR headstock mount is designed for use on bikes with clip-on bars. It is supplied with 5 TPR rubber adaptors to fit most headstocks, allowing for a clean central mounting position.

What's included:

• 1x Mount
• 2x Device adaptors
• 5x TPR Rubber adaptors (Fits 12mm - 31.55mm)
• 1 x Alcohol wipe

The RAM-B-174-UN7U consists of hardware for mounting to either brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, a double socket arm, and a universal X-Grip^® cell phone cradle. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows you to move the X-Grip^® mount to your optimum viewing position. The mounting hardware for brake/clutch reservoirs includes both standard and metric mounting bolts. The included X-Grip^® cradle has a clean and clever four-leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring-loaded X-Grip^® cradle expands and contracts, allowing for a perfect custom fit for your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip^® is the cell phone cradle evolved. The X-Grip^® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Specifications:

• CLAMP RANGE: 0.5" (12.7mm) - 1.25" (31.7mm) diameter
• HOLDER DIMENSIONS: Width Range: 1.875" (47.6mm) - 3.25" (82.5mm), Depth Range: 0.875" (22.2mm) max
• SOCKET-TO-SOCKET LENGTH: 3" (76.2mm)
• BALL SIZE: B Size (1", 25.4mm)

Assembly Hardware Included:

• x1 Optional Tether
• x1 Glue Tube for Rubber Caps
• x2 M6 x 55mm Hex Bolts
• x2 #1/4-20 x 2" Hex Bolts
• x2 1/4"-20 x 2.5" Hex Bolts
• x2 1/2" Spacers
• x2 1/4" Split Lock Washers
• x1 1/4"-20 U-Bolt for .5" - 1" Rails
• x1 1/4"-20 U-Bolt for 1" - 1.25" Rails
• x2 1/4"-20 Nylock Nuts
• x2 Rubber Caps
• x1 U-Bolt Spacer

The CLIQR mirror mount uses a 360° rotating head and 4 TPR rubber shims to fit mirrors stems of 10mm, 12mm, 14mm, 16mm and adjust to the angle that suits you.

What's included:

• 1x Mount
• 2x Device adaptors
• 4x TPR Rubber adaptors (Fits 10mm - 16mm)
• 1 x Alcohol wipe

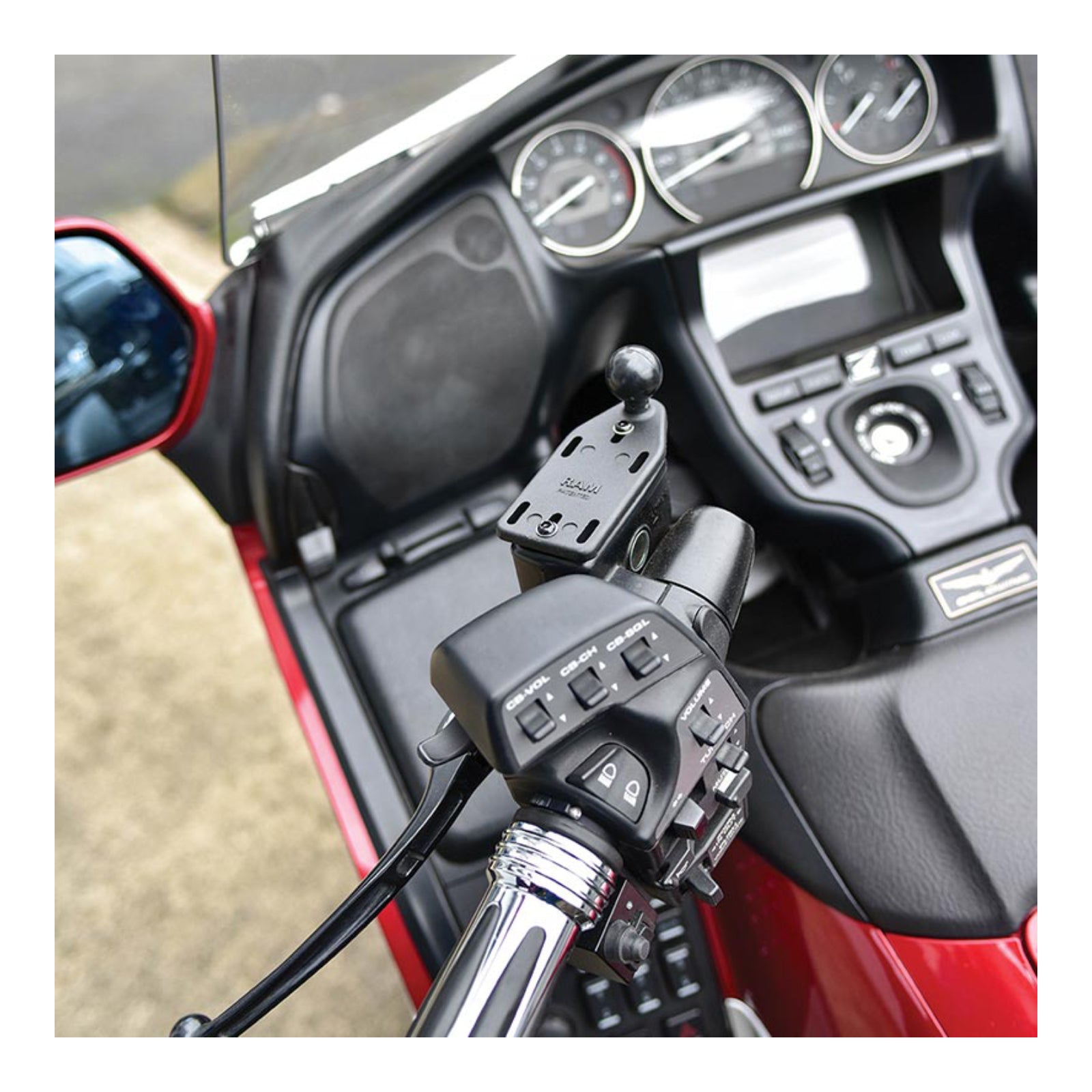

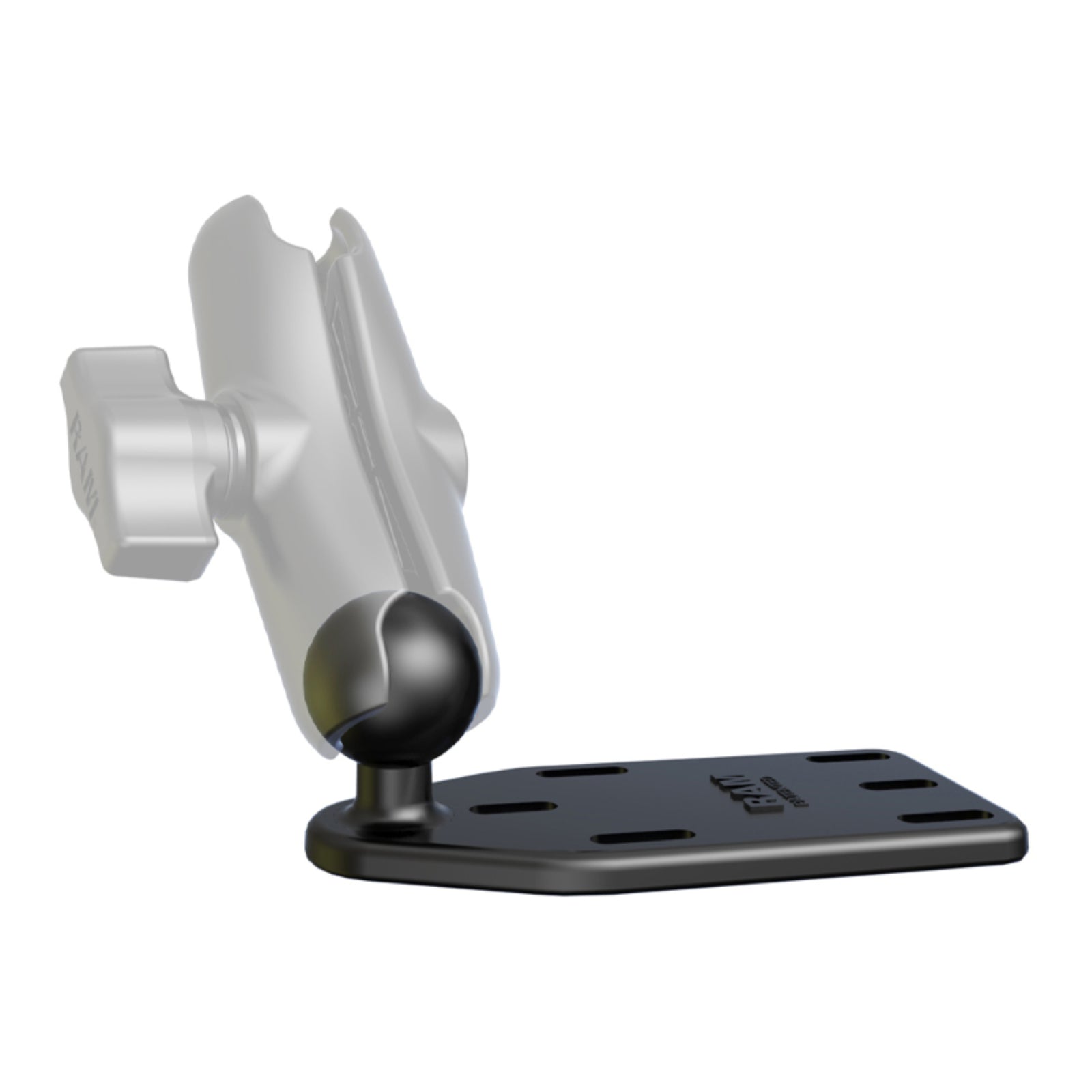

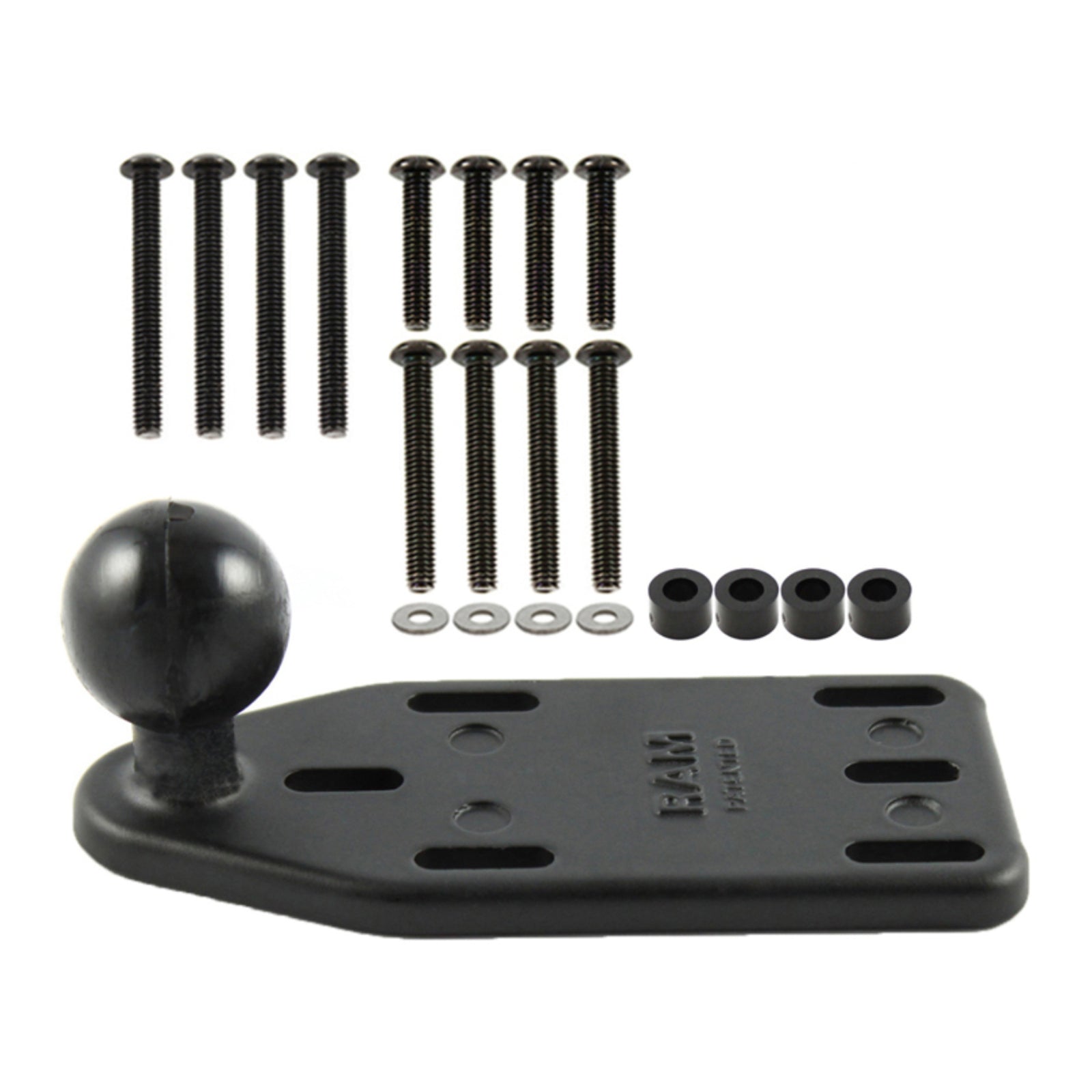

The RAM-B-346 base fits cleanly over your existing brake/clutch reservoir cover with the 1" ball offset. Made of die cast aluminum with an over molded rubber ball, both form and function are unsurpassed. Installation is simple and all necessary hardware is included. The mount is NOT an additional reservoir cover, but instead a plate shaped similarly to the cover that mounts above the cover using the covers screw holes and longer screws. The kit actually comes with 3 sets of screws of differing lengths. The center 2 slots are 2 7/16 inches center to center and are just under a 1/2 inch long. This mount is not compatible with the 2016 BMW R1200RT.

Features:

• Fits over your motorcycle's existing brake/clutch reservoir cover; includes set of M4 x 35, M4 x 30, and M4 x 20 screws
• Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments

Specifications:

• BALL SIZE: B Size (1", 25.4mm)

Hardware Included:

• x4 M4 x 20mm Machine Screws
• x4 M4 x 30mm Machine Screws
• x4 M4 x 35mm Machine Screws
• x4 M4 Flat Washers
• x4 .188" Nylon Spacers
