Lithium Batteries

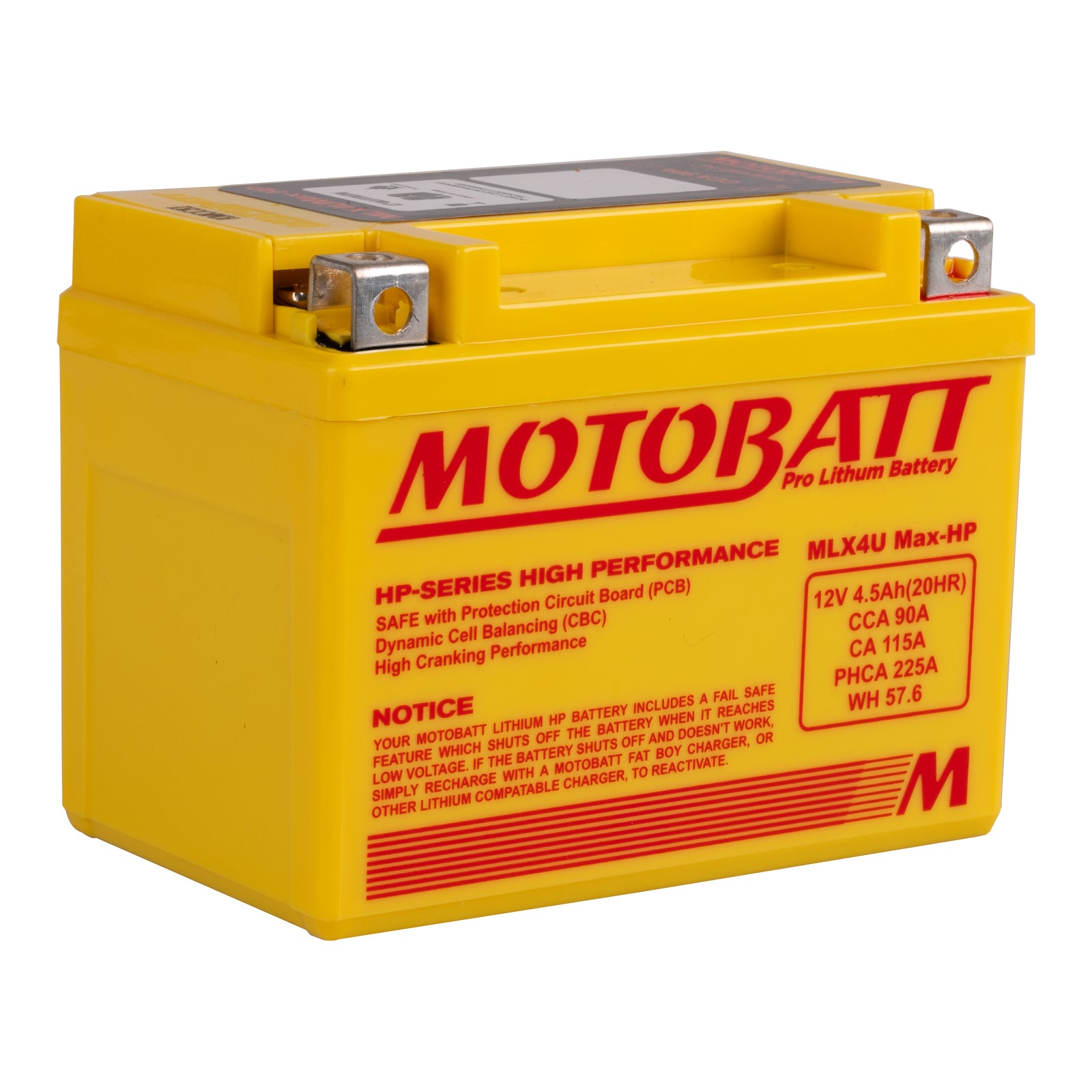

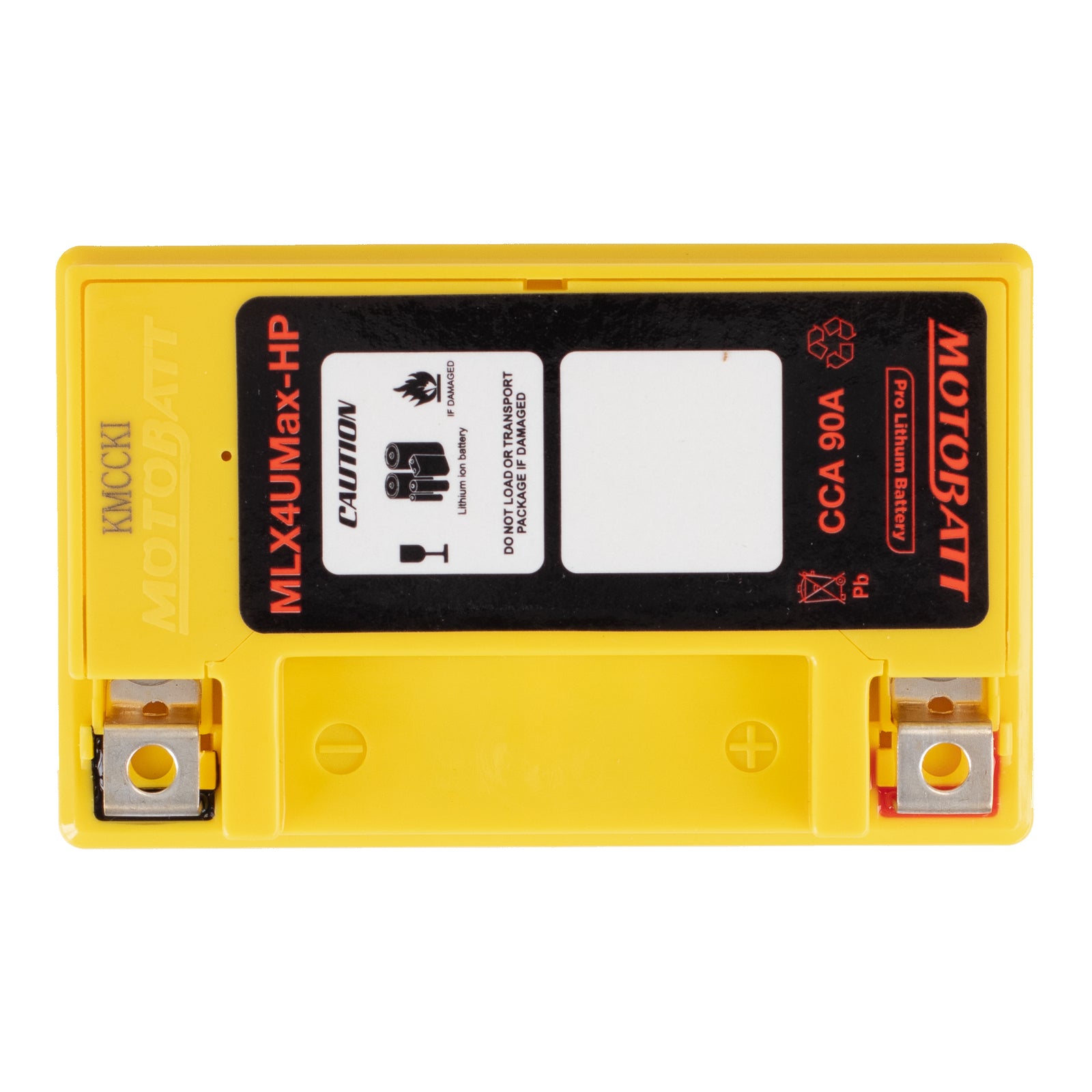

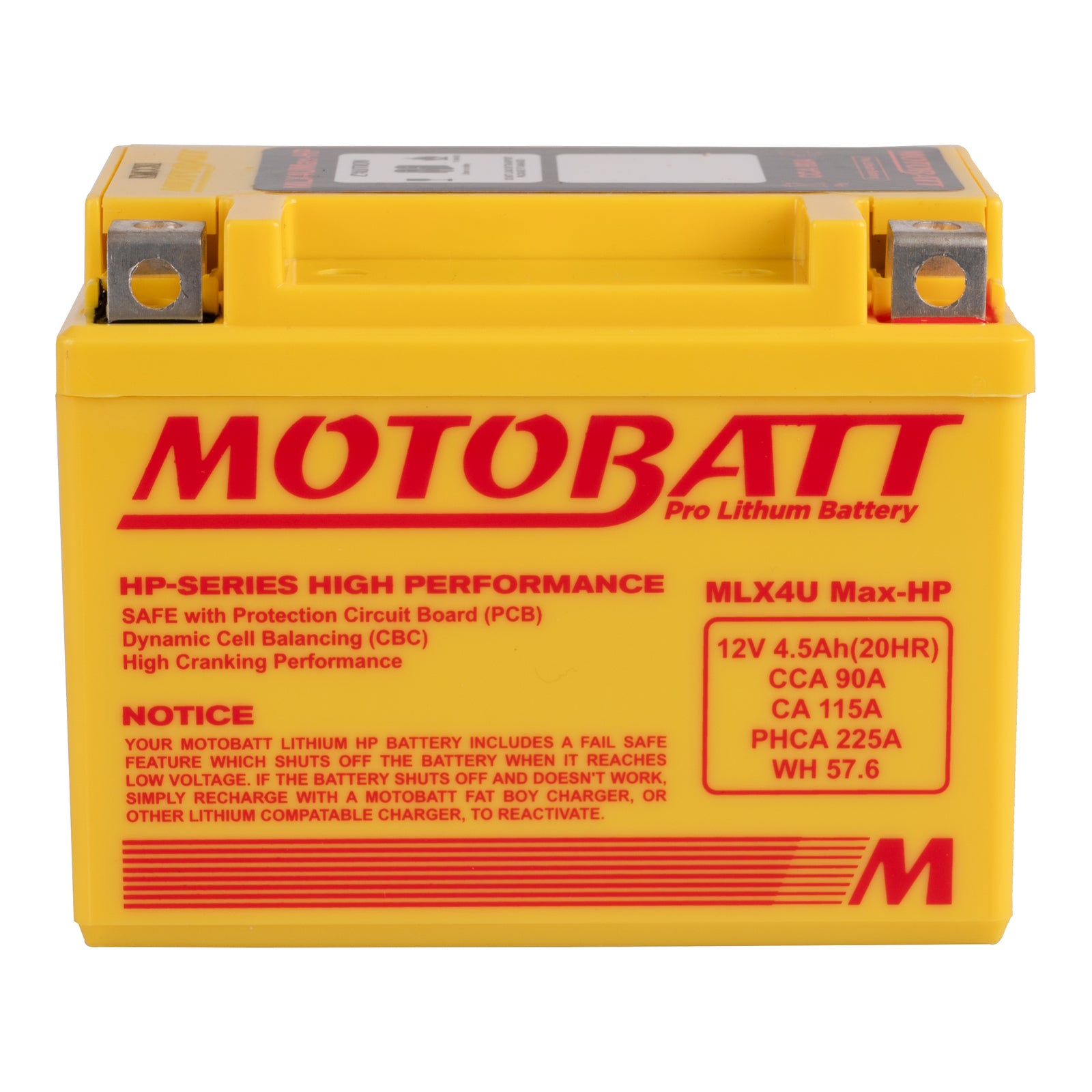

Motobatt Pro Lithium batteries are around 3x lighter than conventional lead- acid batteries, yet they produce even greater cranking performance ideal in competitive environments. This additional power translates into the ability to provide strong starting currents that are required for reliable, repeated starts at a wider range of temperatures than lead-acid batteries. Due to their very low idle discharge, Motobatt Pro Lithium batteries can retain charge after more than a year of inactivity. Pro Lithium batteries have a high life expectancy with over 2000 cycles compared to around 500 for a lead-acid battery, while also boasting a short recharge time, supplying up to 90% charge after.

Specifications:

• Capacity: 4.5 Ah
• CA: 115
• Box quantity: 10
• Size: (LxWxH) 114 x 70x 87, 114 x 70x 107 (EVA 2), 114 x 70x 127 (EVA 2)
• Quadflex: MBTZ7S, MBTX7U
• Replaces:
  • YTX5L-BS, YTZ6S, YTZ7S
  • YTX7L-BS, YTZ8V

Features:

• Over-charge Protection is activated when the battery voltage reaches 15.6v or if any individual cells reach 3.90v. This is to protect the battery from overheating and overcharging.
• Over-discharge protection is activated when the battery voltage drops below 8.0v for longer than 7 seconds.
• Cell balancing

Cell Balancing Circuit (CBC)

Motobatt’s Cell Balancing Circuit or CBC for short gives their range of Pro Lithium batteries an edge over the competition. The dynamic cell balancing provides the ultimate in cell control giving superior performance, life span and safety.

Each Motobatt Lithium battery contains a unique CBC which always controls the charge/discharge of the cells, especially when experiencing unreliable current during use. Most other batteries only have their CBC in the charging system, this only provides proper control and balance when the unit is connected to a wall socket.

Due to the CBC technology, Motobatt Pro Lithium batteries can be recharged* when flat (below 10V) allowing them to last longer and provide more power to your motorcycle.

*Aggressive and repeat discharging may affect capacity and rechargeability

Protection Circuit Board (PCB)

Exclusive to Motobatt’s Pro Lithium HP-Series the Protection Circuit Board (PCB) technology makes Motobatt’s Pro Lithium batteries the safest on the market. PCB is designed to reduce the threat of thermal runaway and premature battery failure.

Note:

• Motobatt Pro Lithium batteries require different care and maintenance from standard lead-acid batteries. Always use a charger designed for use with lithium batteries. Warranty will be voided by using any other type of charger.
• Motobatt Pro Lithium batteries are high- performance starting batteries. They are not suitable for use where there is a parasitic drain on the battery, e.g. hot grips, alarms, clocks etc.
• Motobatt recommends the use of Tech 1 or Fat Boy Chargers to maintain and achieve best battery performance and longest life span.

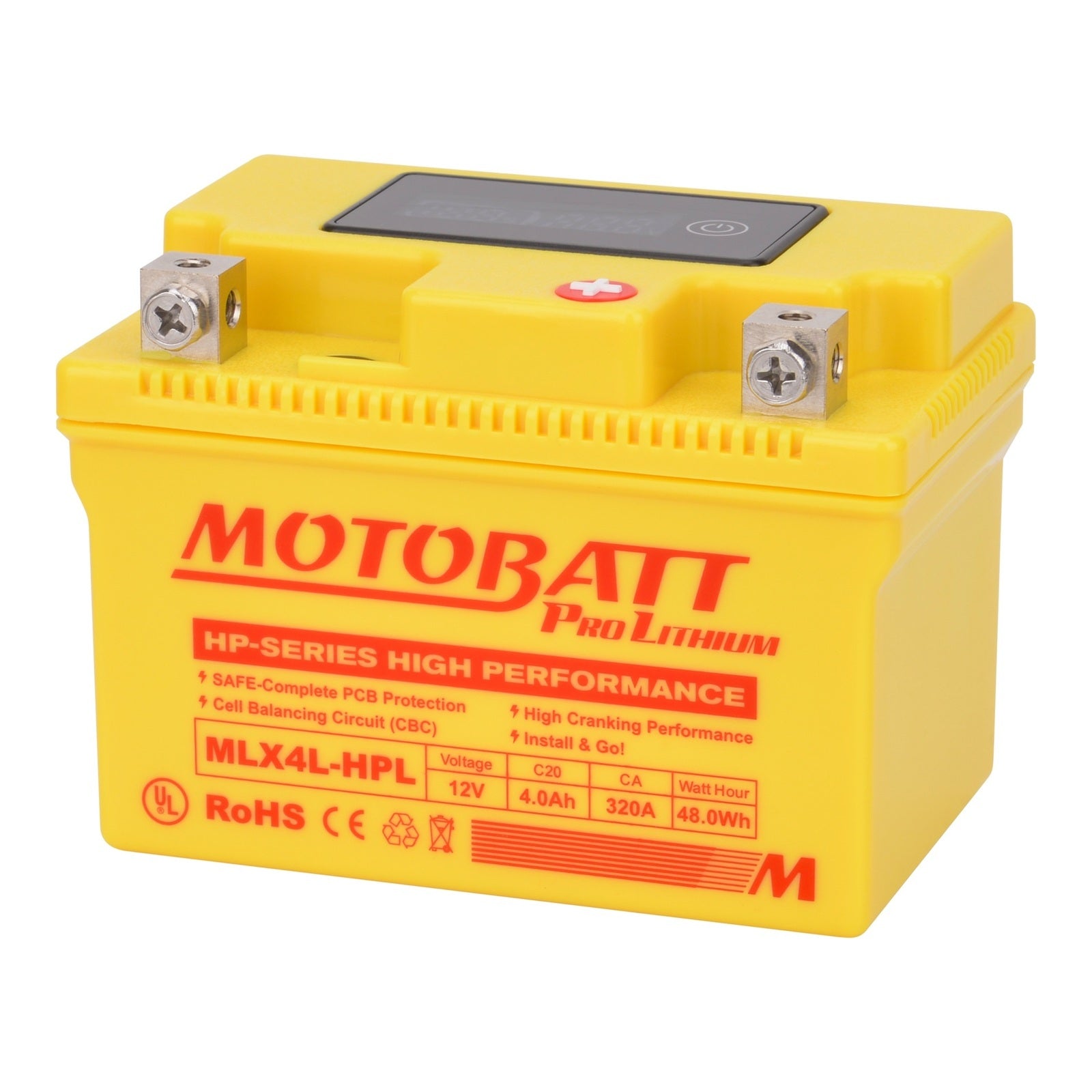

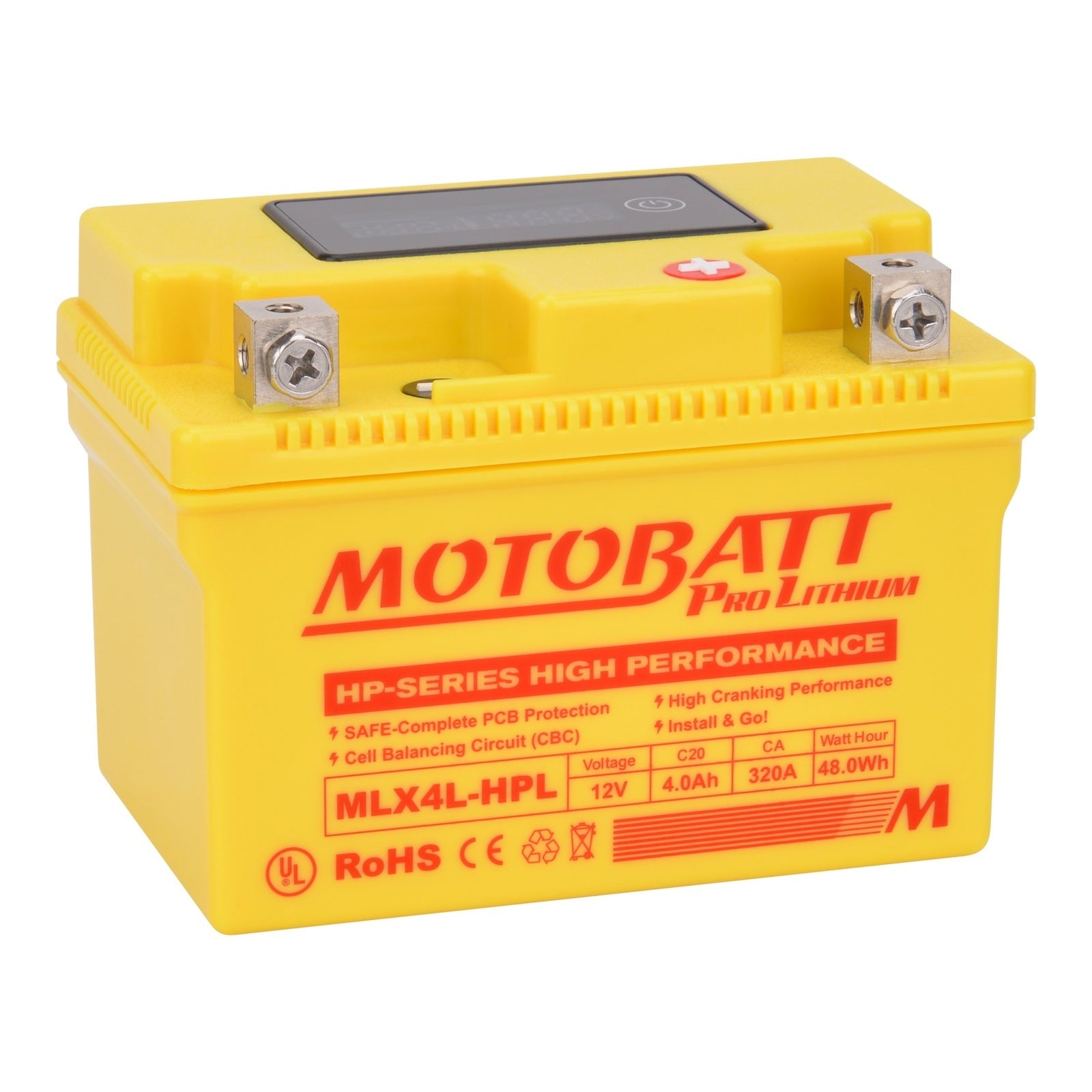

Take your bike to the next level with the new Motobatt Pro Lithium! Super compact and powerful, this battery delivers instant starting performance while shedding weight compared to traditional lead-acid options. Built with advanced lithium technology, it offers longer life, faster charging, and consistent power delivery. Perfect for riders who demand reliability and performance, the Motobatt Pro Lithium keeps you riding stronger, longer.

Features:

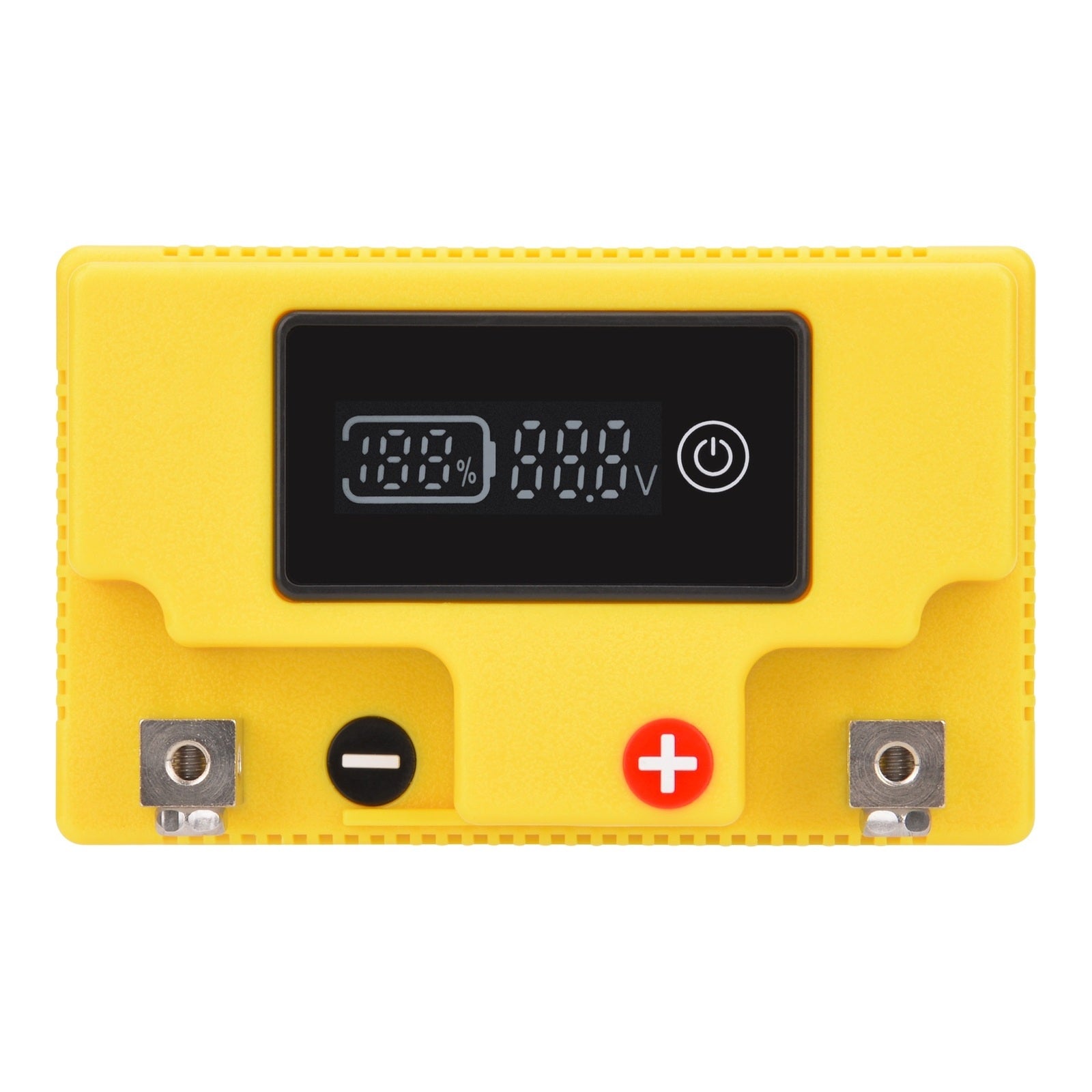

• Integrated LED indicator shows voltage and charge percentage in real time.
• High power with Cell Balancing Circuit (CBC) and Protection Circuit Board (PCB).
• Ultra-lightweight design for maximum performance.
• Ideal for racing and high-performance motorcycles.

Specifications:

• Capacity (Ah): 4.0Ah
• Cranking (CA): 320A
• Energy (Wh): 48.0Wh

Motobatt Pro Lithium HP Series battery offers complete overcharging, over- discharging, temperature protection and cell balancing capability, to provide maximum performance, protection and safety to the battery.

Features:

• Dynamic Cell Balancer: Optimizes each cell voltage to maximum.
• Over-Charge Protection: Prevents the machine or charger from overcharging the battery; cut off at 15.4V.
• Under Discharge Protection: Prevents the battery from being overdischarged to premature failure; Cut off at 8V
• Thermal Protection.: Temperature sensor shuts down before dangerous temperatures can occur; Cut off at 75°C
• Reactivation: Can be reactivated from shutdown with Motobatt PDCFB Charger or any charger that starts from 0 volts.
• Performance: Designed for performance rides.

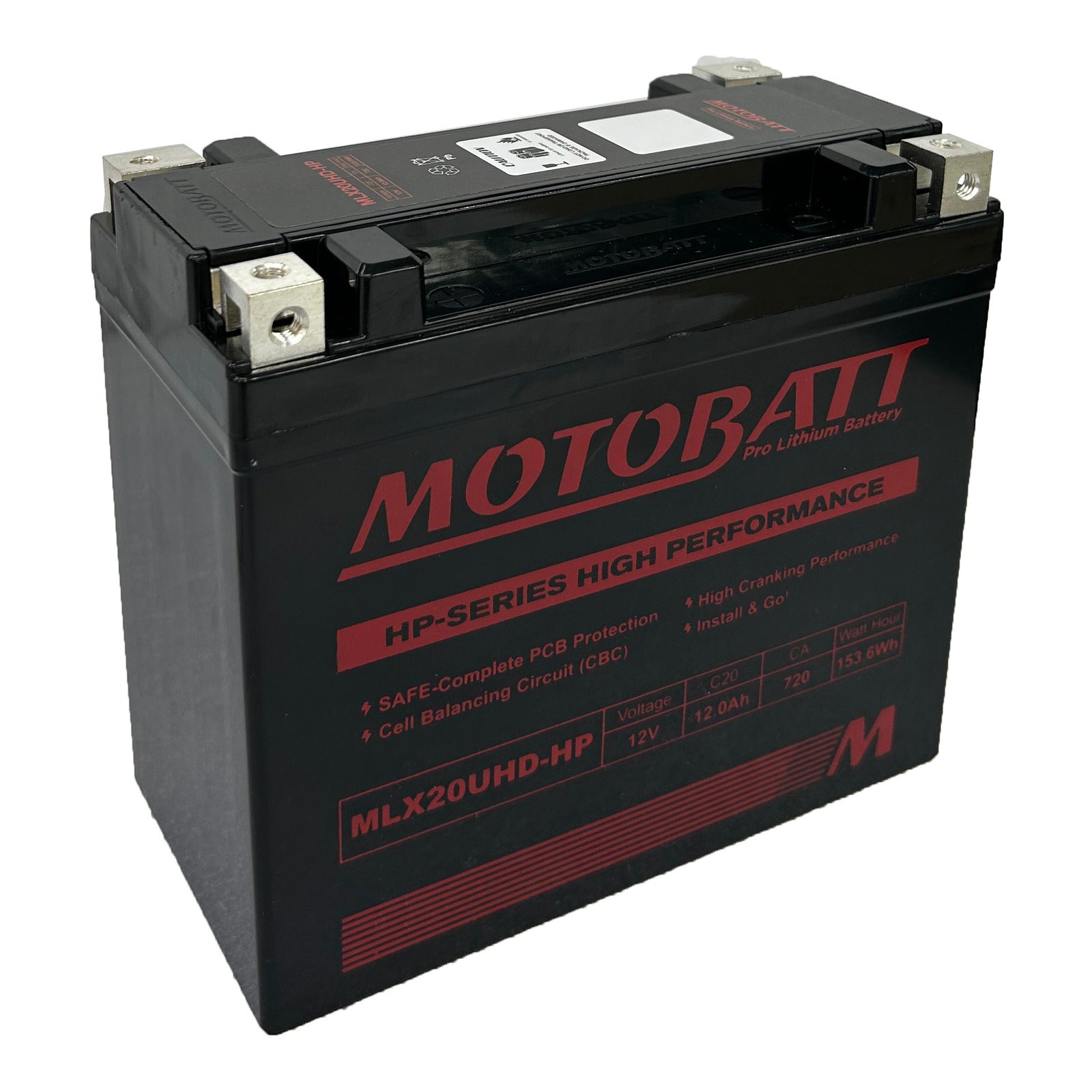

Specifications:

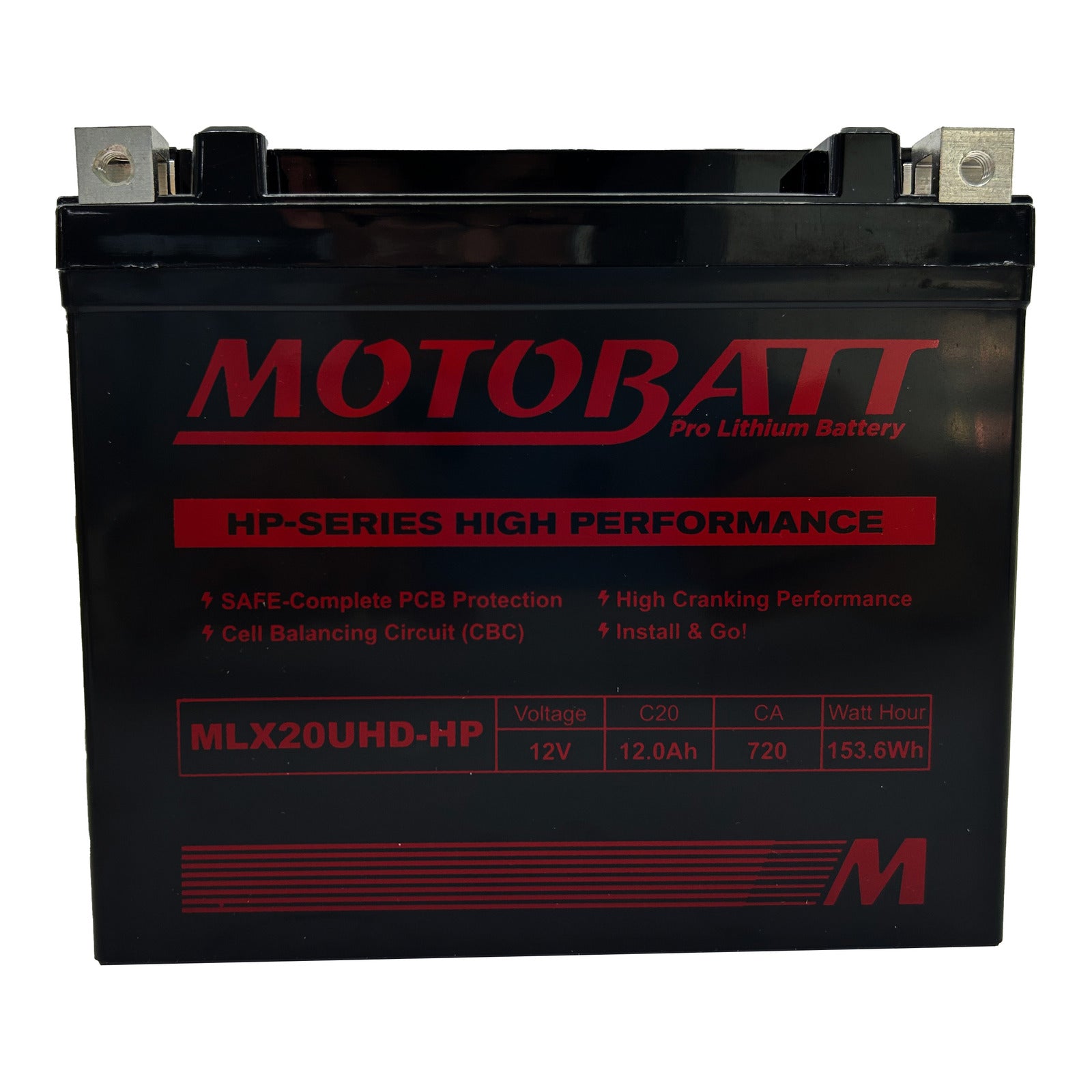

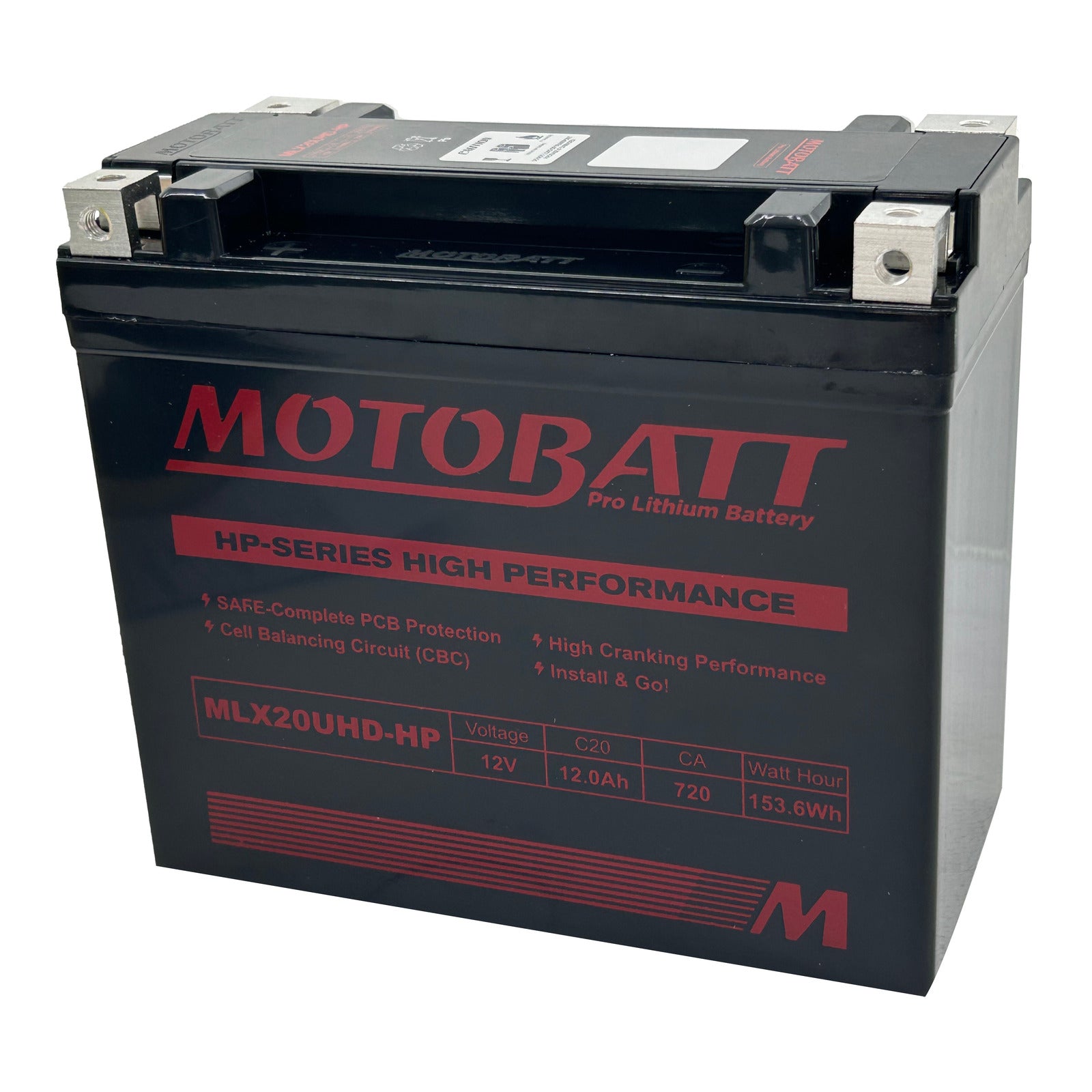

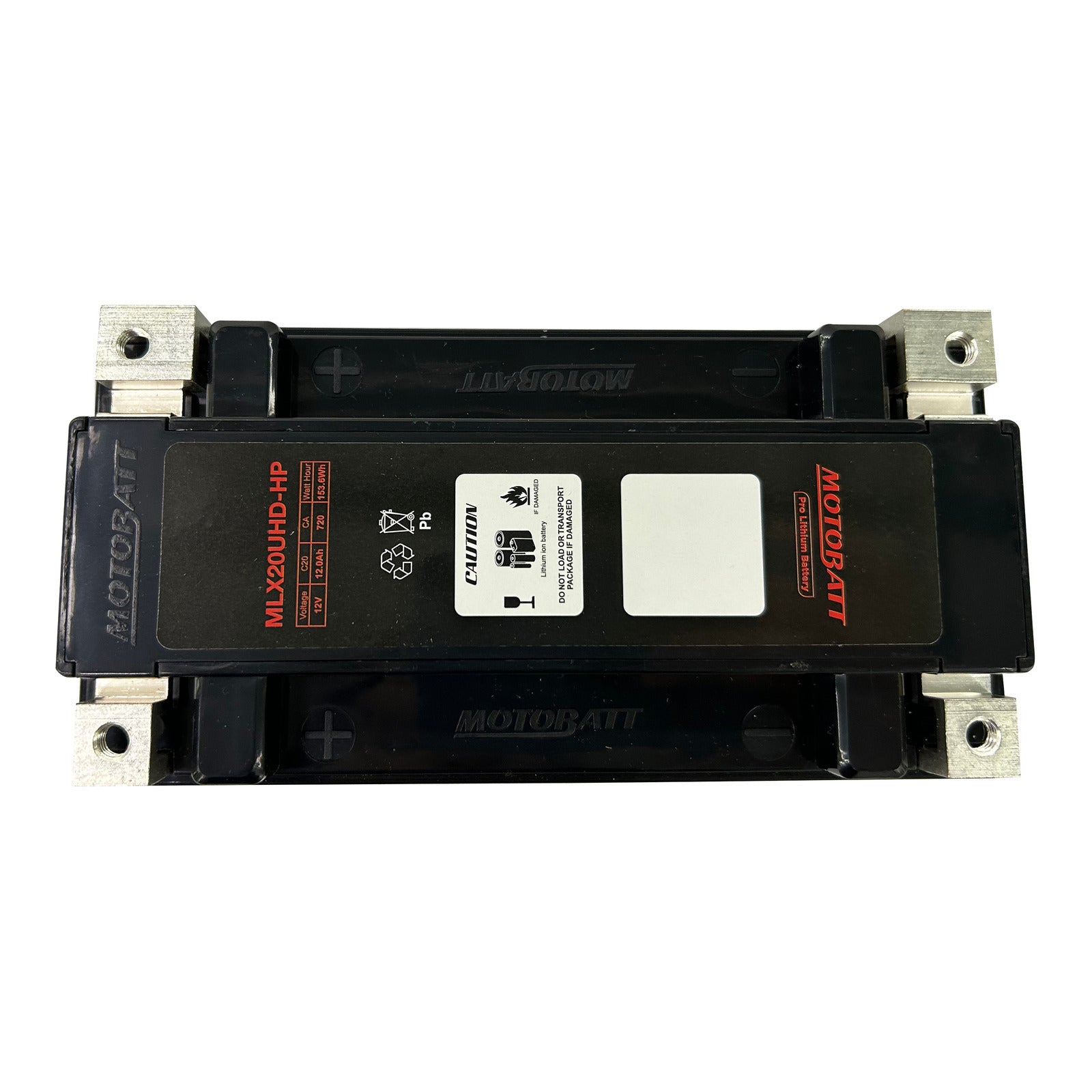

• Battery Type: MLX20UHD-HP Pro Lithium Lifepo4
• Voltage: 13.2V
• Capacity: 12A
• CCA: 720
• Weight: 3.06Lbs (1.39KG)
• Dimensions (in / mm):
  • L: 6.89 (175)
  • W: 3.43 (87)
  • H: 6.10 (155)
  • TW: 3.94 (100)
  • TH: 6.89 (175)
• Assembly Figure Terminal Locations: 4
• Terminals: 4, Fixed HD Compatible
• Screws: 2, M6X10 (Part#2xMPS3)
• Spacers:
  • 1x 175x87x20 mm Height Spacer Pt (EVA7)
  • 1x 170x115x15 mm Width Spacer Pt (EVA8)

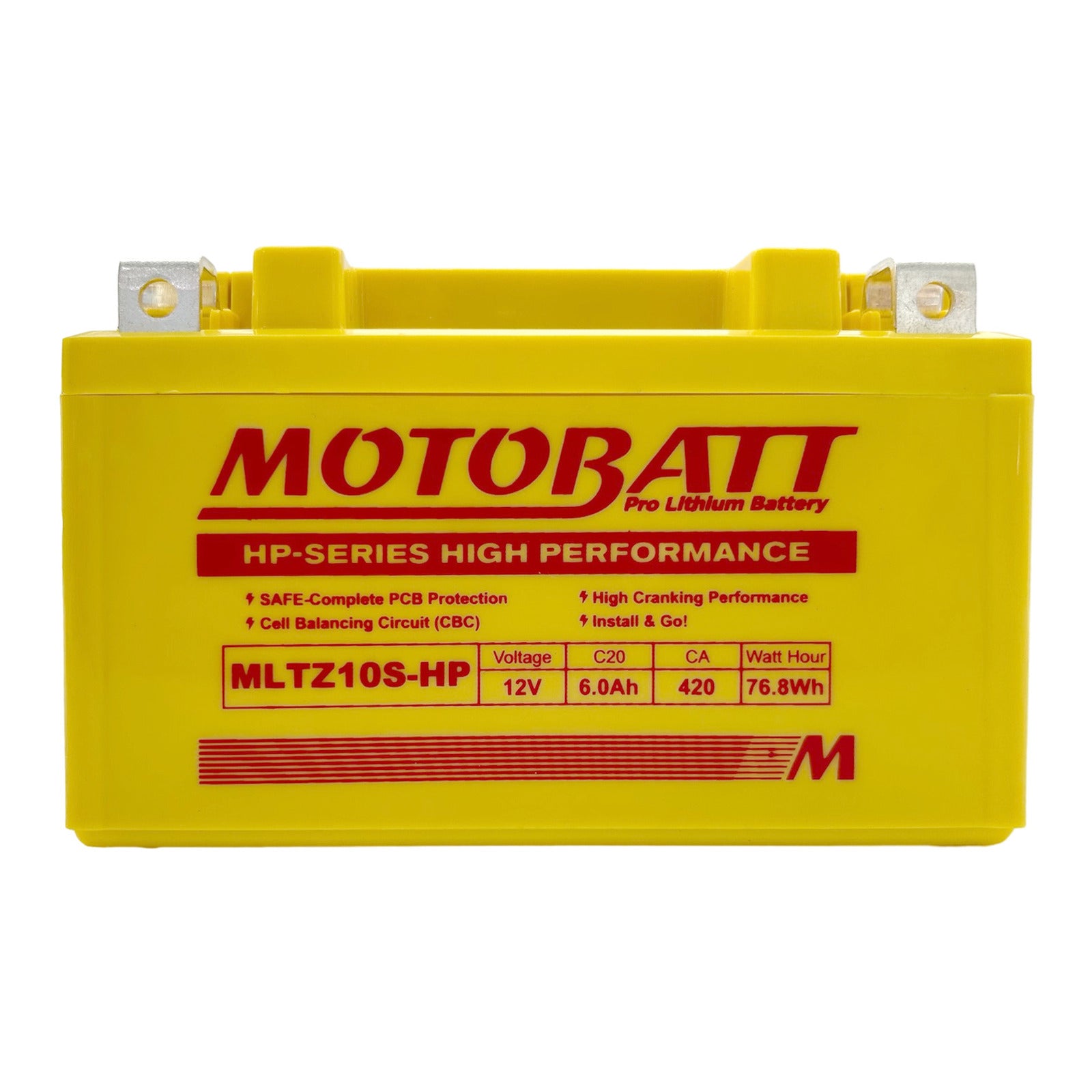

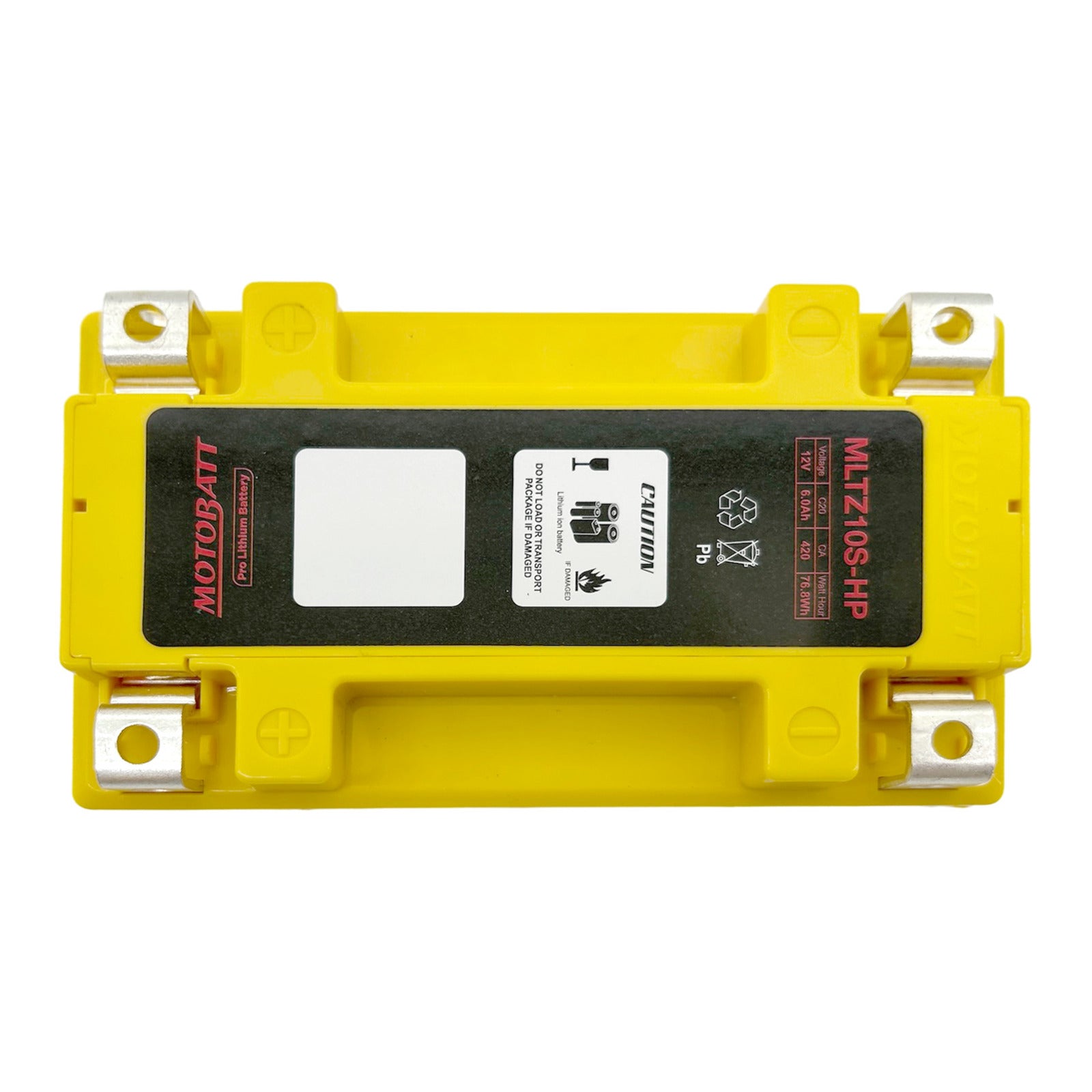

Motobatt Pro Lithium HP Series battery offers complete overcharging, over- discharging, temperature protection and cell balancing capability, to provide maximum performance, protection and safety to the battery.

Motobatt Pro Lithium P Series battery only offers Overcharging, Temperature Protection and Cell Balancing capabilities.

• Overcharging Protection is activated when the battery voltage reaches 15.6v or if any individual cells reach 3.90v. This is to protect the battery from overheating and overcharging.
• Over-discharging protection is activated when the battery voltage drops below 8.0v for longer than 7 seconds.
• Cell Balancing is vital to optimizing the battery's health. This function allows the voltage to be balanced in each cell, maximizing power, performance, and enhancing the battery's life span.

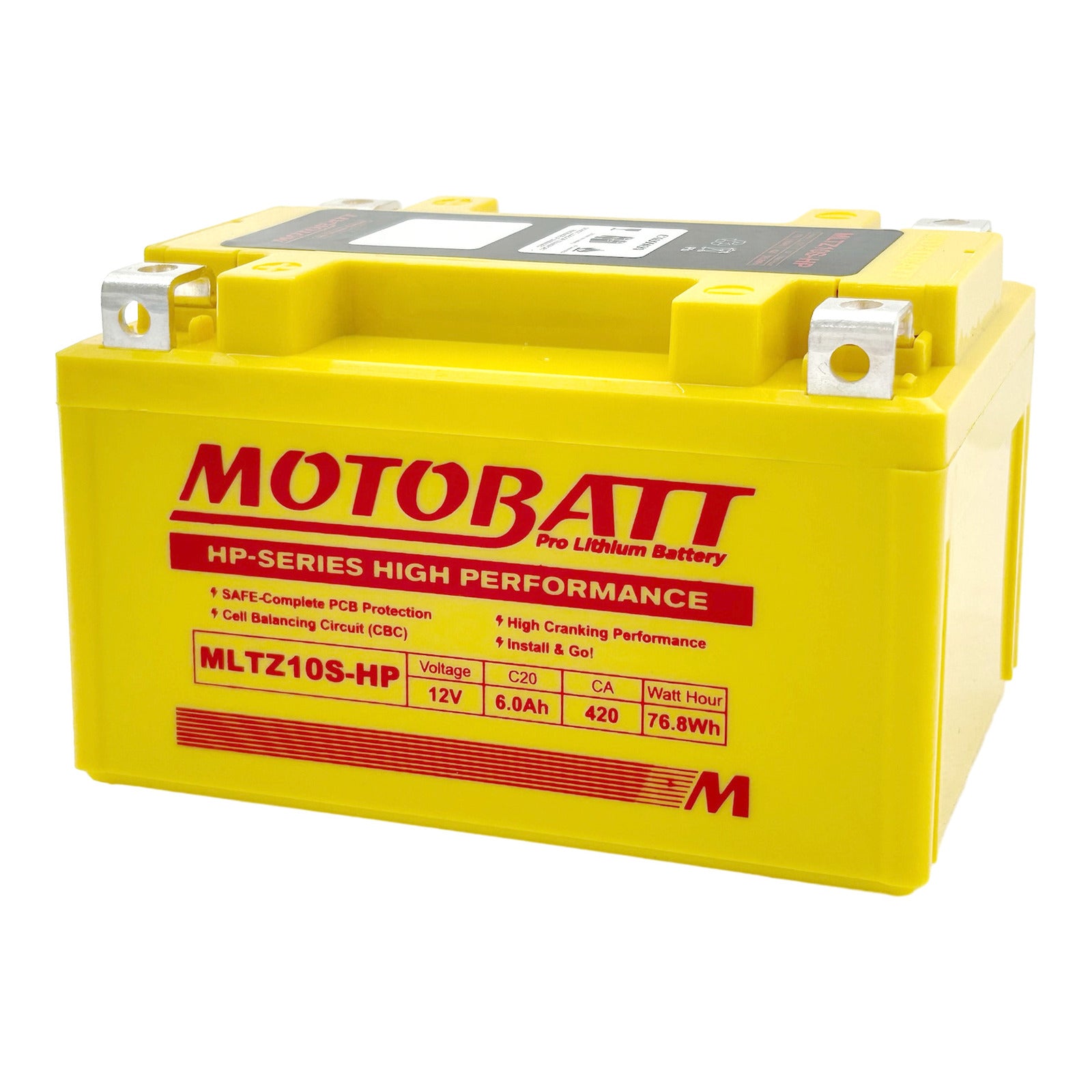

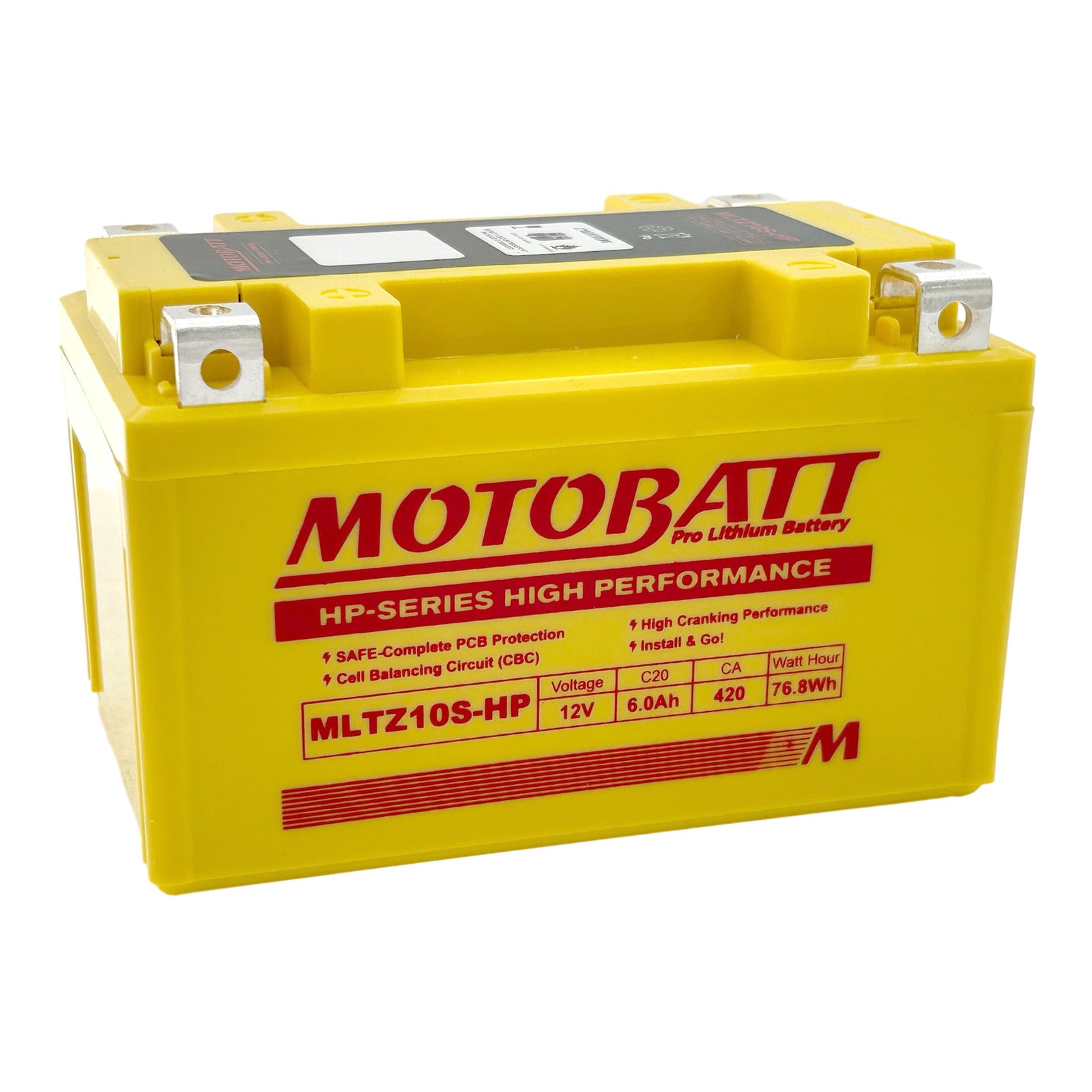

Motobatt Pro Lithium

• Safe – Stable lithium cell and protection (PCB)
• Powerful – Maximum cell power and best battery design
• Durable – Cell balancing circuit (CBC)
• Fitment – Light and original equipment fit

Specifications:

• Ah: 6
• CA: 420
• Box Quantity: 8

Spacer Sizes:

• 151 x 87 x 95
  • MB7U
• 151 x 87 x 105
  • EVA 3
  • 150 x 84 x 10mm

Note:

Motobatt recommends the use of Tech 1 or Fat Boy Chargers to maintain and achieve the best battery performance and longest life span.

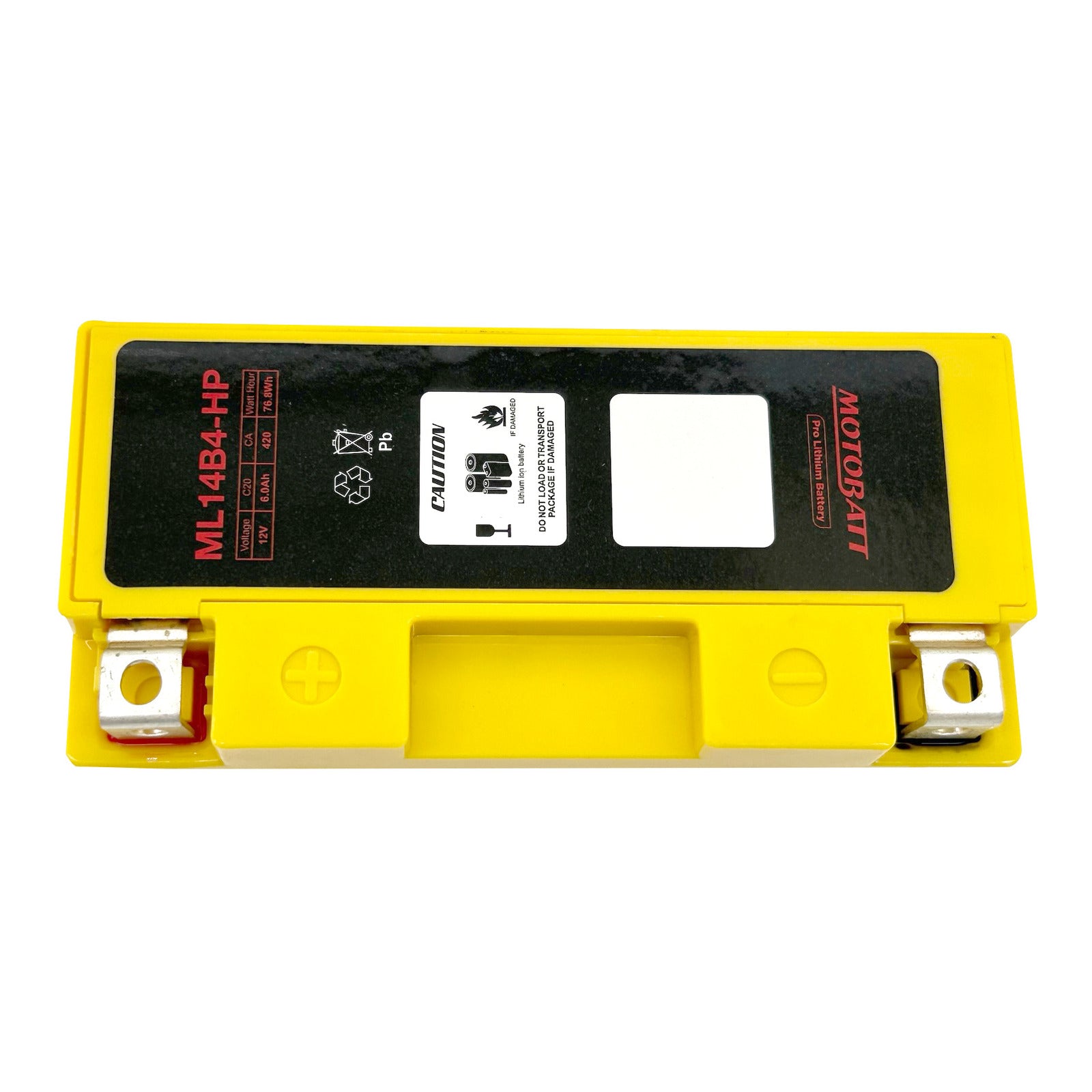

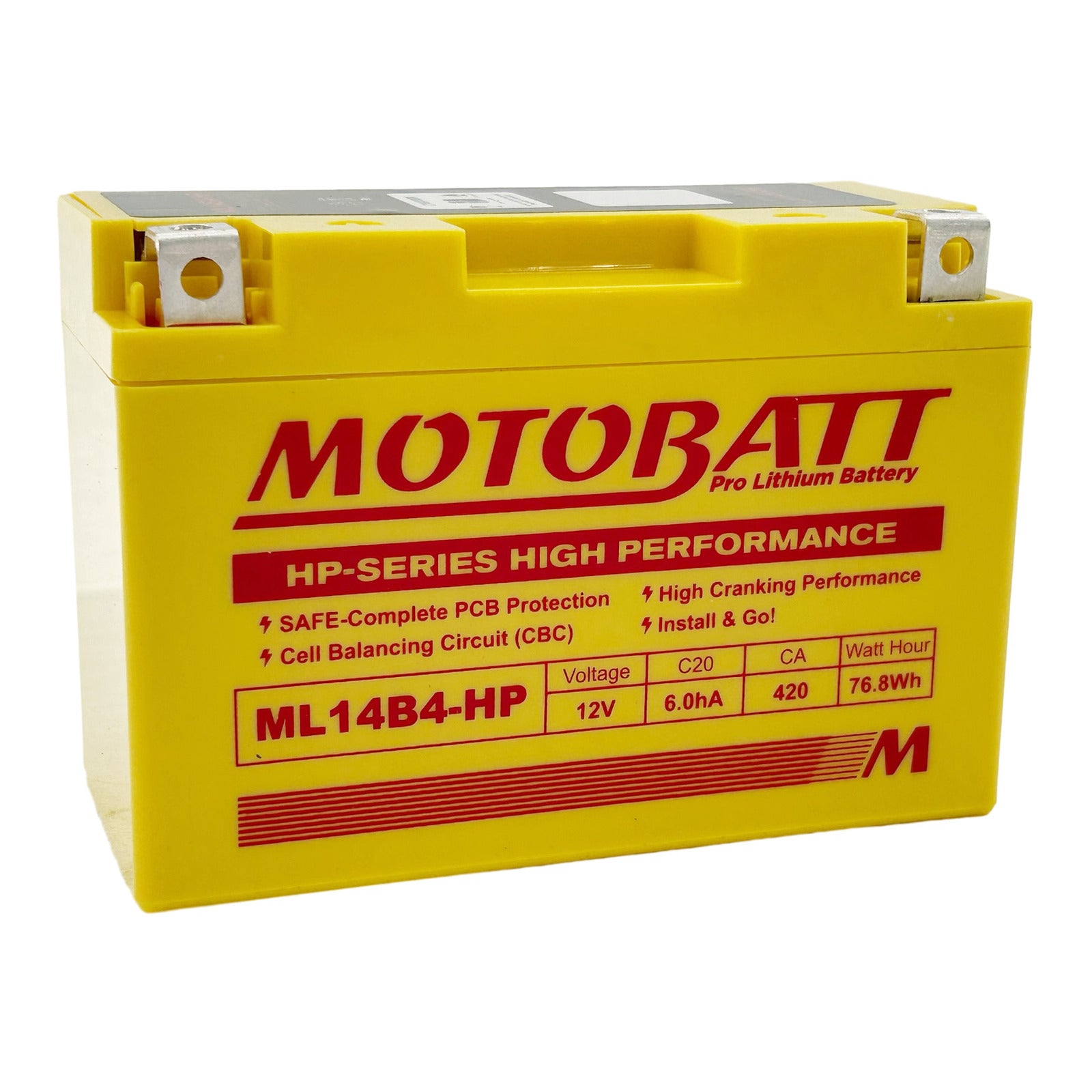

Motobatt Pro Lithium HP Series battery offers complete overcharging, over- discharging, temperature protection and cell balancing capability, to provide maximum performance, protection and safety to the battery.

Motobatt Pro Lithium P Series battery only offers Overcharging, Temperature Protection and Cell Balancing capabilities.

• Overcharging Protection is activated when the battery voltage reaches 15.6v or if any individual cells reach 3.90v. This is to protect the battery from overheating and overcharging.
• Over-discharging protection is activated when the battery voltage drops below 8.0v for longer than 7 seconds.
• Cell Balancing is vital to optimizing the battery's health. This function allows the voltage to be balanced in each cell, maximizing power, performance, and enhancing the battery's life span.

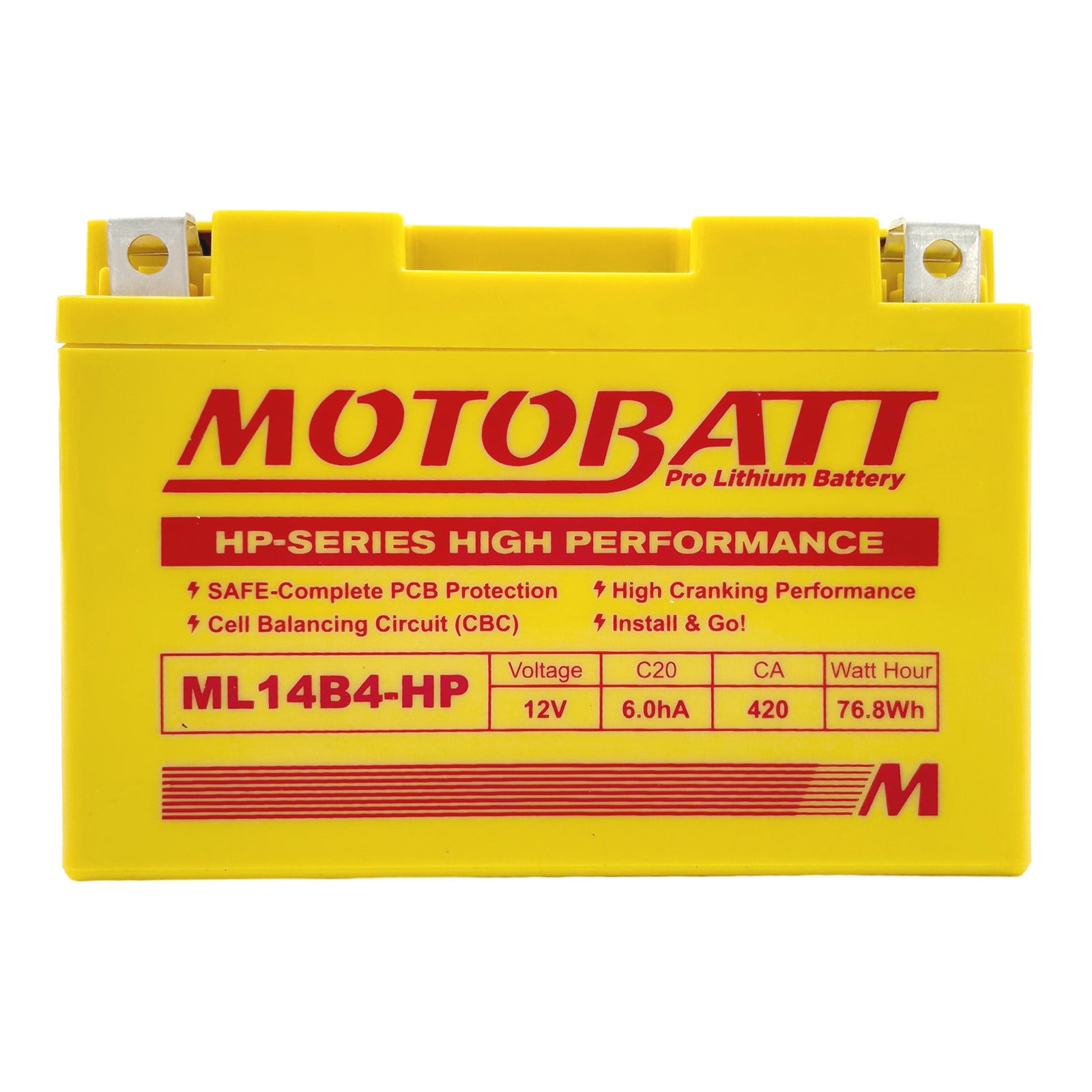

Motobatt Pro Lithium

• Safe – Stable lithium cell and protection (PCB)
• Powerful – Maximum cell power and best battery design
• Durable – Cell balancing circuit (CBC)
• Fitment – Light and original equipment fit

Specifications:

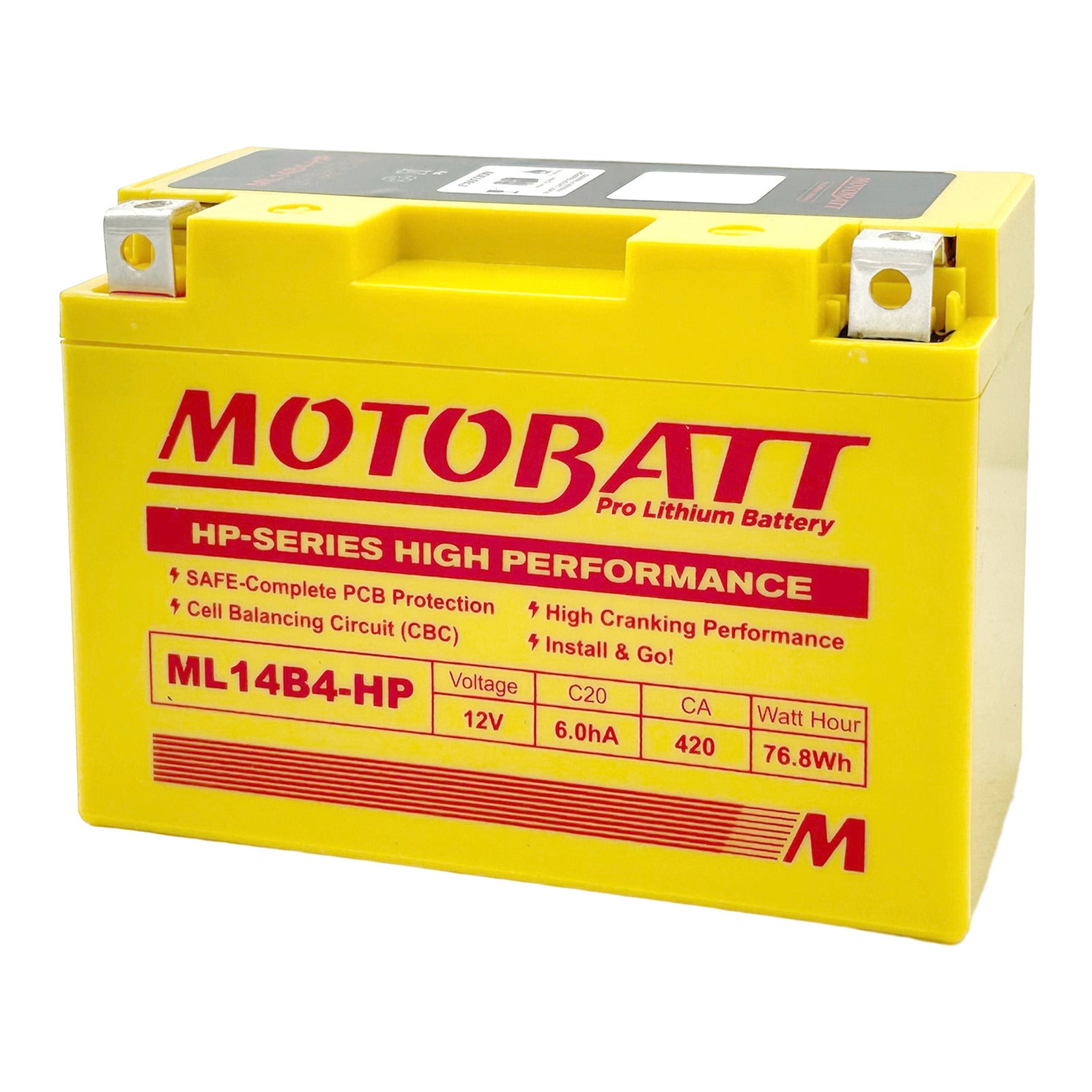

• Ah: 6
• CA: 420
• Box Quantity: 6

Spacer Sizes:

• 150 x 70 x 104
  • MBT9B4
• 150 x 70 x 129
  • EVA 6
  • 150 x 70 x 25mm
  • MBT12B4
• 150 x 70 x 144
  • EVA 5 and EVA 6
  • 150 x 70 x 15mm and 150 x 70 x 25mm
  • MBT14B4

Note:

Motobatt recommends the use of Tech 1 or Fat Boy Chargers to maintain and achieve the best battery performance and longest life span.

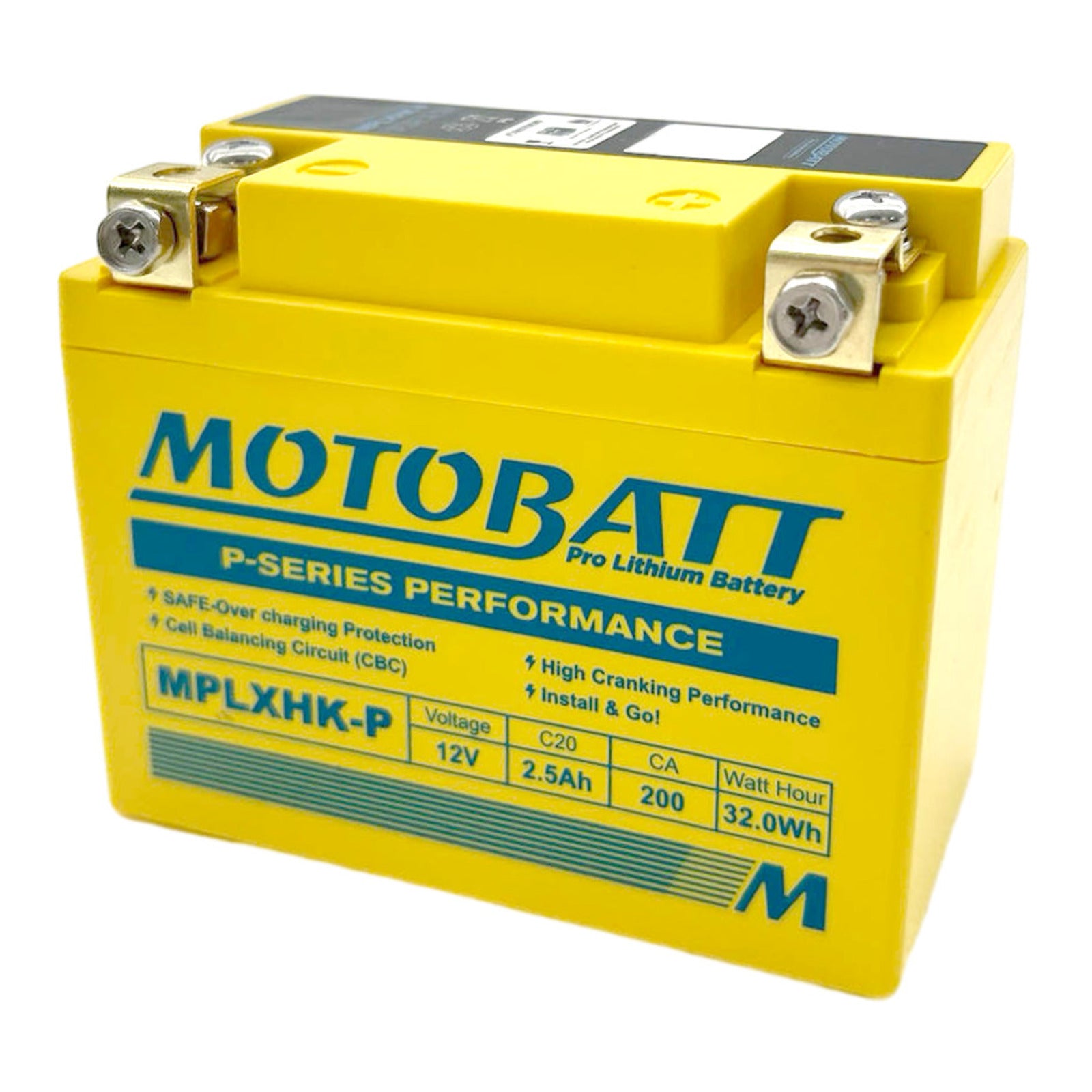

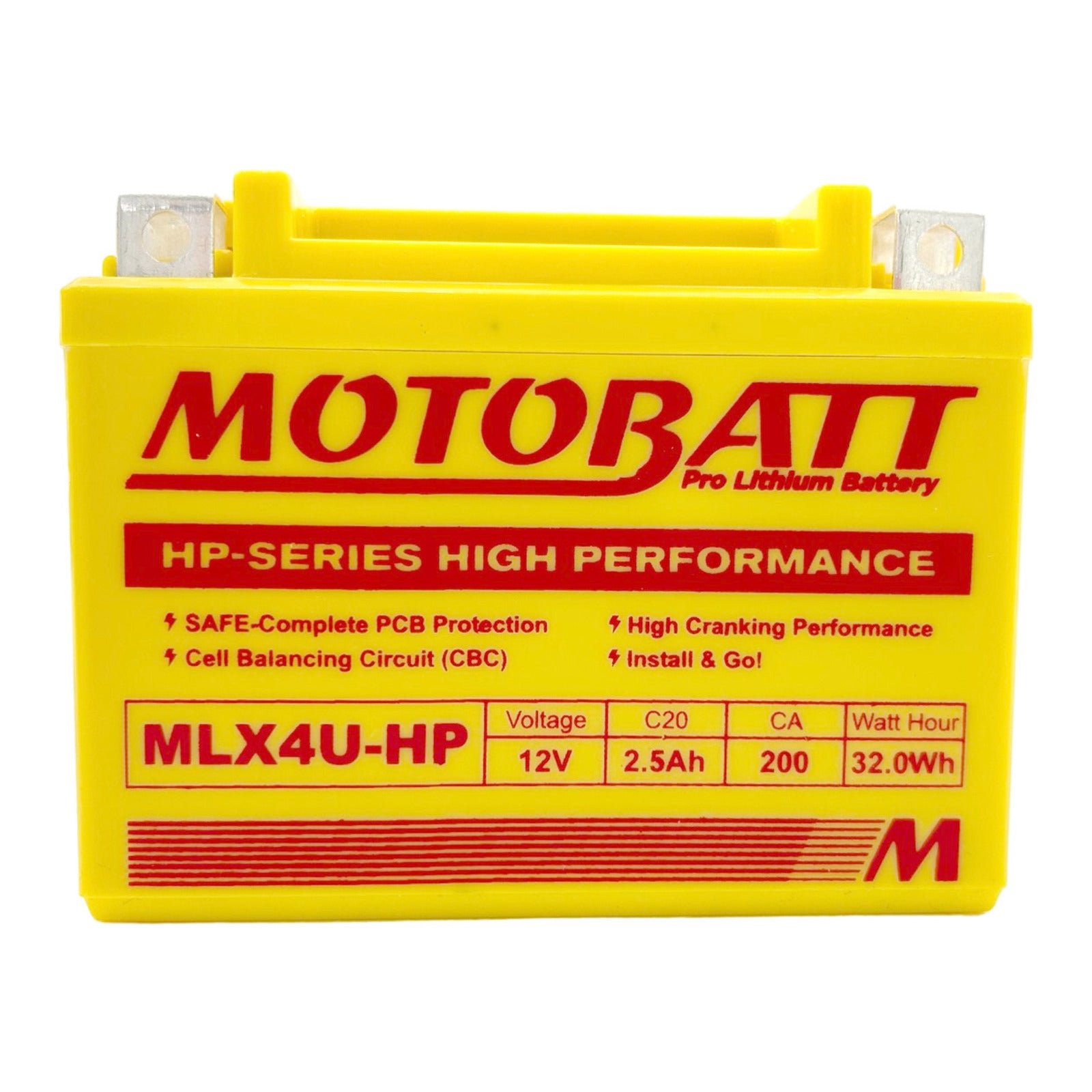

Motobatt Pro Lithium batteries are around 3x lighter than conventional lead- acid batteries, yet they produce even greater cranking performance ideal in competitive environments. This additional power translates into the ability to provide strong starting currents that are required for reliable, repeated starts at a wider range of temperatures than lead-acid batteries. Due to their very low idle discharge, Motobatt Pro Lithium batteries can retain charge after more than a year of inactivity. Pro Lithium batteries have a high life expectancy with over 2000 cycles compared to around 500 for a lead-acid battery, while also boasting a short recharge time, supplying up to 90% charge after.

Specifications:

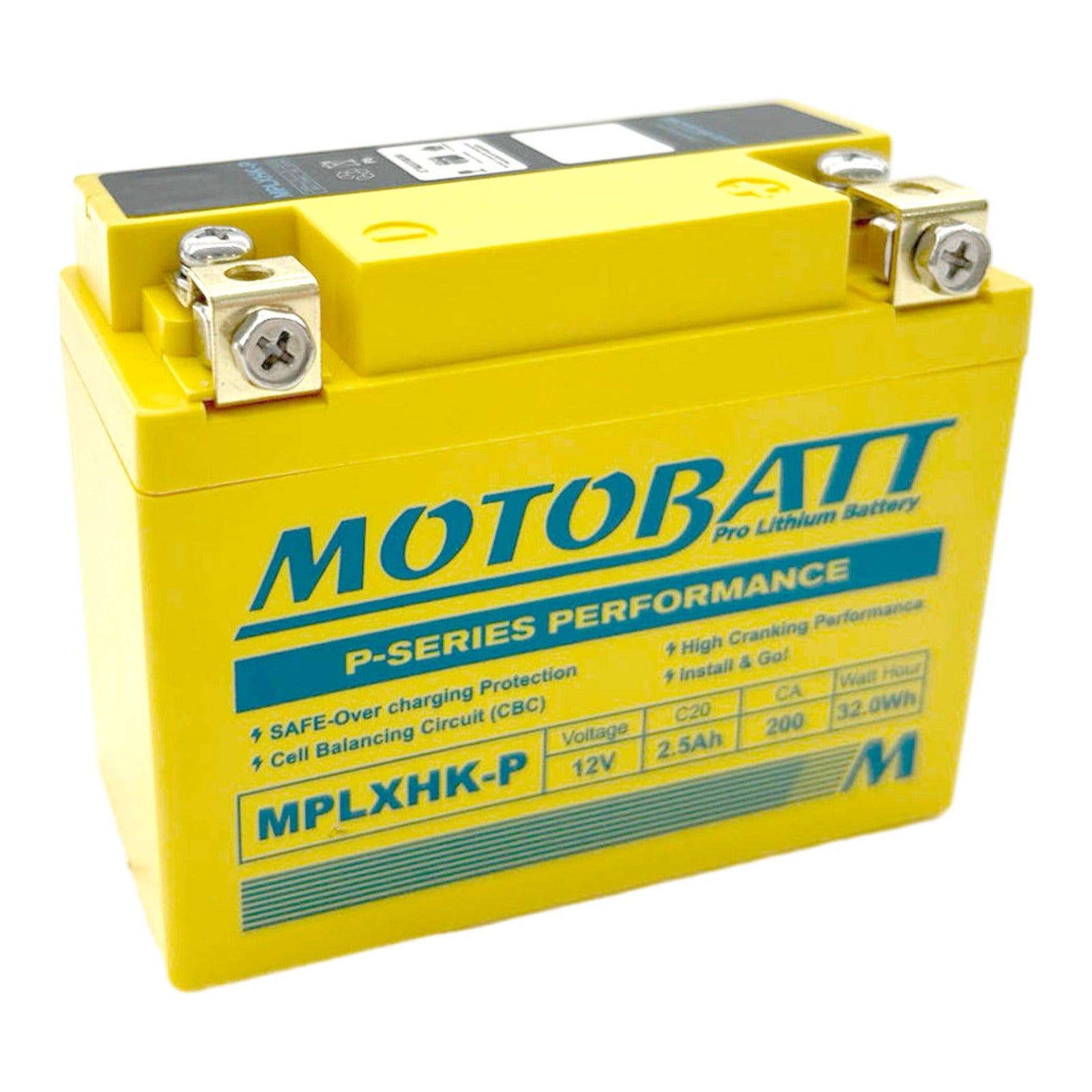

• Capacity: 2.5 Ah
• CA: 200
• Box quantity: 10
• Size: (LxWxH) 107 x 49 x 85, 107 x 54 x 85 (EVA 1)
• Spacer size: 80 x 64 x 5mm (EVA 1)

Features:

• Over-charge Protection is activated when the battery voltage reaches 15.6v or if any individual cells reach 3.90v. This is to protect the battery from overheating and overcharging.
• Cell balancing

Cell Balancing Circuit (CBC)

Motobatt’s Cell Balancing Circuit or CBC for short gives their range of Pro Lithium batteries an edge over the competition. The dynamic cell balancing provides the ultimate in cell control giving superior performance, life span and safety.

Each Motobatt Lithium battery contains a unique CBC which always controls the charge/discharge of the cells, especially when experiencing unreliable current during use. Most other batteries only have their CBC in the charging system, this only provides proper control and balance when the unit is connected to a wall socket.

Due to the CBC technology, Motobatt Pro Lithium batteries can be recharged* when flat (below 10V) allowing them to last longer and provide more power to your motorcycle.

*Aggressive and repeat discharging may affect capacity and rechargeability

Protection Circuit Board (PCB)

Exclusive to Motobatt’s Pro Lithium HP-Series the Protection Circuit Board (PCB) technology makes Motobatt’s Pro Lithium batteries the safest on the market. PCB is designed to reduce the threat of thermal runaway and premature battery failure.

Note:

• Motobatt Pro Lithium batteries require different care and maintenance from standard lead-acid batteries. Always use a charger designed for use with lithium batteries. Warranty will be voided by using any other type of charger.
• Motobatt Pro Lithium batteries are high-performance starting batteries. They are not suitable for use where there is a parasitic drain on the battery, e.g. hot grips, alarms, clocks etc.
• Motobatt recommends the use of Tech 1 or Fat Boy Chargers to maintain and achieve best battery performance and longest life span.

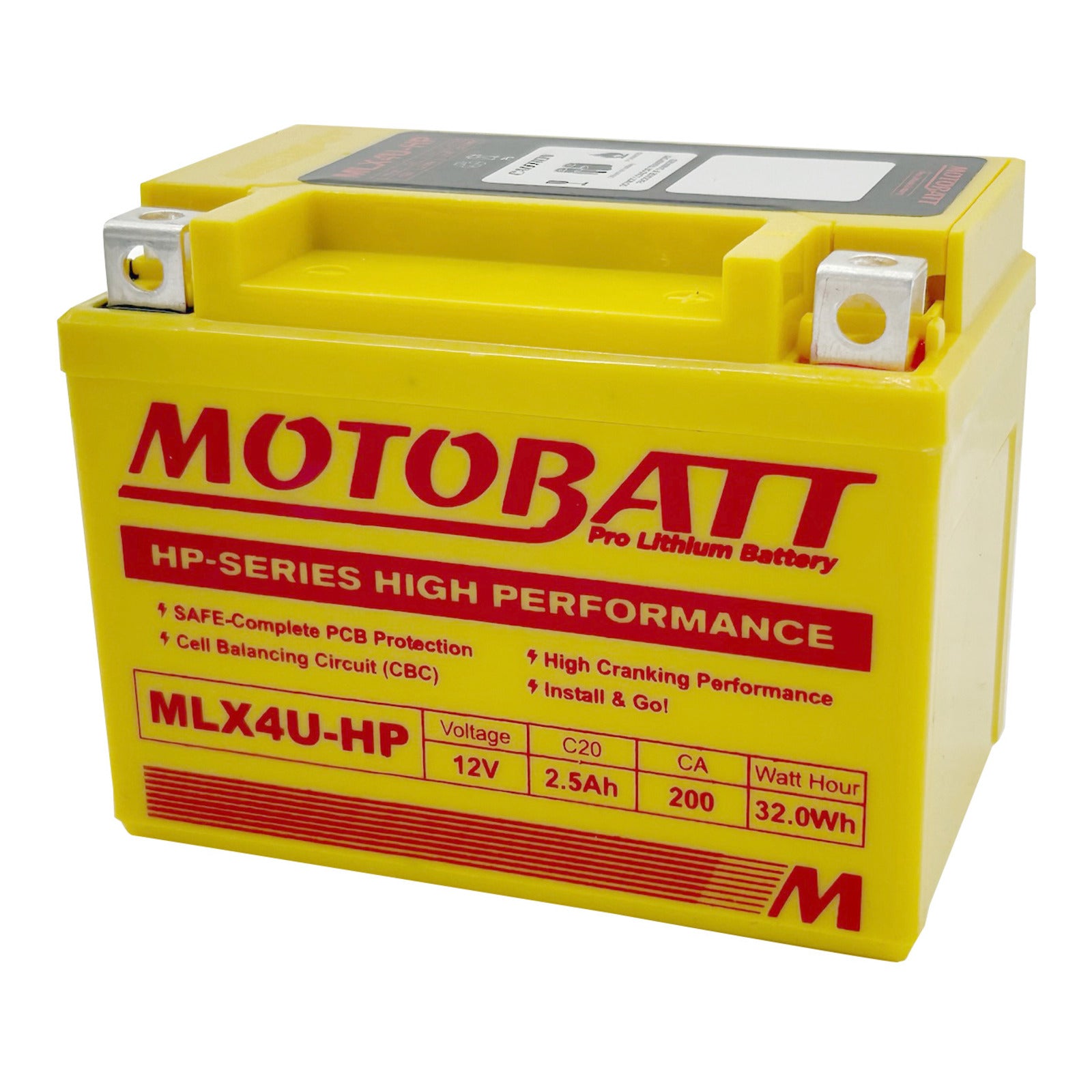

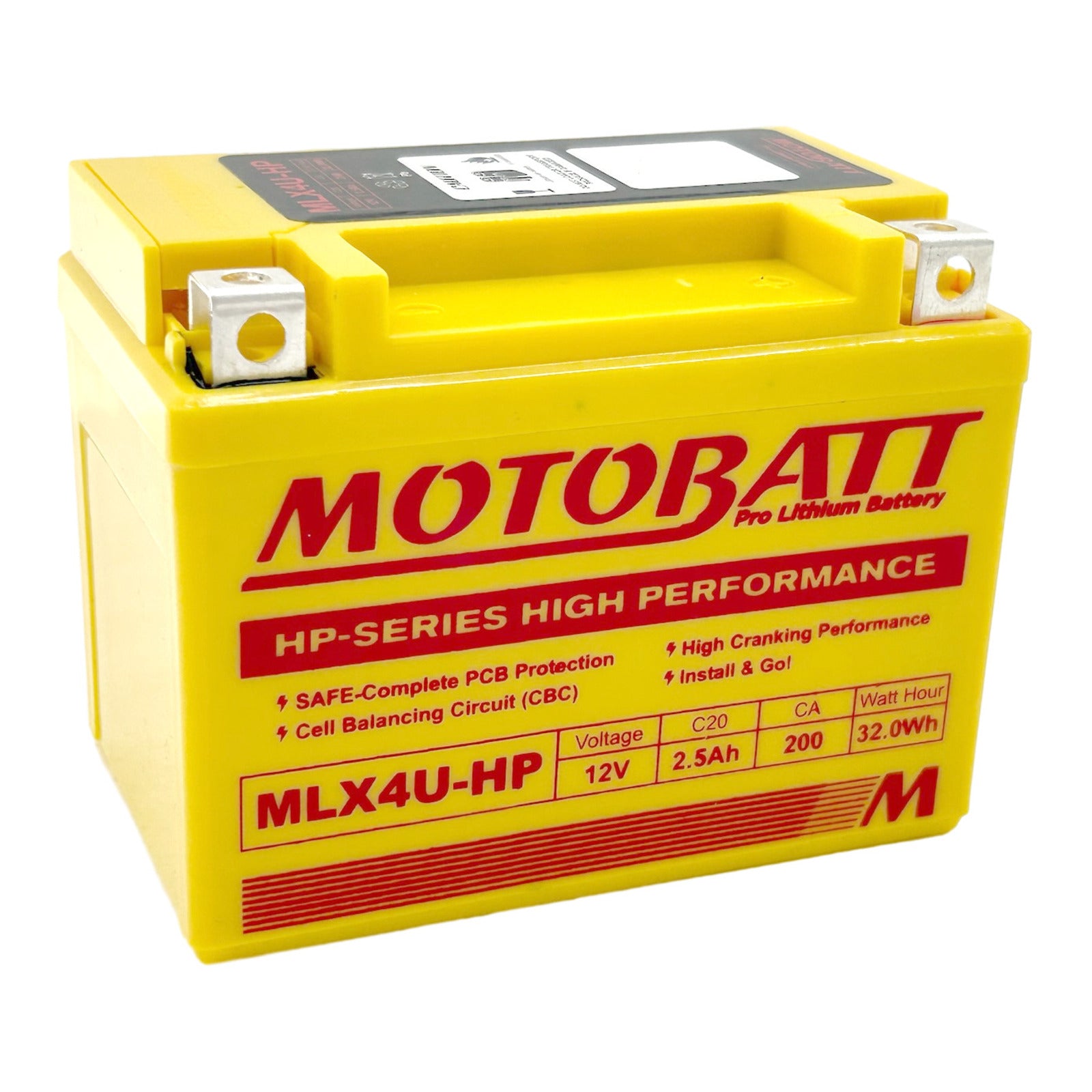

Motobatt Pro Lithium batteries are around 3x lighter than conventional lead- acid batteries, yet they produce even greater cranking performance ideal in competitive environments. This additional power translates into the ability to provide strong starting currents that are required for reliable, repeated starts at a wider range of temperatures than lead-acid batteries. Due to their very low idle discharge, Motobatt Pro Lithium batteries can retain charge after more than a year of inactivity. Pro Lithium batteries have a high life expectancy with over 2000 cycles compared to around 500 for a lead-acid battery, while also boasting a short recharge time, supplying up to 90% charge after.

Specifications:

• Capacity: 2.5 Ah
• CA: 200
• Box quantity: 10
• Size: (LxWxH) 114 x 70 x 87, 114 x 70 x 107 (EVA 2)
• Quadflex: MBTX4U, MBTZ7S
• Replaces:
  • YTX4L-BS, YT4L-BS, YTZ5S-BS, YB4L-A, YB4L-B
  • YTX5L-BS, YTZ6S, YTZ7S

Features:

• Over-charge Protection is activated when the battery voltage reaches 15.6v or if any individual cells reach 3.90v. This is to protect the battery from overheating and overcharging.
• Over-discharge protection is activated when the battery voltage drops below 8.0v for longer than 7 seconds.
• Cell balancing

Cell Balancing Circuit (CBC)

Motobatt’s Cell Balancing Circuit or CBC for short gives their range of Pro Lithium batteries an edge over the competition. The dynamic cell balancing provides the ultimate in cell control giving superior performance, life span and safety.

Each Motobatt Lithium battery contains a unique CBC which always controls the charge/discharge of the cells, especially when experiencing unreliable current during use. Most other batteries only have their CBC in the charging system, this only provides proper control and balance when the unit is connected to a wall socket.

Due to the CBC technology, Motobatt Pro Lithium batteries can be recharged* when flat (below 10V) allowing them to last longer and provide more power to your motorcycle.

*Aggressive and repeat discharging may affect capacity and rechargeability

Protection Circuit Board (PCB)

Exclusive to Motobatt’s Pro Lithium HP-Series the Protection Circuit Board (PCB) technology makes Motobatt’s Pro Lithium batteries the safest on the market. PCB is designed to reduce the threat of thermal runaway and premature battery failure.

Note:

• Motobatt Pro Lithium batteries require different care and maintenance from standard lead-acid batteries. Always use a charger designed for use with lithium batteries. Warranty will be voided by using any other type of charger.
• Motobatt Pro Lithium batteries are high- performance starting batteries. They are not suitable for use where there is a parasitic drain on the battery, e.g. hot grips, alarms, clocks etc.
• Motobatt recommends the use of Tech 1 or Fat Boy Chargers to maintain and achieve best battery performance and longest life span.

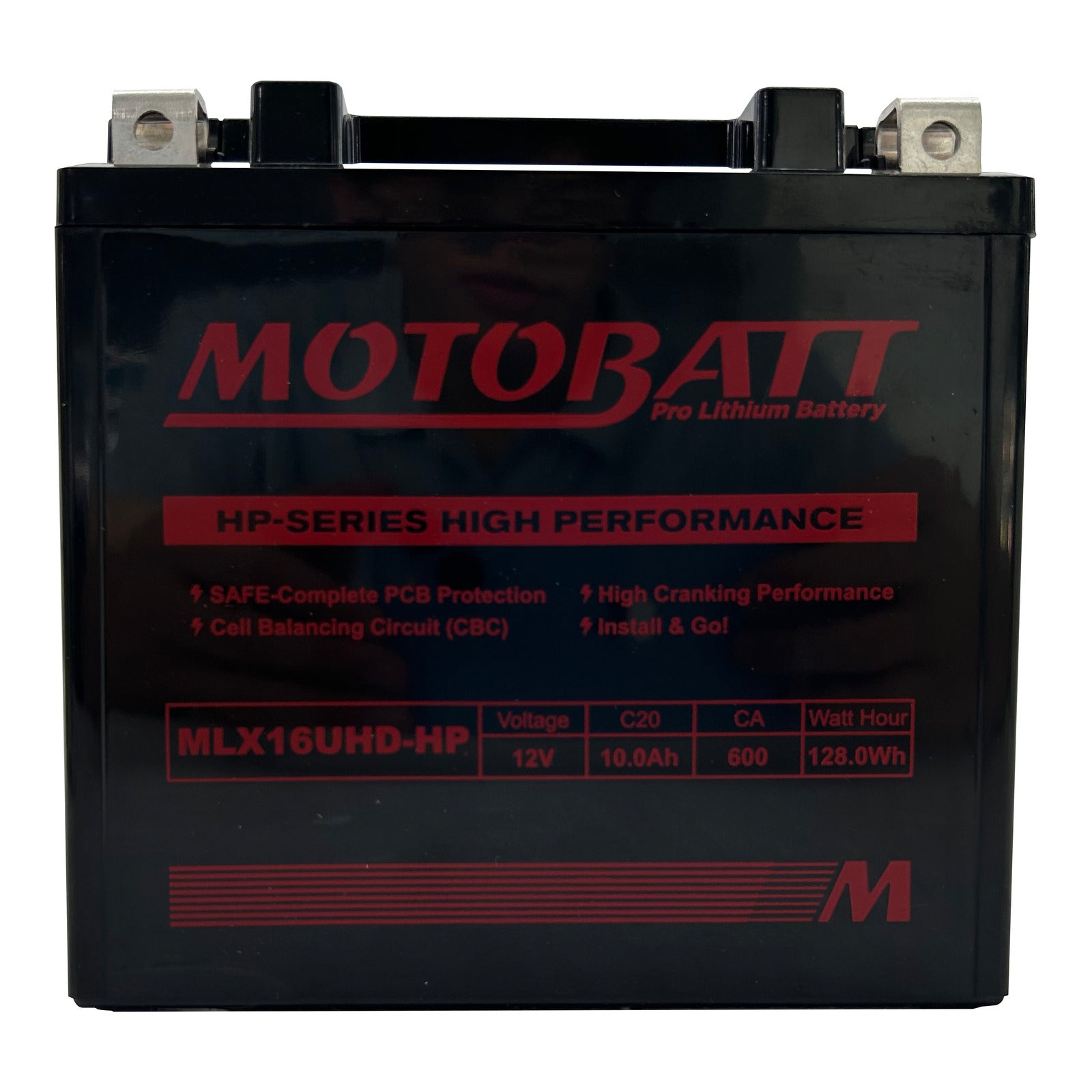

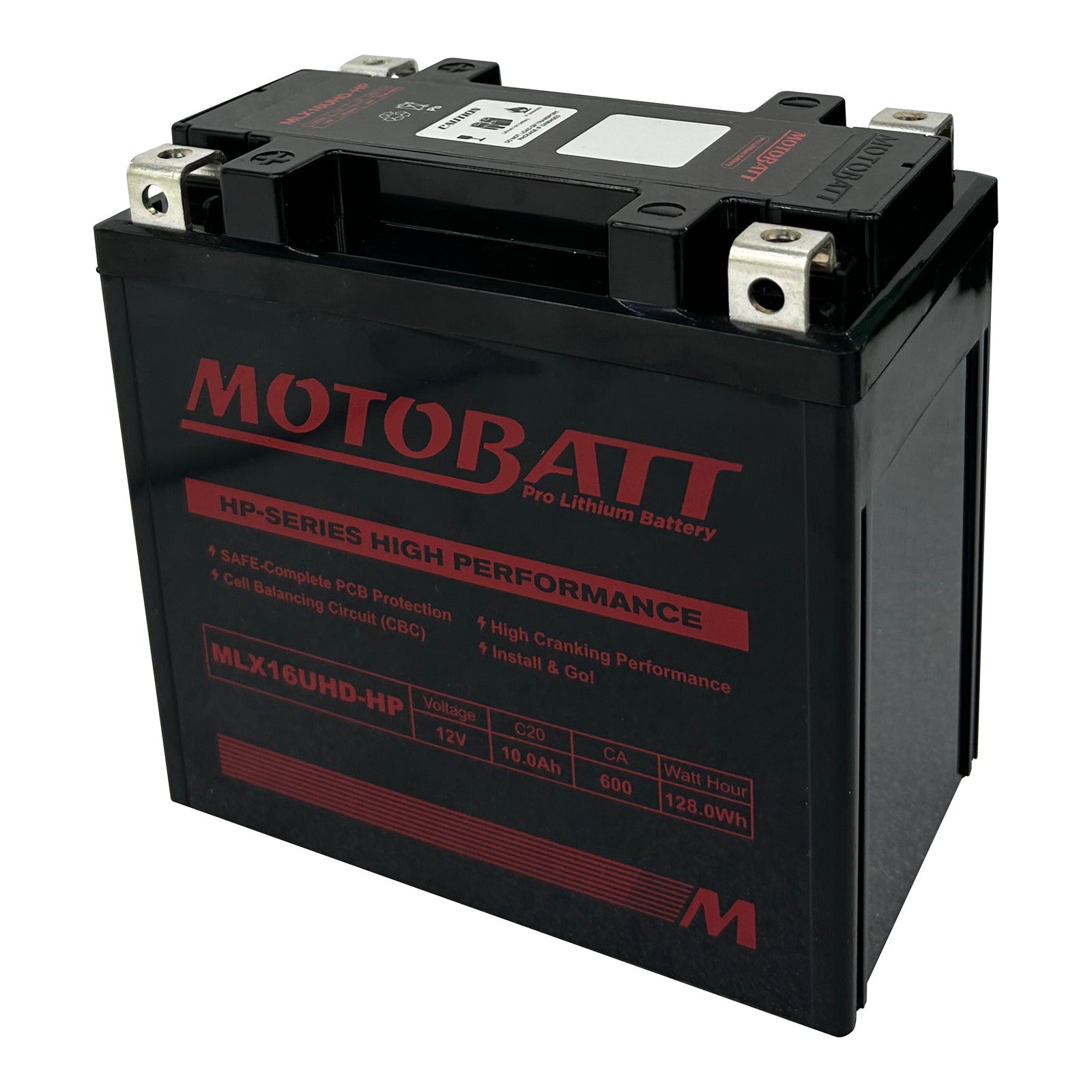

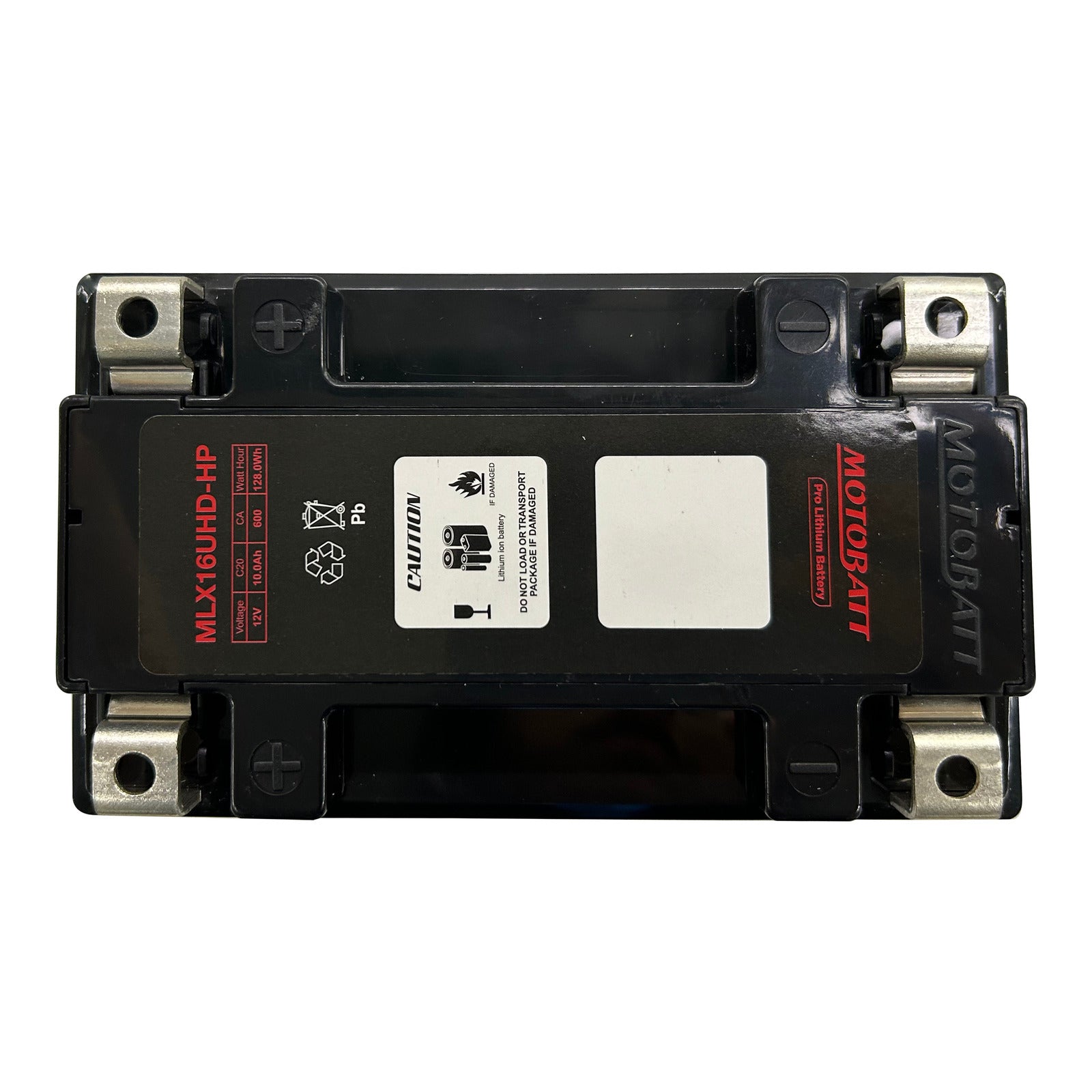

Motobatt Pro Lithium HP Series battery offers complete overcharging, over- discharging, temperature protection and cell balancing capability, to provide maximum performance, protection and safety to the battery.

Motobatt Pro Lithium P Series battery only offers Overcharging, Temperature Protection and Cell Balancing capabilities.

• Overcharging Protection is activated when the battery voltage reaches 15.6v or if any individual cells reach 3.90v. This is to protect the battery from overheating and overcharging.
• Over-discharging protection is activated when the battery voltage drops below 8.0v for longer than 7 seconds.
• Cell Balancing is vital to optimizing the battery's health. This function allows the voltage to be balanced in each cell, maximizing power, performance, and enhancing the battery's life span.

Motobatt Pro Lithium

• Safe – Stable lithium cell and protection (PCB)
• Powerful – Maximum cell power and best battery design
• Durable – Cell balancing circuit (CBC)
• Fitment – Light and original equipment fit

Specifications:

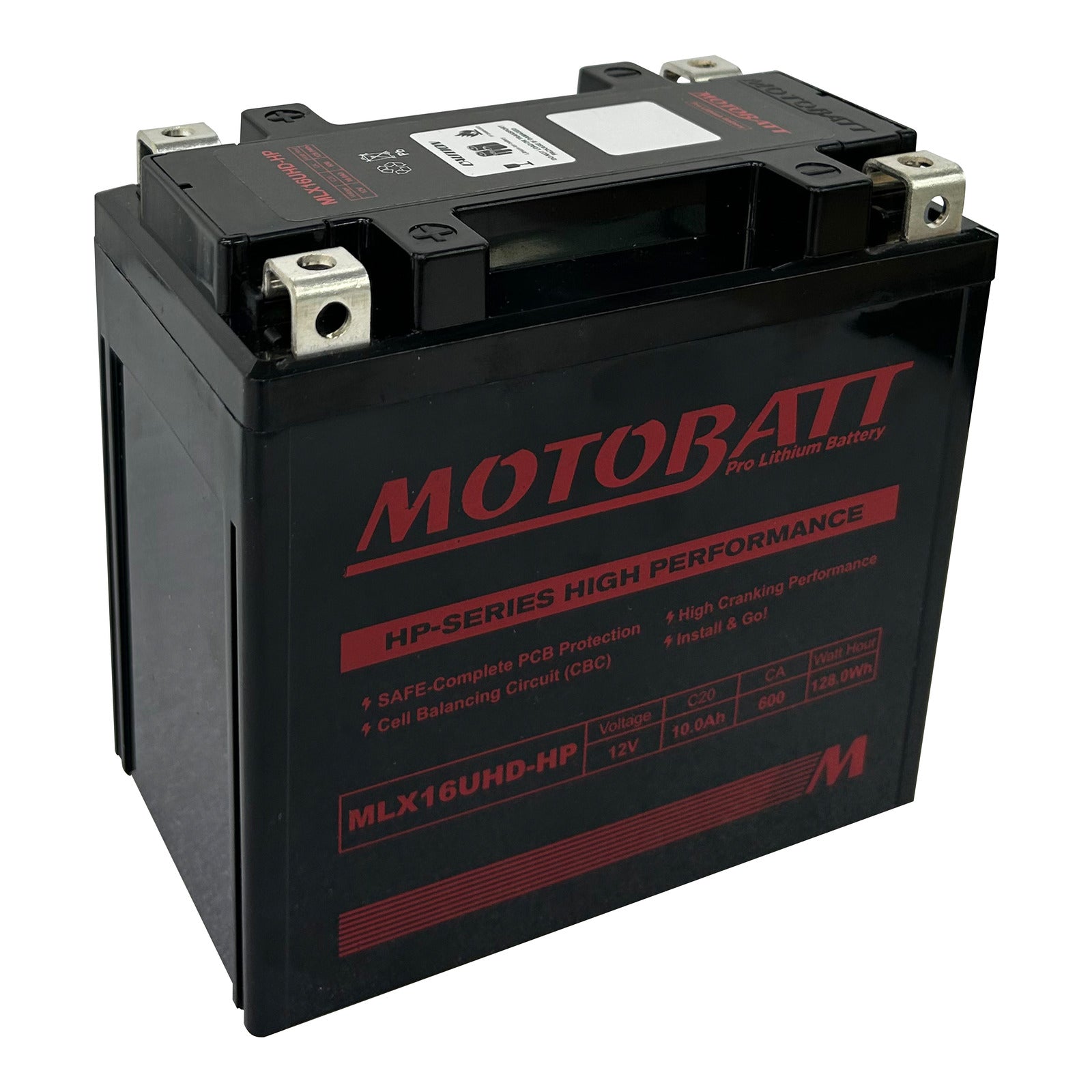

• Ah: 10
• CA: 600
• Box Quantity: 4

Spacer Sizes:

• 151 x 87 x 145

  • MBYZ16U/HD

• 151 x 87 x 161

  • EVA 5
  • 150 x 70 x 15mm
  • MBTX16U

Note:

Motobatt recommends the use of Tech 1 or Fat Boy Chargers to maintain and achieve the best battery performance and longest life span.

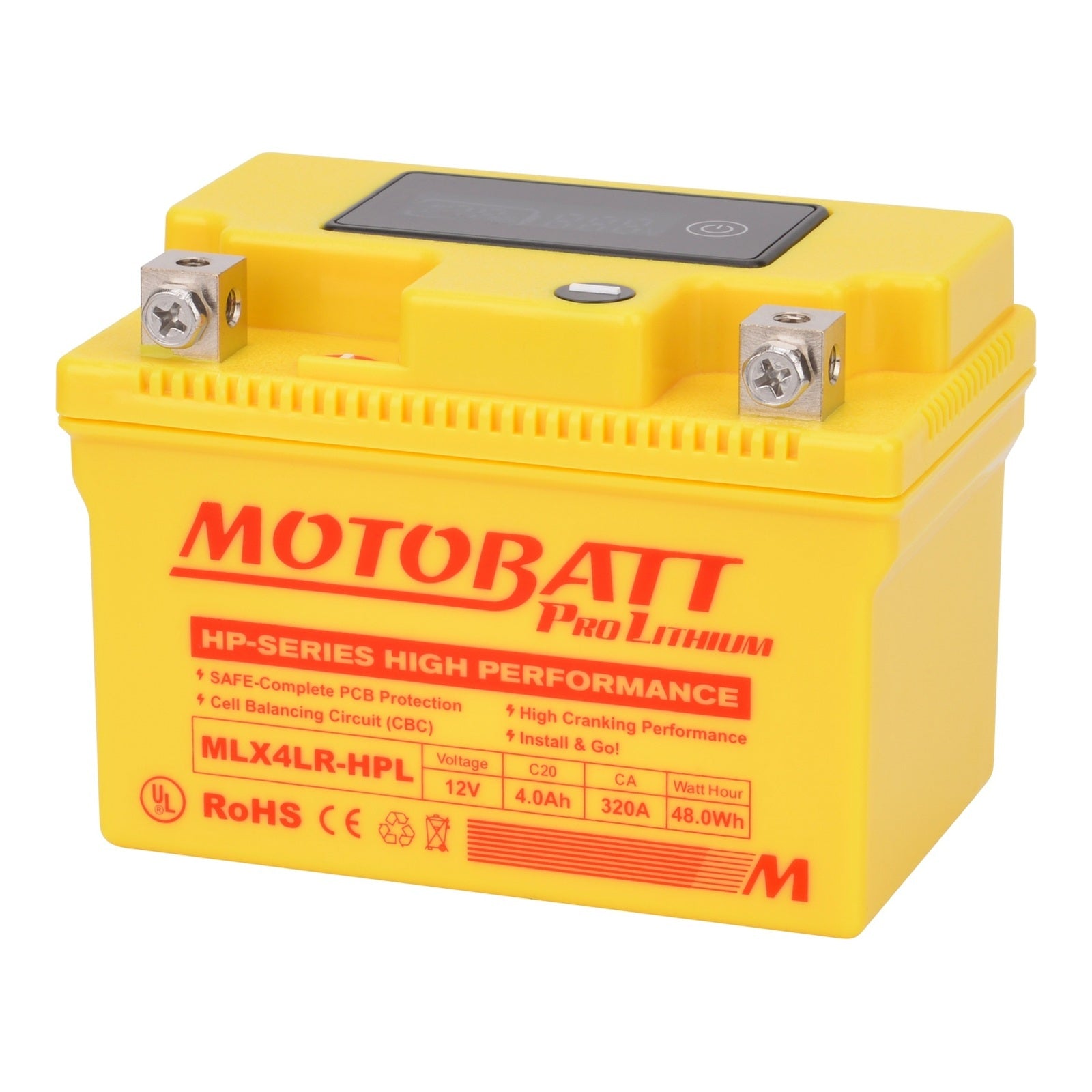

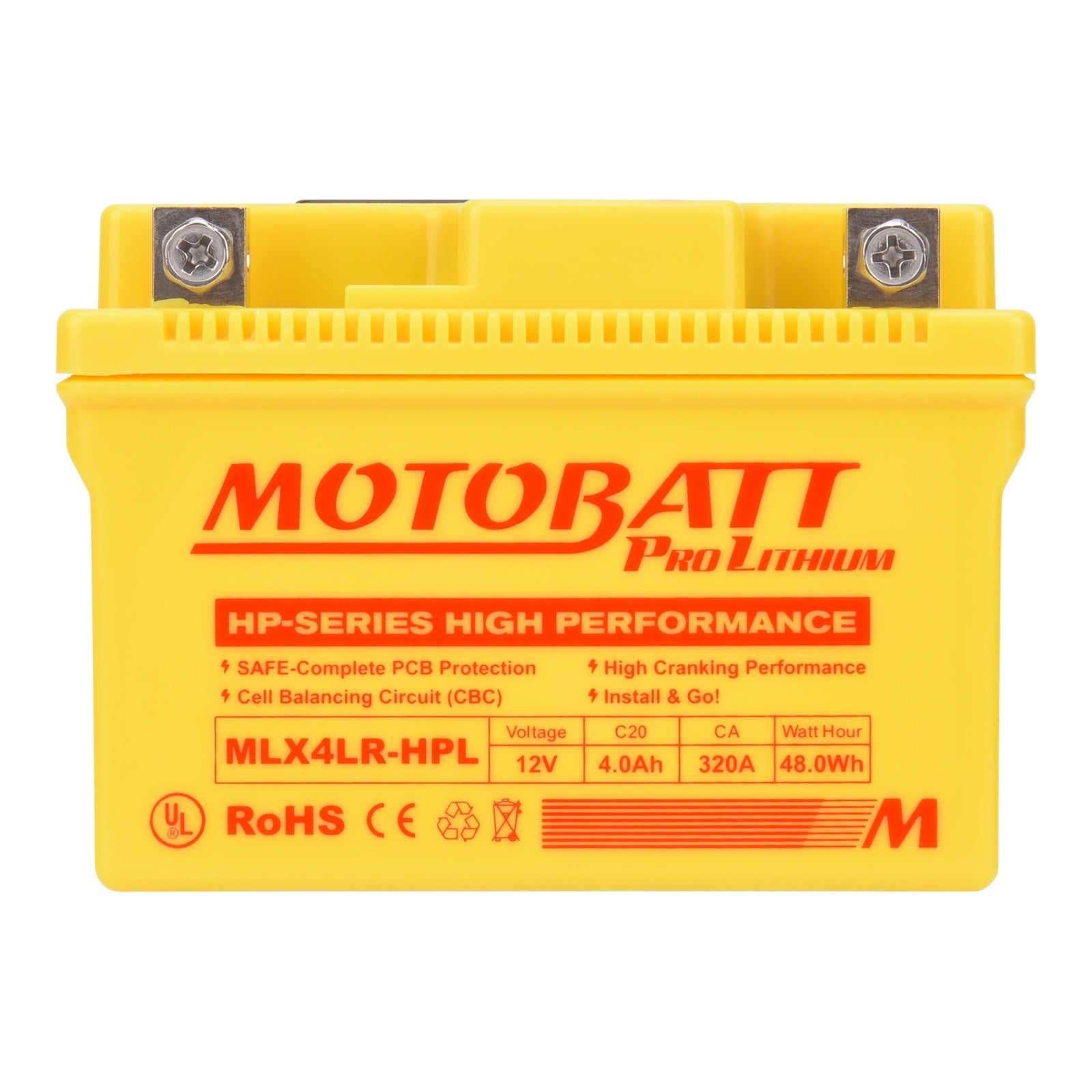

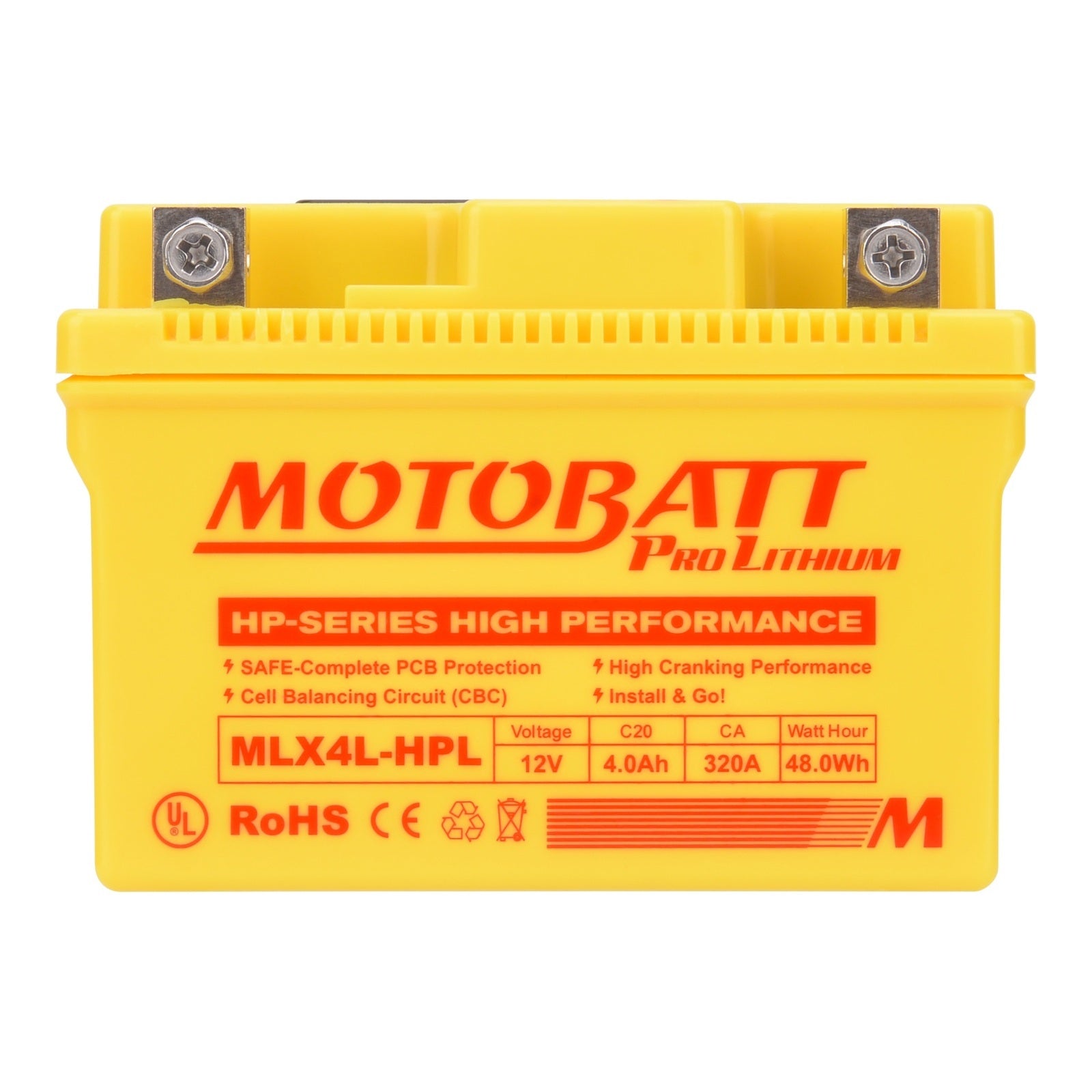

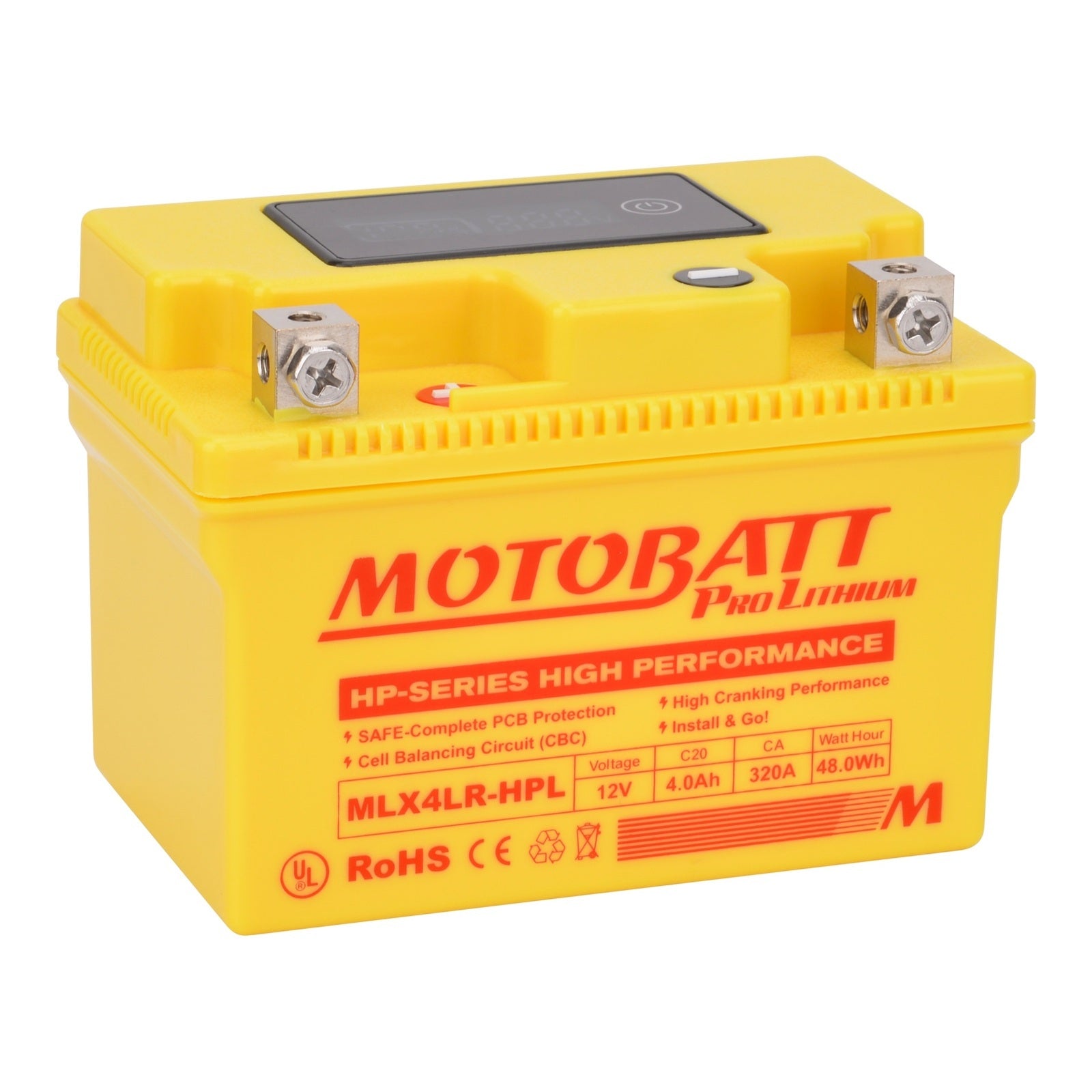

Take your bike to the next level with the new Motobatt Pro Lithium! Super compact and powerful, this battery delivers instant starting performance while shedding weight compared to traditional lead-acid options. Built with advanced lithium technology, it offers longer life, faster charging, and consistent power delivery. Perfect for riders who demand reliability and performance, the Motobatt Pro Lithium keeps you riding stronger, longer.

Features:

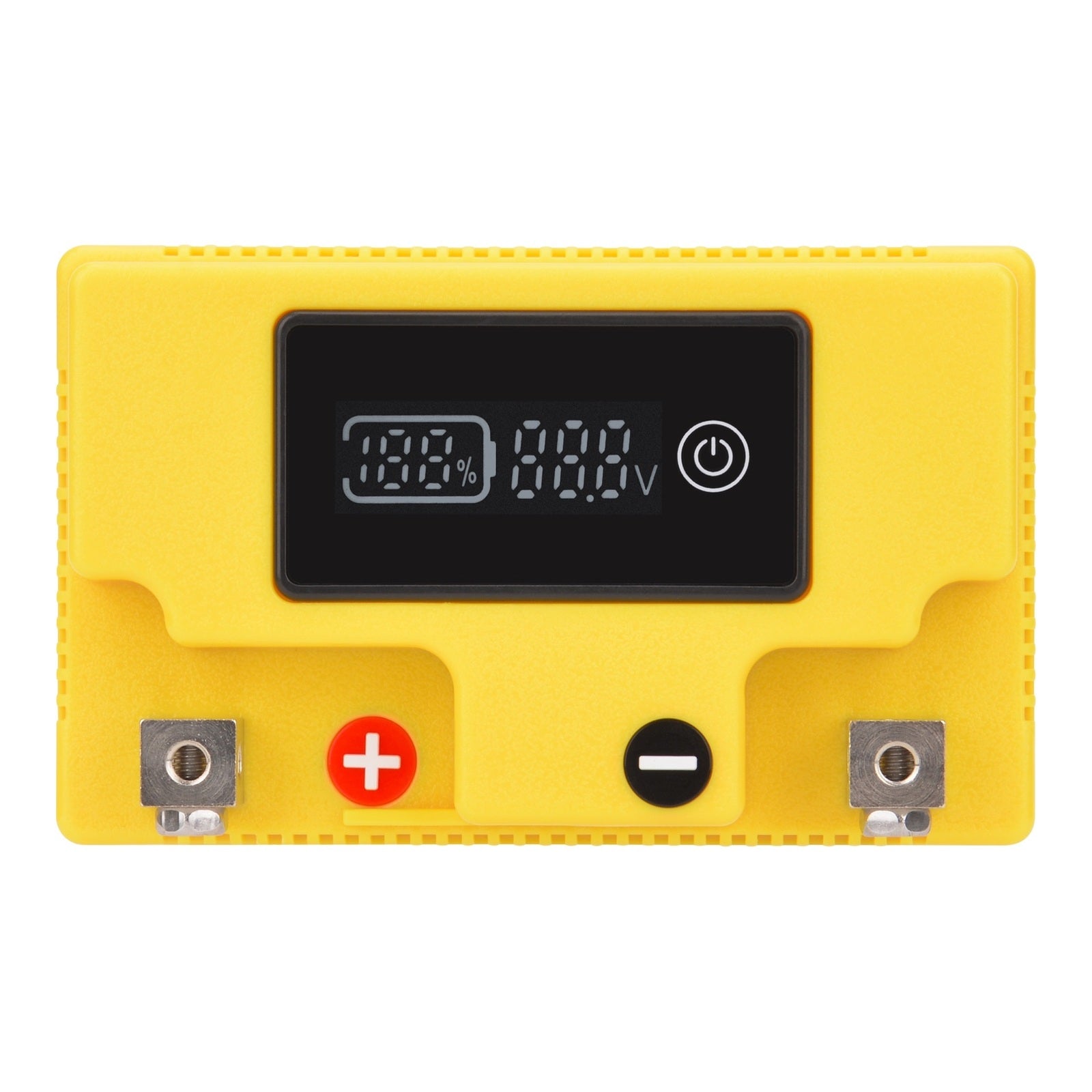

• Integrated LED indicator shows voltage and charge percentage in real time.
• High power with Cell Balancing Circuit (CBC) and Protection Circuit Board (PCB).
• Ultra-lightweight design for maximum performance.
• Ideal for racing and high-performance motorcycles.

Specifications:

• LWH: 114x70x81.5mm
• Capacity (Ah): 4.0Ah
• Cranking (CA): 320A
• Energy (Wh): 48.0Wh

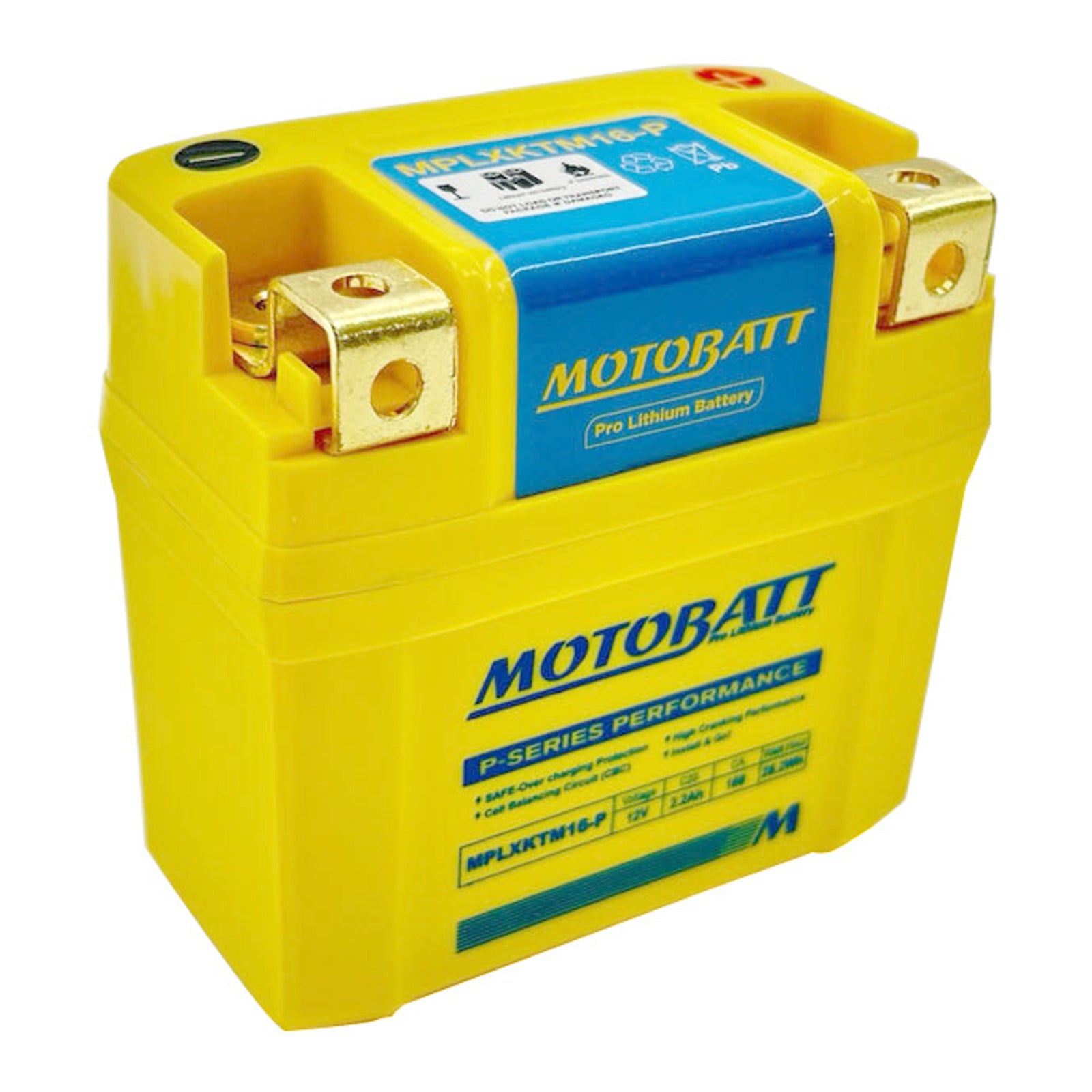

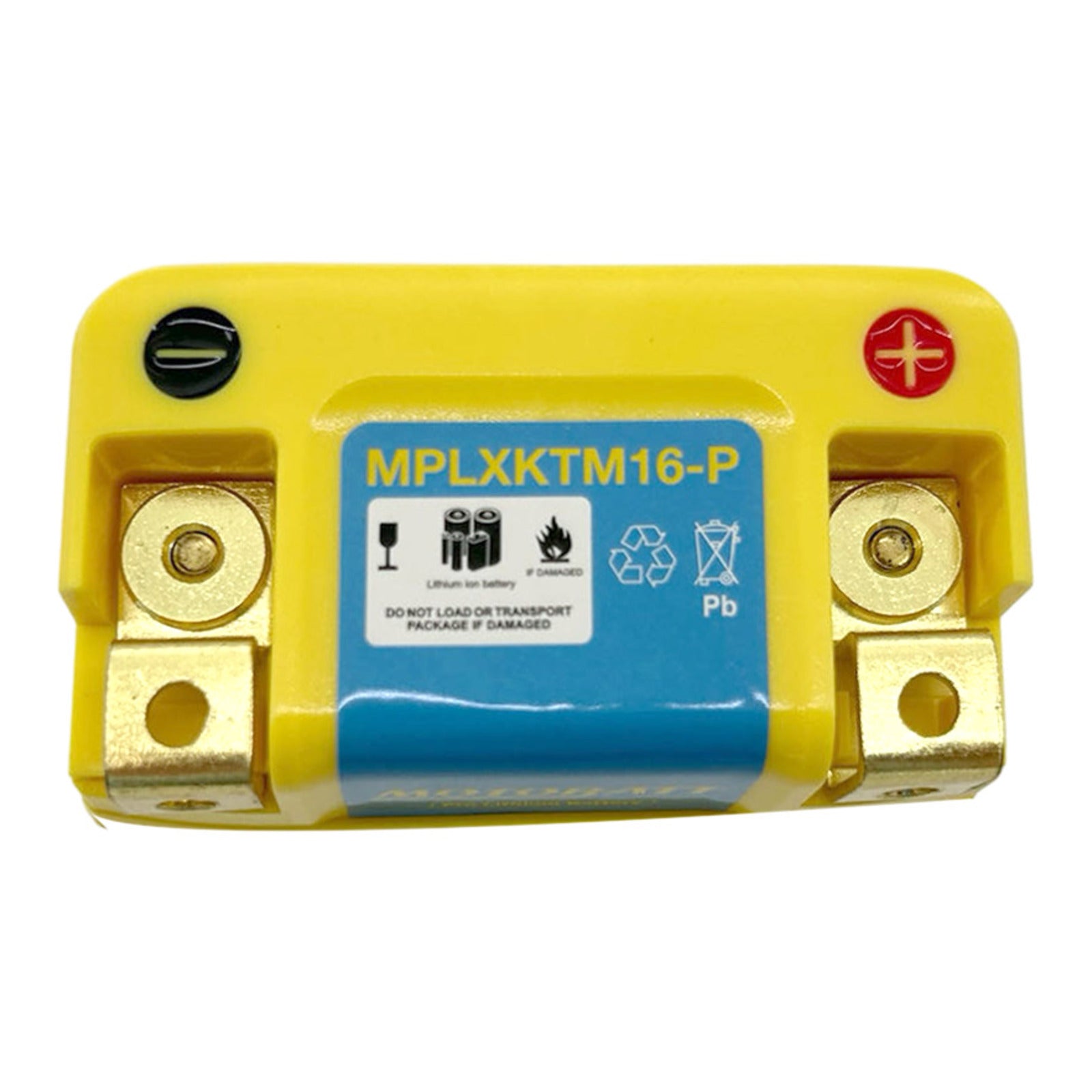

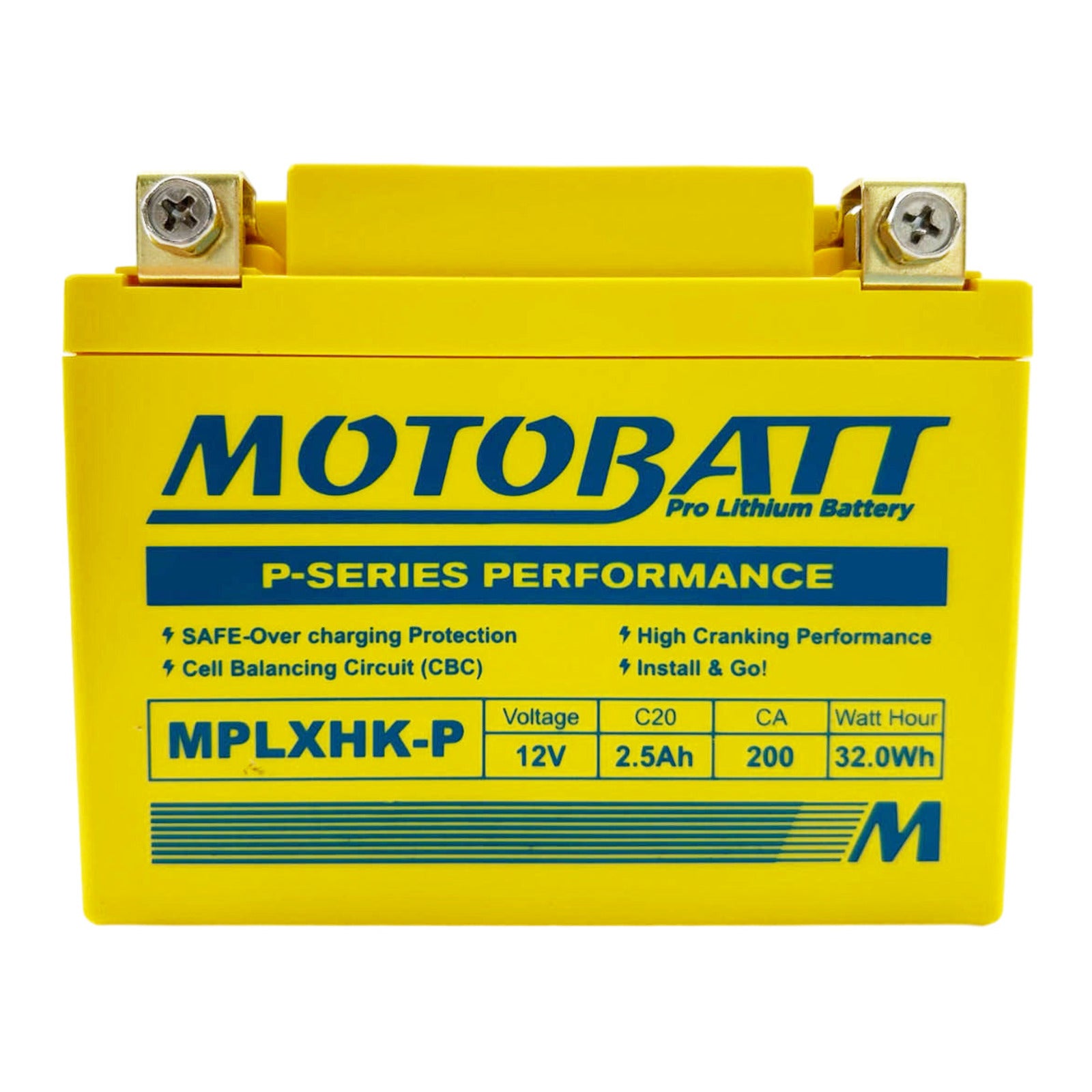

Motobatt Pro Lithium batteries are around 3x lighter than conventional lead- acid batteries, yet they produce even greater cranking performance ideal in competitive environments. This additional power translates into the ability to provide strong starting currents that are required for reliable, repeated starts at a wider range of temperatures than lead-acid batteries. Due to their very low idle discharge, Motobatt Pro Lithium batteries can retain charge after more than a year of inactivity. Pro Lithium batteries have a high life expectancy with over 2000 cycles compared to around 500 for a lead-acid battery, while also boasting a short recharge time, supplying up to 90% charge after.

Specifications:

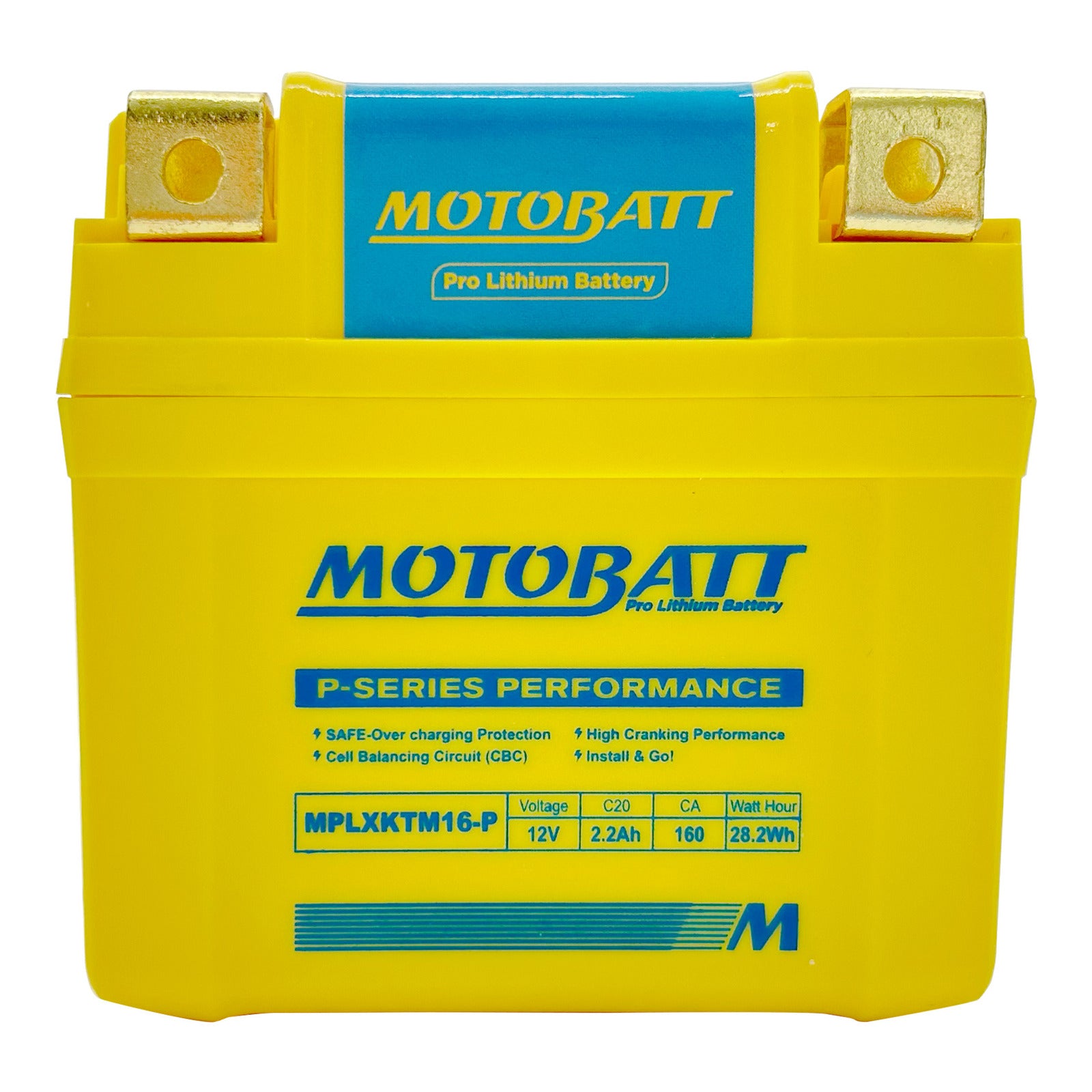

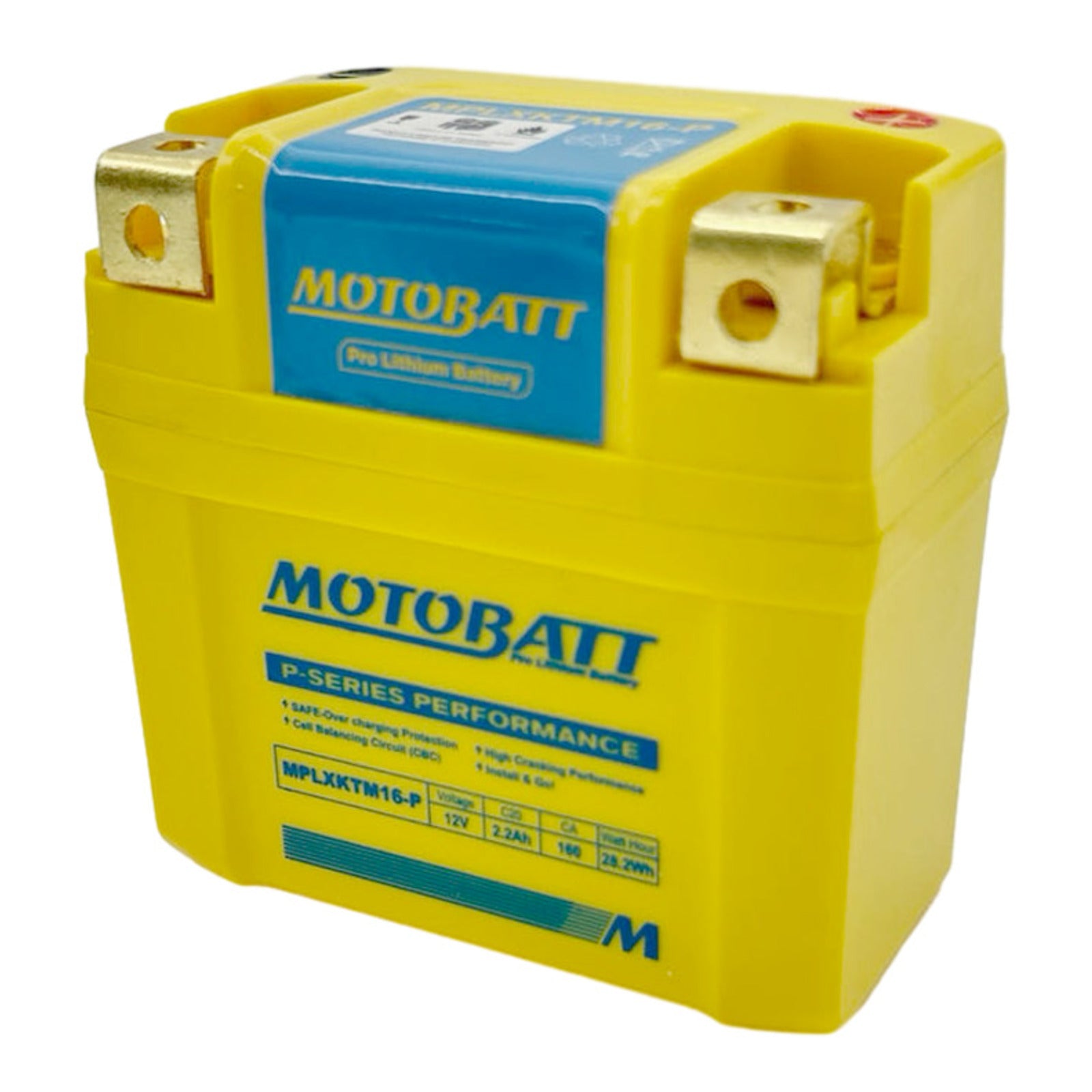

• Capacity: 2.2 Ah
• CA: 160
• Box quantity: 10
• Size: (LxWxH) 62 x 53 x 90

Features:

• Over-charge Protection is activated when the battery voltage reaches 15.6v or if any individual cells reach 3.90v. This is to protect the battery from overheating and overcharging.
• Cell balancing

Cell Balancing Circuit (CBC)

Motobatt’s Cell Balancing Circuit or CBC for short gives their range of Pro Lithium batteries an edge over the competition. The dynamic cell balancing provides the ultimate in cell control giving superior performance, life span and safety.

Each Motobatt Lithium battery contains a unique CBC which always controls the charge/discharge of the cells, especially when experiencing unreliable current during use. Most other batteries only have their CBC in the charging system, this only provides proper control and balance when the unit is connected to a wall socket.

Due to the CBC technology, Motobatt Pro Lithium batteries can be recharged* when flat (below 10V) allowing them to last longer and provide more power to your motorcycle.

*Aggressive and repeat discharging may affect capacity and rechargeability

Protection Circuit Board (PCB)

Exclusive to Motobatt’s Pro Lithium HP-Series the Protection Circuit Board (PCB) technology makes Motobatt’s Pro Lithium batteries the safest on the market. PCB is designed to reduce the threat of thermal runaway and premature battery failure.

Note:

• Motobatt Pro Lithium batteries require different care and maintenance from standard lead-acid batteries. Always use a charger designed for use with lithium batteries. Warranty will be voided by using any other type of charger.
• Motobatt Pro Lithium batteries are high-performance starting batteries. They are not suitable for use where there is a parasitic drain on the battery, e.g. hot grips, alarms, clocks etc.
• Motobatt recommends the use of Tech 1 or Fat Boy Chargers to maintain and achieve best battery performance and longest life span.

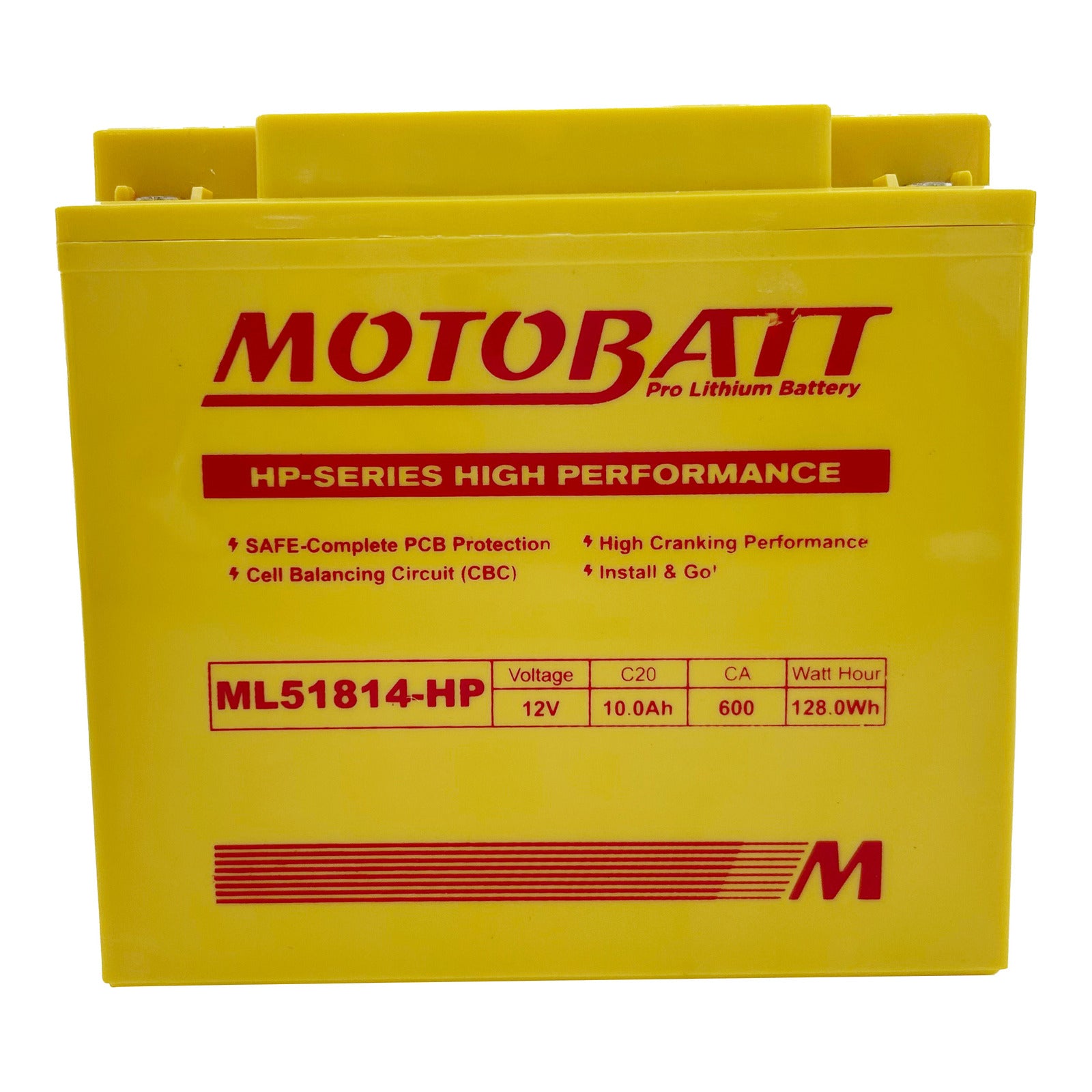

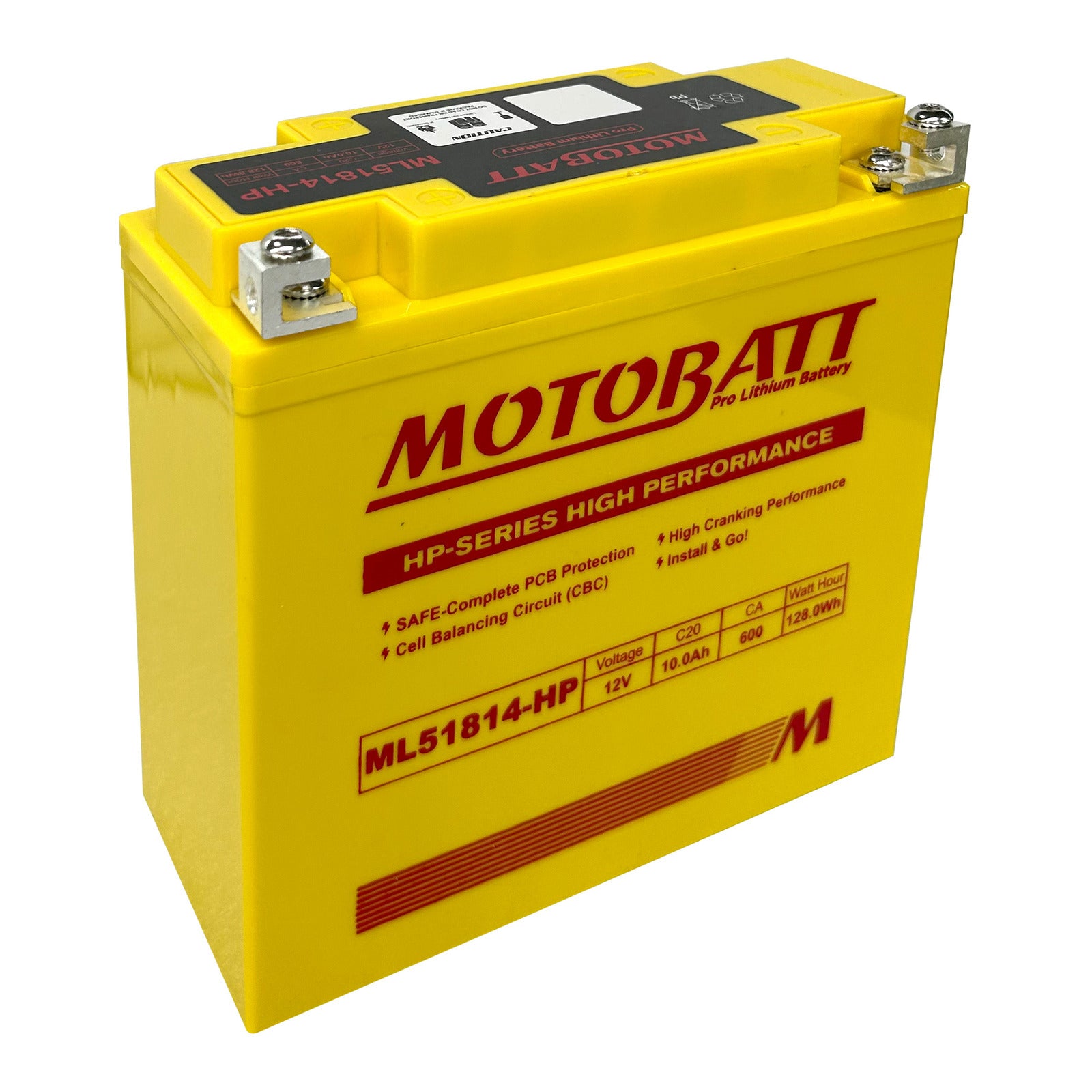

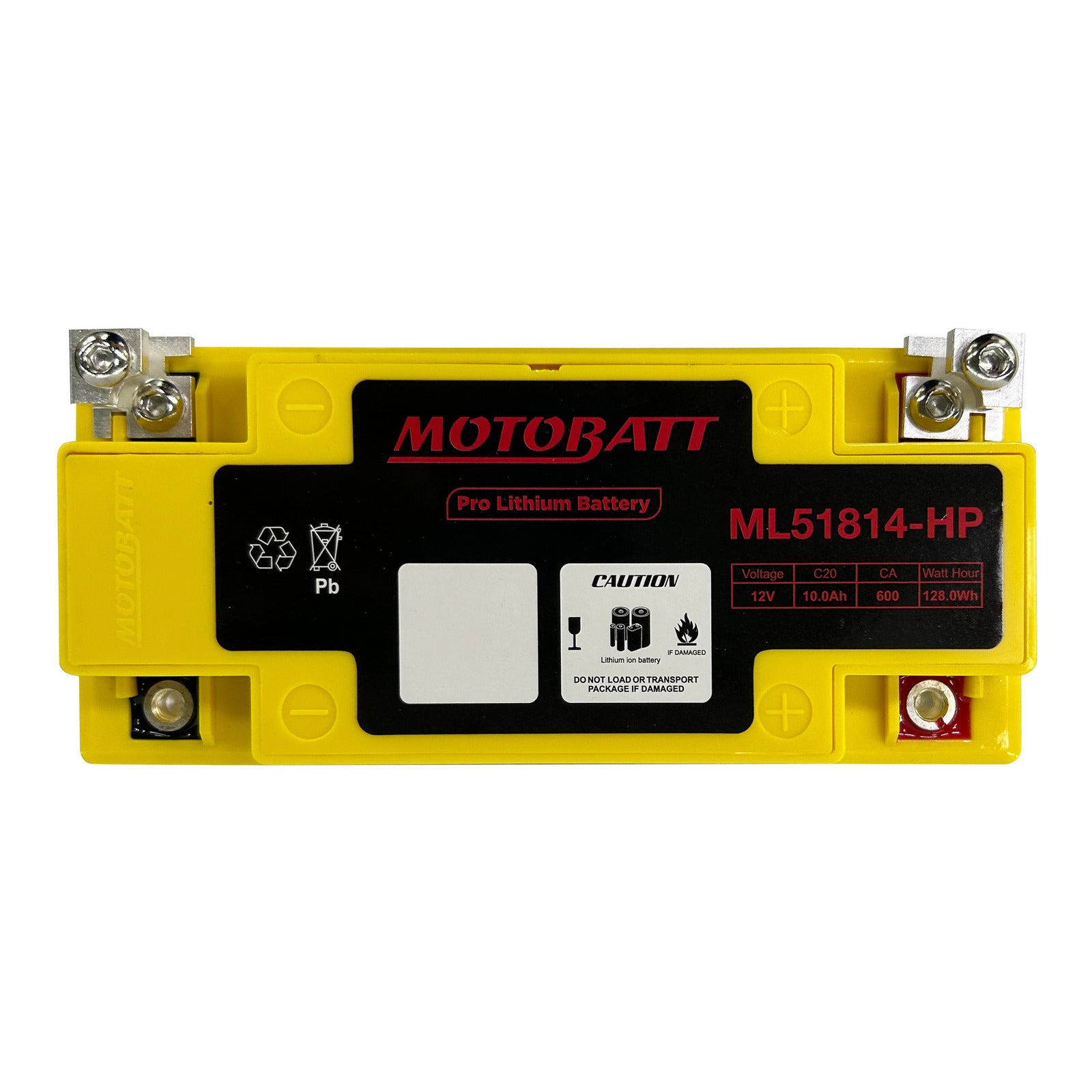

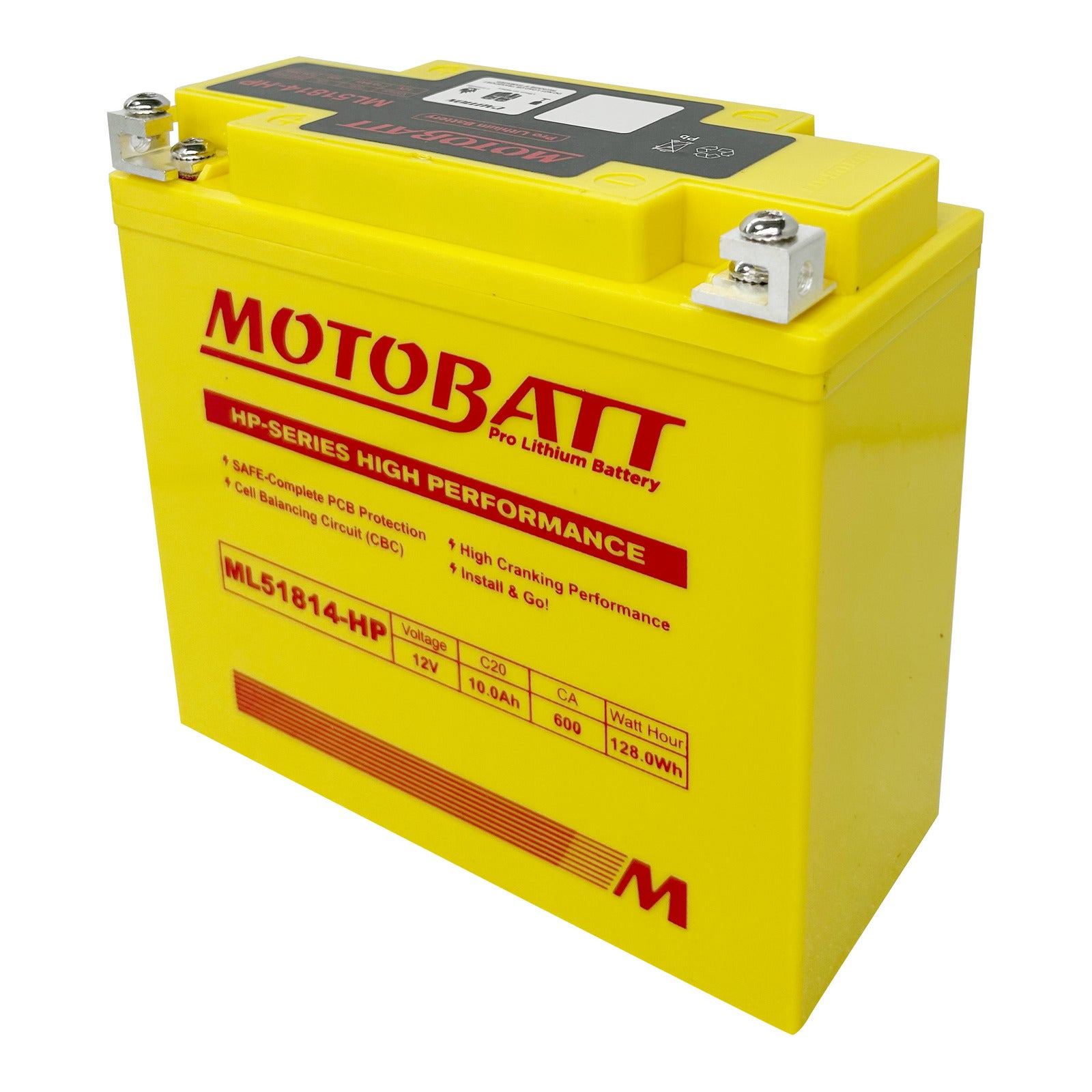

Motobatt Pro Lithium batteries are around 3x lighter than conventional lead- acid batteries, yet they produce even greater cranking performance ideal in competitive environments. This additional power translates into the ability to provide strong starting currents that are required for reliable, repeated starts at a wider range of temperatures than lead-acid batteries. Due to their very low idle discharge, Motobatt Pro Lithium batteries can retain charge after more than a year of inactivity. Pro Lithium batteries have a high life expectancy with over 2000 cycles compared to around 500 for a lead-acid battery, while also boasting a short recharge time, supplying up to 90% charge after.

Specifications:

• Capacity: 10 Ah
• CA: 600
• Box quantity: 4
• Size: (LxWxH) 183 x 80 x 170
• Quadflex: MB51814
• Replaces: 51814, 51913, YT19BL-BS

Features:

• Over-charge Protection is activated when the battery voltage reaches 15.6v or if any individual cells reach 3.90v. This is to protect the battery from overheating and overcharging.
• Over-discharge protection is activated when the battery voltage drops below 8.0v for longer than 7 seconds.
• Cell balancing

Cell Balancing Circuit (CBC)

Motobatt’s Cell Balancing Circuit or CBC for short gives their range of Pro Lithium batteries an edge over the competition. The dynamic cell balancing provides the ultimate in cell control giving superior performance, life span and safety.

Each Motobatt Lithium battery contains a unique CBC which always controls the charge/discharge of the cells, especially when experiencing unreliable current during use. Most other batteries only have their CBC in the charging system, this only provides proper control and balance when the unit is connected to a wall socket.

Due to the CBC technology, Motobatt Pro Lithium batteries can be recharged* when flat (below 10V) allowing them to last longer and provide more power to your motorcycle.

*Aggressive and repeat discharging may affect capacity and rechargeability

Protection Circuit Board (PCB)

Exclusive to Motobatt’s Pro Lithium HP-Series the Protection Circuit Board (PCB) technology makes Motobatt’s Pro Lithium batteries the safest on the market. PCB is designed to reduce the threat of thermal runaway and premature battery failure.

Note:

• Motobatt Pro Lithium batteries require different care and maintenance from standard lead-acid batteries. Always use a charger designed for use with lithium batteries. Warranty will be voided by using any other type of charger.
• Motobatt Pro Lithium batteries are high-performance starting batteries. They are not suitable for use where there is a parasitic drain on the battery, e.g. hot grips, alarms, clocks etc.
• Motobatt recommends the use of Tech 1 or Fat Boy Chargers to maintain and achieve best battery performance and longest life span.

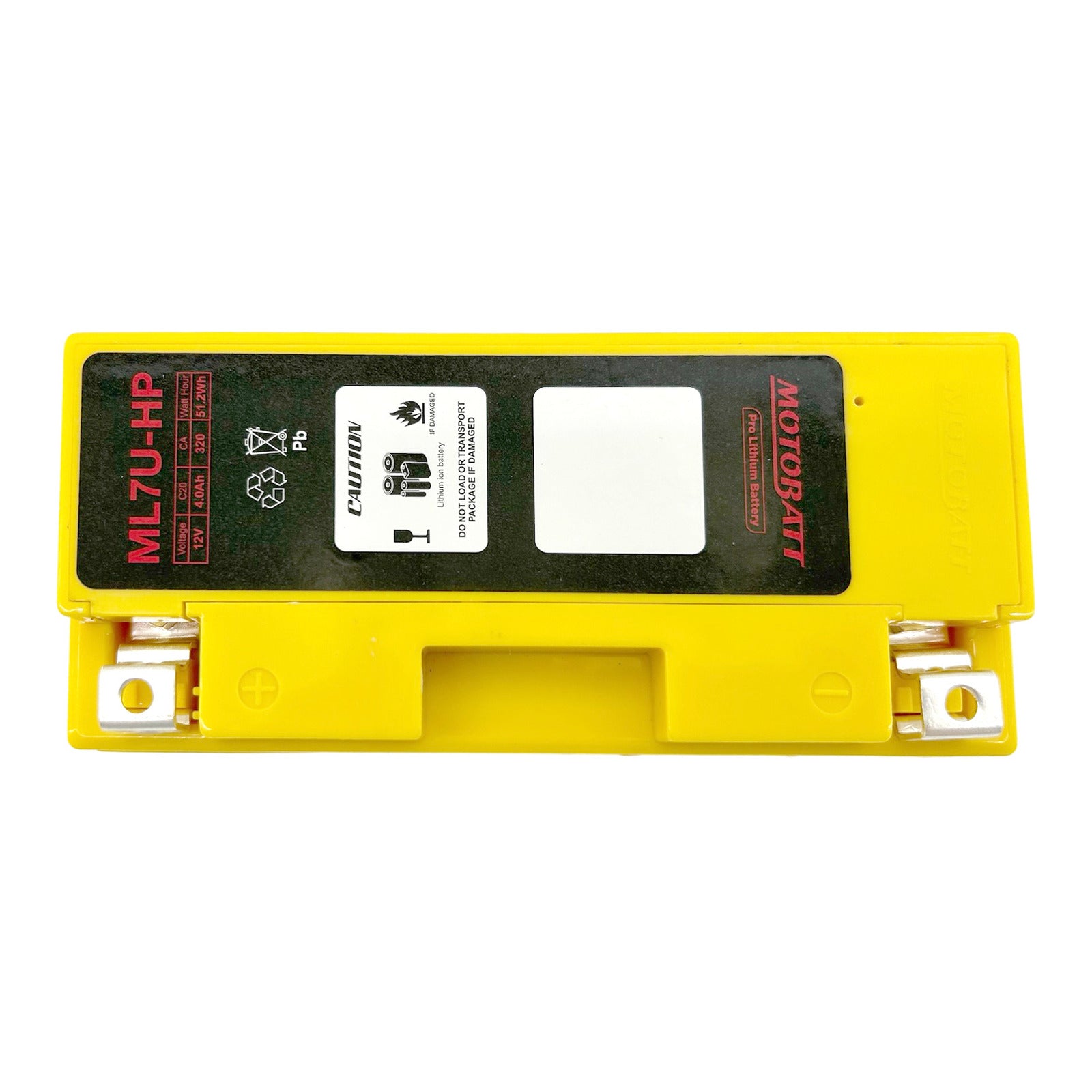

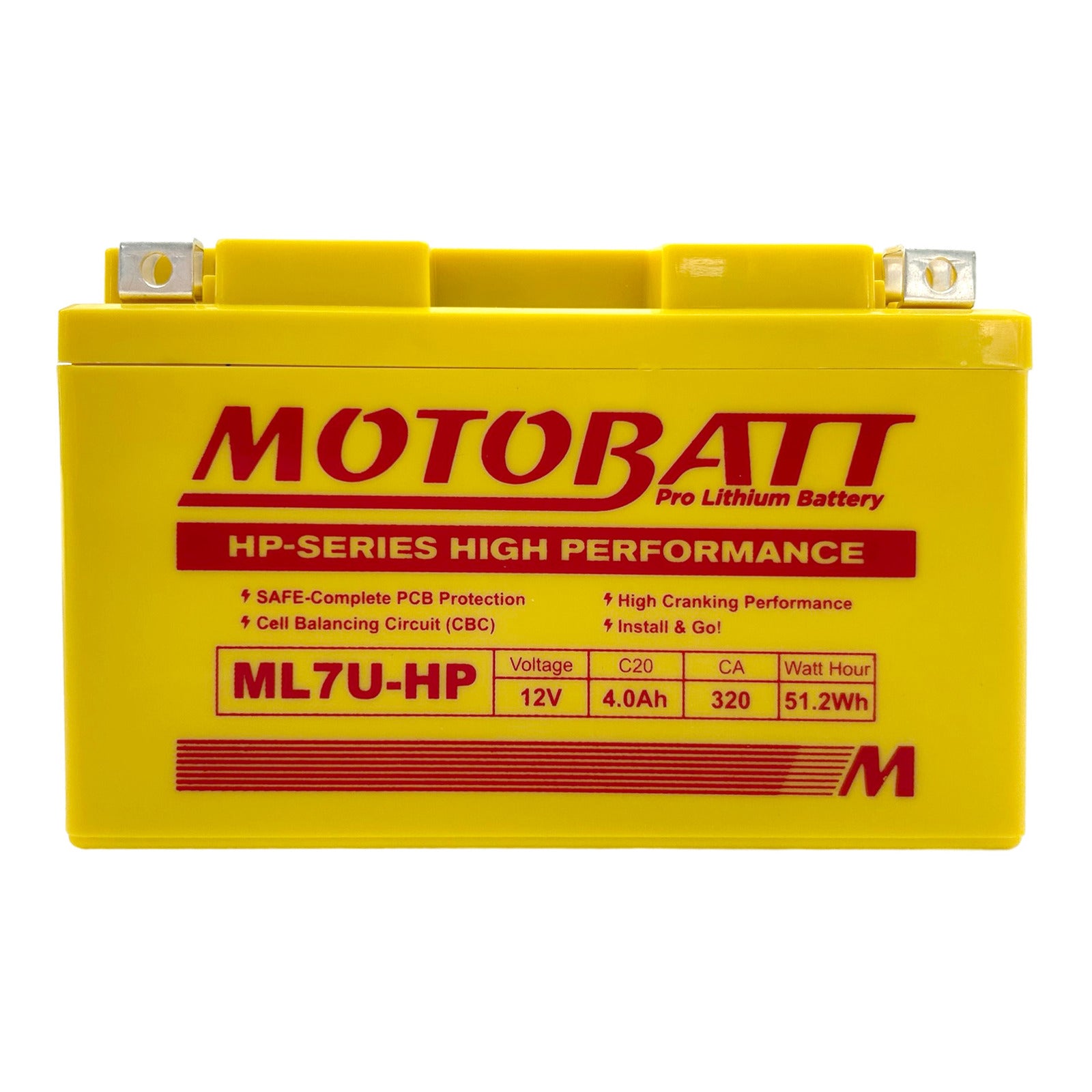

Motobatt Pro Lithium HP Series battery offers complete overcharging, over- discharging, temperature protection and cell balancing capability, to provide maximum performance, protection and safety to the battery.

Motobatt Pro Lithium P Series battery only offers Overcharging, Temperature Protection and Cell Balancing capabilities.

• Overcharging Protection is activated when the battery voltage reaches 15.6v or if any individual cells reach 3.90v. This is to protect the battery from overheating and overcharging.
• Over-discharging protection is activated when the battery voltage drops below 8.0v for longer than 7 seconds.
• Cell Balancing is vital to optimizing the battery's health. This function allows the voltage to be balanced in each cell, maximizing power, performance, and enhancing the battery's life span.

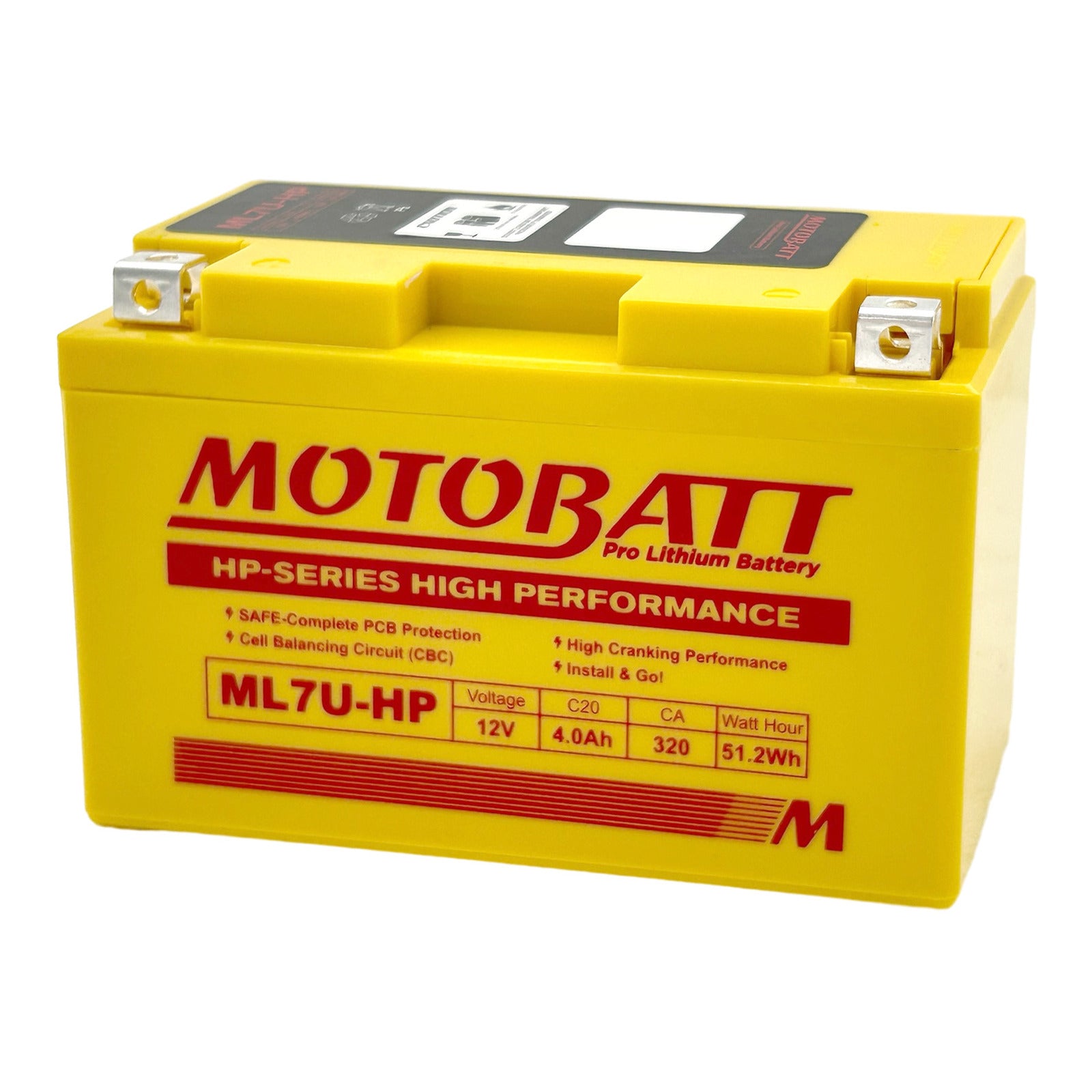

Motobatt Pro Lithium

• Safe – Stable lithium cell and protection (PCB)
• Powerful – Maximum cell power and best battery design
• Durable – Cell balancing circuit (CBC)
• Fitment – Light and original equipment fit

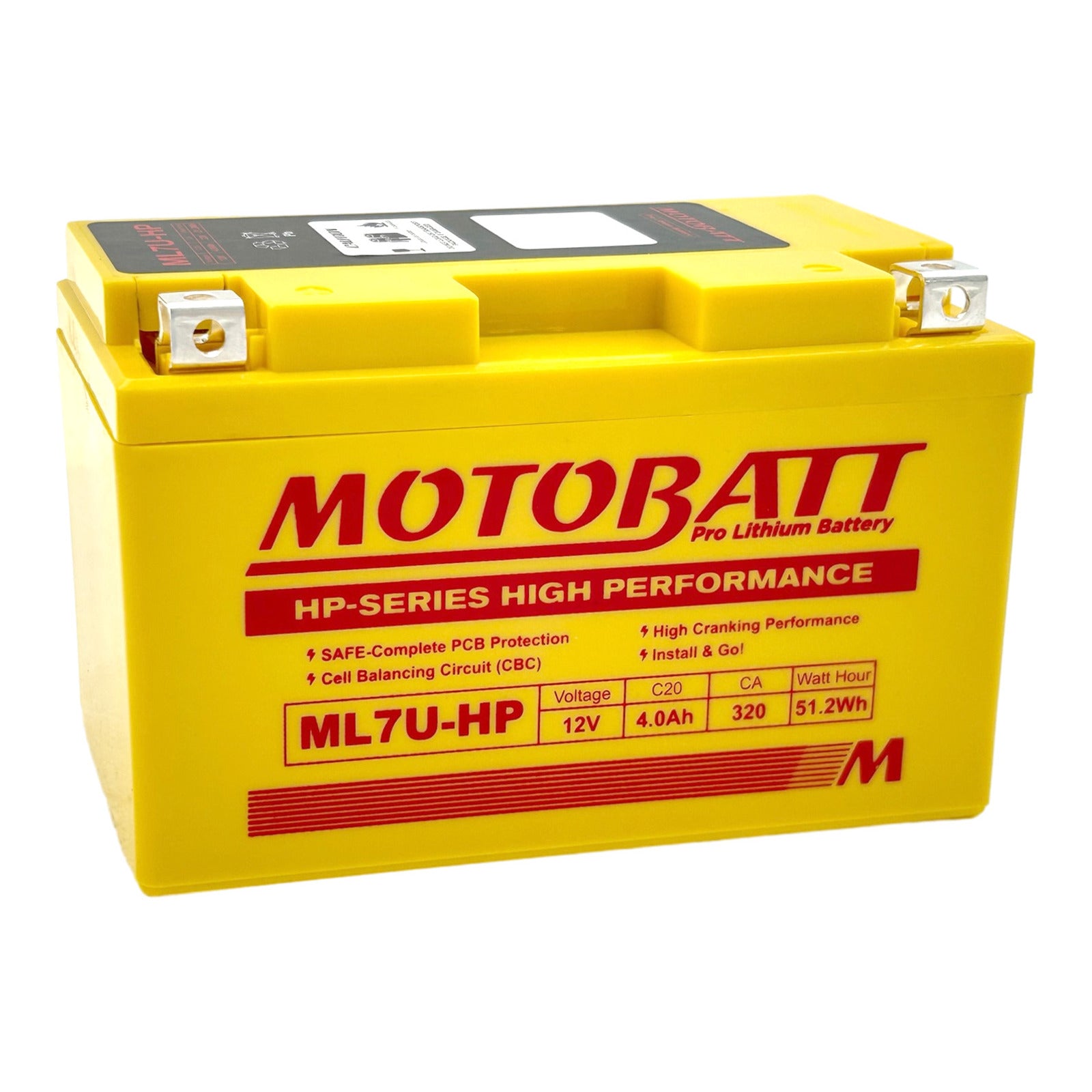

Specifications:

• Ah: 4
• CA: 320
• Box Quantity: 8

Spacer Sizes:

• 151 x 65 x 95
  • MB7U

Note:

Motobatt recommends the use of Tech 1 or Fat Boy Chargers to maintain and achieve the best battery performance and longest life span.

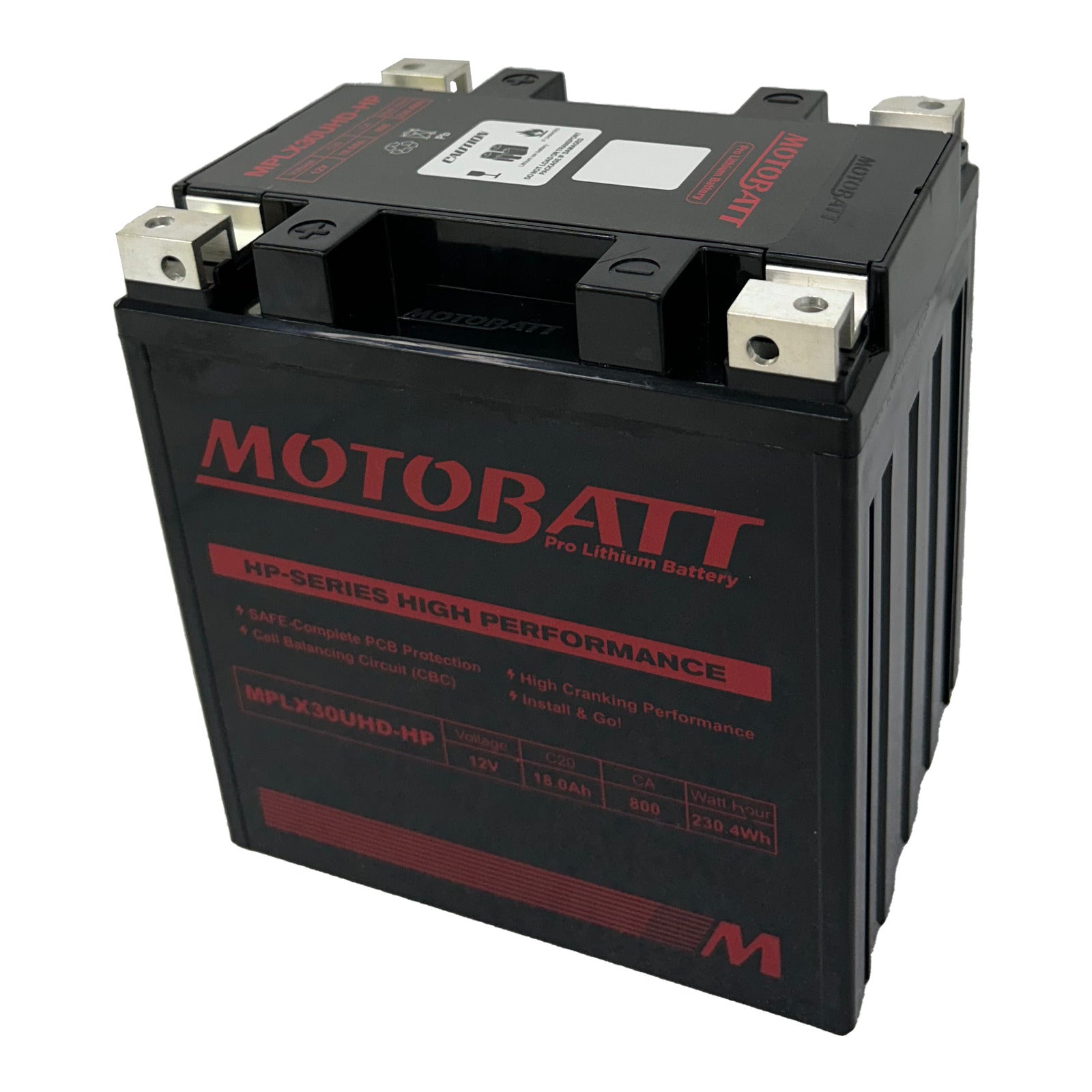

Motobatt Pro Lithium HP Series battery offers complete overcharging, over- discharging, temperature protection and cell balancing capability, to provide maximum performance, protection and safety to the battery.

Motobatt Pro Lithium P Series battery only offers Overcharging, Temperature Protection and Cell Balancing capabilities.

• Overcharging Protection is activated when the battery voltage reaches 15.6v or if any individual cells reach 3.90v. This is to protect the battery from overheating and overcharging.
• Over-discharging protection is activated when the battery voltage drops below 8.0v for longer than 7 seconds.
• Cell Balancing is vital to optimizing the battery's health. This function allows the voltage to be balanced in each cell, maximizing power, performance, and enhancing the battery's life span.

Motobatt Pro Lithium

• Safe – Stable lithium cell and protection (PCB)
• Powerful – Maximum cell power and best battery design
• Durable – Cell balancing circuit (CBC)
• Fitment – Light and original equipment fit

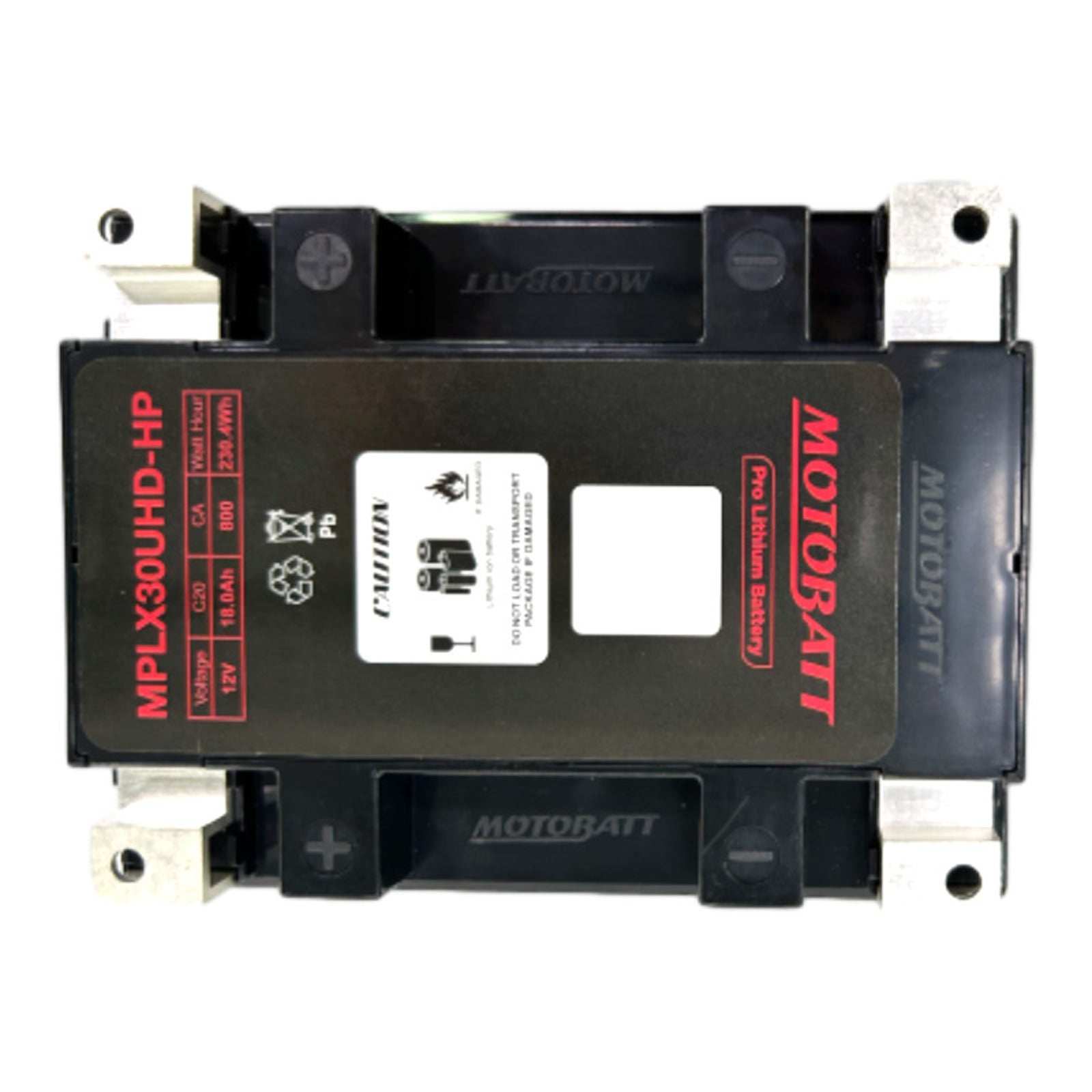

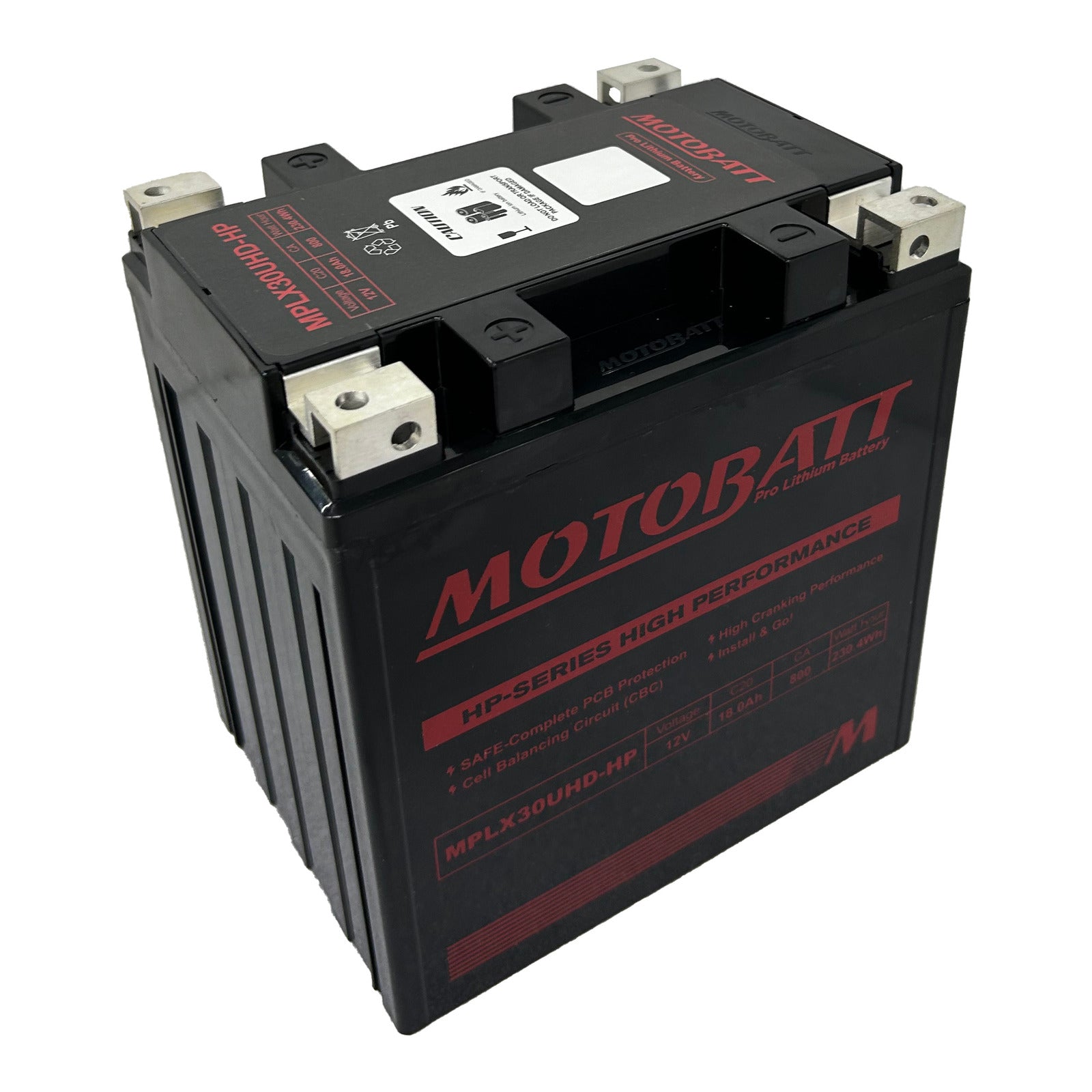

Specifications:

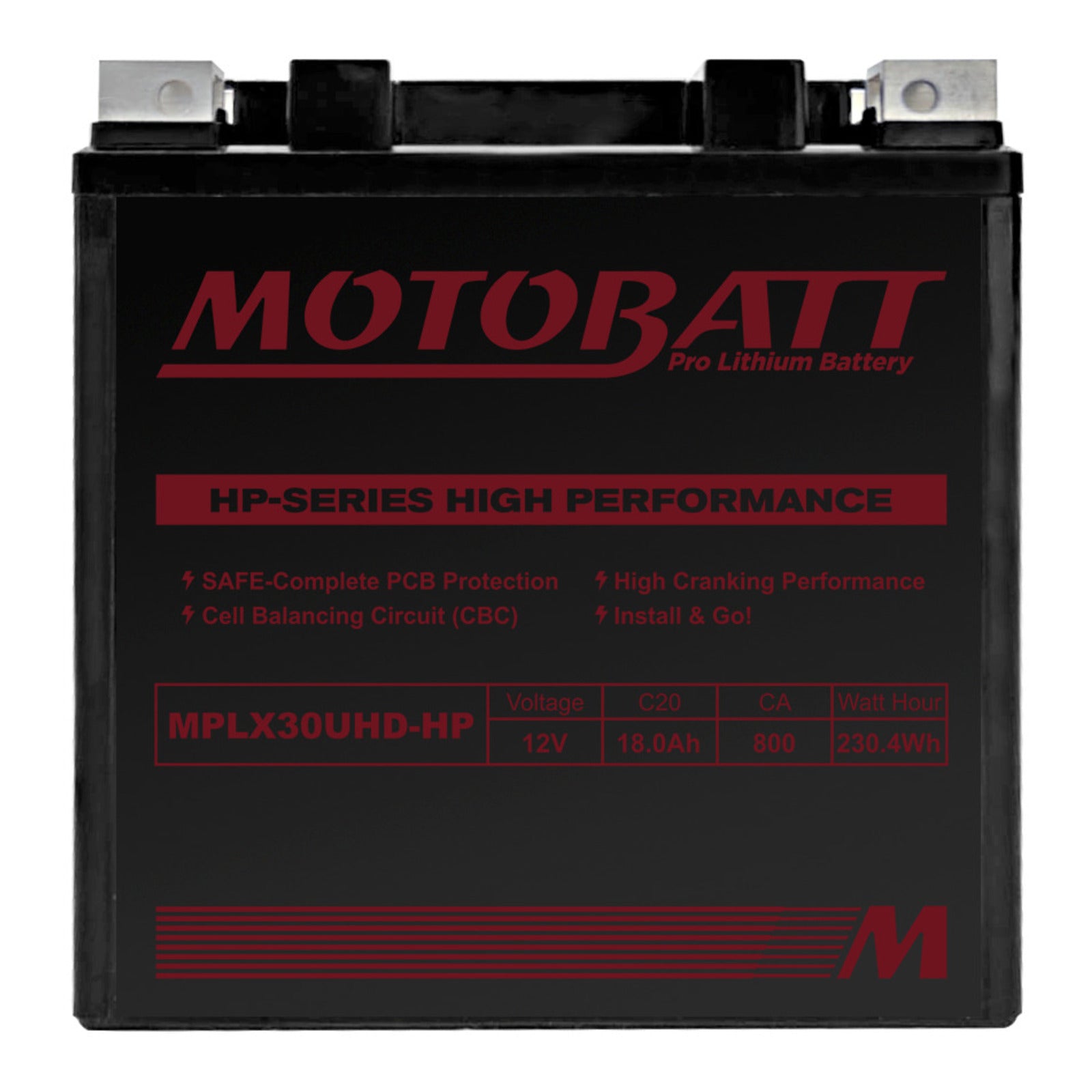

• Ah: 18
• CA: 800
• Box Quantity: 4

Spacer Sizes:

• 166 x 126 x 175

  • MBTX30U/HD

• 166 x 126 x 192

  • EVA 9
  • 165 x 125 x 17mm
  • MBTX30U/HD

Note:

Motobatt recommends the use of Tech 1 or Fat Boy Chargers to maintain and achieve the best battery performance and longest life span.

Motobatt Pro Lithium batteries are around 3x lighter than conventional lead- acid batteries, yet they produce even greater cranking performance ideal in competitive environments. This additional power translates into the ability to provide strong starting currents that are required for reliable, repeated starts at a wider range of temperatures than lead-acid batteries. Due to their very low idle discharge, Motobatt Pro Lithium batteries can retain charge after more than a year of inactivity. Pro Lithium batteries have a high life expectancy with over 2000 cycles compared to around 500 for a lead-acid battery, while also boasting a short recharge time, supplying up to 90% charge after.

Specifications:

• Capacity: 5 Ah
• CA: 350
• Box quantity: 8
• Size: (LxWxH) 114 x 70x 107, 114 x 70x 127
• Quadflex: MBTZ7S, MBTX7U
• Replaces:
  • YTX5L-BS, YTZ6S, YTZ7S
  • YTX7L-BS, YTZ8V

Features:

• Over-charge Protection is activated when the battery voltage reaches 15.6v or if any individual cells reach 3.90v. This is to protect the battery from overheating and overcharging.
• Over-discharge protection is activated when the battery voltage drops below 8.0v for longer than 7 seconds.
• Cell balancing

Cell Balancing Circuit (CBC)

Motobatt’s Cell Balancing Circuit or CBC for short gives their range of Pro Lithium batteries an edge over the competition. The dynamic cell balancing provides the ultimate in cell control giving superior performance, life span and safety.

Each Motobatt Lithium battery contains a unique CBC which always controls the charge/discharge of the cells, especially when experiencing unreliable current during use. Most other batteries only have their CBC in the charging system, this only provides proper control and balance when the unit is connected to a wall socket.

Due to the CBC technology, Motobatt Pro Lithium batteries can be recharged* when flat (below 10V) allowing them to last longer and provide more power to your motorcycle.

*Aggressive and repeat discharging may affect capacity and rechargeability

Protection Circuit Board (PCB)

Exclusive to Motobatt’s Pro Lithium HP-Series the Protection Circuit Board (PCB) technology makes Motobatt’s Pro Lithium batteries the safest on the market. PCB is designed to reduce the threat of thermal runaway and premature battery failure.

Note:

• Motobatt Pro Lithium batteries require different care and maintenance from standard lead-acid batteries. Always use a charger designed for use with lithium batteries. Warranty will be voided by using any other type of charger.
• Motobatt Pro Lithium batteries are high-performance starting batteries. They are not suitable for use where there is a parasitic drain on the battery, e.g. hot grips, alarms, clocks etc.
• Motobatt recommends the use of Tech 1 or Fat Boy Chargers to maintain and achieve best battery performance and longest life span.
