Spark Plugs

NGK have over 80 years of experience in spark plug manufacturing and are the world leader in spark plug technology. NGK has an extensive range of spark plugs, each with their own unique characteristics specifically engineered to its application and designed to suit a broad range of motorcycles, ATVs & UTVs in Australasia. With NGK's dedication to quality, outstanding reliability and state of the art manufacturing techniques, you can rely on your NGK Spark Plugs.

Don’t just ask for a spark plug, insist on NGK.

The 98% pure copper core delivers increased heat dissipation for more reliable starts and reduced risk of overheating. While cold-rolled threads prevent cross-threading and damage to cylinder heads and a trivalent plating eliminates the need for anti-seize. Complete with a high-grade alumina silicate ceramic.

Shell

• Thread Size: 10mm
• Thread Pitch: 1.0mm
• Seat Type: Gasket
• Resistor Value: 5K Ohm
• Reach: 19mm (3/4")
• Hex Size: 16mm (5/8")
• Terminal Type: Threaded Stud
• Overall Height: ISO
• Gap: 0.9mm (0.035")

Centre Electrode

• Material: Nickel
• Type: Standard
• Size: 2.5mm
• Projection: Projected

Ground Electrode

• Material: Nickel
• Type: Standard
• Quantity: 1

Specifications

• Heat Range: 8

NGK have over 80 years of experience in spark plug manufacturing and are the world leader in spark plug technology. NGK has an extensive range of spark plugs, each with their own unique characteristics specifically engineered to its application and designed to suit a broad range of motorcycles, ATVs & UTVs in Australasia. With NGK's dedication to quality, outstanding reliability and state of the art manufacturing techniques, you can rely on your NGK Spark Plugs.

Don’t just ask for a spark plug, insist on NGK.

The 98% pure copper core delivers increased heat dissipation for more reliable starts and reduced risk of overheating. While cold-rolled threads prevent cross-threading and damage to cylinder heads and a trivalent plating eliminates the need for anti-seize. Complete with a high-grade alumina silicate ceramic.

Shell

• Thread Size: 14mm
• Thread Pitch: 1.25mm
• Seat Type: Gasket
• Reach: 19mm (3/4")
• Hex Size: 21mm (13/16")
• Terminal Type: Removable Nut
• Overall Height: ISO
• Gap: 0.8mm (0.031")

Centre Electrode

• Material: Nickel
• Type: Standard
• Size: 2.5mm
• Projection: Non-Projected

Ground Electrode

• Material: Nickel
• Type: Standard
• Quantity: 1

Specifications

• Heat Range: 7

NGK have over 80 years of experience in spark plug manufacturing and are the world leader in spark plug technology. NGK has an extensive range of spark plugs, each with their own unique characteristics specifically engineered to its application and designed to suit a broad range of motorcycles, ATVs & UTVs in Australasia. With NGK's dedication to quality, outstanding reliability and state of the art manufacturing techniques, you can rely on your NGK Spark Plugs.

Don’t just ask for a spark plug, insist on NGK.

NGK iridium spark plugs currently represent the highest-quality technological solution. They feature an iridium-alloy on the middle electrode welded on in a special process using a laser. One of the world’s hardest metals, the precious metal iridium starts melting at a temperature of 2450°C and is therefore very resistant to spark erosion. By using it, the service life is doubled on average in comparison to standard nickel spark plugs.

NGK have over 80 years of experience in spark plug manufacturing and are the world leader in spark plug technology. NGK has an extensive range of spark plugs, each with their own unique characteristics specifically engineered to its application and designed to suit a broad range of motorcycles, ATVs & UTVs in Australasia. With NGK's dedication to quality, outstanding reliability and state of the art manufacturing techniques, you can rely on your NGK Spark Plugs.

Don’t just ask for a spark plug, insist on NGK.

NGK iridium spark plugs currently represent the highest-quality technological solution. They feature an iridium-alloy on the middle electrode welded on in a special process using a laser. One of the world’s hardest metals, the precious metal iridium starts melting at a temperature of 2450°C and is therefore very resistant to spark erosion. By using it, the service life is doubled on average in comparison to standard nickel spark plugs.

Shell

• Thread Size: 10mm
• Seat Type: Gasket
• Resistor Value: 5K Ohm
• Reach: 26.5mm (1.04")
• Hex Size: 14mm (9/16")
• Terminal Type: Solid
• Gap: 0.8mm (0.031")

Centre Electrode

• Material: Iridium
• Type: Fine Wire
• Projection: Non-Projected

Ground Electrode

• Material: Platinum
• Type: Standard
• Shape: Taper Cut
• Quantity: 1

Specifications

• Heat Range: 8
• Resistor: Yes

NGK standard plugs are constructed for longer life and optimum performance.

Features:

• Trivalent metal plating provides superior anti-corrosion and anti-seizing properties.
• Corrugated ribs prevent flashover.
• Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer.
• Copper core aids in heat removal.
• Triple seals prevent leakage.

Specifications:

• Th read Diameter: 14mm
• Thread Pitch: 1.25mm
• Seat Type: Gasket
• Reach: 19mm (3/4")
• Hex Size: 13/16" (21mm)
• Terminal Type: Removable Nut
• Overall Height: JIS
• Gap: .031" (0.8mm)
• Centre Electrode Material: Iridium
• Centre Electrode Type: Fine Wire
• Centre Electrode Size: 0.6mm
• Projection: Projected
• Ground Electrode Material: Nickel
• Ground Electrode Type: Standard
• Ground Electrode Shape: Taper Cut
• Quantity: 1
• Resistor: Yes
• Resistor Value: 5k Ohm
• Heat Range: 7

Torque Specs:

• Cast Iron: 18-25.3 lb. ft.
• Aluminium: 18-21.6 lb. ft.

Part Information:

• Brand: NGK/NTK
• Warranty: 60 Days
• Longevity: 50k Miles

NGK have over 80 years of experience in spark plug manufacturing and are the world leader in spark plug technology. NGK has an extensive range of spark plugs, each with their own unique characteristics specifically engineered to its application and designed to suit a broad range of motorcycles, ATVs & UTVs in Australasia. With NGK's dedication to quality, outstanding reliability and state of the art manufacturing techniques, you can rely on your NGK Spark Plugs.

Don’t just ask for a spark plug, insist on NGK.

The 98% pure copper core delivers increased heat dissipation for more reliable starts and reduced risk of overheating. While cold-rolled threads prevent cross-threading and damage to cylinder heads and a trivalent plating eliminates the need for anti-seize. Complete with a high-grade alumina silicate ceramic.

Shell

• Thread Size: 10mm
• Thread Pitch: 1.0mm
• Seat Type: Gasket
• Resistor Value: 5K Ohm
• Reach: 19mm (3/4")
• Hex Size: 16mm (5/8")
• Terminal Type: Threaded Stud
• Overall Height: ISO
• Gap: 0.9mm (0.035")

Centre Electrode

• Material: Nickel
• Type: Standard
• Size: 2.5mm
• Projection: Projected

Ground Electrode

• Material: Nickel
• Type: Standard
• Quantity: 1

Specifications

• Heat Range: 7

NGK have over 80 years of experience in spark plug manufacturing and are the world leader in spark plug technology. NGK has an extensive range of spark plugs, each with their own unique characteristics specifically engineered to its application and designed to suit a broad range of motorcycles, ATVs & UTVs in Australasia. With NGK's dedication to quality, outstanding reliability and state of the art manufacturing techniques, you can rely on your NGK Spark Plugs.

Don’t just ask for a spark plug, insist on NGK.

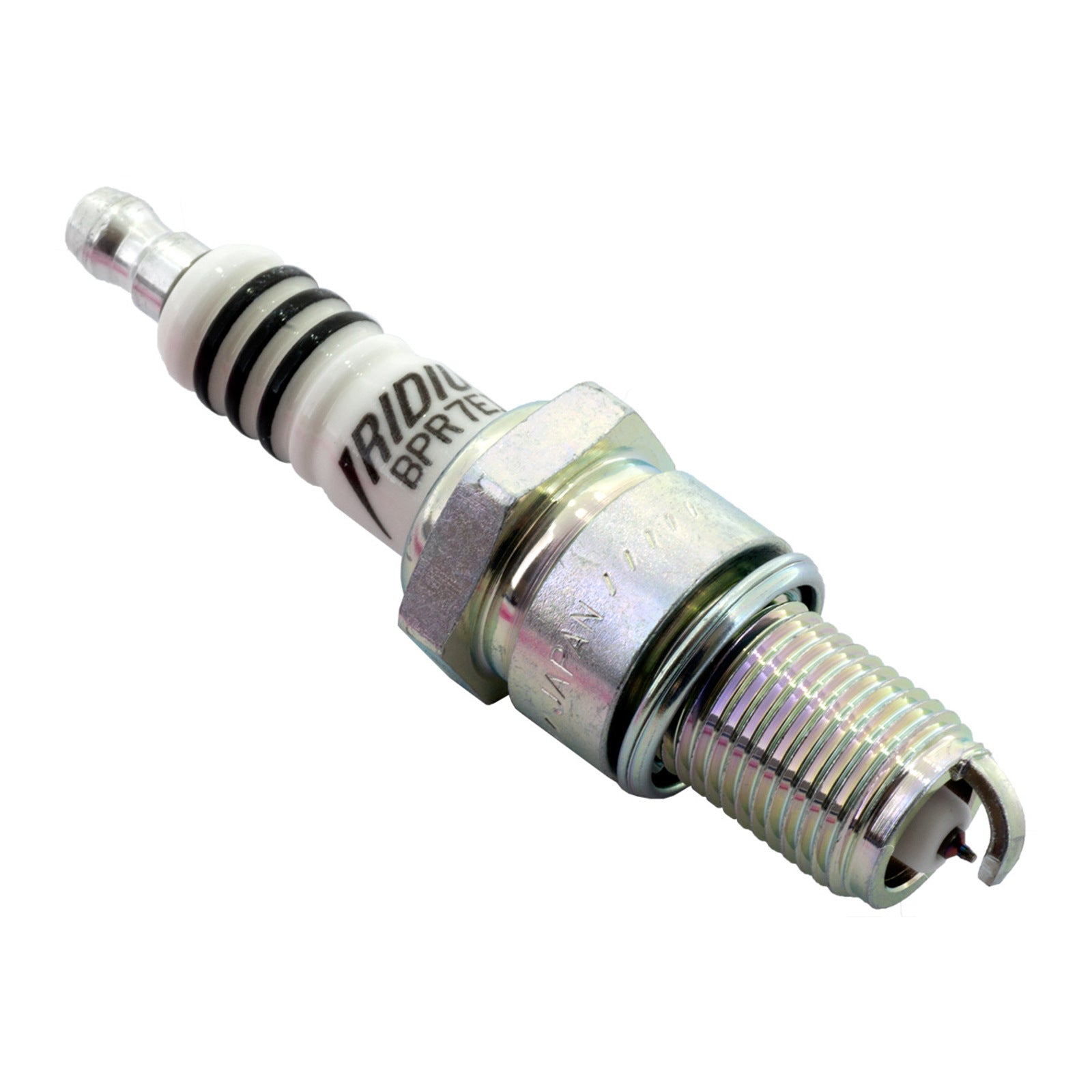

The improved throttle response, superior anti-fouling and high-ignitability make Iridium IX^® ideal for the performance enthusiast. Iridium’s extremely high melting point is perfectly suited to today’s high-temperature engines, delivering outstanding acceleration, fuel efficiency and durability.

• Fine iridium tip ensures high durability and a consistently stable spark
• Trivalent metal plating for superior anti-corrosion and anti-seizing properties
• Outstanding acceleration, high fuel efficiency and durability

Shell

• Thread Size: 10mm
• Thread Pitch: 1.0mm
• Seat Type: Gasket
• Resistor Value: 5K Ohm
• Reach: 19mm (3/4")
• Hex Size: 16mm (5/8")
• Terminal Type: Threaded Stud
• Overall Height: ISO
• Gap: 0.9mm (0.035")

Centre Electrode

• Material: Iridium
• Type: Fine Wire
• Size: 0.6mm
• Projection: Projected

Ground Electrode

• Material: Nickel
• Type: Standard
• Shape: Taper Cut
• Quantity: 1

Specifications

• Heat Range: 9
• Resistor: Yes
