ELECTRICAL

Produced in the U.S.A. with the latest materials and technology in gasket production to Vertex specifications. Vertex gaskets ensure long-lasting performance and leak prevention for your rebuild needs.

• Ignition cover gasket
• Designed to fit O.E.M. cover

Fuse holders are devices for containing, protecting and mounting fuses. The Whites Screw Type Fuse Holder is an in-line screw-together fuse holder that is compatible with glass tube fuses. The fuse holder includes an internal spring which ensures constant contact with the fuse to maintain the circuit. Designed with a single wire loop 8-1/2" in total length so you can choose where to cut the wire for custom installation.

Features:

• Screw together design.
• Internal spring to keep fuse connected.
• In-line fuse holder for glass tube fuse.
• Wire loop so you can cut where you want for installation.
• Universal fuse holder made of high-impact plastic.
• Wire measures 8 1/2" in total length.
• Weather resistant.

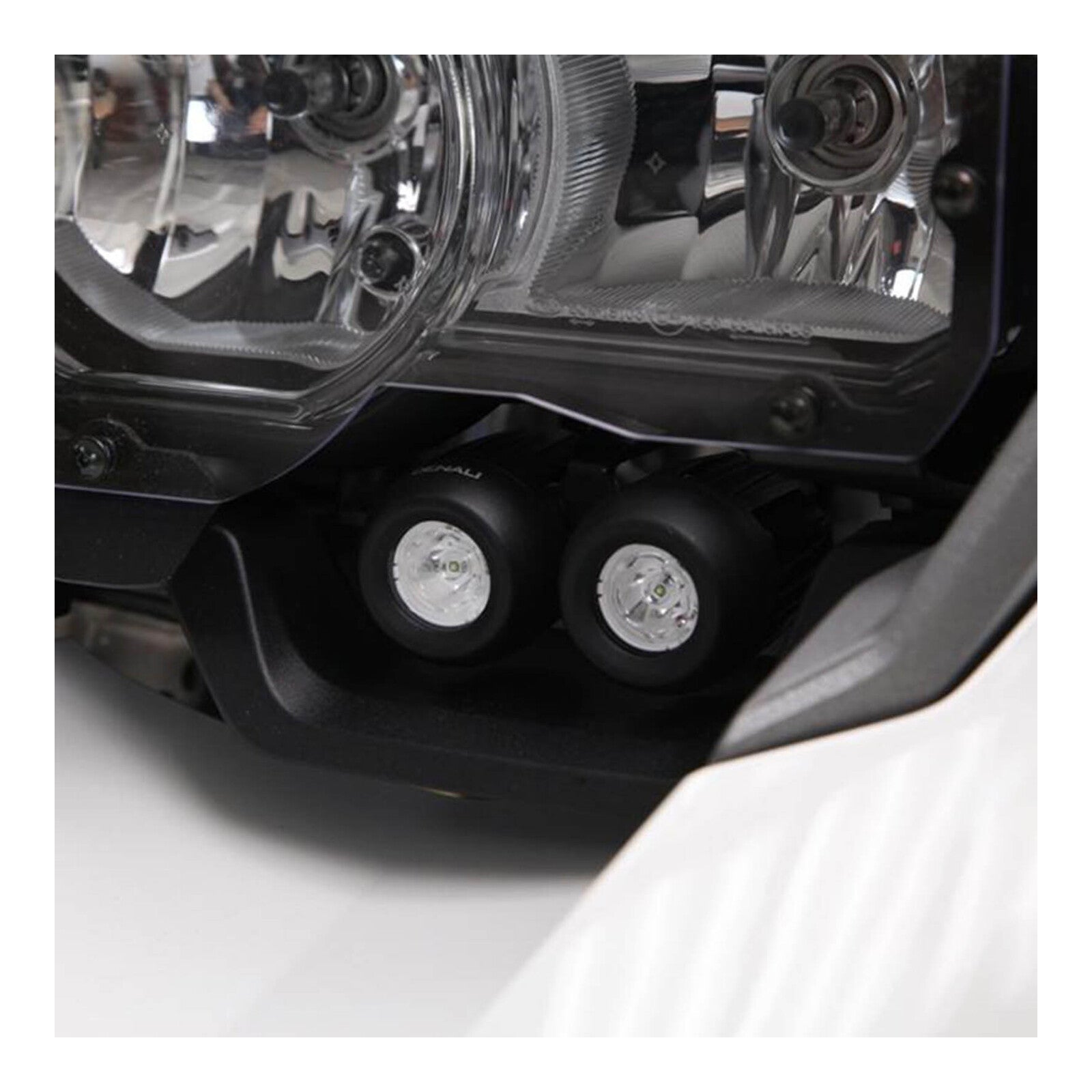

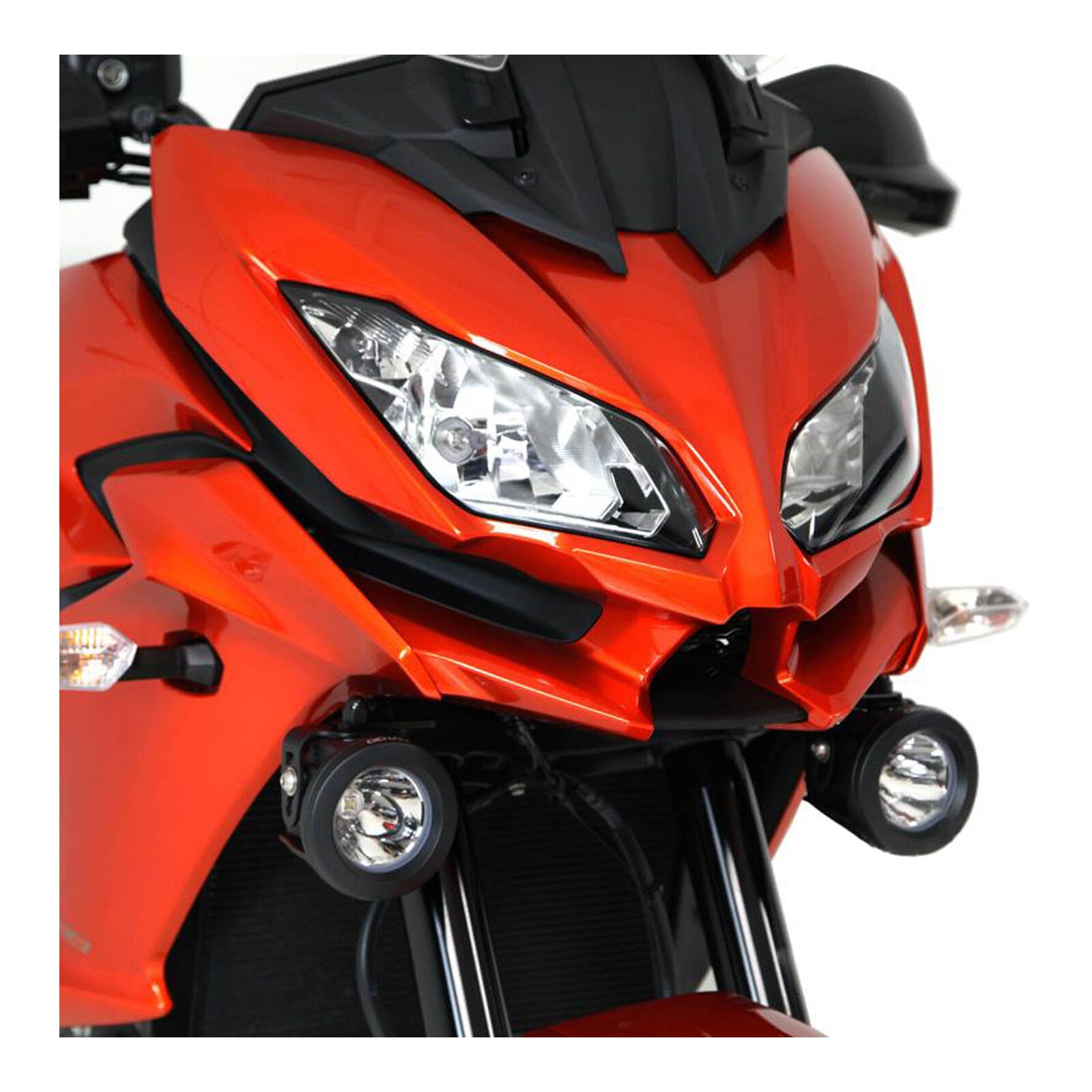

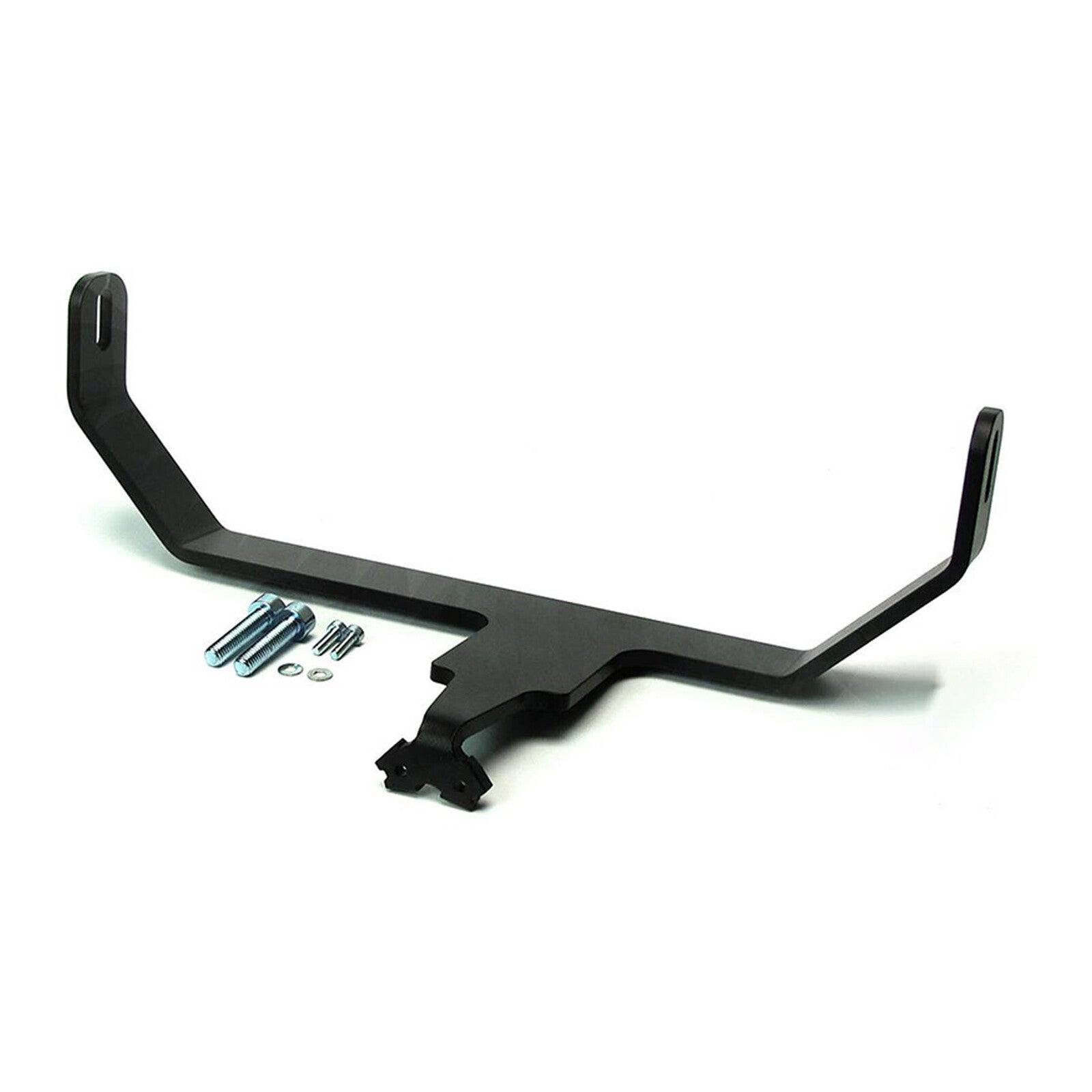

DENALI Motorcycle Specific Fairing / Fender Mounts

Available for most ADV, Cruisers and Sport Touring Models Laser cut and powder coated steel brackets either position the lights in the optimum location just below to the outside of the headlight, or create a two-point fender mount strong enough to mount our largest lights to your fender.

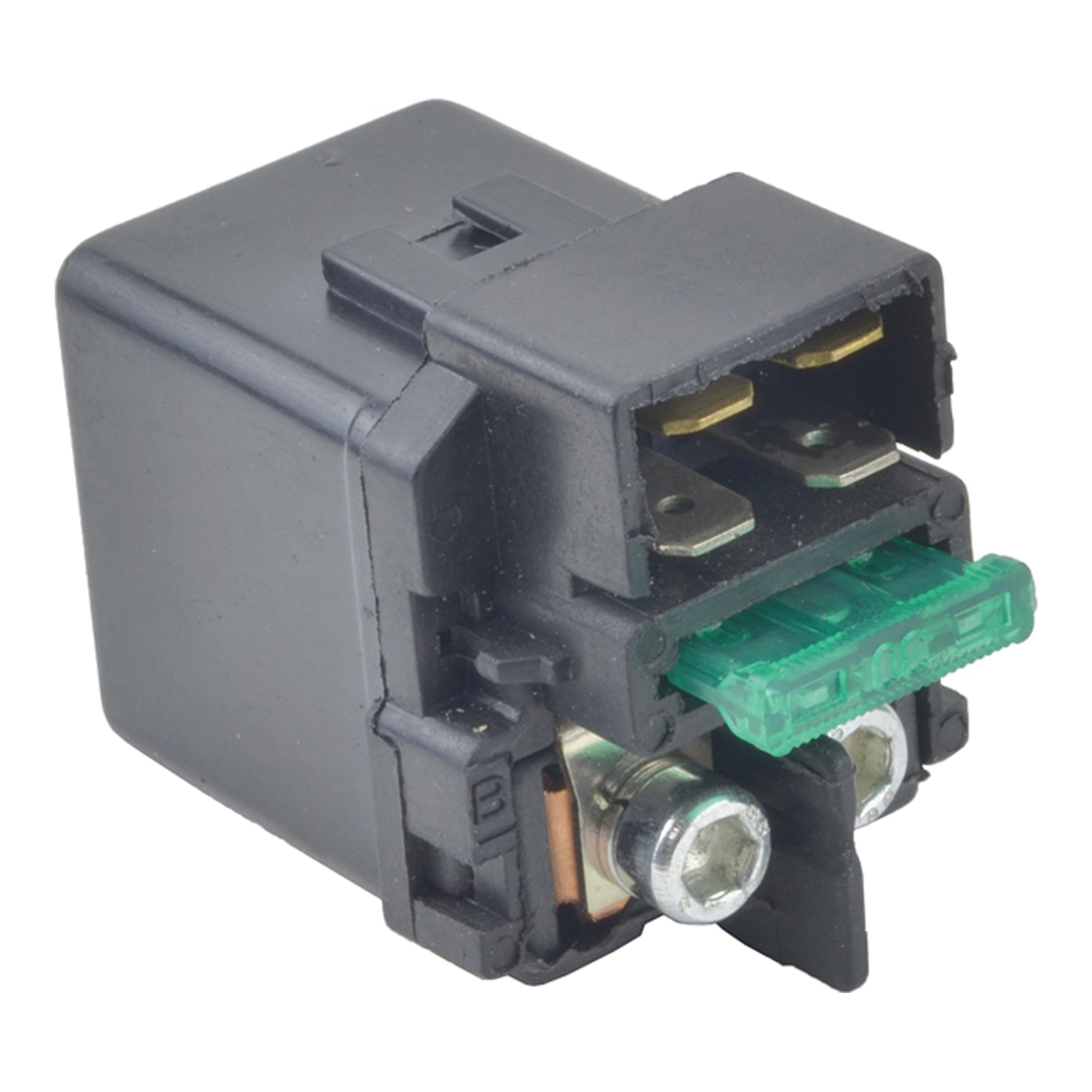

Quality replacement Starter Relay.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Brand new aftermarket AC to DC 40W Stator + Voltage regulator rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• All products shipped are tested

Because of the lightweight LED lights, night time illumination has become much easier. However, most motorcycle electrical systems need more power to make them work. This RMSTATOR kit provides the stator with the higher power needed to make starting easier and turn on auxiliary lights and other accessories.

Designed to work with the DC system, this set of parts are built-in relays that activate the switched 12 V DC output line only when the motor is running. Do you often forget to turn off your lights? No more worries! This kit will be perfect for you because the adjustable shut-off delay will turn them off automatically!

Stator :

• Compatible with lighting systems of equal or less power
• Replace the OEM and increases power output significantly.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

Voltage regulator rectifier :

• No assembly required
• Higher grade of electric components.
• The quality exceeds the OEM equipment

Stator

Dimensions:

diameter: 28 mm
• Exterior diameter: 61 mm
• Thickness: 14 mm
• Length of wires stator to grommet: 100 mm
• Length of wires grommet to plug: 660 mm
• Length of pickup coil's wire to grommet: 65 mm

Other specifications:

• Number of wires: 6
• Number of plugs: 4
• Number of pins: 6

Wire to wire resistance:

• Alternator: Yellow between each Yellow = 0.5 ohms +-20%
• Pickup: Blue/yellow to Green/White = 267 ohms +-20%
• Source: Blue to White = 24 ohms +-20%

Voltage Regulator Rectifier

Dimensions:

• Width: 44 mm
• Length: 79 mm
• Height: 22 mm
• Wires length: 250 mm
• Fixation holes center to center: 62 mm

Other specifications:

• Number of wires: 5
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: 15 V
• Operation Temperature: -20° to 85°

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

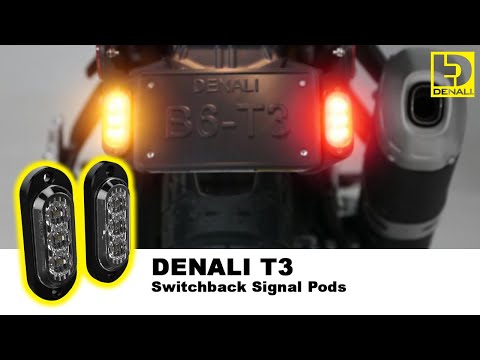

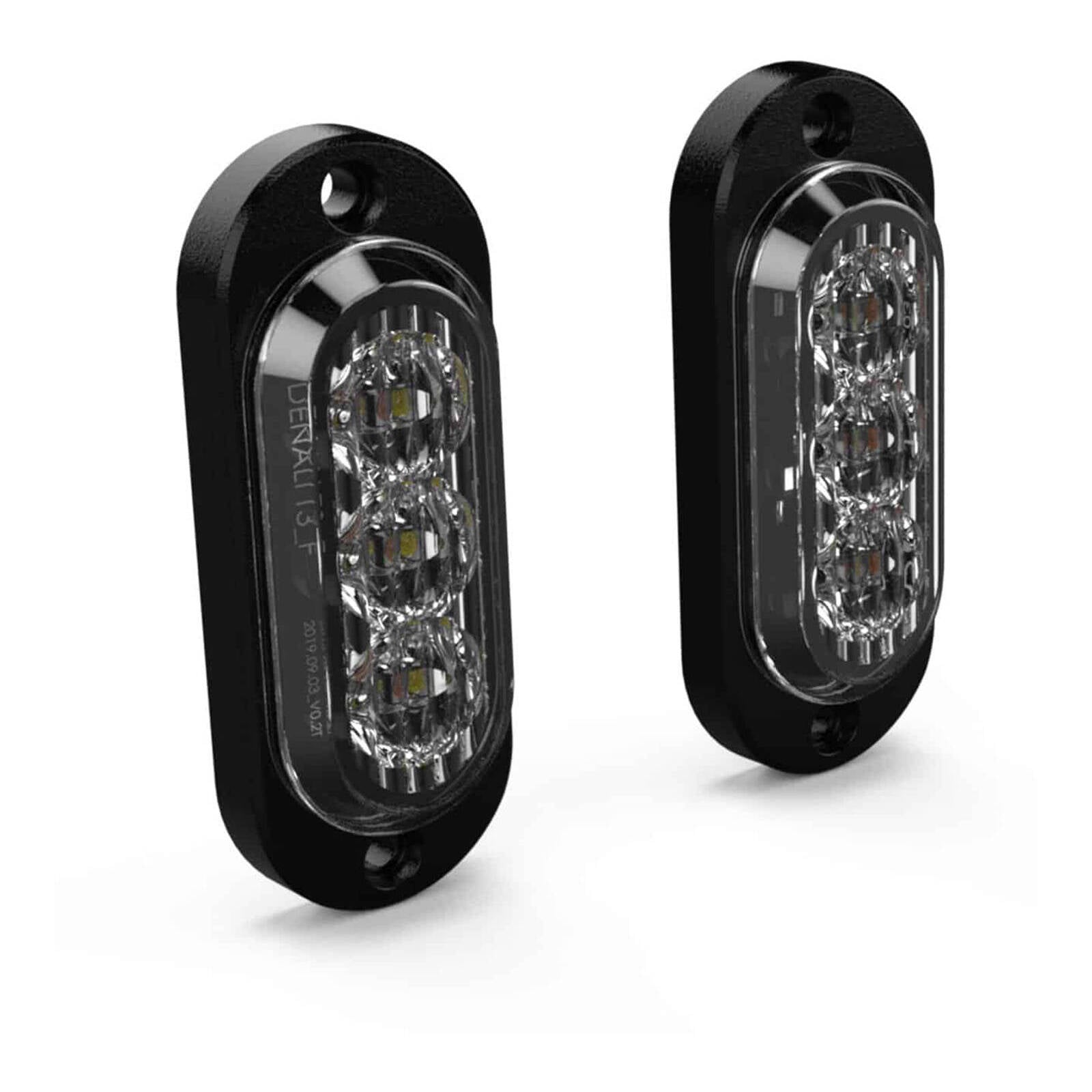

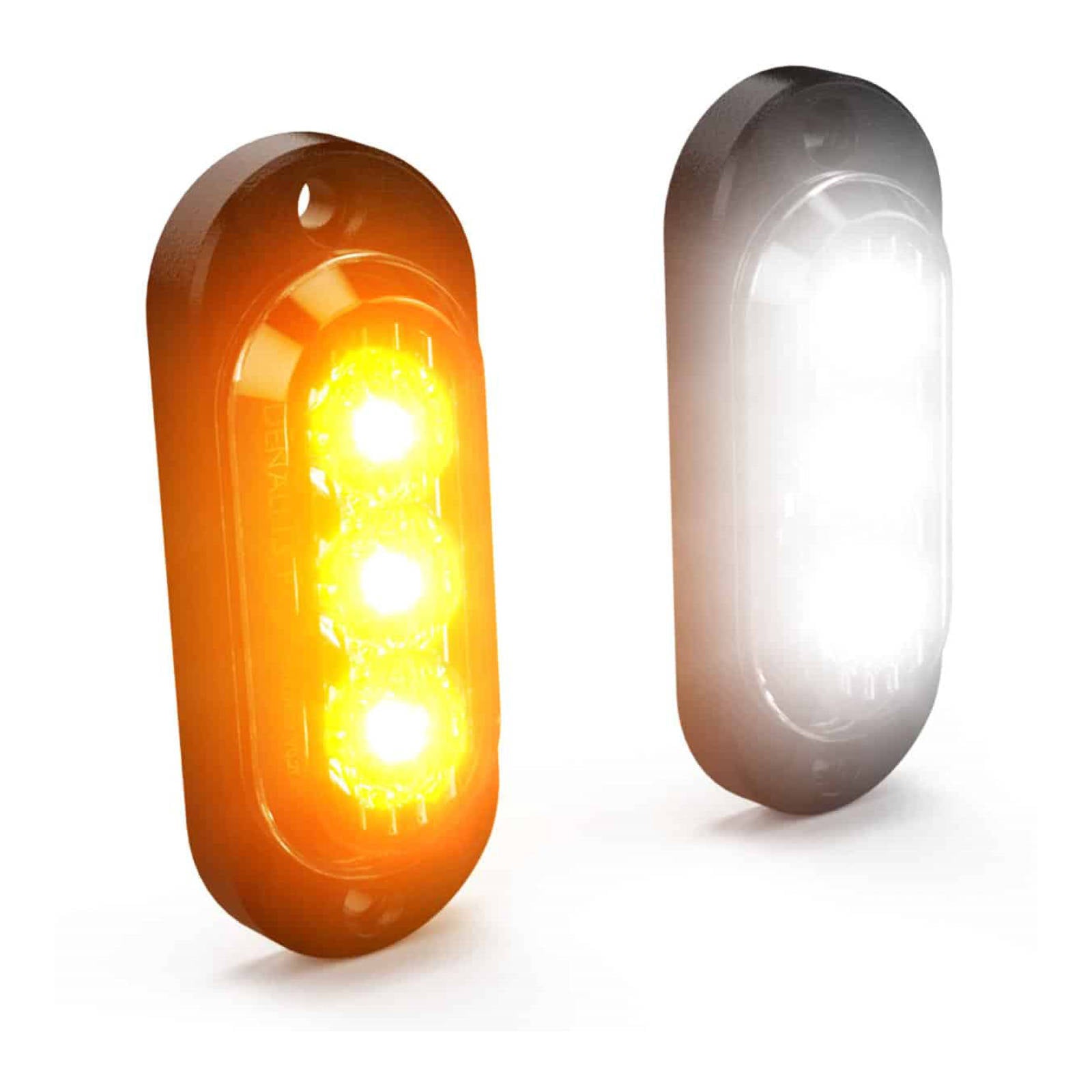

The T3 is a unique and innovative approach to the common turn signal, blending white visibility lighting, red brake lighting and amber turn signal lighting into one modular system. The front T3 turn signal pods feature super bright white running lights that switch to amber when your turn signal is activated, while the rear T3 signal pods feature super bright red LEDs for run and brake functionality that also switch to amber when your turn signal is activated. Unlike other switchback turn signals, the T3s feature two separate rows of high-power single-colour LEDs as opposed to weaker bi-colour LEDs. The result is a shockingly bright light pod that rivals the intensity of 10 watt LED driving lights.

While the T3s are available in a traditional turn signal housing, this low-profile modular signal pod is designed to be mounted to a variety of other locations on the front and rear of your vehicle. Dedicated front mounting kits allow T3s to be mounted to handguards, front fenders, crash bars and body panels, while rear mounting kits allow them to be mounted to cases, license plates, and rear fenders. This kit includes 4 self-tapping screws, so no additional mounting kit is necessary for flush-mounting applications!

The modular low-profile housing coupled with high power LEDs makes the T3 the brightest and most versatile switchback turn signal on the market.

Features

• Switchback Functionality: White DRL & Amber Turn Signal
• Dual Circuit DRL: 50% Low, 100% High
• 180-degree viewing angle
• Six high power LEDs (per pod)
• Low-profile design
• Easy connection to vehicle DRL and turn circuit
• E-Mark approved DRL and turn signal

Specs

• Total Power Draw: 0.25A DRL, 0.25A Turn Signal
• Input Voltage: 12V DC
• Size: 2.9" x 1.13" x 0.5"
• Weight: 0.08 lbs
• Raw Lumens: 870
• Waterproof: IP67

What’s In The Box?

• 2x Front Signal Pods
• 2x Wiring pigtails with waterproof connectors
• 4x Mounting screws
• 8x Posi-Taps
• Illustrated installation instructions

With certain BMW motorcycle models, the spark plug caps and coils are combined to reduce the number of parts used in order to improve efficiency. However, when the spark plug cap wears out, the cost of the replacement becomes more expensive. If you are experiencing ignition problems, this could mean the ignition cap coil needs to be replaced. Simple, easy to install, affordable, and improves engine performance.

Features:

• Direct replacement to your original unit.
• Quality exceeds the OEM equipment.
• All products shipped are tested.

Specifications:

• Len gth: 157mm
• Resistance primary: 1-3 1.0 ohm
• Resistance secondary: 2 -4 16.25 ohm

Note: All item pictures are accurate. If in doubt, do not hesitate and compare our item to your original part.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

STOP BURNING YOUR REGULATOR RECTIFIER! It is time to update or replace your voltage regulator with RM STATORS advanced MOSFET technology. RM STATORS MOSFET Regulators run cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• The quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components

What are the advantages of the MOSFET Technology?

• Runs much cooler than the traditional Shunt voltage regulator rectifier
• Less load on the stator, less work, less fuel is used and you save
• The power charging your battery is steadier and smooth
• Extends the battery’s life and cold-cranking capacity
• Removes stator load resulting in more engine power
• Optimize power delivery by switching the stator coils on or off

NOTE: Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Brand new Mosfet Voltage Regulator Rectifier

STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

Dimensions:

• Width: 25 mm
• Length: 79 mm
• Height: 83 mm
• Fixation holes center to center: 60 mm

Other specifications:

• Number of plugs: 1
• Number of pins: 6
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20° to 85°

Key features:

• IMPROVED and HEAVY DUTY: OEM and most SCR type voltage regulator are known to fail more than often for these vehicles. Our RMS Labs took a best selling voltage regulator and made it tougher by using highly reliable components to regulate the voltage. The result : More than 83% less failures than a standard OEM-type voltage regulator.


• RMSTATOR RENOWNED MOSFET COMPONENTS: Significantly decreases internal operating temperature with highly efficient MOSFET transistor regulation circuit. This technology runs much cooler than the OEM silicon rectifier regulation circuit and requires much less power to operate.


• AUTOMOTIVE GRADE HEAVY-DUTY CONNECTORS: Increase contact surface for distributed voltage charge on pins & less heat generated at connectors levels

• Direct replacement to your original unit


• Plug-and-play, direct fit, easy installation


• The quality exceeds the OEM equipment


• Higher grade of electric components


• All shipped products are tested

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest-grade lamination materials
• Highest-grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

Specifications:

Dimensions:

Other specifications:

• Number of wires: 5
• Number of plugs: 2
• Number of pins: 5
• Number of poles: 12

Wire-to-wire resistance:

• All 1p winding: Black to White = 0.9 ohms +-20%
• Alternator #1: Yellow to Black = 0.6 ohms +-20%
• Alternator #2: Yellow to White = 0.8 ohms +-20%
• Pickup: Pink to White = 280 ohms +-20%

Produced in the U.S.A. with the latest materials and technology in gasket production to Vertex specifications. Vertex gaskets ensure long-lasting performance and leak prevention for your rebuild needs.

• Ignition cover gasket
• Designed to fit O.E.M. cover

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

DENALI Motorcycle Specific Fairing / Fender Mounts

Available for most ADV, Cruisers and Sport Touring Models Laser cut and powder coated steel brackets either position the lights in the optimum location just below to the outside of the headlight, or create a two-point fender mount strong enough to mount our largest lights to your fender.

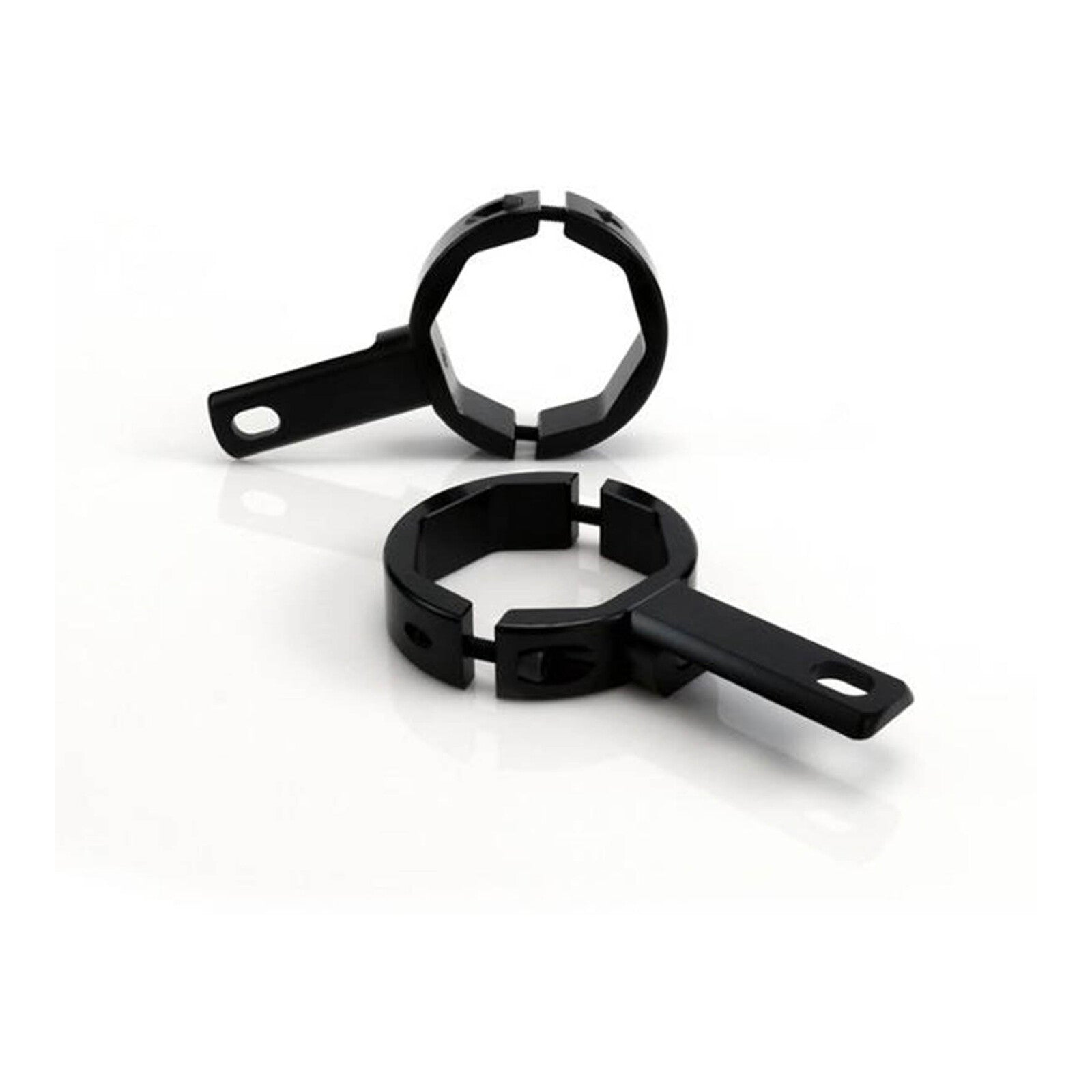

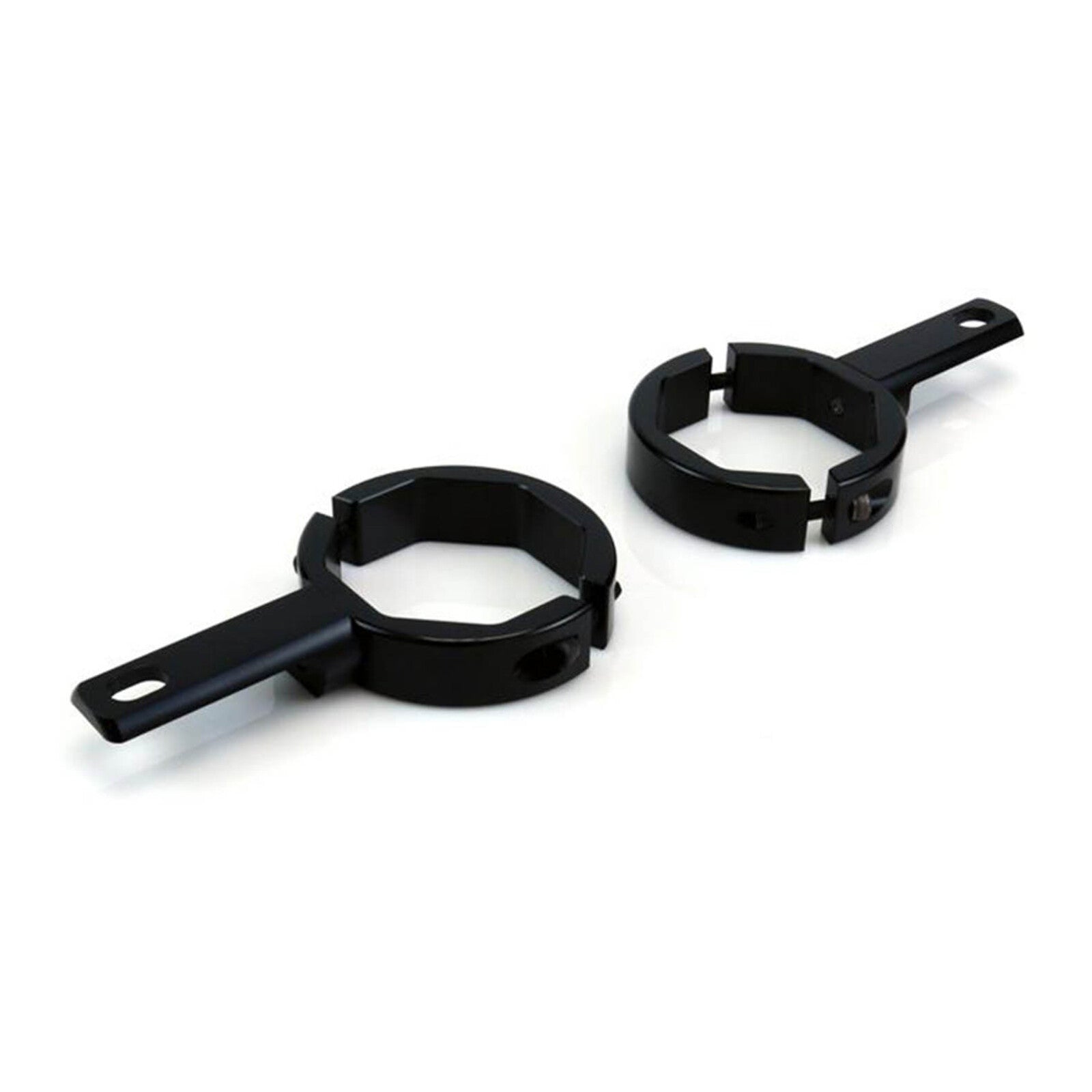

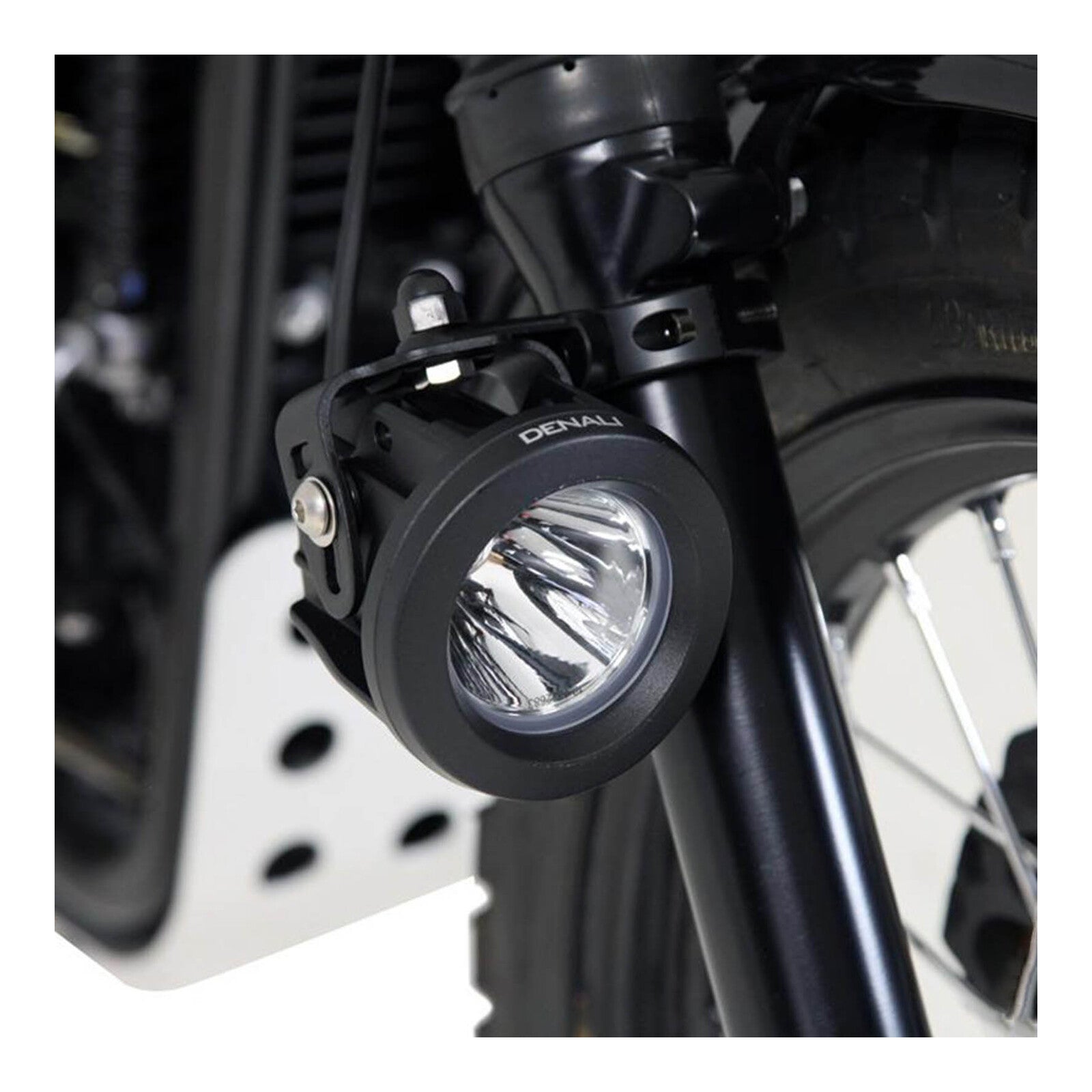

DENALI Universal Fork Tube Mount

Our unique 4-point clamp with rotatable mounting bracket is the ideal mounting solution for Cruisers and Enduros. Two sizes fit forks from 40mm to 60mm diameter. Compatible with all DENALI lights.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.
• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment

RM STATOR has even included the opposite connector (main harness side), as they know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

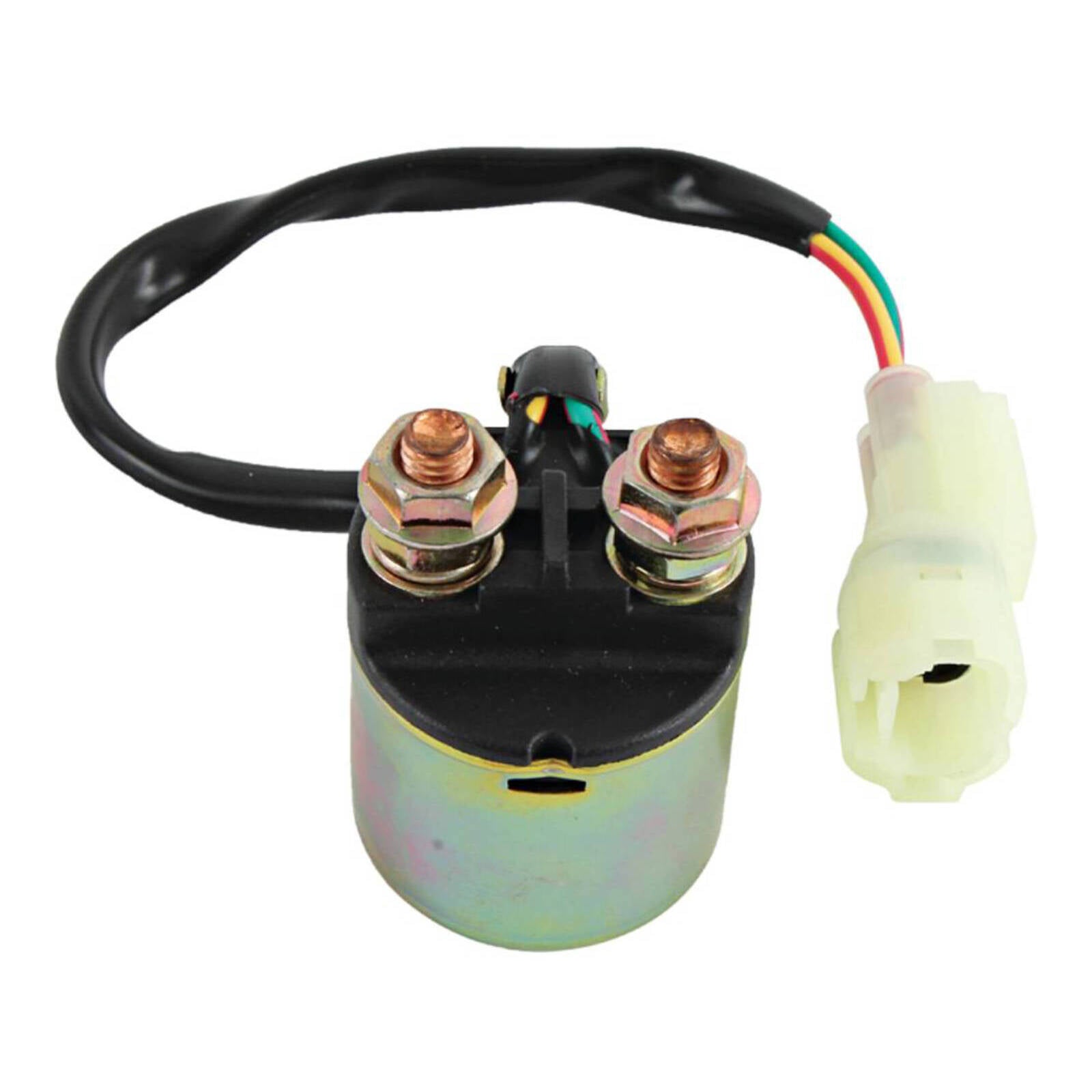

Quality replacement Starter Relay

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Improved Magneto Flywheel Rotor

RMSTATOR is offering a new improved replacement flywheel for your Suzuki and Arctic Cat. This flywheel can be used as a direct replacement to the OEM.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part

What is improved about the RM11502 flywheel?

2002-2007 Suzuki Eiger 400 and 2003-2008 Arctic Cat 400 ATVs are plagued with problems on the original flywheels. The additives in the motor oil were dissolving the epoxy that holds the magnets in the flywheel, causing them to detach and scatter throughout the engine.

• EXPOSED EPOXY
• DETACHED MAGNET

The bad news is that by the time the problem occurred, no manufacturer would provide warranty repairs.

The good news is that RMSTATOR has manufactured a redesigned flywheel where the magnets are sealed in the flywheel, which reinforces the epoxy and prevents them from detaching. This new flywheel configuration corrects the problem permanently.

Dealership estimates to repair this failure are over $500 in parts alone. RMSTATOR offers you a high-quality replacement part that corrects the problem for half the price. The RM11502 flywheel is not only a cost-effective way to replace your failed Suzuki or Arctic Cat flywheel, but a great investment when replaced before the failure occurs.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

For a limited time, we are including a FREE Tympanum AC regulator required to run the extra wattage supplied from our 200W stator.

• AC Regulator
• 12 Volts regulator used by Baja winners
• For use with all standard halogen and quartz lights
• Precise voltage control eliminates light burnout
• Reduce flickering and dimming
• Simple installation
• Works with all other OEM parts
• Rated at 225 watts.

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Plug-and-play replacement stator from RM Stator.

Dimensions:

• Interior diameter: 54 mm
• Exterior diameter: 126 mm
• Thickness: 21 mm
• Length of wires stator to grommet: 120 mm
• Length of wires grommet to plug: 680 mm

Other specifications:

• Number of wires: 3
• Number of plugs: 1
• Number of pins:3
• Number of poles: 18
• Wire to wire resistance:
  • Alternator: Between each Yellow = 0.6 ohms +-20%
  • Alternator: to ground = O.L

Details:

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included
• Rubber grommet included
• All products shipped are tested

The Whites On/Off Switch Block is a two-stage on/off handlebar switch for your engine or headlight with an included engine start button. The switch block is pre-wired in a 400mm length with a plug and bullet terminals. Constructed with a full plastic housing for a secure hold on your handlebars without causing damage to the surface of the handlebar and is compatible with any 12V DC system.

Features:

• Plastic housing full wrap-around design.
• Compatible with 7/8" handlebars.
• Two-stage on/off switch block.
• Includes engine start button.
• Working voltage: DC12V/10A
• Fully waterproof.
• Flip buttons make it easy for gloved hands to use.

Whites 12V Horn (110db) -70mm diameter

Whites Horns are designed to be more than just a noise-maker; it's your audible safeguard, ensuring you're heard and noticed on the road, enhancing your safety and communication with other drivers.

Brand new starter relay solenoid switch

• The quality exceeds the OEM equipment
• All products shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Dimensions:

• Height: 37mm
• Length: 30mm
• Width: 23mm
• Wires length: 185mm

Other specifications :

• Number of wires: 8
• Number of terminals: 8
• Number of plugs: 1

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
