HARD PARTS

Brand new aftermarket voltage regulator rectifier

• AC regulator rectifier
• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• The quality exceeds the OEM equipment
• Higher grade of electric components.
• All products shipped are tested

Dimensions:

• Width: 55 mm
• Length: 45 mm
• Height: 15 mm
• Fixation holes centre to centre: 55 mm

Other specifications:

• Number of pins: 4
• Number of wires: 4
• Minimum Charging Voltage: 14.5V +/- 0.5V
• Maximum Charging Current: 50A/500W
• Open Circuit Voltage: <15V
• Operation Temperature: -20° to 85°

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Carburetor repair kits

• Kits include all of the necessary components to repair a carburetor. ATV models with two carburetors include components to repair two carburetors.
• Kit includes necessary all O-rings, gaskets, jets, needle, mixture screw, float bowl screws, float valve needle and seat. (Needle jet and other pressed in jets are not included in kit.)
• OEM jet sizes are included in the kit. NBR rubber material is used on all O-rings and rubber gaskets NBR has excellent resistance to the ethanol used in today’s fuels.
• Applications that use paper float bowl gaskets are upgraded to High Performance Interface Gasket material.
• Components included in the kits are based off of US models and discretion must be used when attempting to install the kit on a non US model.
• Off road use only.

All Balls manufactures a wide range of high-quality products to keep you out there on your Motorbike, ATV or UTV. All Balls Sintered Brake Pads are engineered to be extremely durable and dependable, while withstanding high-speed environments.

Includes components necessary to complete a piston (top end) rebuild. Competitive pricing, made to meet and exceed OEM quality and designed as a direct OEM replacement.

Features:

• Designed for OEM replacement.
• Made from high-quality materials.
• Meet or exceed OEM specifications.
• Competitive pricing.

Motobatt Pro Lithium batteries are around 3x lighter than conventional lead- acid batteries, yet they produce even greater cranking performance ideal in competitive environments. This additional power translates into the ability to provide strong starting currents that are required for reliable, repeated starts at a wider range of temperatures than lead-acid batteries. Due to their very low idle discharge, Motobatt Pro Lithium batteries can retain charge after more than a year of inactivity. Pro Lithium batteries have a high life expectancy with over 2000 cycles compared to around 500 for a lead-acid battery, while also boasting a short recharge time, supplying up to 90% charge after.

Specifications:

• Capacity: 4.5 Ah
• CA: 115
• Box quantity: 10
• Size: (LxWxH) 114 x 70x 87, 114 x 70x 107 (EVA 2), 114 x 70x 127 (EVA 2)
• Quadflex: MBTZ7S, MBTX7U
• Replaces:
  • YTX5L-BS, YTZ6S, YTZ7S
  • YTX7L-BS, YTZ8V

Features:

• Over-charge Protection is activated when the battery voltage reaches 15.6v or if any individual cells reach 3.90v. This is to protect the battery from overheating and overcharging.
• Over-discharge protection is activated when the battery voltage drops below 8.0v for longer than 7 seconds.
• Cell balancing

Cell Balancing Circuit (CBC)

Motobatt’s Cell Balancing Circuit or CBC for short gives their range of Pro Lithium batteries an edge over the competition. The dynamic cell balancing provides the ultimate in cell control giving superior performance, life span and safety.

Each Motobatt Lithium battery contains a unique CBC which always controls the charge/discharge of the cells, especially when experiencing unreliable current during use. Most other batteries only have their CBC in the charging system, this only provides proper control and balance when the unit is connected to a wall socket.

Due to the CBC technology, Motobatt Pro Lithium batteries can be recharged* when flat (below 10V) allowing them to last longer and provide more power to your motorcycle.

*Aggressive and repeat discharging may affect capacity and rechargeability

Protection Circuit Board (PCB)

Exclusive to Motobatt’s Pro Lithium HP-Series the Protection Circuit Board (PCB) technology makes Motobatt’s Pro Lithium batteries the safest on the market. PCB is designed to reduce the threat of thermal runaway and premature battery failure.

Note:

• Motobatt Pro Lithium batteries require different care and maintenance from standard lead-acid batteries. Always use a charger designed for use with lithium batteries. Warranty will be voided by using any other type of charger.
• Motobatt Pro Lithium batteries are high- performance starting batteries. They are not suitable for use where there is a parasitic drain on the battery, e.g. hot grips, alarms, clocks etc.
• Motobatt recommends the use of Tech 1 or Fat Boy Chargers to maintain and achieve best battery performance and longest life span.

Fuel pump strainers act as a first line of defence against fuel system contamination. Strainers filter out common contaminants found in gasoline such as dirt, dust and other particulate matter, as well as gasoline varnish. Quantum fuel pump strainers feature multiple layers of strainer media to filter progressively smaller particle sizes. The expanded surface area provides enhanced filtration, extending the life of the fuel pump.

Restricted fuel flow through a clogged strainer causes the fuel pump to work harder, reducing pump longevity. Strainer clogging is among the top causes of fuel pump failure making it important to replace your strainer regularly - before problems arise. We recommend replacing fuel pump strainers in powersports applications once a year as part of a preventative maintenance plan.

Features:

• Designed with gradient density to meet or exceed OE specifications.
• Designed to ensure optimal filtration to prevent fuel system contamination.
• Strainer material tested and validated for capacity and efficiency by accredited third party.

Quantum replacement fuel pumps, modules, assemblies, and kit components are designed to meet or exceed OEM specifications, and feature upgrades that improve on the OEM design. Upgraded polymers, brushes, and commutators ensure long life and durability in multiple fuel blends.

• OEM or better performance
• Polished corrosion-resistant case to help minimize seizing during non-operation
• Specifically designed for quiet operation
• Drop-in replacement
• Gradient density fuel strainer for superior contaminant filtration
• Patented check valve technology
• Compatible with modern ethanol-infused pump gasoline

NOTE: This complete Vertex Gasket Set contains all parts as pictured.

Produced in the U.S.A. with the latest materials and technology in gasket production to Vertex specifications. Vertex gaskets ensure long-lasting performance and leak prevention for your rebuild needs. Vertex's replacement gaskets and seals are available as top-end kits, complete engine kits, or as an oil seal kit.

• One kit containing all of the gaskets, O-rings, and valve seals necessary to rebuild the entire engine and transmission.
• Includes transmission seals.

All the parts required to rebuild one side of a rear suspension.

Upgrade your motorcycle's clutch system with the All Balls Racing Motorcycle Clutch Cable. Designed with precision and durability in mind, this clutch cable delivers exceptional performance and reliability on the road.

• Black PVC outer jacket for maximum flexibility and durability.
• Steel inner casing that is tightly coiled for low compression.
• A pre-lubricated nylon inner sleeve guarantees smooth operation and long life.
• All wire ends are bird-caged prior to terminal casting for superior pull-out resistance.
• EPDM-moulded rubber components for high UV resistance and long life.
• Injected moulded components are manufactured from high-strength POM material.

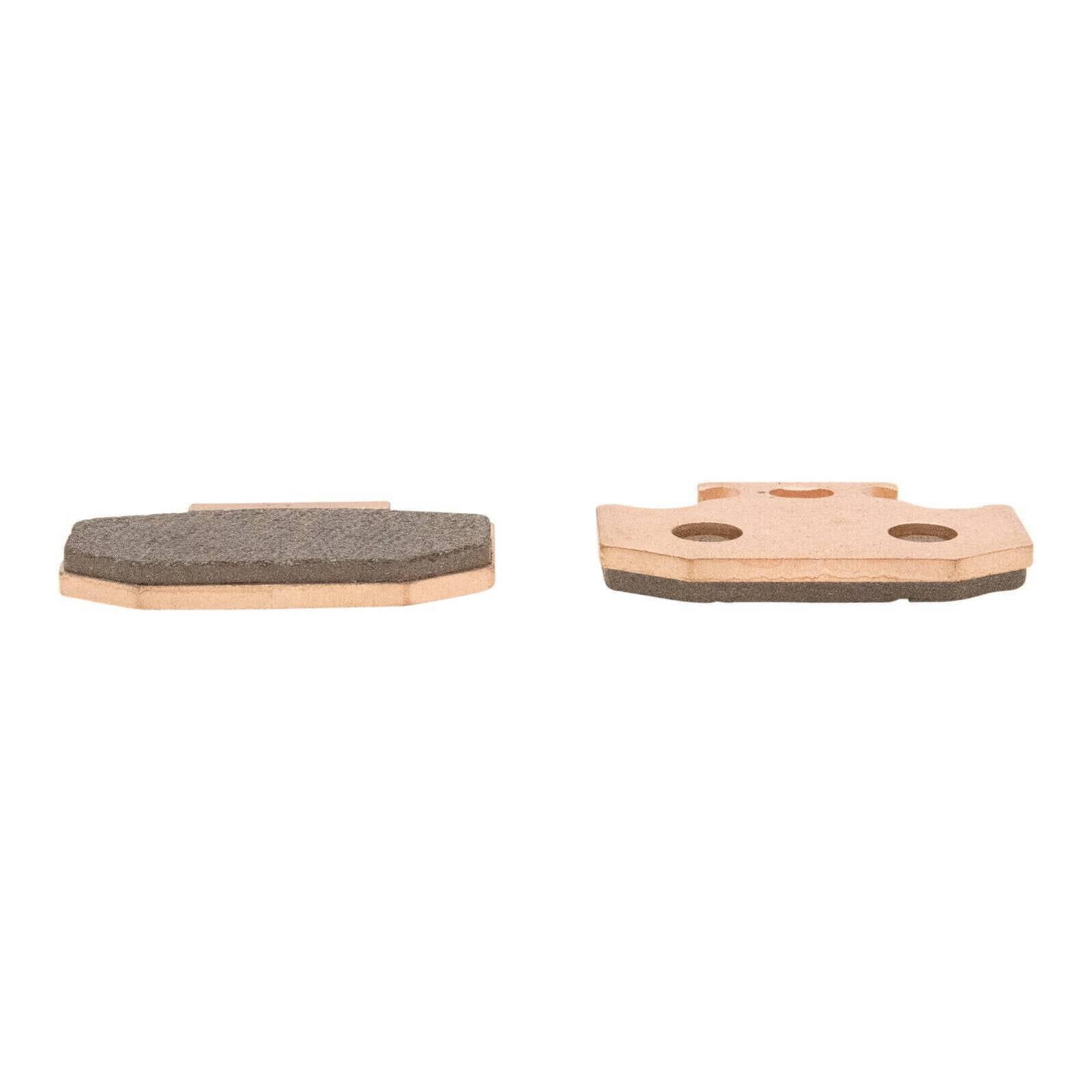

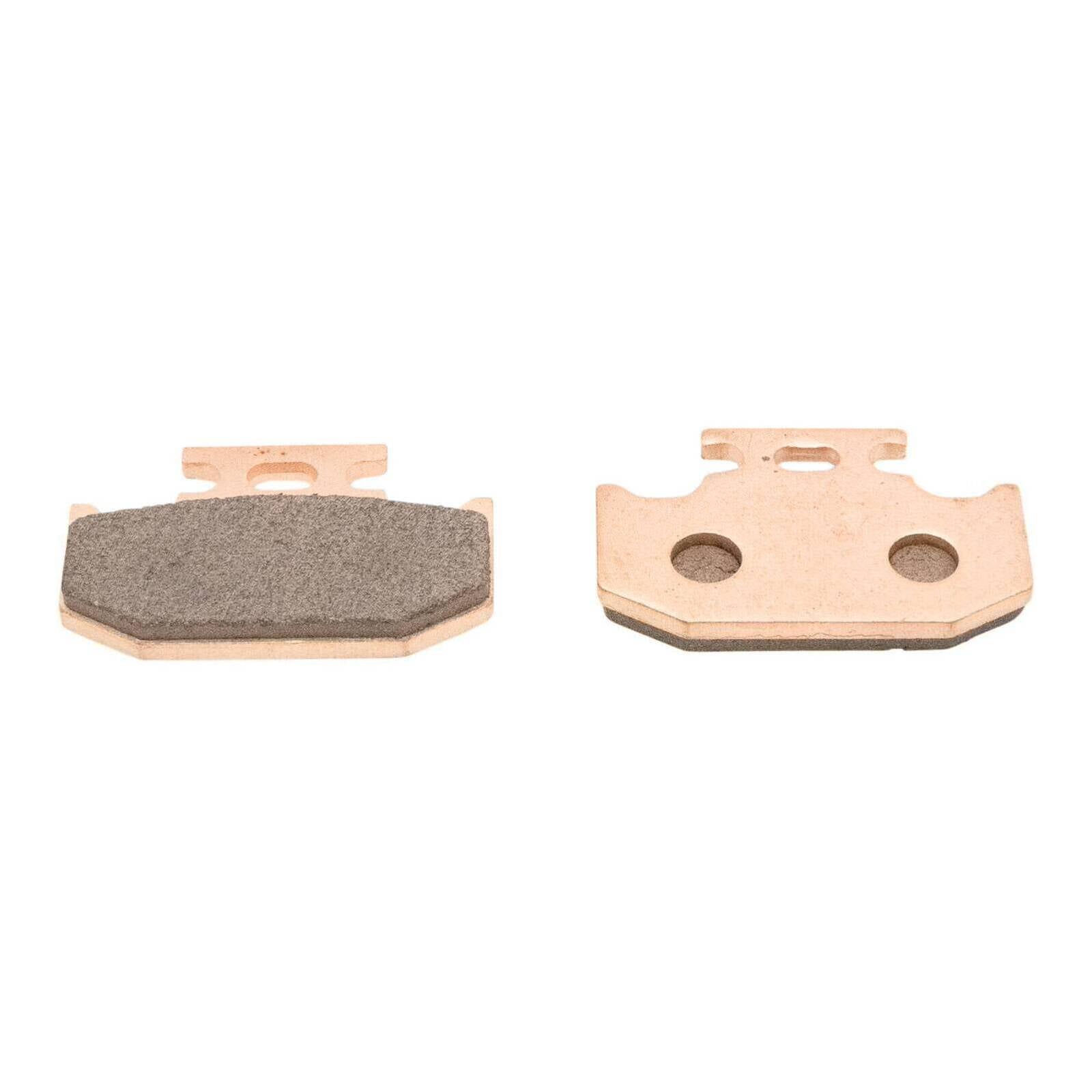

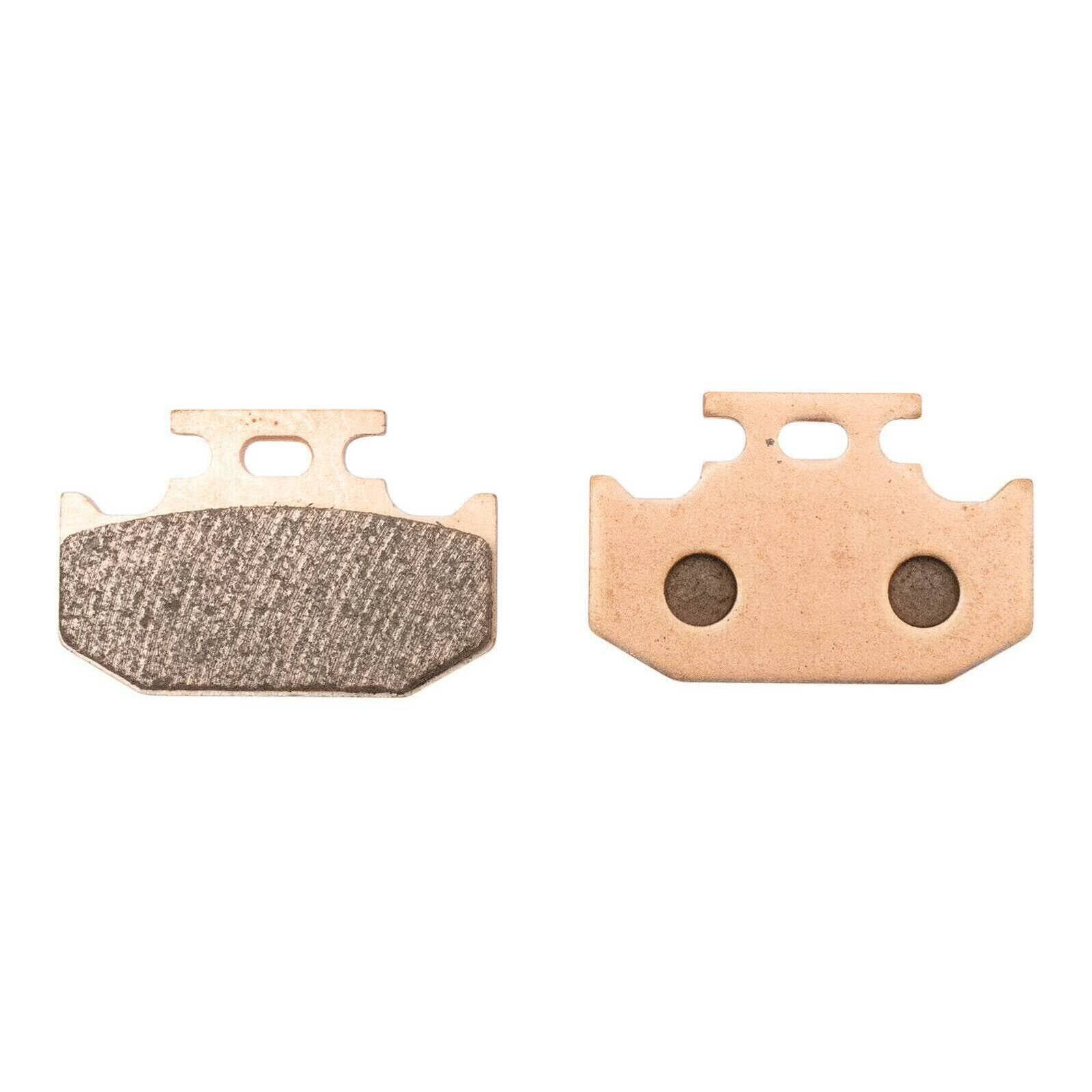

GOLDfren began manufacturing sintered disc brake pads for a wide range of off-road and road motorcycles in 1991, nearly three decades on from their first motorcycle brake pads GOLDfren has become one of the largest aftermarket manufacturers in the motorcycle brake disc pad industry. Their development of next-generation products has kept them at the technological forefront of Sintered Friction Braking providing you with confidence in the performance, durability and reliability of your brakes.

S3 Series:

The S3 sintered compound is optimal in dry and wet conditions for road & off-road motorcycles. For the road application, S3 pads are suitable for both the front and rear brake while on off-road applications the S3 is only recommended for the front brake. The S3 series is designed for low abrasive interaction with the rotor and quieter braking due to the ceramic composite material. It has an HH friction rating and performs better at higher temperatures than the AD compound. Friction materials contain metal-ceramic with a bronze-graphite and non-metallic friction additives are spread evenly on the base fine bronze body to achieve optimal friction properties.

Features:

• Very high static friction coefficient
• Minimal difference between wet and dry braking performance
• Good abrasive resistance
• Low abrasive interaction with the brake rotor material
• Longer life compared to organic and Kevlar composite materials

Application:

• For riders who demand a bit more than average from their bikes
• Recommended on both front and rear brakes (road application)
• Can also be used on the front brakes of off-road bikes and ATVs
• Works well on both dry and wet conditions

Operating Parameters:

• Specific pressure: 3.0 Mpa
• Sliding speed: 45 m/s
• Constant maximum temp: 450°C
• Short time maximum temp: 800°C
• Counter-surfaces: steel disks

What is a sintered brake pad?

GOLDfren only manufacturers sintered brake pads that contain metal-ceramic and ceramic-carbon friction materials, these materials allow for less brake dust and a quieter braking experience. Sintered brake pads are made by fusing together metallic particles under high temperature and pressure which enhances friction properties and pad life, resulting in longer life and stronger braking. Sintered brake pads experience no brake fade when operating at high temperatures and in wet conditions. They also last up to 5 times longer than organic pads and provide additional braking strength. All materials used are environmentally friendly and do not contain any lead, asbestos, fibreglass or formaldehyde.

Reminder: one set of brake pads services one brake disc, if you are servicing multiple discs you will need multiple sets of brake pads.

A quality ball Joint kit from All Balls Racing.

Features:

• Bearing cup is made from POM-M90 to isolate steel rod from housing.
• Comes with snap ring and cotter pin.
• Saves you lots over OEM.

A quality ball Joint kit from All Balls Racing.

Features:

• Bearing cup is made from POM-M90 to isolate steel rod from housing.
• Comes with snap ring and cotter pin.
• Saves you lots over OEM.

XAM chain and sprocket kits are the perfect drive maintenance kit for your bike. The perfect alternative to expensive OEM replacements, it is designed to meet and exceed OEM specifications. Supplied in presentable packaging with a carry handle for convenient transportation.

Features:

• Includes strong and durable C49 high-carbon steel sprockets.
• Paired with a high-quality XAM chain.

HFP replacement fuel pumps, modules, assemblies, and kit components are designed to meet or exceed OEM specifications, and feature upgrades that improve on the OEM design. Upgraded polymers, brushes, and commutators ensure long life and durability in multiple fuel blends.

Features:

• OEM or better performance.
• Polished corrosion-resistant case to help minimize seizing during non-operation.
• Specifically designed for quiet operation.
• Drop-in replacement.
• Gradient density fuel strainer for superior contaminant filtration.
• Patented check valve technology.
• Compatible with modern ethanol-infused pump gasoline.

The All Balls CV Boot material is compounded from an OEM grade DCR66 rubber that is formulated specifically for the demanding requirements of today’s ATVs and UTVs.

• 40% higher tensile strength than conventional CV boo material, suitable for the high joint angles of modern ATVs and UTVs.
• 50% more abrasion-resistant than conventional CV boot material to ensure a long life in harsh off-road environments.
• Rubber compound is tested to -40° F to ensure good performance and long life at low temperatures.
• Lithium-based Molybdenum Grease insures good lubrication for long CV joint life. Easier to install than most OEM and aftermarket boots. Sold each. Does not require the use of a ""Banding Tool"".

Specifications:

• H: 95mm
• SD: 19mm
• LD: 64mm
• Shaft I.D.: 19
• CV Body I.D.: 64
• Length: 95

Kits include:

• Two stainless steel clamps that are designed to be tightened without the use of special tools.

• Direct OEM replacement fuel line clamp kit
• This ultimate fuel line clamp kit is an absolute necessity for any shop, technician, or DIY mechanic
• Kit contains 4 of each Fuel Star fuel line OEM replica clamps, available in sizes from 7-17mm I.D.
• Each clamp is an exact replica of the major OEM's fuel line clamps and is manufactured to meet or exceed OEM performance, aesthetics, and fit
• 4-packs also available to refill the kit

A quality caliper rebuild kit from All Balls. Contains everything needed to rebuild your caliper to like new condition.

• Direct OEM replacement at a fraction of the cost
• Includes valve, hose, gaskets, screws, clamps and everything needed to replace the OEM petcock
• Viton rubber fuel resistant gaskets
• Includes OE style fuel line and clamps

A quality caliper rebuild kit from All Balls. Contains everything needed to rebuild your caliper to like new condition.

Up to 40% stronger than OE axles, these complete axles feature enlarged CV joints, bearing cages, and chromoly axle shafts. All internal components are precision ground and utilize molybdenum grease.

Features:

• 40% stronger than OEM.
• Larger 4340 chrome-moly steel axle bar.
• Precision ground components.
• Low profile clamps.
• Neoprene boots.
• Engineered in the USA.
• Manufactured in an ISO facility.
• Assembled with 3% moly grease.
• Black oxide coating to resist rust and corrosion.

A quality caliper rebuild kit from All Balls. Contains everything needed to rebuild your caliper to like new condition.

Premium OEM Quality. Replaces complete steering rack. Fraction of the price of OEM.

The S3 sintered compound is optimal in dry and wet conditions for road and off-road motorcycles. In road applications, S3 pads are suitable for both the front and rear brake while in off-road applications, the S3 is only recommended for the front brake.

The S3 series is designed for low abrasive interaction with the rotor and quieter braking due to the ceramic composite material. It has an HH friction rating and performs better at higher temperatures than the AD compound. Friction materials contain metal-ceramic with a bronze-graphite and non-metallic friction additives that are spread evenly on the base fine bronze body to achieve optimal friction properties.

Features:

• Very high static friction coefficient.
• Minimal difference between wet and dry braking performance.
• Good abrasive resistance.
• Low abrasive interaction with the brake rotor material.
• Longer life compared to organic and Kevlar composite materials.

Application:

• For riders who demand a bit more than average from their bikes.
• Recommended on both front and rear brakes (road application).
• Can also be used on the front brakes of off-road bikes and ATVs.
• Works well on both dry and wet conditions.

Operating Parameters:

• Specific pressure: 3.0 Mpa
• Sliding speed: 45 m/s
• Constant maximum temp: 450°C
• Short time maximum temp: 800°C
• Counter-surfaces: steel discs

What is a sintered brake pad?

GOLDfren only manufactures sintered brake pads that contain metal-ceramic and ceramic-carbon friction materials. These materials allow less brake dust and a quieter braking experience. Sintered brake pads are made by fusing together metallic particles under high temperature and pressure which enhances friction properties and pad life, resulting in longer life and stronger braking. Sintered brake pads experience no brake fade when operating at high temperatures and in wet conditions. They also last up to 5 times longer than organic pads, providing additional braking strength. All materials used are environmentally friendly and do not contain any lead, asbestos, fibreglass or formaldehyde.

Reminder: one set of brake pads services one brake disc, if you are servicing multiple discs you will need multiple sets of brake pads.

About GOLDfren

GOLDfren began manufacturing sintered disc brake pads for a wide range of off-road and road motorcycles in 1991, nearly three decades on from their first motorcycle brake pads GOLDfren has become one of the largest aftermarket manufacturers in the motorcycle brake disc pad industry. Their development of next-generation products has kept them at the technological forefront of Sintered Friction Braking providing you with confidence in the performance, durability and reliability of your brakes.
