RMSTATOR

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

Brand new HO Stator + Heavy Duty Regulator Rectifier + High-Performance CDI Box ECM Kit

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Brand new High output stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

Brand new Heavy-duty Voltage regulator rectifier

• The quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components

Brand new high-performance CDI Box

• Our part is a Plug-and-play unit, direct fit, and easy to install.
• Enhanced timing curve, increased rev limiter (approximately 1000 rpm)
• Higher grade of electronic components.
• The Quality exceeds the OEM equipment
• All products shipped are tested

Stator

Dimensions:

• Int erior diameter: 30mm
• Exterior diameter: 85mm
• Thickness: 10mm
• Length of wires stator to grommet: 180mm
• Length of wires grommet to plug: 900mm
• Length of pickup coil's wire to grommet: 90mm

Other specifications:

• Number of wires: 4
• Number of plugs: 2
• Number of pins: 4

Wire to wire resistance:

• Pickup: White to Red = 275 ohms +/- 20%
• Alternator: White to Yellow = 0.4 ohms +/- 20%

Voltage Regulator Rectifier

Dimensions:

• Width: 63mm
• Length: 78mm
• Height: 26mm
• Fixation holes centre to centre: 60mm
• Wires length: 450mm

Other specifications:

• Number of plugs: 1
• Number of pins: 4

HP CDI Box

Dimensions:

• Height: 36mm
• Length: 86mm
• Width: 81mm

Other specifications:

• Number of plugs: 2
• Number of pins: 12

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

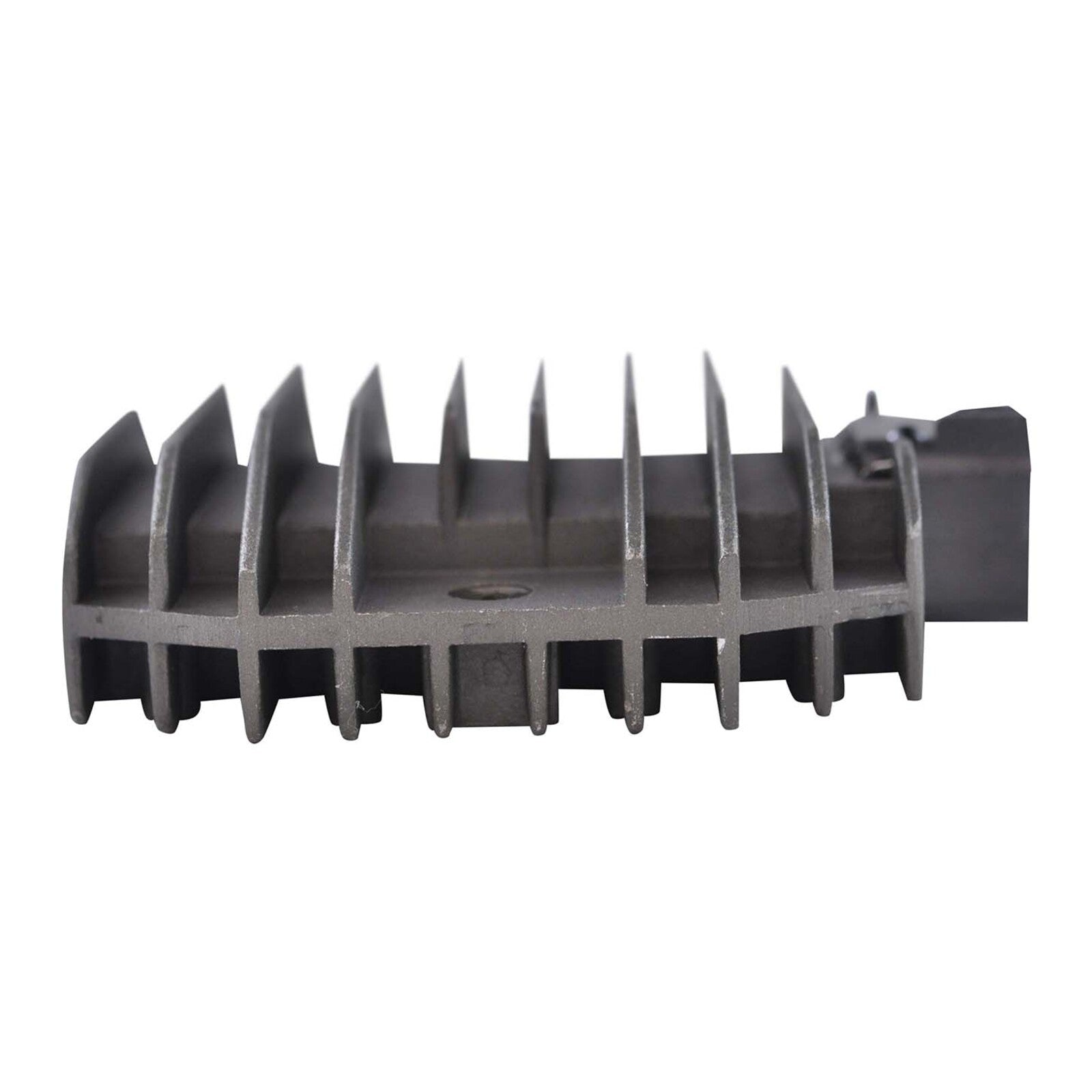

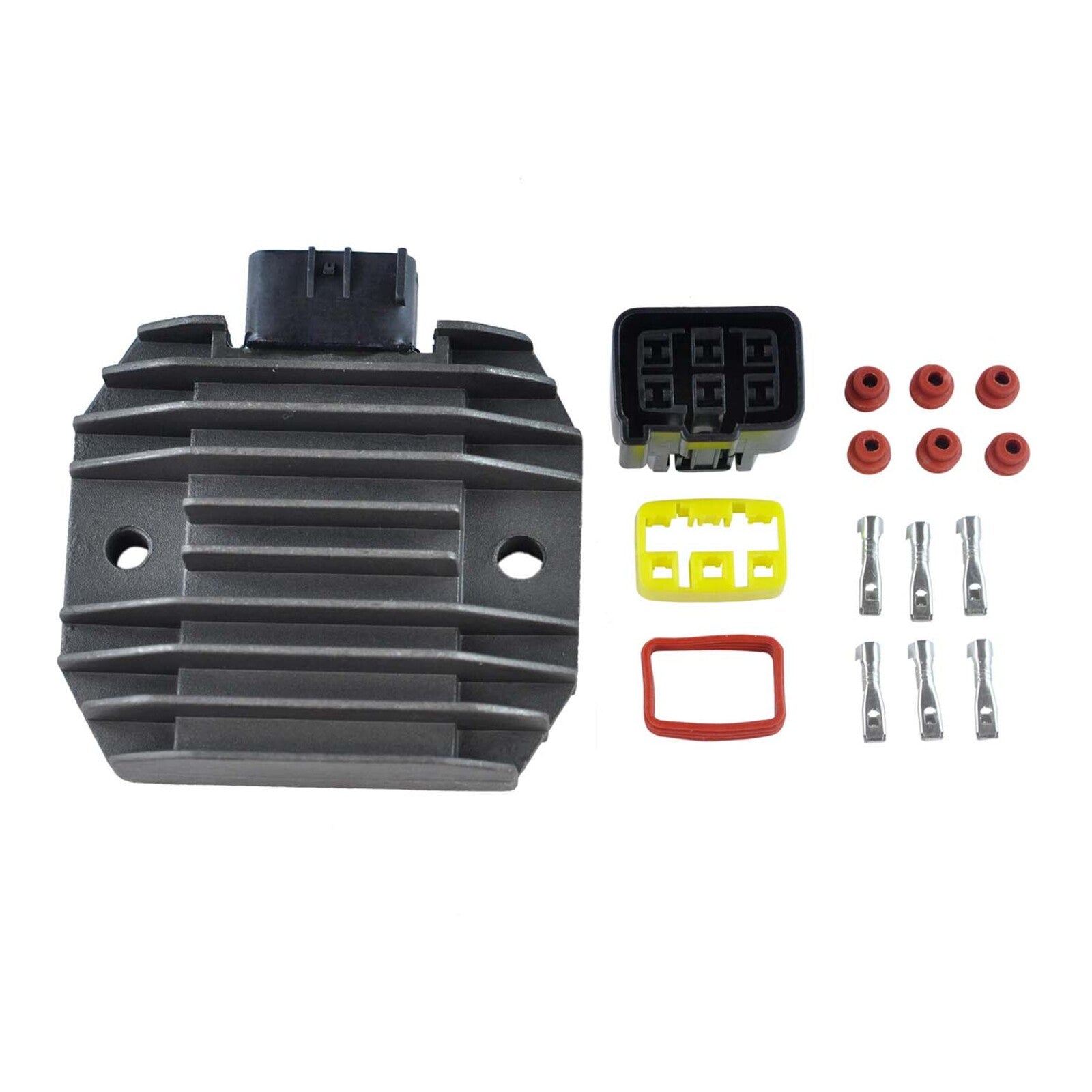

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.
• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment

RM STATOR has even included the opposite connector (main harness side), as they know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

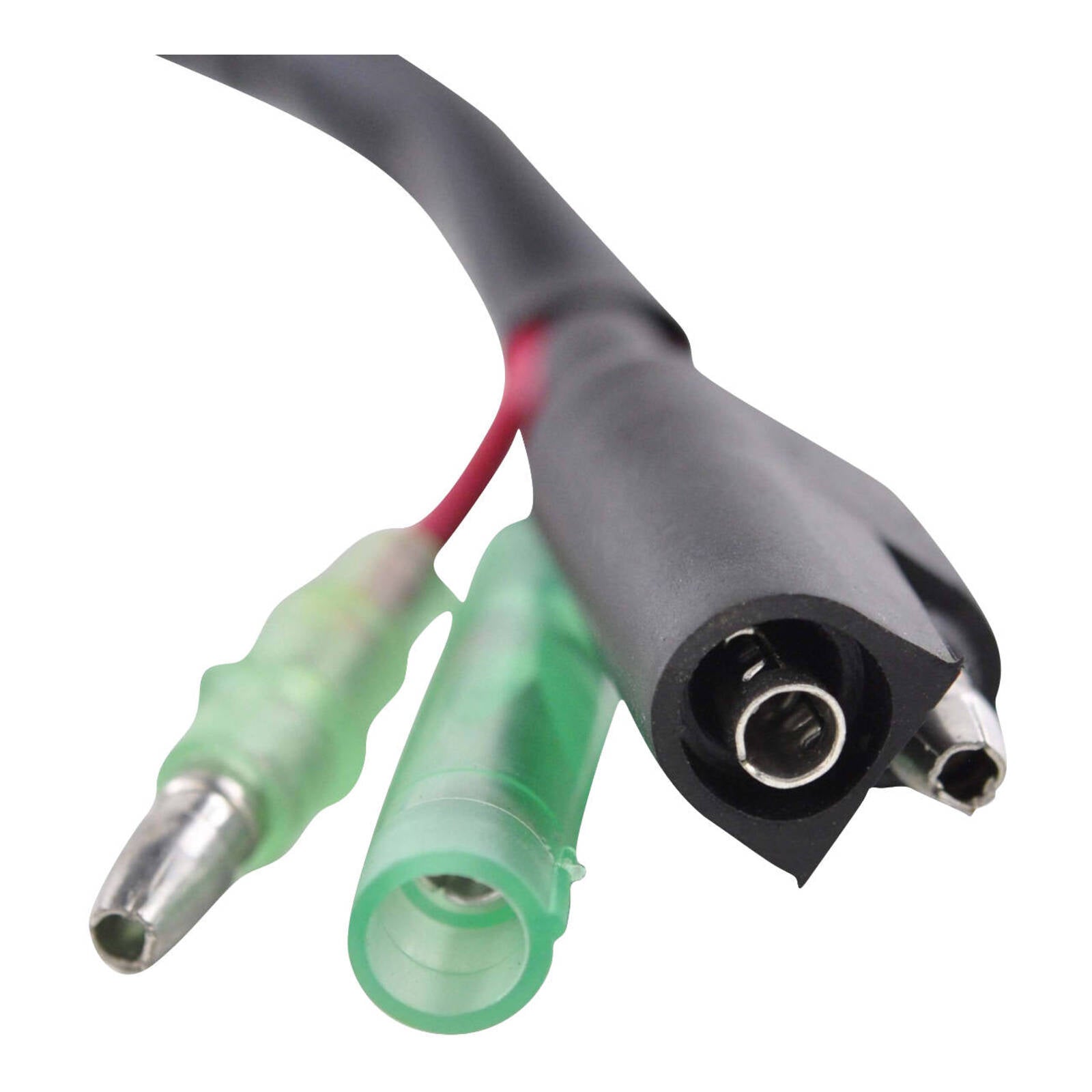

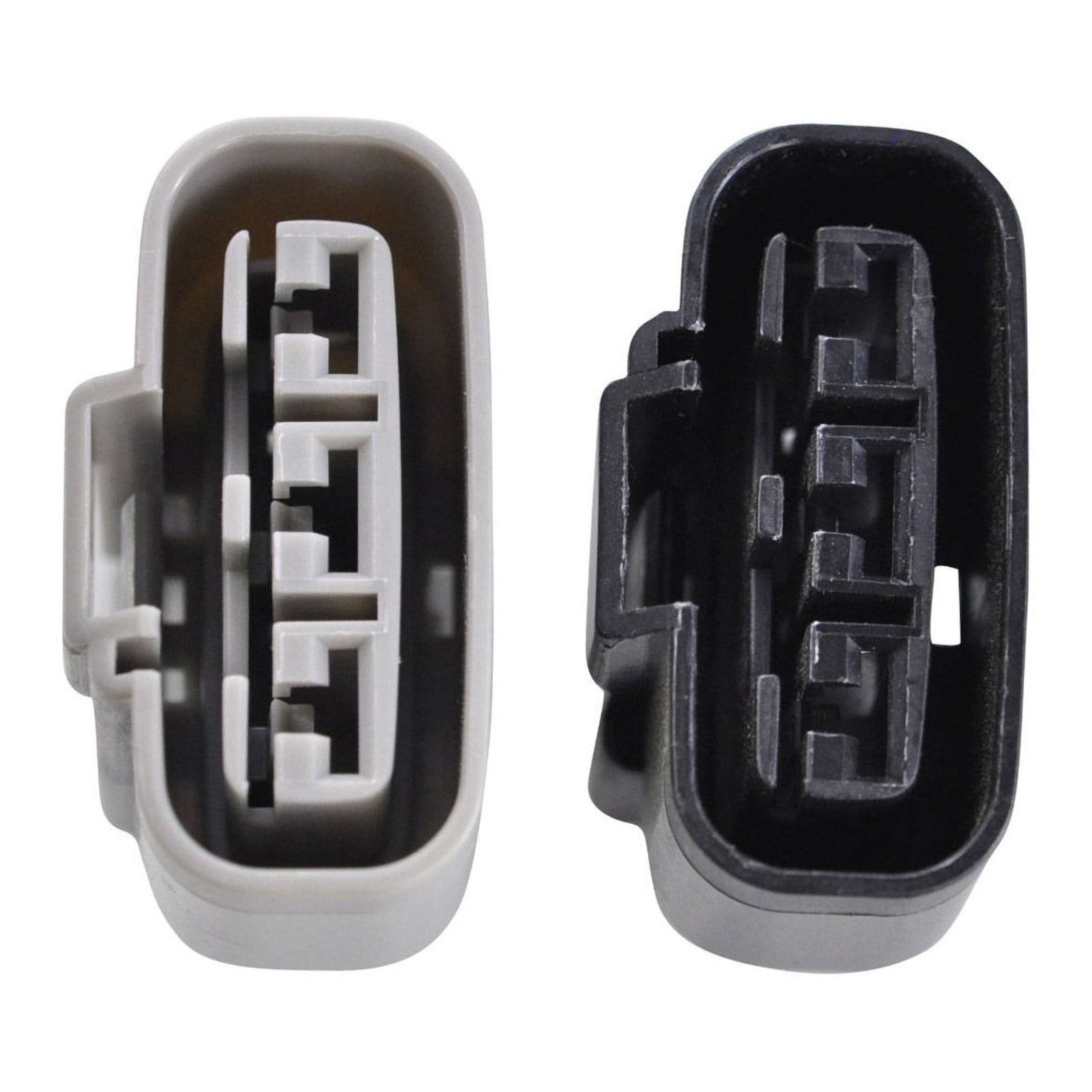

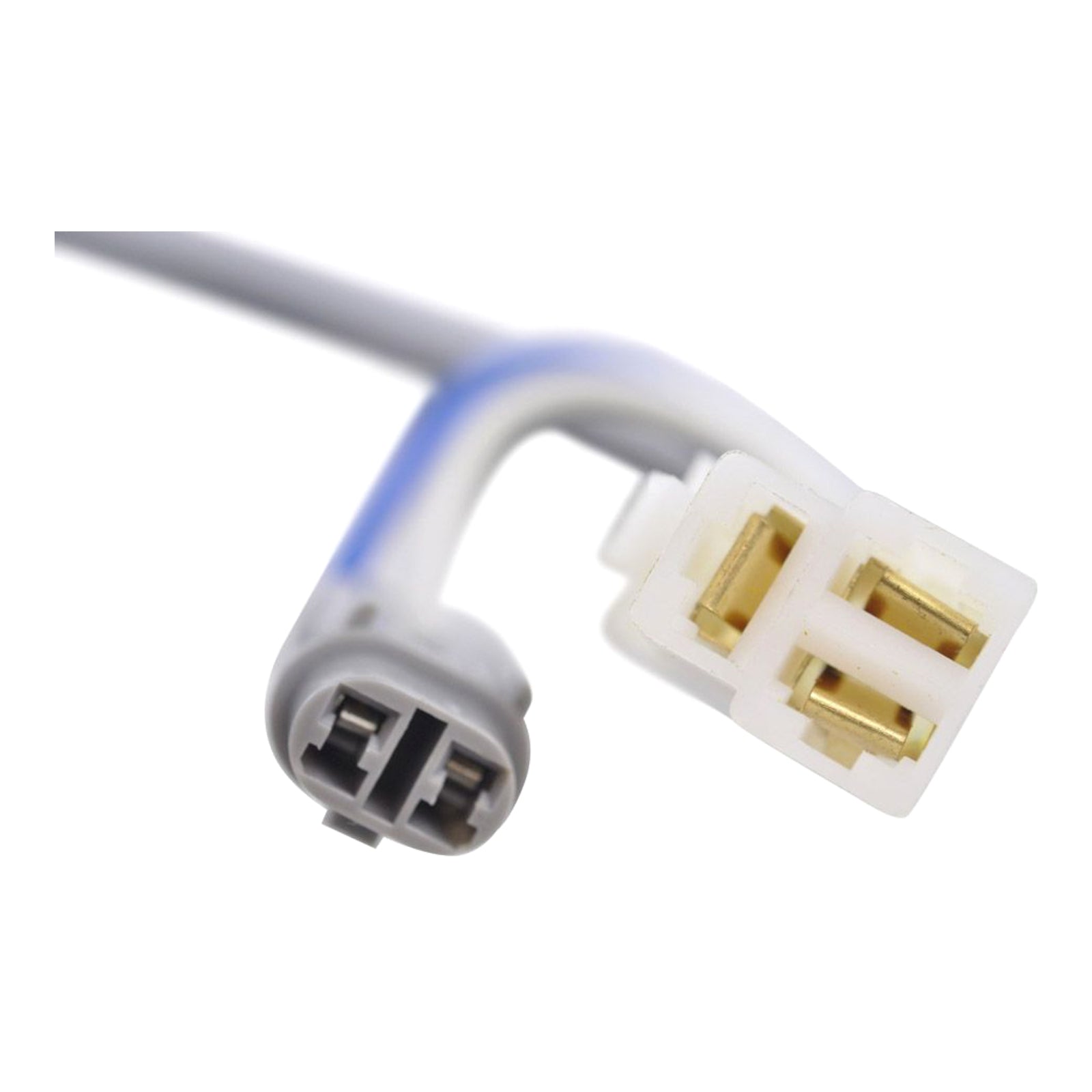

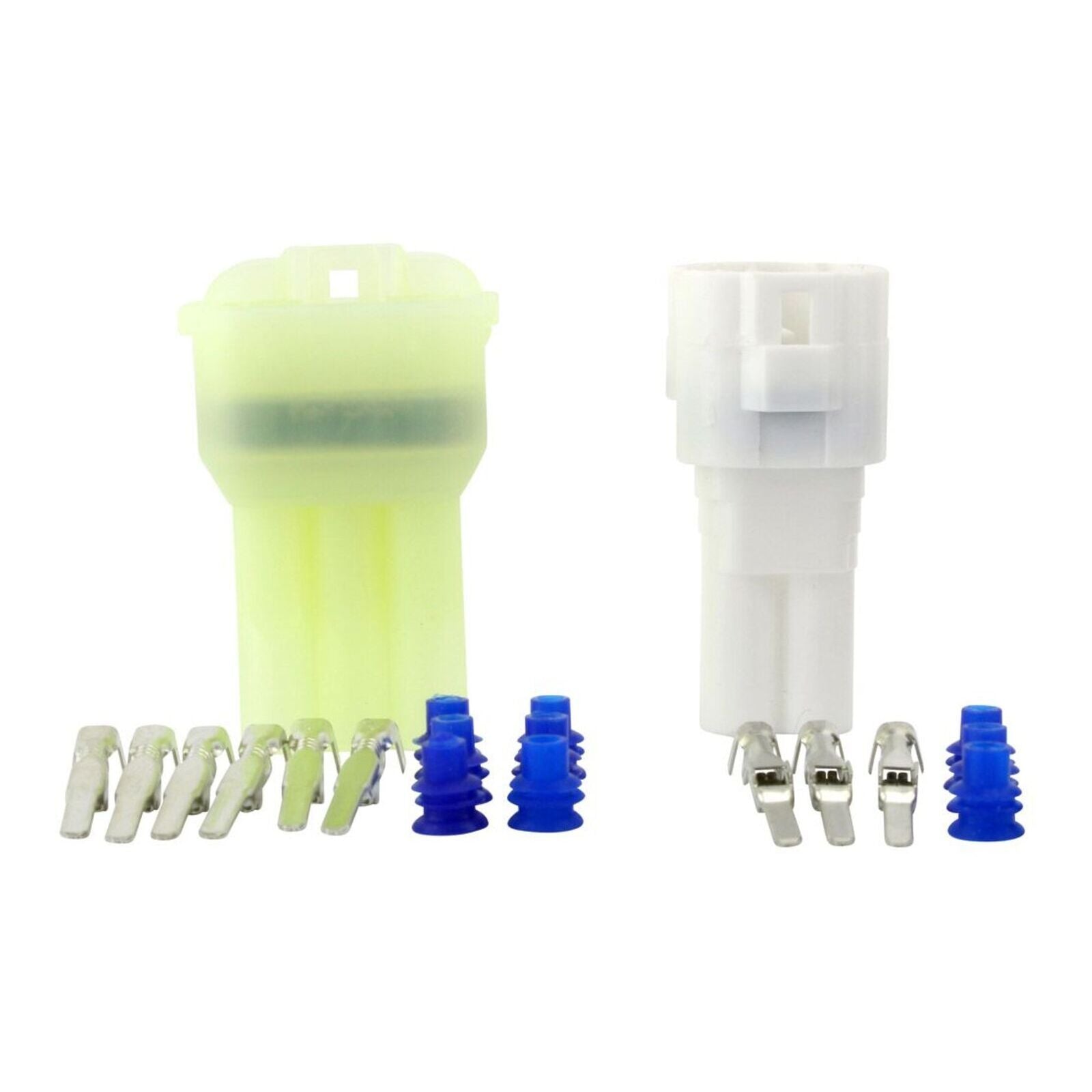

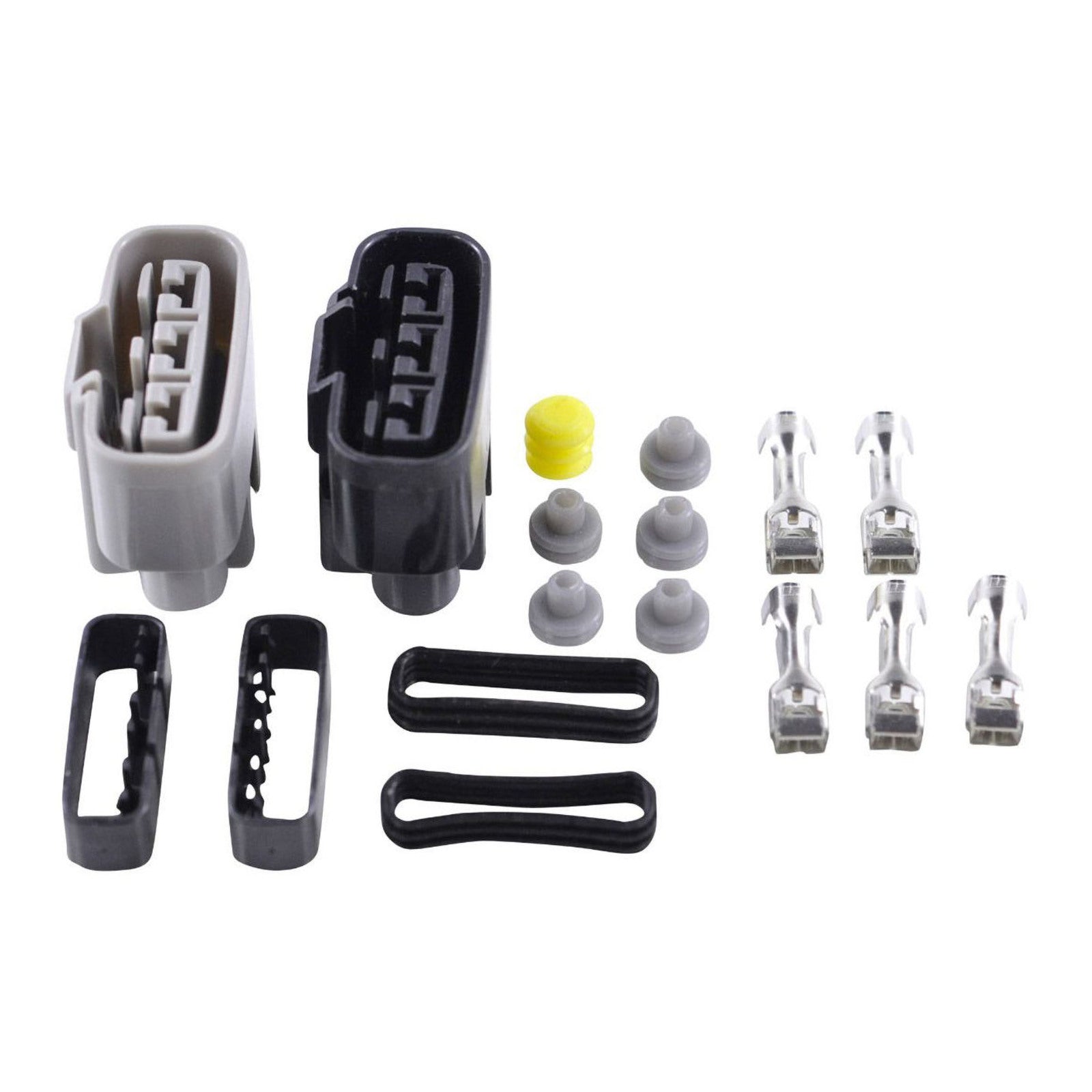

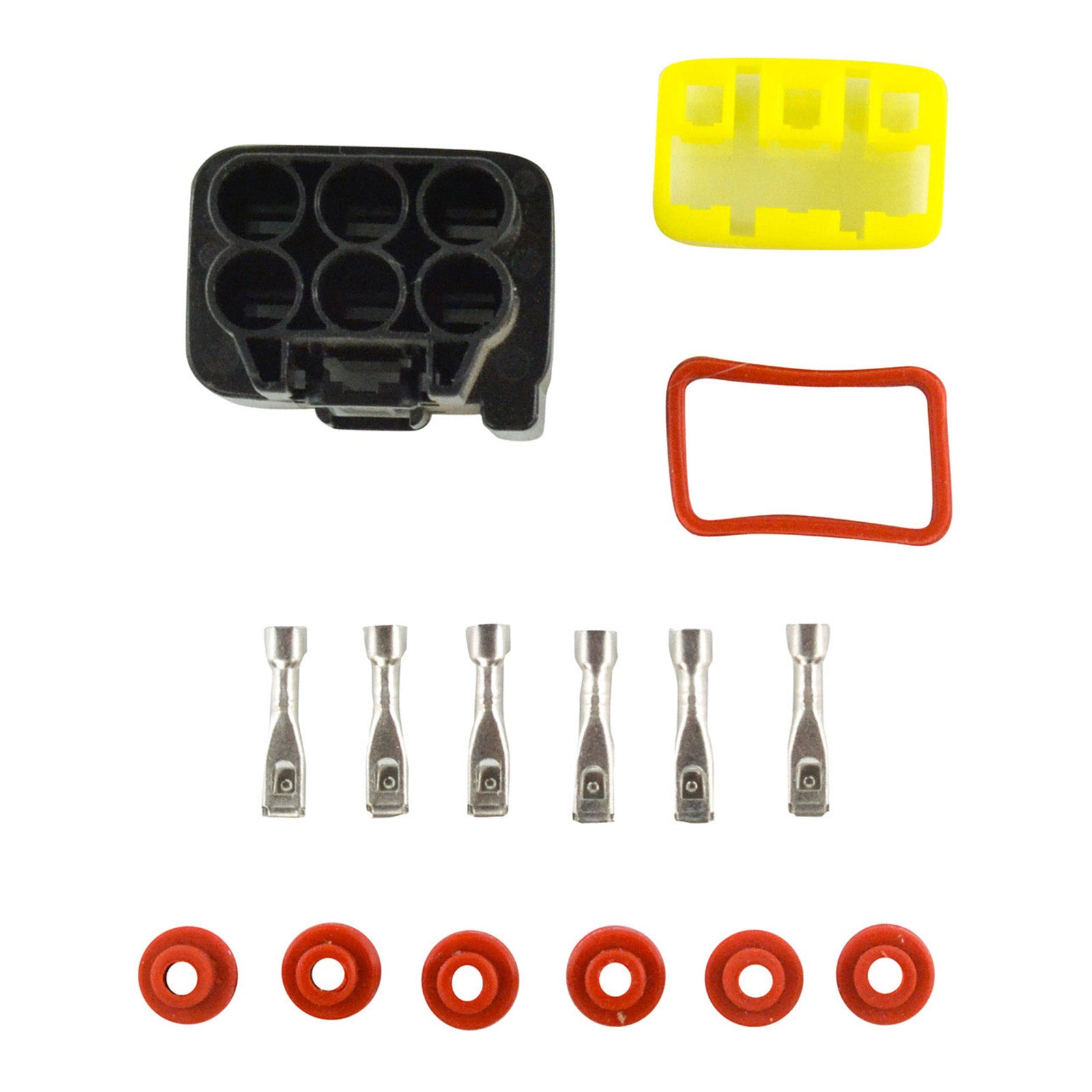

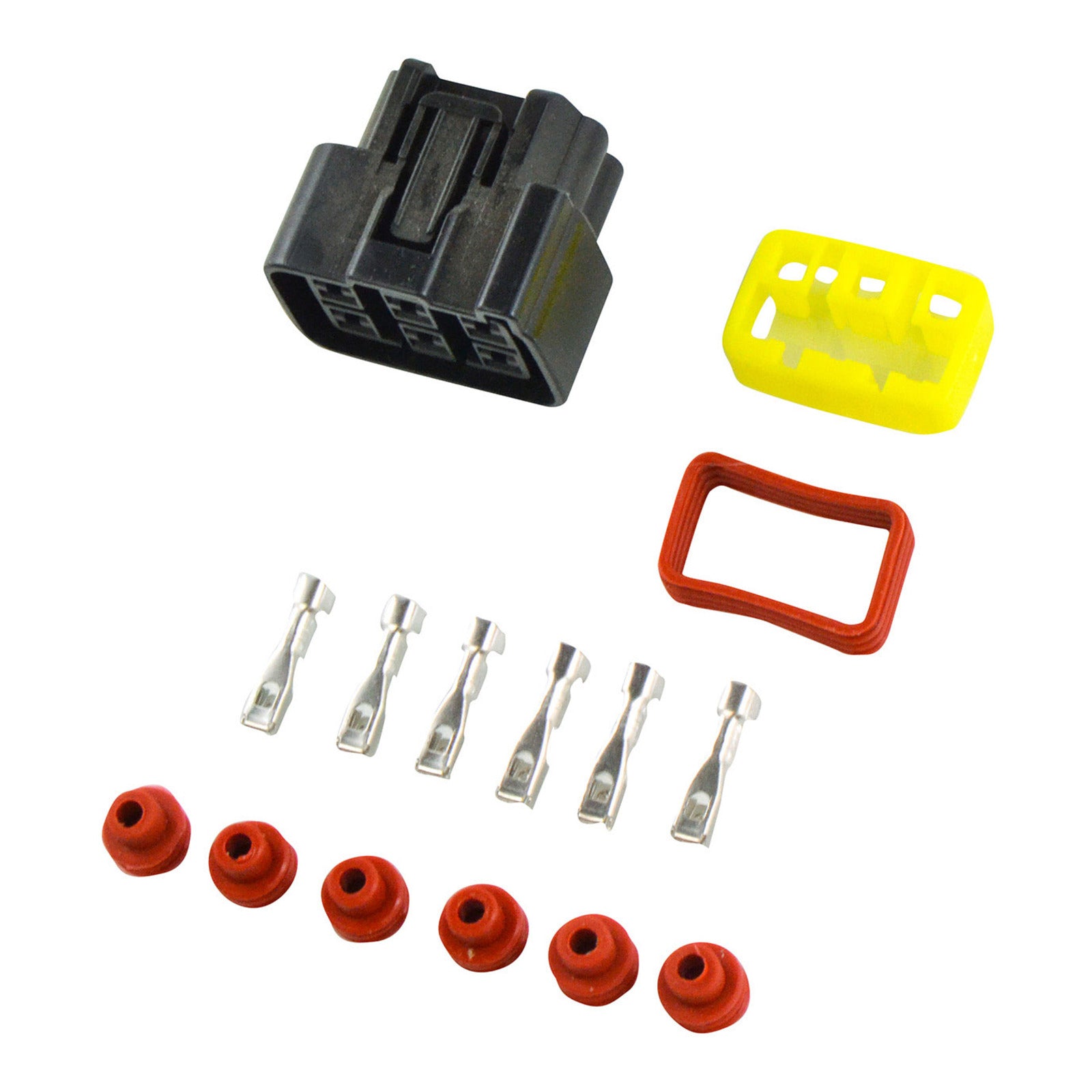

Brand new replacement regulator/rectifier connector kit for Sea-Doo, Can-Am, Ducati, Yamaha, BMW, Ski-Doo, Kawasaki, Polaris & Triumph

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

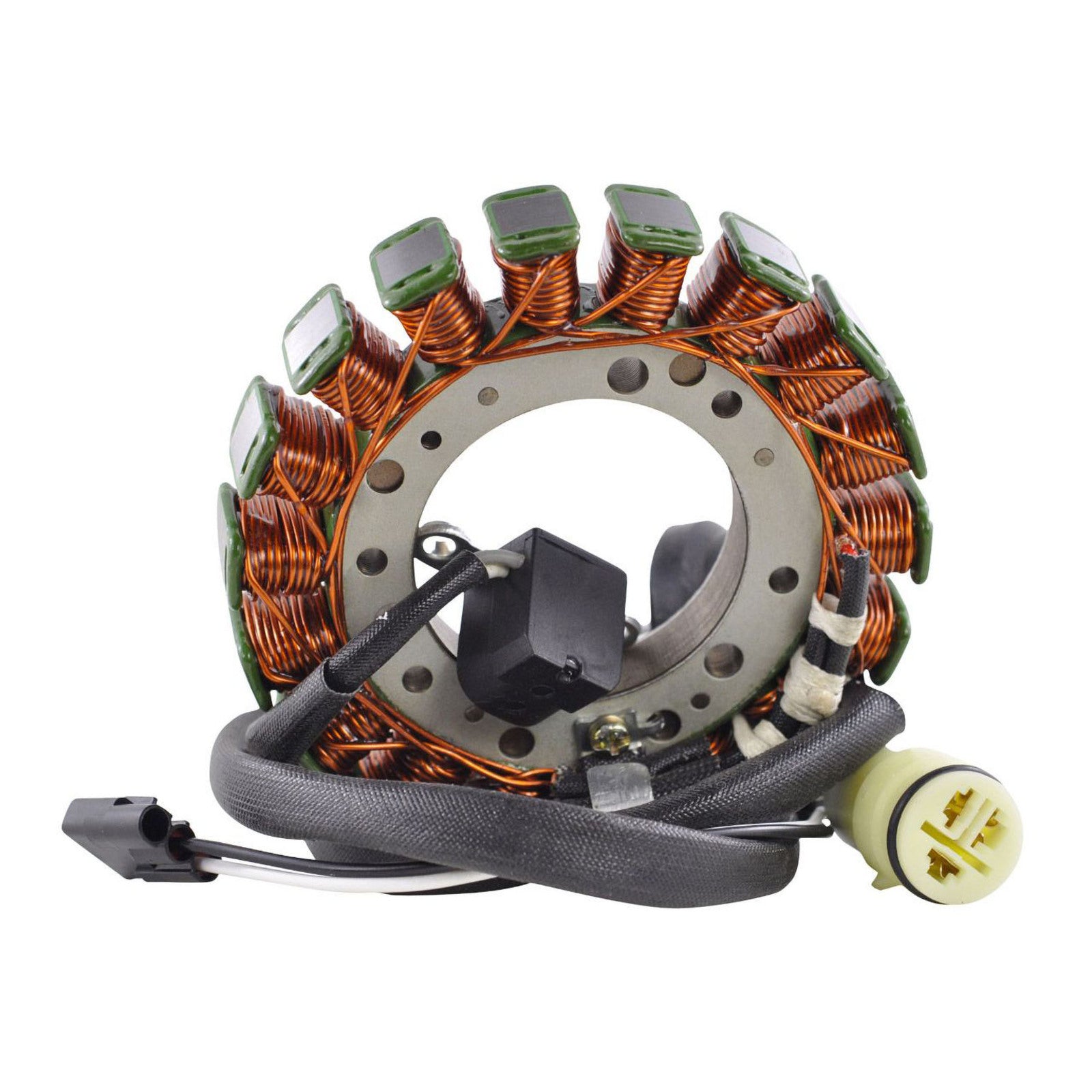

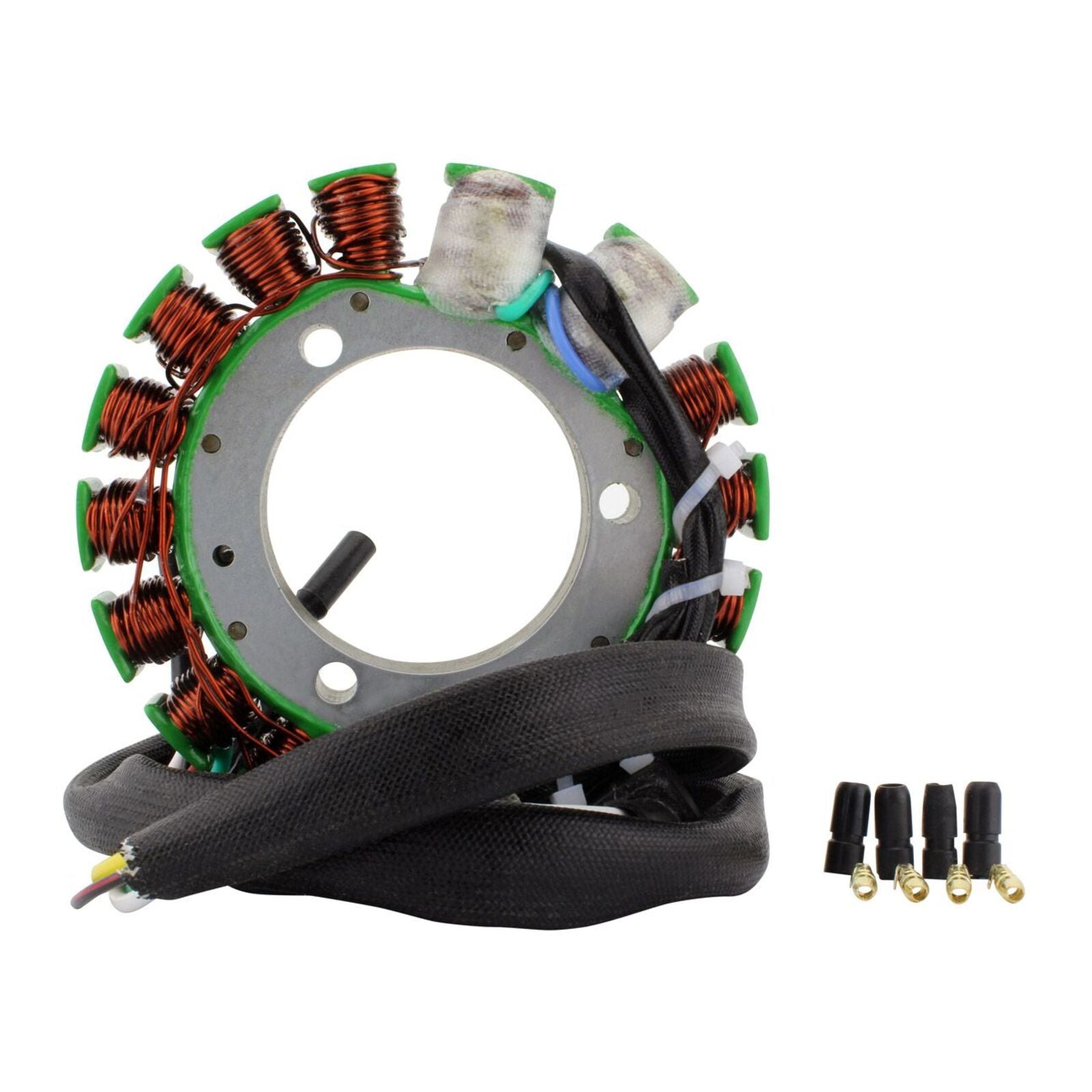

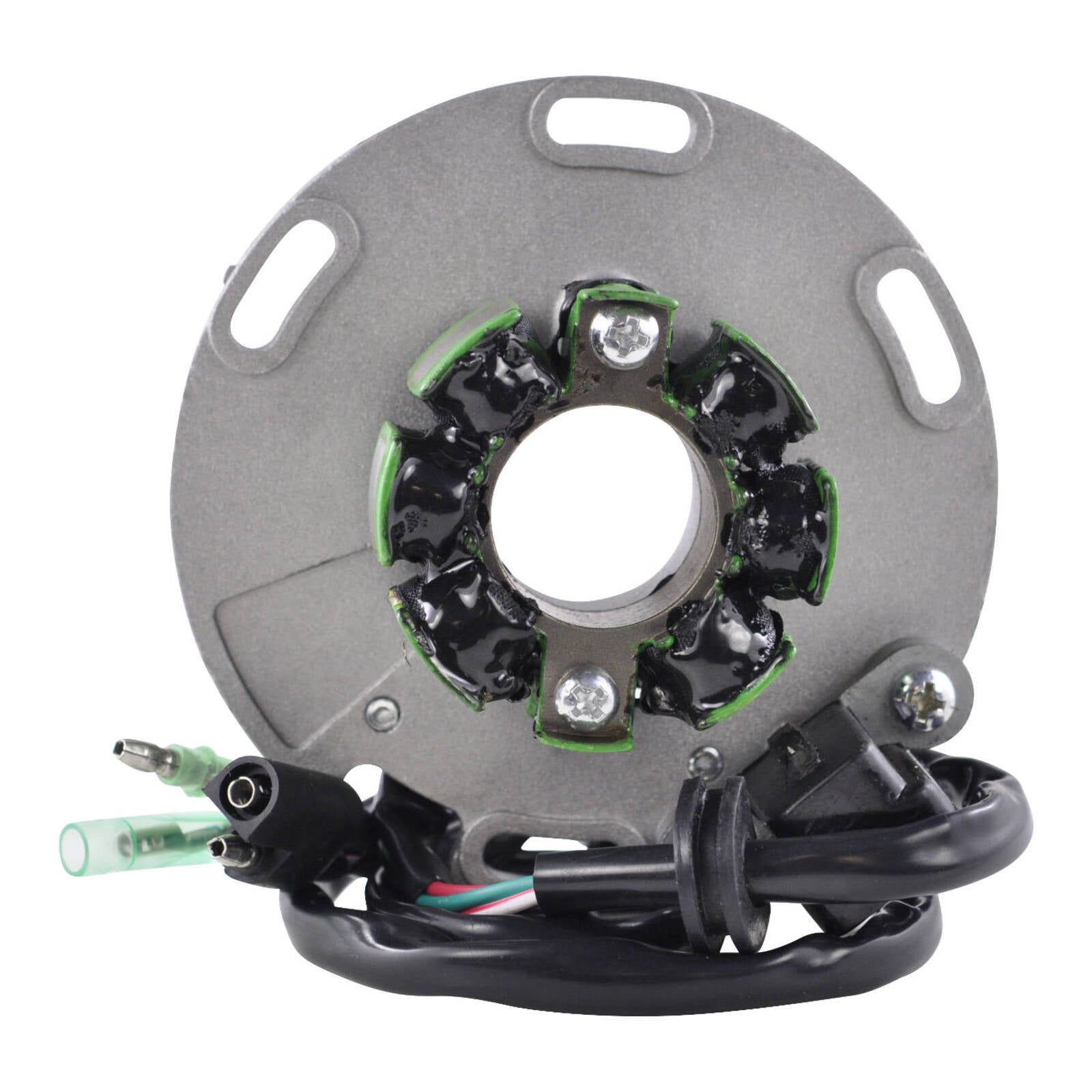

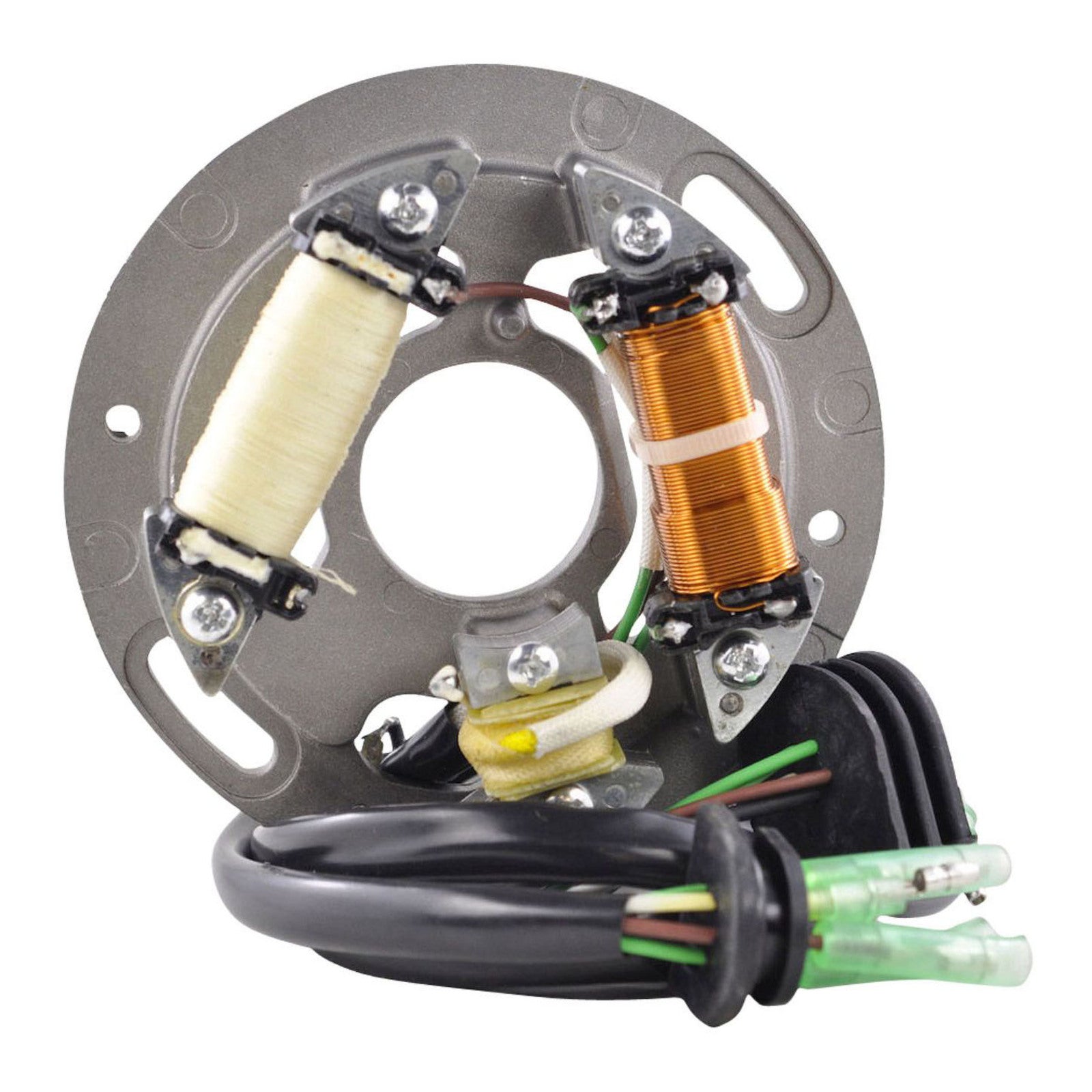

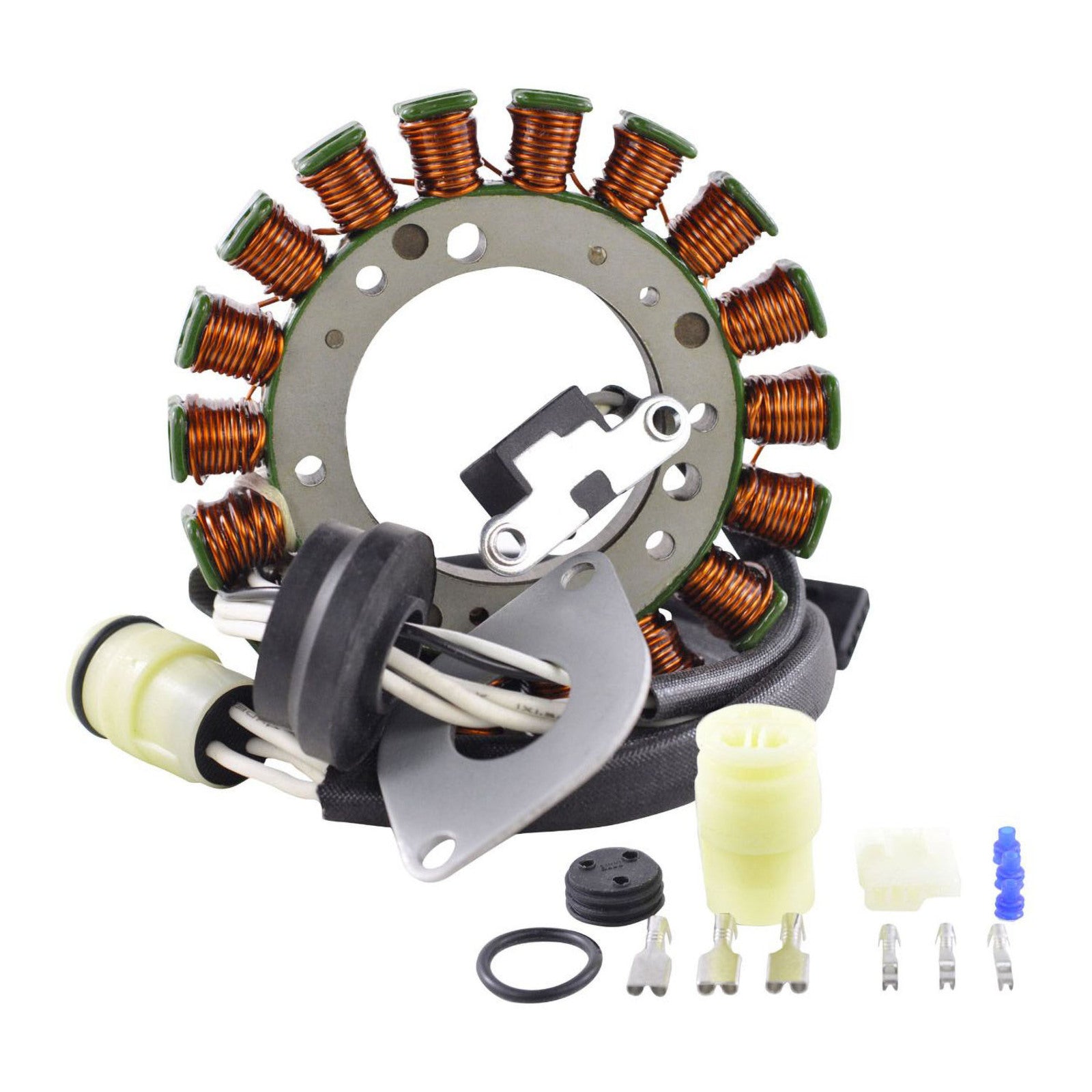

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connectors included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions:

• Interior diameter: 38 mm
• Exterior diameter: 107 mm
• Thickness: 16 mm
• Length of wires stator to grommet: 95 mm
• Length of wires grommet to plug: 380 mm
• Length of pickup coil's wire to grommet: 75 mm

Other specifications:

• Number of wires: 5
• Number of plugs: 2
• Number of holes: 3
• Number of poles: 18

Wire to wire resistance:

• Alternator : Black to Black = 0.6 ohms +-20%
• Pickup : White to Green/White = 232 ohms +-20%

Note: Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY

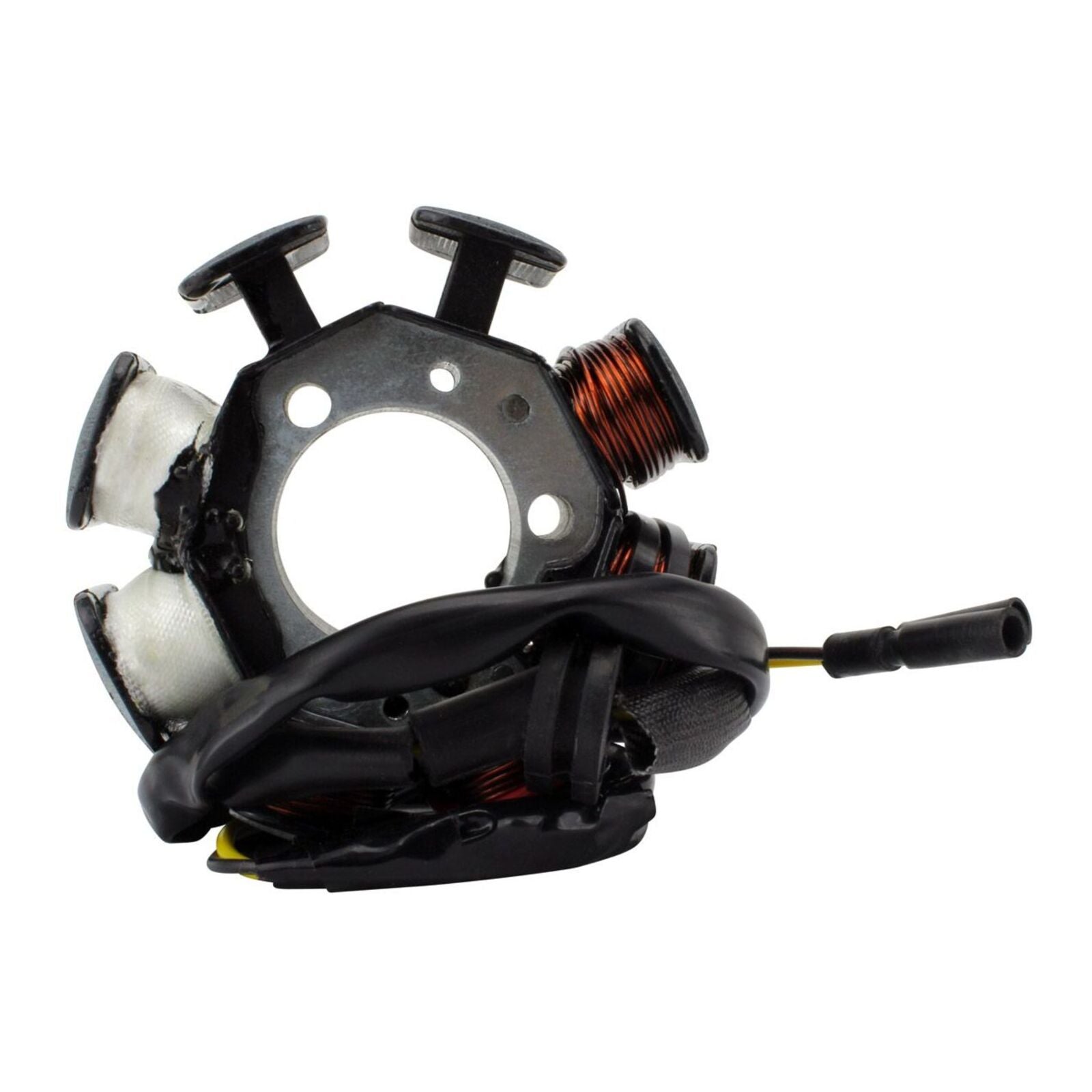

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Dimensions:

• Interior diameter: 53 mm
• Exterior diameter: 115 mm
• Thickness: 14 mm
• Length of wires stator to grommet: 50 mm
• Length of wires grommet to plug: 600 mm
• Length of pickup coil's wire to grommet: 150 mm

Other specifications:

• Number of wires: 5
• Number of plugs: 2
• Number of pins:5

Wire to wire resistance:

• Alternator: Green between each Green = 0.4 ohms +-20%
• Pickup: Black to White = 520 ohms +-20%

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

With certain BMW motorcycle models, the spark plug caps and coils are combined to reduce the number of parts used in order to improve efficiency. However, when the spark plug cap wears out, the cost of the replacement becomes more expensive. If you are experiencing ignition problems, this could mean the ignition cap coil needs to be replaced. Simple, easy to install, affordable, and improves engine performance.

Features:

• Direct replacement to your original unit.
• Quality exceeds the OEM equipment.
• All products shipped are tested.

Specifications:

• Len gth: 115mm
• Number of pins: 3
• Number of terminals: 1
• Resistance: 1.6 ohm

Note: All item pictures are accurate. If in doubt, do not hesitate and compare our item to your original part.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All products shipped are tested

Dimensions:

• Height: 71mm
• Length: 38mm
• Width: 38mm

Other specifications:

• Number of wires: 7
• Number of pins: 7
• Number of position: 2
• Number of plugs: 2

Join the revolt against bland voltage regulator performance!

Refuse to compromise to current 30-year-old technology. With its redesigned rectifier technology, REVOLT excels where every other fails: Fixing the weak rectifier design that causes 85% of voltage regulator failures in powersports applications.

Features:

• RUNS 50% COOLER THAN OEM
  Two years of R and D and careful choice of top-graded performance components dramatically reduce failure rate by running substantially cooler than the best OEM and competitors’ products.
• SOLVES THE MAJOR CAUSE OF FAILURE
  REVOLT is the only voltage regulator rectifier on the market with a redesigned rectifier circuit to considerably improve reliability.
• DISSIPATE HEAT 45% BETTER THAN OEM
  Our improved proprietary Arctic Frostbite housing has increased and deeper fins and is CNC-machined from a high-quality aluminium billet for optimal heat transfer from internal components to external fresh air.
• PROUDLY MADE IN NORTH AMERICA
  REVOLT is engineered, designed, and manufactured in North America under strict quality control standards.
• LIFETIME WARRANTY
  REVOLT is so durable we are backing it with a limited lifetime warranty. Never ever will you need to change a voltage regulator again.

Dimensions:

• Width: 103 mm
• Length: 102 mm
• Height: 26 mm
• Fixation Holes Center to Center: 78 mm

Electrical Specifications:

• Number of Plugs: 2
• Number of Pins: 5
• Number of Wires: 0
• Minimum Charging Voltage: 14.5 V ± 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20°C to 85°C

Harness:

• Wire Length: 150 mm
• Number of Yellow Wires: 3
• Number of Red Wires: 1
• Number of Green Wires: 1
• Number of Plugs: 3

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

Features:

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• Highest grade of lamination materials.
• Spark plug cap(s) included.
• All products shipped are tested.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

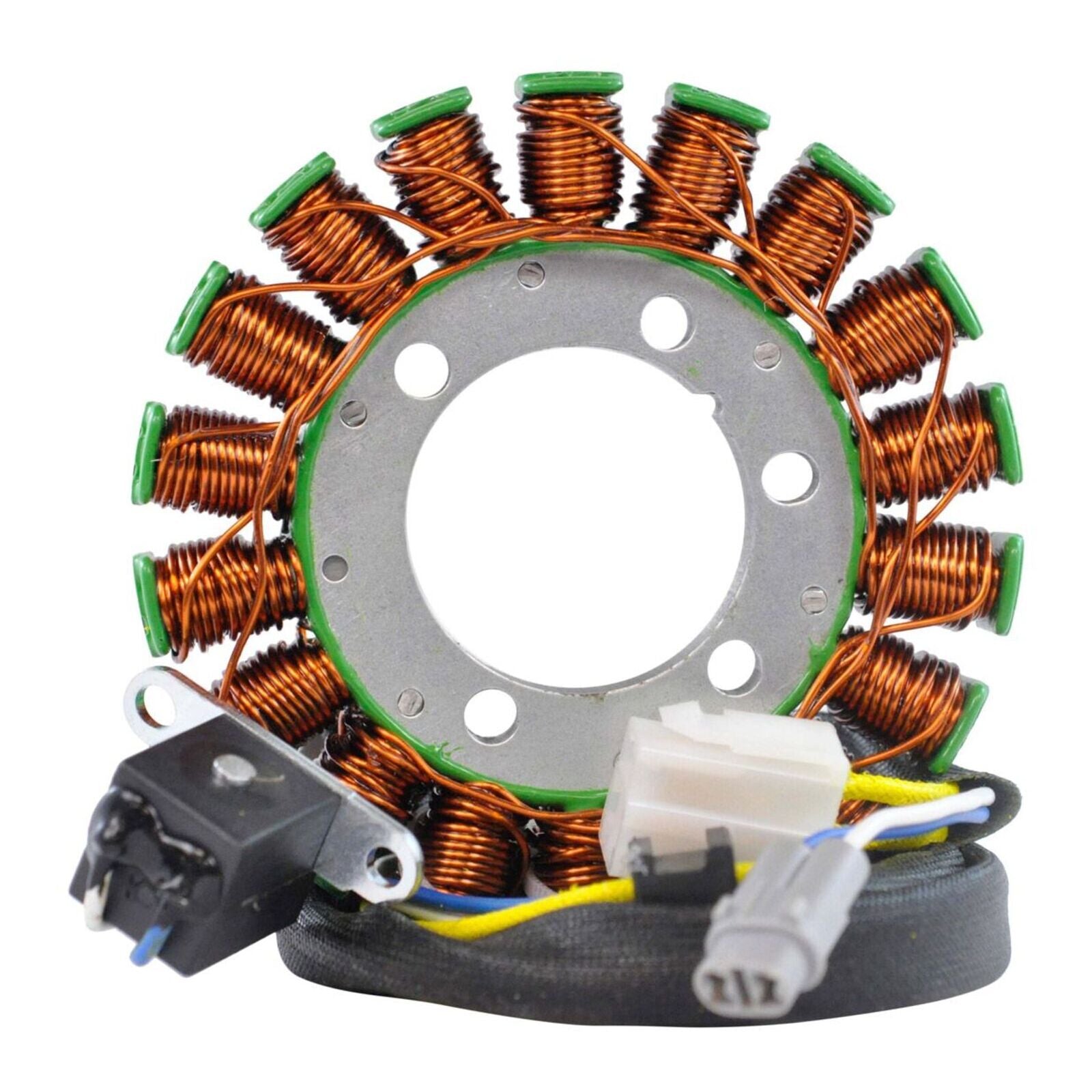

Custom fitting OEM-style stators

Direct plug-in stators complete with all rubbers and OEM-style plug end.

This item fits the following applications: Suzuki LTR450 QuadRacer 06-09

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

STOP BURNING YOUR REGULATOR RECTIFIER! It is time to update or replace your voltage regulator with RM STATORS advanced MOSFET technology. RM STATORS MOSFET Regulators run cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• The quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components

What are the advantages of the MOSFET Technology?

• Runs much cooler than the traditional Shunt voltage regulator rectifier
• Less load on the stator, less work, less fuel is used and you save
• The power charging your battery is steadier and smooth
• Extends the battery’s life and cold-cranking capacity
• Removes stator load resulting in more engine power
• Optimize power delivery by switching the stator coils on or off

NOTE: Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Our new bypass voltage regulator brings back the renowned RMSTATOR Mosfet technology with the RMSTATOR machined aluminium case in a new configuration designed to bypass the main wiring harness and connect the voltage regulator directly to the battery. This configuration has demonstrated a major increase in voltage regulator reliability in real-life scenarios over the years.

Features

• Mosfet circuit
  Significantly lowers the operating temperature for an increased voltage regulator lifespan. Provide a steadier and smoother signal to the battery.
• Billet aluminum housing: Runs 33% cooler than standard cast voltage regulator housings.
• PRO-FIT System

Includes everything required to perform an RMSTATOR-style professional installation: part connectors, harness-side connectors and dielectric connector grease.

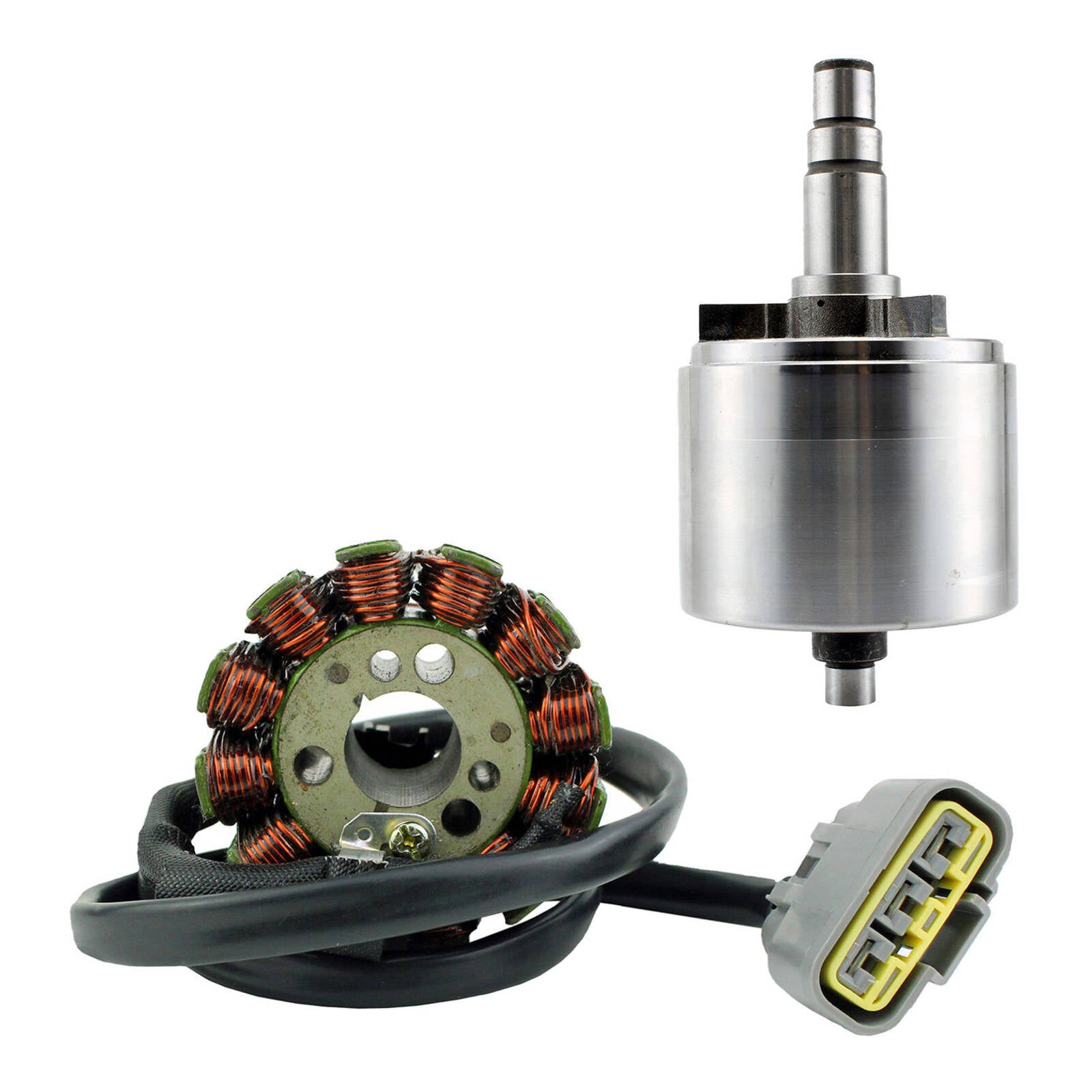

Brand new aftermarket Stator + Improved Flywheel + Gasket

• Crankcase cover gasket included
• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation

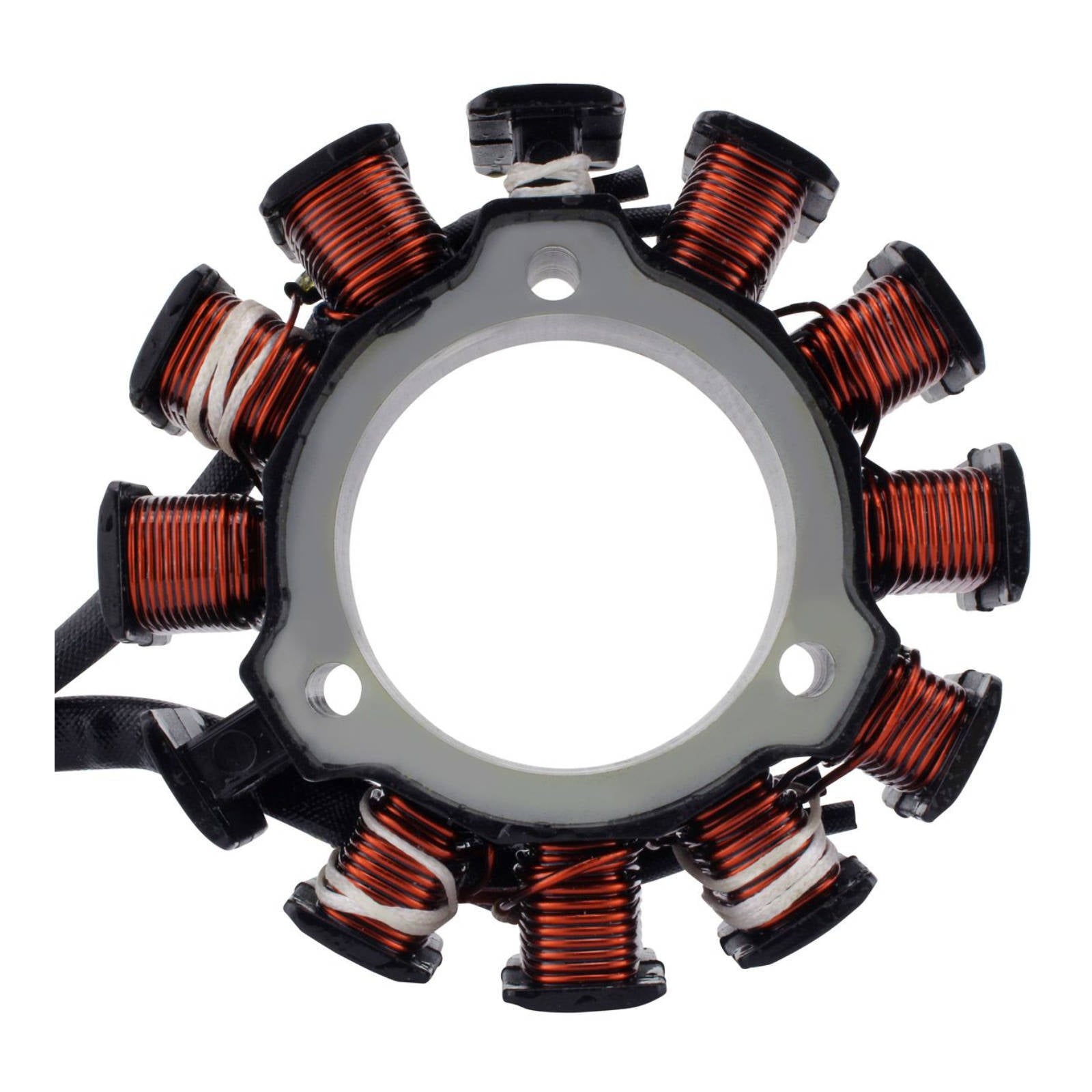

Stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

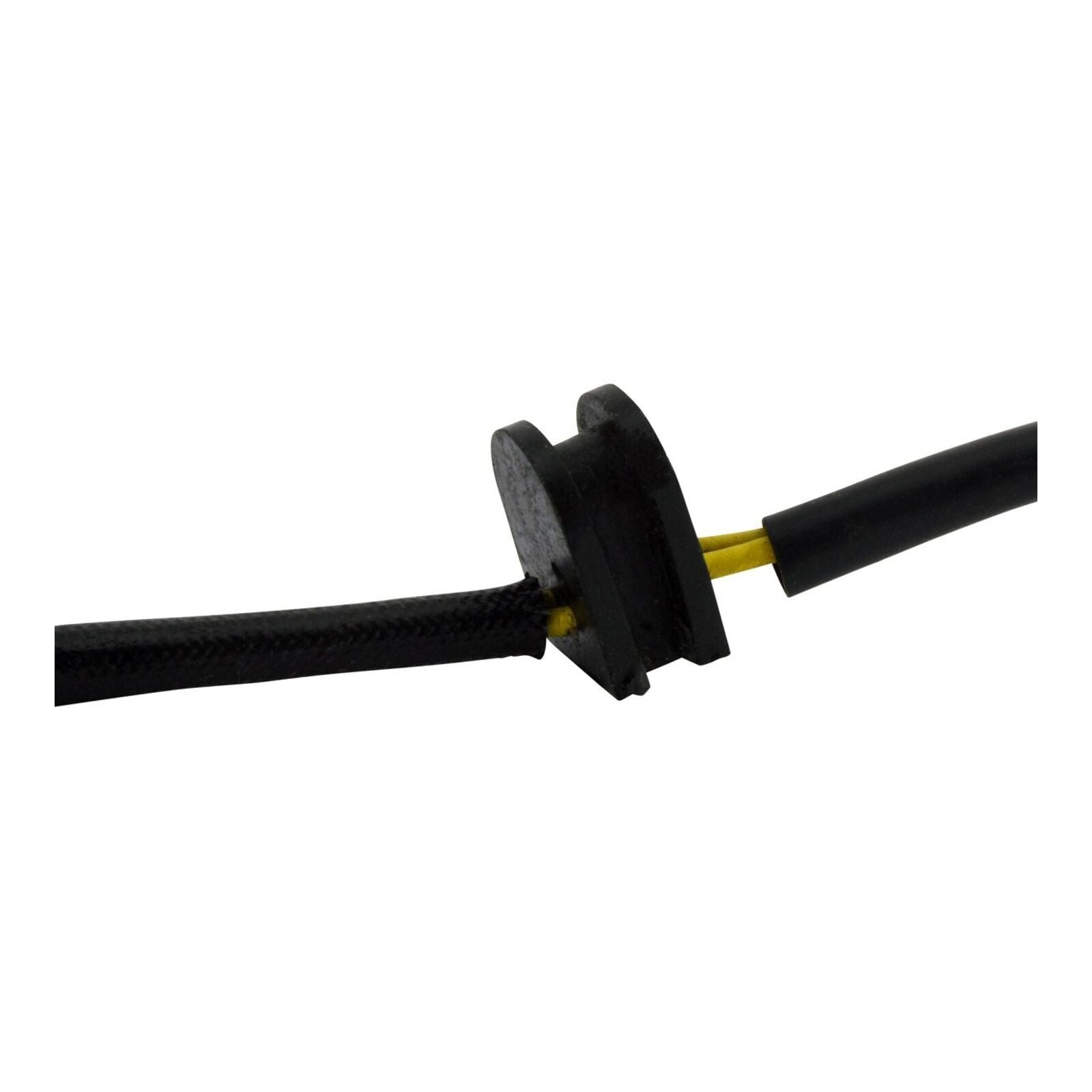

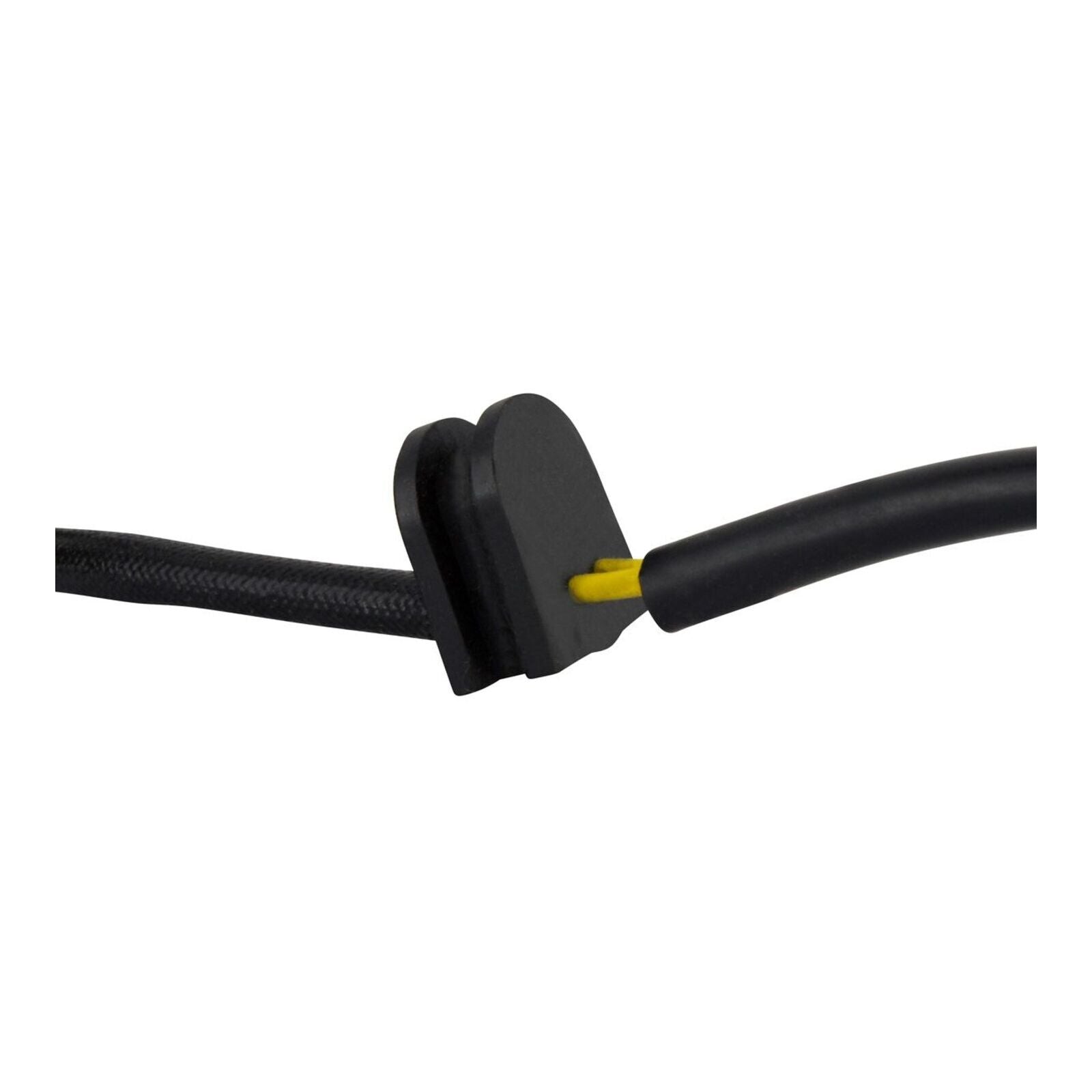

• Rubber grommet included

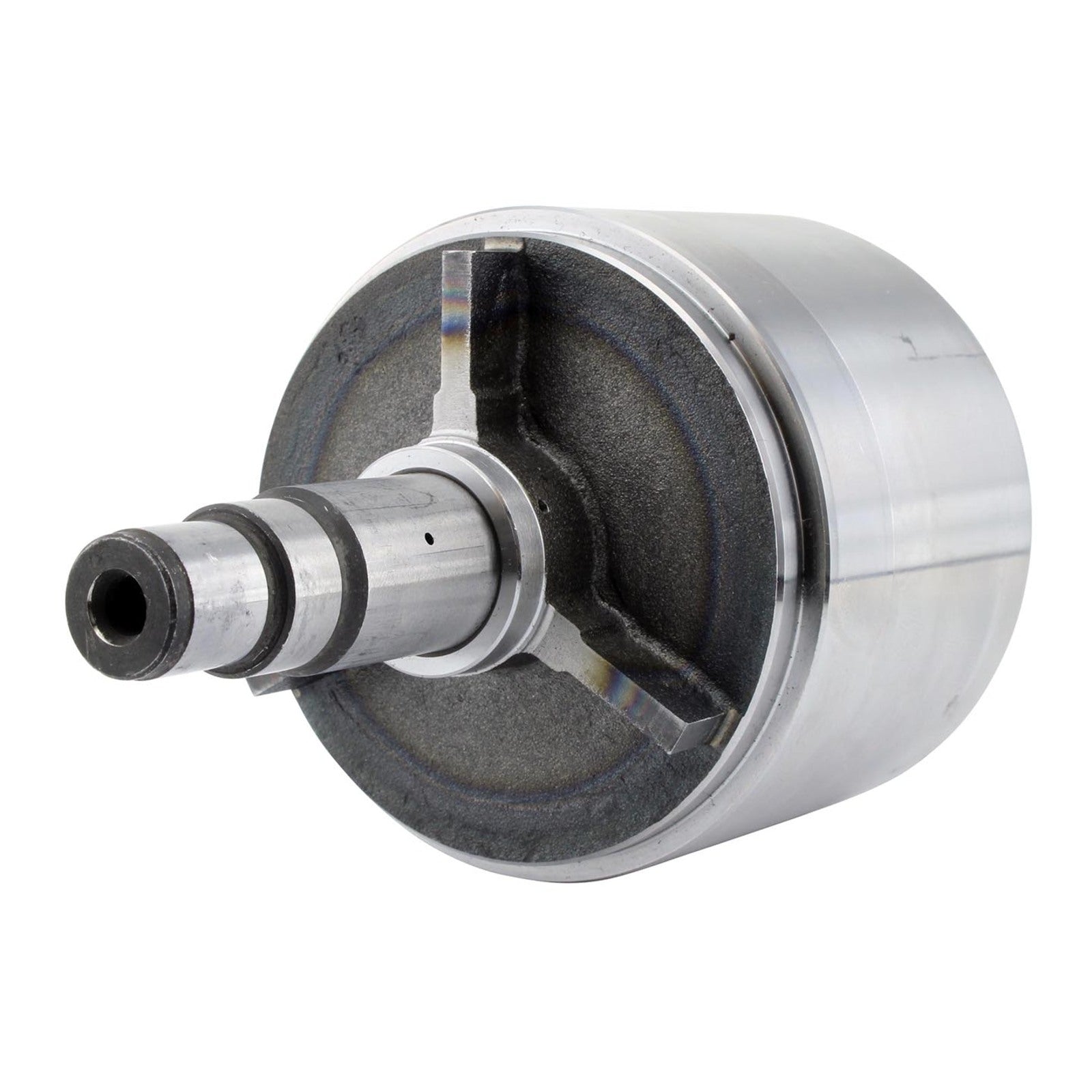

Flywheel

Introducing our newest Heavy Duty Flywheel Rotor For Yamaha Motorcycles

Anyone who rides or repairs a Yamaha YZF R1, FZ1 or FZ8 is probably familiar with the flywheel problems common to these models. Most of these bikes will have at least one flywheel failure in their lifetime so far. Low quality epoxy was used on OEM flywheels to secure the magnets to the rotor body. Over time and many heat cycles, the epoxy fails allowing the magnets to come loose and contact the stator, potentially causing catastrophic damage.

A Heavy Duty Flywheel to the rescue!

New RMSTATOR heavy-duty flywheel rotor for Yamaha Motorcycles is a well-priced solution to problems with the OEM flywheel, and an excellent alternative to all the mechanical troubles you can encounter with a repair.

Features

• Built to OEM size - Fits precisely in your ride: install it and forget it.
• Improved epoxy - Uses high-temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment.
• High-grade steel capping - Prevents heat and friction from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.
• Precise balancing - Eliminates crankshaft vibrations for longer engine longevity.

Don't waste time with temporary solutions, and start fixing your ride like a pro!

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

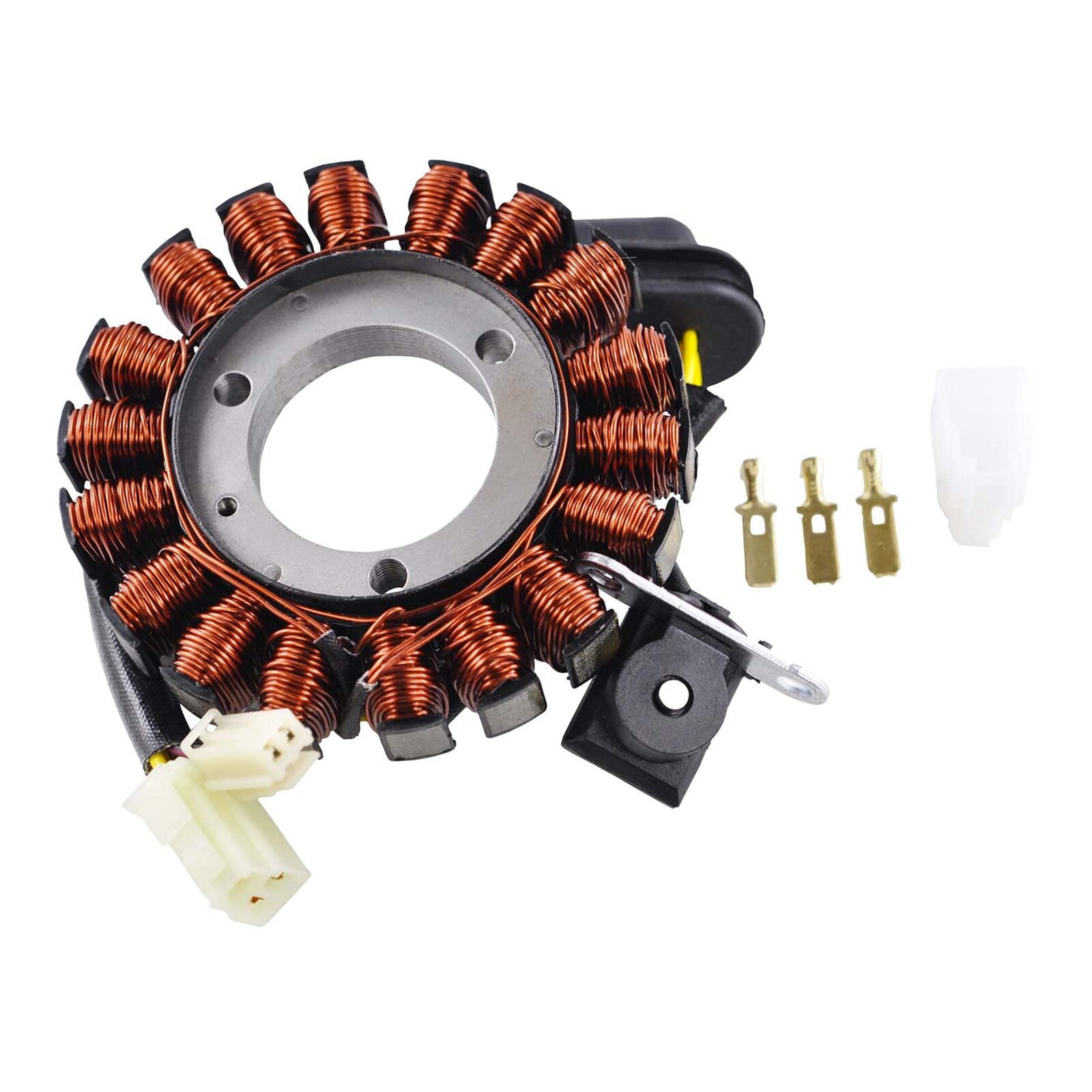

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.
• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment

RM STATOR has even included the opposite connector (main harness side), as they know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

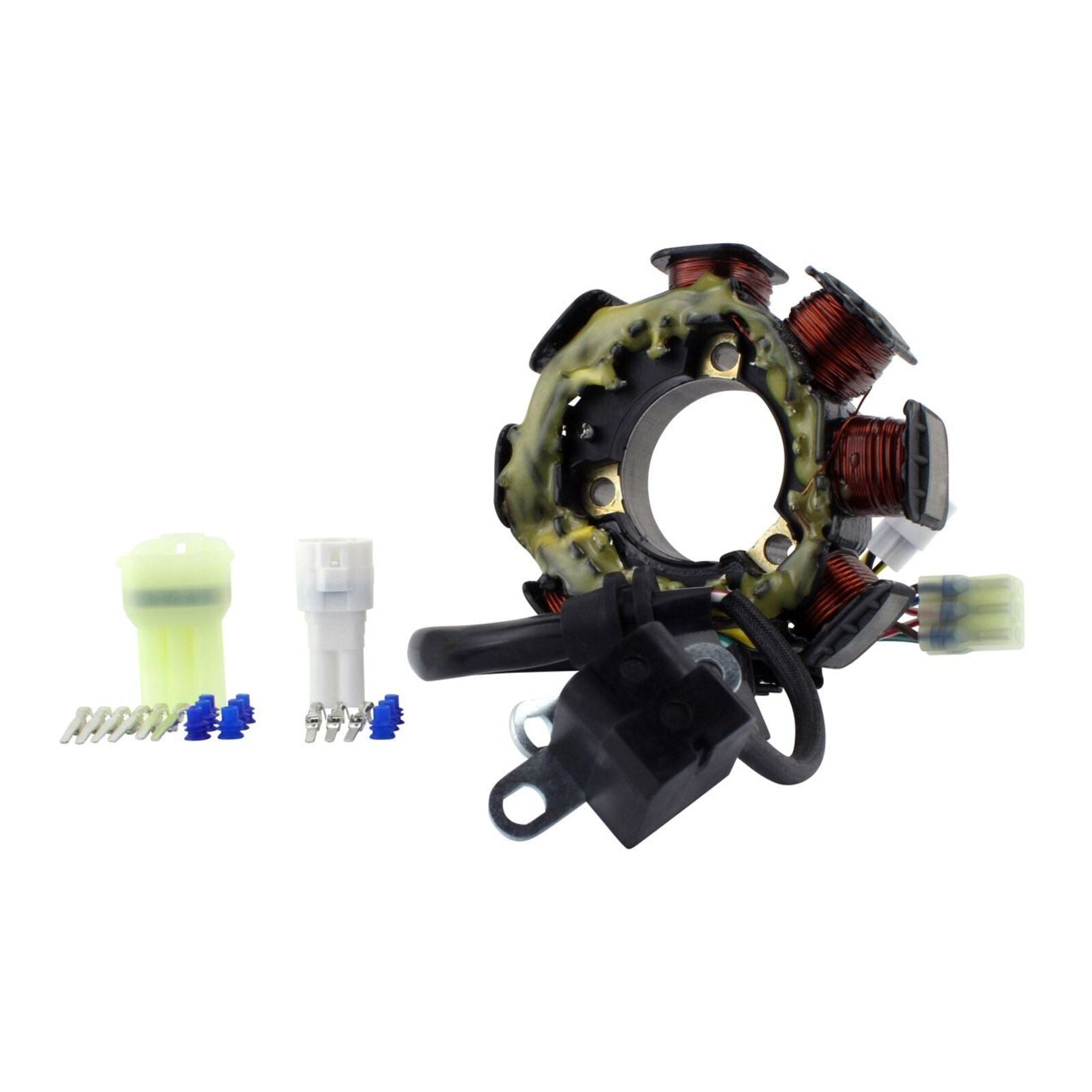

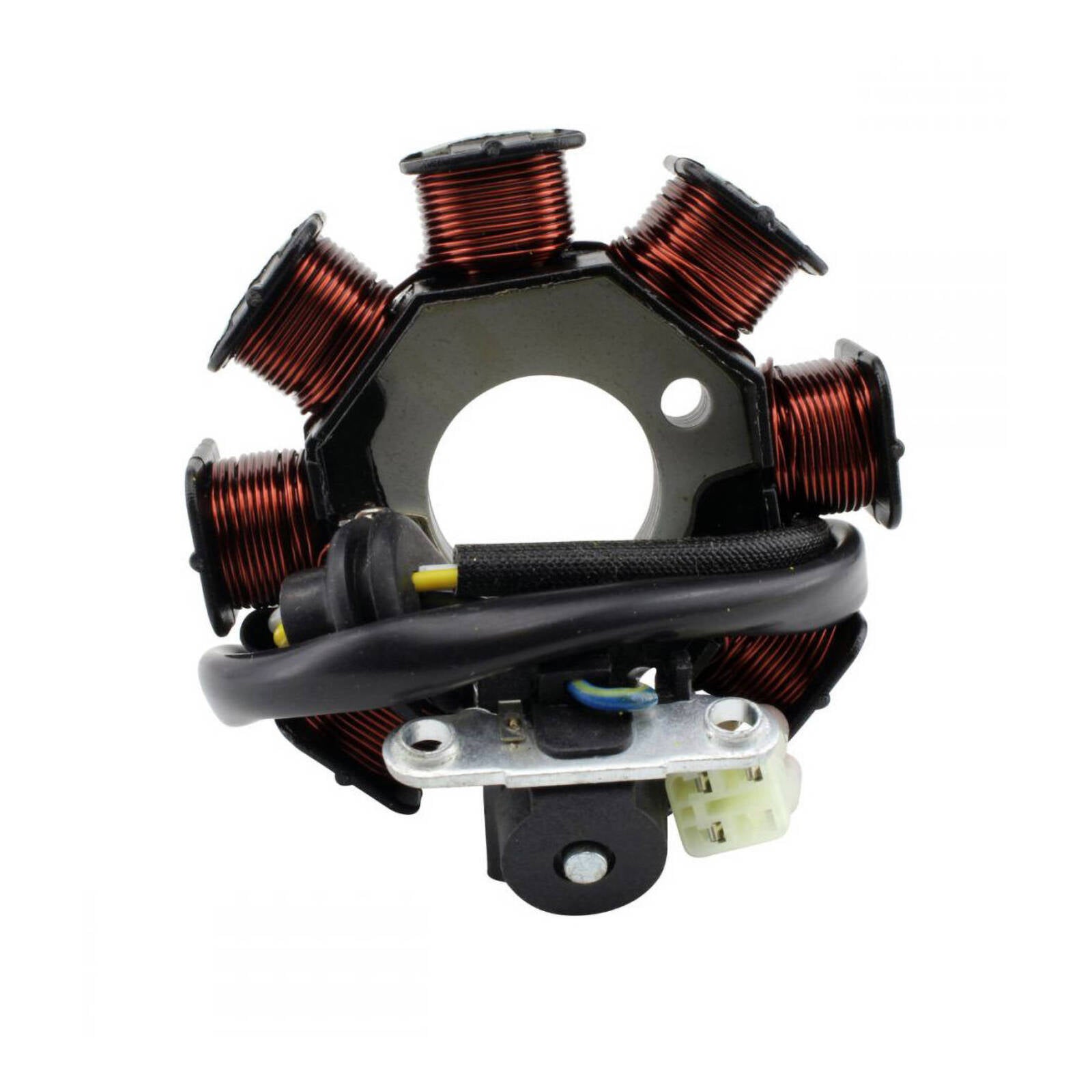

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connectors included
• Rubber grommet included
• Back Plate included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause of repetitive electrical issues.

Dimensions:

• Interior diameter: 29mm
• Exterior diameter: 88mm
• Thickness: 10mm
• Length of wires stator to grommet: 110mm
• Length of wires grommet to plug: 325mm
• Length of pickup coil's wire to grommet: 30mm

Other specifications:

• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3
• Number of poles: 8

Wire to wire resistance:

• Alternator #1: Yellow to White = 0.5 ohms +-20%
• Alternator #2: Yellow to ground = 1 ohms +-20%
• Alternator #3: White to ground = 1.1 ohms +-20%
• Pickup: Blue / Yellow to Ground = 104 ohms +-20%

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

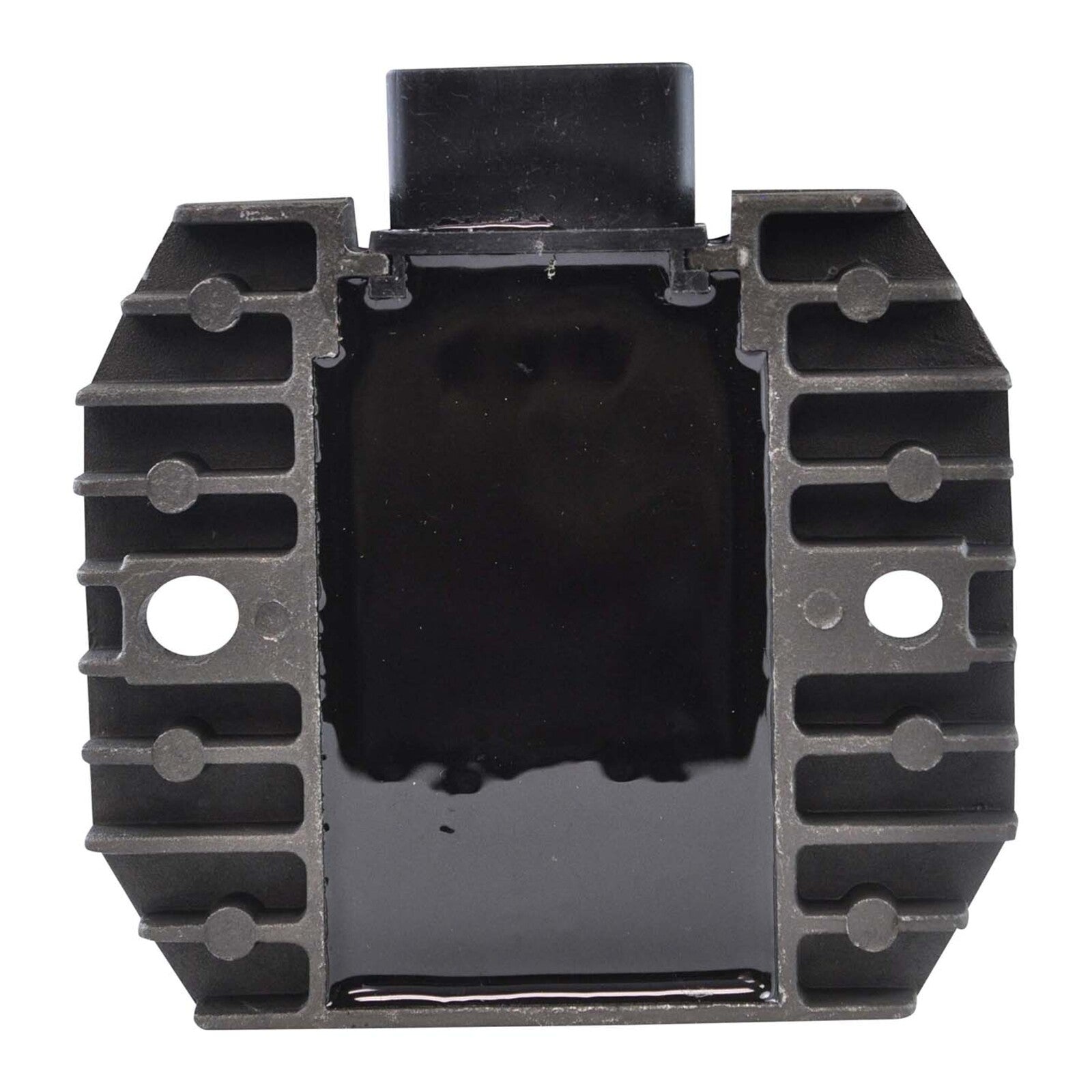

Brand new aftermarket Voltage Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• No assembly required
• Higher grade of electric components
• The quality exceeds the OEM equipment
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and are a major cause of repetitive electrical issues.

Specifications:

Dimensions: p>

• Width: 53 mm
• Length: 70 mm
• Height: 23 mm
• Stator Wire length: 210 mm
• Battery Wire length: 250 mm
• Distance between fixation holes center to center: 55 mm

Other specifications:

• Number of plugs: 2
• Number of pins: 5
• Number of wires: 5
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20°C to 85°C

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Dimensions:

• Source diameter: 89mm

Other specifications:

• Number of wires: 6
• Number of pins: 6

Wire to wire resistance:

• Alternator: Green to Green = 1.6 ohms +-20%
• Pickup: Yellow/White To Black = 16 ohms +-20%
• Source: Brown to Black = 560 ohms +-20%

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Many Yamaha snowmobile owners received the mechanical diagnostic code Code 12 - Faulty Crankshaft Position Sensor from their on-board computer. This error code indicates that the position sensor connected to the stator is broken and that it cannot send the correct signal to the CDI box, which manages electrical distribution through the vehicle.

The solution proposed by Yamaha dealers is to replace the complete stator at excessive pricing. RMStator's Crankshaft Position Sensor allows you to replace only the part that is broken without changing the complete stator for significantly less than the dealer's solution's price.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

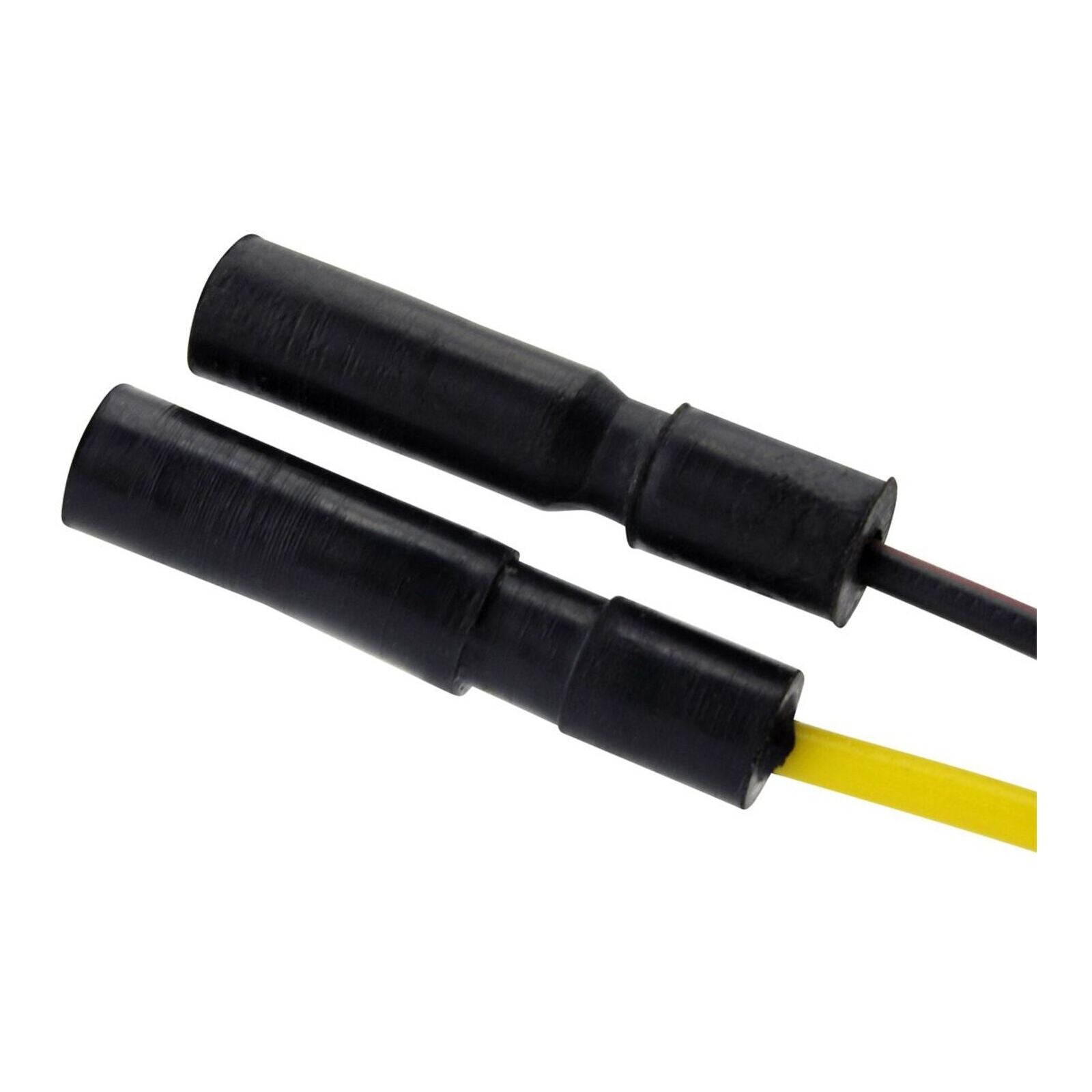

With certain BMW motorcycle models, the spark plug caps and coils are combined to reduce the number of parts used in order to improve efficiency. However, when the spark plug cap wears out, the cost of the replacement becomes more expensive. If you are experiencing ignition problems, this could mean the ignition cap coil needs to be replaced. Simple, easy to install, affordable, and improves engine performance.

Features:

• Direct replacement to your original unit.
• Quality exceeds the OEM equipment.
• All products shipped are tested.

Dimensions:

• Internal diameter: 7 mm
• External diameter: 17 mm
• Length: 138 mm
• Seal length: 21 mm
• Seal diameter: 31 mm
• Resistance: 2-3 = 546 ohms

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

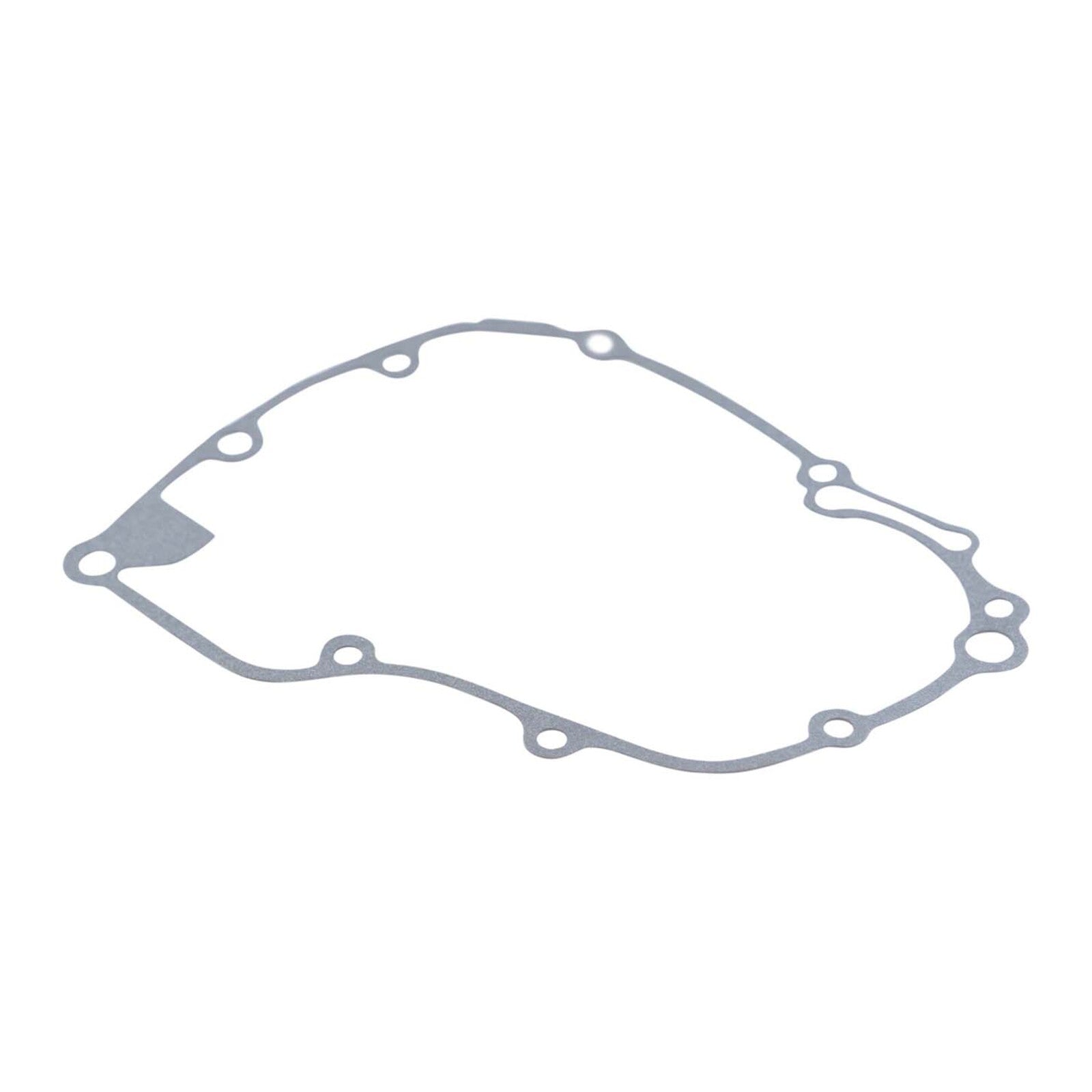

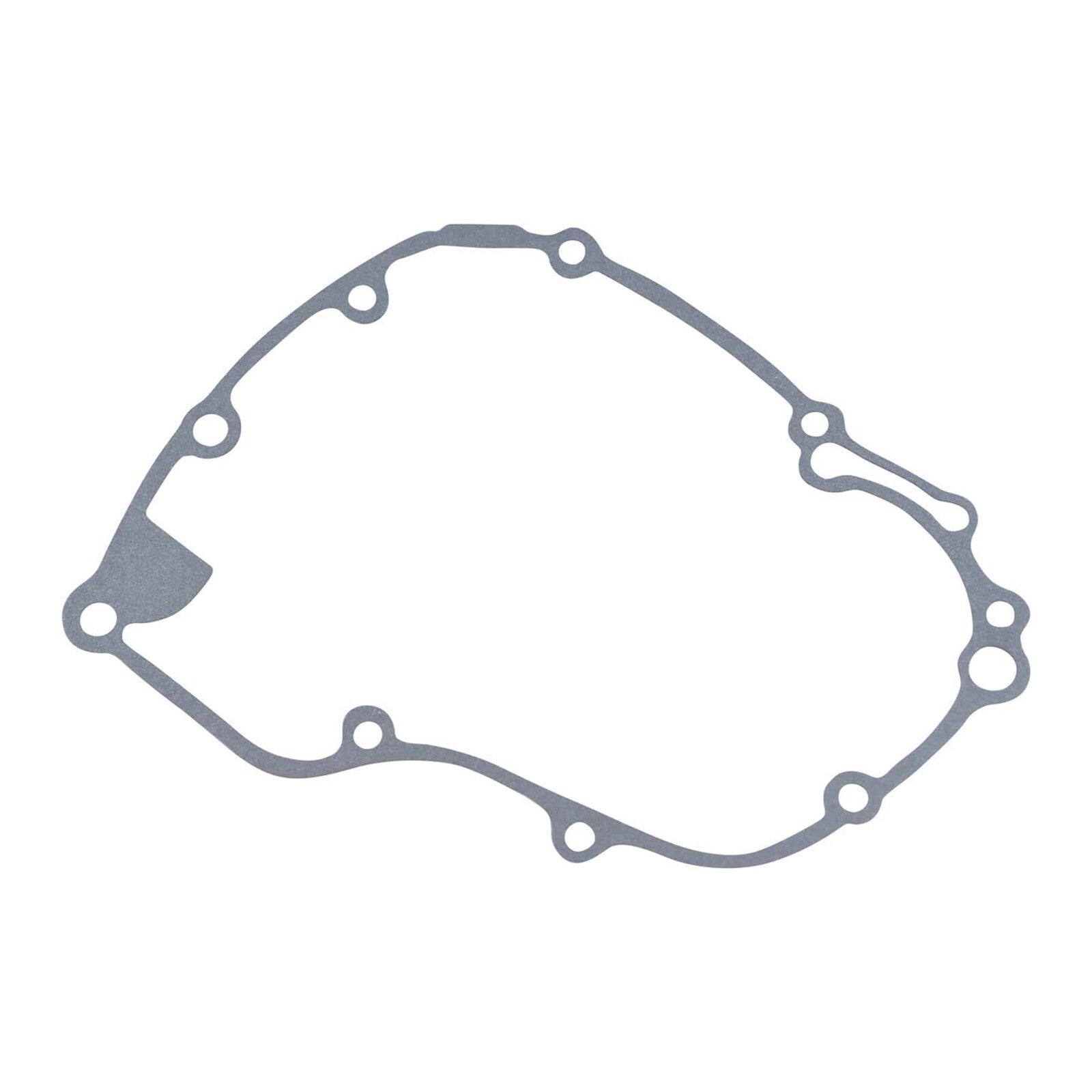

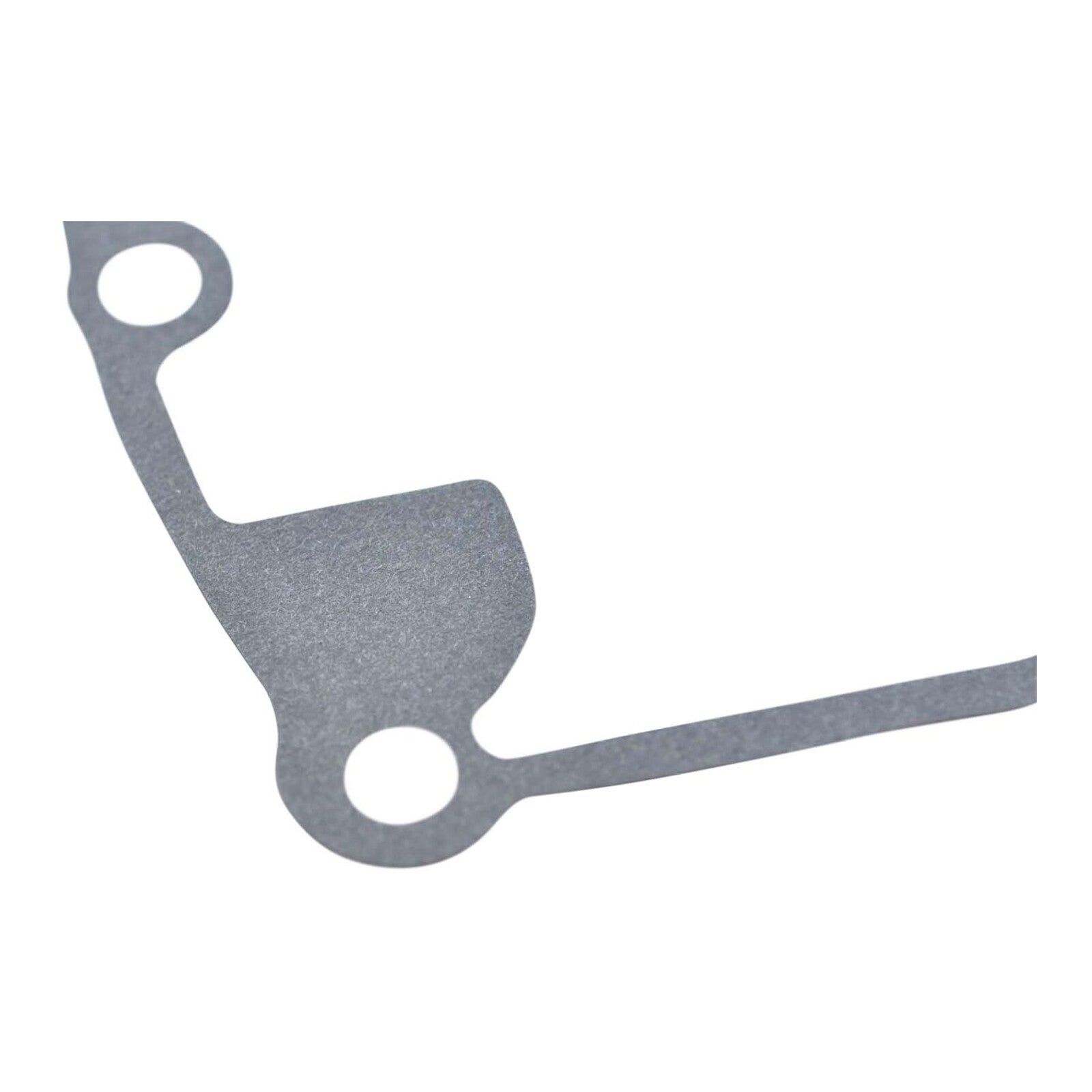

A gasket is not just a gasket

You wouldn’t use the same oil filter twice, would you? Why even consider keeping the same gasket then? When reinstalling a used gasket, it has lost some of its key abilities: it has already been compressed, weakening its sealing capability. It might also have suffered from heat, deformation, peeling, or other abuses. Remarks and related documents: Specifications values determined by the test methods required for ASTM F-104, type 7 materials.

Are your gaskets built to OEM specs?

Regular aftermarket gaskets use a variety of cheap materials that offer inconsistent sealing results. RMSTATOR performance gaskets comply with the same standard as the OEM parts. We use the materials prescribed by the standard on every gasket and make sure the properties are the same.

Our gasket has a fully cured styrene-butadiene rubber binder and a blend or aramid and cellulose fibres. It is intended for oil and water applications with short-duration maximum temperatures up 290°C (550°F). *Nonasbestos gasket material.

What makes the difference?

• Higher material density - Our enhanced gaskets have less probability of leaking at the same pressure.
• Maximum temperature - Our enhanced gasket material will keep its sealing properties at a higher temperature.
• Minimum flange pressure- Our enhanced gaskets require less force to be applied on the metal part to seal through imperfections.
• Minimum tensile strength - Our enhanced gaskets will resist internal pressure better.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
