ELECTRICAL

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All products shipped are tested

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

Features:

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.

Specifications:

< li>Width: 95mm
• Length: 150mm
• Height: 50mm
• Wires length: 590mm
• Fixation holes centre to centre: 90mm
• Resistance: 4.3 ohms

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

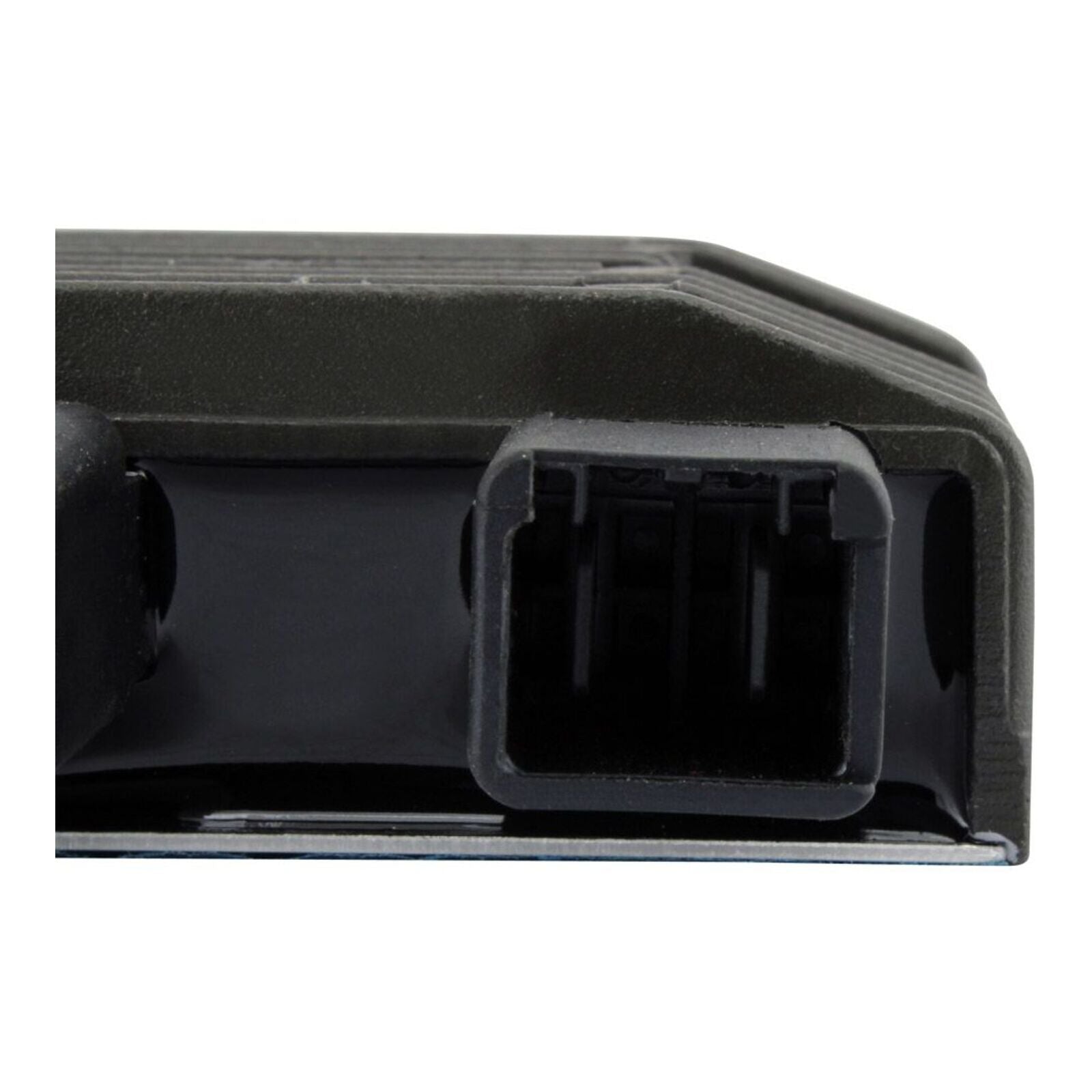

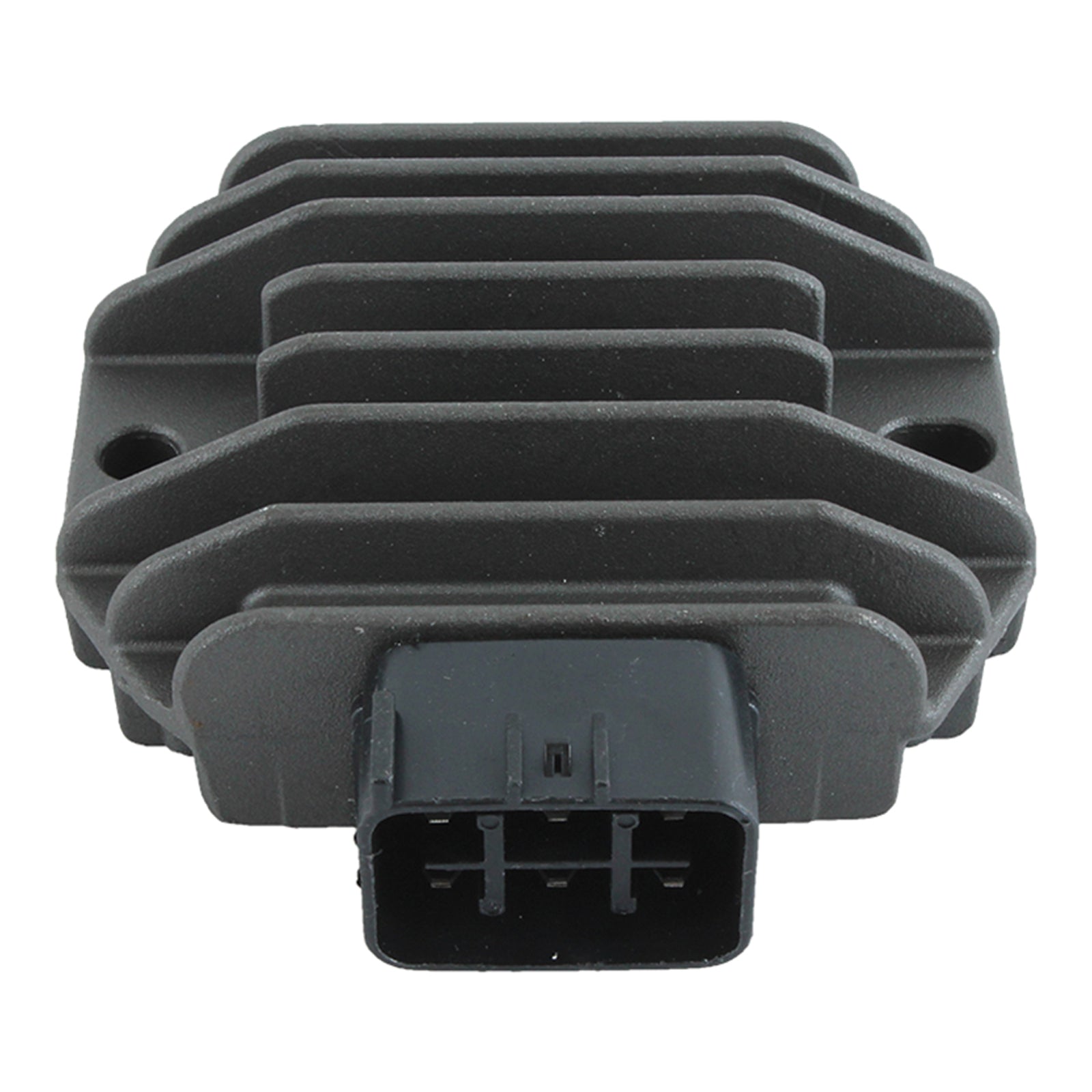

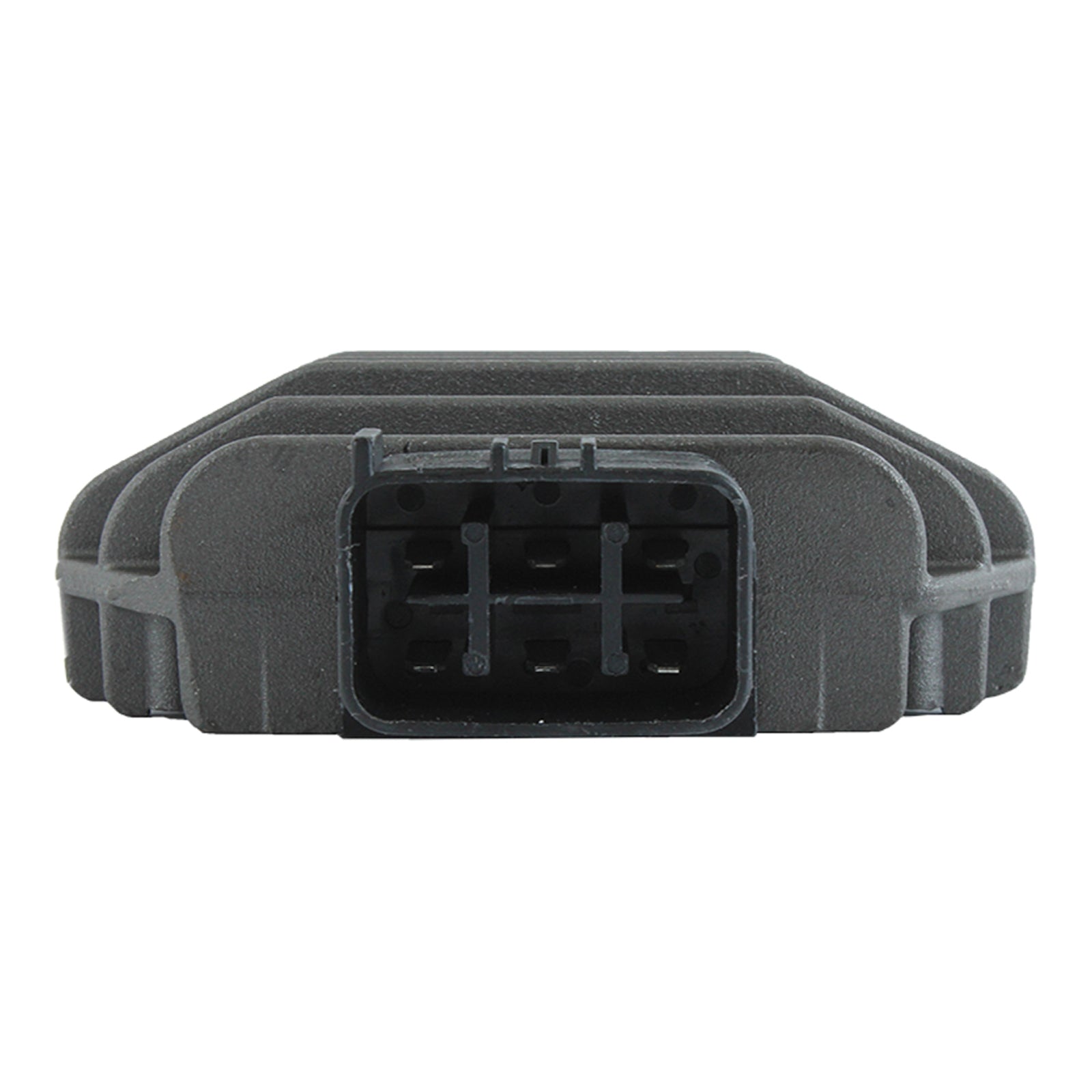

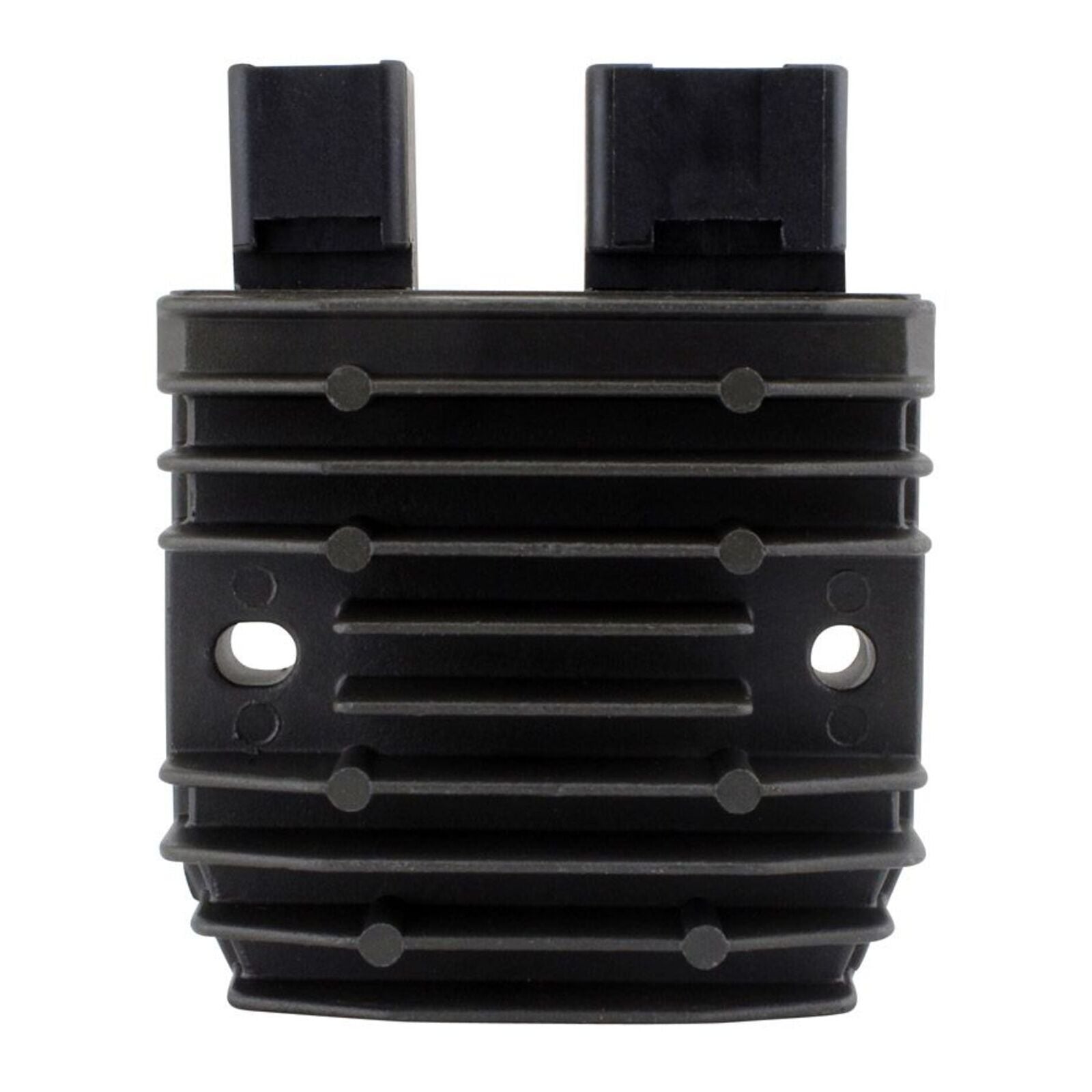

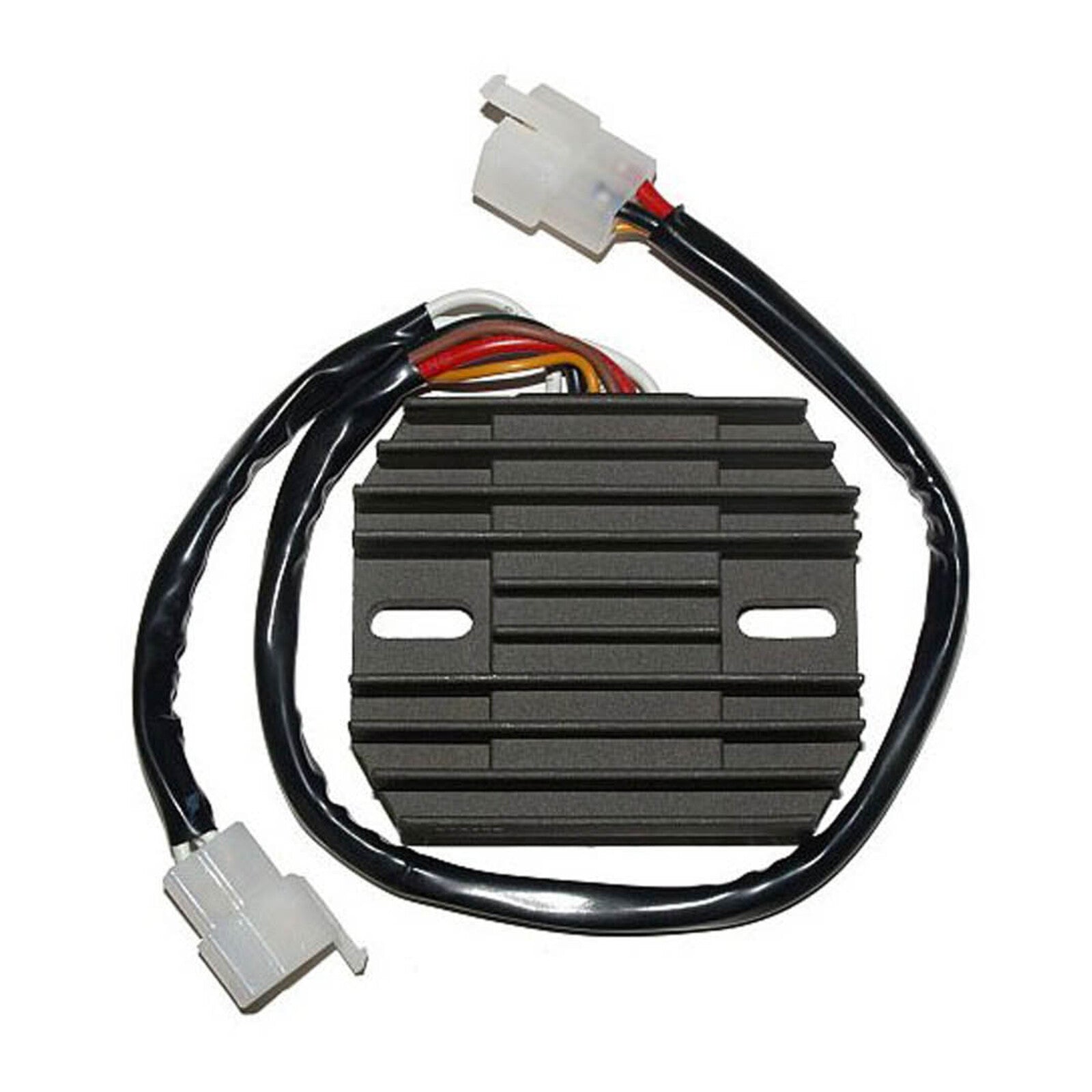

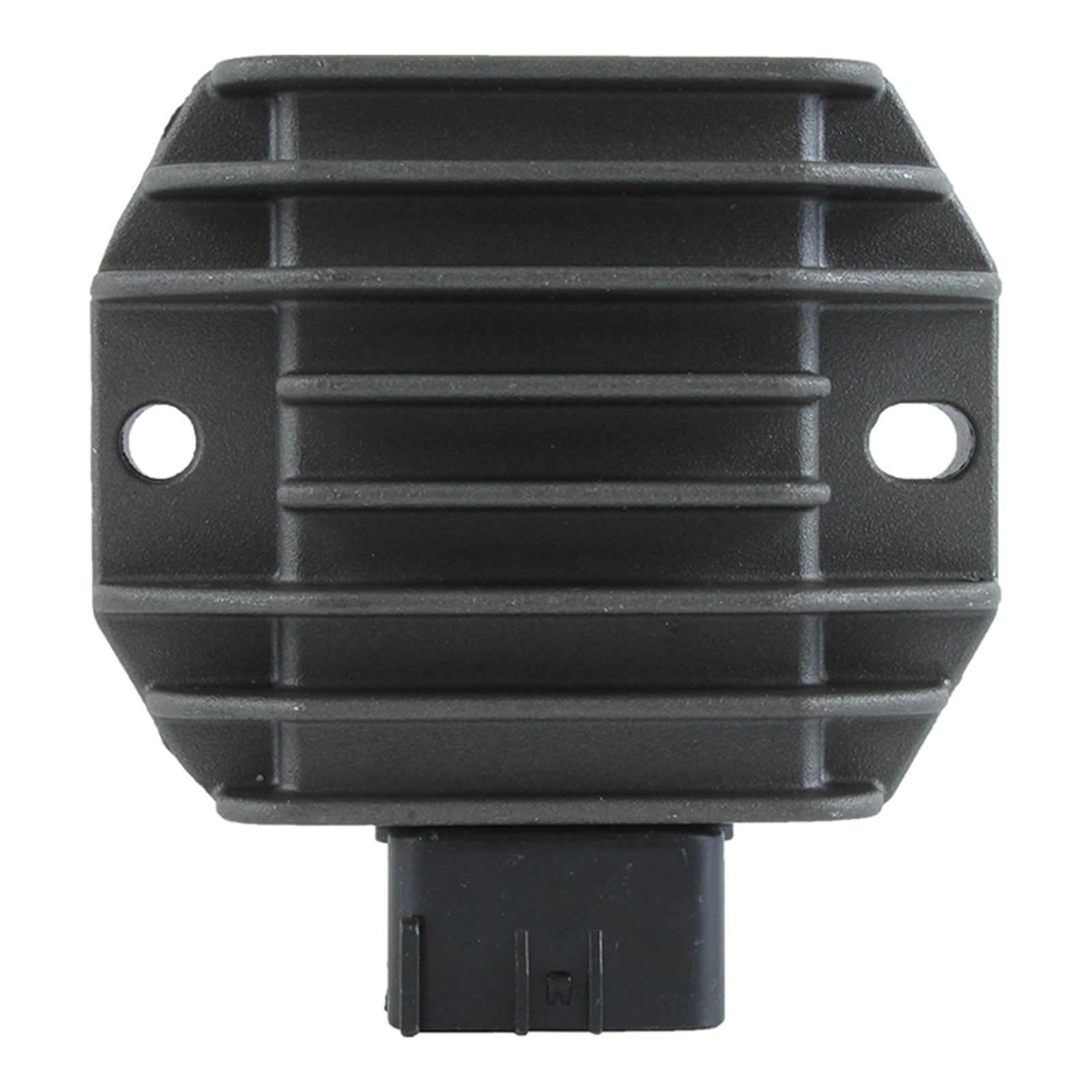

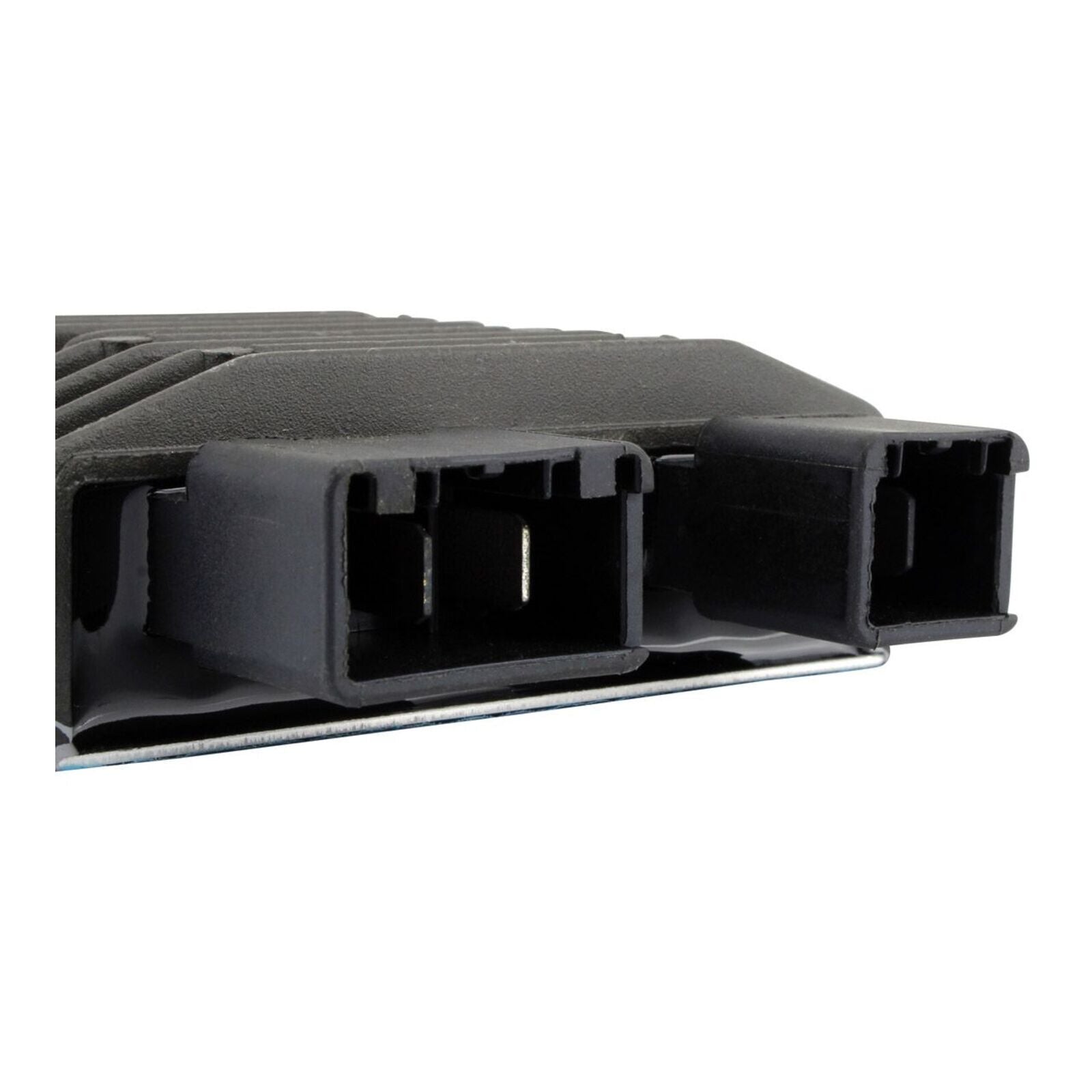

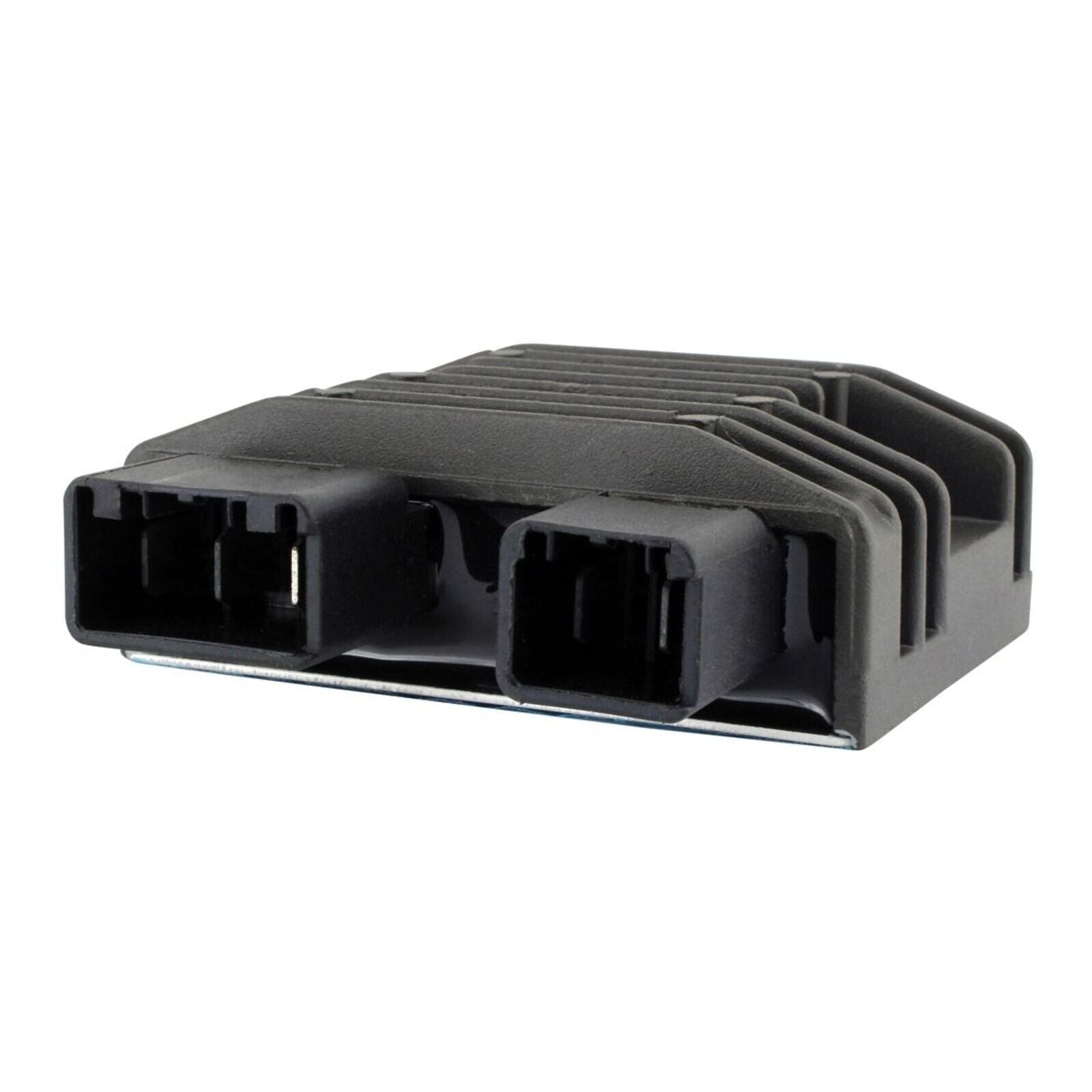

REGULATOR SUZ ATV MODELS

Quality replacement Regulator/Rectifiers.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Motorcycles, especially higher-powered motorcycles, sometimes have trouble starting, especially in cold weather. The perfect solution for this is to replace the starter motor with a high-quality J&N Electrical motor for a quick start every time.

Features:

• Meets or exceeds OEM specification.
• 100% interchangeable, no modifications required.
• Durable double-sealed case for longer life.
• Vigorously tested and manufactured with insulated fittings.
• Provides higher torque than many OEM starter motors.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

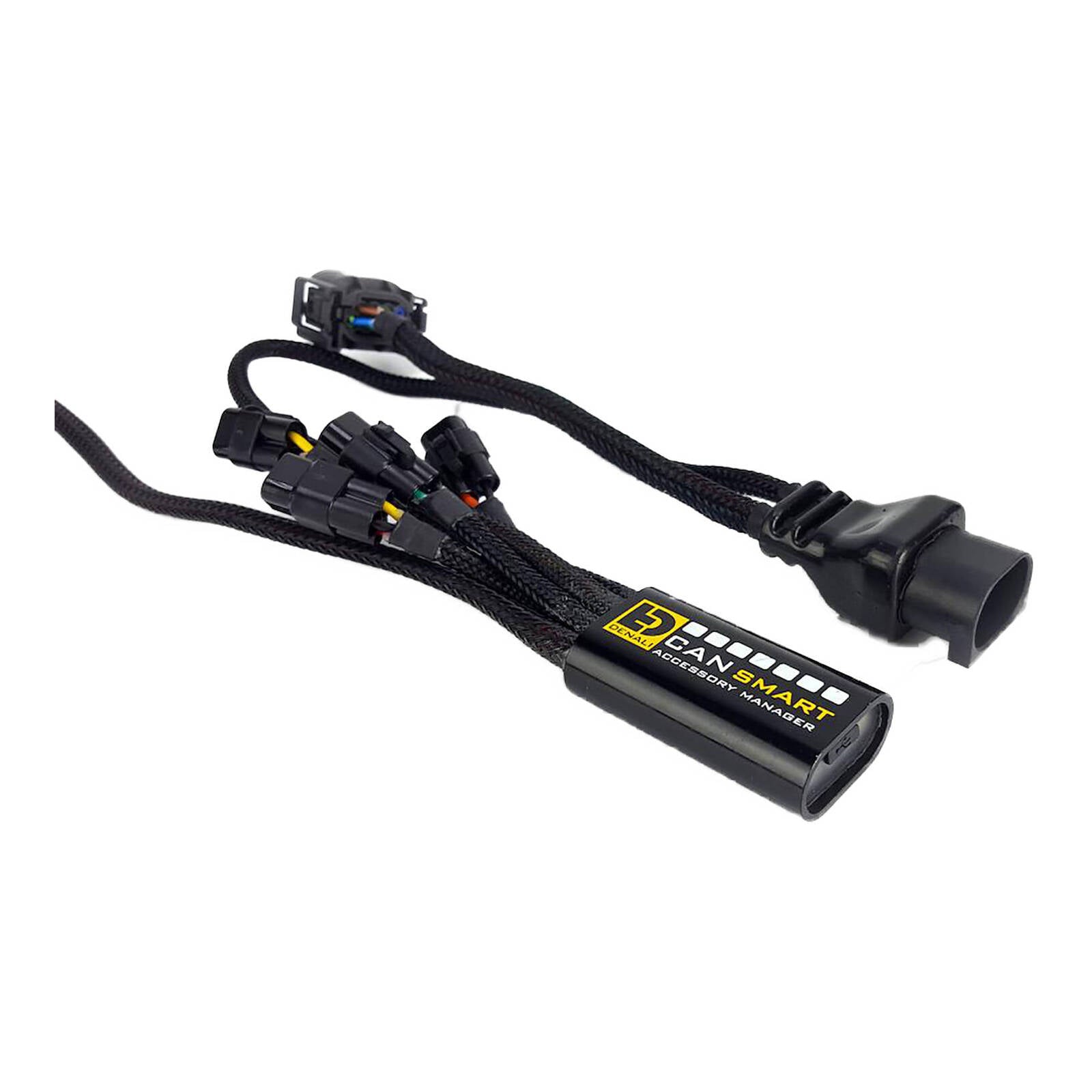

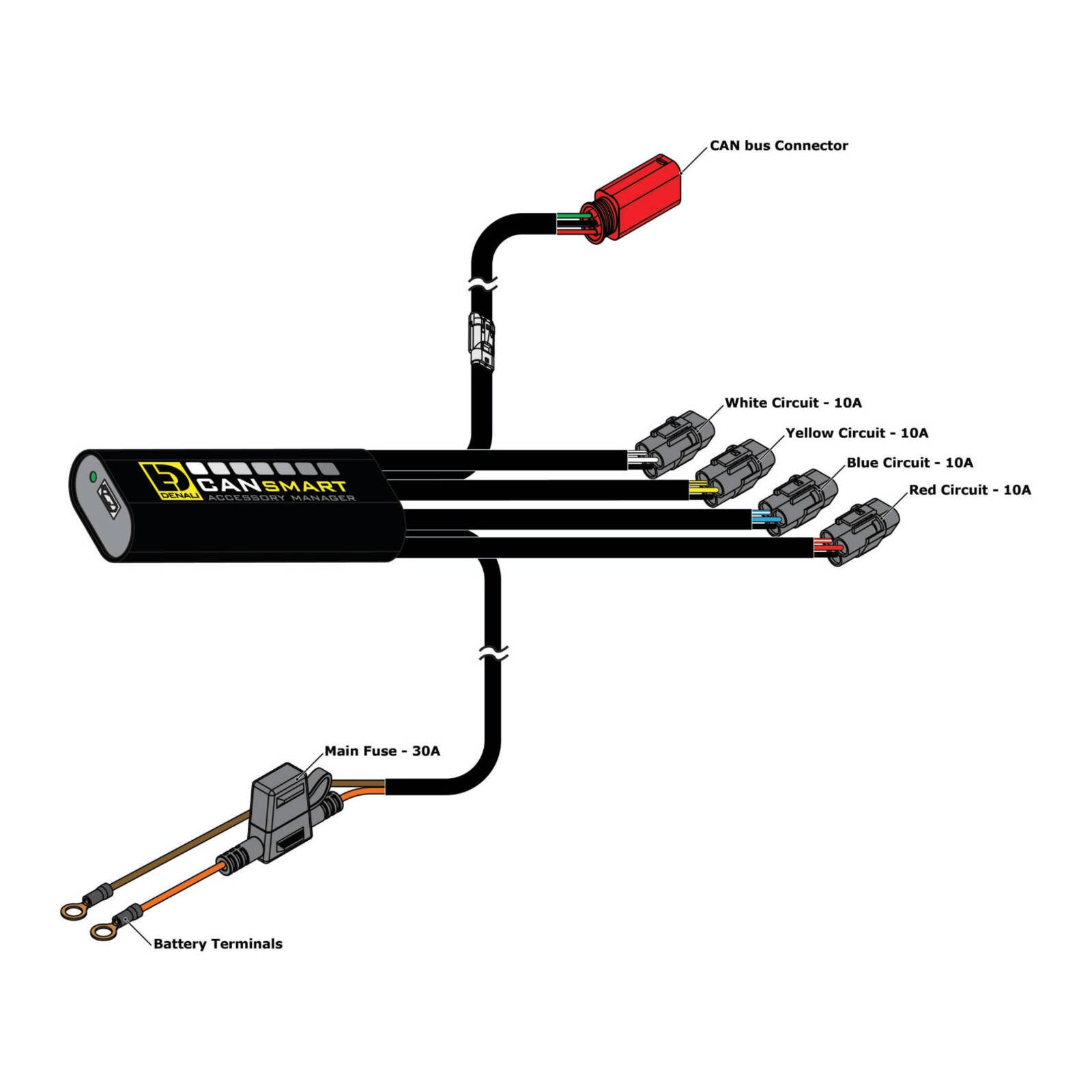

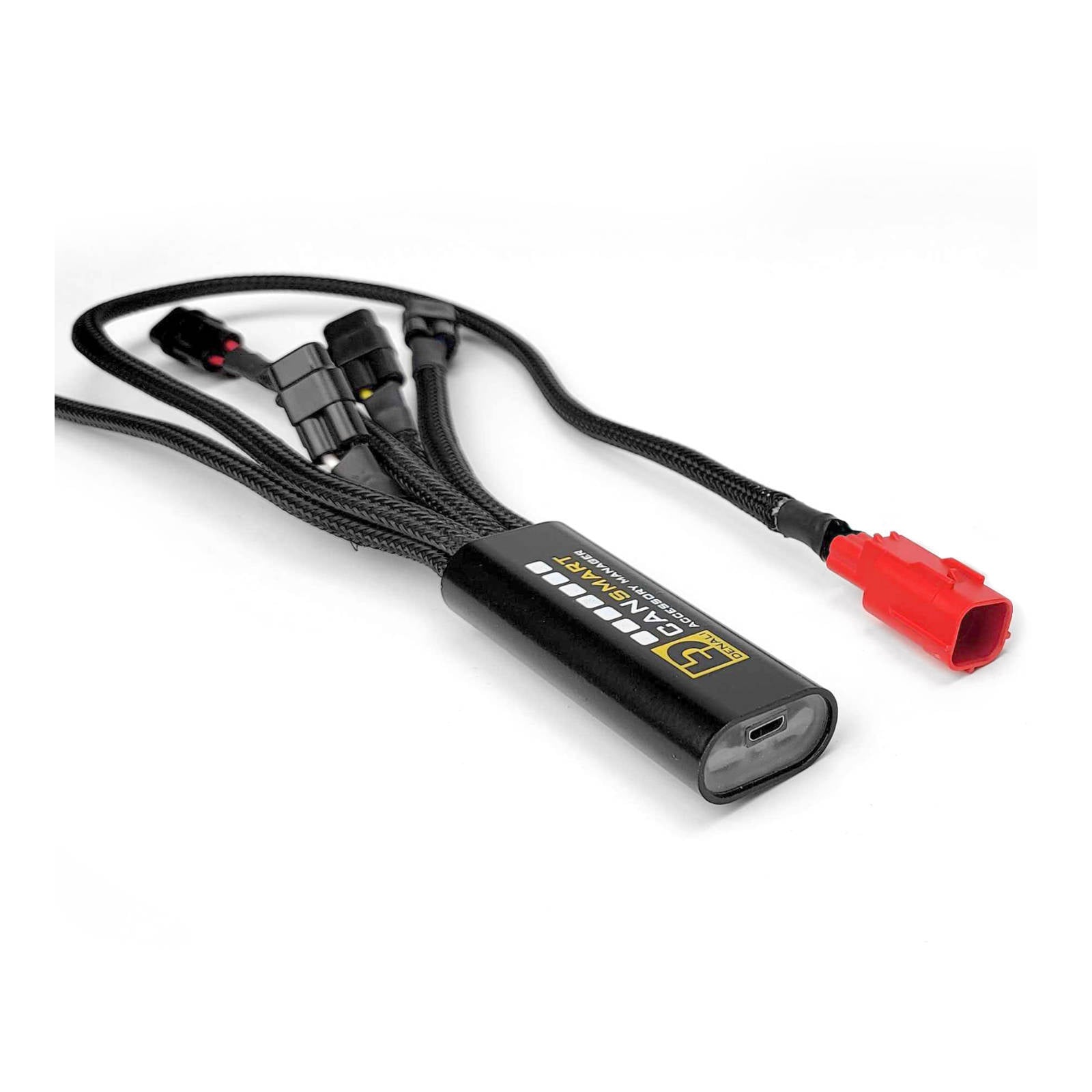

The ground-breaking Harley-Davidson CANbus controller provides plug & play connection and intelligent control of aftermarket and genuine Harley-Davidson accessories right from your bikes original switches or DENALI Accessory Manager Software. Simply connect the CANsmart™ Controller to your Harley-Davidson diagnostic port to access over 35 programmable accessory settings that provide intelligent control of auxiliary lights, horns, brake lights, or any other accessory you can imagine. The four accessory circuits are electronically fused and can provide up to 25 peak amps (10 amps continuous).

Features

• High/Low Sync - Set passing lamps and auxiliary lights to switch between a programmable high/low setting with the factory high beam switch.
• ON/OFF and Dim - Independently control two sets of lights ON/OFF and change intensity level (for both day and night) right from your bikes factory trip switch. Click three times to turn lights on/off, or hold for 3 seconds to enter dimming mode where you can cycle between 10% - 100% intensity.
• Modulate Lights - Set passing lamps or auxiliary lights to modulate to increase your visibility to other motorists.
• Flash to Pass - Need to get someone's attention? Pulse your high beam switch three times and your auxiliary lights will strobe three times fast.
• Cancel With Turn Signal - This feature cancels the corresponding auxiliary light when you turn your turn signal on preventing powerful auxiliary lights from overpowering your signal.
• Flash With Turn Signal - This features flashes the corresponding auxiliary light when you turn your turn signal on, enabling auxiliary lights to function as turn signals.
• Plug & Play Horn Installation - Quickly and easily connect high power aftermarket horns like our SoundBomb™ without having to add an additional harness or relay.
• Strobe with Horn - With this feature selected the CANsmart™ software will automatically strobe your passing lamps or auxiliary lights when you sound your horn. This feature works whether you have the factory horn or SoundBomb™ horn installed.
• Deceleration Activated "Smart Brake" Technology - The CANsmart™ reads vehicle speed in real time to activate your auxiliary brake light during deceleration before you even touch the brake. You can adjust the sensitivity and minimum speed at which the Smart Brake Feature will activate.
• Flash Pattern Braking - The CANsmart™ provides four different flash patterns that make our super bright auxiliary brake lights even noticeable to motorists behind you. You can set auxiliary brake lights to only flash under hard braking, flash continuously as your brake is applied or flash four times rapidly then hold steady (California legal flash rate).
• Switched Power Source - The CANsmart™ provides a universal "accessory" option which simply gives you clean switched 12V power. That means whatever accessory you connect to this circuit will turn on and off with your ignition.
• Delay Time Out - You can also set the accessories on this circuit to have a delayed time out. This will keep them powered for up to 30 seconds after your turn off your bike.
• On Board Power - The "accessory" circuit option is ideal for powering your GPS, phone, heated gear or any other electronic device.

What’s In The Box?

• CANsmart™ Controller
• (x2) 5.5ft Light Extension Cables
• 5ft SoundBomb Horn Extension Cable
• B6 Brake Light Wiring Adapter
• Zip-ties
• Adhesive Hook-and-Loop Fastener
• Micro USB Programming Cable

Whites Tail Light Assemblies provide a cost-effective option when needed for your ATV or UTV.

Features:

• Available to suit many popular makes, models, and years.
• Direct "bolt-in" replacement; no modification required.

Note: Whites ATV and UTV replacement taillights are designed for off-highway applications only. The lenses on these taillights do not have E-marks, which are required for road vehicle compliance.

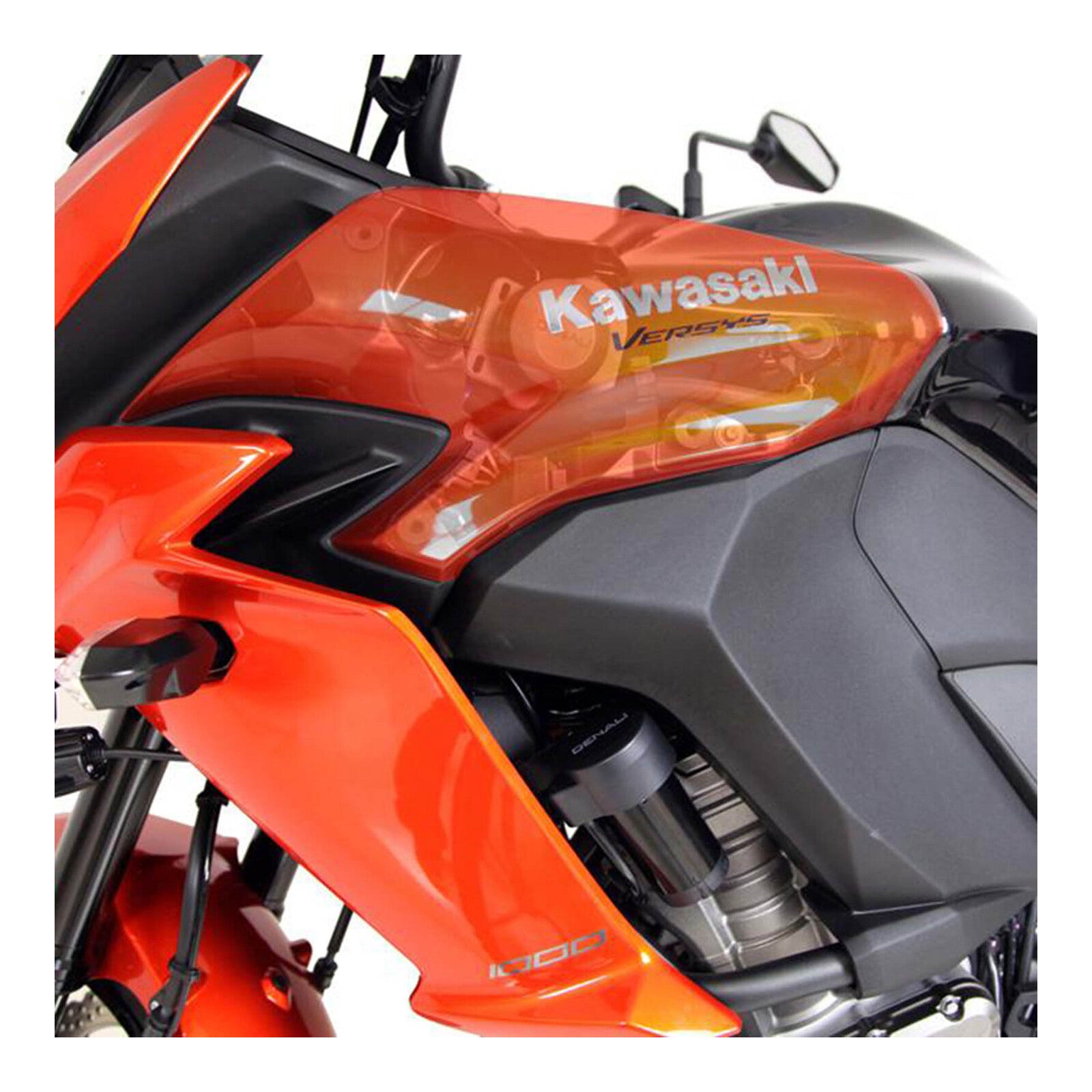

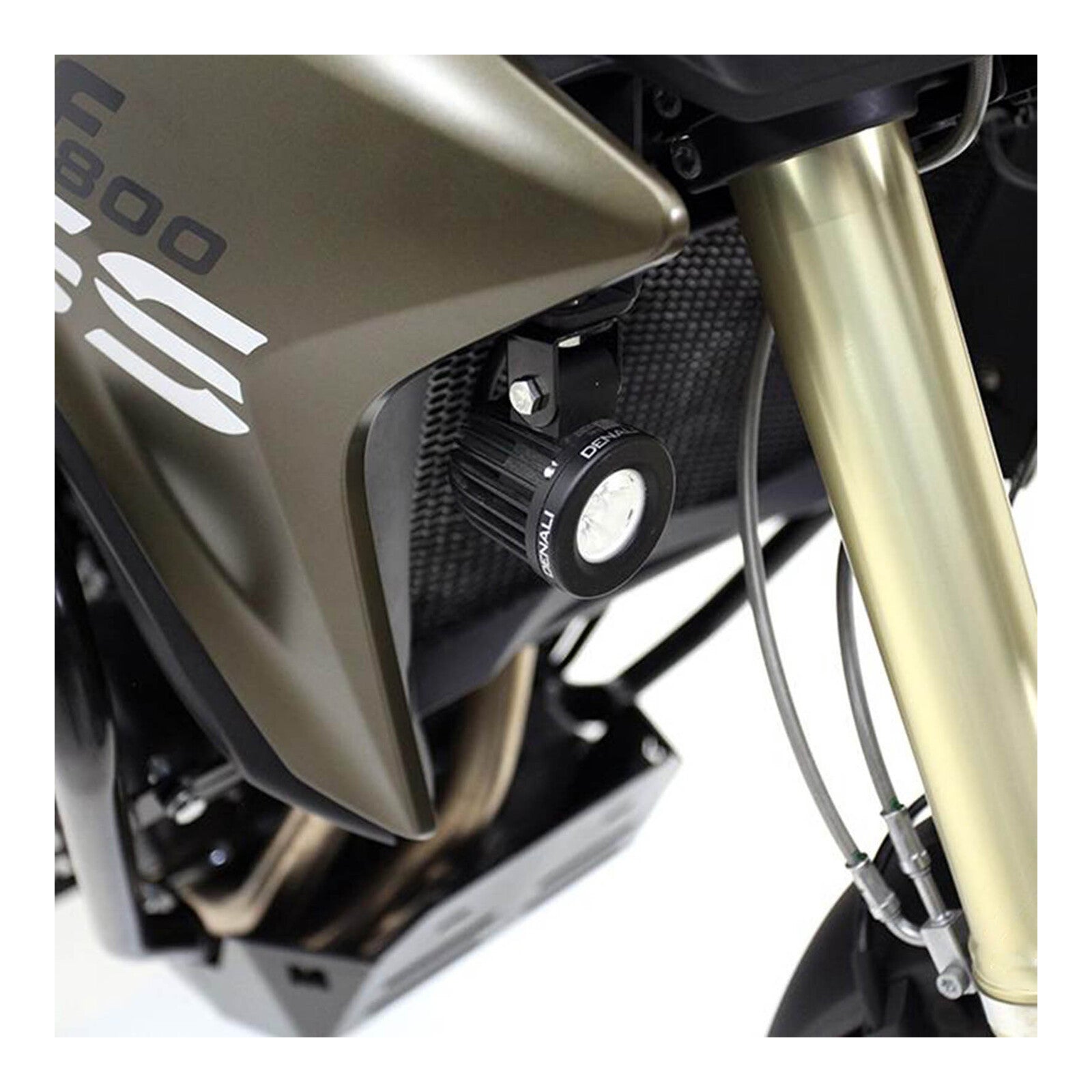

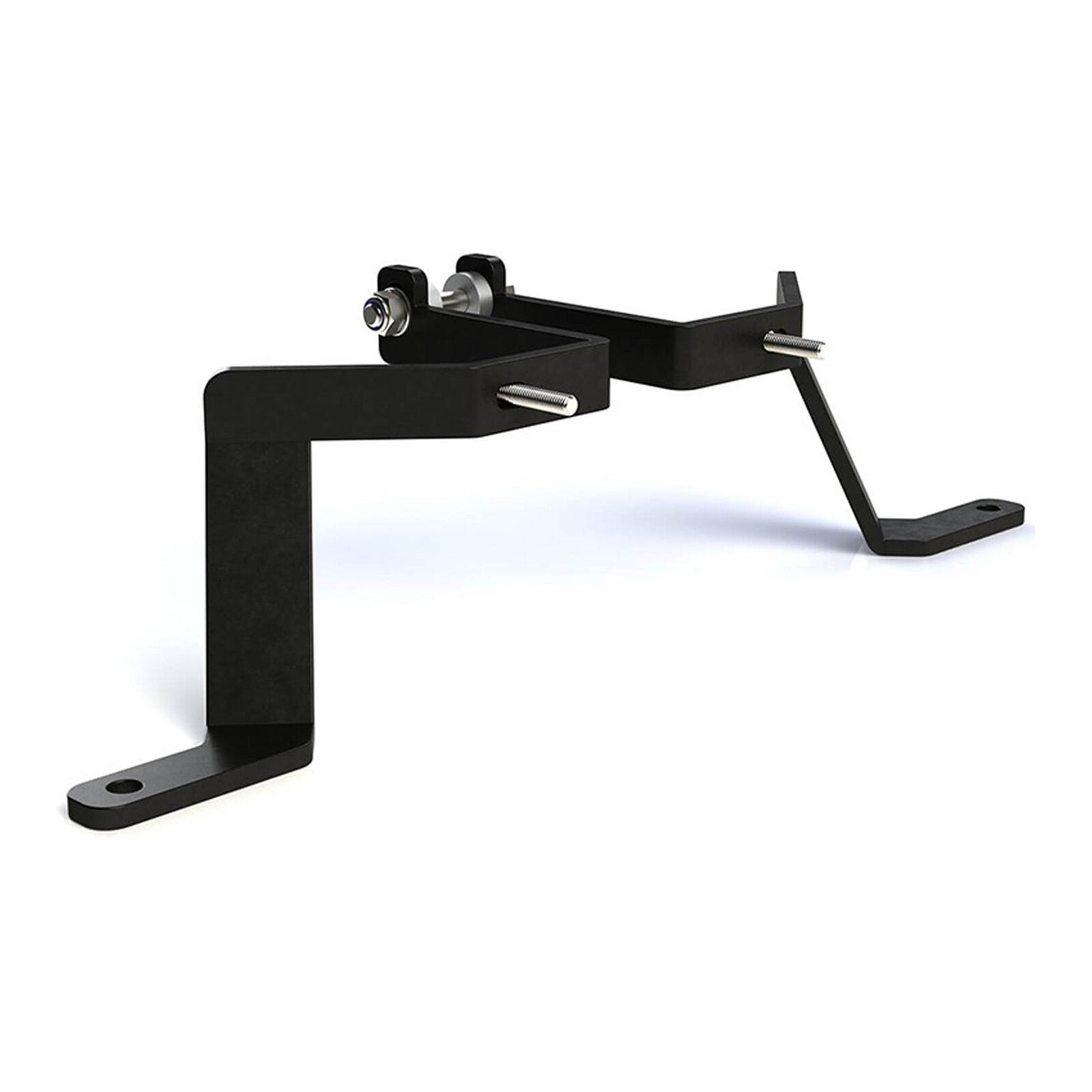

DENALI Motorcycle Specific Fairing / Fender Mounts

Available for most ADV, Cruisers and Sport Touring Models Laser cut and powder coated steel brackets either position the lights in the optimum location just below to the outside of the headlight, or create a two-point fender mount strong enough to mount our largest lights to your fender.

Whites Kill Switches are high-quality OEM styled replacement kill switches. Including the bar mount and bolt, wire it up and you're ready to rip. The fully waterproof button and heavy duty covered wire prevents water entering and shorting the switch. OEM style, shape and plug ensures a quick and easy installation.

Features:

• OEM replacement.
• Quick and easy installation.
• Fully waterproof.
• OEM style, shape and plug.

Brand new aftermarket 2-Positions Ignition Key Switch.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Two keys included
• Connectors included
• All products shipped are tested

Specifications:

• Dimensions:

  • Height: 44 mm
  • Length: 44 mm
  • Width: 34 mm

• Other Specifications:

  • Number of wires: 2
  • Number of pins: 2
  • Number of plugs: 2
  • Number of keys: 2
  • Number of positions: 2 (off, on)

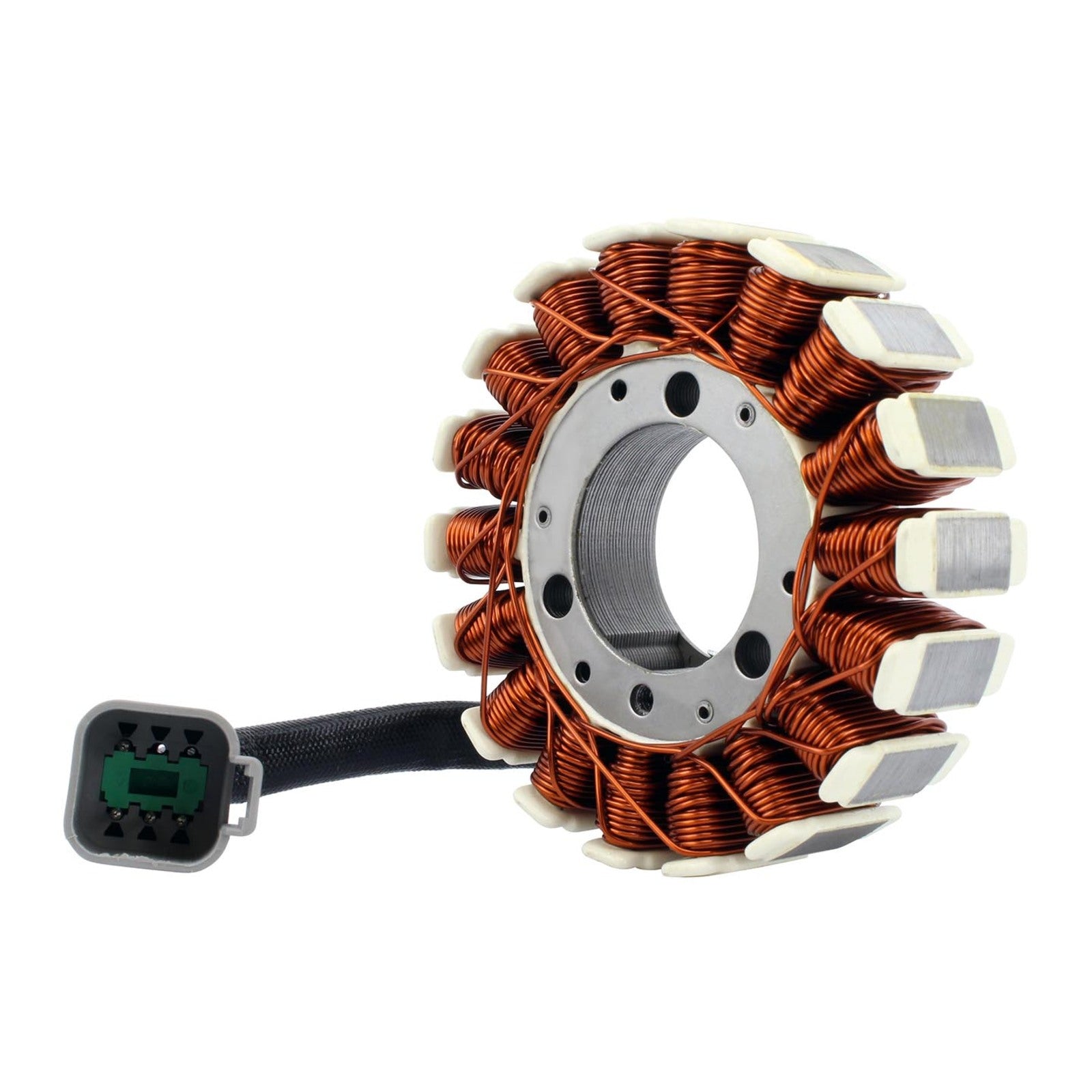

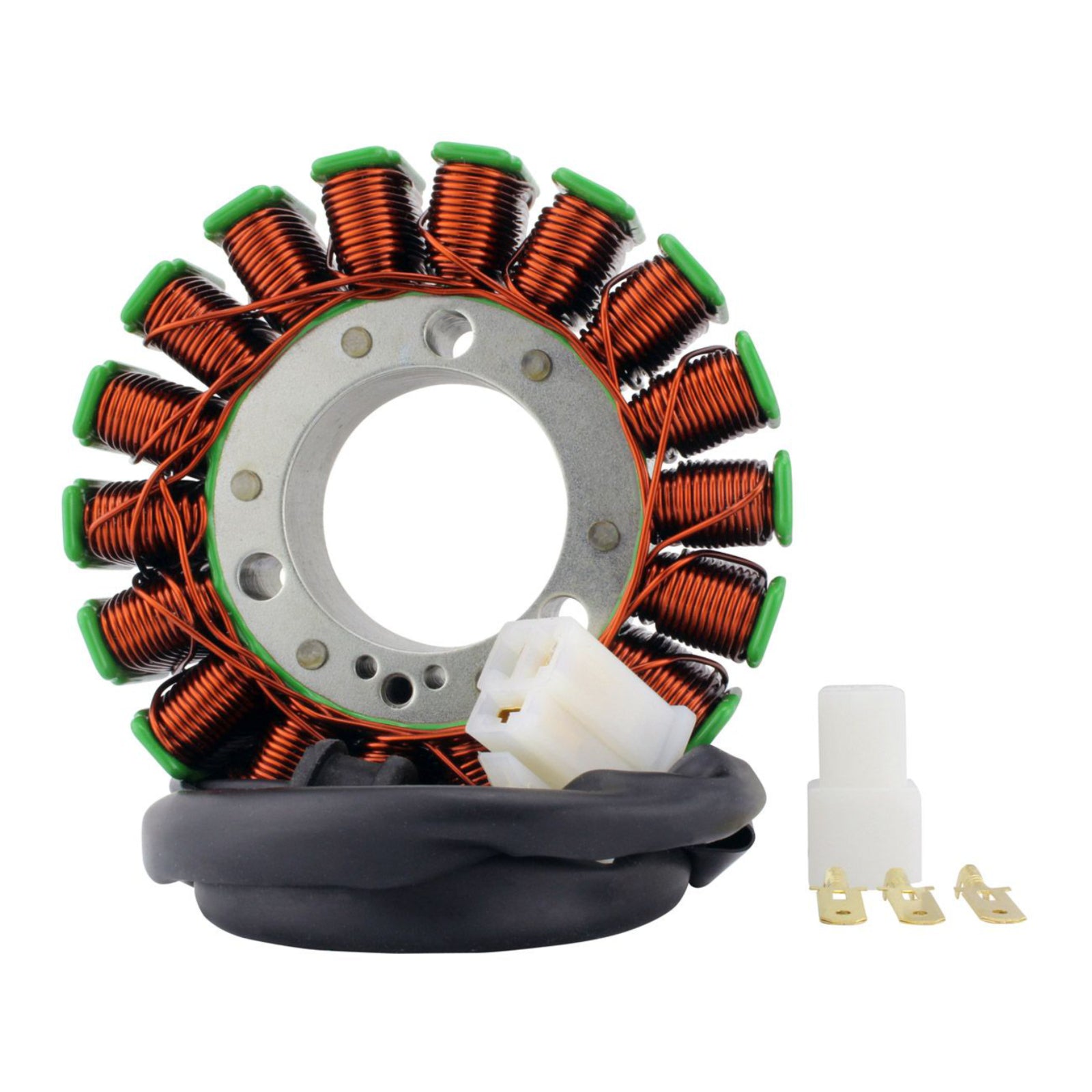

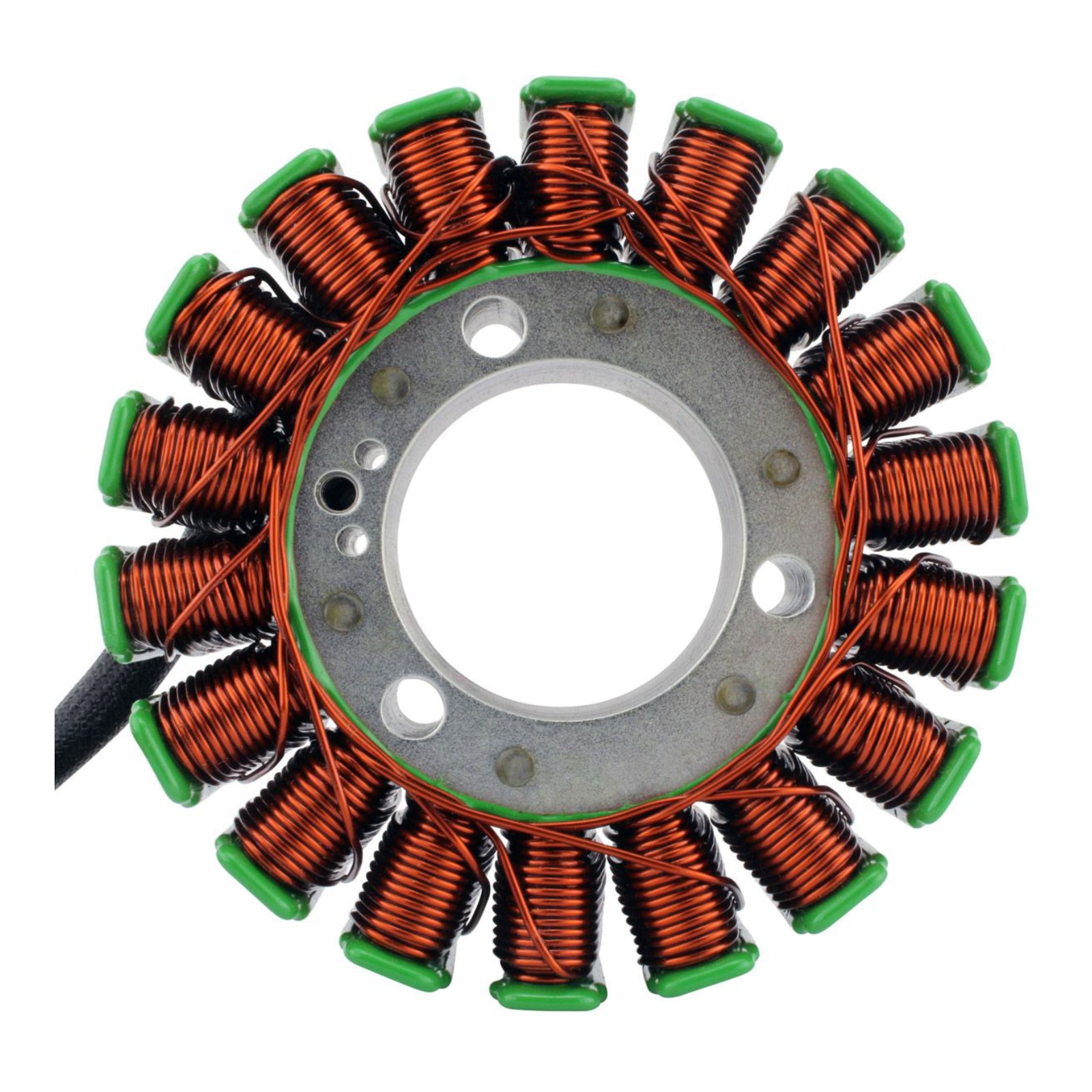

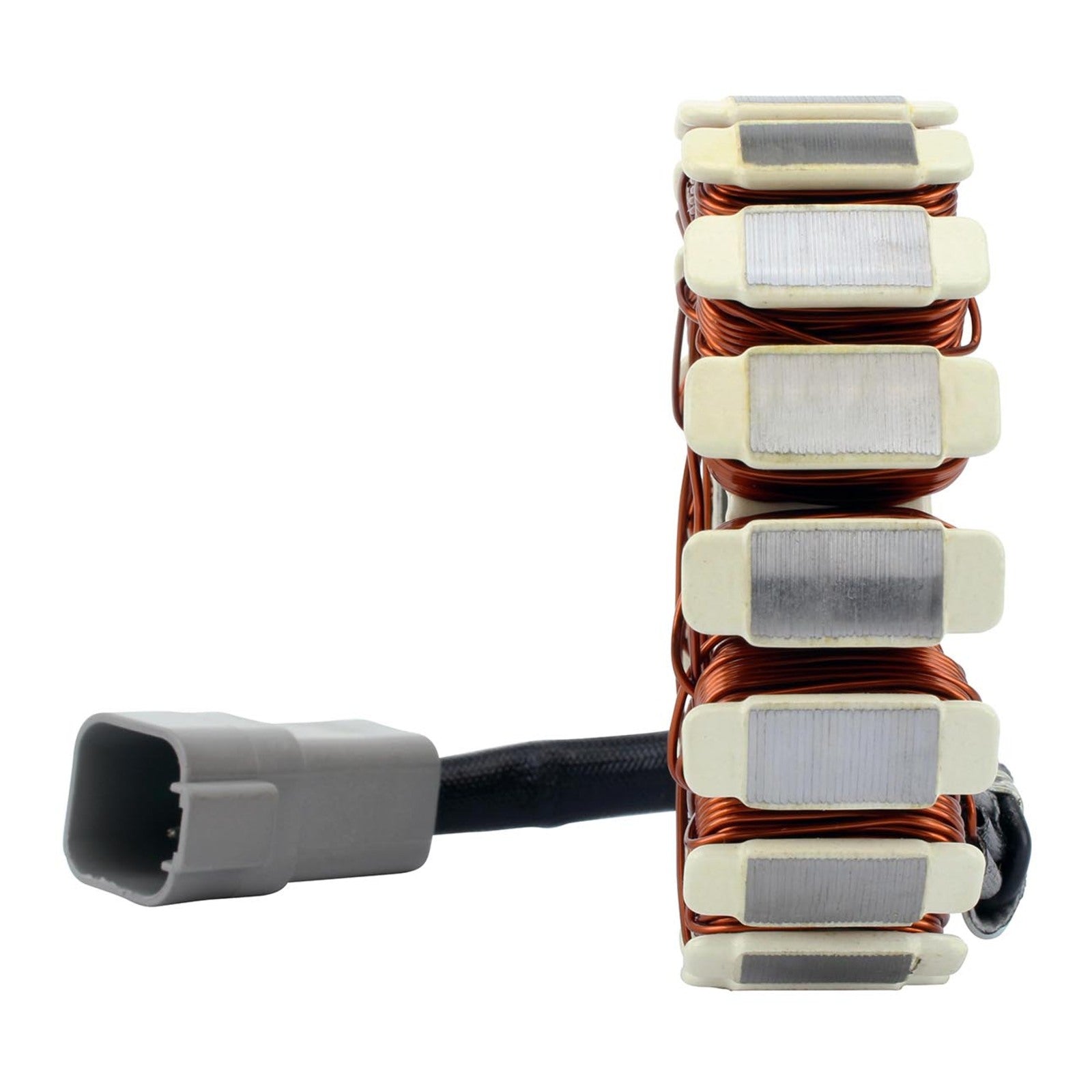

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

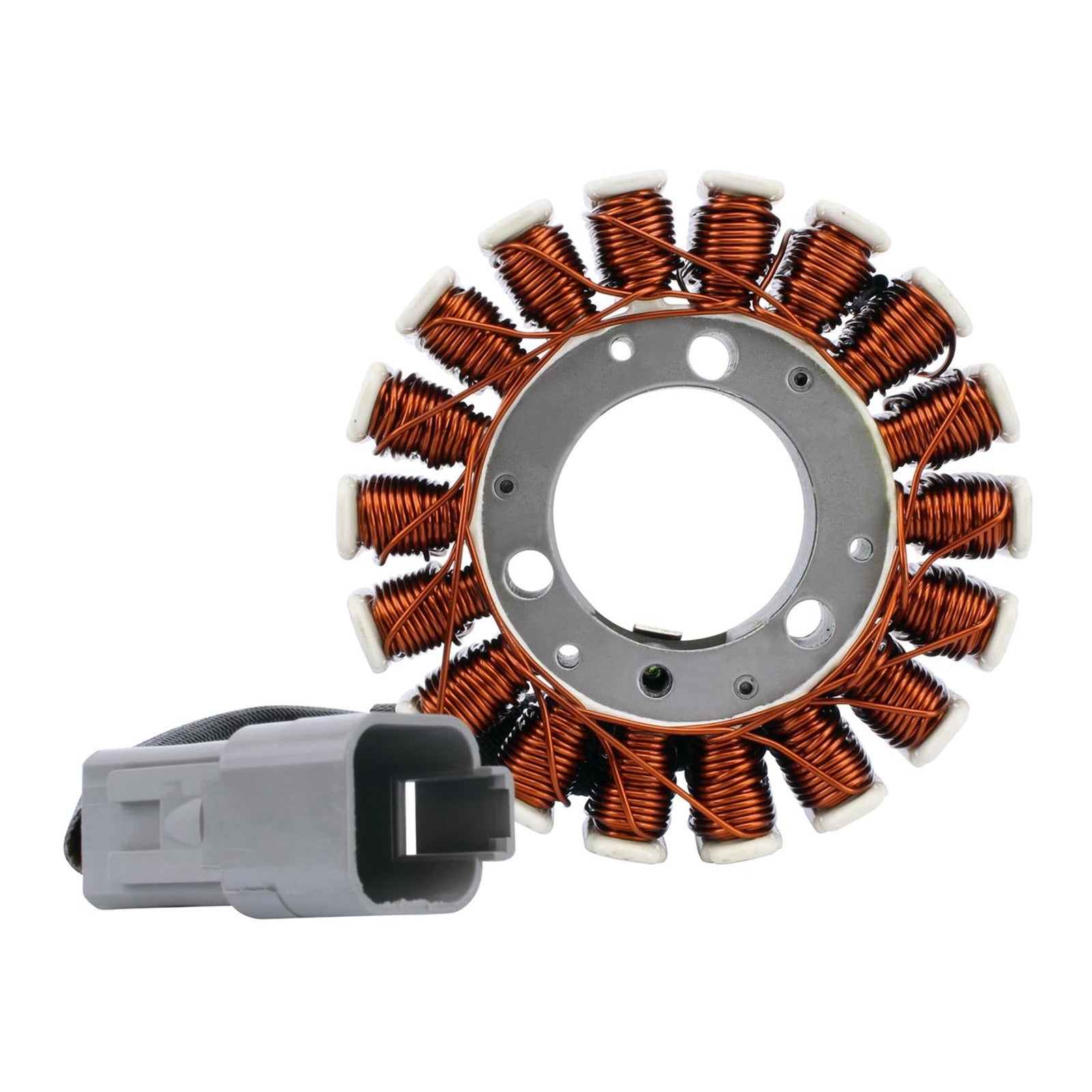

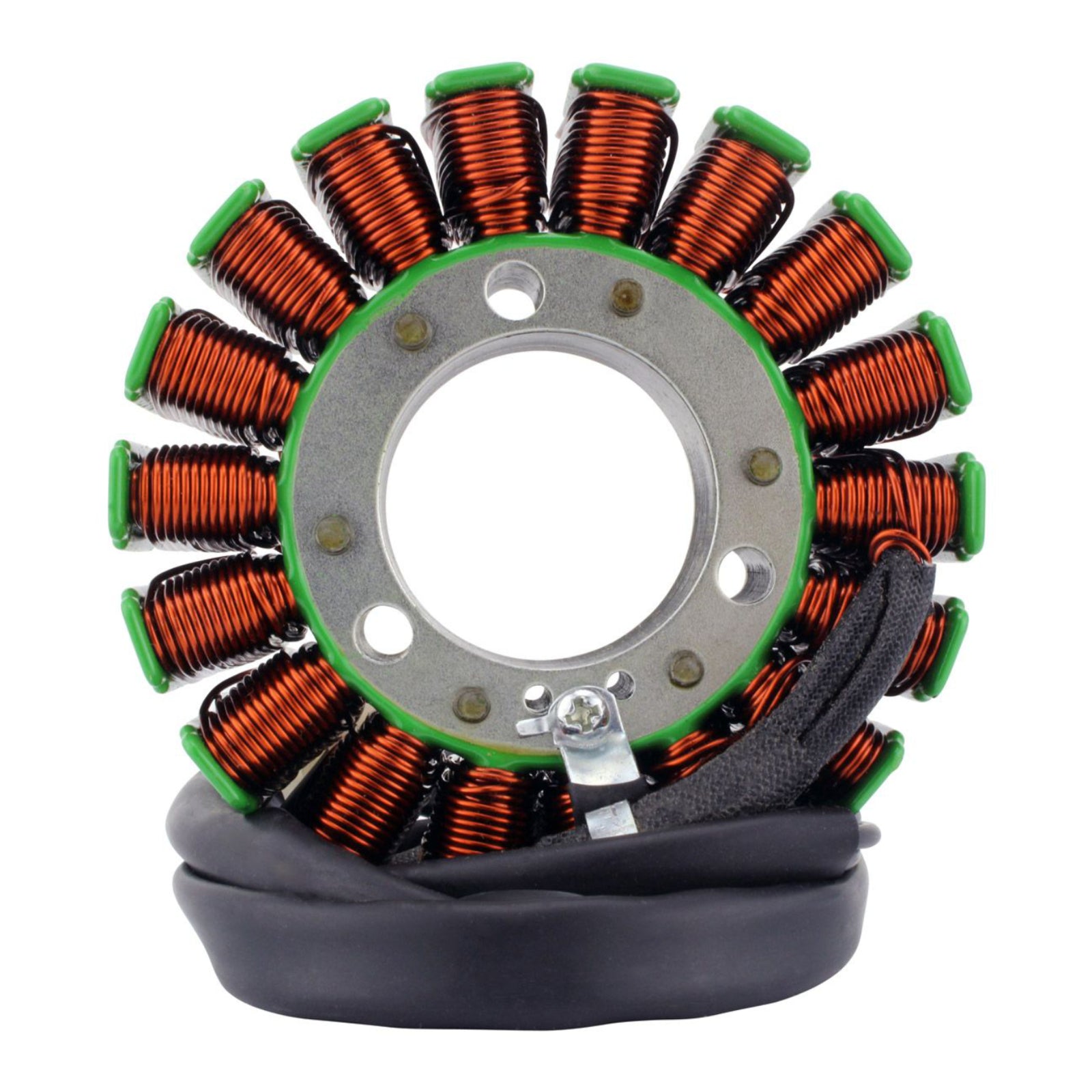

Direct replacement to your original unit.

• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included
• Rubber grommet included
• All products shipped are tested

Dimensions:

• Interior diameter: 38 mm
• Exterior diameter: 99 mm
• Thickness: 27 mm
• Length of wires stator to grommet: 100 mm
• Length of wires grommet to plug: 650 mm

Other specifications:

• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3
• Number of poles: 18

Wire to wire resistance:

• Alternator: Black to Black = 0.6 ohms +-20%
• Alternator to ground = O.L (Open Loop)

Polaris Sportsman 700s manufactured between 2002 and mid-2004 are plagued with recurring electrical problems. The failure of the starting system was not a matter of IF, but of WHEN it would occur.

The main problem with this reliable vehicle was the AC starter. Unfortunately, the cost of replacing the AC starter unit with a genuine Polaris DC starter unit was over $ 500 and was the only option.

Our new starter kit now converts the failing AC starting system to a highly reliable DC system for half the price of the original kit.

• Carburettor models only
• Our part is a replacement to your original unit
• Original advance curve
• Highest grade of lamination materials
• Highest grade of electronic components
• The quality is higher than OEM material
• Spark plug caps not included
• Spacer nuts included

Note:

• The RM22957 conversion kit is designed to replace the original OEM AC of Polaris, but is NOT MADE to replace the upgraded DC version of Polaris. If you have the 16 terminal CDI, (OEM #2201981) the stator corresponding to this CDI is RM01330.
• All electrical components must be fitted by a qualified technician.
• Before fitting electrical components ensure the root cause of the original failure has been addressed.
• The absence of either of points 1 or 2 above, will void any warranty.

The Oxford Front Run Light is designed to maximise the front visibility of the motorcycle to other road users, increasing the rider's safety. Made from CNC anodised aluminium pod, E-Marked and IPX7 for durability in any weather condition.

Features:

• Ancillary motorcycle running lights.
• Waterproof IPX7 in-house tested.
• Aluminium alloy.
• Power draw 1.3 Watts (at 14.4V) per pod.
• 30 Lumens.
• E-Marked - E24.
• CNC anodized aluminium pod construction.
• Integrated stainless steel bracket.
• Operating voltage: 12V - 15V.
• Integrated bracket to take M10 bolt.
• Rear set also available.
• Includes: 2 x front running lights with integrated bracket, 2 x easy wire splicing connectors.

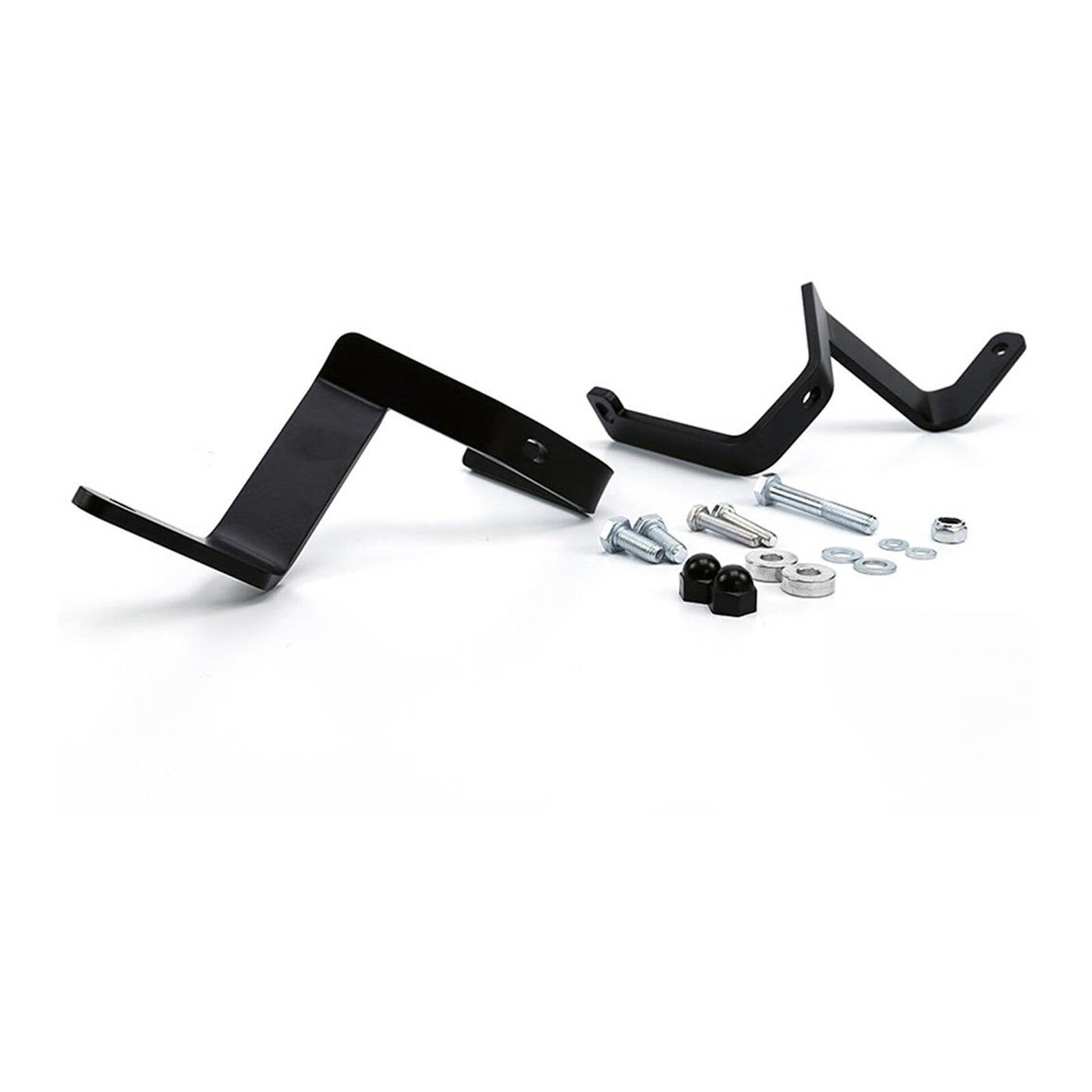

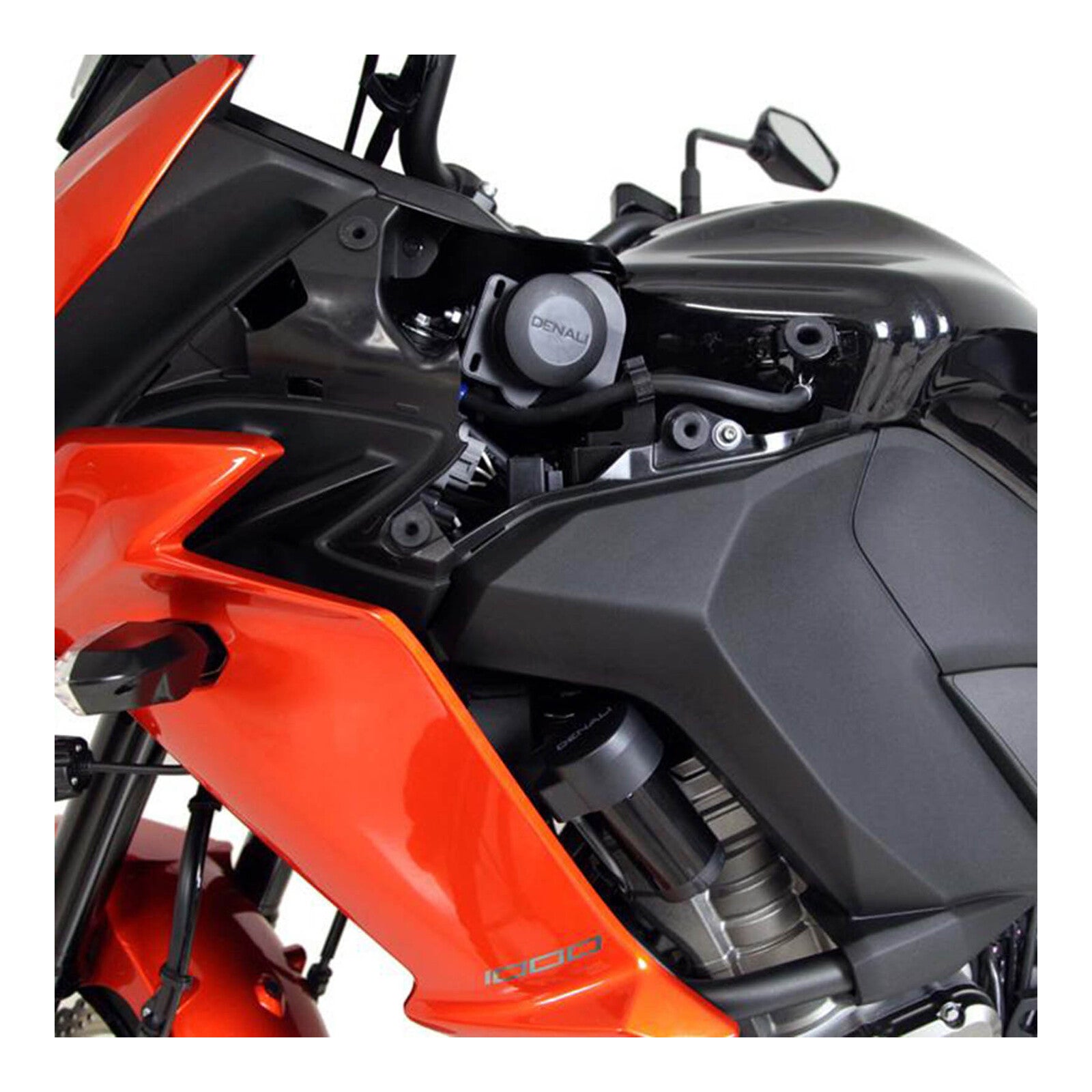

DENALI Motorcycle Specific Horn Mounts

Available for many ADV, Cruisers and Sport Touring Models. The laser cut and powder coated steel brackets mount our SoundBomb Horn inthe most discrete and attractive location possible.

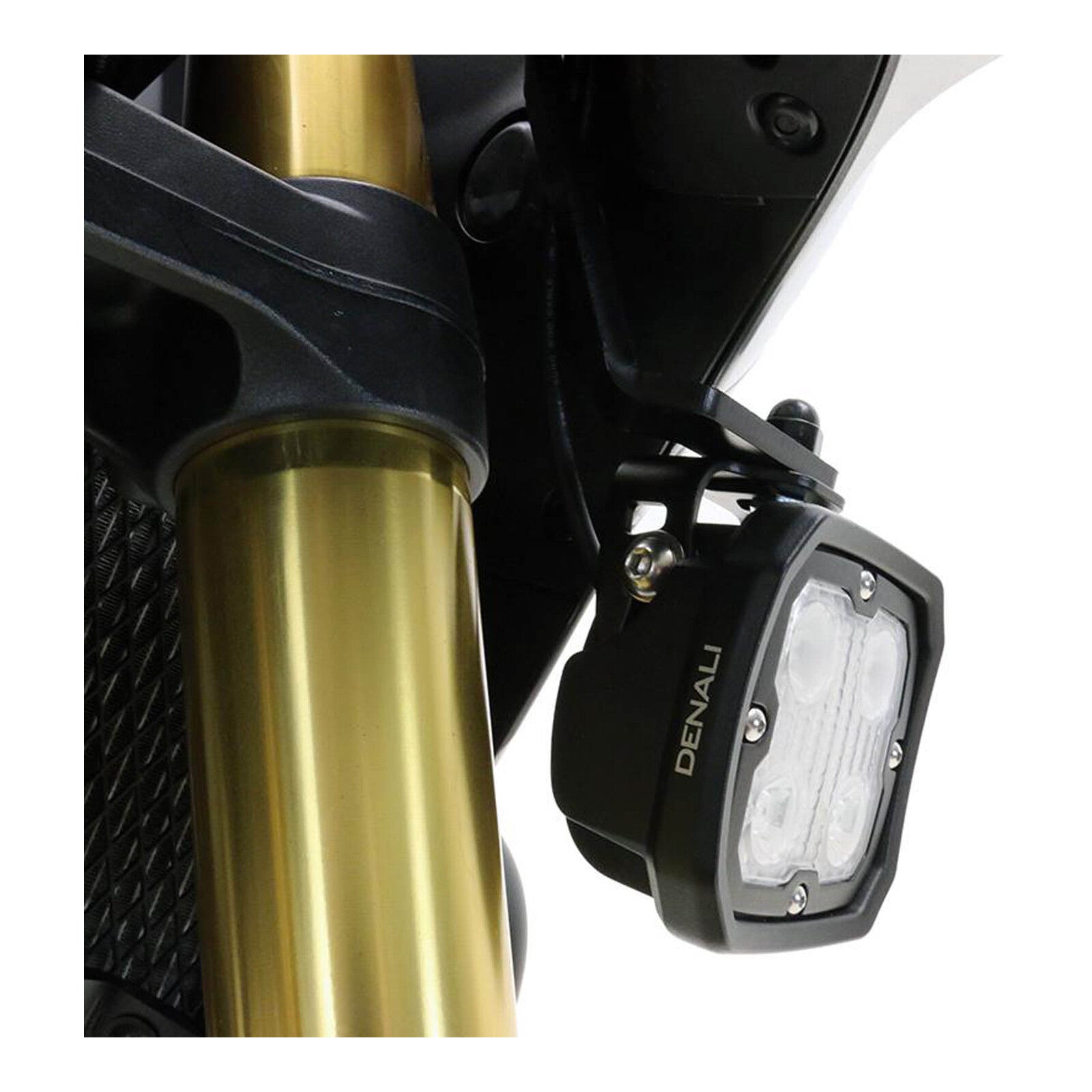

DENALI Motorcycle Specific Fairing / Fender Mounts

Available for most ADV, Cruisers and Sport Touring Models Laser cut and powder coated steel brackets either position the lights in the optimum location just below to the outside of the headlight, or create a two-point fender mount strong enough to mount our largest lights to your fender.

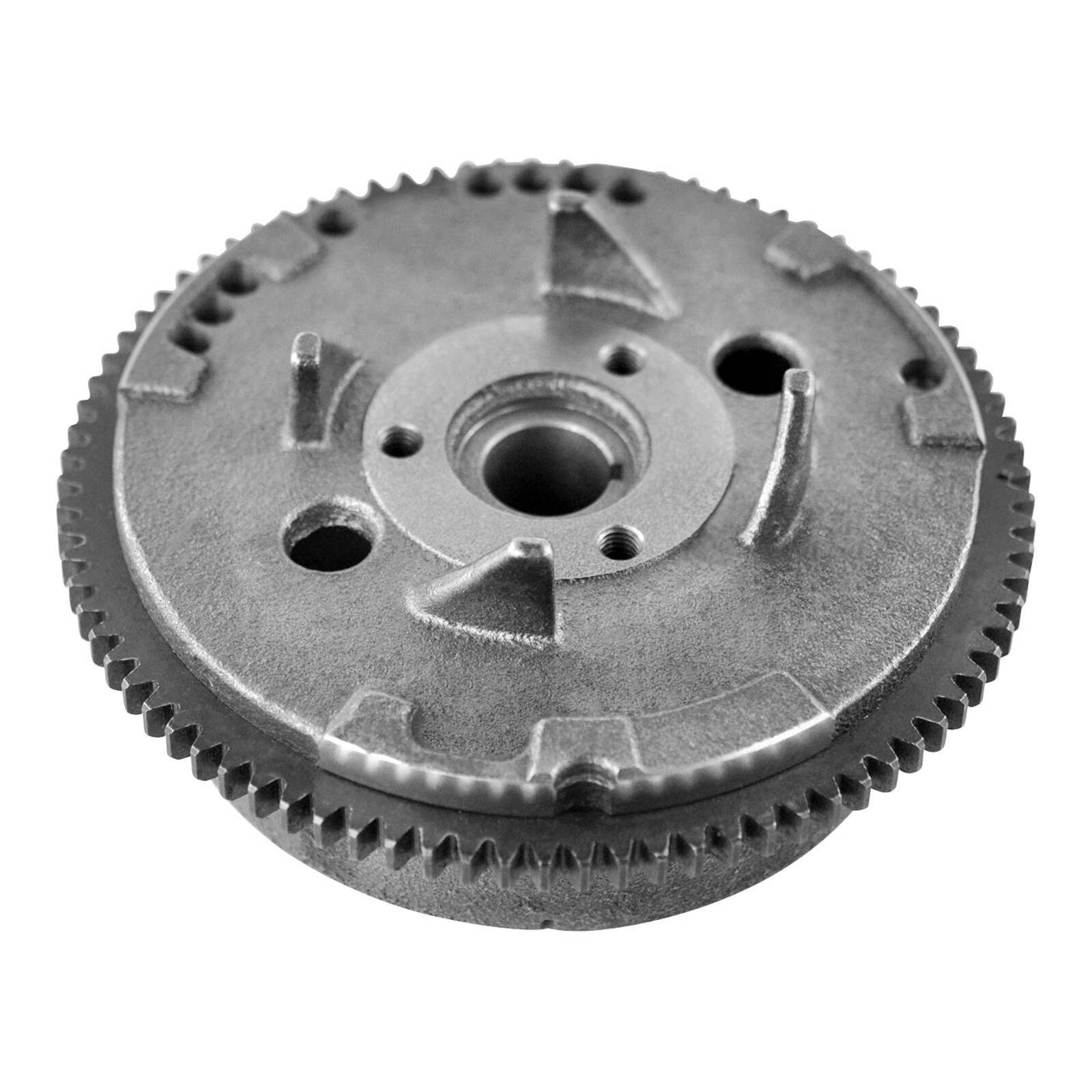

Introducing our newest heavy-duty flywheel rotor for Polaris 500cc ATVs.

Anyone who rides or repairs the Polaris 500cc ATV's is probably familiar with the flywheel problems common to these models. Most of these bikes will have at least one flywheel failure in their lifetime so far. Low-quality epoxy was used on OEM flywheels to secure the magnets to the rotor body. Over time and many heat cycles, the epoxy fails to allow the magnets to come loose and contact the stator, potentially causing catastrophic damage.

For years, service shops & dealerships have offered low-cost repairs for Polaris flywheels to save the 400$+ OEM replacement. This sounds like a great idea at first, but there are some serious issues!

The common repair is using JB Weld© Marine Blue Epoxy to reattach the loose original magnets or to install new ones. Epoxy fixes do repair flywheels in the short term if they are done correctly. However, this kind of repair can easily cause immediate problems and impact long term reliability of your ATV.

A Heavy Duty Flywheel to the rescue!

New RMSTATOR&trade heavy-duty flywheel rotor for Polaris ATVs is a well-priced solution to problems with the OEM flywheel, and an excellent alternative to all the mechanical troubles you can encounter with a repair.

• Built to OEM size - Fits precisely in your ride: install it and forget it
• Improved epoxy - Uses high-temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment
• High-grade steel capping - Prevents harsh additives in motor oil from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator
• Precise balancing - Eliminates crankshaft vibrations for longer engine longevity
• Shop with confidence - All products are tested

Don't waste time with temporary solutions, and start fixing your ride like a pro!

Why cheap repairs won't work?

Quick stronger epoxy fixes do repair flywheels in the short term. It might, however, impair long term performance and reliability of your ride.

• Remaining OEM magnets: Original magnets remaining can still come loose at any time.
• Magnet alignment: The alignment of magnets around the flywheel is critical for proper stator operation. Even very fine misalignment will reduce stator efficiency significantly.
• Magnet spacing: Excessive epoxy or incorrect magnet spacing around the flywheel can easily affect the flywheel balance. This can cause stator contact or even crankshaft damage.
• Incorrect replacement magnets: The magnetic field strength of new magnets MUST match the originals. Stator failure can occur quickly with stronger magnets and stator output can be decreased significantly using weaker magnets.
• Wrong epoxy properties: Epoxy that is not rated to permanently handle high temperatures and oil immersion can quickly cause a serious failure.
• Oil contamination: Wrong epoxy for the application can also contaminate the crankcase oil, damaging the motor.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

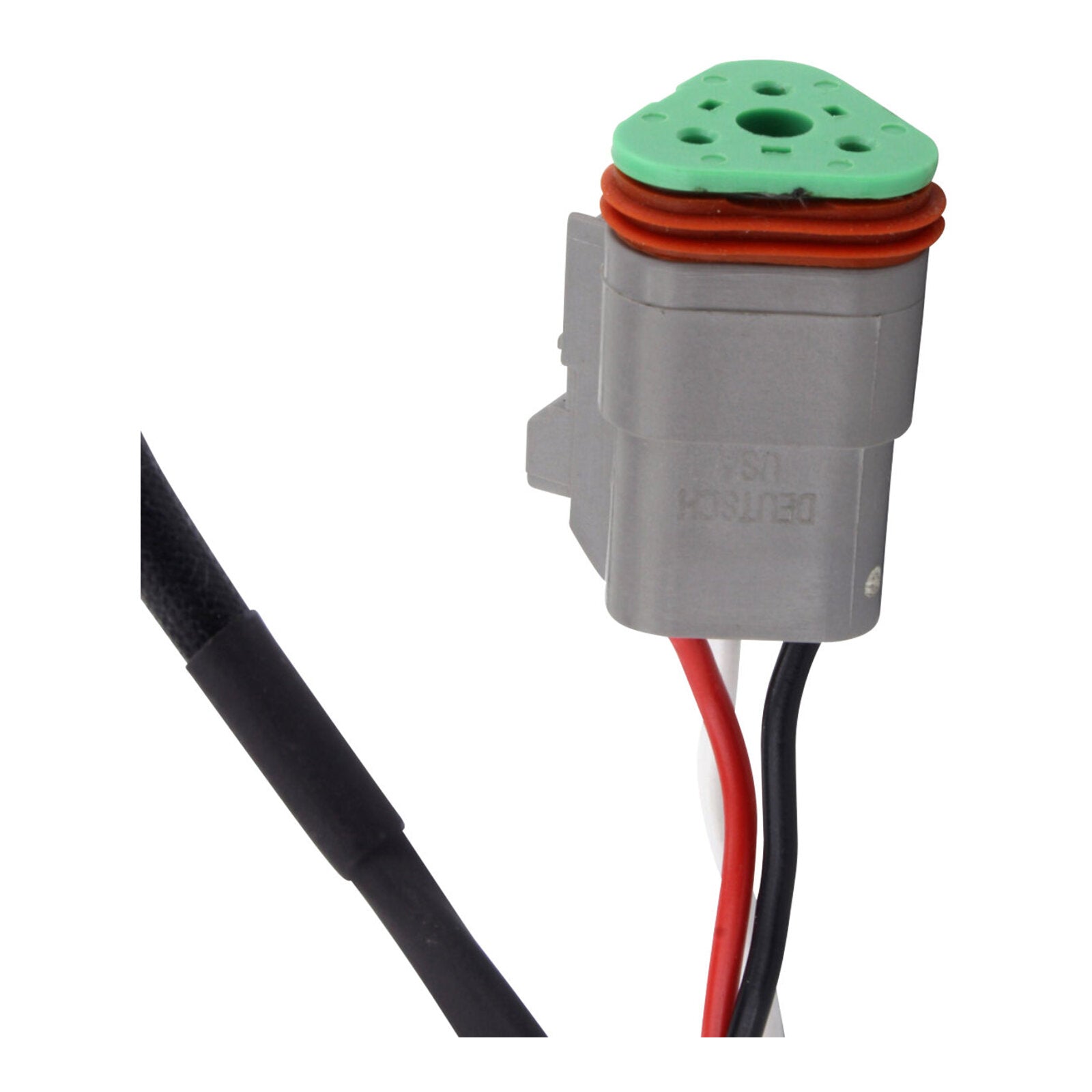

Denali's light and horn harnesses come with everything you need to quickly and easily install Denali products into your vehicle. No cutting, crimping or soldering necessary.

Replacement ignition key switch for your motorcycle/ATV. Direct replacement to the original unit this unit provides excellent plug-and-play, direct fit functionality providing simple, quick and easy installation. Two keys and all required connectors are included.

Features:

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Two keys included
• Connector included
• All product shipped are tested

Dimensions:

• Diameter: 36mm
• Length: 50mm
• Wire Length: 300mm

Other Specifications:

• Number of wires: 3
• Number of plugs: 3
• Number of pins: 1
• Number of keys: 2
• Number of positions: 3 (off, accessories, on)

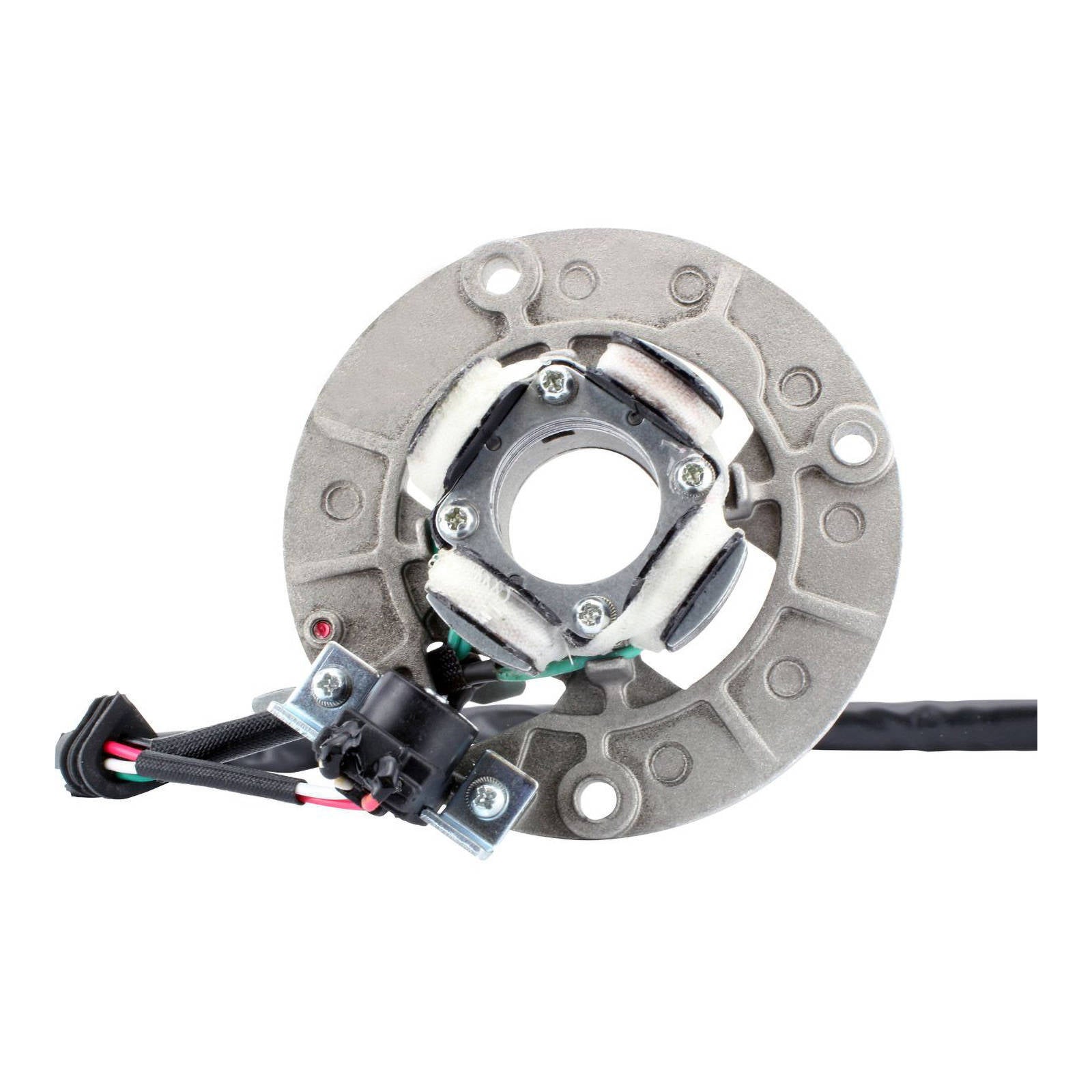

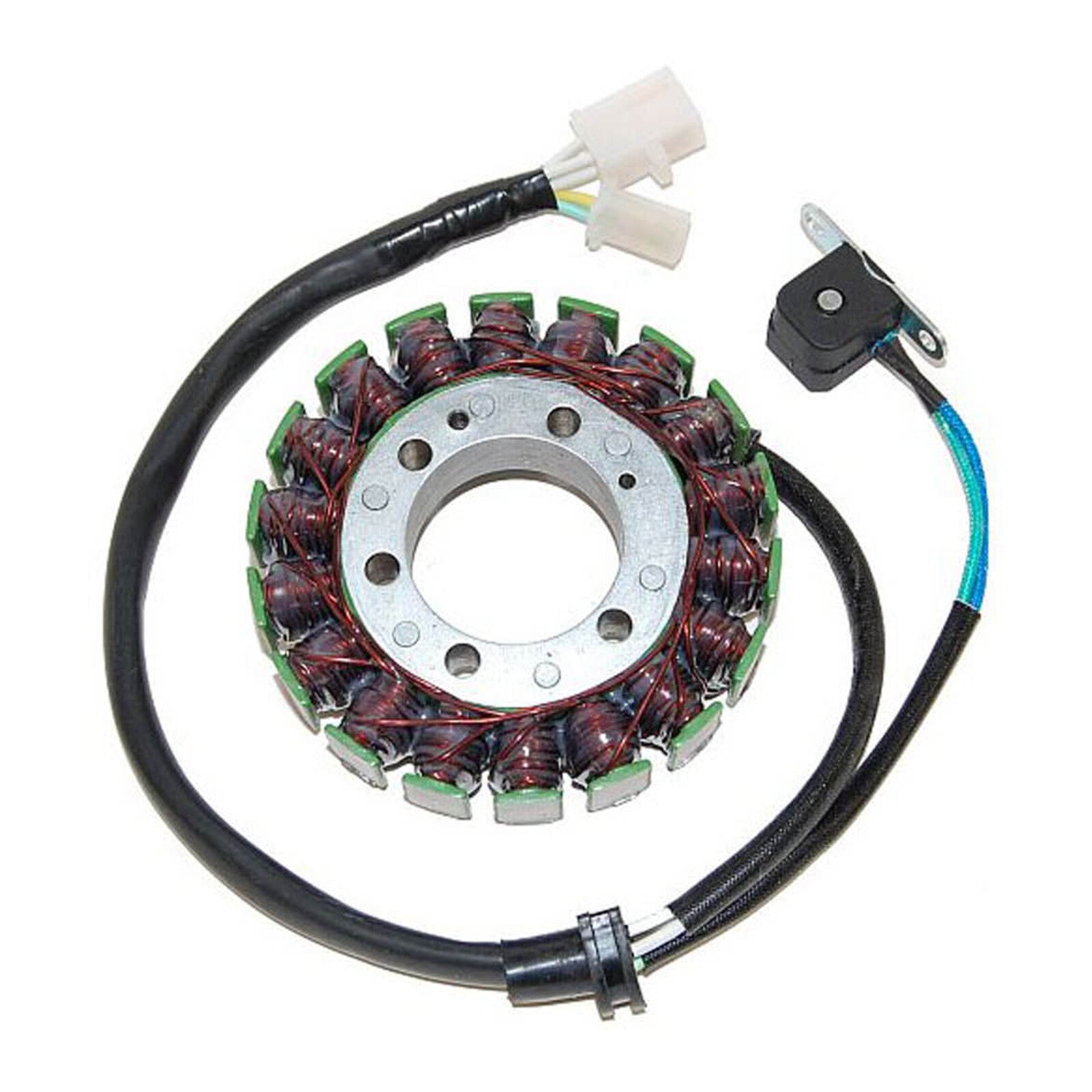

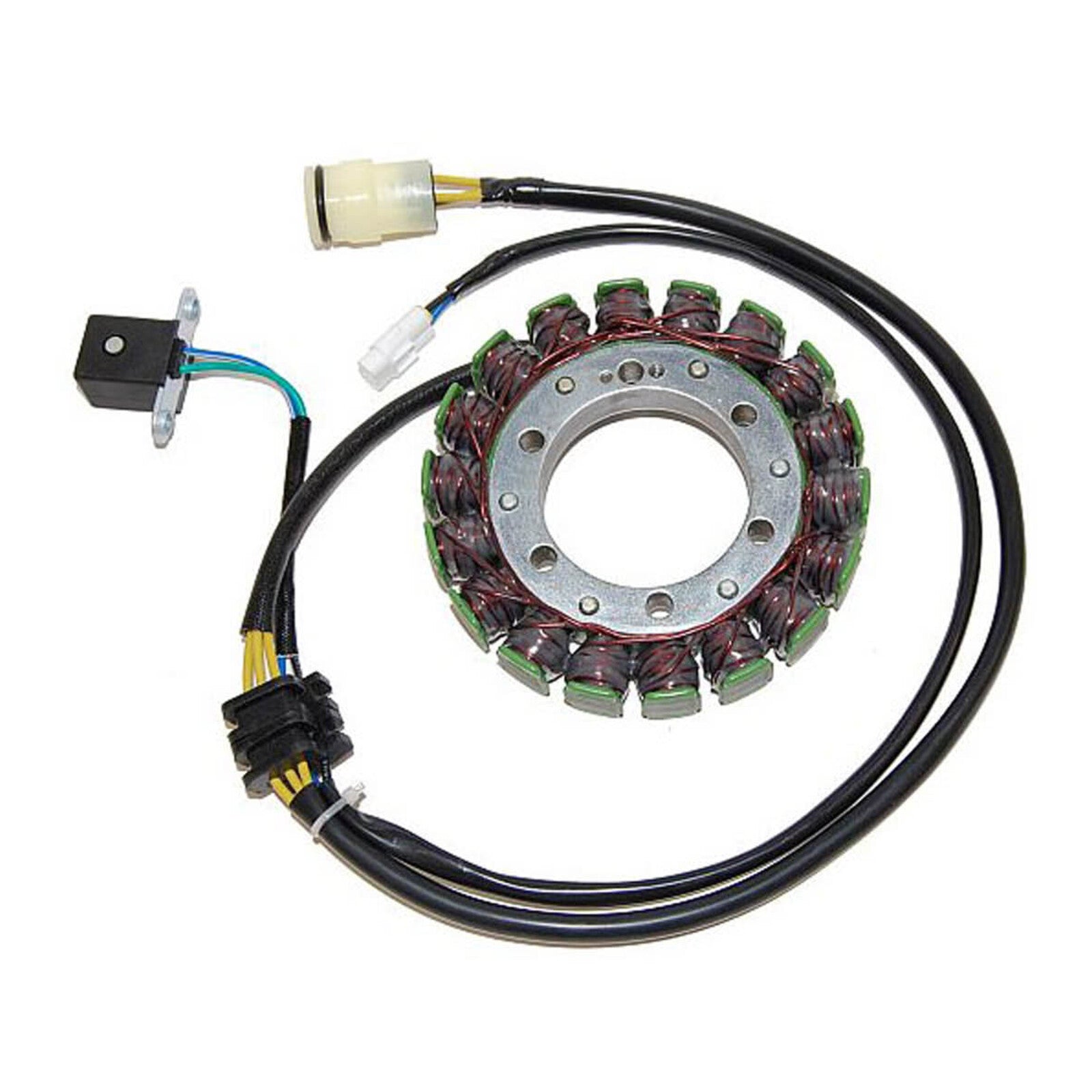

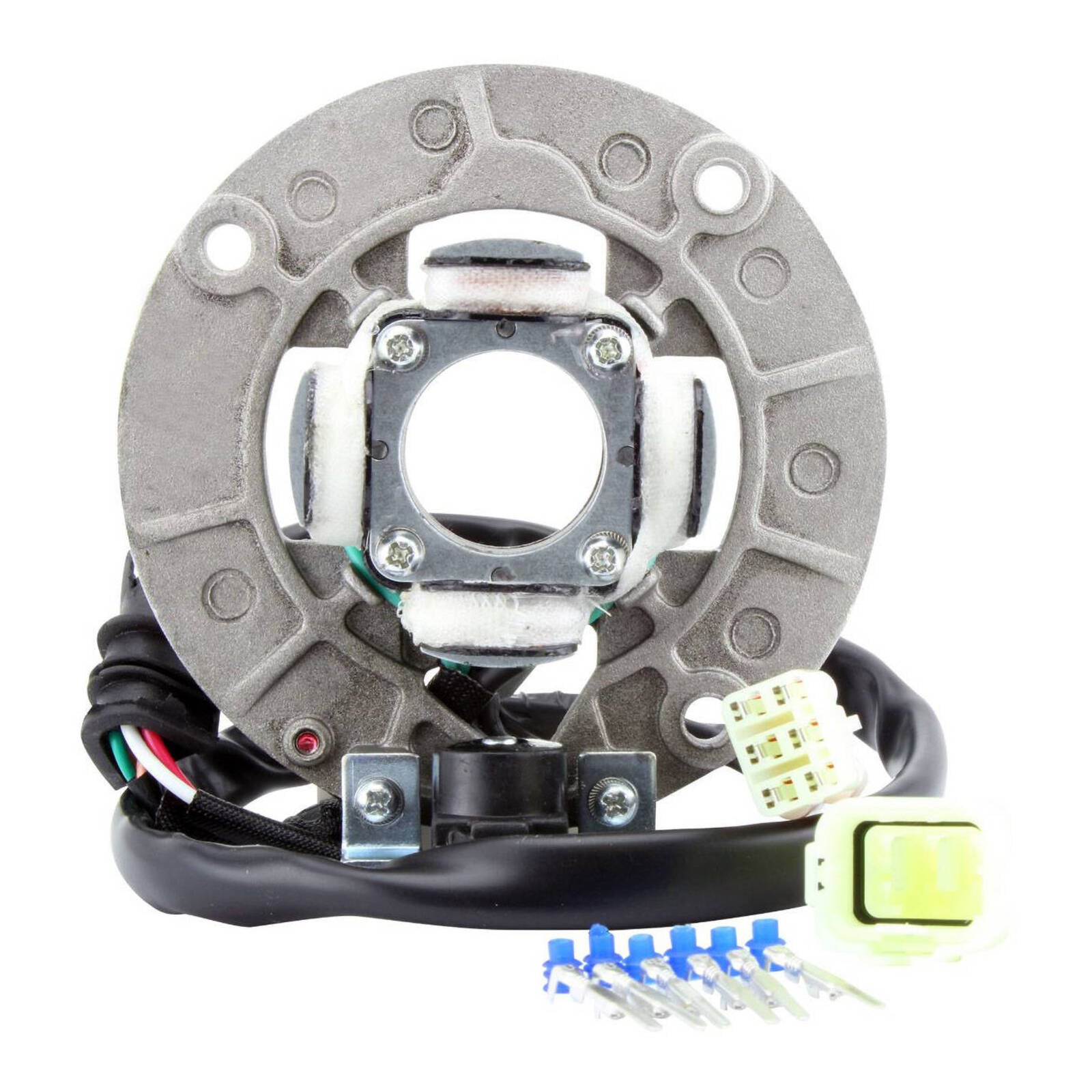

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Dimensions:

• Interior diameter: 28mm
• Exterior diameter: 59.4mm
• Thickness: 8mm
• Length of wires stator to grommet: 40mm
• Length of wires grommet to plug: 530mm
• Length of pickup coil's wire to grommet: 40mm

Other specifications:

• Number of wires: 6
• Number of plugs: 1
• Number of pins: 6
• Number of poles: 4

Wire to wire resistance :

• Source Coil 1: Green to Brown = 860 ohms +-20%
• Source Coil 2: Pink to Black = 55 ohms +-20%
• Pickup Coil: Red to White = 290 ohms +-20%

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Whites lighting range is a collection of high-quality indicators (flashers), tail lamps, headlights and more. Available as direct OEM replacements and universal fitments for those one-off custom rides. Offered in a range of shapes, sizes, styles and mounting options Whites are here for your motorcycle lighting solutions.

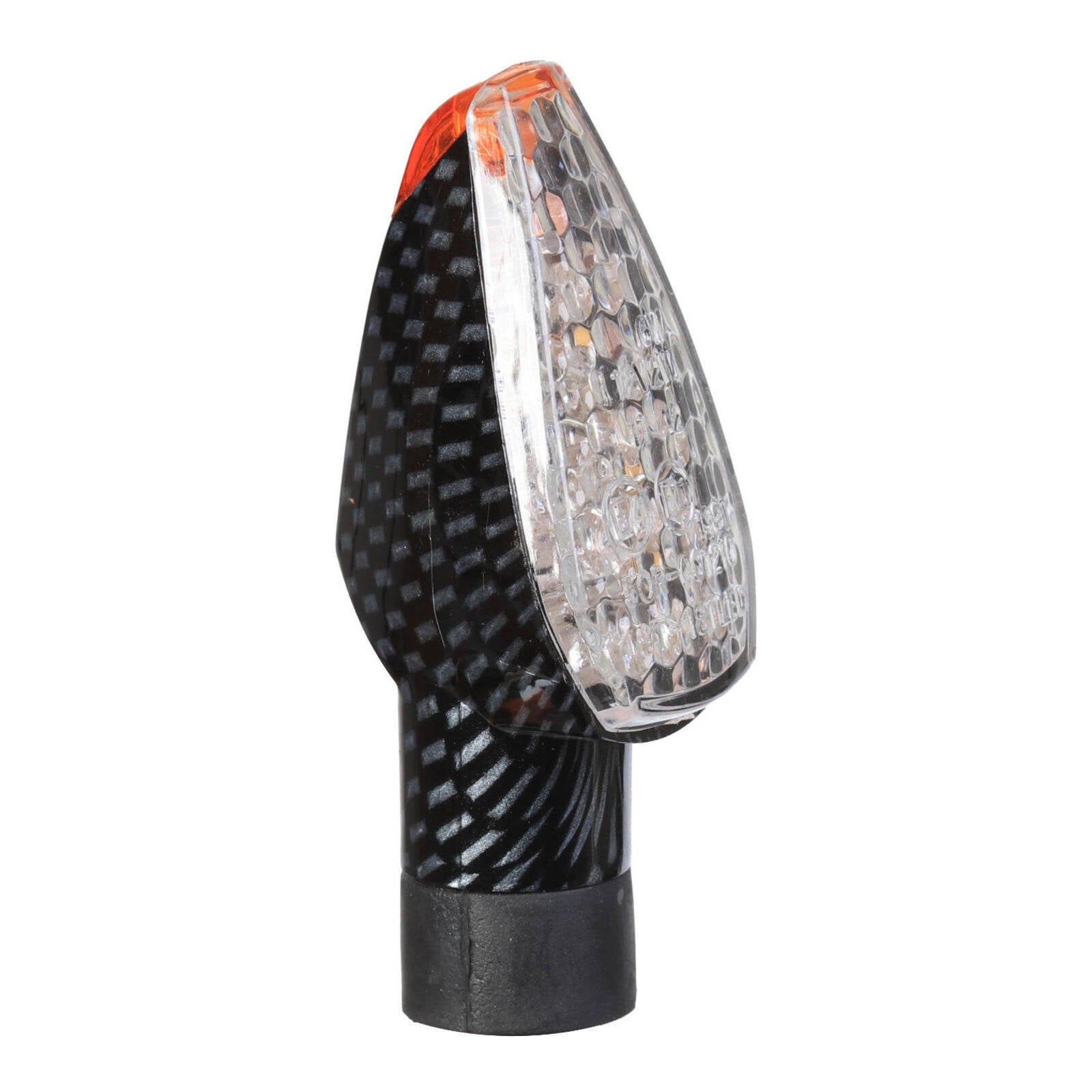

Whites Universal fitting flashers are a great alternative to pricey and boring OEM indicators. Perfect for those one-off custom rides or additional style for your off the showroom floor ride. Built to high-quality specifications with durable construction for long-lasting life. Sold as a pair to ensure a matching look and reducing cost.

• Universal fitment
• E-Marked
• Sold as a pair
• Great OEM replacement
• Ideal for one-off custom machines
• Short stem
• Colour: Carbon
• Light Type: LED

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

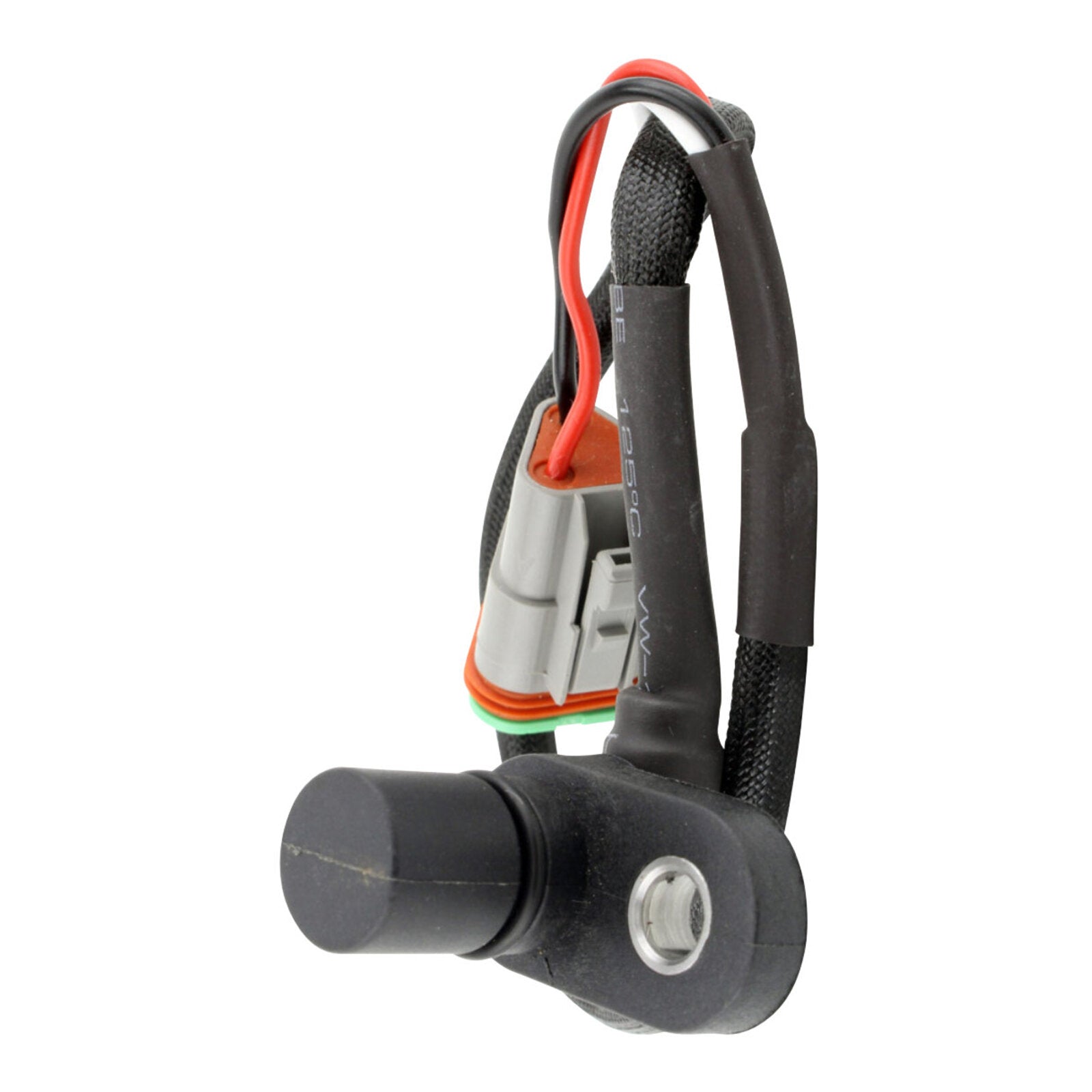

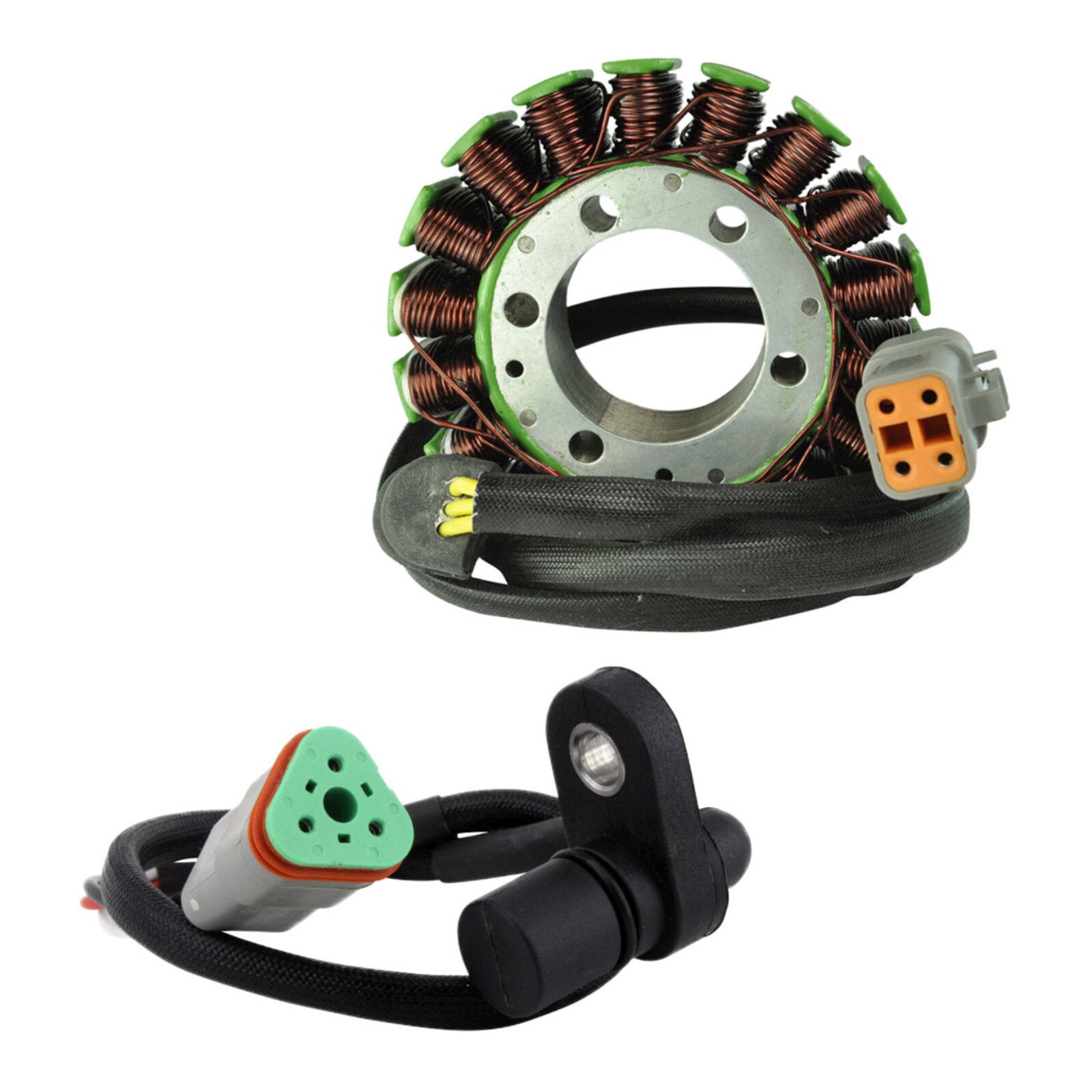

Brand new aftermarket Stator + Speed Sensor Kit

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All product shipped are tested

Brand new aftermarket stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included
• Rubber grommet included

Stator

Dimensions:

• I nterior diameter: 41mm
• Exterior diameter: 104mm
• Thickness: 30 mm Length of wires stator to grommet: 140mm
• Length of wires grommet to plug: 850mm

Other specifications:

• Number of wires: 3
• Number of plugs: 1
• Number of terminals: 3

Wire to wire resistance:

• Alternator: Yellow between each Yellow = 0.4 ohms +/-20%

Speed Sensor

Dimensions:

• Width: 19mm
• Length: 50mm
• Height: 37mm
• Wires length: 350mm

Other specifications:

• Number of plugs: 1
• Number of terminals: 3

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
