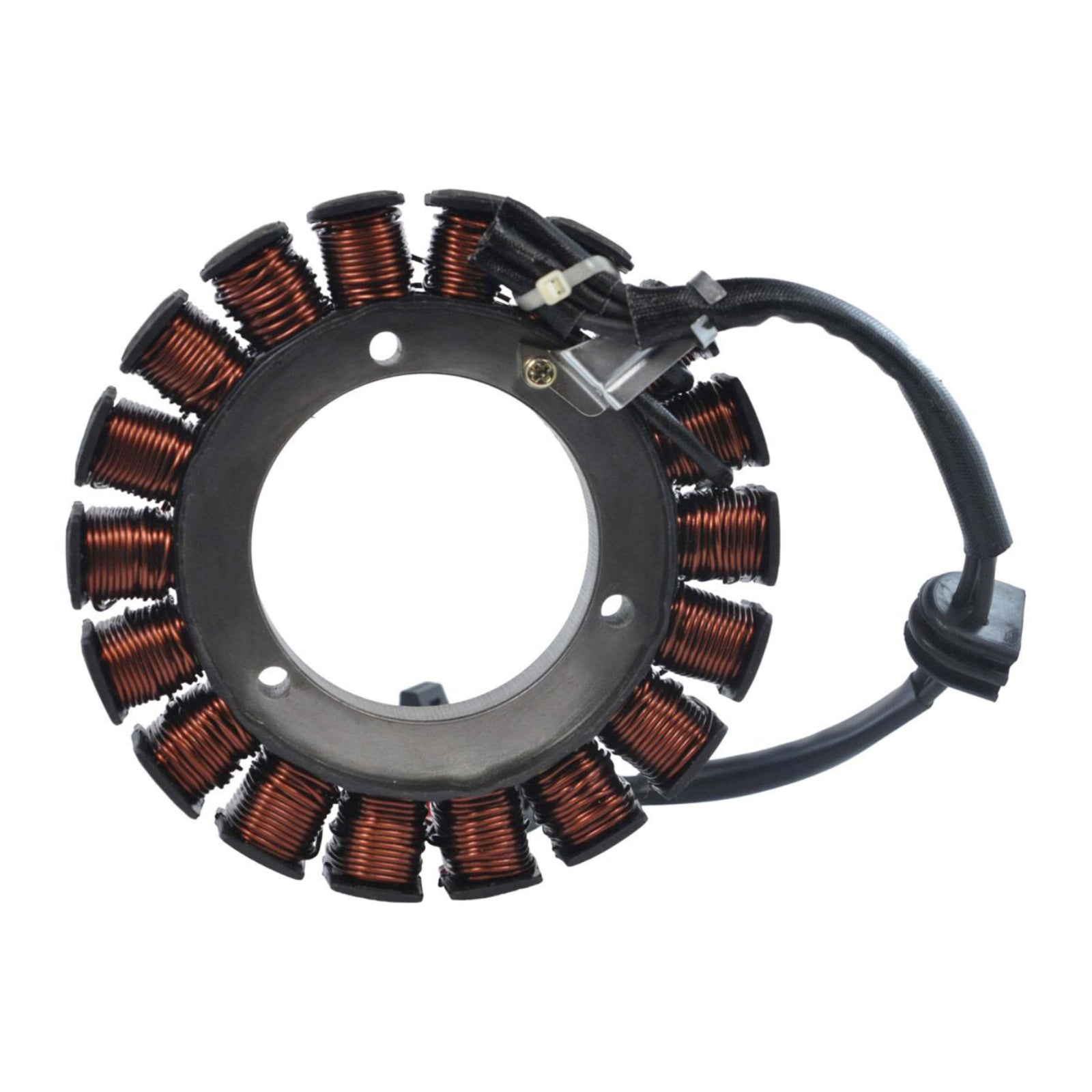

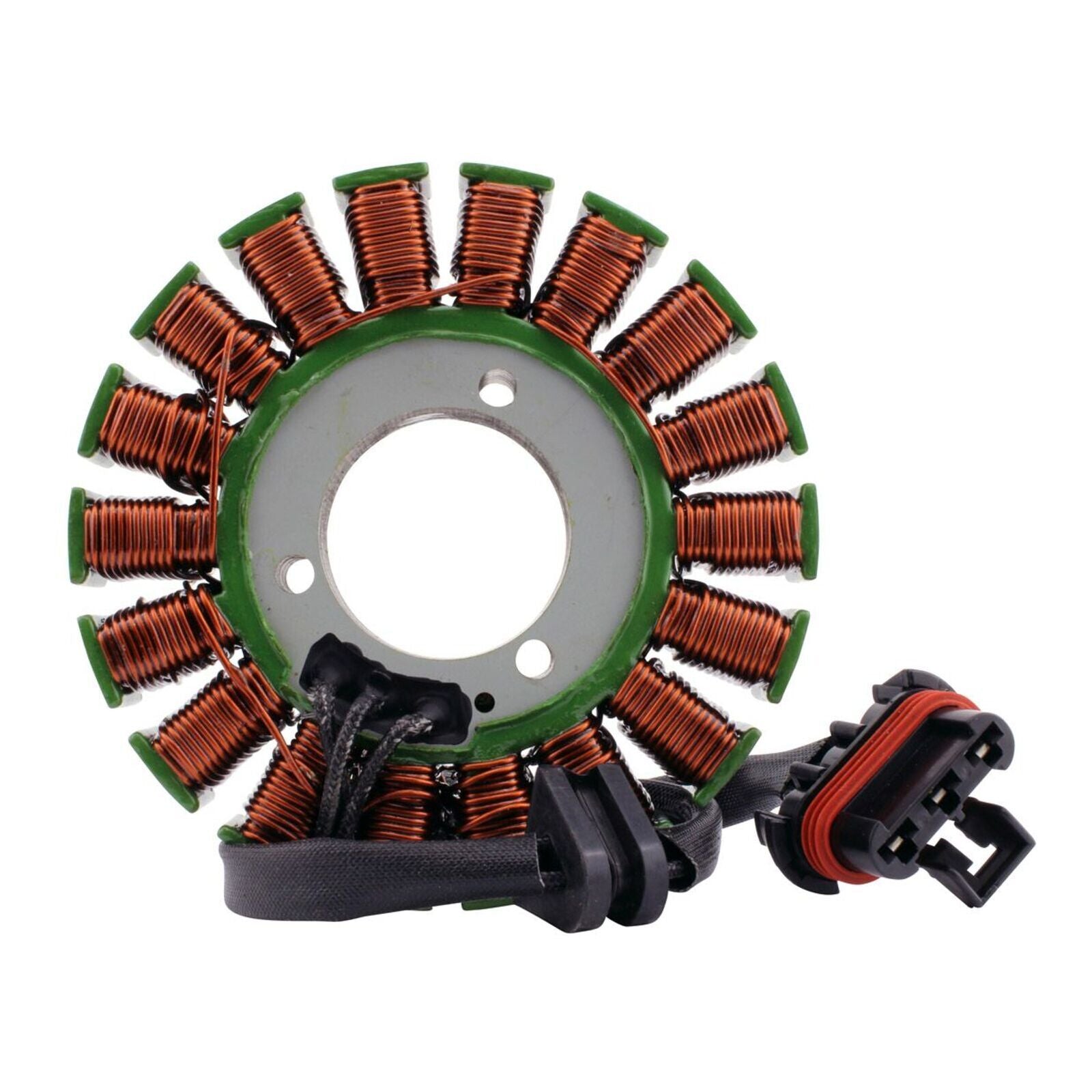

ELECTRICAL

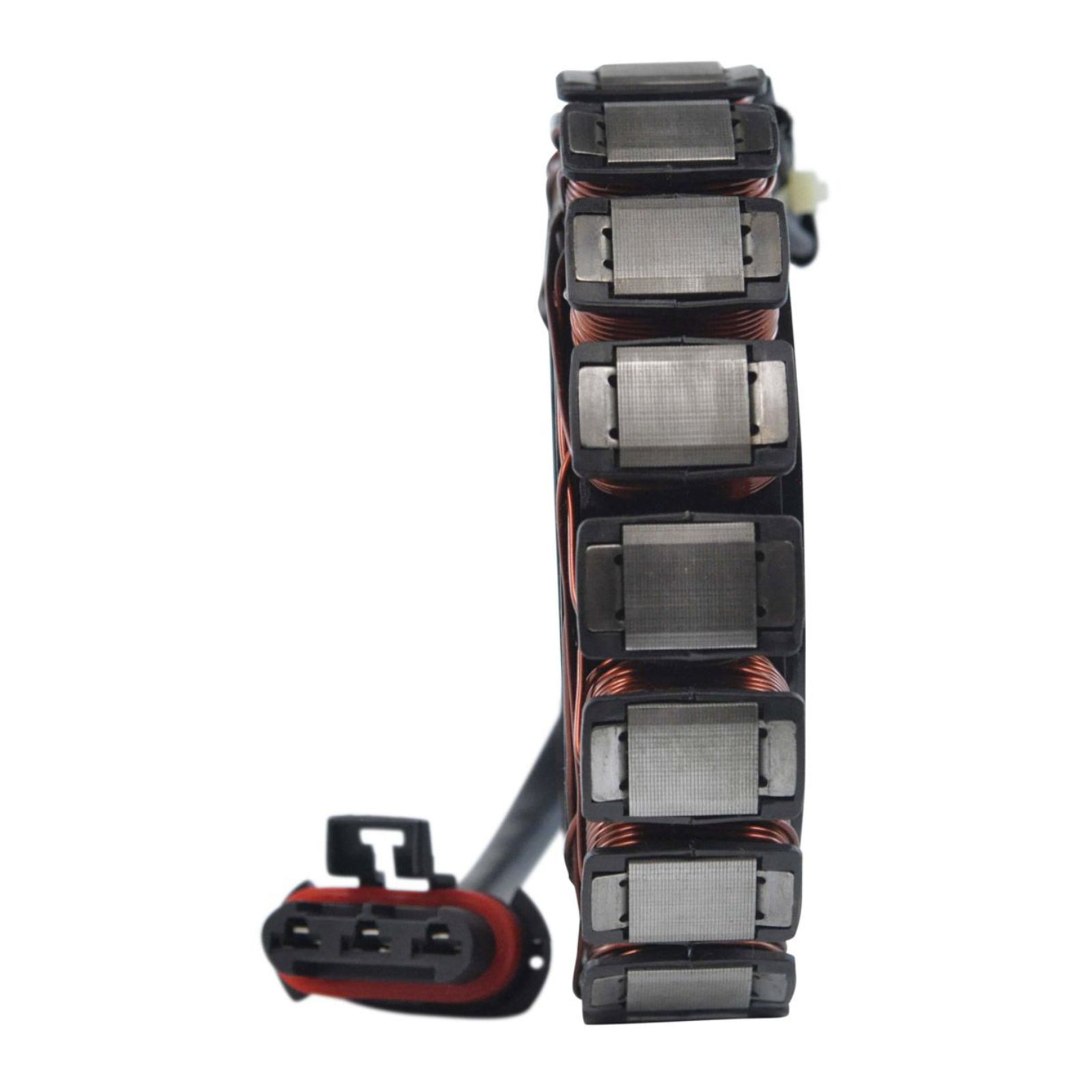

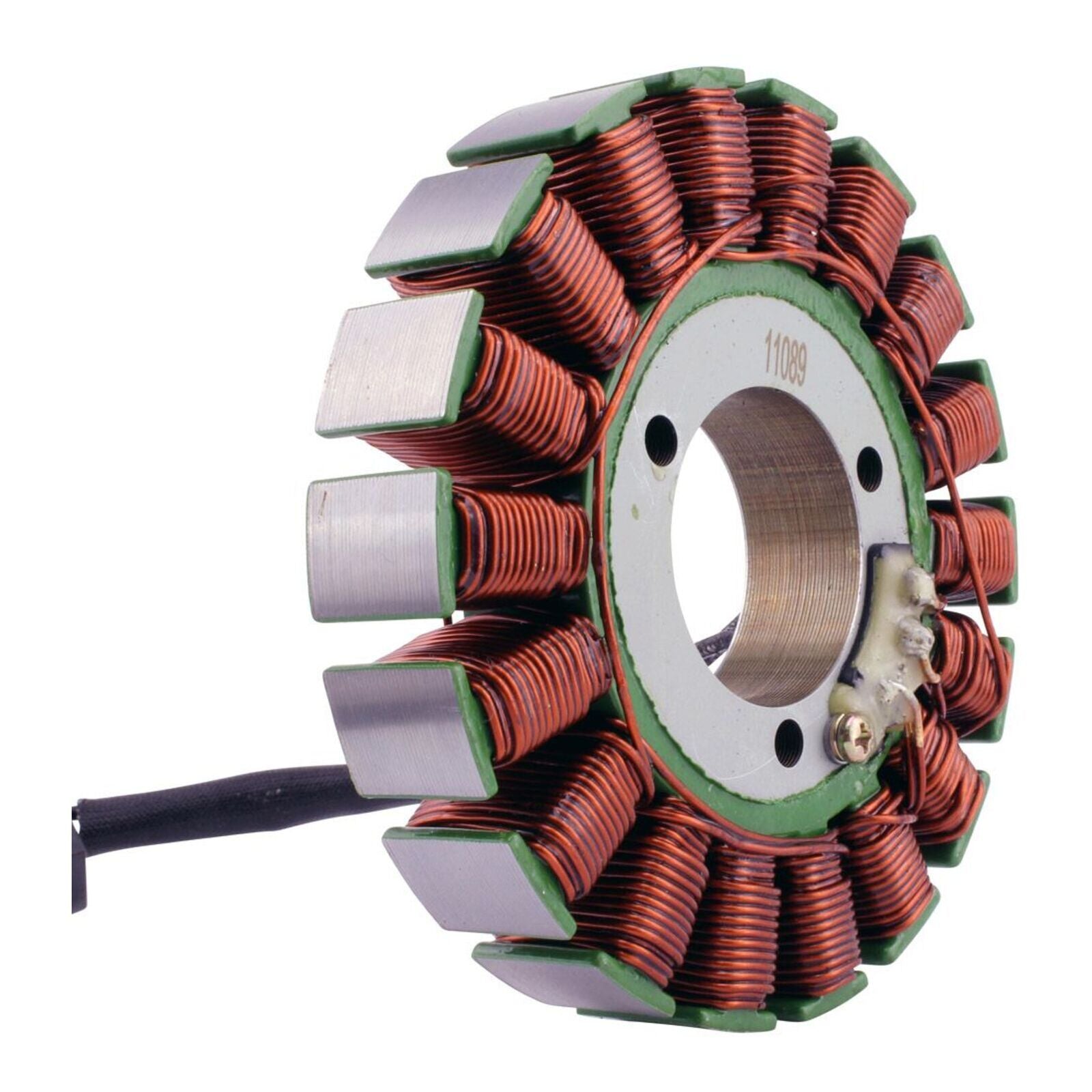

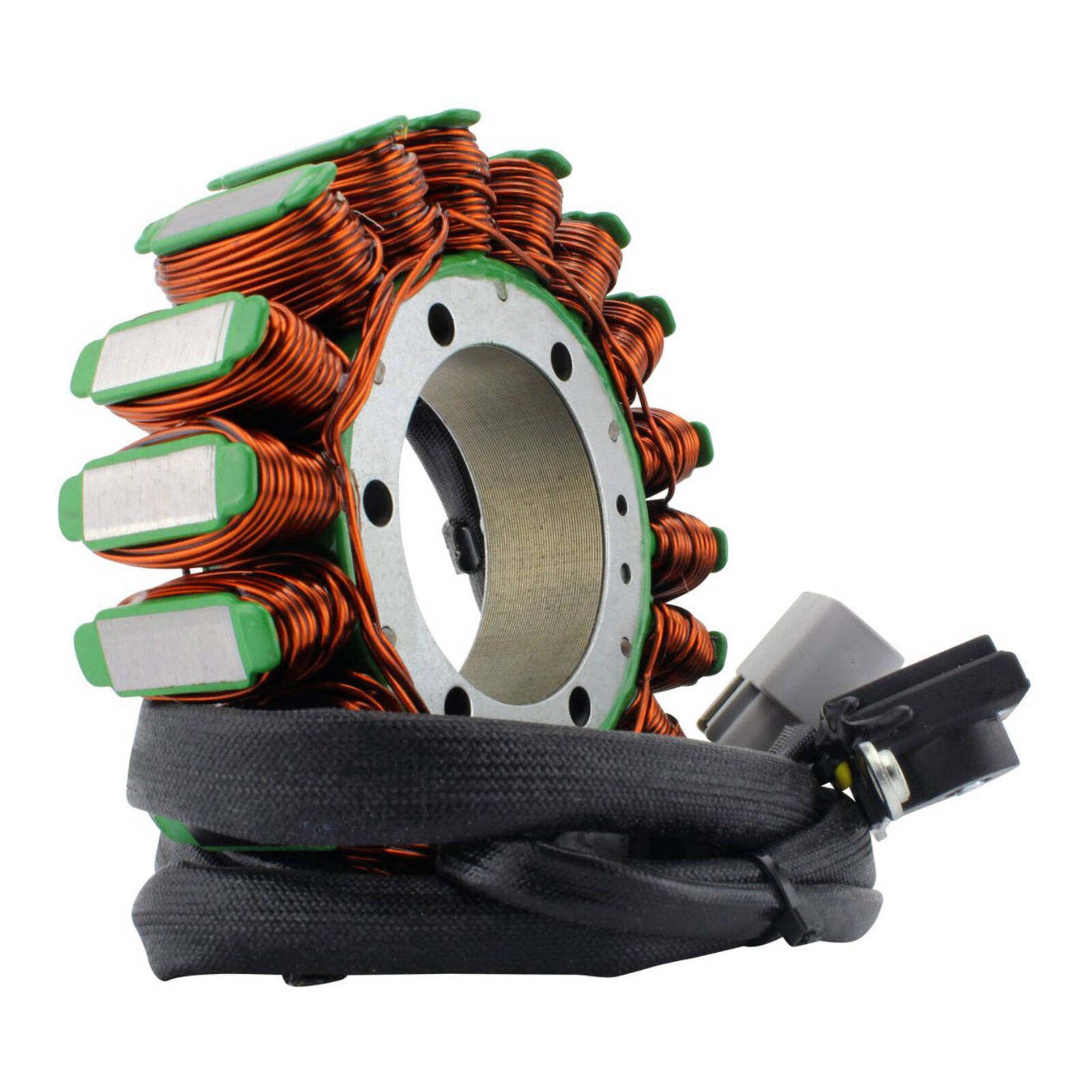

RMSTATOR specialises in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, 4x4, UTV, snowmobiles, and PWC. Through unrelenting quality control, RMSTATOR ensures that each component meets or exceeds the OEM specs.

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials.
• Highest grade copper windings, resistant to 200 degrees Celsius.

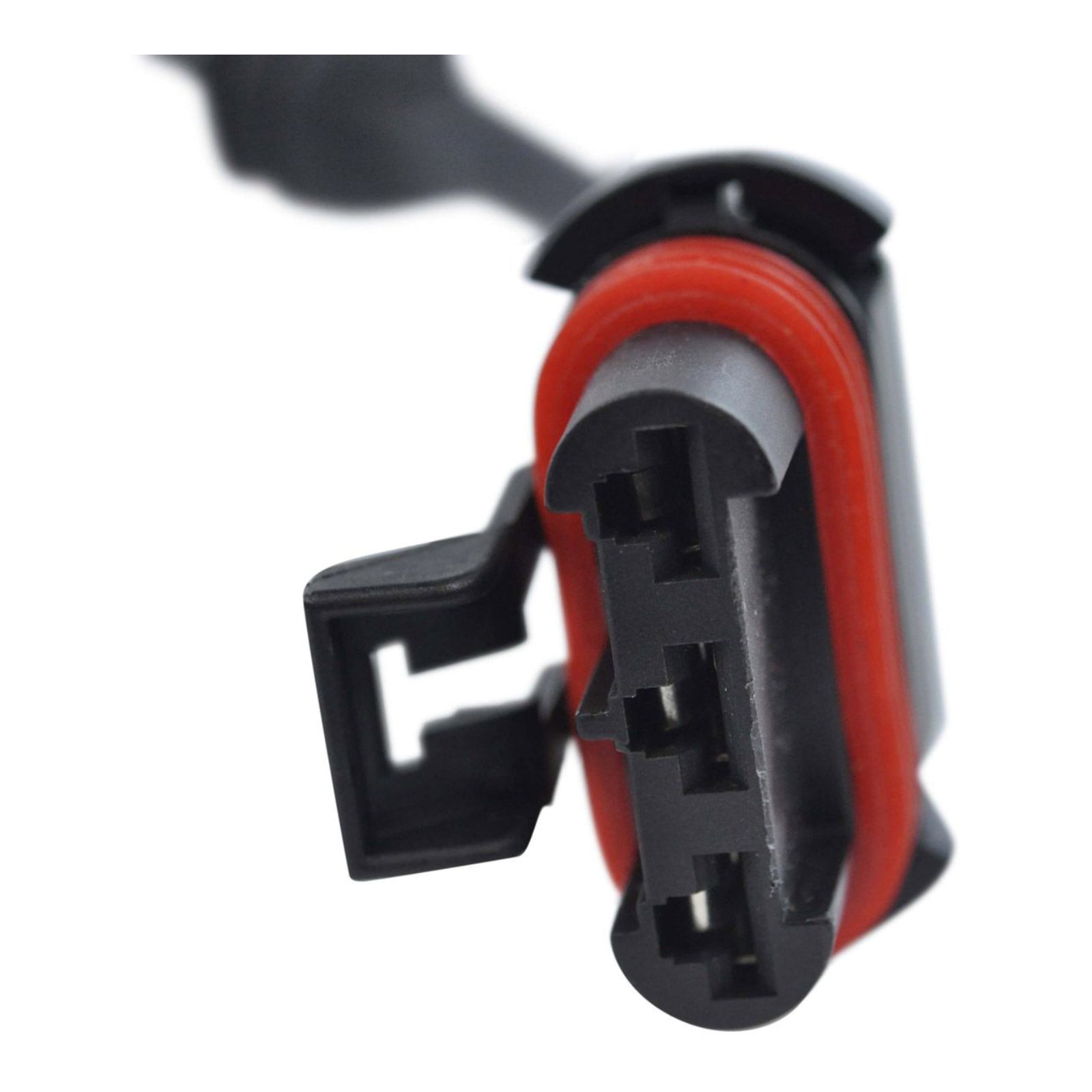

• Connector included.
• Rubber grommet included.
• All products shipped are tested.

Dimensions:

• Interior diameter: 41 mm
• Exterior diameter: 125 mm
• Thickness: 21 mm
• Length of wires stator to grommet: 160 mm
• Length of wires grommet to plug: 250 mm

Other specifications:

• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3

Wire-to-wire resistance:

• Alternator: Black to Black = 0.3 ohms +/-20%

Before installing your new stator

• Check the AC output of the stator.
• Replace any burned or corroded connectors on stator and regulator rectifier.
• Check and repair any melted wiring.
• Use hi-temp dielectric grease on all connectors.
• Our stator may use a different wire color code than your original.
• All of the wires are installed in the correct order; please do not change any of the wiring configurations.
• This stator is designed as a direct plug-in replacement and should be used as such.
• When bolting the stator in, always use locking compound.
• If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible, no less than 0.010".

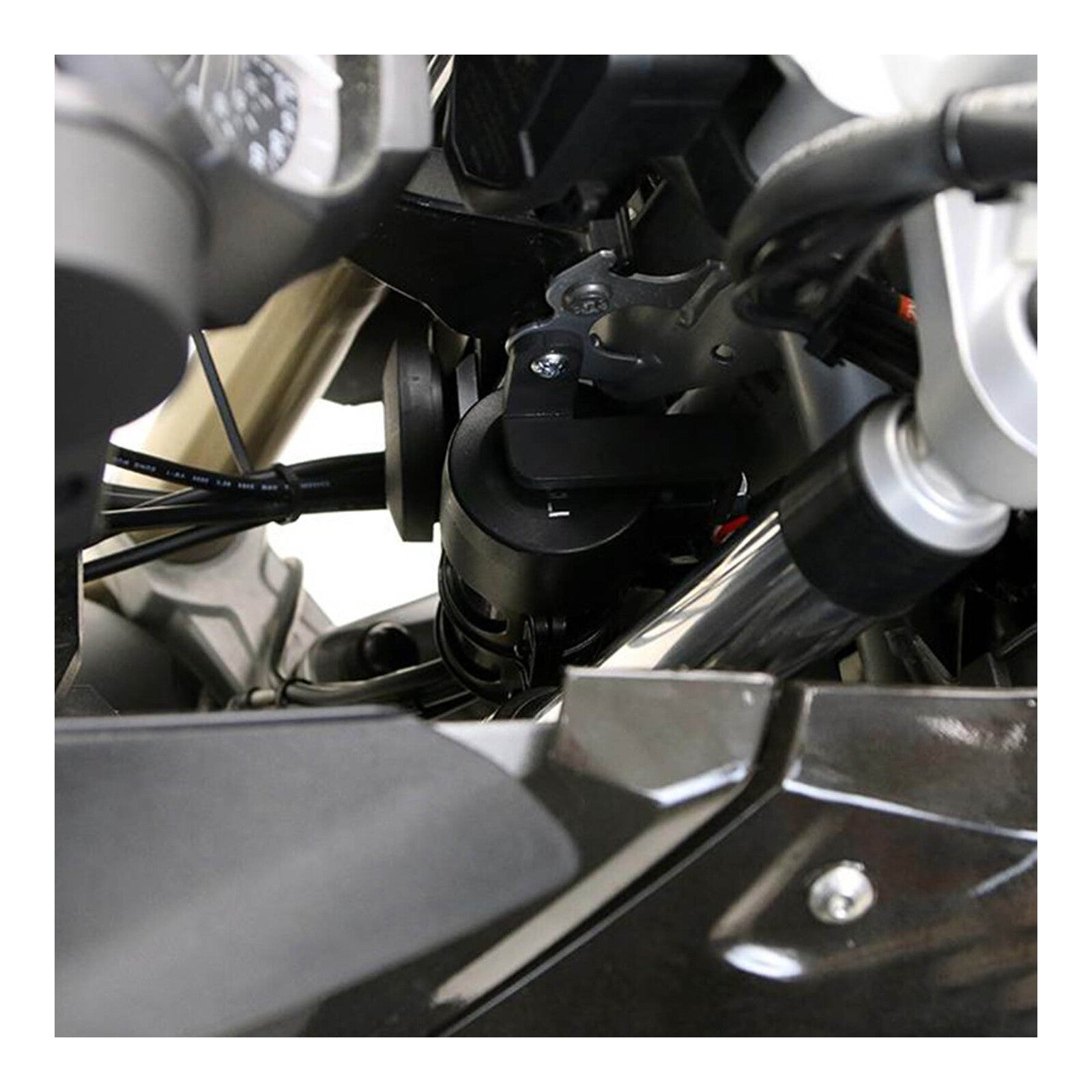

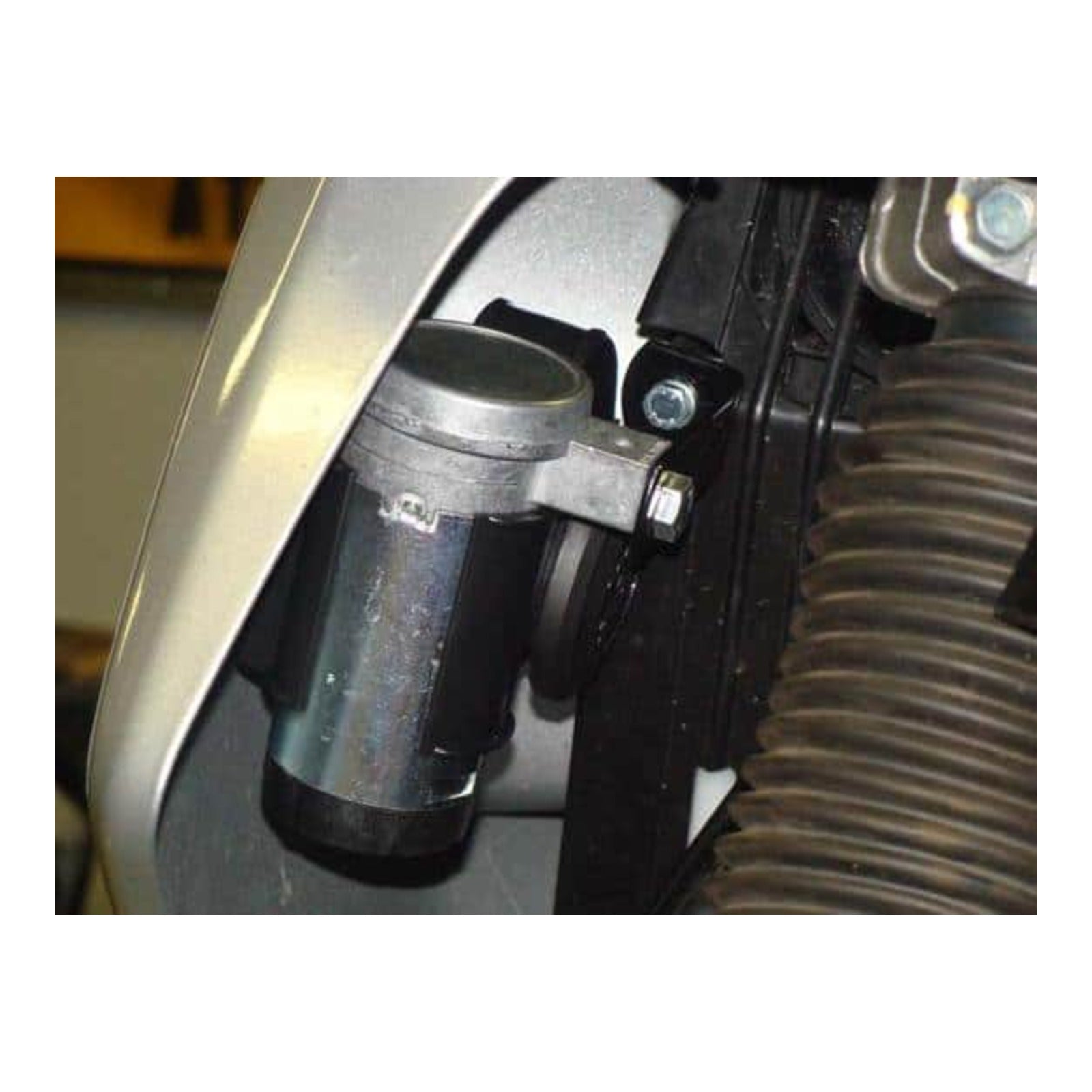

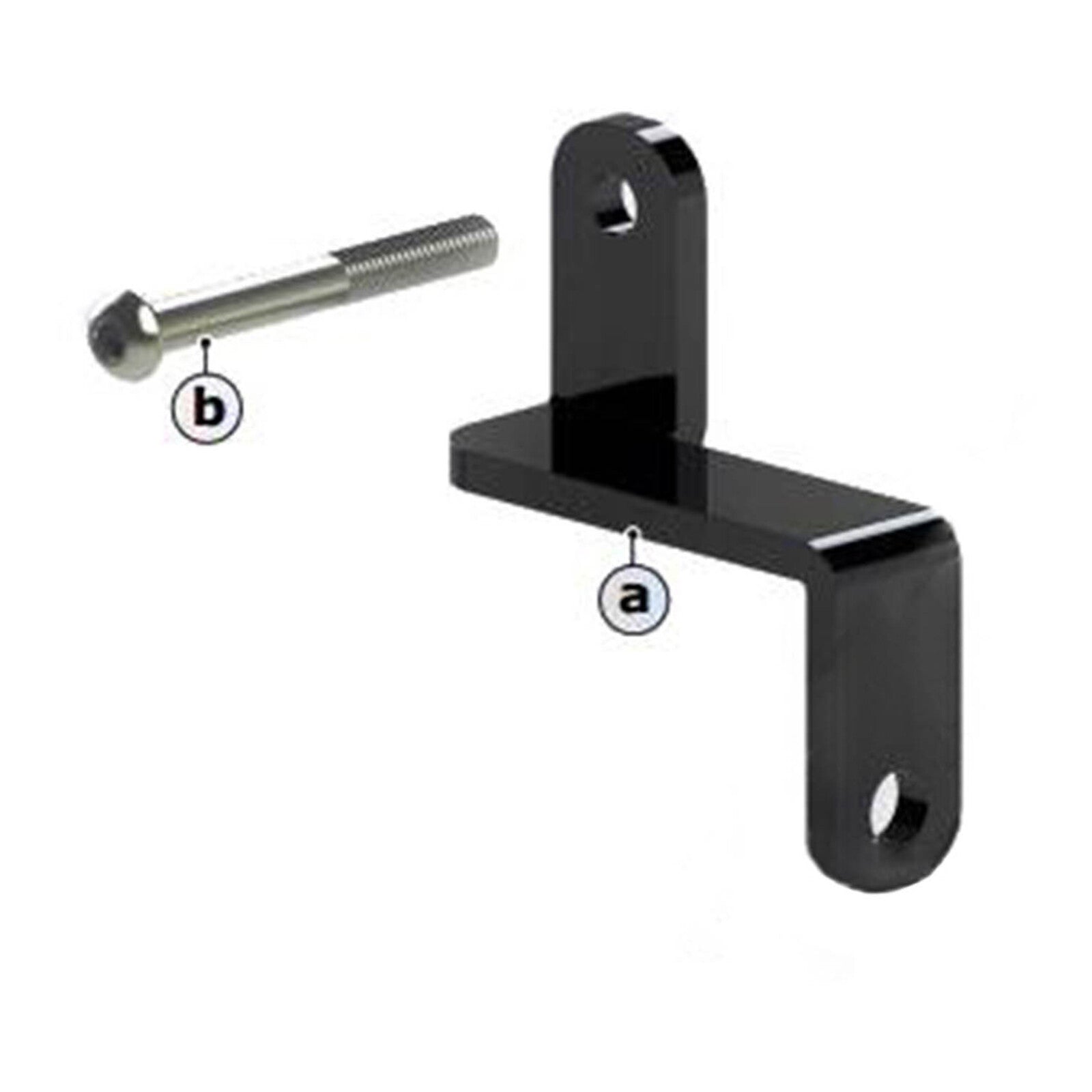

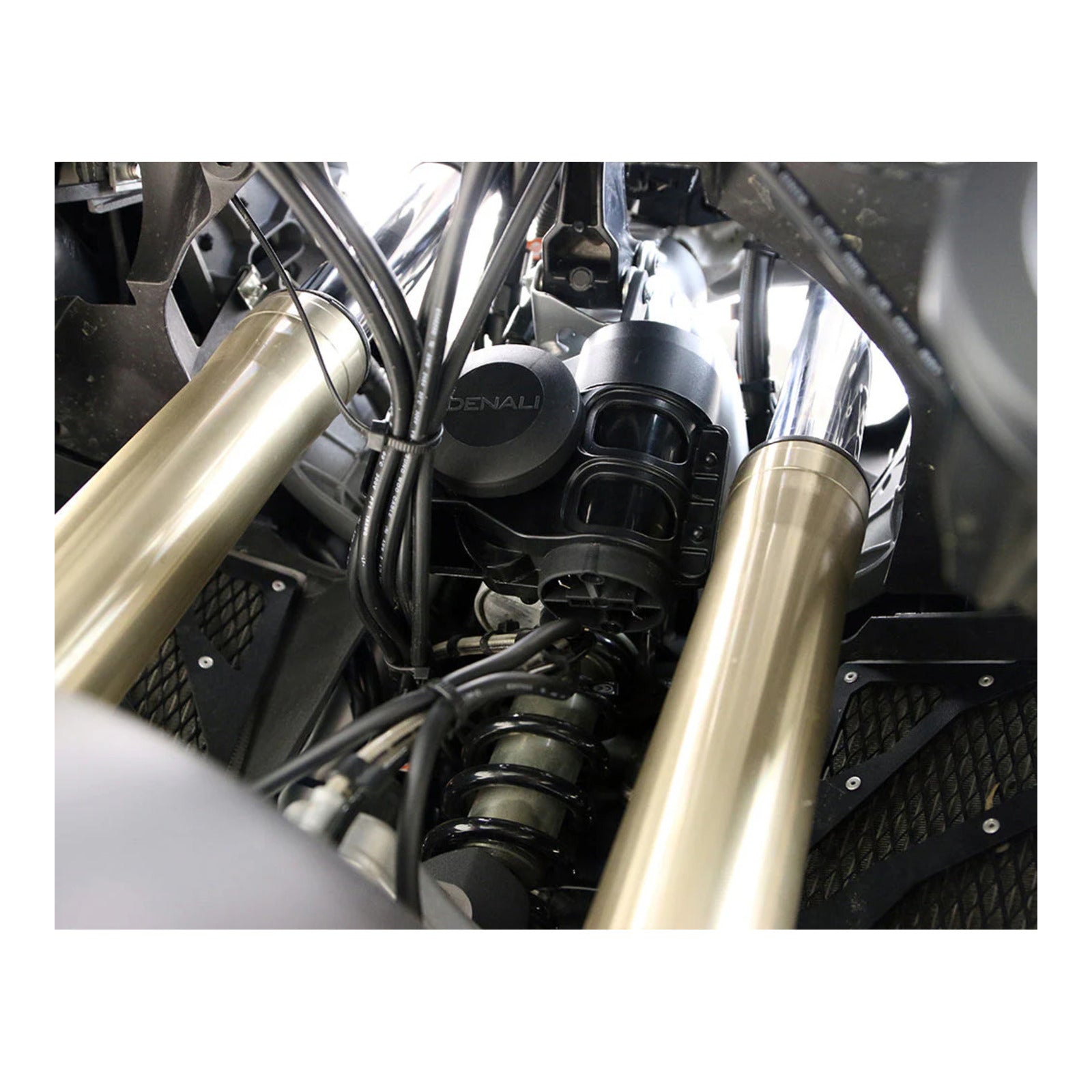

DENALI Motorcycle Specific Horn Mounts

Available for many ADV, Cruisers and Sport Touring Models. The laser cut and powder coated steel brackets mount our SoundBomb Horn inthe most discrete and attractive location possible.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

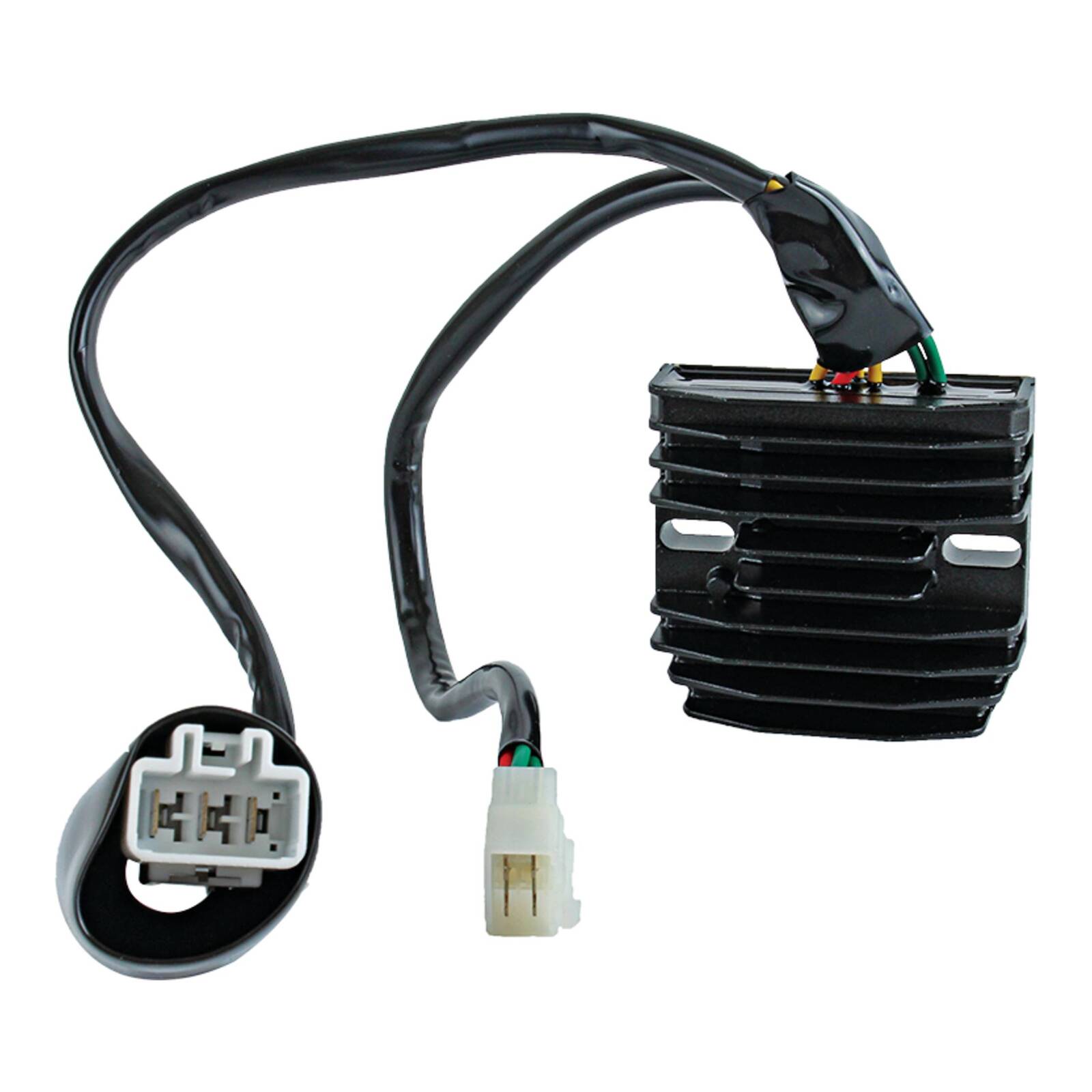

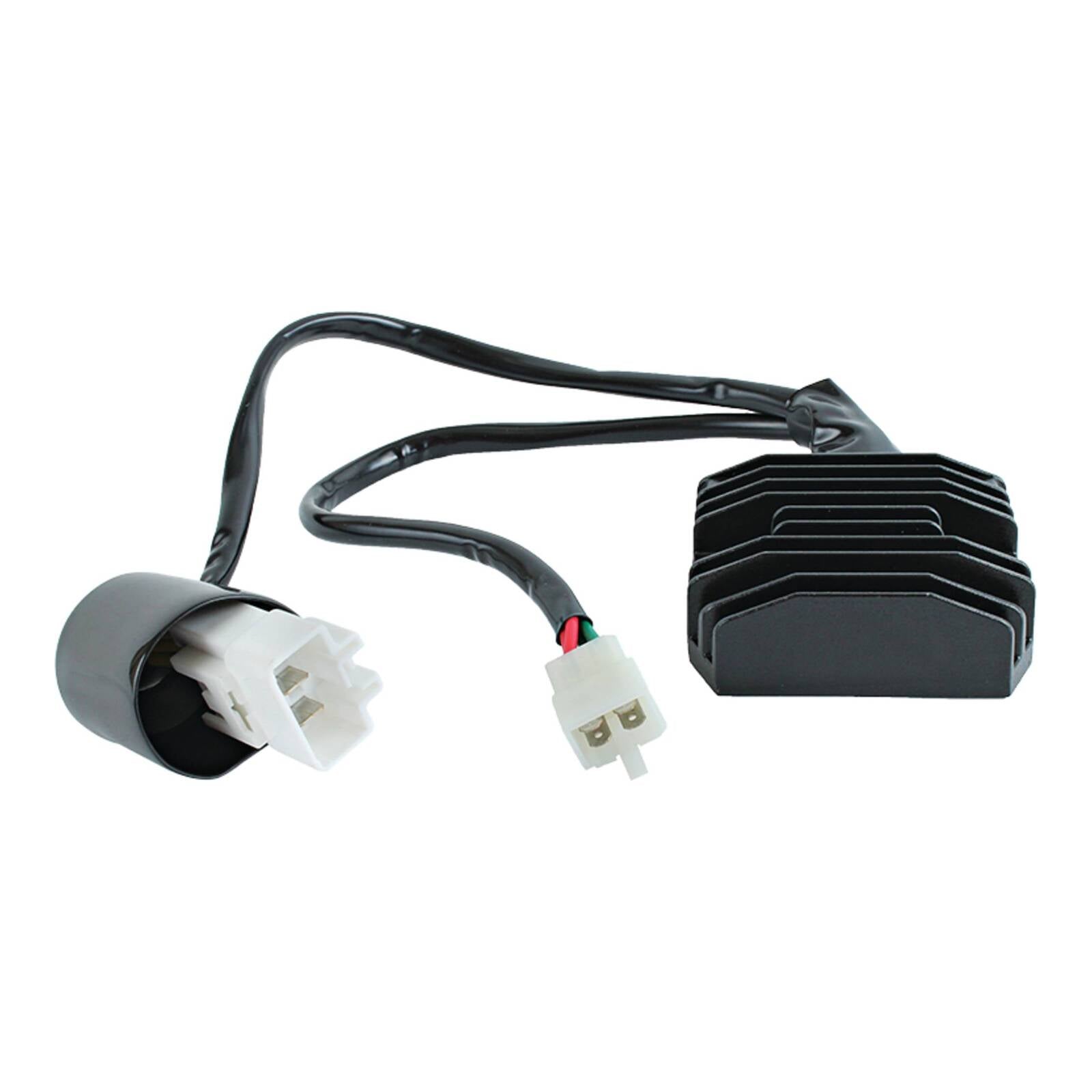

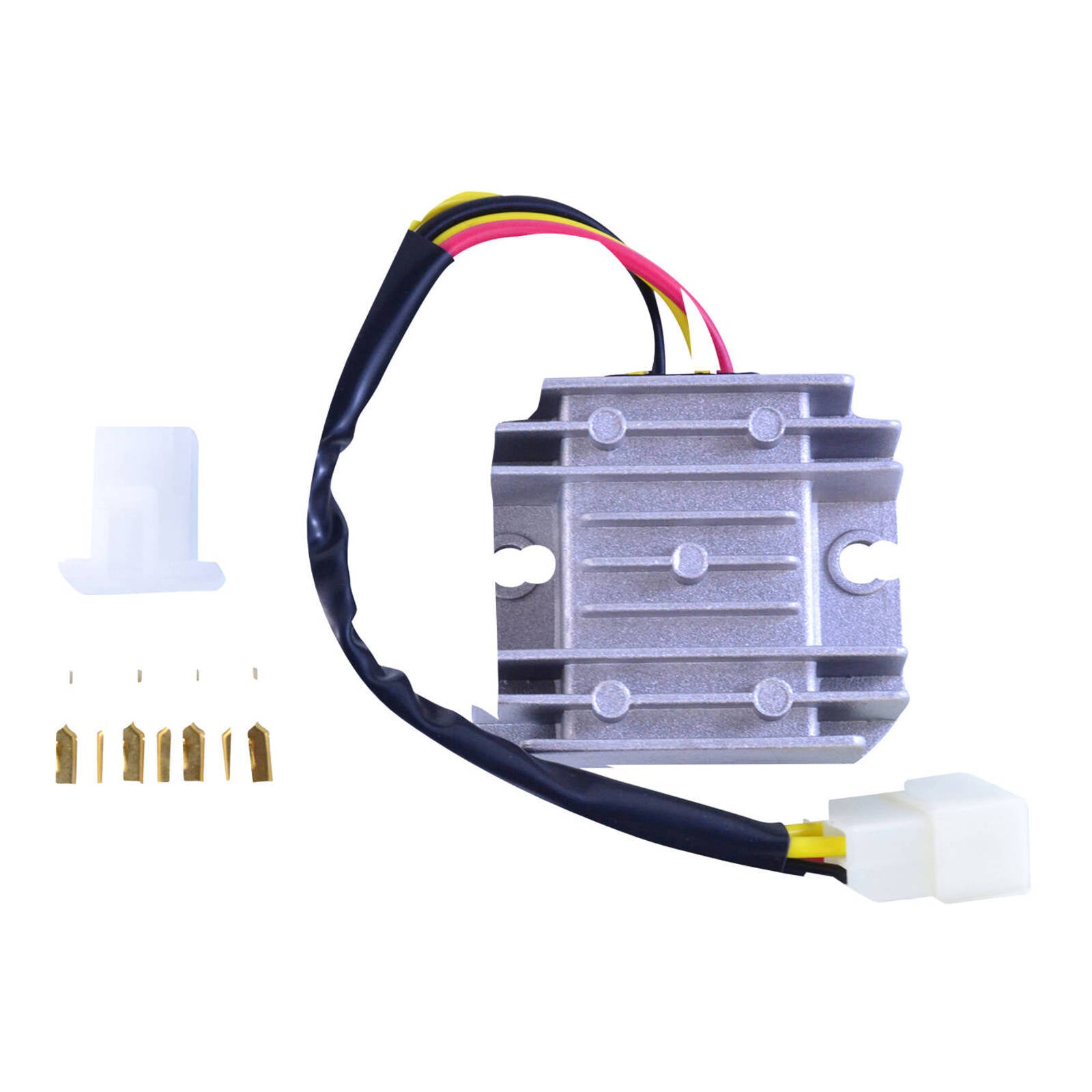

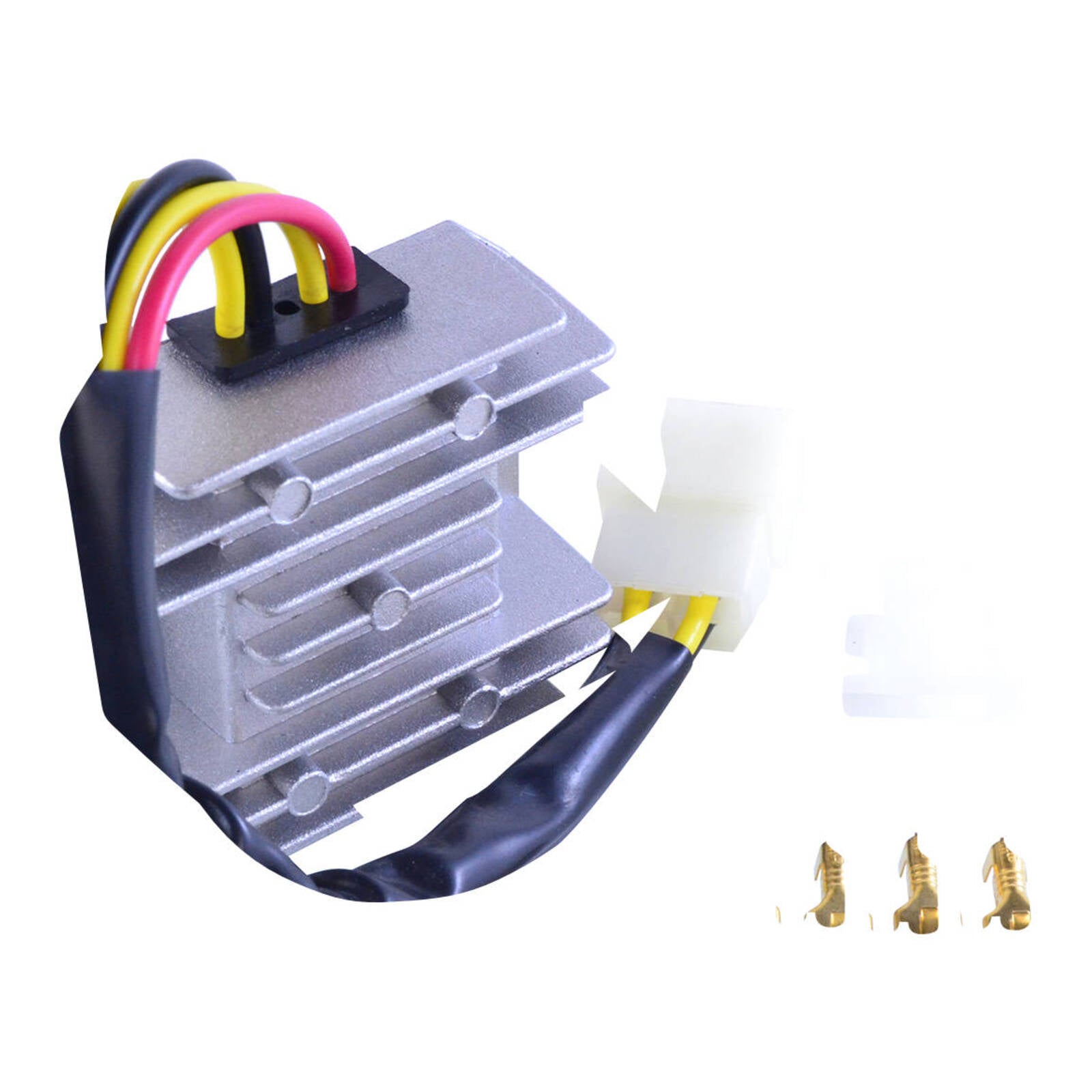

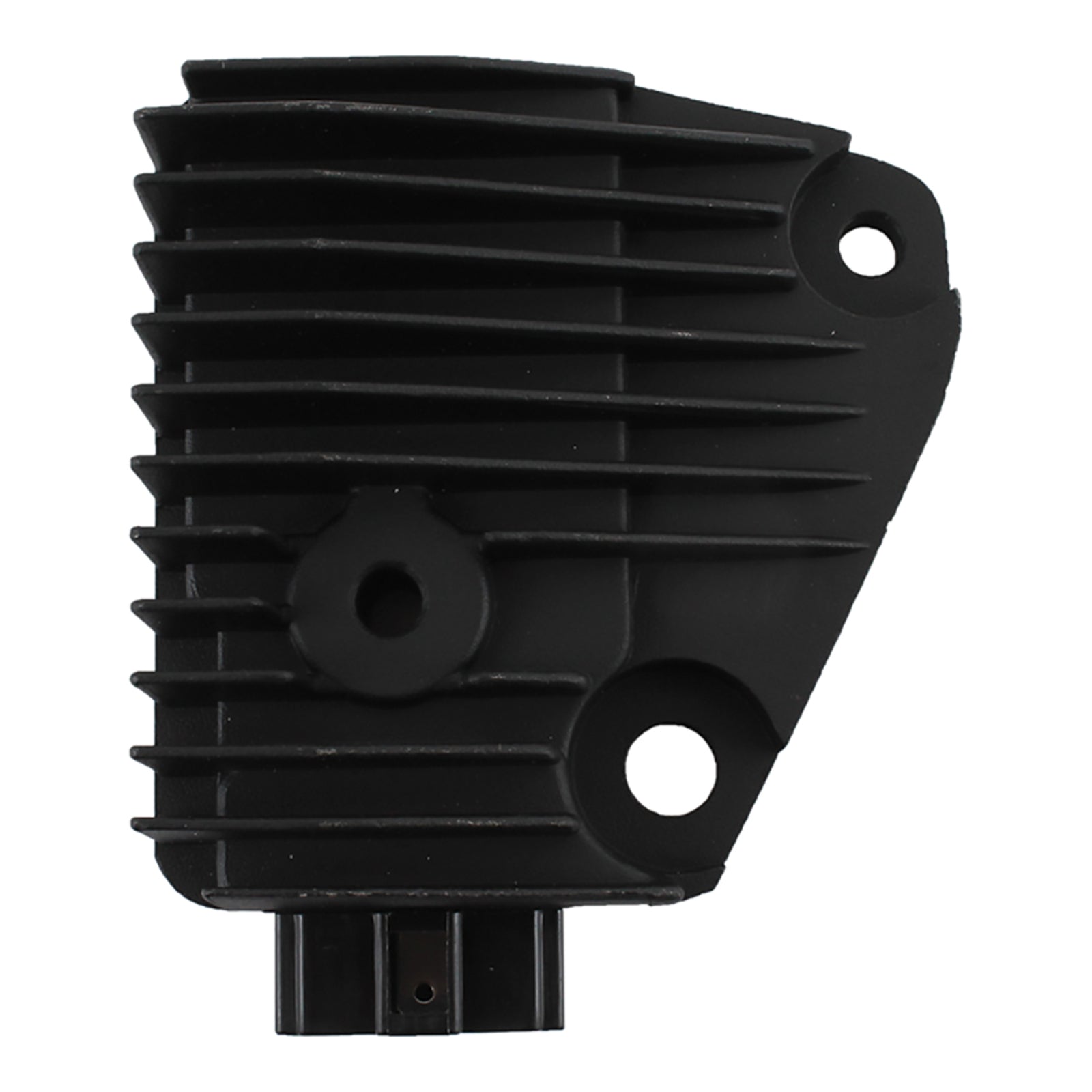

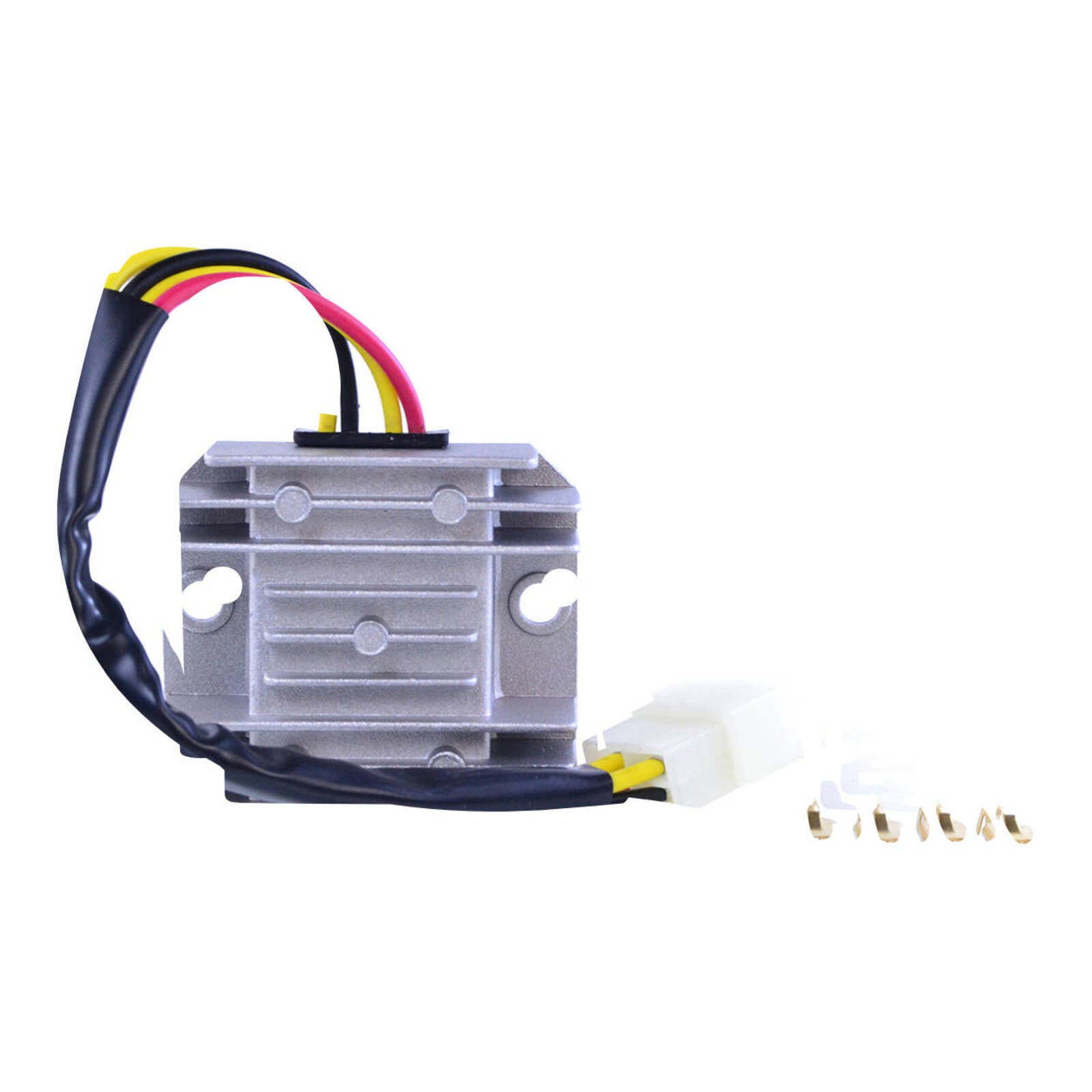

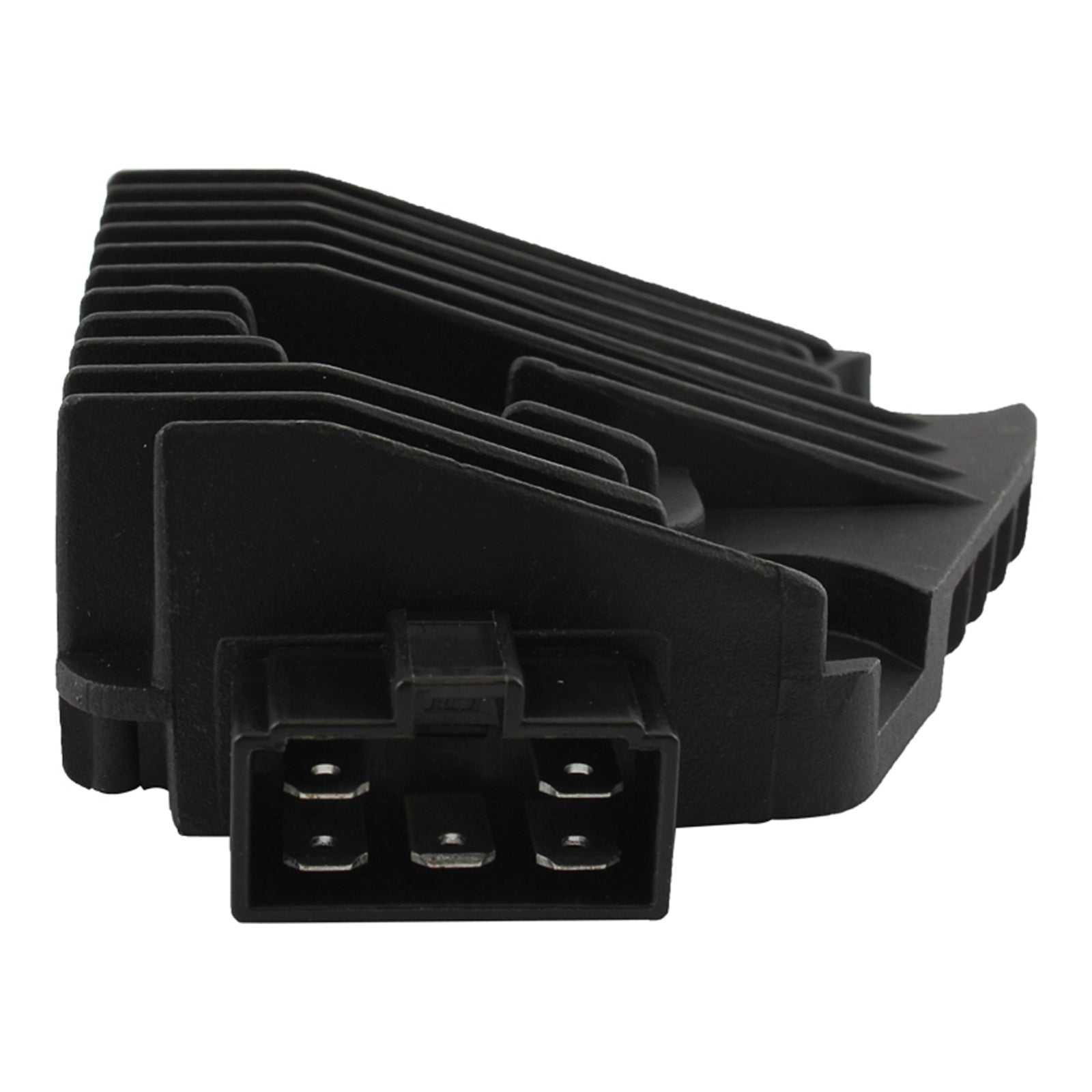

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.
• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment

RM STATOR has even included the opposite connector (main harness side), as they know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

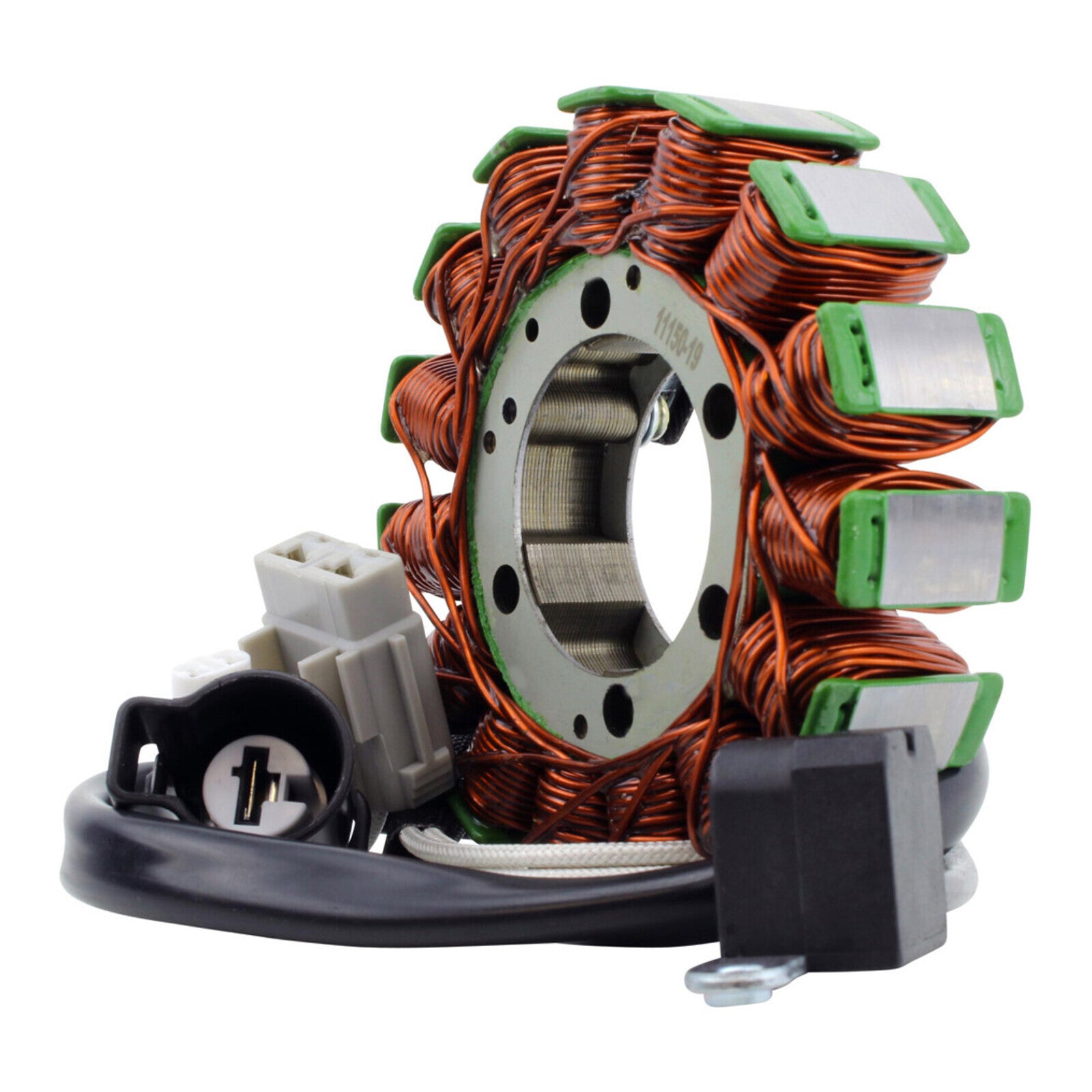

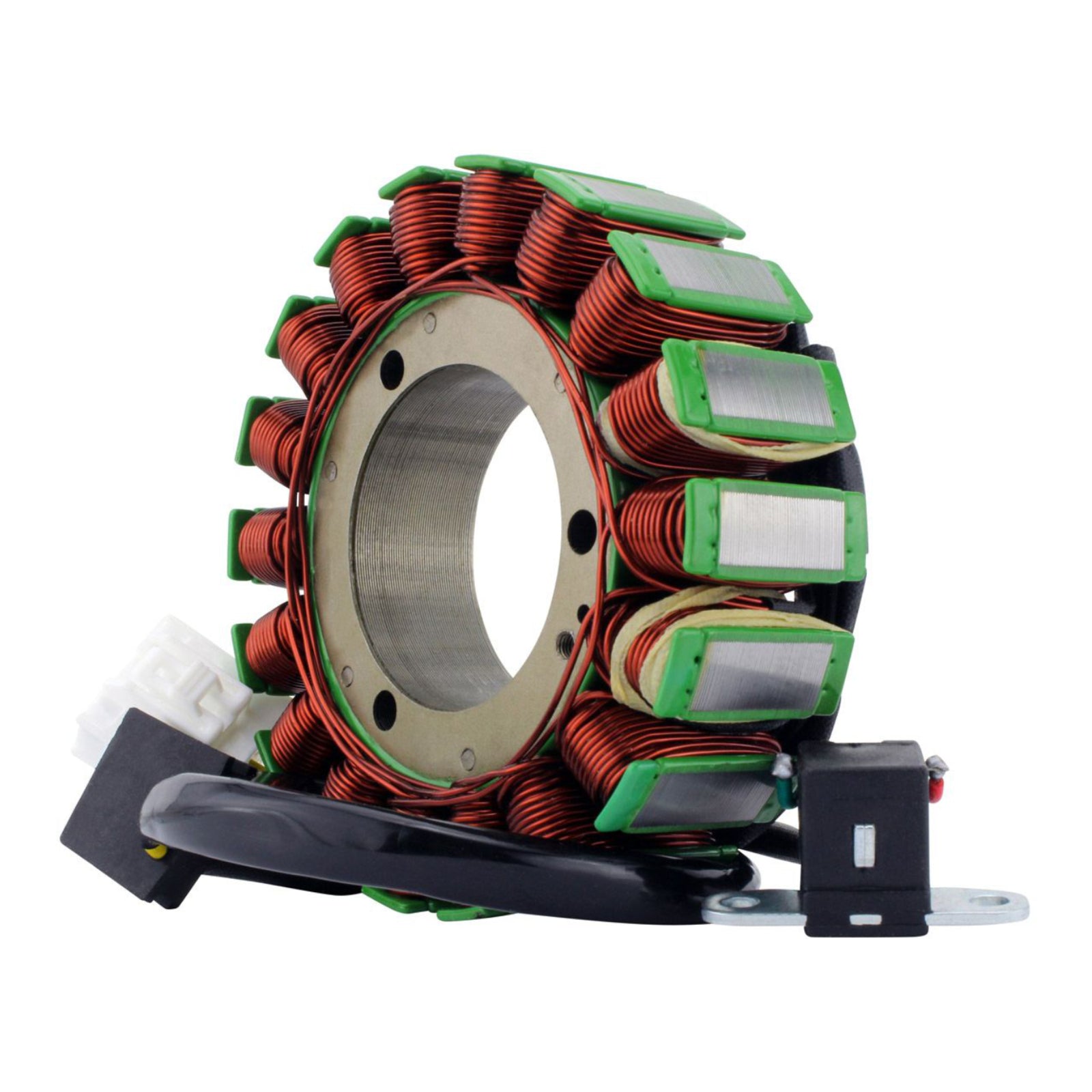

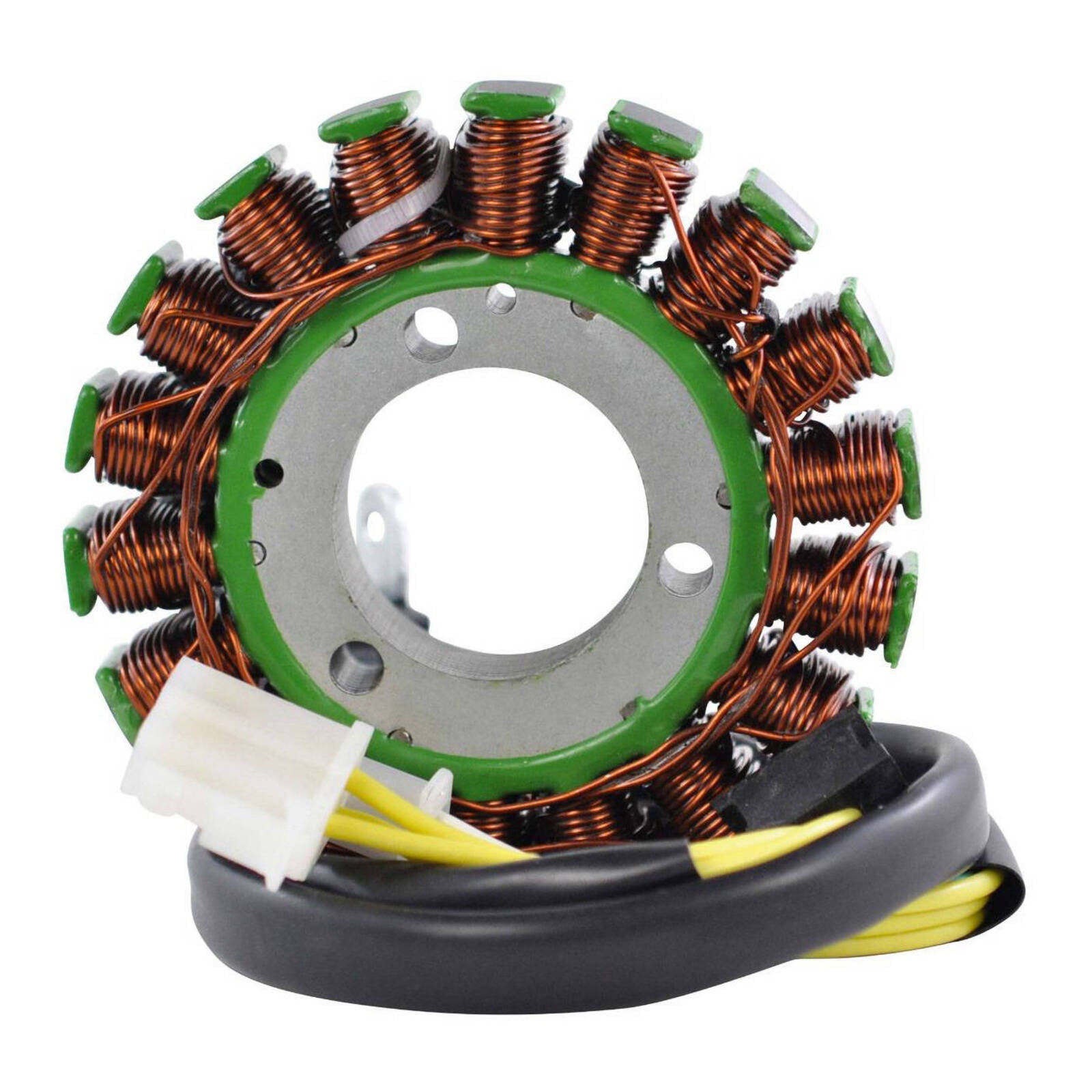

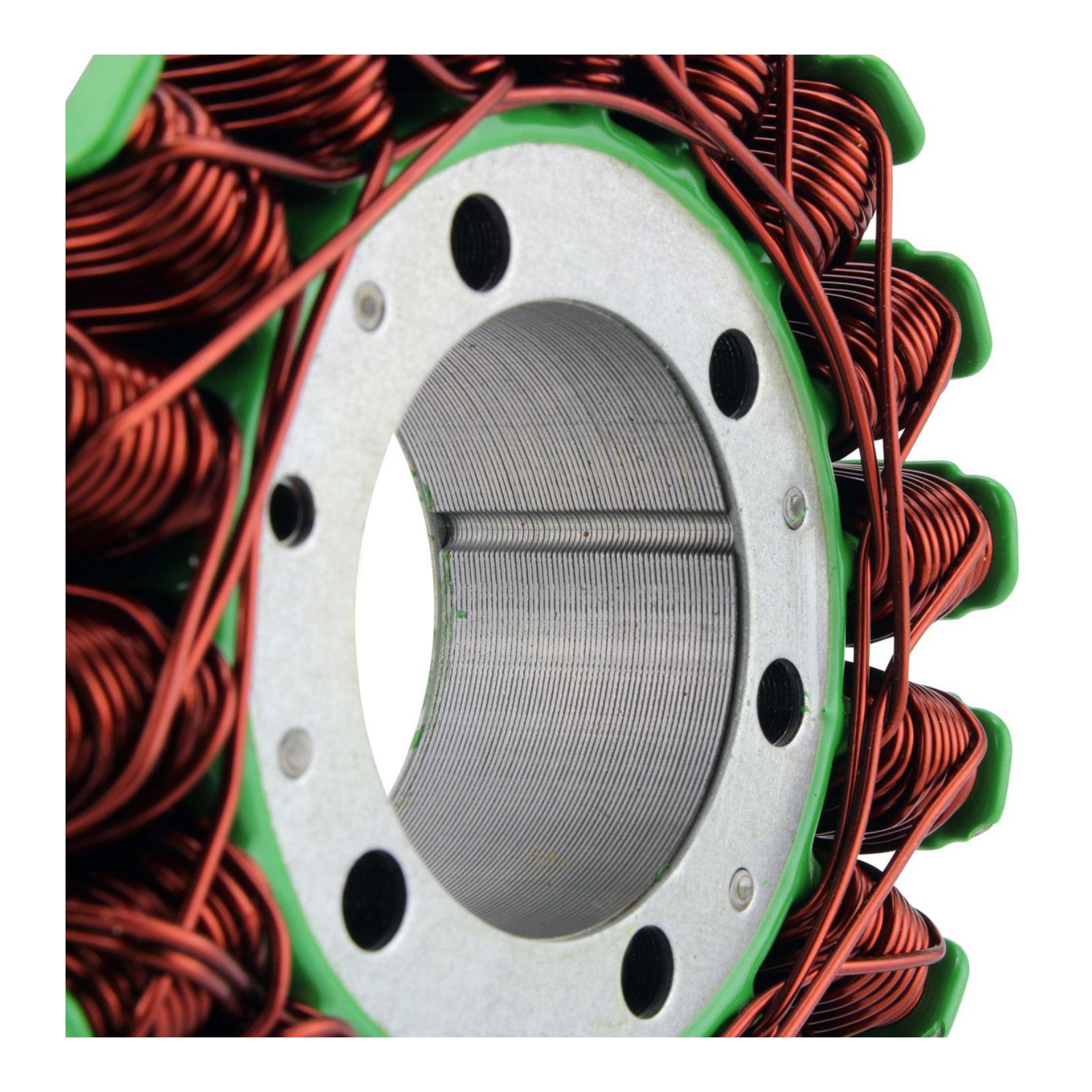

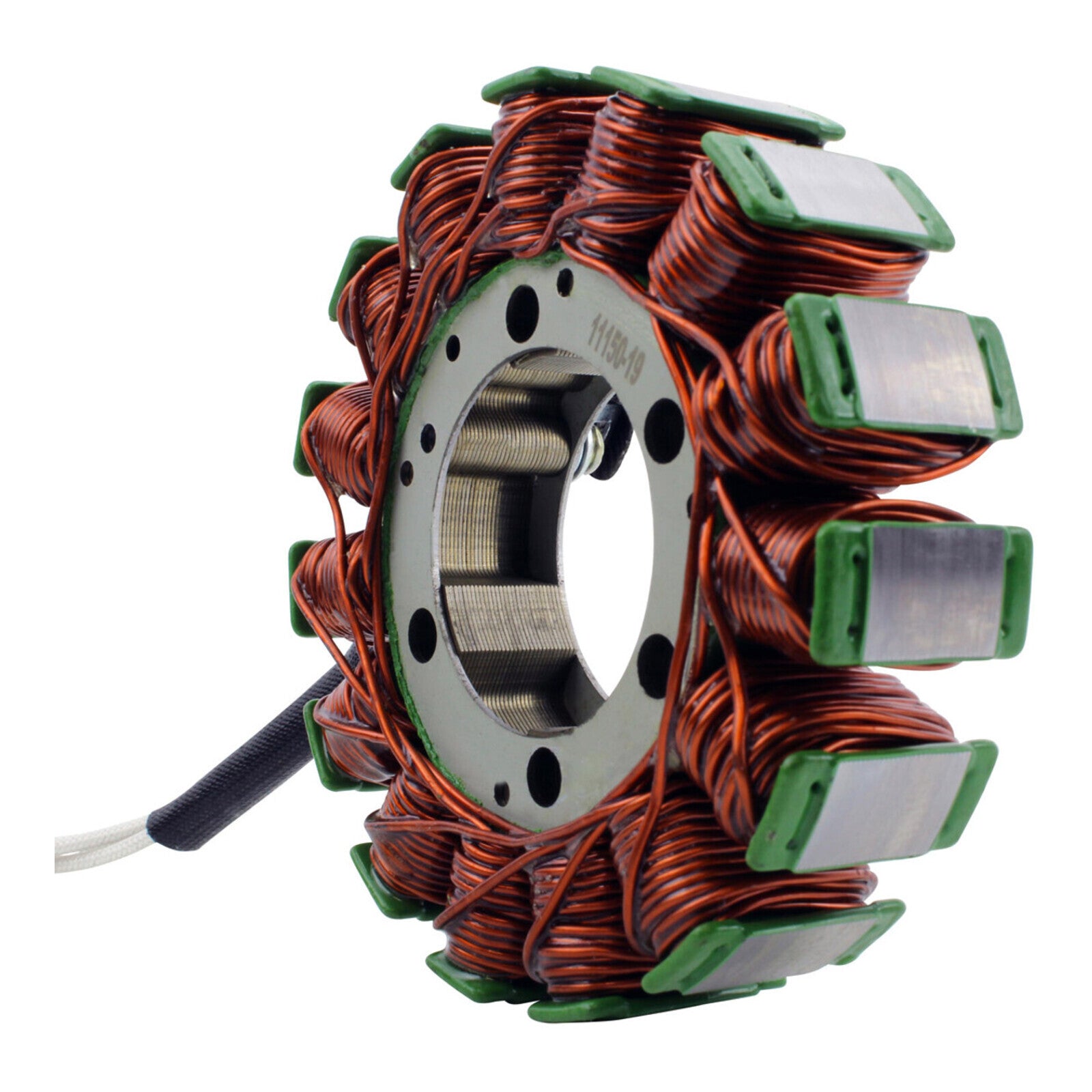

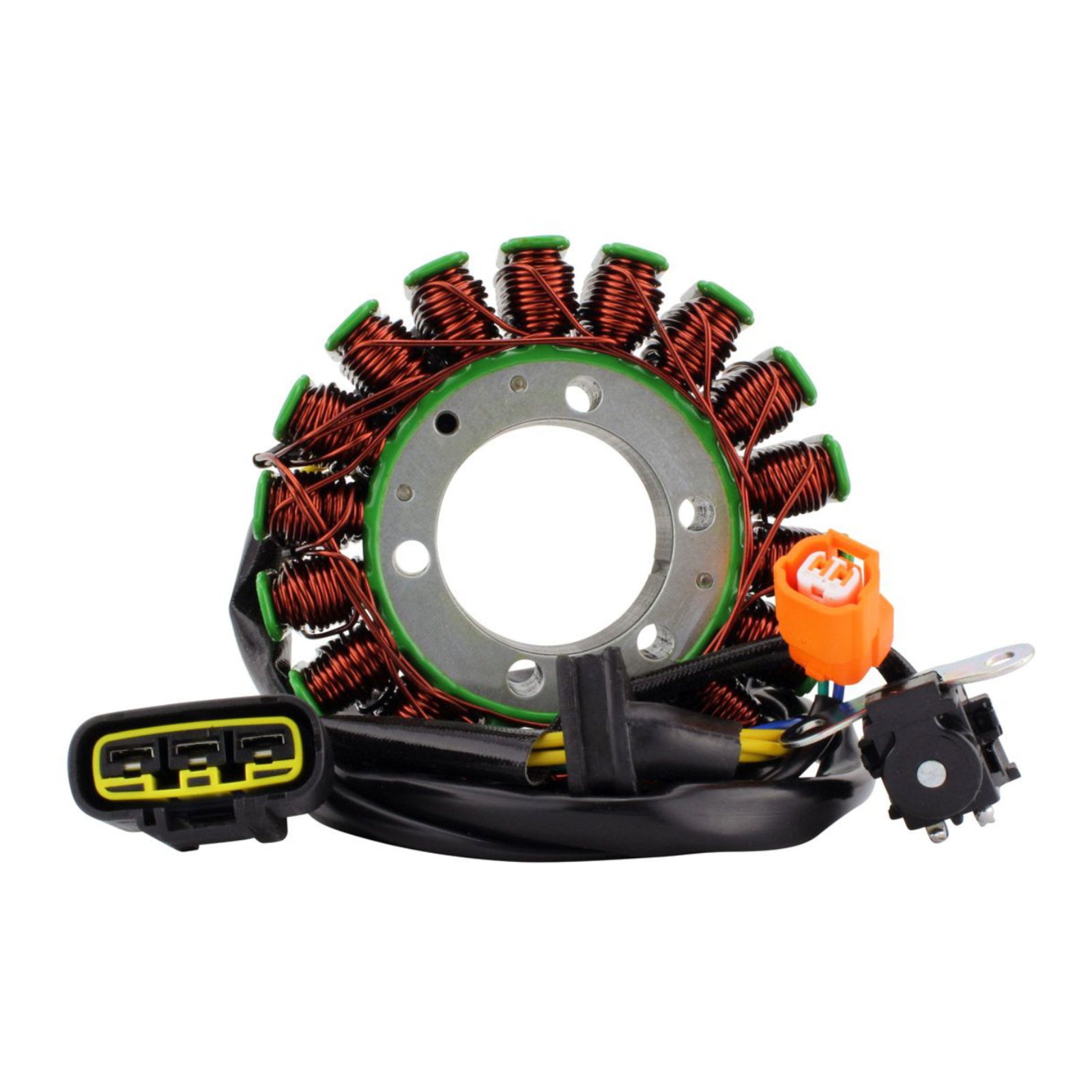

Plug-and-play replacement generator stator from RM Stator. See fitment guide for model details.

Features:

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• Highest grade of lamination materials.
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Pick up pulsar coil included.
• Connector included.
• Rubber grommet included.
• All products shipped are tested.

Dimensions:

• Interior diameter: 38mm
• Exterior diameter: 105mm
• Thickness: 19mm
• Length of wires stator to grommet: 120mm
• Length of wires grommet to plug: 650mm
• Length of pickup coil's wire to grommet: 60mm

Other specifications:

• Number of wires: 5
• Number of plugs: 2
• Number of pins: 5
• Wire to wire resistance:
  • Alternator: Yellow to Yellow = 0.7 ohms +-20%
  • Pickup: Green to White = 195 ohms +/- 20%

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

Features:

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• Highest grade of lamination materials.
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Connector included.

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Put the spark back in your ride with a Whites Electrical Coil. Manufactured as a direct OEM replacement while meeting or exceeding OEM specifications, it will mount with ease and outperform that worn-out coil. Whites Ignition Coils are the perfect cost-effective alternative to OEM ignition coils, with a vast range of applications available.

• Cost-effective OEM alternative
• OEM replacement
• Manufactured to meet or exceed OEM specifications
• Diverse applications
• Voltage: 12V
• Primary (ohm): 1.46 ohm
• Secondary (ohm): 10.67k ohm
• Holes Centres: 79mm

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
4. Check the distance between mounting holes before ordering.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR specialises in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• All products shipped are tested.

Dimensions:

• Width: 95 mm
• Length: 150 mm
• Height: 50 mm
• Wires length: 375 mm
• Fixation holes centre to centre: 90 mm
• Primary resistance: 2.8 ohms
• Secondary resistance: 13.8 ohms (200K)

Note: There are two different external ignition coil used for the 2008-2014 Road star models. The main difference between the two is the length of the wires and the primary resistance. Please look at our specifications section for the complete specification of this part. This part has a primary resistance of 2.8 ohms, if your part has a primary resistance of 4.3 ohms please look for RMS060106010.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

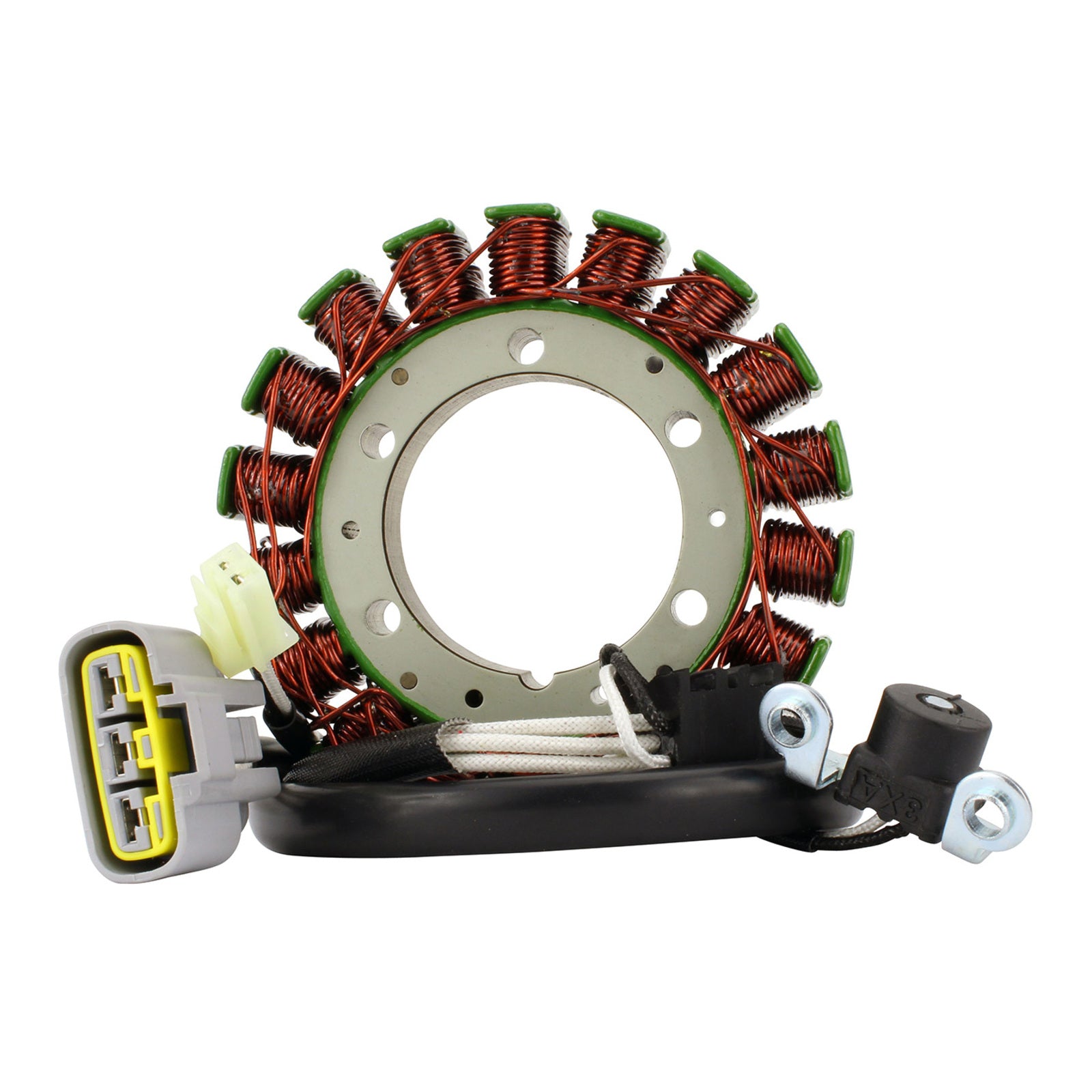

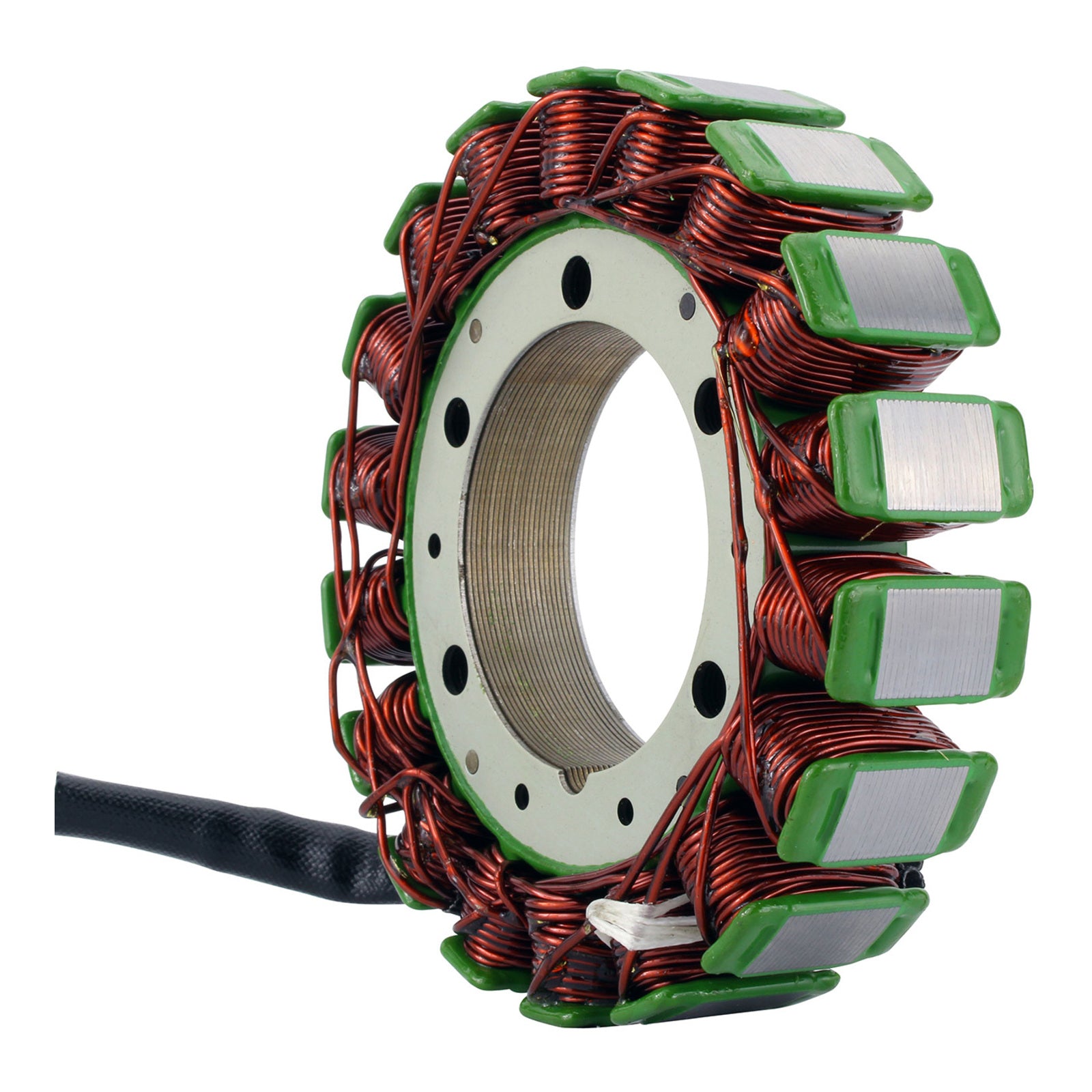

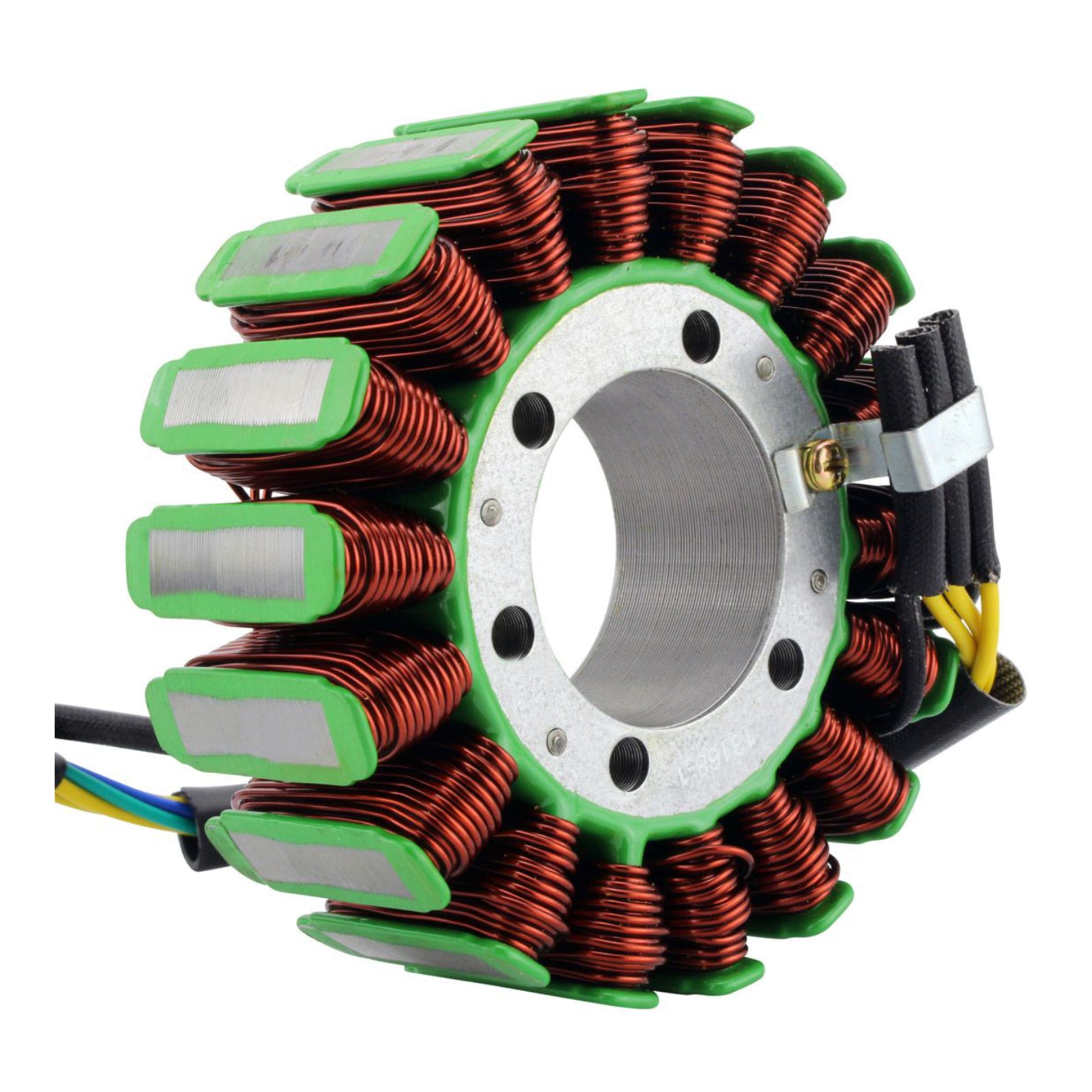

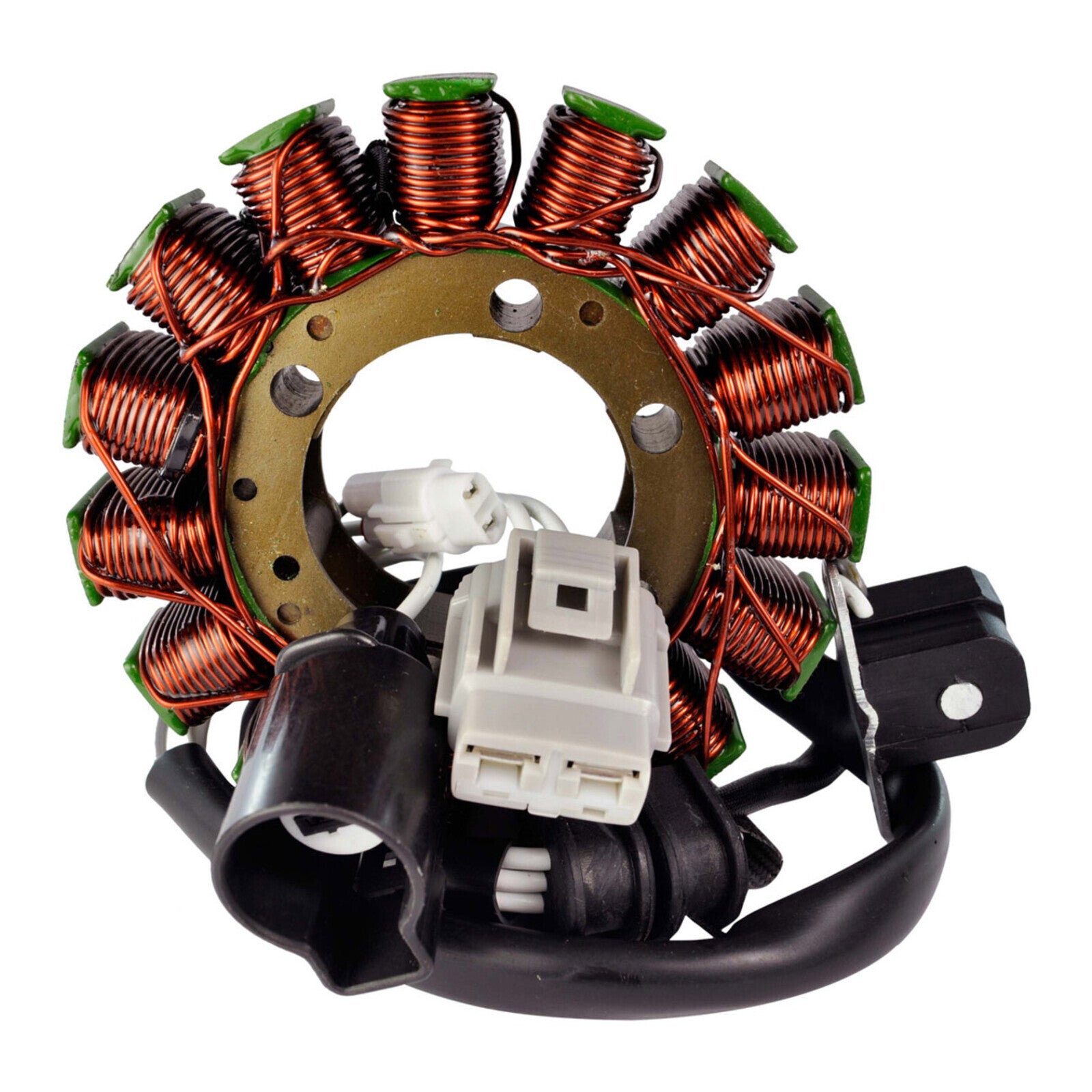

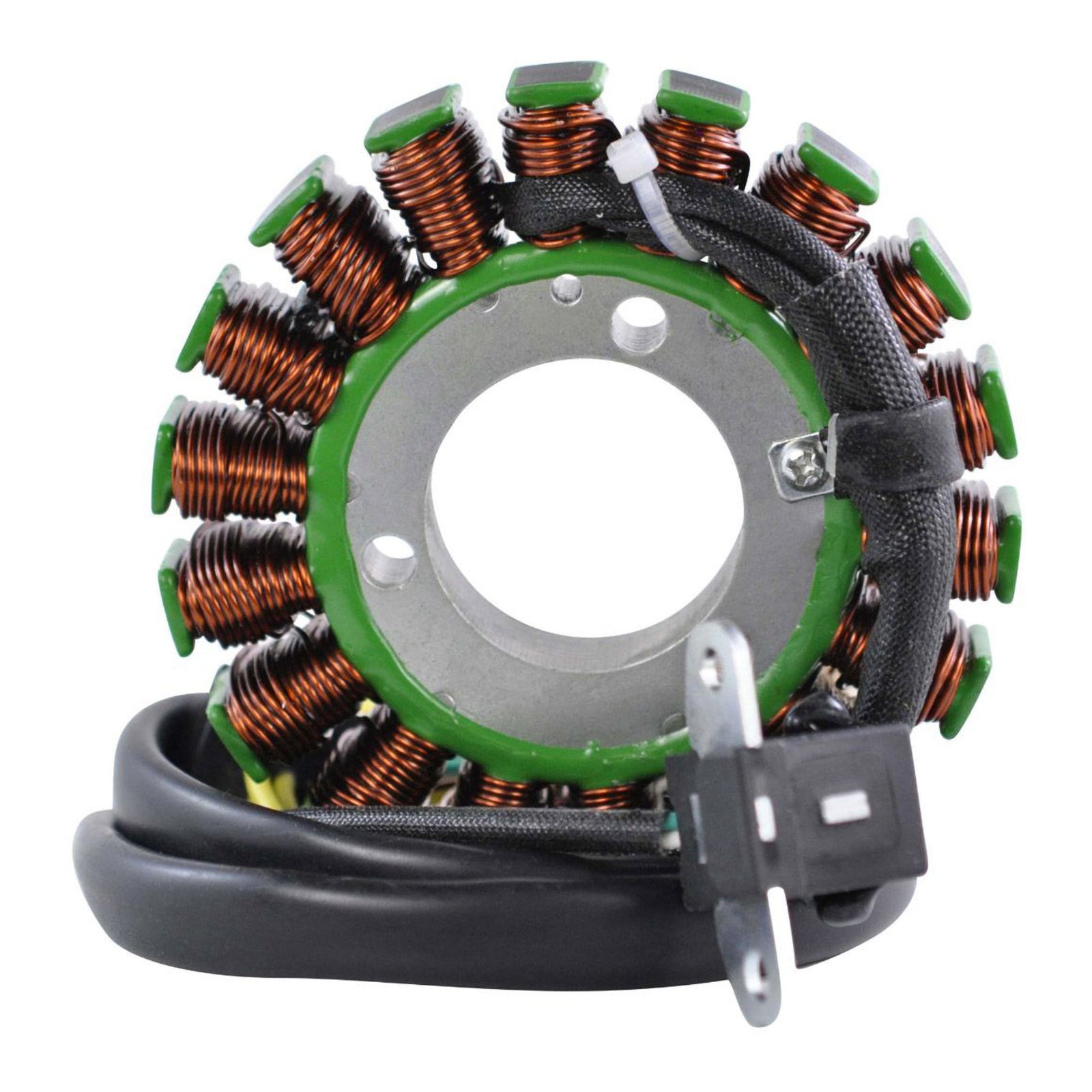

Plug-and-play replacement generator stator from RM Stator.

Dimensions:

• Interior diameter: 54mm
• Exterior diameter: 119mm
• Thickness: 26mm
• Length of wires stator to grommet: 170mm
• Length of wires grommet to plug: 270mm
• Length of pickup coil's wire to grommet: 150mm

Other specifications:

• Number of wires: 5
• Number of plugs: 2
• Number of pins: 5
• Number of poles: 18
• Wire to wire resistance:
  • Alternator: Yellow to Yellow = 0.6 ohms +-20%
  • Alternator: Yellow to ground = O.L
  • Pickup: Green to Red = 192 ohms +-20%

Details:

< li>Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connectors included
• Rubber grommet included
• All products shipped are tested

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

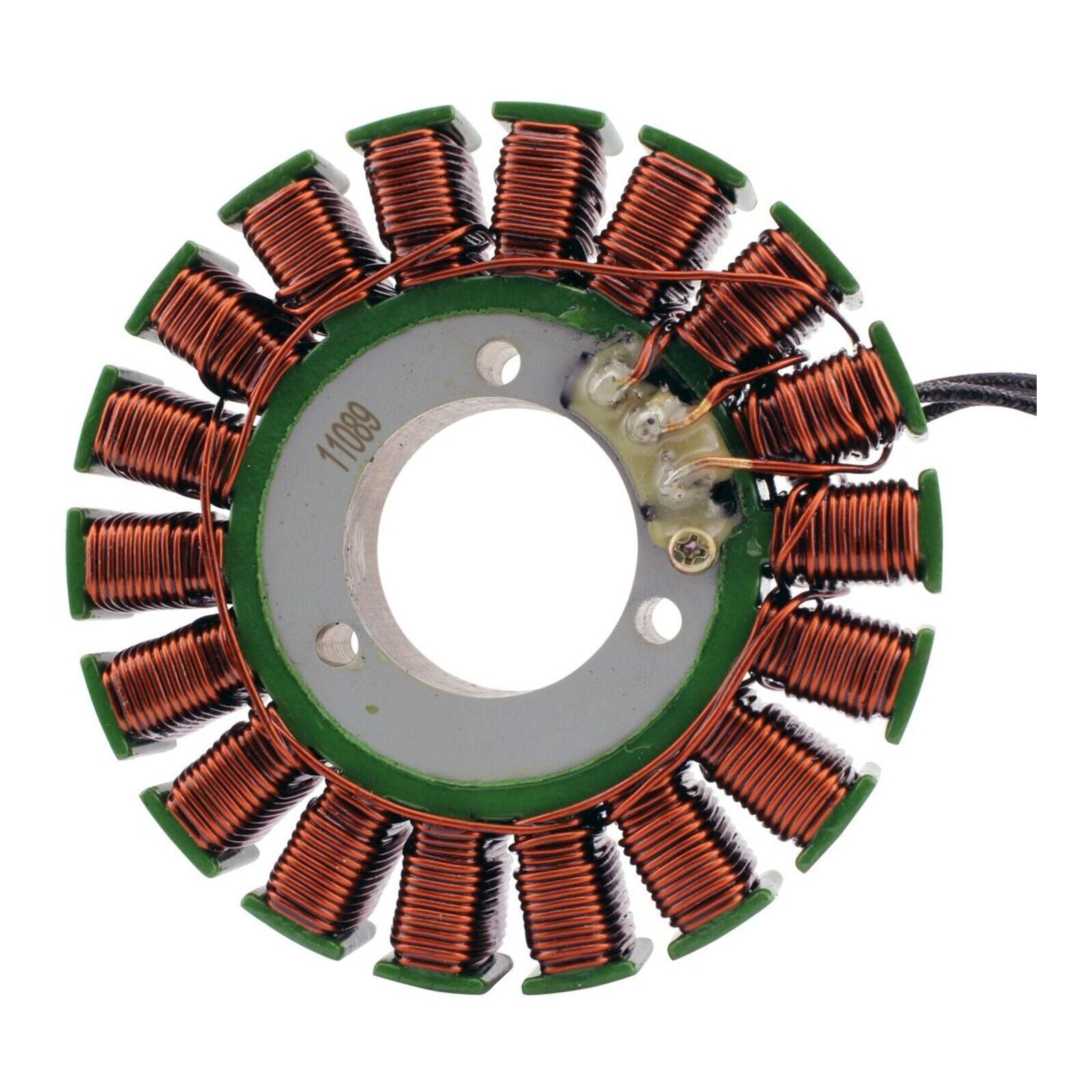

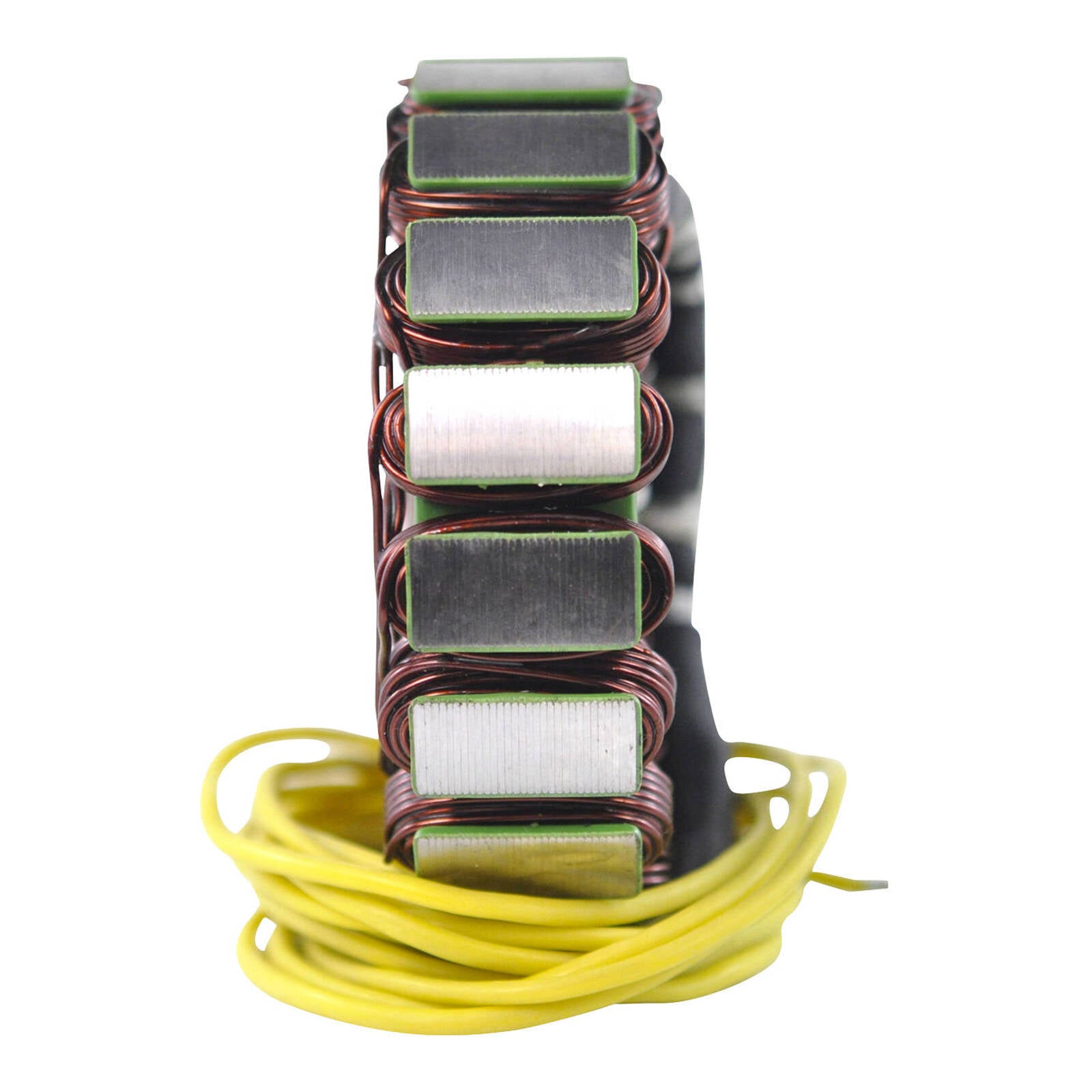

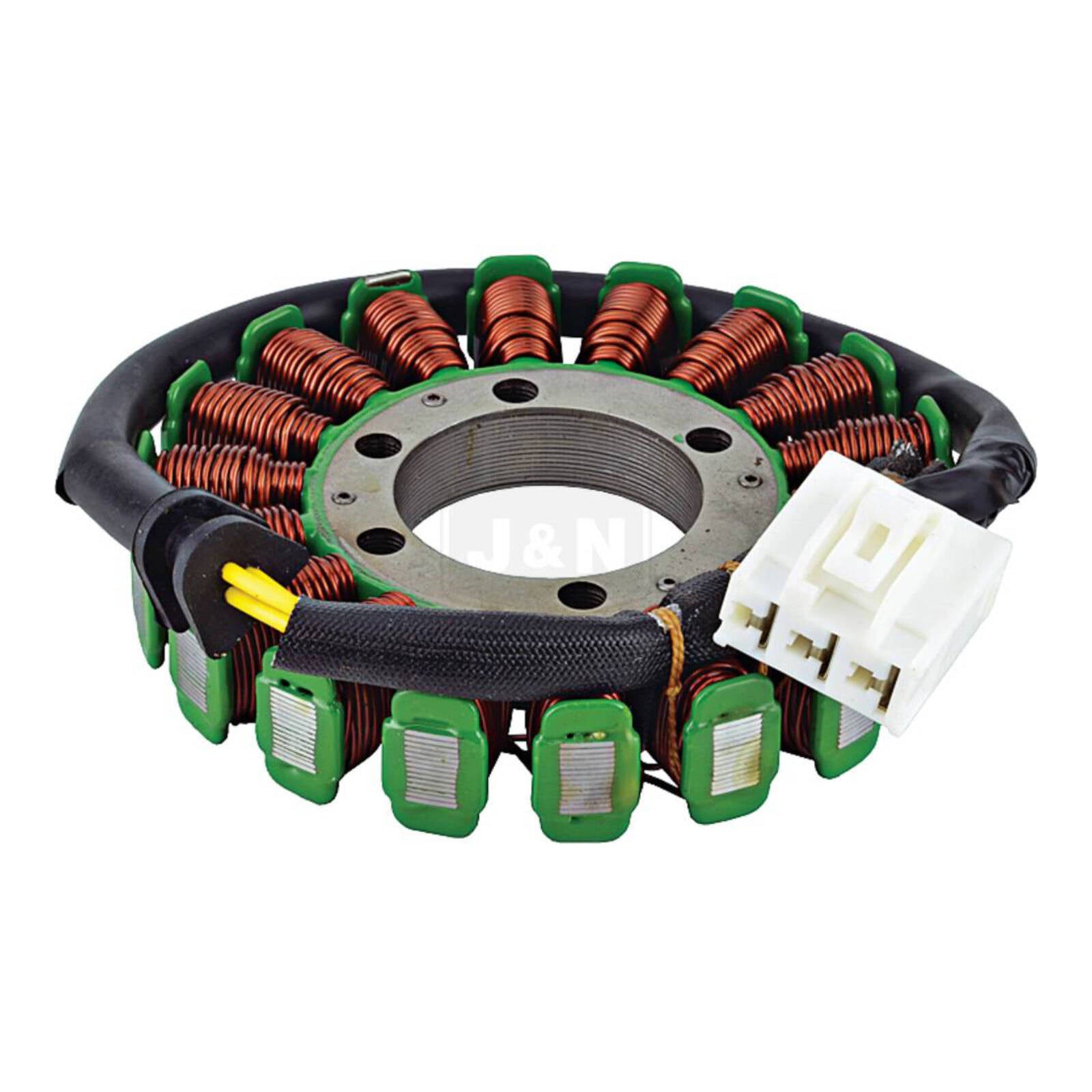

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest-grade lamination materials
• Highest-grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included
• All products shipped are tested

Specifications:

Dimensions:

Other specifications:

• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3

Wire-to-wire resistance:

• Alternator: White between each White = 0.2ohms +/-20%

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

A faulty crankshaft position sensor can cause engine misfires, stalling, poor fuel economy, rough running or prevent the engine from starting.

The crankshaft position sensor monitors engine rotation to provide precise ignition and fuel timing, ensuring smooth operation, optimal performance and efficiency.

DENALI Motorcycle Specific Horn Mounts

Available for many ADV, Cruisers and Sport Touring Models. The laser cut and powder coated steel brackets mount our SoundBomb Horn inthe most discrete and attractive location possible.

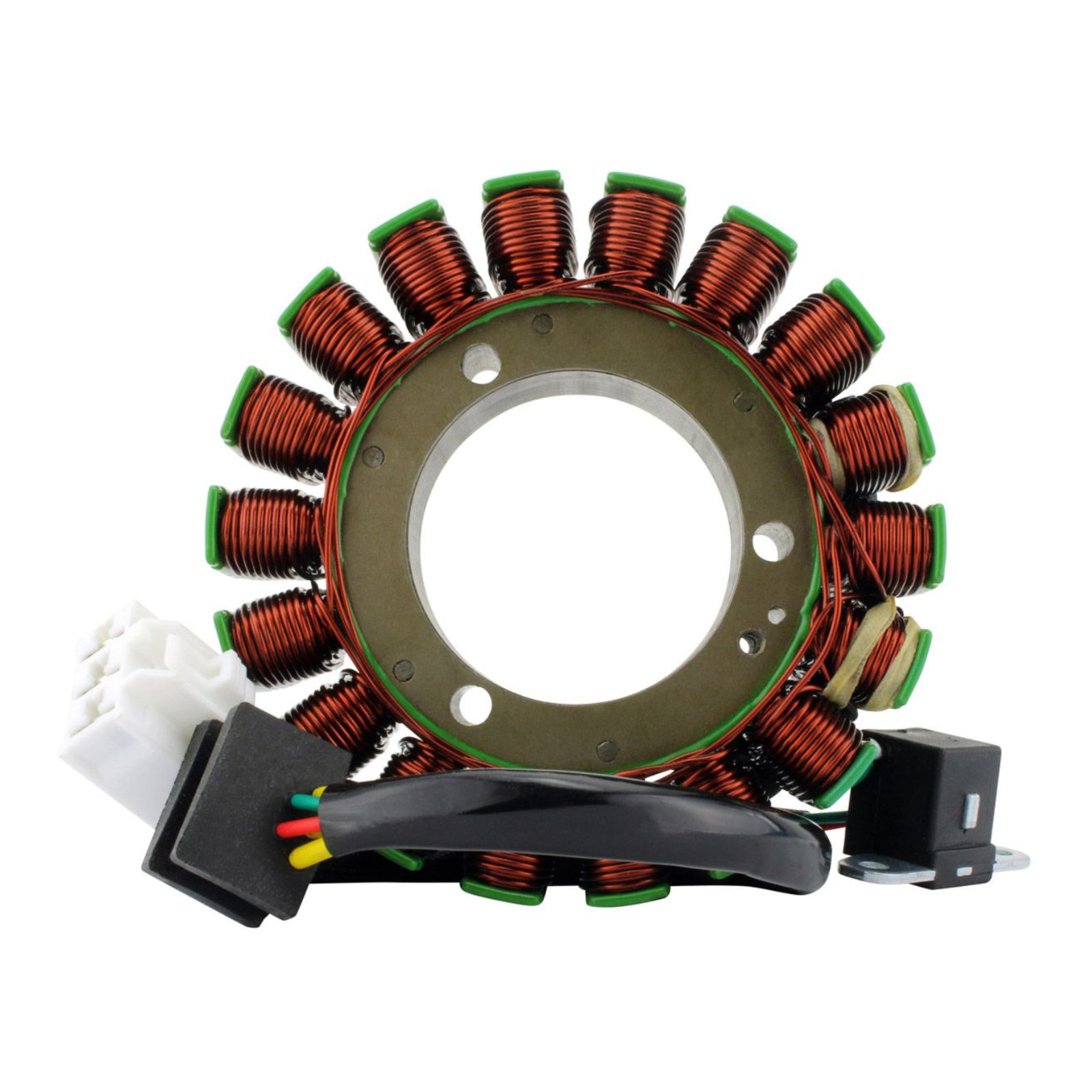

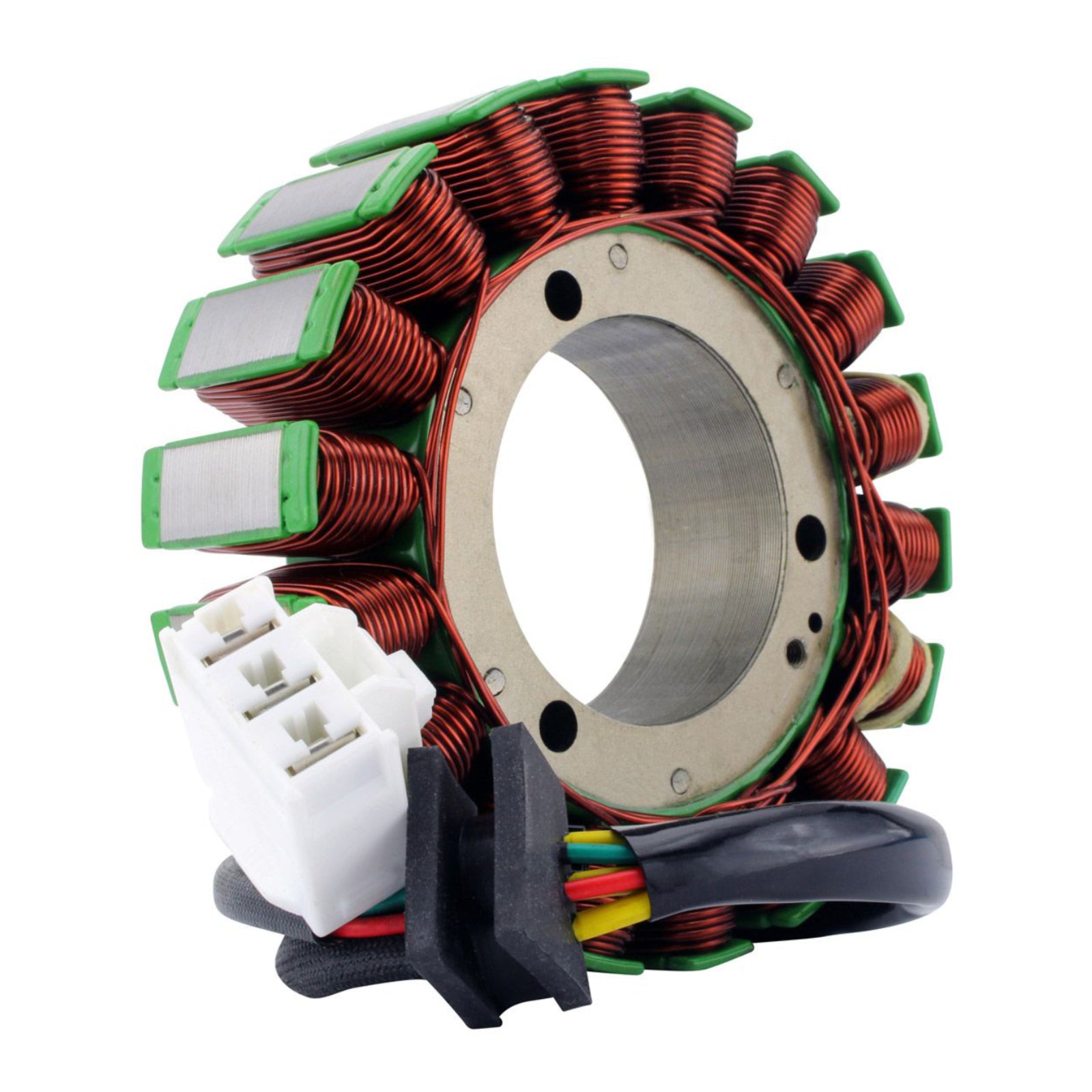

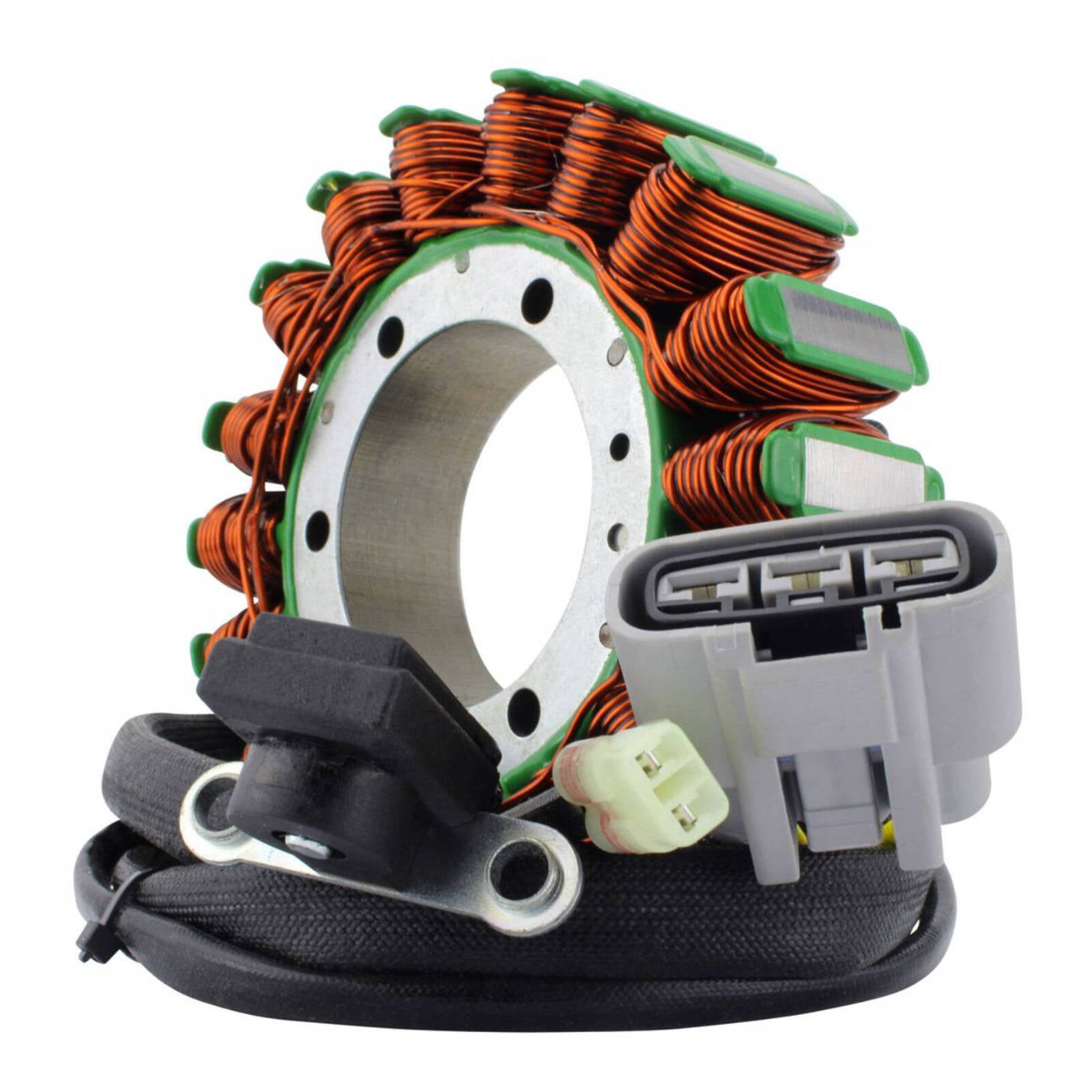

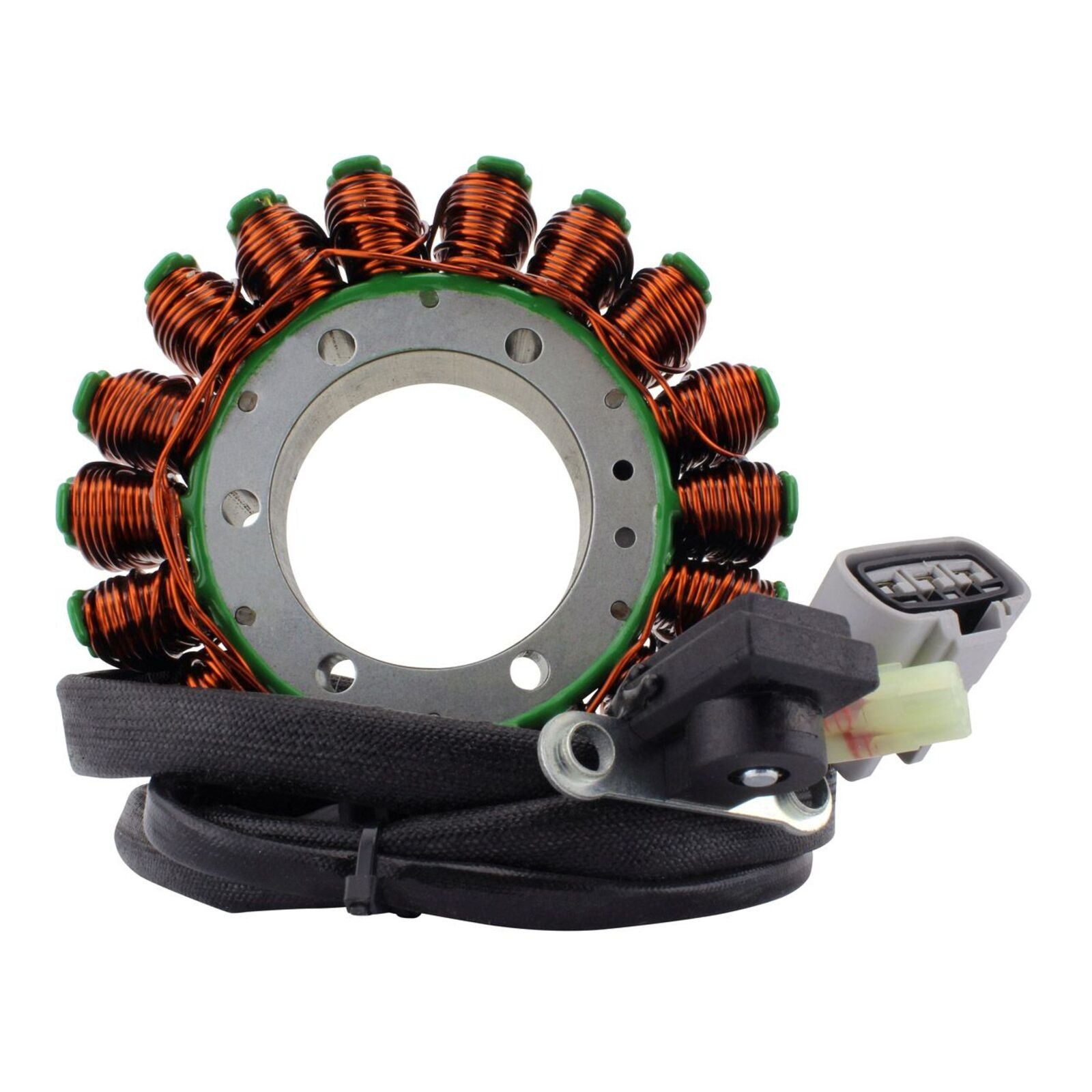

Plug-and-play replacement stator from RM Stator.

Dimensions:

• Interior diameter: 42 mm
• Exterior diameter: 107 mm
• Thickness: 31 mm
• Length of wires stator to grommet: 120 mm
• Length of wires grommet to plug #1: 335 mm
• Length of wires grommet to plug #2: 855 mm
• Length of pickup coil's wire to grommet: 85 mm

Other specifications:

• Number of wires: 5
• Number of plugs: 2
• Number of pins: 5
• Number of poles: 18
• Wire to wire resistance:
  • Alternator: Between each Yellow = 0.6 ohms +-20%
  • Pickup: Blue to Green = 235 ohms +-20%

Details:

< li>Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connectors included
• Rubber grommet included
• All products shipped are tested

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Put the spark back in your ride with a Whites Electrical Coil. Manufactured as a direct OEM replacement while meeting or exceeding OEM specifications, it will mount with ease and outperform that worn out coil. Whites Ignition Coil's are the perfect cost-effective alternative to OEM ignition coils, with a vast range of applications available.

Features:

• Cost-effective OEM alternative.
• OEM replacement.
• Manufactured to meet or exceed OEM specifications.
• Diverse applications.
• Voltage: 12V
• Primary (ohm): 1.75 ohm
• Secondary (ohm): 11.8k ohm

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Brand new 4-Pack Ignition Stick Coil.

Features:

• Direct replacement to your original unit.
• Quality exceeds the OEM equipment.
• 4 Ignition Stick coil included: 1x Left Angled, 1x Right Angled, 2x Straight
• All products shipped are tested.

Ignition Stick Coil Left angled Dimensions :

• Length: 115 mm
• Number of pins: 3
• Number of terminals: 1
• Resistance: 1.6 ohm

Ignition Stick Coil Right angle Dimensions:

• Length: 115 mm
• Number of pins: 3
• Number of terminals: 1
• Resistance: 1.6 ohm

Ignition Stick Coil Straight Dimensions :

• Length: 121 mm
• Number of pins: 3
• Number of terminals: 1
• Resistance: 1.4 ohm

Brand new aftermarket external ignition coil.

Features:

• Once your OEM spark plug cap(s) are re-installed, the part becomes a Plug-and-play unit, direct fit, and easy to install.
• All products shipped are tested.

Specifications:

• Dis tance between fixation holes: 56mm
• Wire Length: 440mm
• Resistance: 3.7 ohms

NOTE: There are two possible ignition coils for the VStrom 1000 2014-2016 models. The other coil is part RM06008.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
