ELECTRICAL

Quality replacement Regulator / Rectifiers

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Oxford’s huge range of products encompasses everything that makes life on bikes better: from jackets, pants and boots to accessories, hard parts, locks, luggage and much more! Their market-leading products are designed in- house by a team of active enthusiasts and skilled technicians, based at the company’s 100,000 square-foot purpose-built headquarters in Oxfordshire, UK. With the support of the latest CAD technology, a 3D printing suite and a fully equipped test laboratory, Oxford innovate, analyse, test and develop unique products in pursuit of the best experience for two-wheel enthusiasts.

The Oxford Indicator Spacers cover holes left by standard-sized indicators in your motorcycle's fairing. Sold as a pair for both the left and right spacers, if requiring spacers for the front and rear you will need two packs. The indicator spacers are designed to ensure the perfect fit for Oxfords diverse range of indicators when replacing your broken, damaged or malfunctioning OEM indicators.

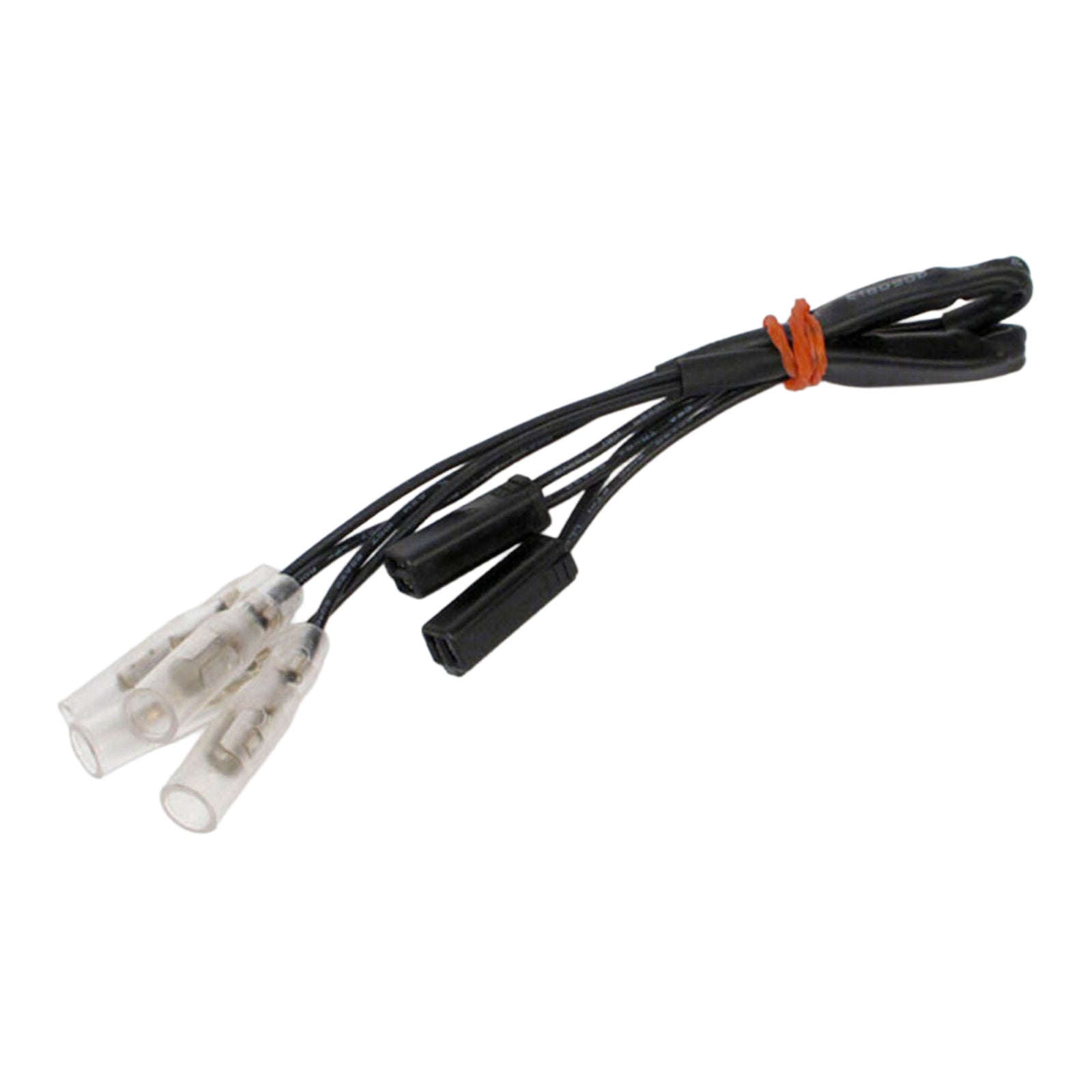

If you've installed or are looking at installing LED indicators you may need a load equaliser, LEDs draw less power than standard bulbs which can cause the LEDs to flash out of sequence. The equaliser is installed in parallel with the LED lamp and regulates the flashing speed, no special tools are required for installation. When installing the equaliser, note that they can get very hot so we recommend installing them in a well-ventilated area away from any plastics, fabrics and painted surfaces.

Simulates regular indication when LEDs are installed
Installs parallel with LED lamps
No special tools required for installation
For use with most Suzuki motorcycles
Sold as a pair

NOTE: Equalisers can get very hot when in use, we recommend installing them in a well-ventilated area away from any plastics, fabrics and painted surfaces.

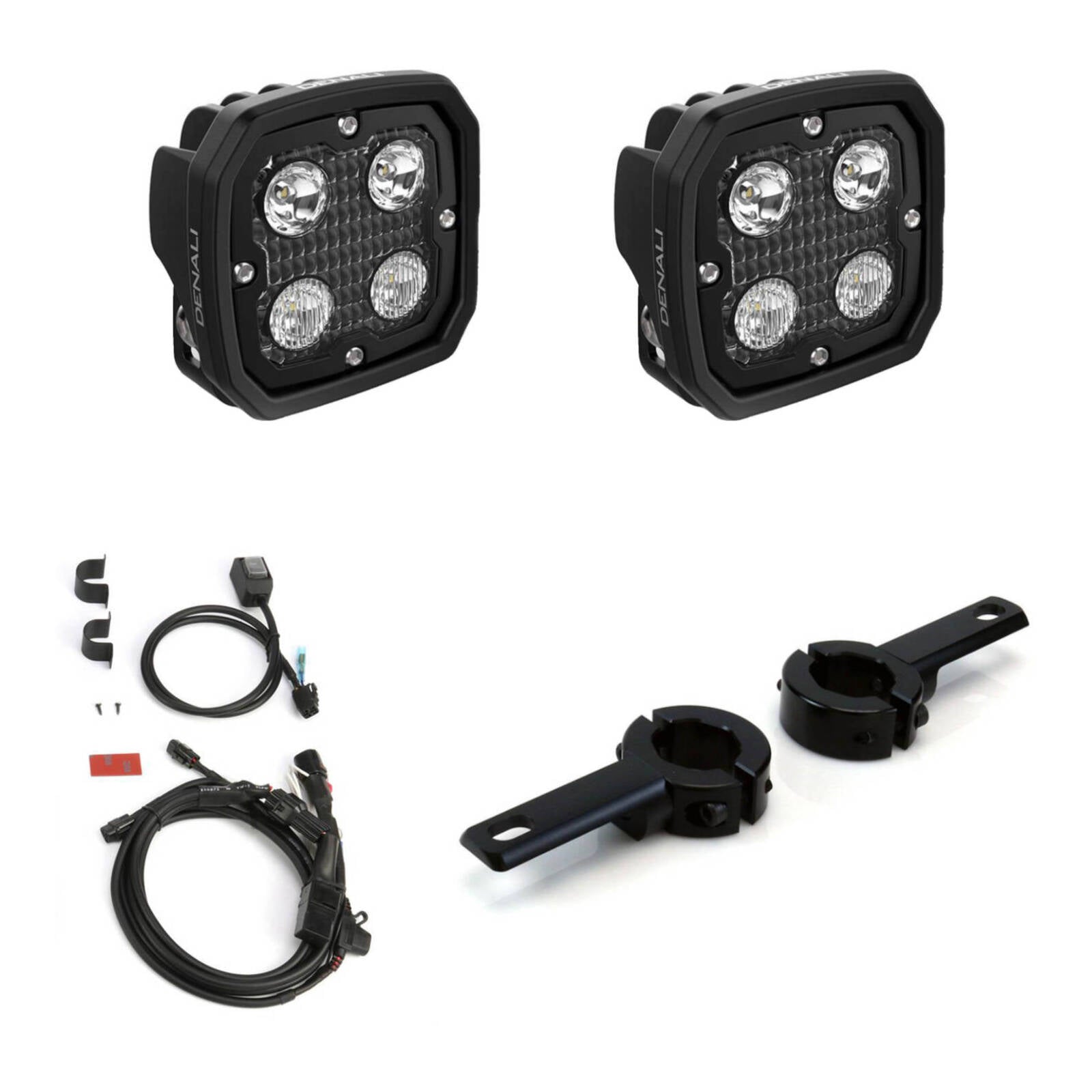

This convenient Denali lighting kit combines several high-quality Denali components including a wiring harness, light mount, and lights. It's designed to give you everything you need to equip your machine with an improved lighting setup and illuminate your riding experience.

Kit contains:

1x DENALI 2.0 PREMIUM WIRING HARNESS KIT (REV08) (SKU: DEDNLWHS10900)

1x DENALI ENG GUARD/CRASHBAR LIGHT MNT/ 21-29MM DIAM TUBES BLK (SKU: DELAH0010300B)

2x DENALI D4 LED LIGHT POD - DATADIM™ TECHNOLOGY - SINGLE (SKU: DEDNLD4050)

DENALI 2.0 PREMIUM WIRING HARNESS KIT (REV08) details:

This DENALI Premium Wiring Harness features high-quality waterproof components and is designed to power two DENALI LED Light Pods. It features low-profile, water-tight connectors and premium moulded wire to ensure moisture is kept out of the system. The harness includes a completely sealed, waterproof switch that was engineered from the ground up to withstand harsh out-door abuse on powersports vehicles. It’s clever design can be either flush or bar mounted.

What’s In The Box?

• (x1) Premium Wiring Harness
• (x1) Single-Intensity Relay
• (x1) DrySeal™ ON-OFF Waterproof Illuminated Switch
• (x1) 7/8 inch Handlebar Switch Mount
• (x1) 1 inch Handlebar Switch Mount
• (x2) Self Tapping Screw
• (x1) Adhesive Pad
• (x4) Zip Ties

DENALI ENG GUARD/CRASHBAR LIGHT MNT/ 21-29MM DIAM TUBES BLK details:

DENALI Universal Crashbar / Engine Guard Mount

This DENALI Bar Camp Light Mount Kit allows fitment of any DENALI LED Lights to engine guards, crash bars, or any tube 21mm-29mm (0.826in-1.125in) in diameter. These light mounts have a unique octagonal inner profile that allow the clamps to securely grip a wide range of tube diameters and include an optional, fully rotatable mounting shelf to create a super versatile and robust light mounting solution.

These clamps are intended for mounting lights to OEM or aftermarket crash bars, handlebars and frame tubes commonly found on adventure bikes, dual sport bikes, ATVs and snowmobiles. The clamps allow the lights to be positioned to the inside of the bars, ensuring they will be protected in a tip over.

Features

• Adjustable grip range (21mm-29mm) (0.826in-1.125in)
• Rotatable mounting shelf allows 4th axis of adjustability
• Lights can be mounted to shelf or directly to clamp
• Accepts M8 bolt from light pod
• Billet aluminum with black anodized finish
• Fits all standard SW-MOTECH, R&G, Givi, Kappa, Hepco-Becker, Krauser, Touratech, and BMW original crashbars
• Sold as pair

What's In The Box?

• (x2) Mounting clamps
• (x2) Rotatable mounting shelves
• (x1) Hardware Kit

DE NALI D4 LED LIGHT POD - DATADIM™ TECHNOLOGY - SINGLE details:

Simply put; the DENALI D4 is a beast. It is DENALI’s most powerful light packing the punch of 4380 lumens in an aggressively styled housing. The installed hybrid lens is equipped with two elliptical flood lenses and two spot beam lenses to create the ultimate hybrid beam pattern; a super wide close-range flood and a piercing spot beam in one housing. The included spot lens throws a massive beam of light and carries an official E-Mark certification.

D4 Pod Features

• High-Intensity Series Cree LEDs outputting 4380 lumens per pod
• DrySeal™ Submersible Waterproof light can withstand the most extreme environments
• LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
• Low profile mounting bracket with stainless steel hardware included
• Additional E-Mark Approved flood lens included
• Amber lenses available (sold separately) DNL.D4.10100

D4 Pod Specs

D4 Pod - What’s In The Box?

Why use the SPLYT Technology?

As featured by Dirt Trax Television, RMSTATOR SPLYT Technology provides a reliable solution to well-known charging system failures. Using a dual output stator with two completely separate stator windings, this system splits the power generated by the stator into two separate voltage regulators. These regulators then each operate with only half of the load of the original system, allowing them to maintain a lower temperature and increase reliability.

SERIES Voltage Regulation

This system uses a new type of voltage regulator called a SERIES regulator. Rather than shunting excess power to ground like a typical regulator, it protects the battery from high voltage by disconnecting the stator coils from the regulator and preventing current from passing on. This type of voltage regulation generates less heat because current from the stator is prevented from flowing through the regulator.

Ultimate reliability

With a stock charging system, voltage regulators are consistently operating within 5% of their maximum capacity, leading to heat and stress related failure. With the RMSTATOR SPLYT system, both SERIES voltage regulators are operating with 40% overhead for long life and stable output.

Better design

Contrary to the original OEM stator that uses one three phase stator winding, the SPLYT stator contains two completely separate three-phase coil windings. Each of these two windings then produces half of the power of the stock stator lowering the temperature in each individual coil.

More available power

If you are installing a lot of accessories and electronics on your vehicle, like extra lighting, stereos or a winch,
the SPLYT kit is available with an improved flywheel designed to increase power output from 650 Watts to 900 Watts.

Easy to install

All parts use a Plug-and- Play design, just like the original OEM ones, so no special tool or knowledge is needed to install this system.

Harnesses included

Relocation wiring harnesses allow to relocate the regulators anywhere on your vehicle to get better air flow and easier access.

This kit includes:

• Dual output stator
• Two SERIES voltage regulators
• Improved high output flywheel
• Two automotive grade relocation wiring harnesses with OEM- quality heavy-duty connectors
• Gasket
• Complete instructions for voltage regulator relocation

Dual Output Stator Dimensions
Interior diameter : 53 mm
Exterior diameter : 125 mm
Thickness : 26 mm
Length of wires Stator to grommet : 125 mm
Length of wires grommet to plug : 290 mm & 550 mm

Other specifications :
Number of wires : 6
Number of plugs : 2
Number of pins : 6
Number of poles : 18

Wire to wire resistance :
Alternator: Yellow/Black to Yellow/Black = 0.5 ohms +- 20%

Regulator Dimensions
Width: 84 mm
Length: 90 mm
Height: 32 mm
Fixation holes center to center: 69 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20º to 85º

Relocation Harness
Wires length : 3400 mm
Number of yellow wires : 3
Number of red wires : 1
Number of black wires : 1
Number of plugs : 2

Flywheel Dimensions
Exterior Diameter: 140.6 mm
Interior Diameter: 127.8 mm
Interior Diameter Center Housing: 22.4 mm
Exterior Diameter Center Housing: 50 mm
Thickness (exterior): 49.3 mm
Thickness (interior): 38.7 mm

Diameter of the Shaft largest to the narrowest:

• 37.4 mm
• 27.8 mm
• 22.4 mm

Each bike manufacturer uses different connectors for their indicators. This means that when fitting universal aftermarket indicators you need to cut the original connectors off and replace them with bullet fittings.

Not any more! Simply connect the IndyLeads between the original connector and the universal connector. Simple.

2 pack for front OR rear.

Oxford’s huge range of products encompasses everything that makes life on bikes better: from jackets, pants and boots to accessories, hard parts, locks, luggage and much more! Their market-leading products are designed in- house by a team of active enthusiasts and skilled technicians, based at the company’s 100,000 square-foot purpose-built headquarters in Oxfordshire, UK. With the support of the latest CAD technology, a 3D printing suite and a fully equipped test laboratory, Oxford innovate, analyse, test and develop unique products in pursuit of the best experience for two-wheel enthusiasts.

The Oxford Indicator Spacers cover holes left by standard-sized indicators in your motorcycle's fairing. Sold as a pair for both the left and right spacers, if requiring spacers for the front and rear you will need two packs. The indicator spacers are designed to ensure the perfect fit for Oxfords diverse range of indicators when replacing your broken, damaged or malfunctioning OEM indicators.

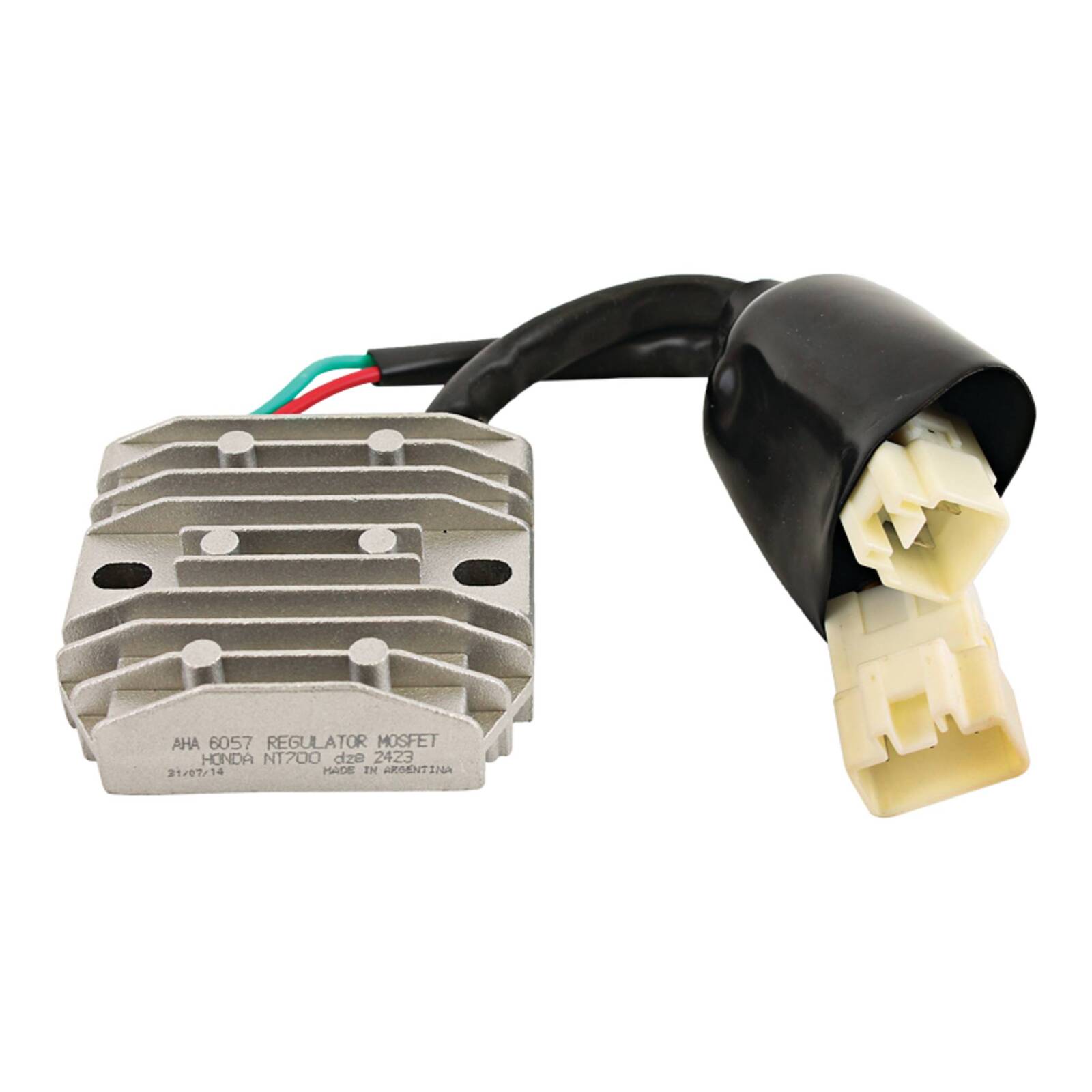

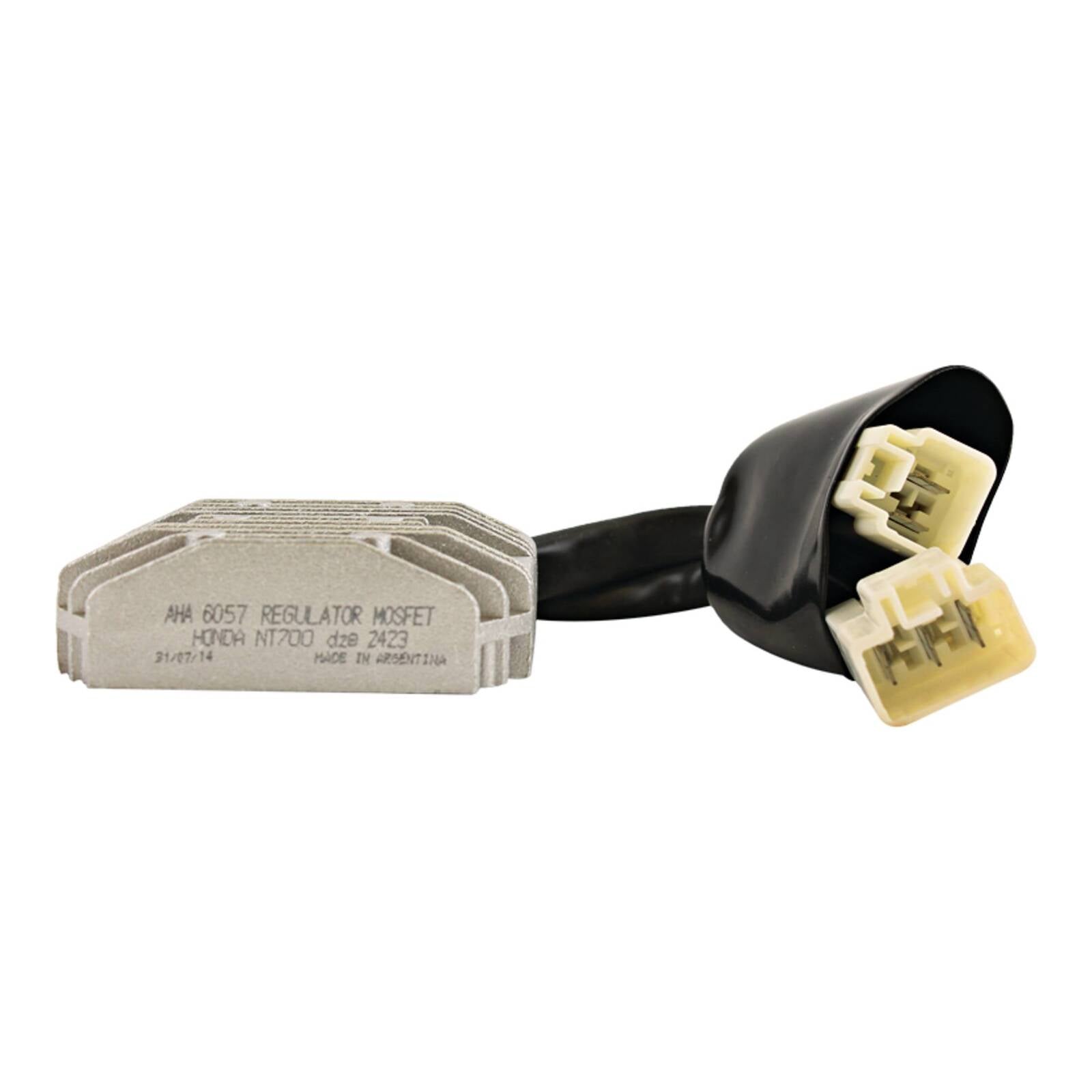

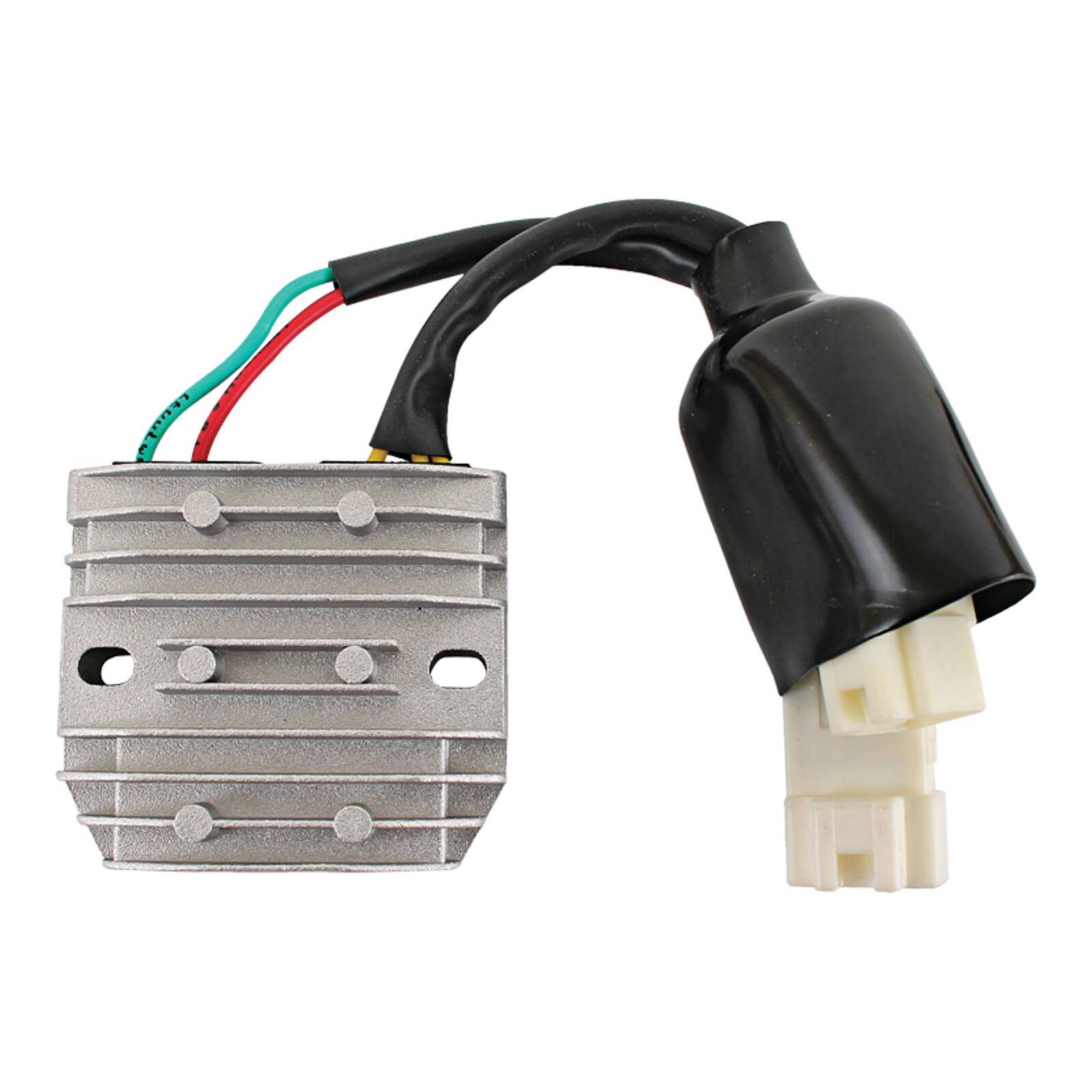

REGULATOR HON TRX250 05-16

Quality replacement Regulator/Rectifiers.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

With certain Yamaha models, the spark plug caps and coils are combined to reduce the number of parts used in order to improve efficiency. However, when the spark plug cap wears out, the cost of the replacement becomes more expensive. If you are experiencing ignition problems this could mean the ignition cap coil needs to be replaced. Simple, easy to install, affordable, and improves engine performance.

Features:

• Direct replacement to your original unit.
• The quality exceeds the OEM equipment.

Specifications:

• Spark plug hole external diameter (bottom): 16.6 mm
• Spark plug hole internal diameter (bottom): 9 mm
• Length: 130 mm
• Seal diameter: 37.5 mm
• Seal length: 18 mm
• Number of terminals: 2
• Resistance: 1.3 ohms

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

New replacement meets or exceeds the original manufacturer's specifications.

Features:

• 100% OEM interchangeable.
• OEM style connectors.
• Stock mounting locations.
• Designed to handle increased power loads.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Start Switch for Kawasaki KLX off-road motorcycles

Brand new aftermarket 2-Positions Ignition Key Switch.

• Direct replacement to your original unit

• Plug-and-play, direct fit, easy installation

• Two keys included

• Connectors included

• All products shipped are tested

Dimensions:

• He ight: 29 mm
• Length: 46.5 mm
• Width: 29 mm
• Wires length: 330 mm

Other Specifications:

• Number of wires: 4
• Number of plugs: 1
• Number of keys: 2
• Number of positions: 2 (off, on)

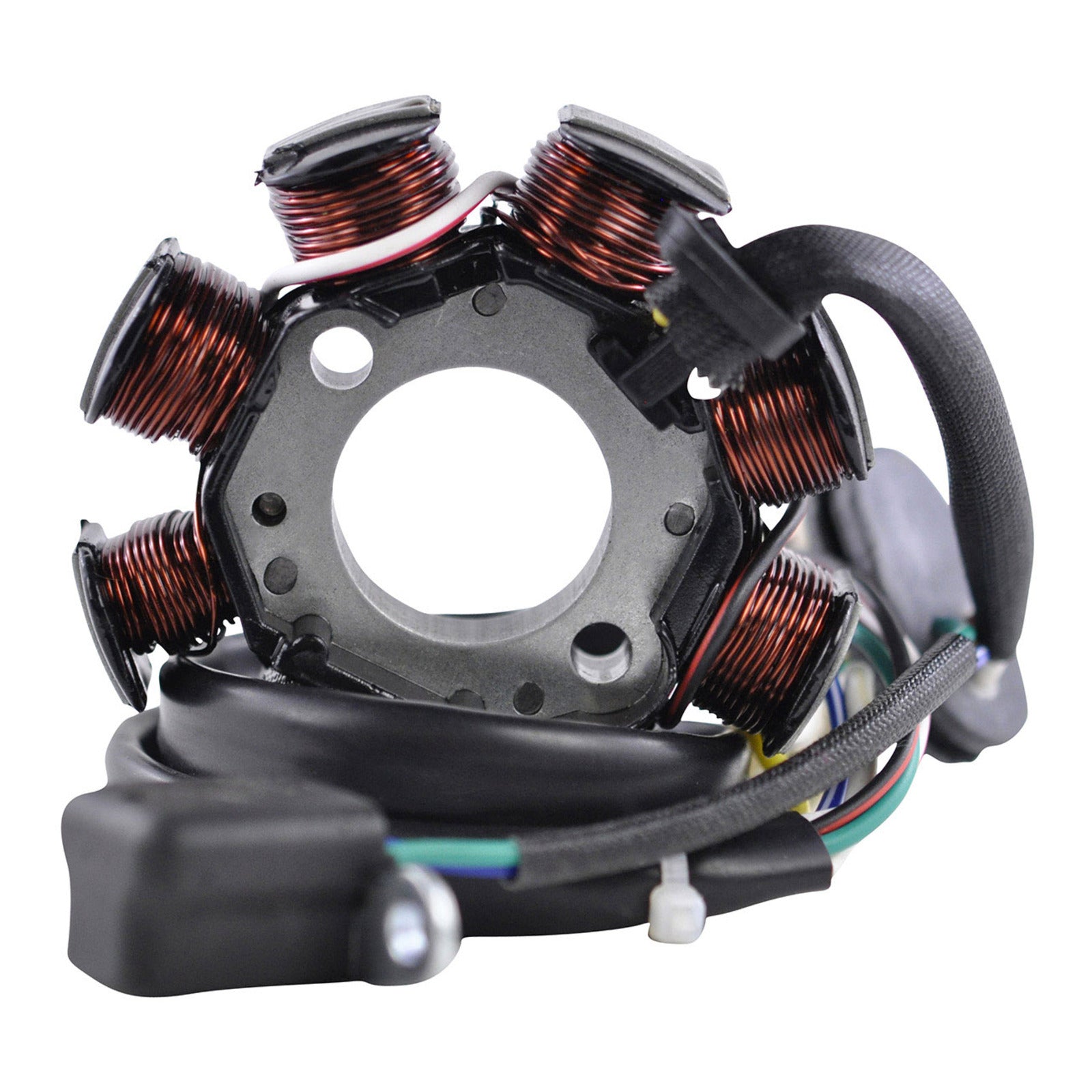

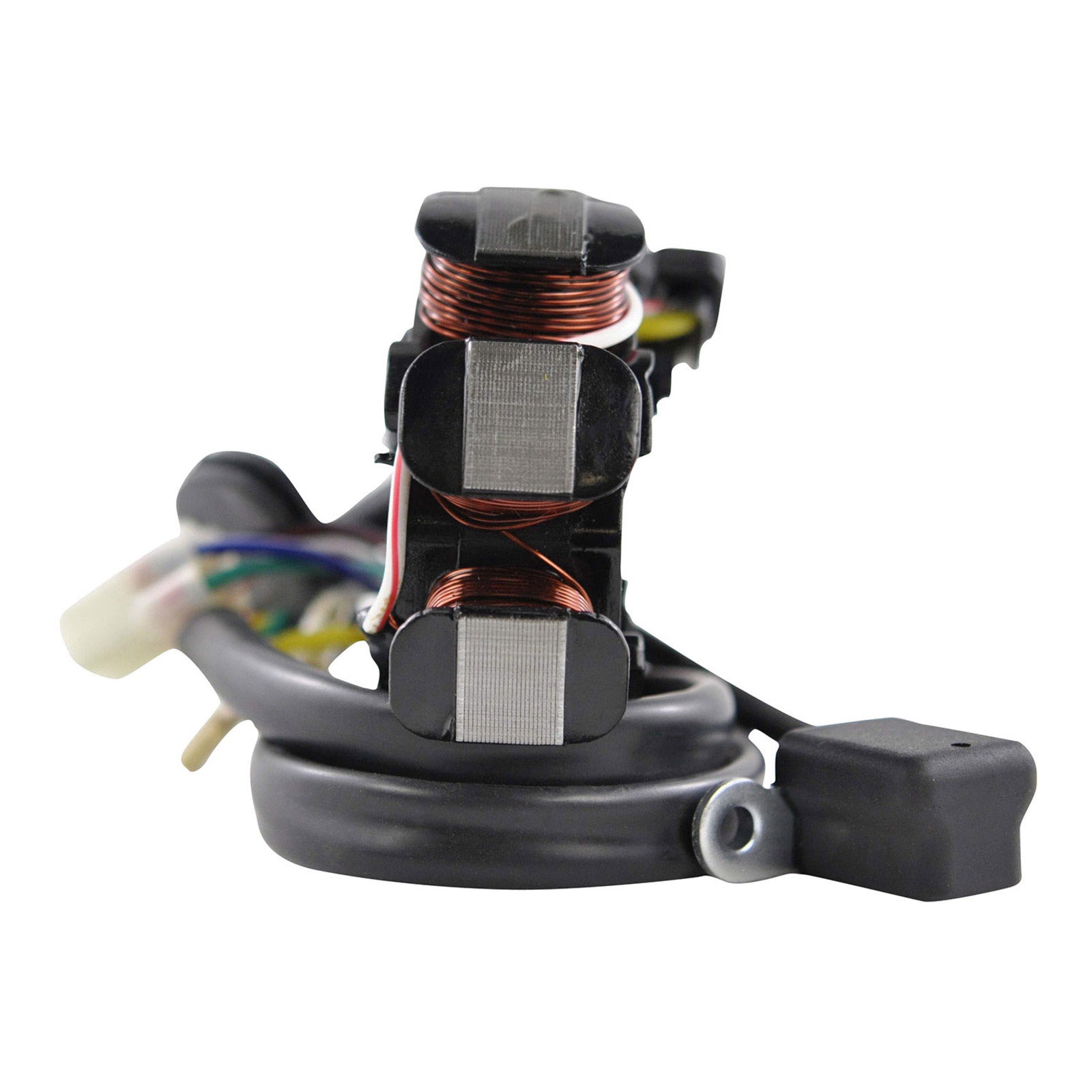

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

A faulty air temperature or pressure sensor can cause rough idling, reduced power, poor fuel economy, and increased emissions. Meanwhile, inaccurate readings can hide overheating issues, light a check engine light or even put your machine in limp mode, all putting your engine at risk of severe damage.

Replacing faulty sensor restores reliable performance monitoring, ensuring your machine runs safely and efficiently under all riding conditions.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

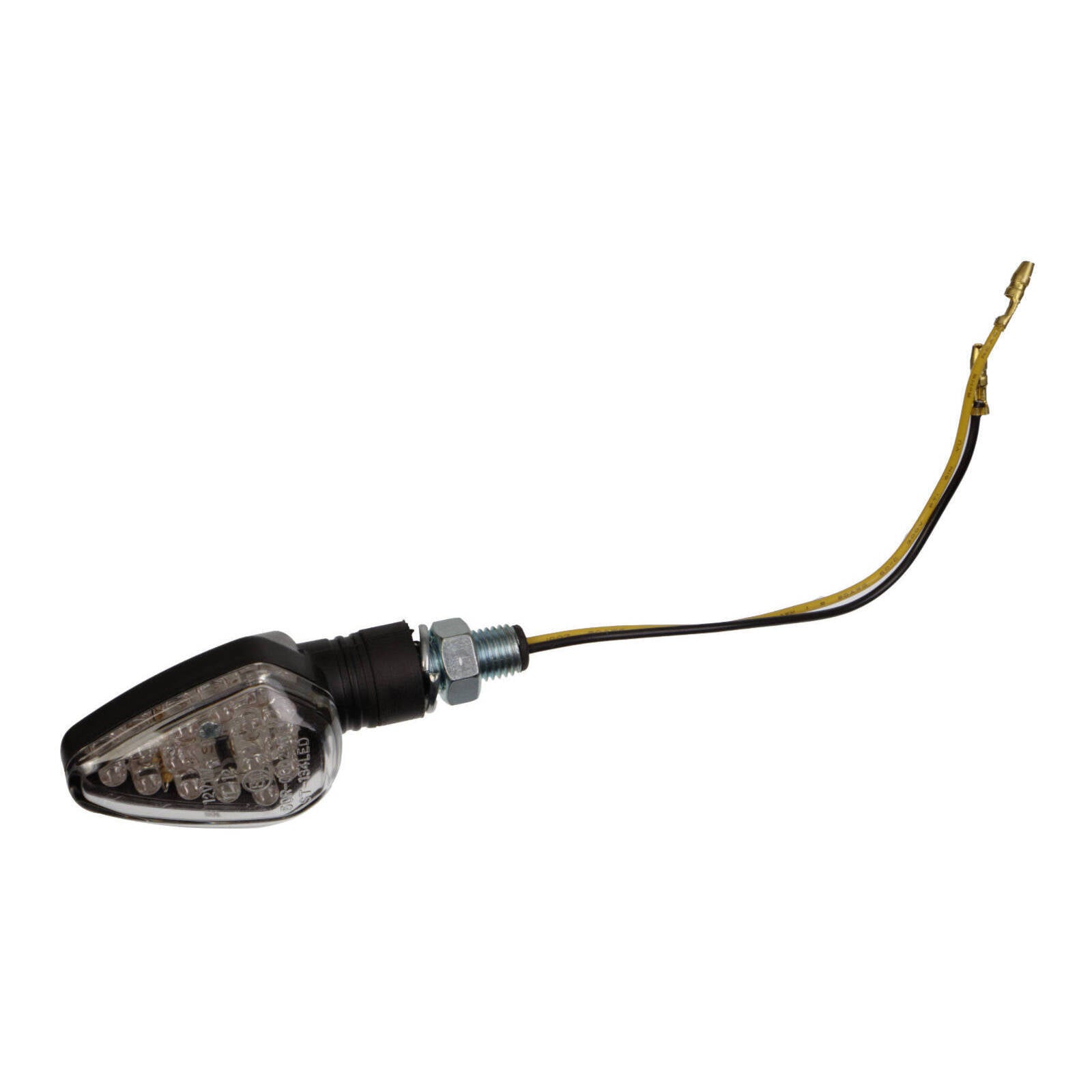

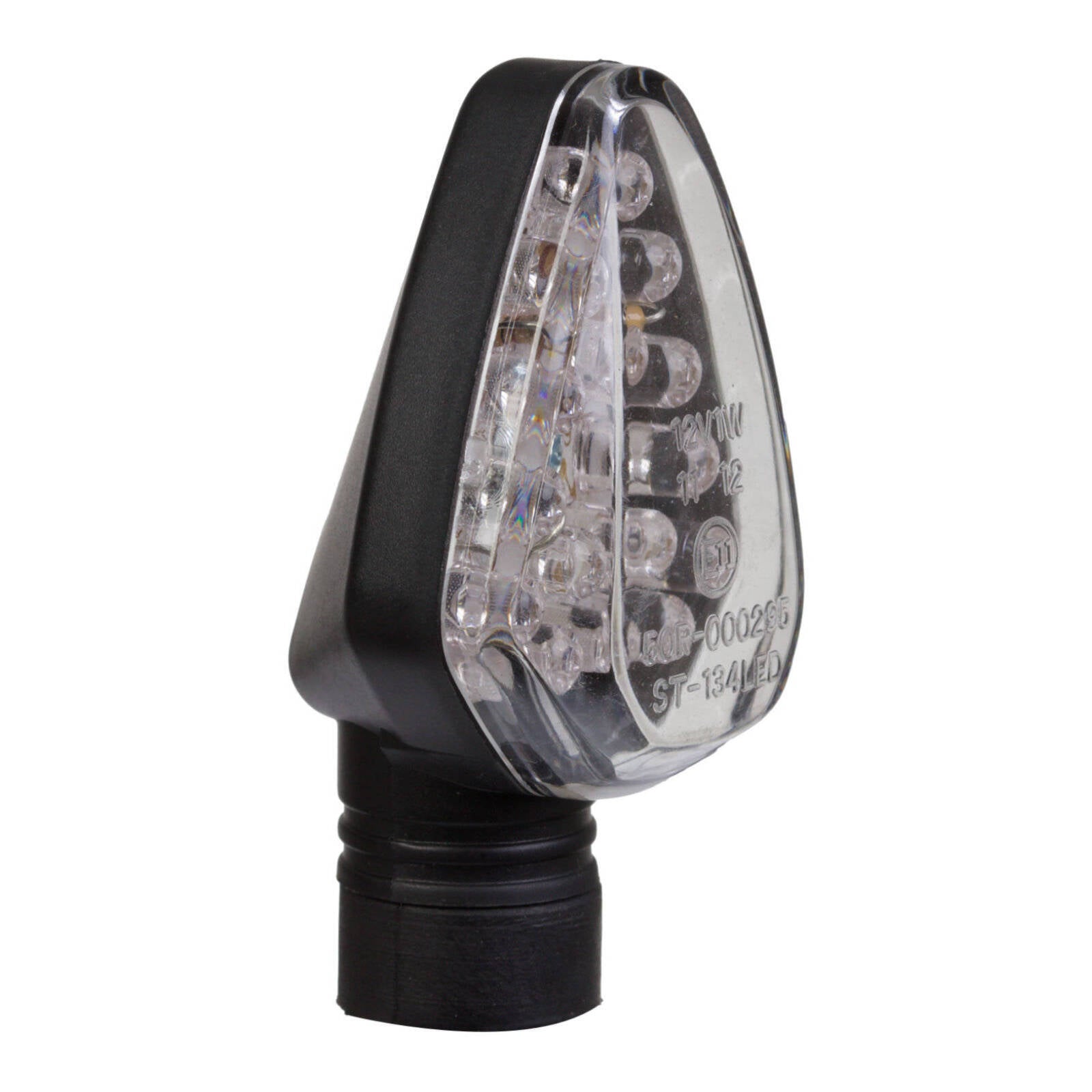

Whites lighting range is a collection of high-quality indicators (flashers), tail lamps, headlights and more. Available as direct OEM replacements and universal fitments for those one-off custom rides. Offered in a range of shapes, sizes, styles and mounting options Whites are here for your motorcycle lighting solutions.

Whites Universal fitting flashers are a great alternative to pricey and boring OEM indicators. Perfect for those one-off custom rides or additional style for your off the showroom floor ride. Built to high-quality specifications with durable construction for long-lasting life. Sold as a pair to ensure a matching look and reducing cost.

• Universal fitment
• E-Marked
• Sold as a pair
• Great OEM replacement
• Ideal for one-off custom machines
• Colour: Black
• Shape: Spear
• Light Type: LED

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Whites Tail Light Assemblies provide a cost-effective option when needed for your ATV or UTV.

Features:

• Available to suit many popular makes, models, and years.
• Direct "bolt-in" replacement; no modification required.

Note: Whites ATV and UTV replacement taillights are designed for off-highway applications only. The lenses on these taillights do not have E-marks, which are required for road vehicle compliance.

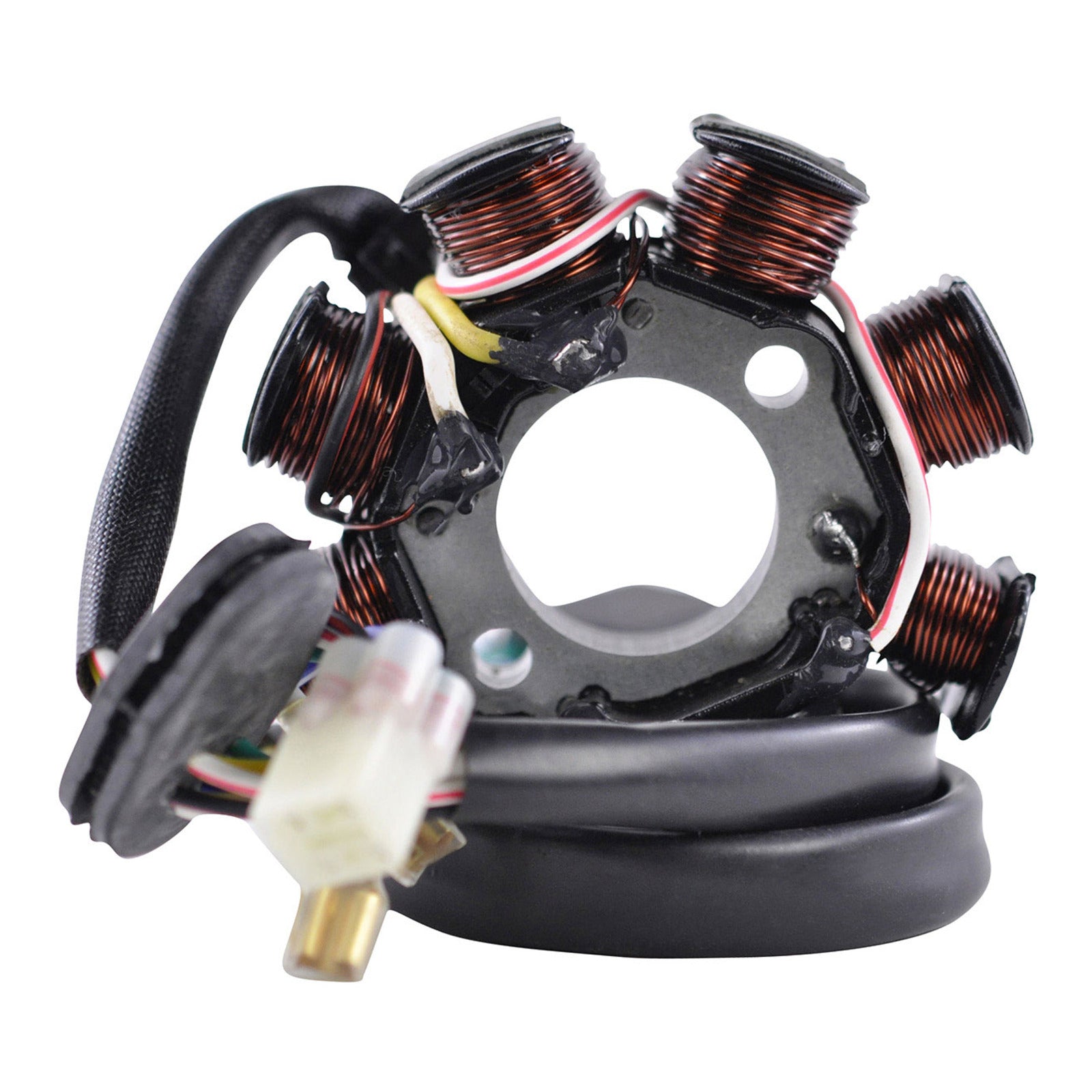

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

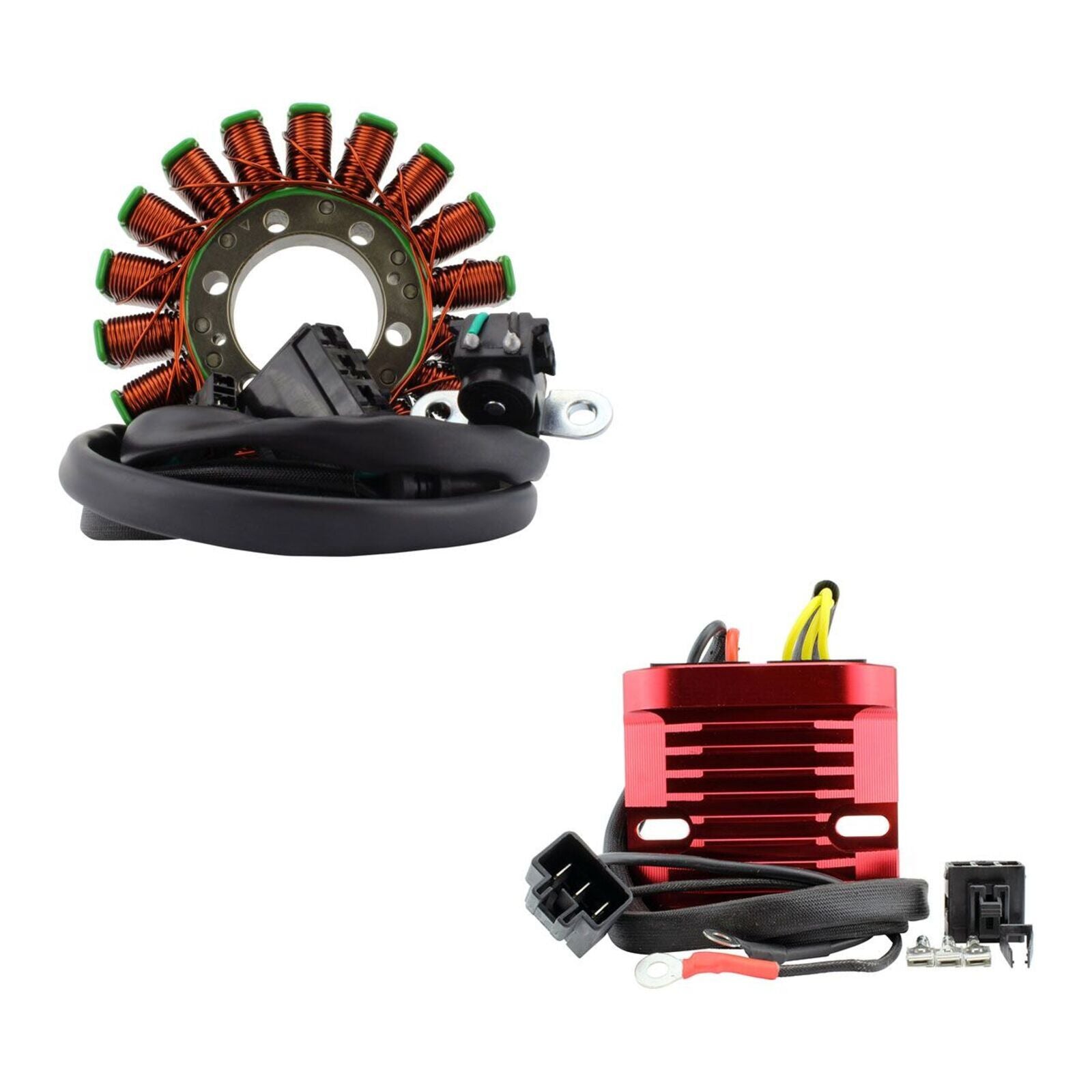

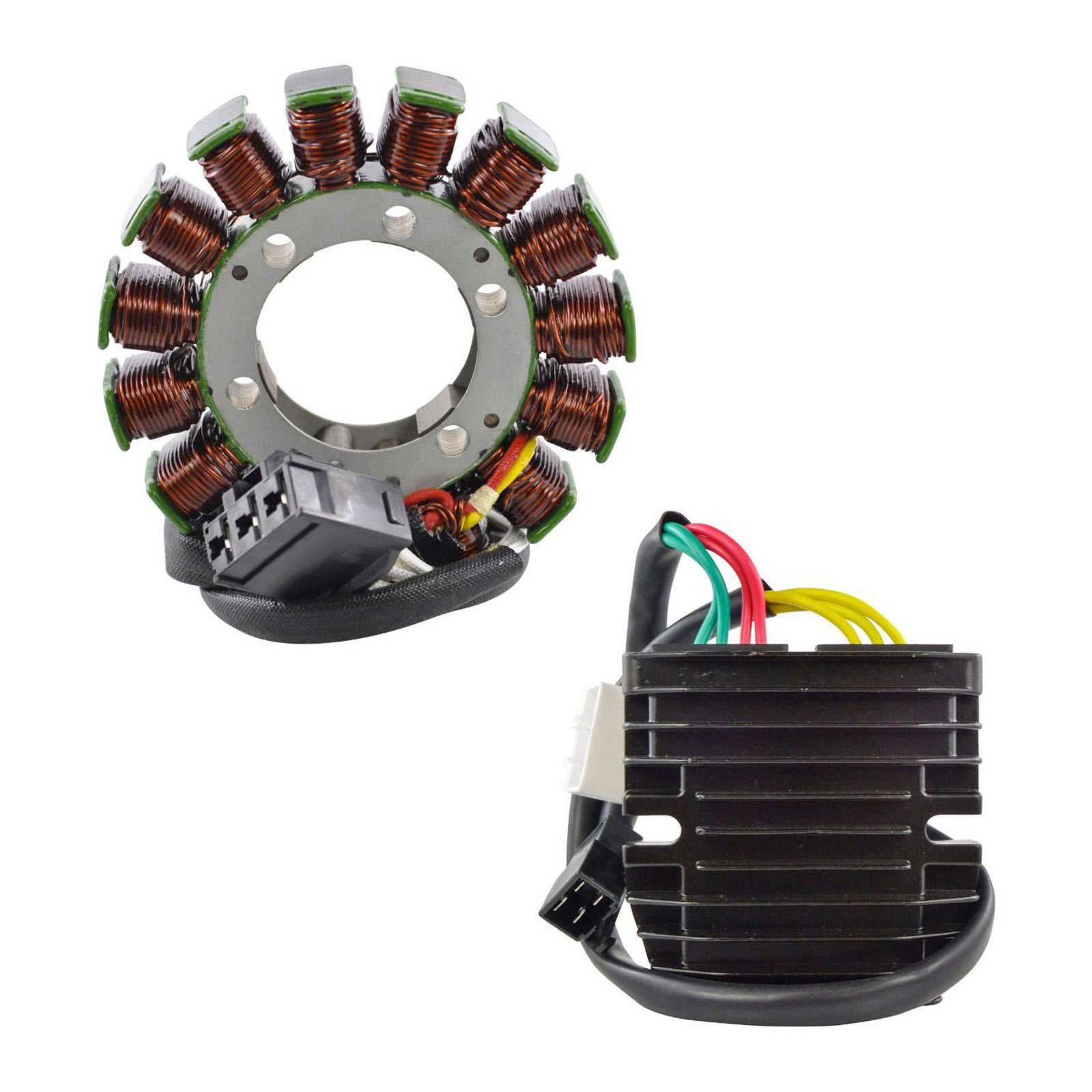

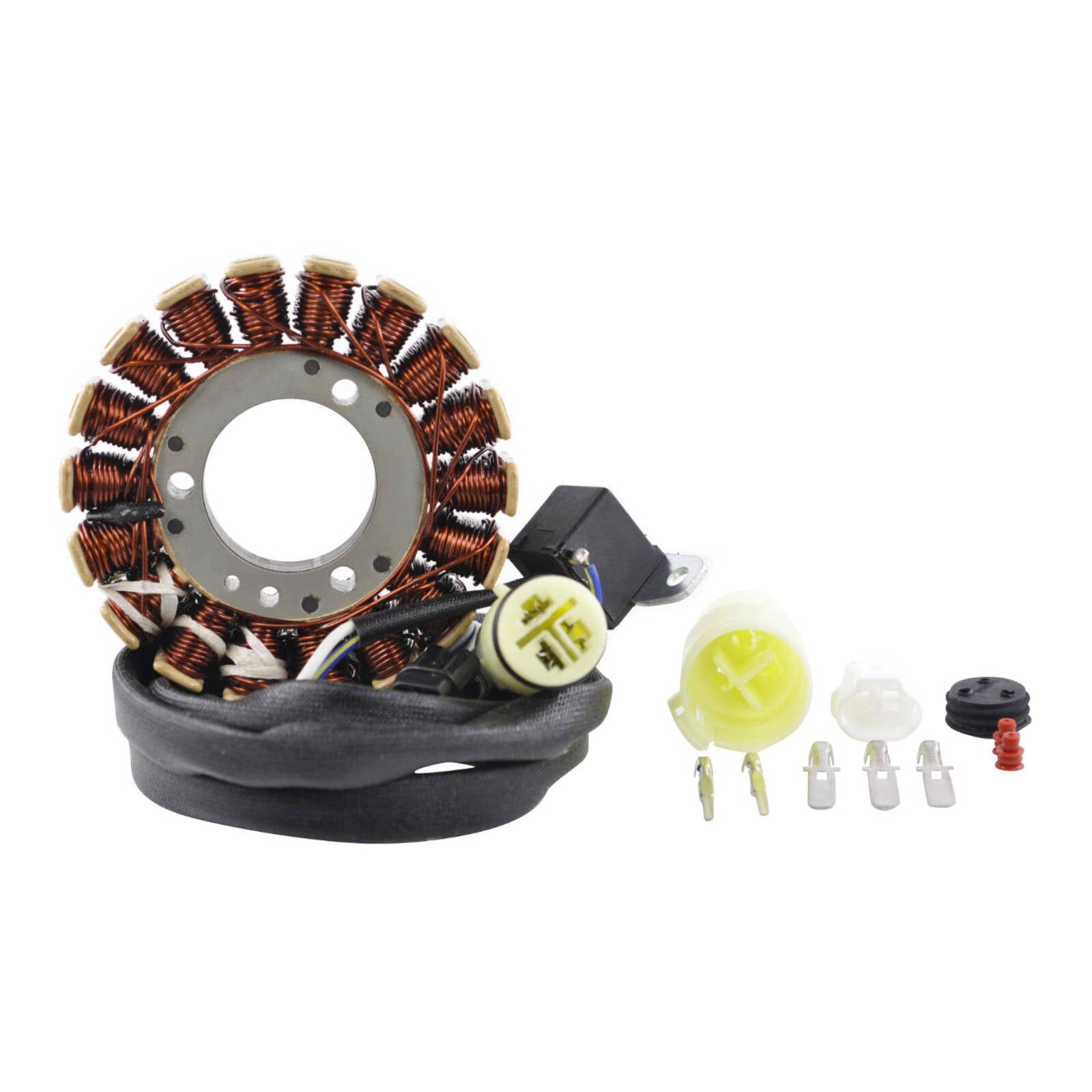

Kit Generator Stator + Mosfet Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested
• All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part

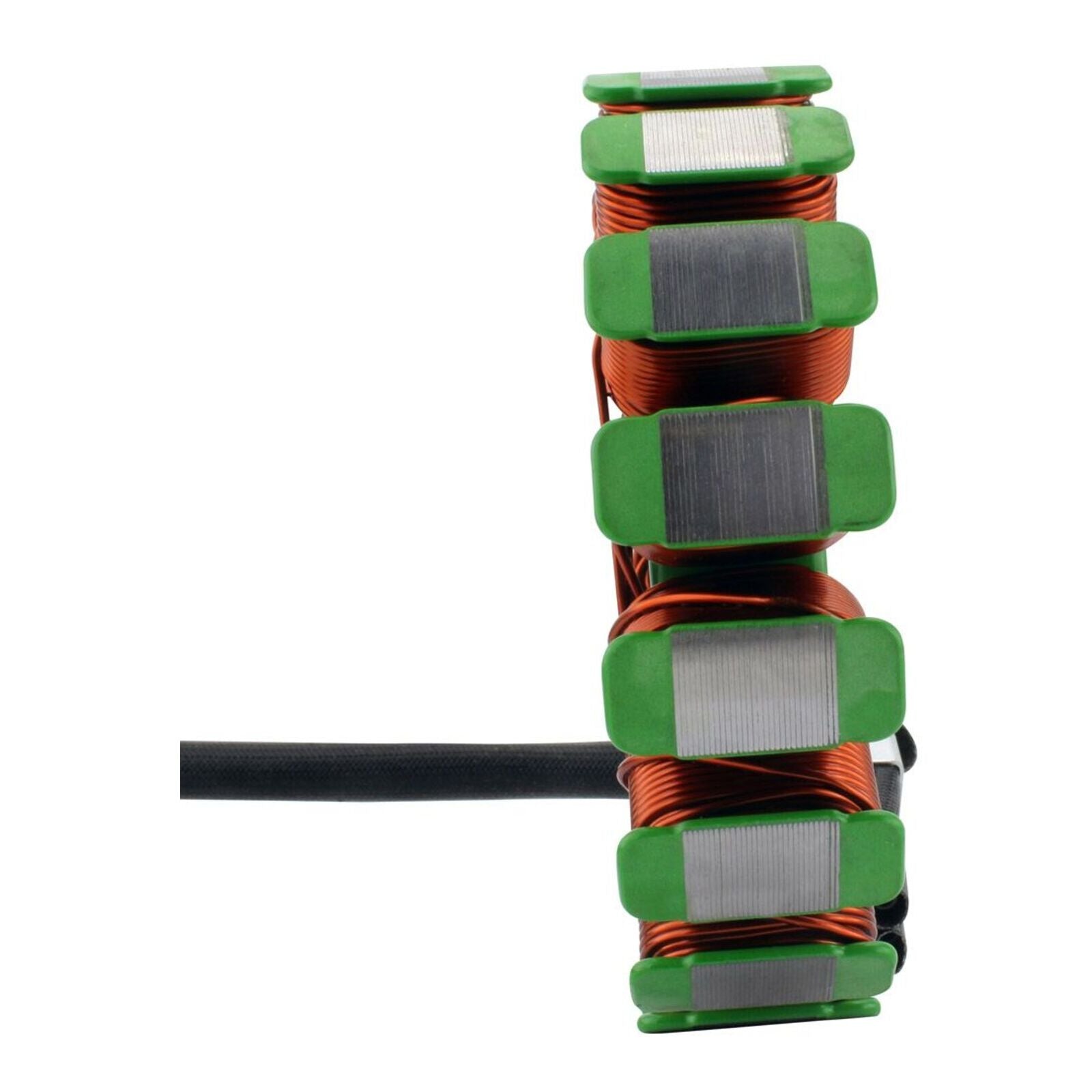

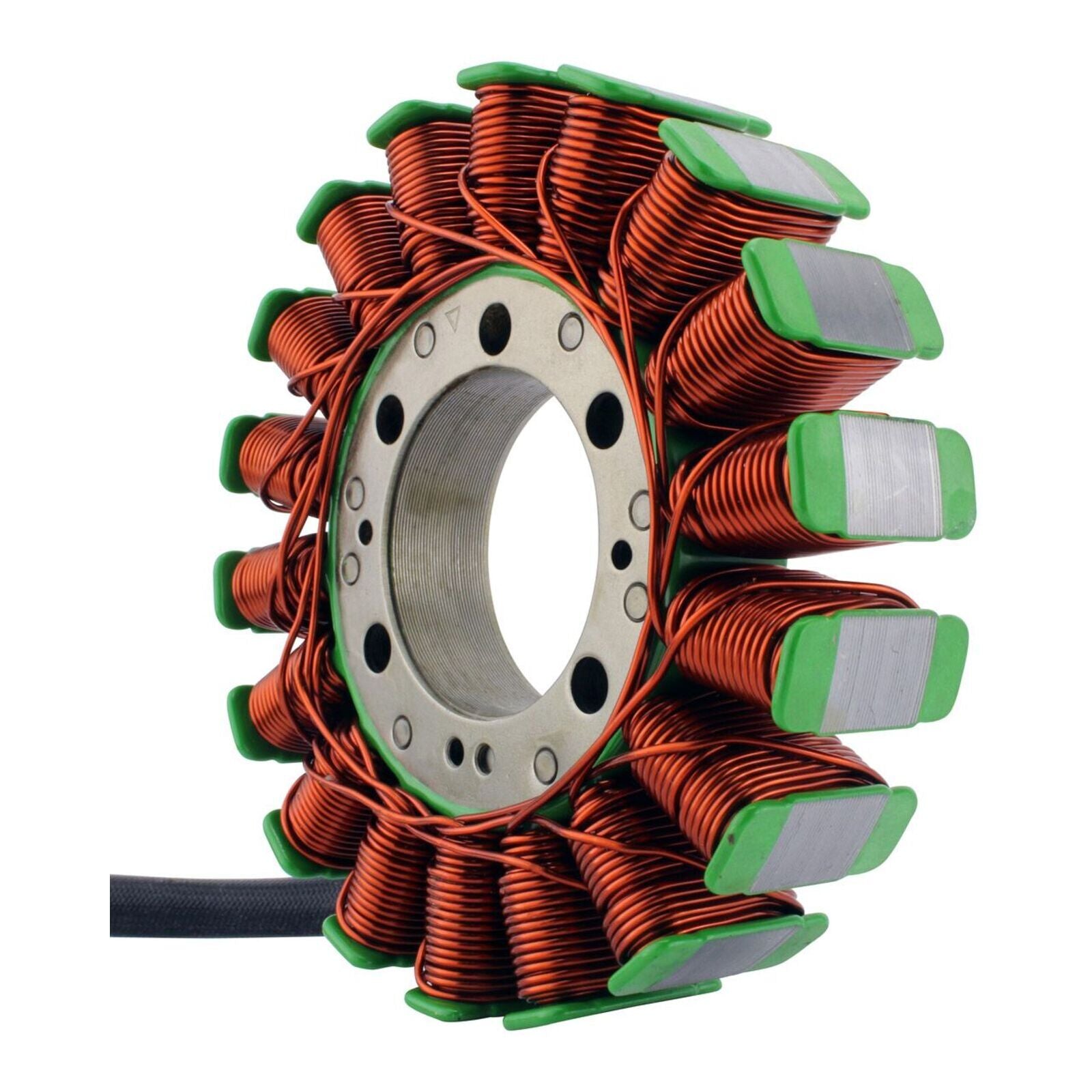

Brand new aftermarket stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included
• Rubber grommet included

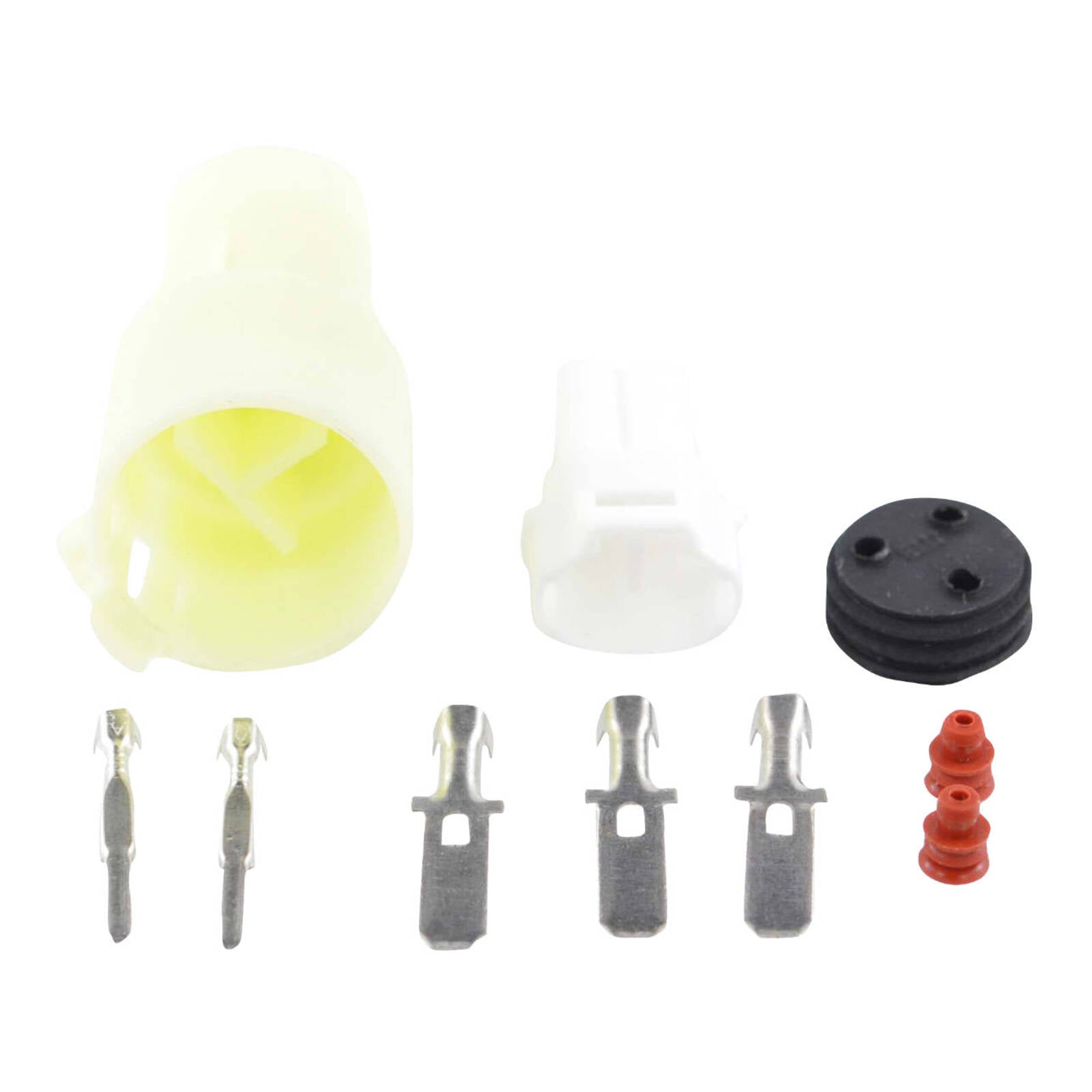

We have even included the opposite connector (main harness side), as we know these are often melted / corroded/defective and a major cause of repetitive electrical issues.

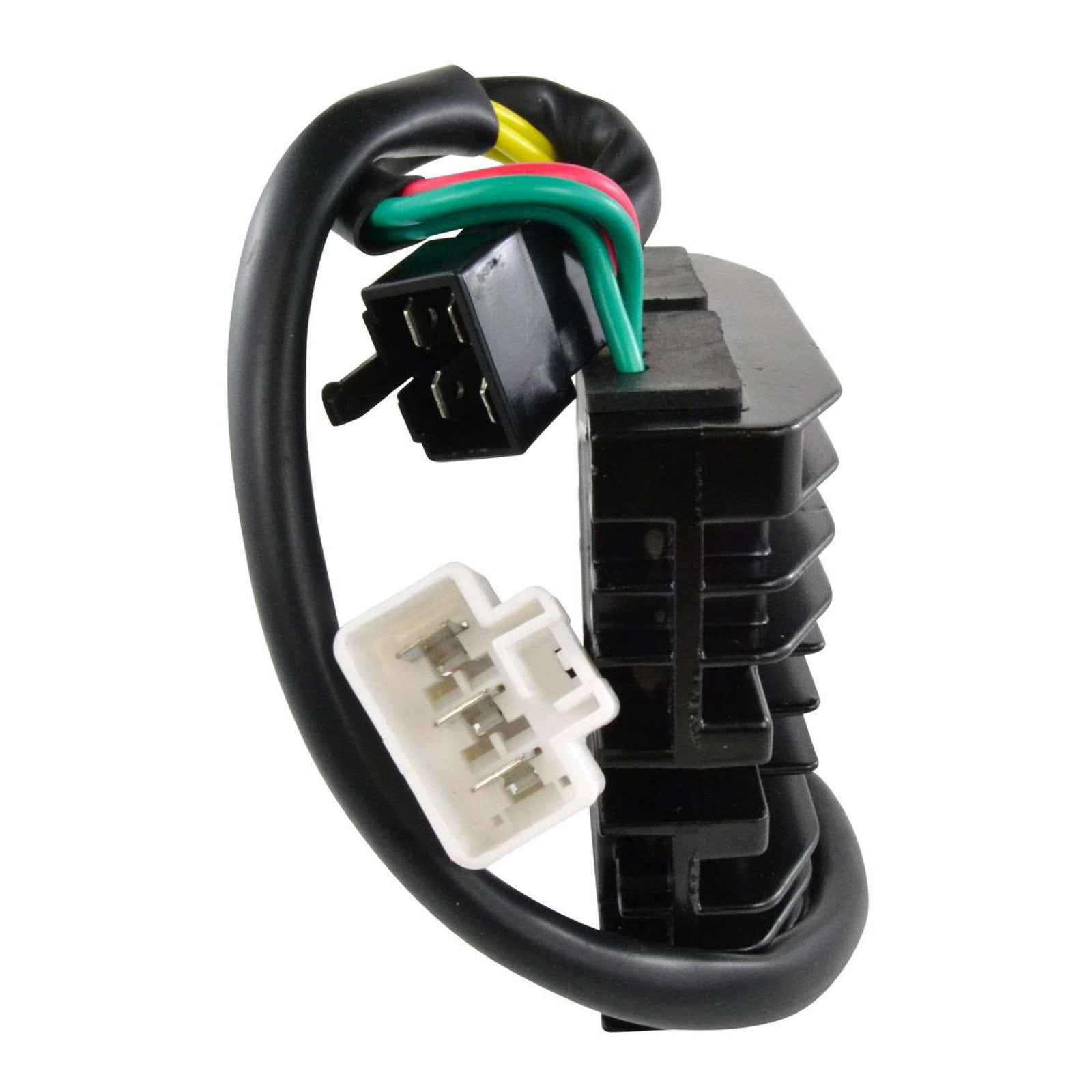

Brand new Mosfet voltage regulator rectifier

STOP BURNING YOUR REGULATOR RECTIFIER!
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode-style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

• Plug-and-play, direct fit, easy installation
• The quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components

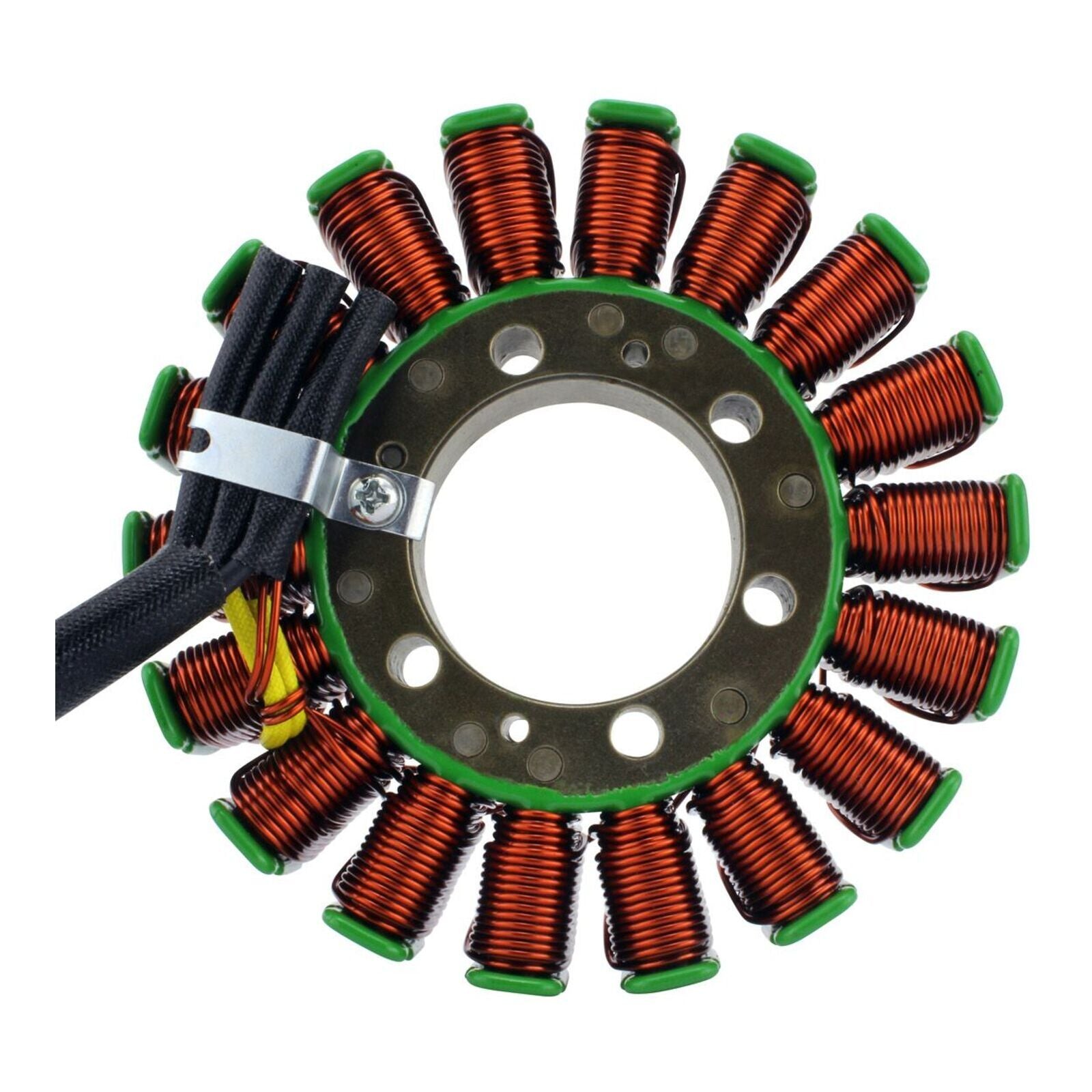

Generator Stator

Dimensions:
Interior diameter: 42 mm
Exterior diameter: 115 mm
Thickness: 18 mm
Length of wires stator to grommet: 240 mm
Length of wires grommet to plug: 190 mm & 880 mm
Length of pickup coil's wire to grommet: 270 mm

Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: Black to Black = 0.6 ohms +-20%
Alternator: to ground = O.L
Pickup: Green to black = 240 ohms +-20%

RMSTATOR Red Machined Aluminum Mosfet Regulator

Dimensions:
Width: 95 mm
Length: 90 mm
Height: 30 mm
Wires length: 1010 mm & 350 mm
Fixation holes center to center: 75 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° to 85°

Can-Am G2's OEM taillights may suffer from issues in their incandescent lighting design, which can generate excessive heat, leading to the melting of the bulb socket and lamp housing, ultimately making the taillight unusable.

Replace your OEM taillights with Whites' all-new LED replacement unit.

Features:

• LED illumination generates less heat than incandescent lighting, which helps extend the unit's lifespan and enhances the brightness of the rear glow thanks to its efficient design.
• Direct "bolt-in" replacement; no modification required. Simple plug-n-play fitting.

Kit Generator Stator + Mosfet Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

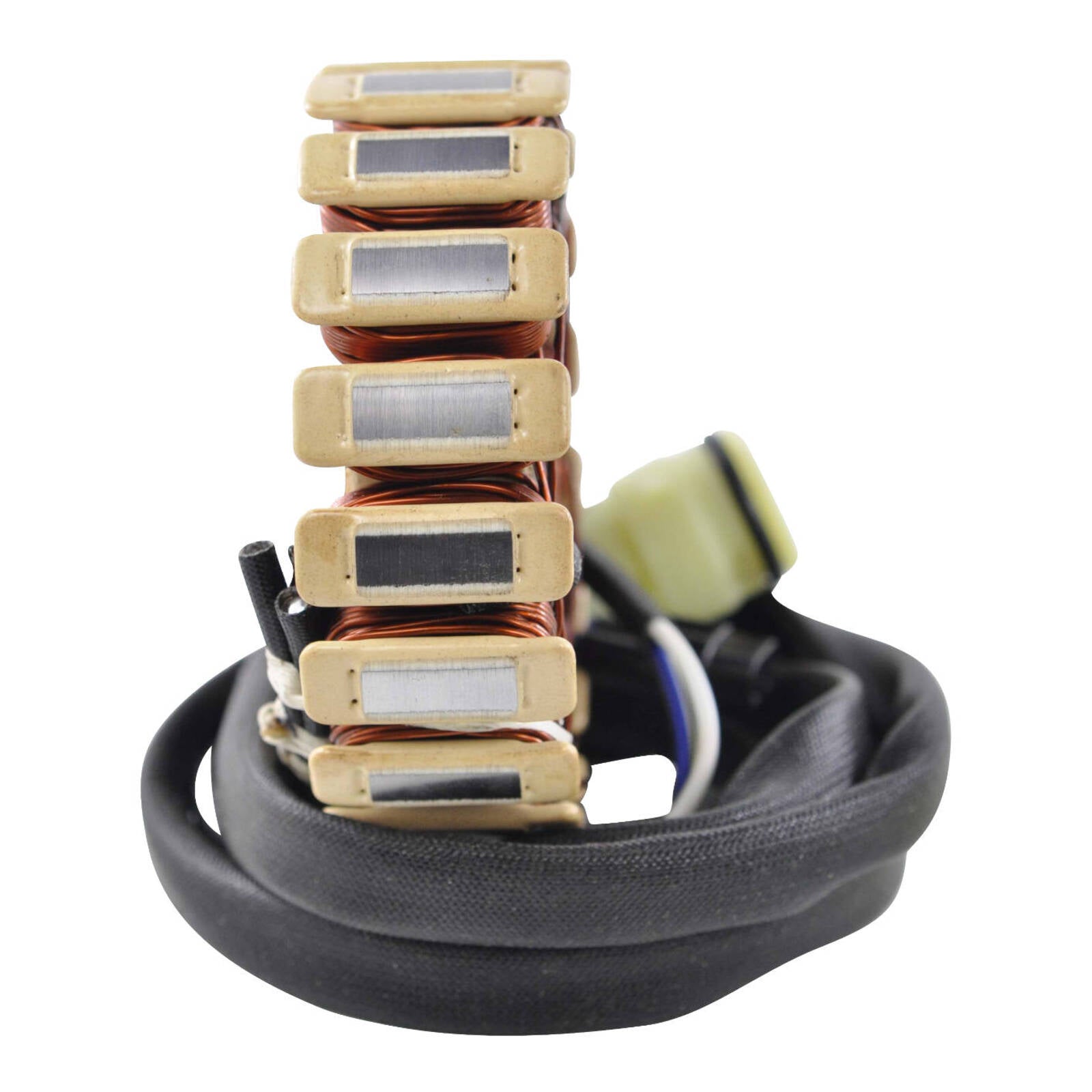

Brand new aftermarket stator

• Highest-grade lamination materials
• Highest-grade copper windings, resistant to 200 degrees Celsius.

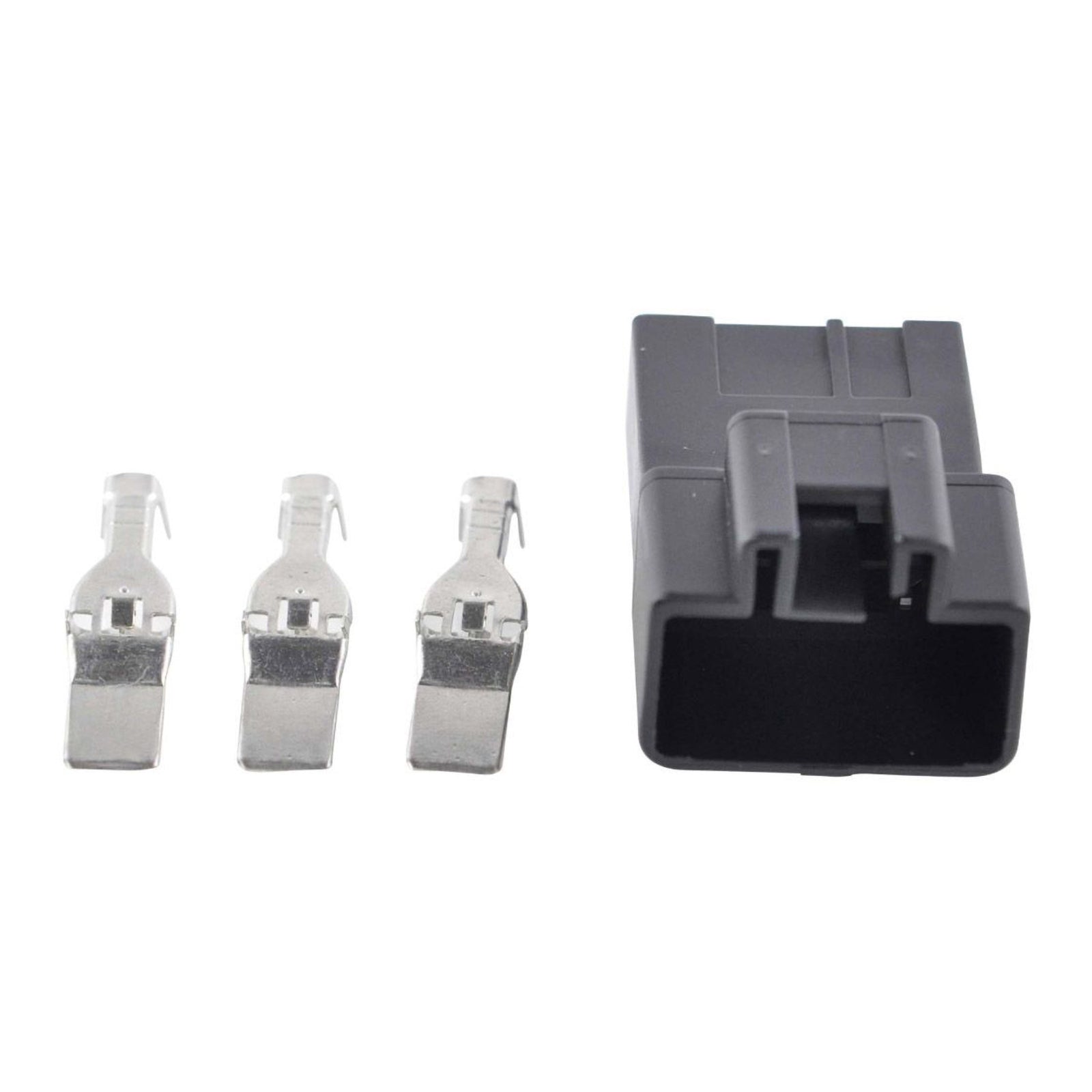

• Connector included
• Rubber grommet included

We have even included the opposite connector (main harness side), as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

Brand new Mosfet voltage regulator rectifier

STOP BURNING YOUR REGULATOR RECTIFIER!

It is time to update or replace your voltage regulator with the advanced MOSFET type.

It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up, it will simply turn off for a while and cool off.

• Plug-and-play, direct fit, easy installation
• The quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components

Why use Mosfet Enhanced technology?

• Runs cooler: Runs much cooler than the traditional Shunt voltage regulator rectifier.
• Saves gas: Less load on the stator, less work, less fuel is used and you save.
• Regulated energy: The power charging your battery is steadier and smooth.
• Extended battery life: Extends the battery’s life and cold cranking capacity.
• More engine power: Removes stator load resulting in more engine power.
• Optimized power: Optimize power delivery by switching the stator coils on or off.

With Enhanced Technology Design

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

Specifications:

• Dim ensions Stator:
• Interior diameter: 42 mm
• Exterior diameter: 115 mm
• Thickness: 16 mm
• Length of wires stator to grommet: 90 mm
• Length of wires grommet to plug: 300 mm
• Other specifications:
• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3
• Wire-to-wire resistance:
• Alternator : Between each White = 0.4 ohms +/-20%
• Mosfet Voltage Regulator Rectifier Dimensions:
• Width: 95 mm
• Length: 95 mm
• Height: 28 mm
• Fixation holes center to center: 80 mm
• Wires length: 150 mm & 400 mm
• Other specifications:
• Number of plugs: 2
• Number of pins: 7
• Number of wires: 7
• Minimum Charging Voltage: 14.5 V +/- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: 15 V
• Operation Temperature: -20° C to 85° C

Note:

• Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
• When using our Aprilia MOSFET regulator on Tuono V4 applications, the larger regulator housing is a very tight fit. It may require slight cutting, grinding, or modification to the plastic mounting area to clear the larger housing and wiring harness.

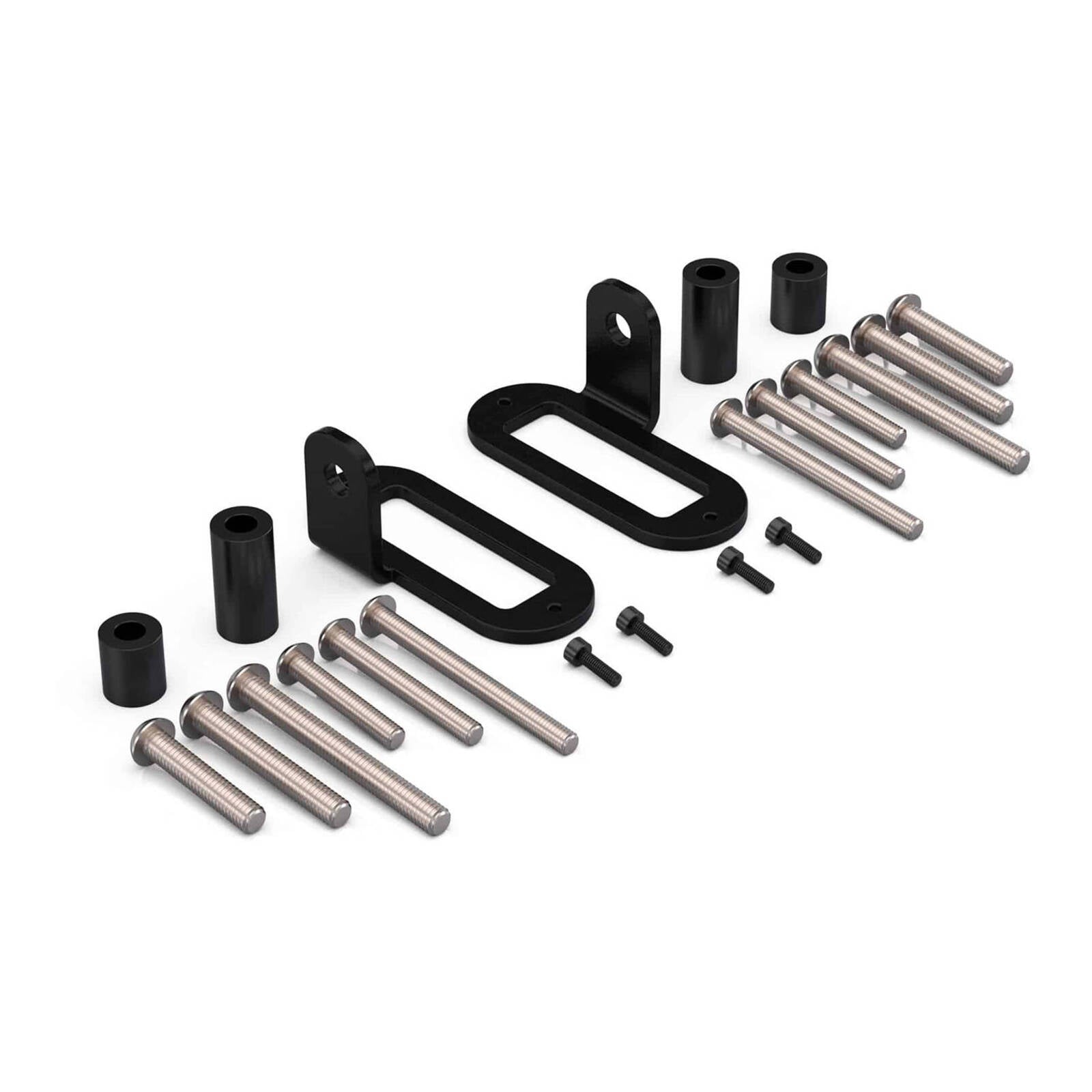

These low-profile steel mounting brackets allow you to mount front or rear T3 Signal Pods to any M5 or M6 mounting hole. Purpose-built to mount T3 Signal Pods to motorcycle front fender bolts, the kit includes multiple spacers and a variety of M5 and M6 bots to ensure a proper fit on your vehicle.

What's In the Box?

• 2x Fender Mounting Brackets
• 1x M6 Hardware Kit
• 1x M5 Hardware Kit

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• 50mm x 1.5 Right hand Female
• Includes crankshaft thread protector cap

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• RM STATORs PeakRPM technology provides a more aggressive timing curve for increased throttle response
• Ride at full throttle with our application-specific CDI box that raises the rev limiter by 1000 RPM
• Enjoy fast & easy installation with our plug & play design and included dielectric connector grease
• OEM-grade electronic components and printed circuit boards for long-term reliability and performance
• 90% of ignition issues are caused by a faulty stator. Fully test ignition components before buying

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Produced in the U.S.A. with the latest materials and technology in gasket production to Vertex specifications. Vertex gaskets ensure long-lasting performance and leak prevention for your rebuild needs.

• Ignition cover gasket
• Designed to fit O.E.M. cover

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

IGNITION COIL HON TRX300 94-97

Quality replacement Ignition Coils.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
