ELECTRICAL

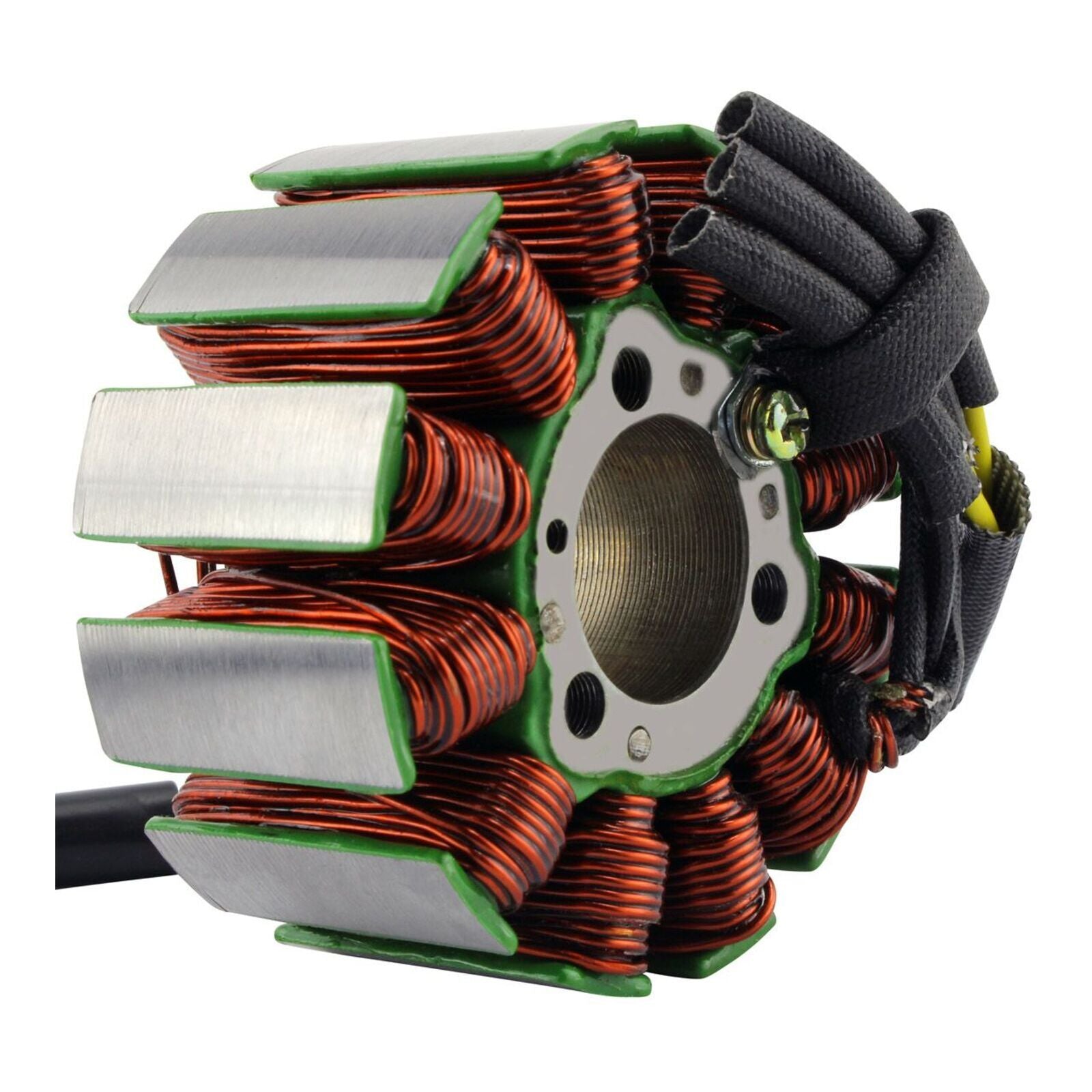

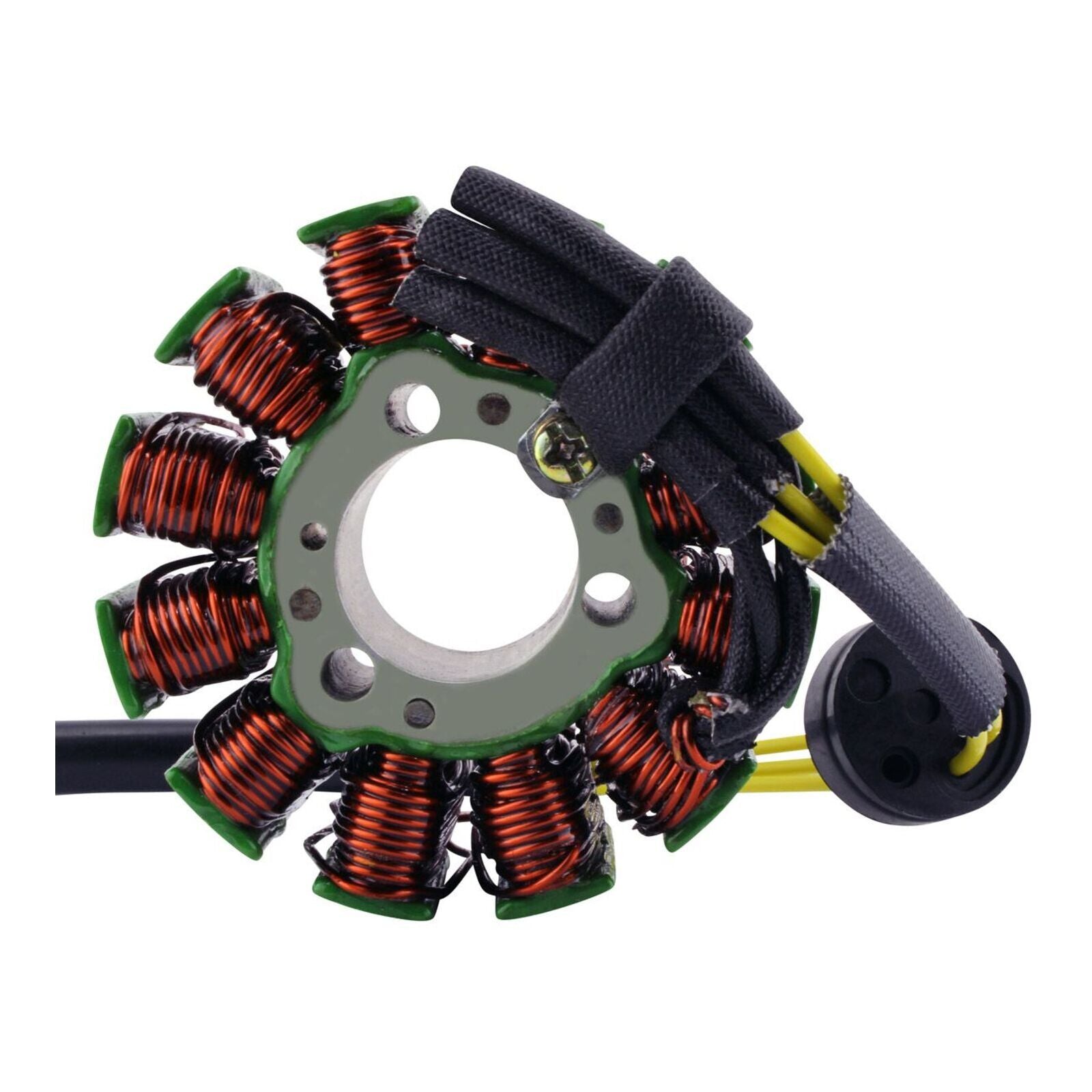

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Put the spark back in your ride with a Whites Electrical Coil. Manufactured as a direct OEM replacement while meeting or exceeding OEM specifications, it will mount with ease and outperform that worn out coil. Whites Ignition Coil's are the perfect cost-effective alternative to OEM ignition coils, with a vast range of applications available.

Features:

• Cost-effective OEM alternative.
• OEM replacement.
• Manufactured to meet or exceed OEM specifications.
• Diverse applications.
• Voltage: 12V
• Primary (ohm): 1.46 ohm
• Secondary (ohm): 10.67k ohm
• Holes Centres: 80mm

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

New replacement meets or exceeds the original manufacturer's specifications.

Features:

• 100% OEM interchangeable.
• OEM style connectors.
• Stock mounting locations.
• Designed to handle increased power loads.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Quality ignition switch for Honda CT11O.

Whites Kill Switches are high-quality OEM styled replacement kill switches. Including the bar mount and bolt, wire it up and you're ready to rip. The fully waterproof button and heavy duty covered wire prevents water entering and shorting the switch. OEM style, shape and plug ensures a quick and easy installation.

Features:

• OEM replacement.
• Quick and easy installation.
• Fully waterproof.
• OEM style, shape and plug.

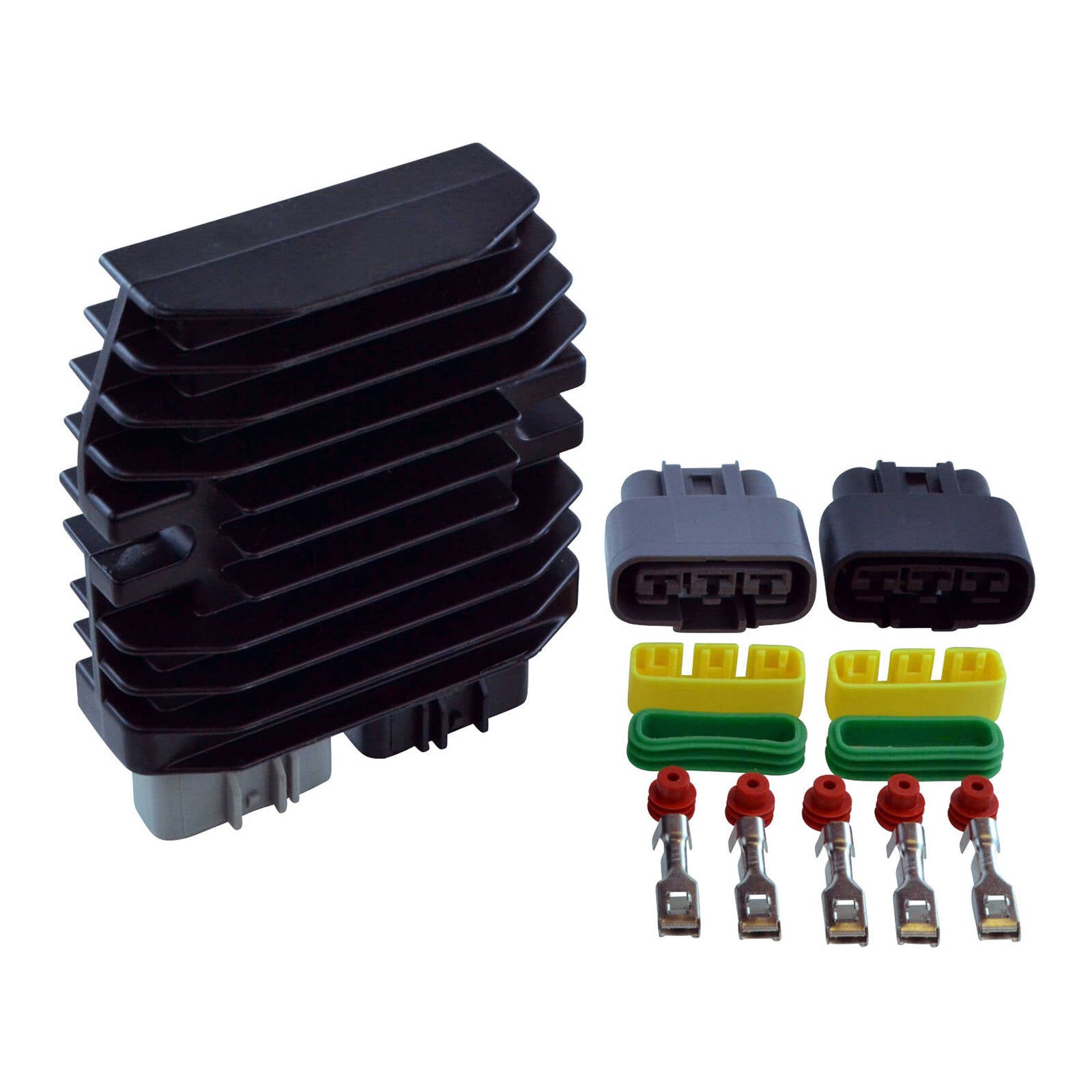

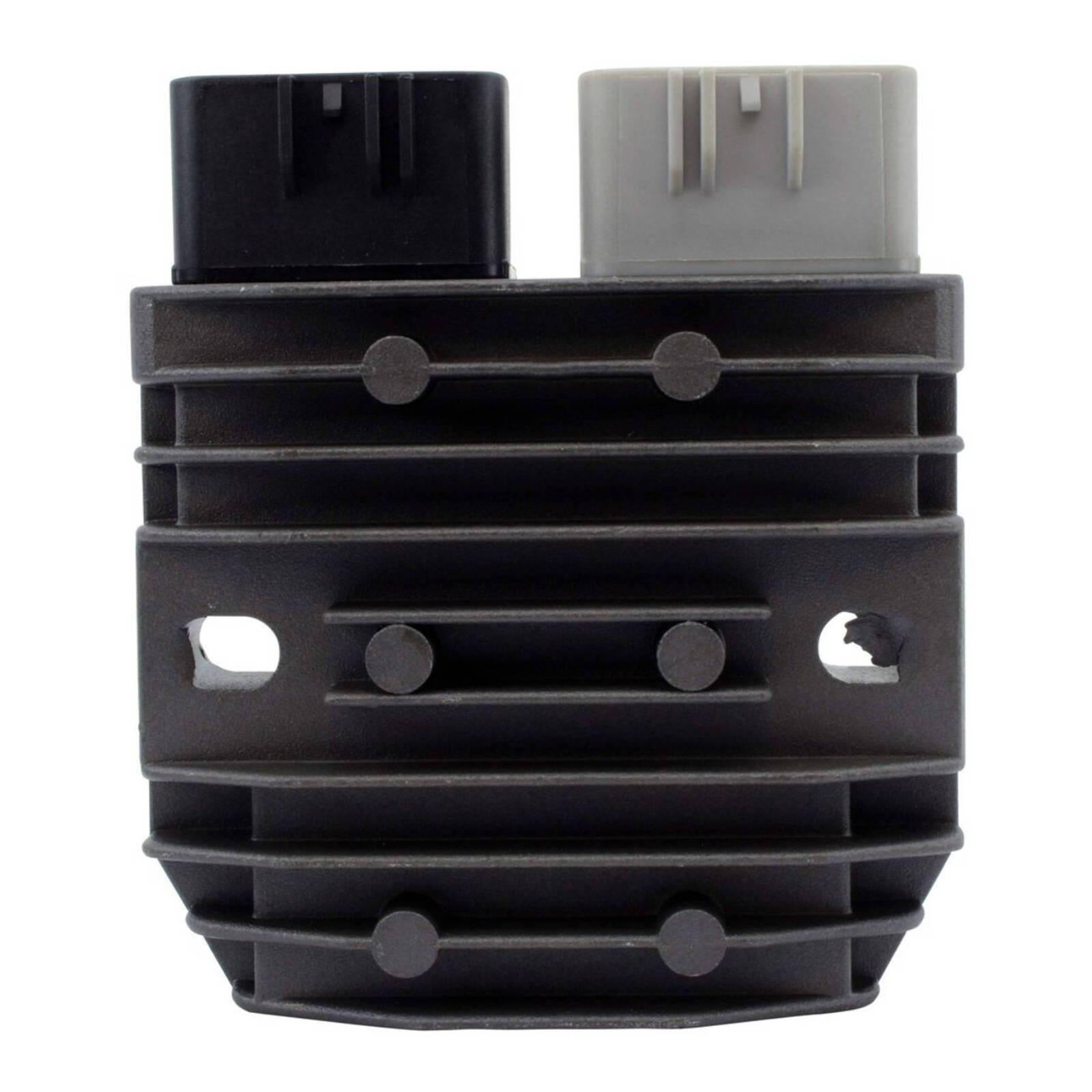

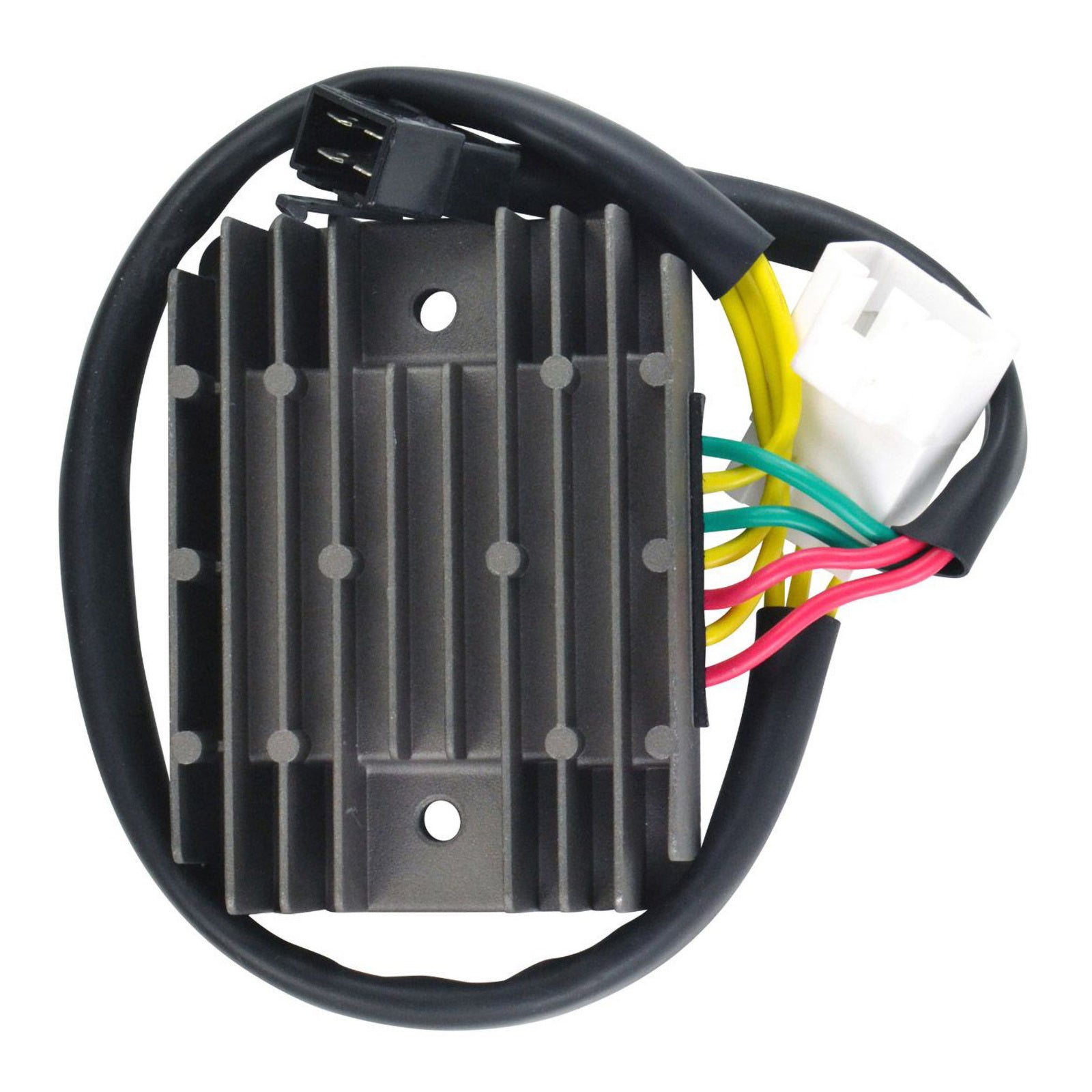

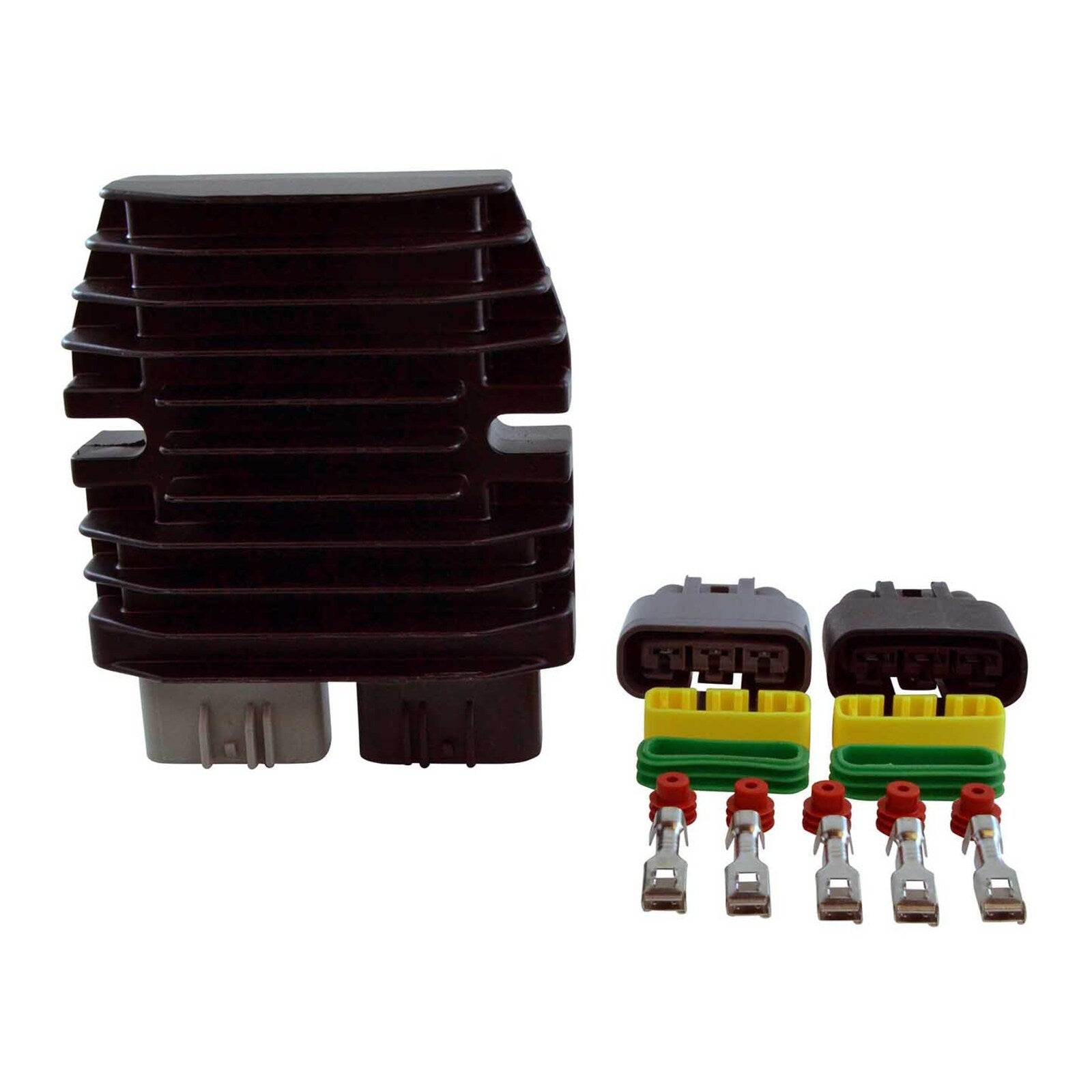

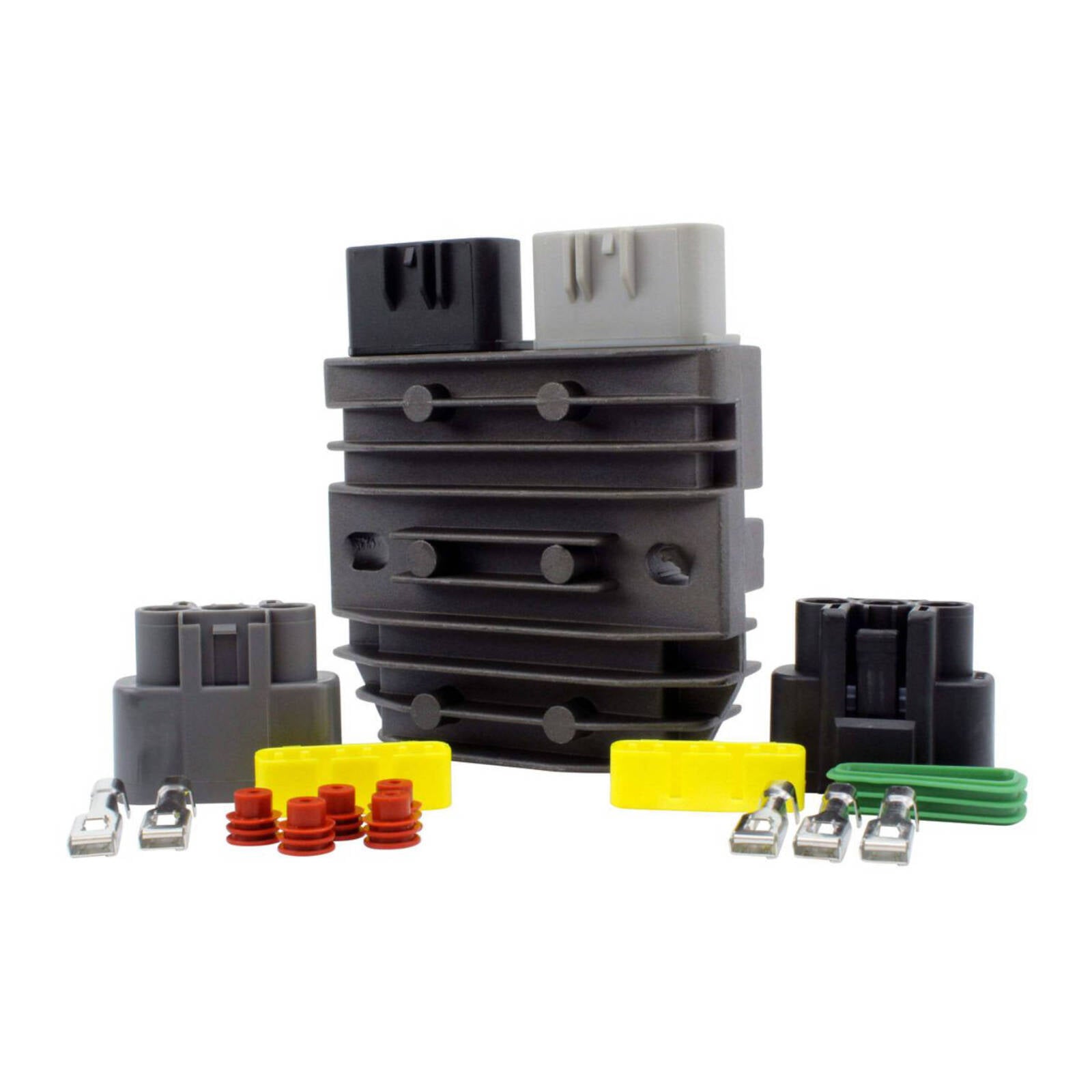

Stop burning your regulator rectifier! It is time to update or replace your voltage regulator with RM Stator's advanced MOSFET technology. RM Stators' MOSFET Regulators run cooler than all OEM diode-style regulators. In addition, this rectifier has overheat protection, which means that rather than burning up, it will simply turn off for a while and cool off.

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• The quality exceeds the OEM equipment.
• Improved heat sink and charging capabilities.
• Higher grade of electric components.

What are the advantages of the MOSFET Technology?

• Runs much cooler than the traditional Shunt voltage regulator rectifier.
• Less load on the stator, less work, less fuel is used and you save.
• The power charging your battery is steadier and smoother.
• Extends the battery’s life and cold-cranking capacity.
• Removes stator load resulting in more engine power.
• Optimize power delivery by switching the stator coils on or off.

Dimensions:

• Width: 94 mm
• Length: 114 mm
• Height: 32 mm
• Fixation holes centre to centre: 74 mm

Other specifications:

• Number of plugs: 2
• Number of pins: 5
• Minimum Charging Voltage: 14.0 V ± 0.2 V DC
• Maximum Charging Current: 50 A / 500 W
• Operation Temperature: -20° to 85°

Note:

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above will void any warranty.
4. There are multiple regulators possible for some Triumph models. Please take a look at the list below to see if your triumph model is there, if so if it's the right part:
• Bonneville from 2017 to 2020 with a VIN Lower than 513324. If you have a HIGHER VIN, you should look for parts # RM30405 / RMS020- 103436
• Street Triple Standard 2008 to 2017 This part will only fit on Street Triple Standard with a VIN higher than 456777. For models with a VIN BETWEEN 354282 and 456776, please refer to part # RM30104, and for models with VIN lower than 354281, please refer to OEM T1300570
• Street Triple 1994 to 2018: This part will only fit on Street Triple with a VIN higher than 499574 and a Non-ABS version or higher than 499957 and an ABS version. If your vehicle has a VIN between 210445 and 461331, please refer to OEM T1304045. If your vehicle has a VIN between 461332 and 499573 and a non-ABS version, refer to OEM T1300165. If your vehicle has a VIN between 461332 and 499956 and an

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

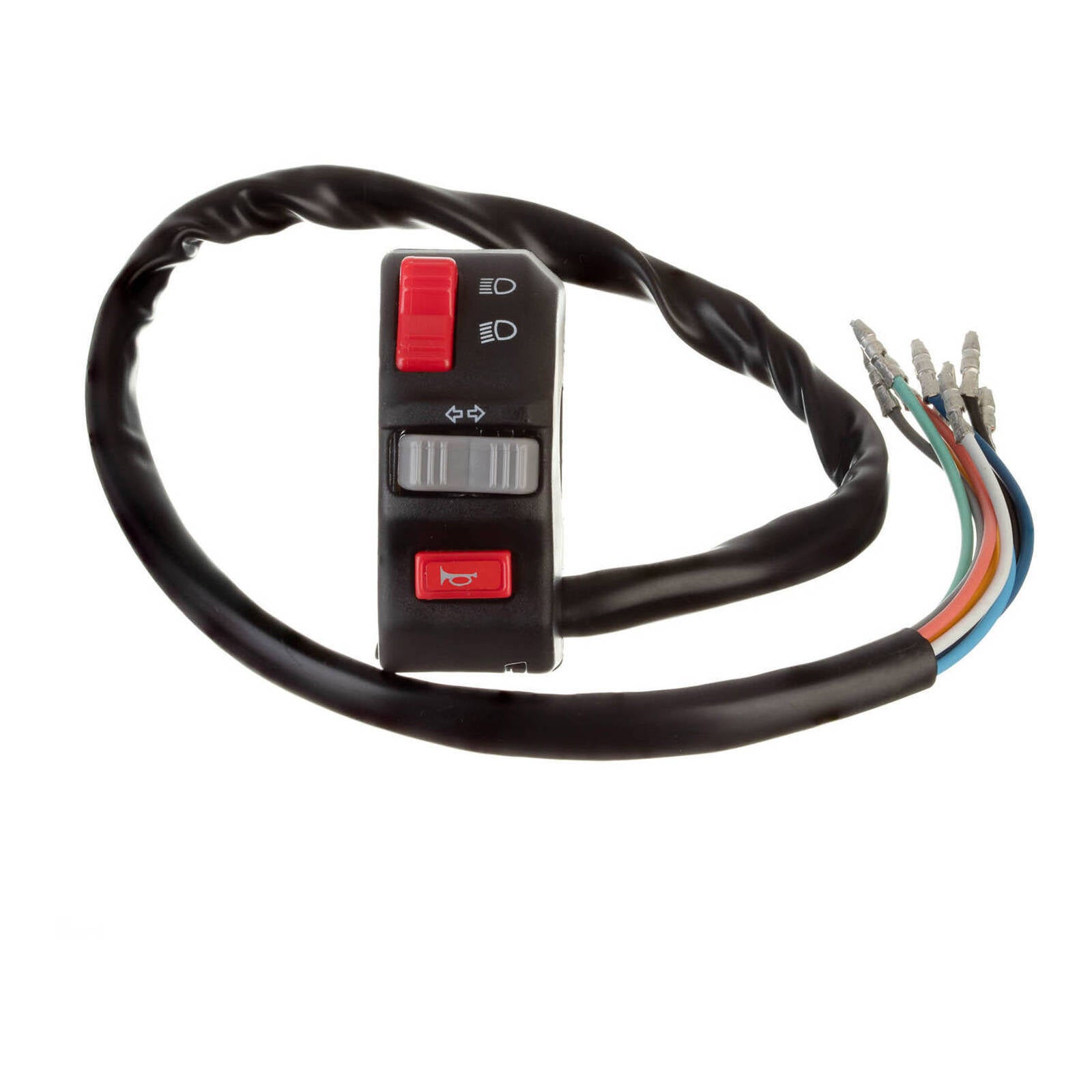

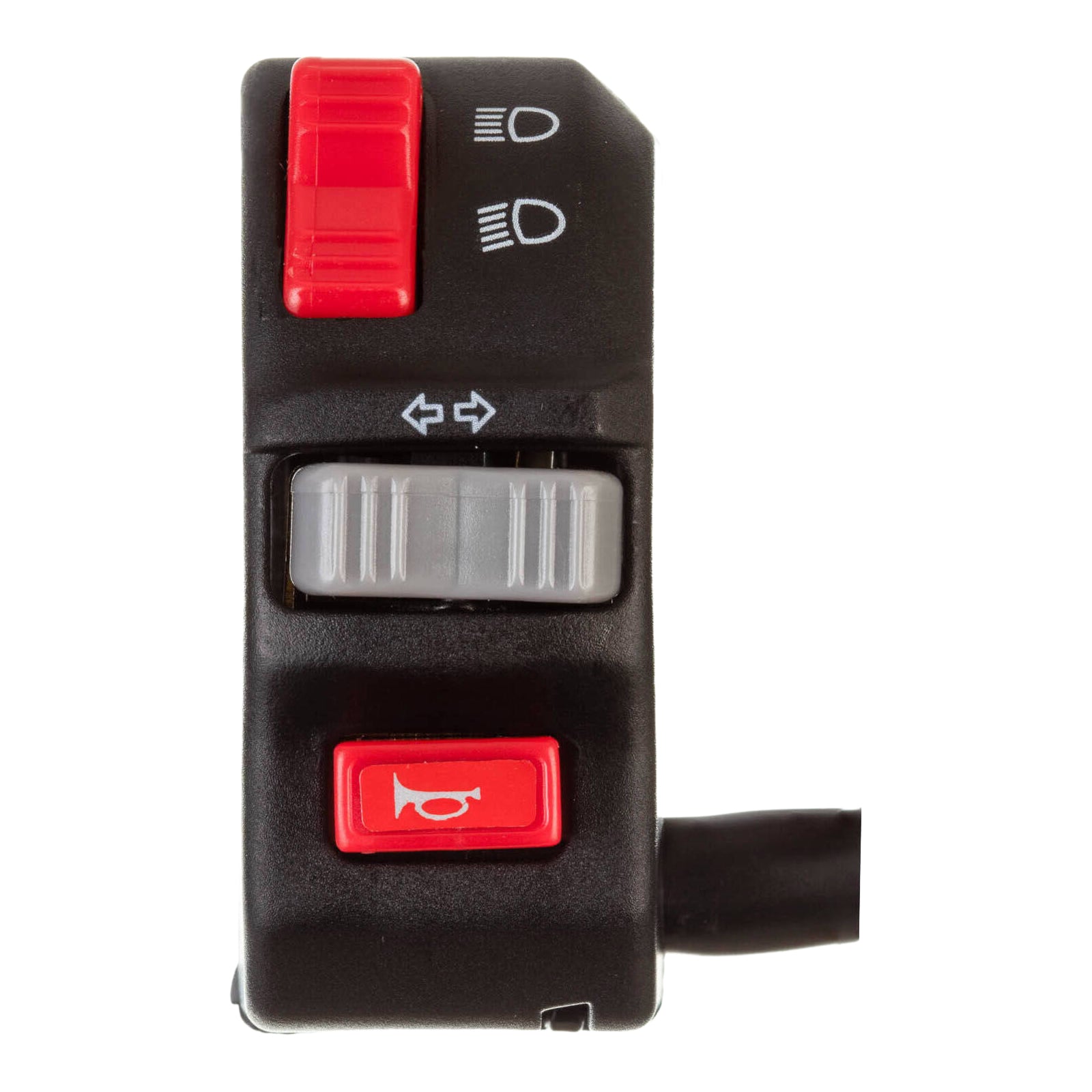

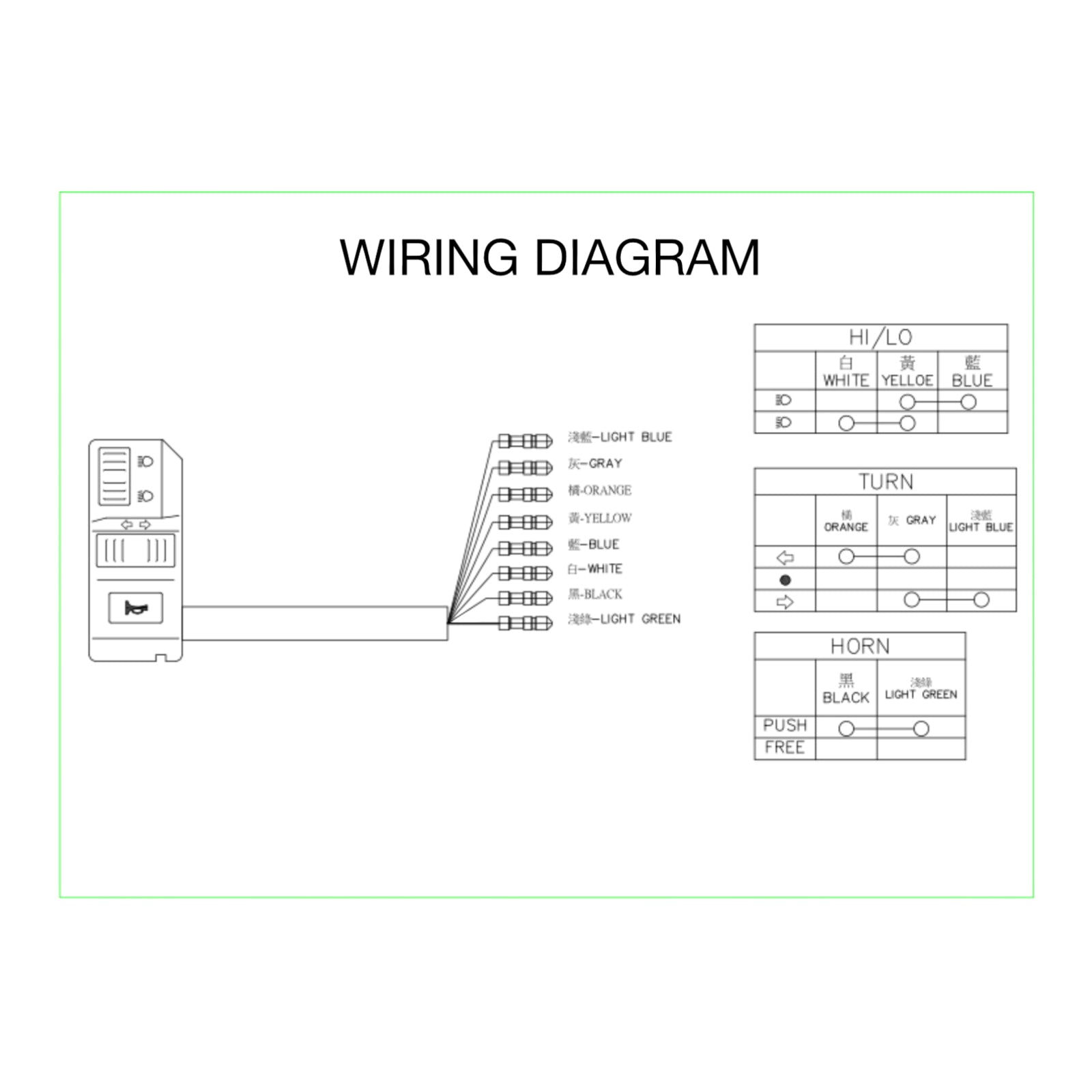

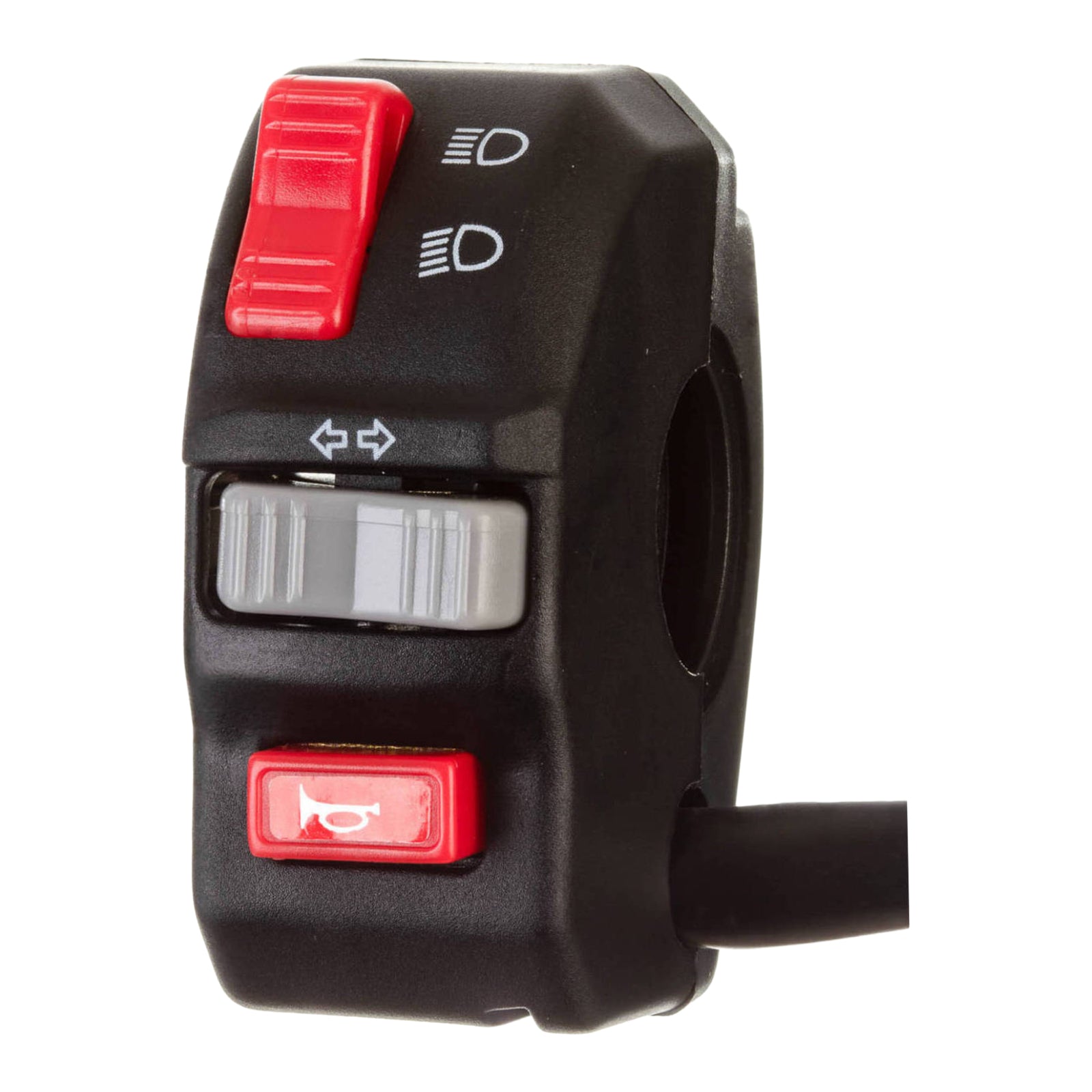

The Whites Switch Block is a complete full wrap-around switch block that includes a hi/lo headlight function, horn and indicator switch. The switch block comes pre-wired and with bullet ends for fast and hassle-free installation. The switch block is compatible with 7/8" handlebars and is perfect for restoring your old ride or replacing that broken and busted OEM switch block.

Features:

• Full wrap-around design.
• Pre-wired with bullet plugs.
• Compatible with 7/8" handlebars.

Includes:

• Hi/Lo headlight switch
• Indicator switch
• Horn

ATTENTION: This kit is compatible with AUTOMATIC models ONLY.

Flywheel assembly + new cover seal

• Magneto flywheel

RMSTATOR offers a new flywheel with magnets for your Suzuki or your Arctic Cat. The flywheel can be used as a replacement to your original part

What is improved in our RM11502 flywheel?

The stock flywheels of the Suzuki Eiger 400 2002-2007 and Arctic Cat 400 2003-2008 ATVs have recurring problems. Additives in the engine oil dissolve the epoxy used to hold the magnets in place, causing them to loosen and disperse in the engine.

• EPOXY EXPOSED
• MAGNET DETACHED

The problem encountered by owners of these ATVs is that no manufacturer wants to guarantee this part on such old vehicles. Faced with this situation, RMSTATOR has redesigned and improved the flywheel of these ATVs. The magnets are now sealed, which prevents them from coming loose. This new configuration fixes the problem for life. We offer a high quality part that permanently eliminates the problem for half the cost of the original part. The RM11502 flywheel is not an economical way to repair your ATV, but an investment when replaced before the original part breaks.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

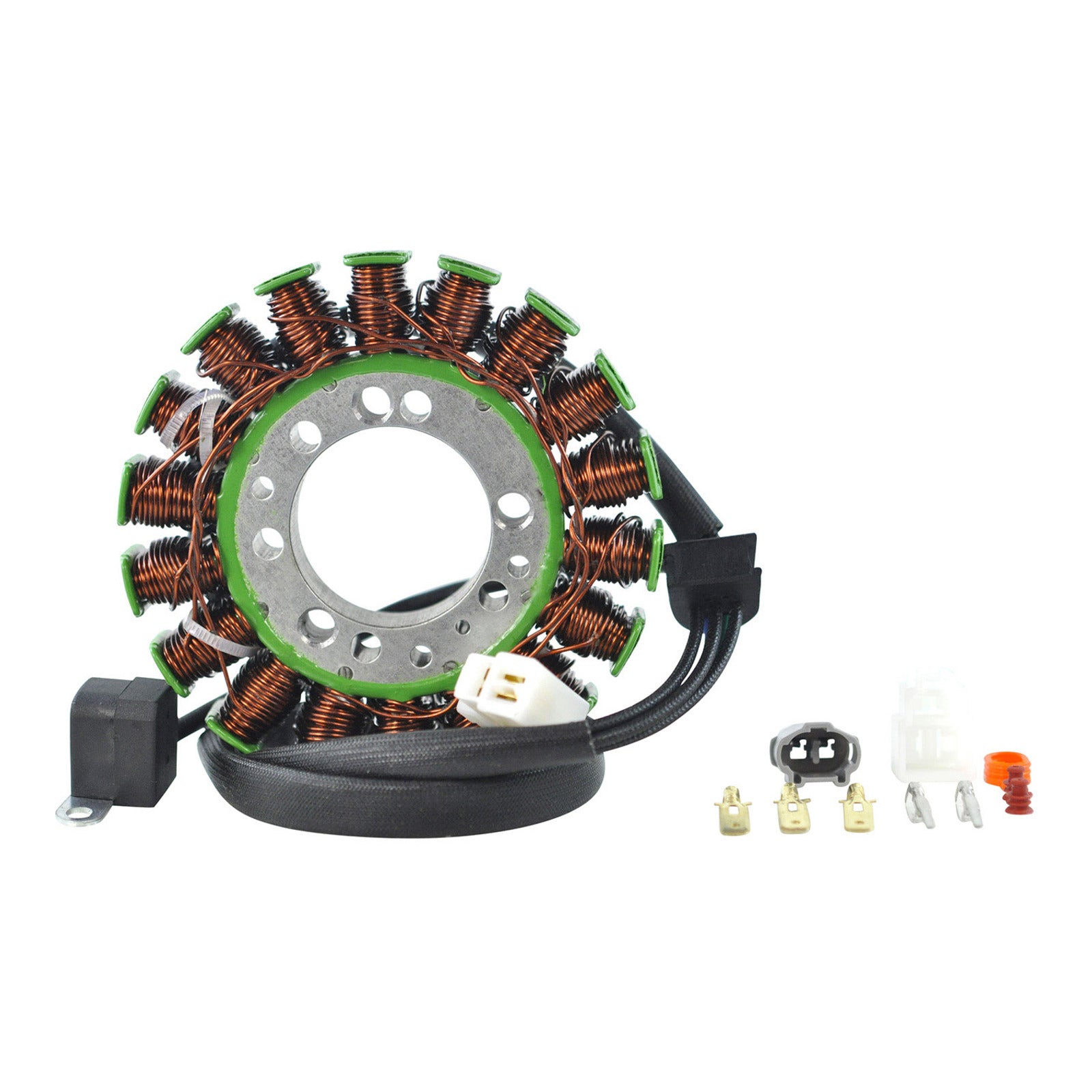

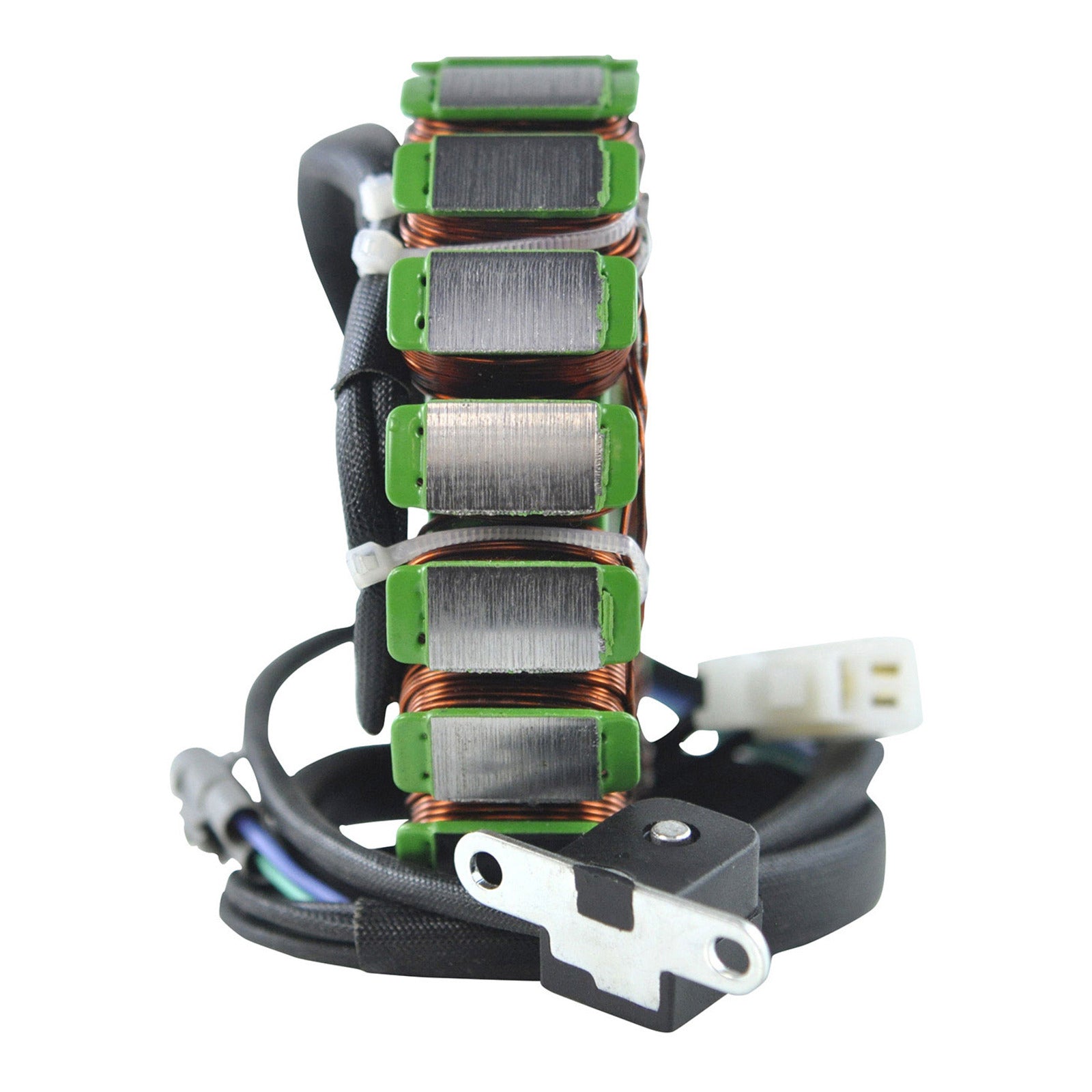

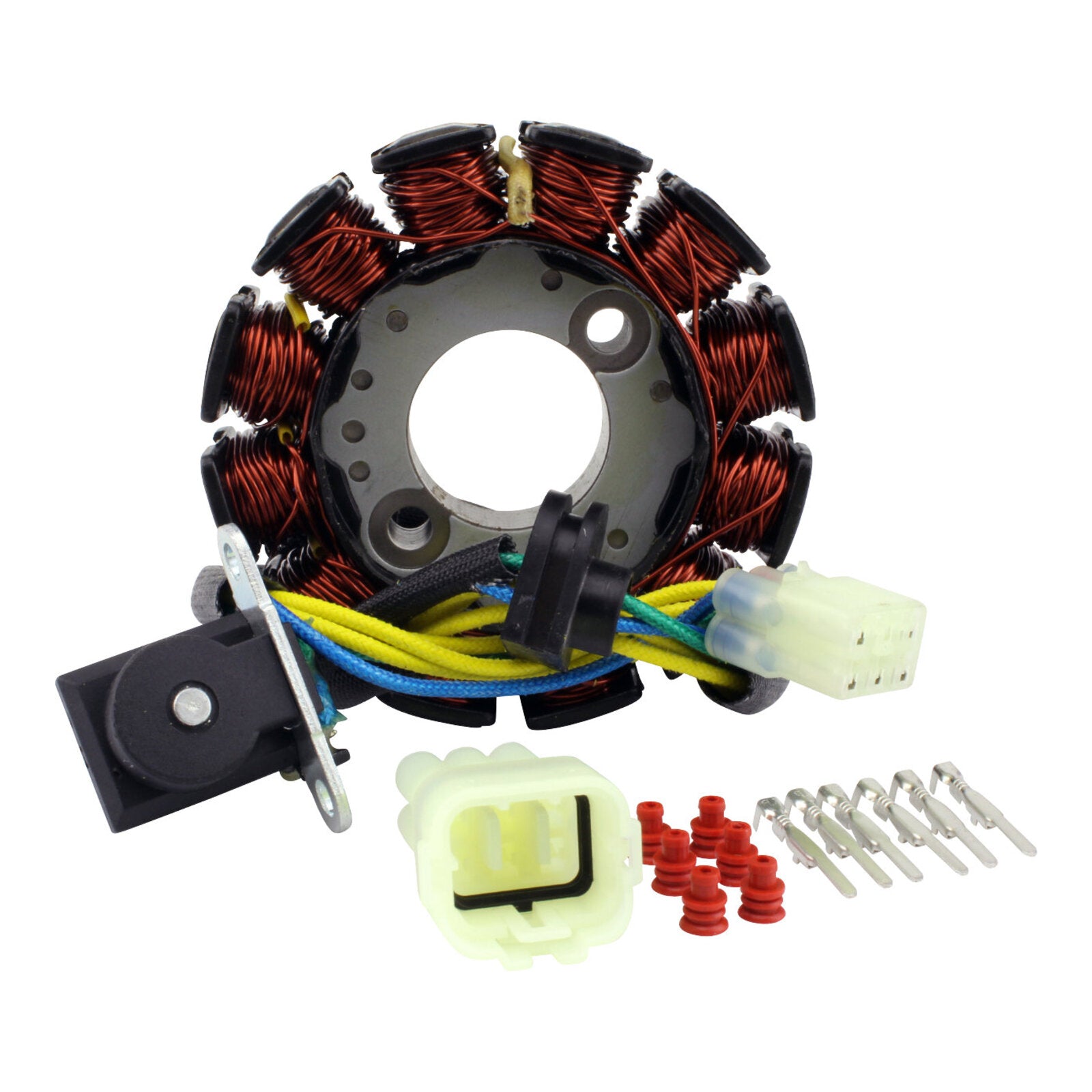

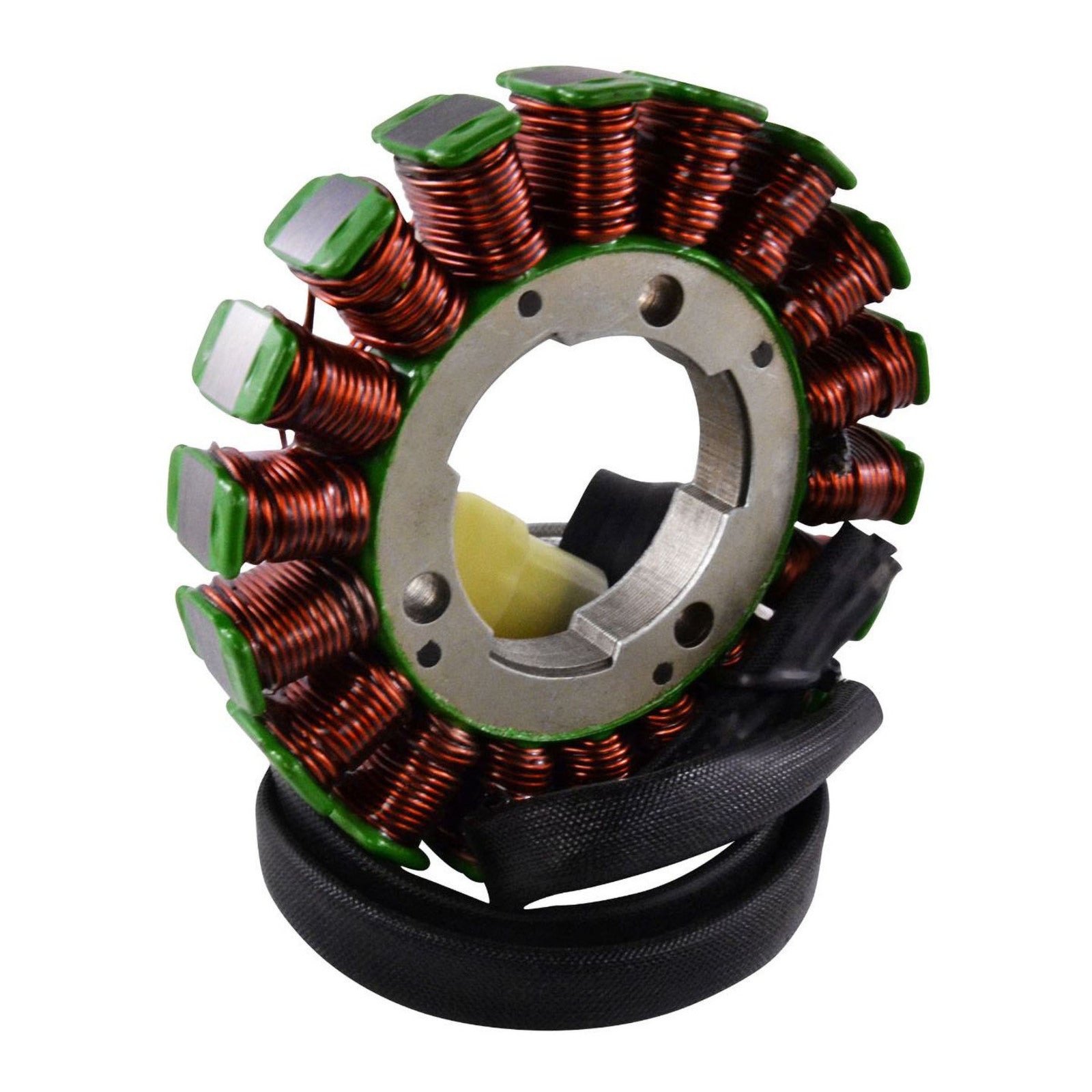

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Dimensions:

• Interior diameter: 115 mm
• Exterior diameter: 42 mm
• Thickness: 21 mm
• Length of wires stator to grommet: 180 mm
• Length of wires grommet to plug: 140 mm
• Length of pickup coil's wire to grommet: 105 mm

Other specifications:

• Number of wires: 5
• Number of plugs: 2
• Number of pins: 5

Wire to wire resistance:

• Alternator: Between each Black = 0.5 ohms +/-20%
• Pickup: Green to Blue = 230 ohms +/-20%

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
4. There are multiple stators, flywheels, and voltage regulators used on the 2006-2020 Triumph Daytona 675. Please refer to below:
• This stator replaces only OEM # T1300039 and was used on VIN #s up to 564947. For vehicles with a HIGHER VIN, you must look for RMS010-107393.
• Street Triple R 2008 to 2020 This part will only fit Street Triple R with a VIN LOWER than 560476. For a vehicle with a VIN HIGHER than 45677 and an engine # LOWER than 616232 or Higher than 624373, refer to RMS010-106948. For a vehicle with a VIN HIGHER than 560477 and an engine # BETWEEN 616233 and 624372, refer to OEM T1303139.

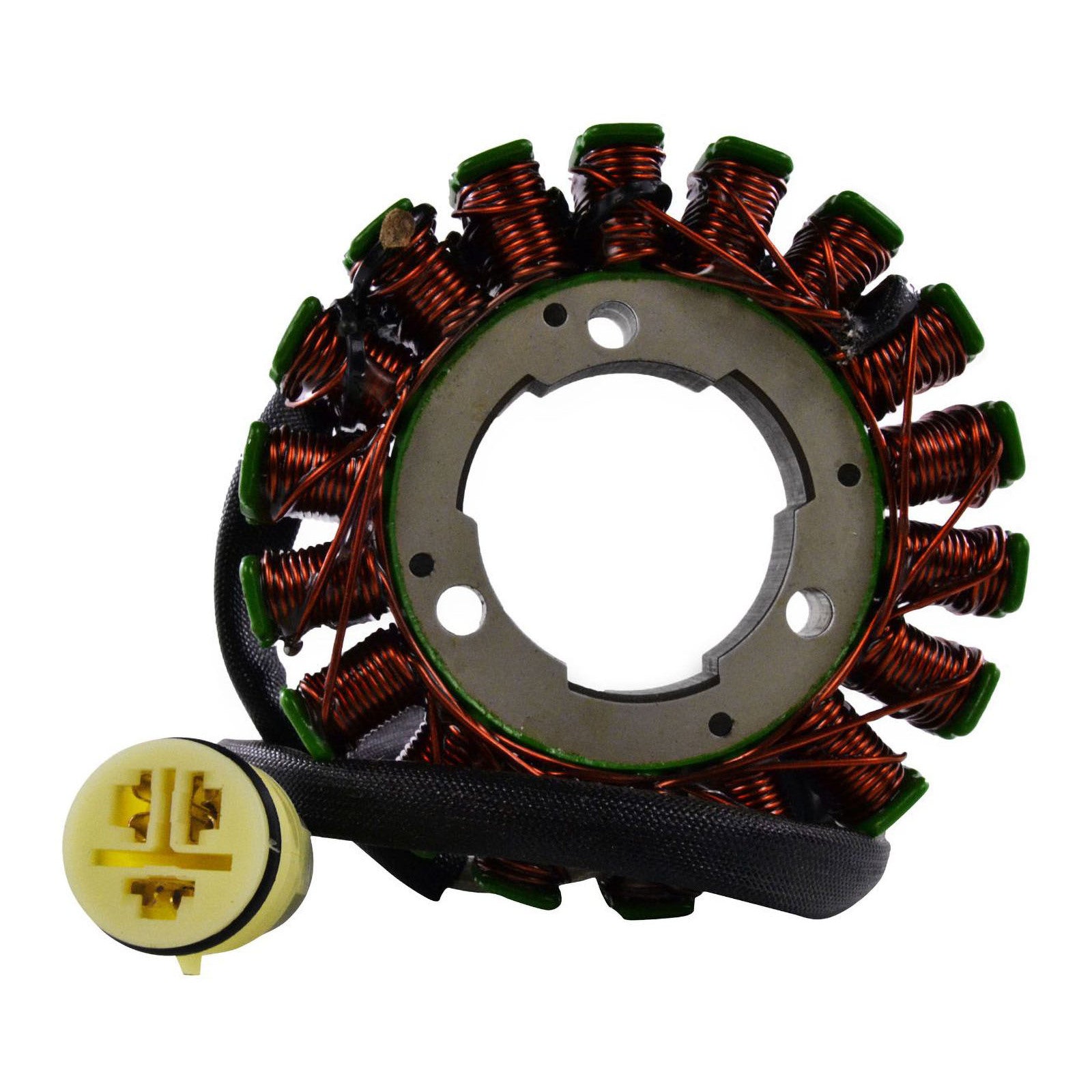

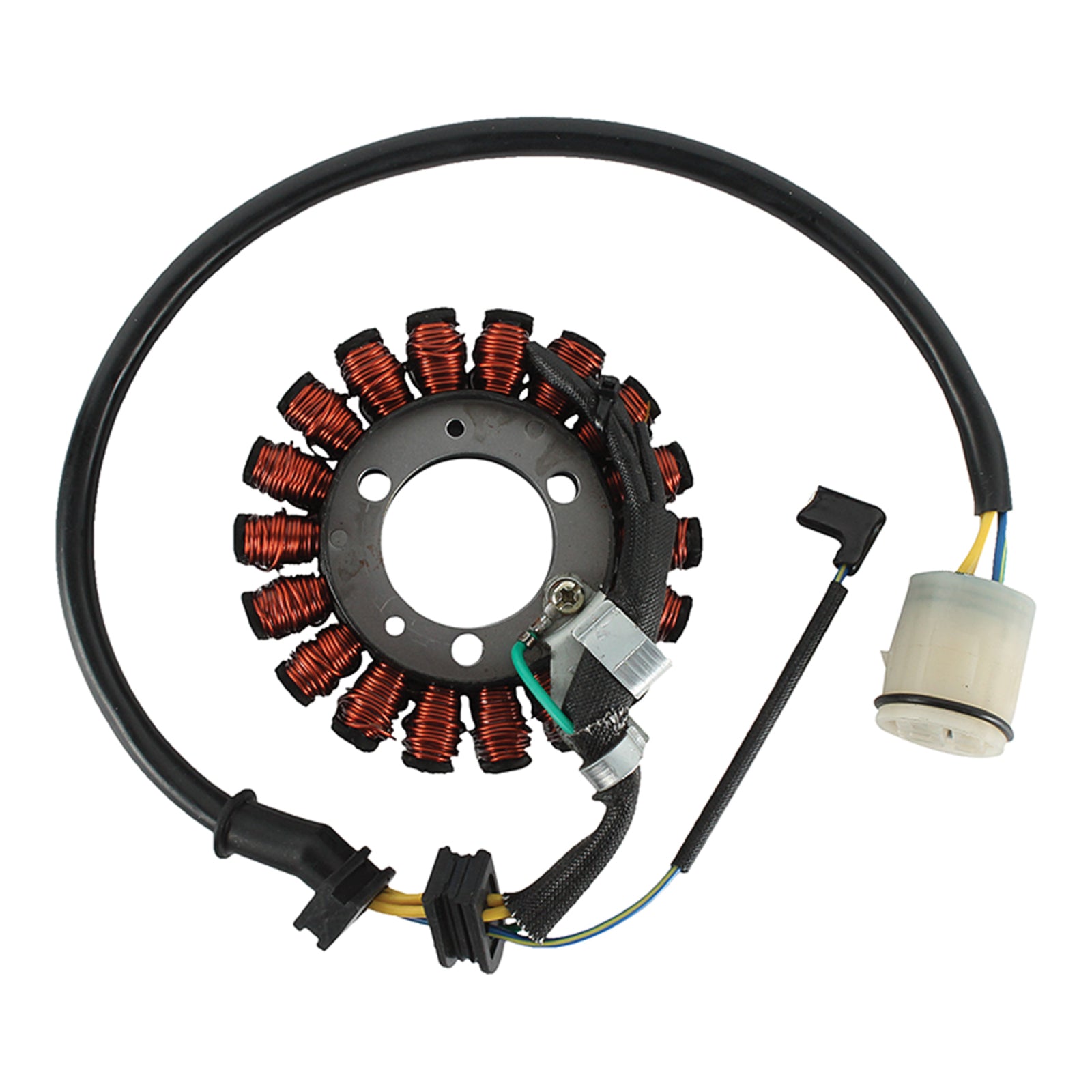

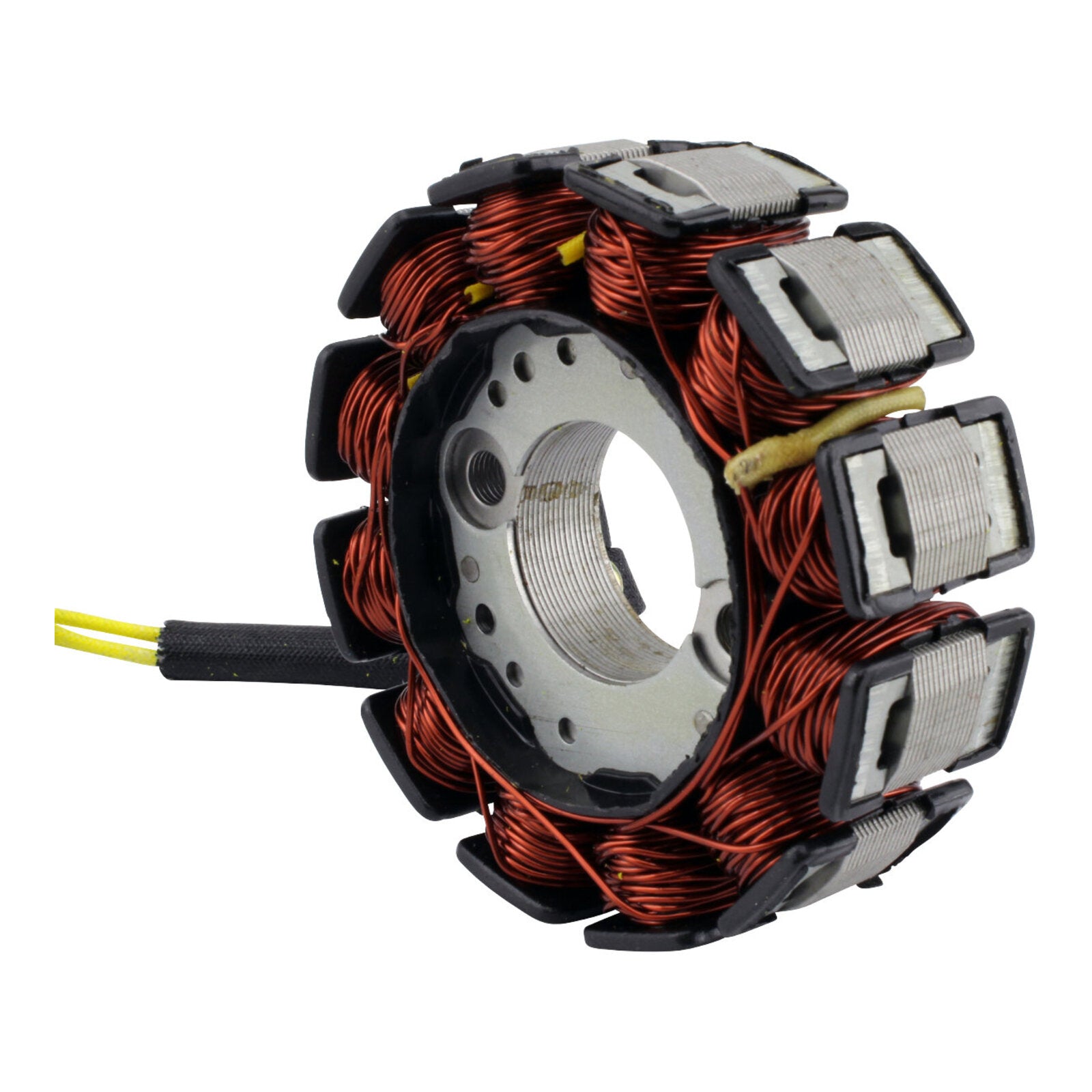

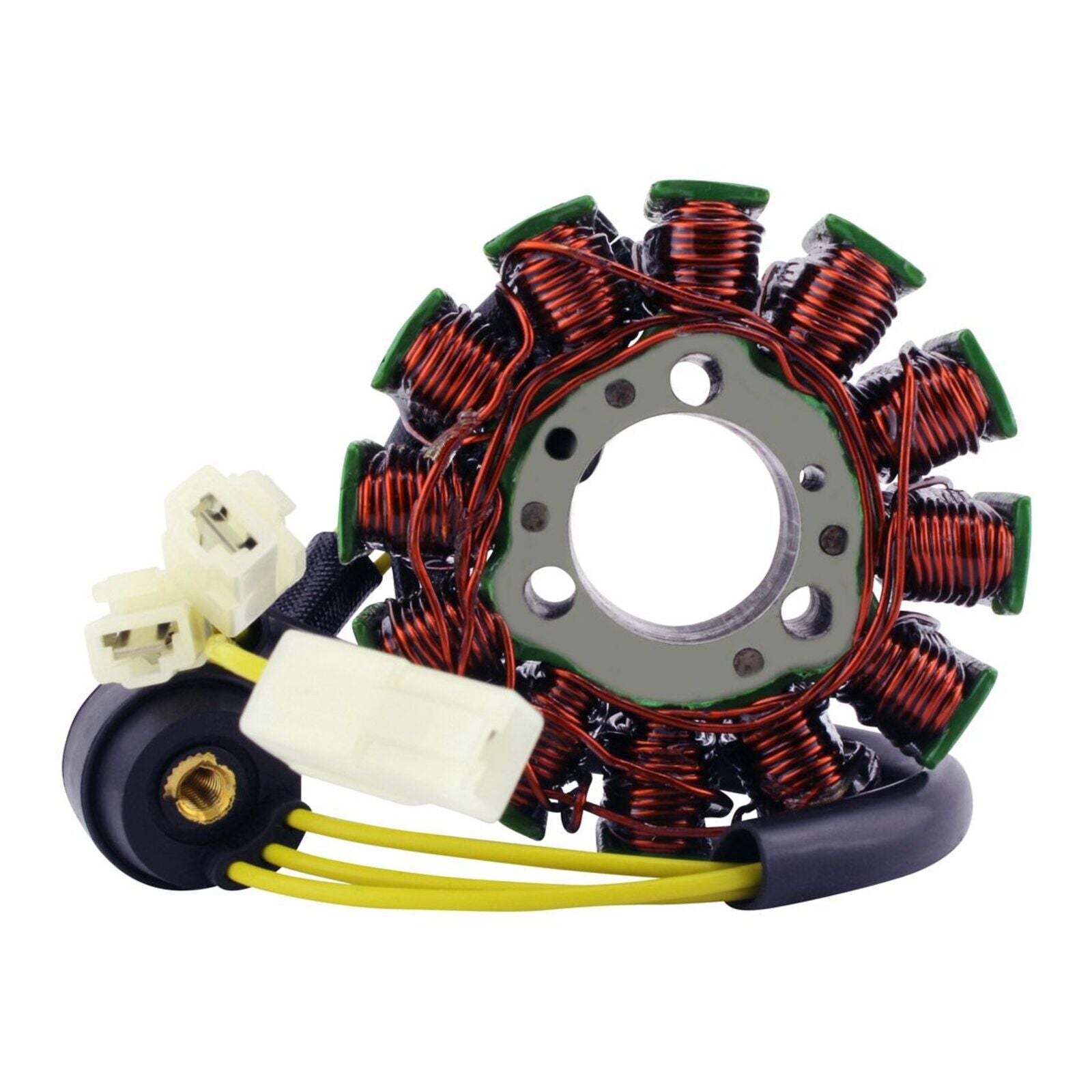

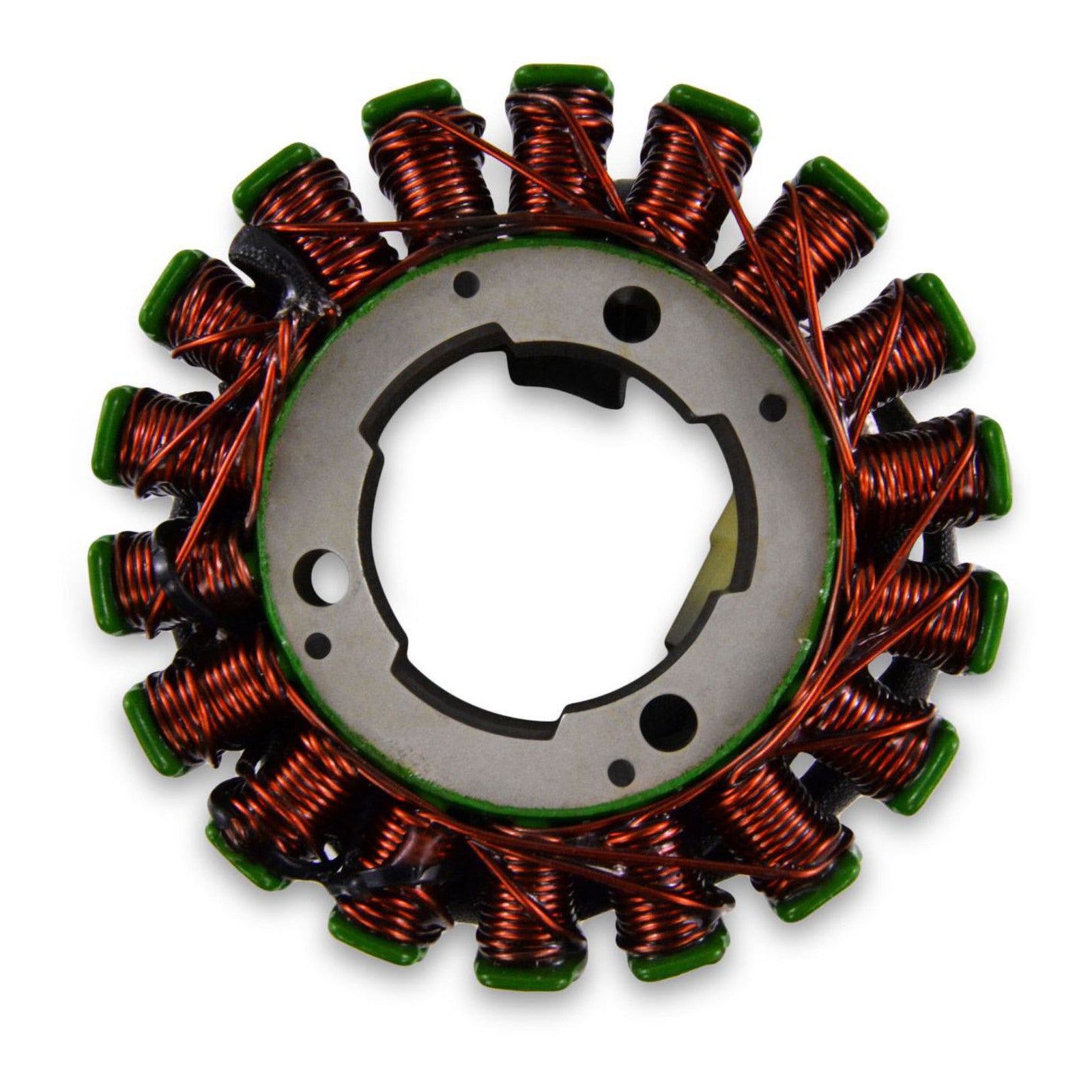

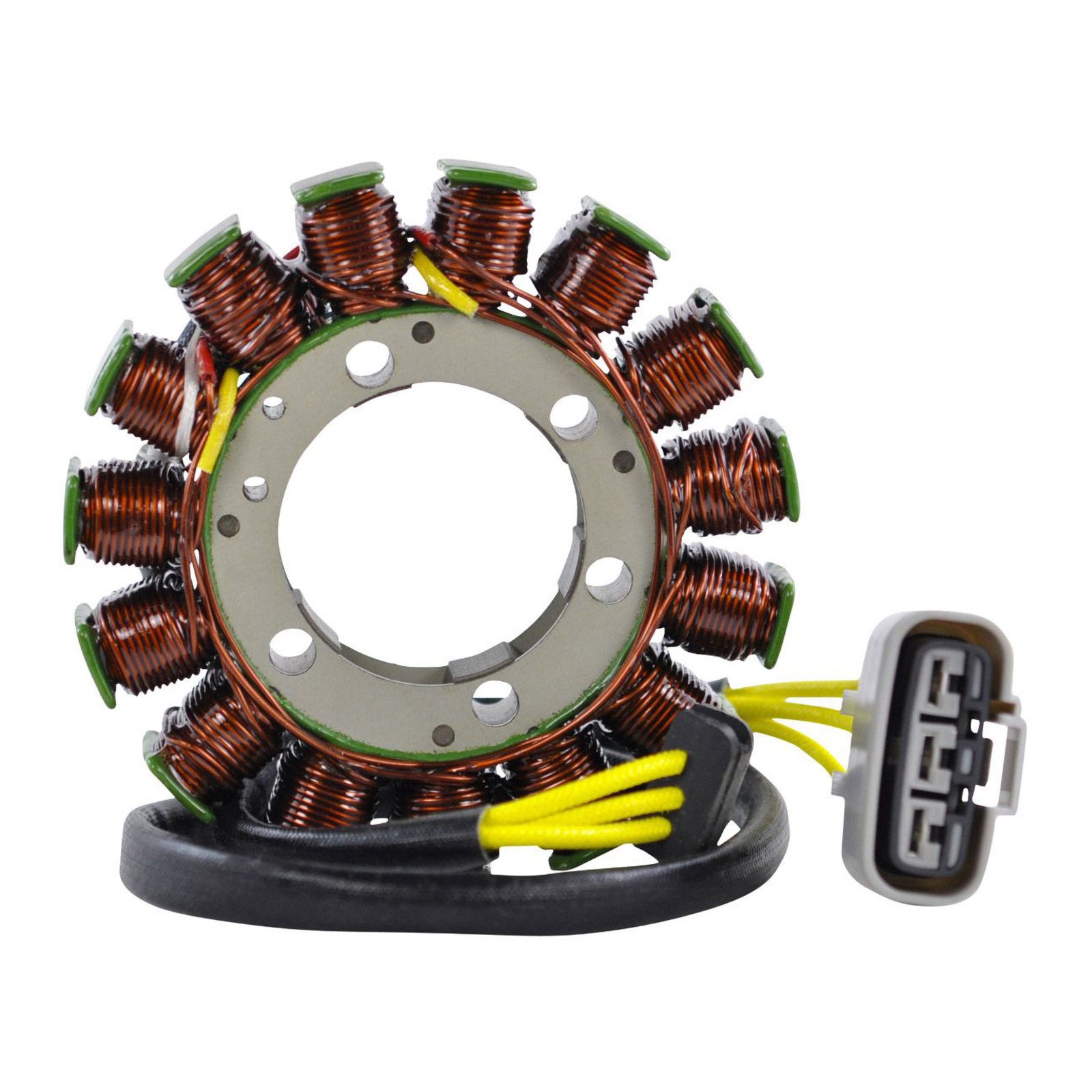

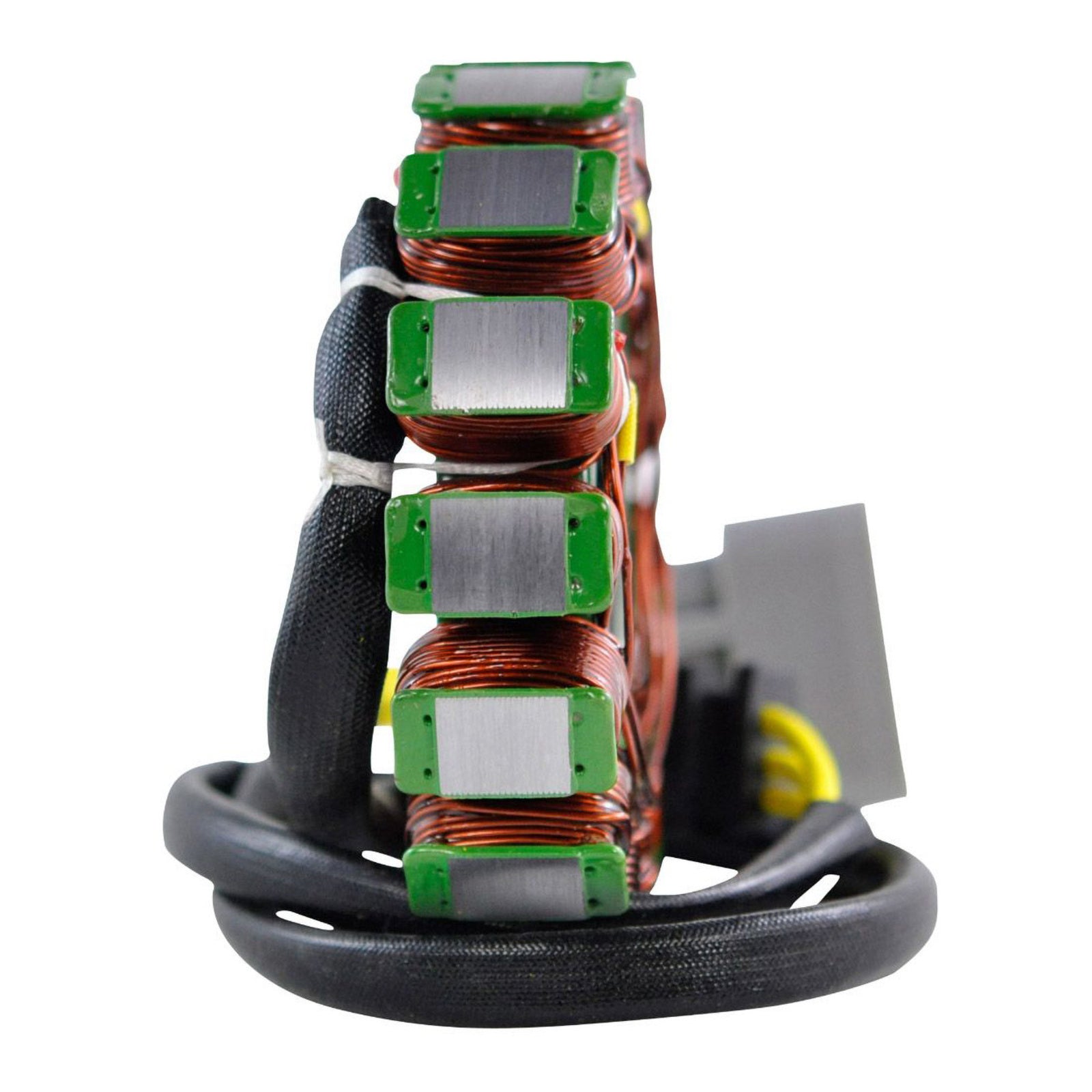

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included
• All product shipped are tested

Dimensions:

• Interior diameter: 41mm
• Exterior diameter: 106mm
• Thickness: 14mm
• Length of wires stator to grommet: 100mm
• Length of wires grommet to plug: 400mm

Other specifications:

• Number of wires:3
• Number of plugs: 1
• Number of pins: 3

Wire to wire resistance:

• Alternator: Between each white = 0.4 ohms +/-20%

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Short stem Arrow Mini LED replacement indicators.

Features:

• 15 super bright LEDs.
• Compact and stylish design.
• Weatherproof.
• Instructions included.
• E-marked for front and rear use.
• M8 bolt - thread pitch 1.25mm.
• Includes 2 resistors to control flash rate on most motorbikes.
• Specification: 12V, 2W
• Size: 69mm (L) x 27mm (W) x 40mm (H)

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

DENALI Headlight Adapters

Our headlight adapters enable plug n play installation of LED headlight modules in vehicles that don't use a standard H4 connector. Available for models with original H9 / H11 or Harley-Davidson LED connectors.

White's lighting range is a collection of high-quality indicators (flashers), tail lamps, headlights, and more. Available as direct OEM replacements and universal fitments for those one-off custom rides. Offered in a range of shapes, sizes, styles, and mounting options Whites are here for your motorcycle lighting solutions.

Broken your old tail light assembly in a crash, or has it slowly deteriorated over time? Either way, Whites will get you back on the bike with this complete OEM replacement tail light assembly. Made with a high-quality acrylic lens and Polyethylene casing the Whites Tail Light Assembly will outperform and outlive your OEM assembly.

• OEM replacement
• Affordable price
• Constructed from durable acrylic
• Shatterproof
• Resistant to UV damage
• Casing Colour: Black
• Lens Colour: Red
• 2 bolt mounting

Dimensions

• Top Length: 40mm
• Bottom Length: 56mm
• Height: 106mm
• Width: 42mm

Mounting Dimensions:

• Bolt Diameter: 5.8mm
• Bolt Center to Center: 49mm

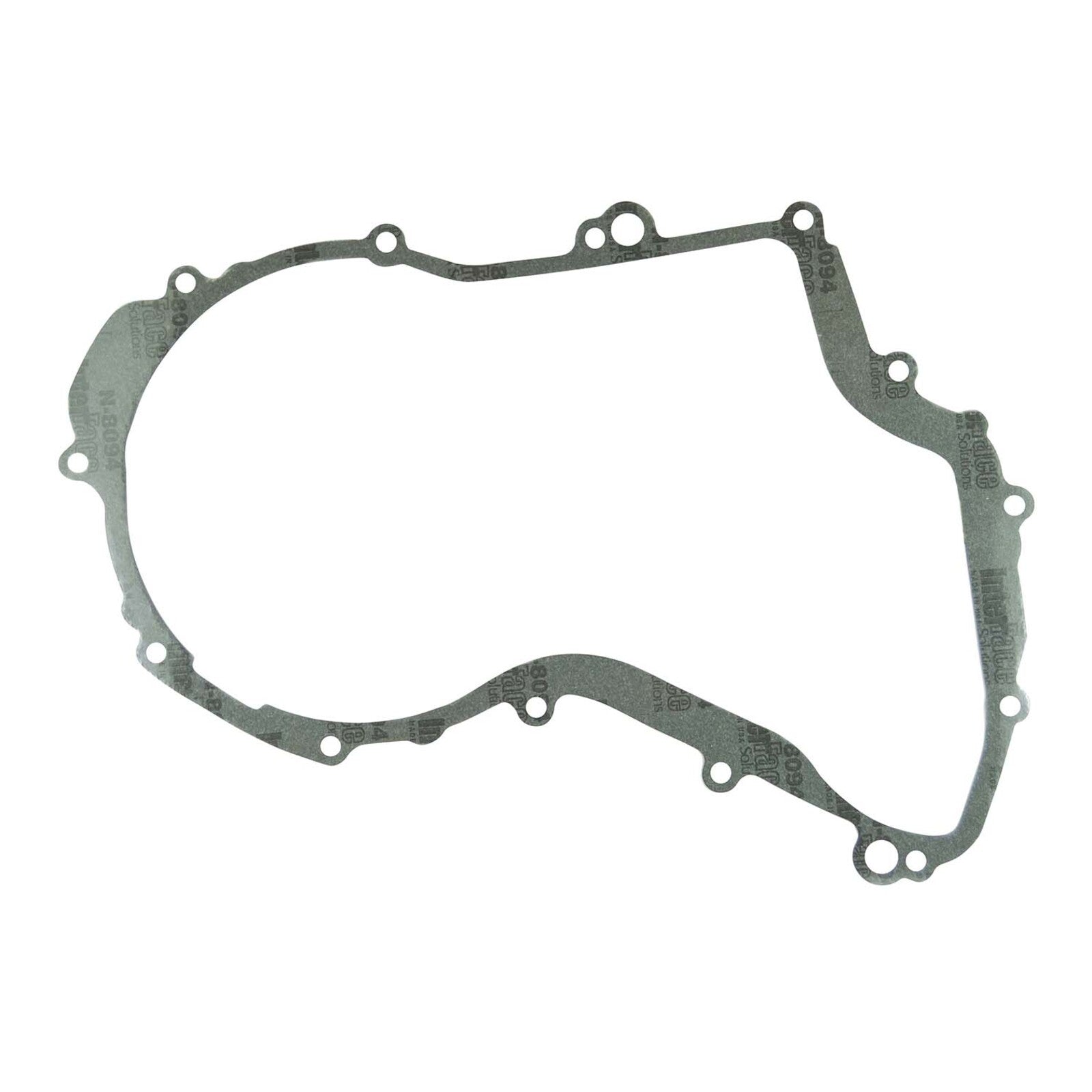

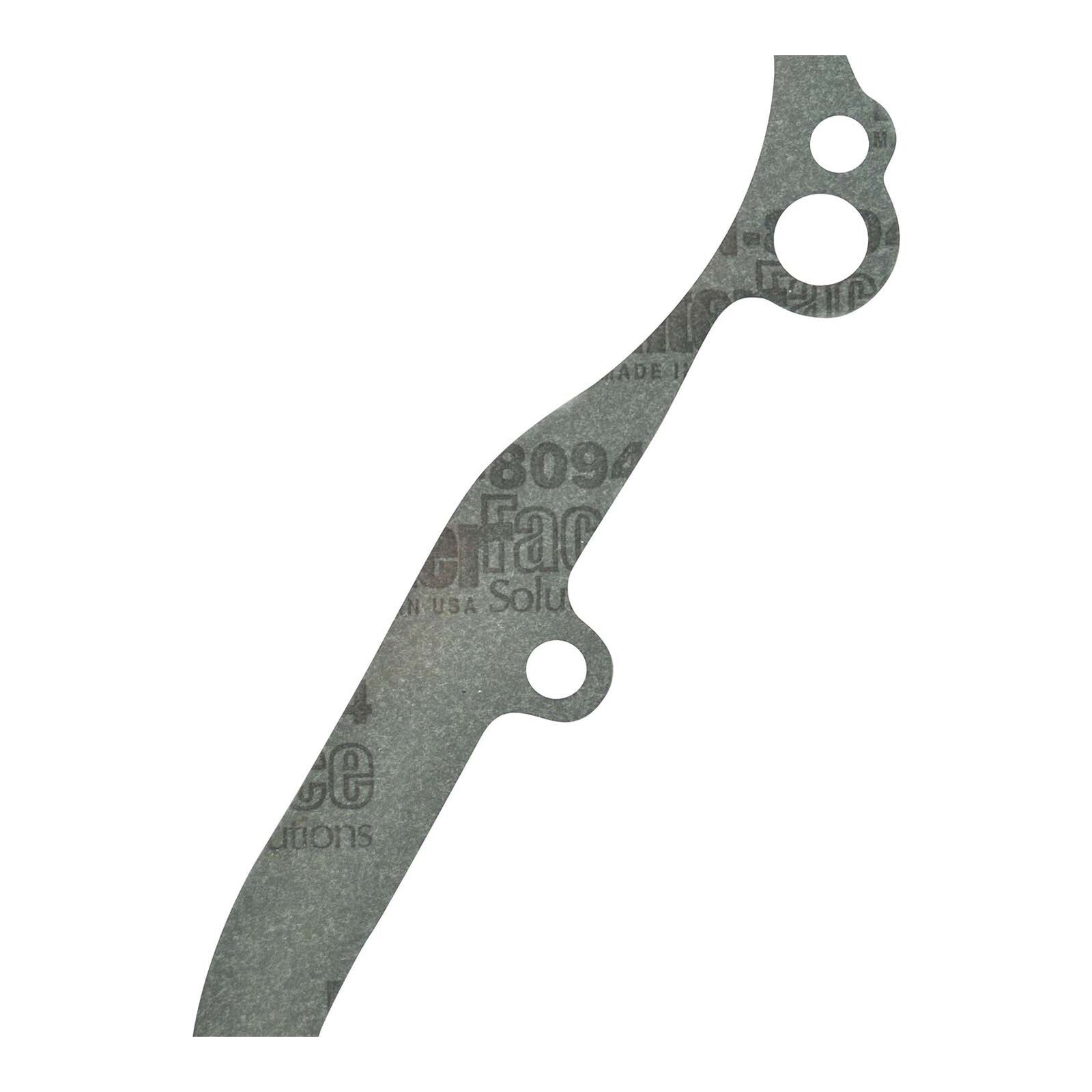

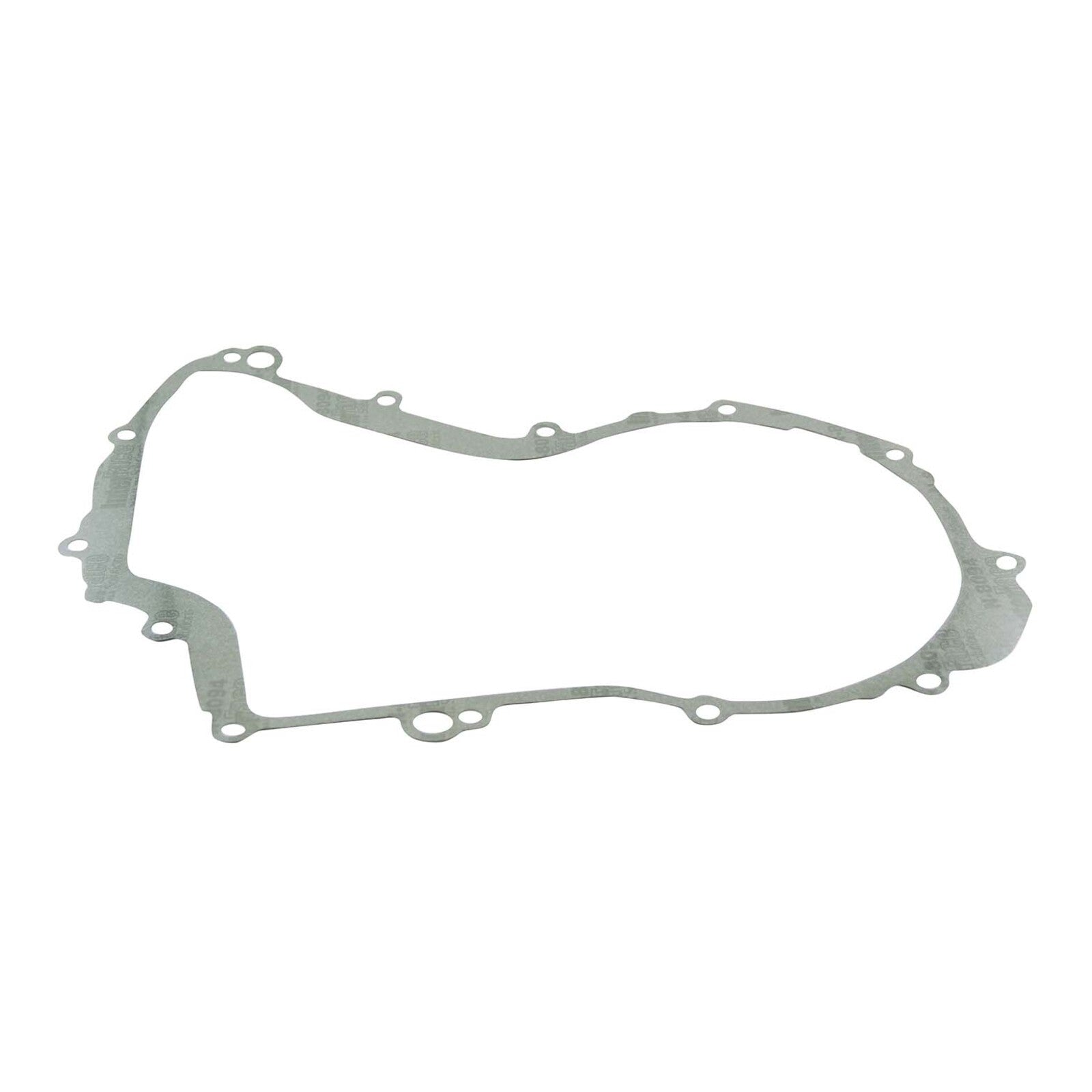

A gasket is not just a gasket

You wouldn’t use the same oil filter twice, would you? Why even consider keeping the same gasket then? When reinstalling a used gasket, it has lost some of its key abilities: it has already been compressed, weakening its sealing capability. It might also have suffered from heat, deformation, peeling, or other abuses. Remarks and related documents: Specifications values determined by the test methods required for ASTM F-104, type 7 materials.

Are your gaskets built to OEM specs?

Regular aftermarket gaskets use a variety of cheap materials that offer inconsistent sealing results. RMSTATOR performance gaskets comply with the same standard as the OEM parts. We use the materials prescribed by the standard on every gasket and make sure the properties are the same.

Our gasket has a fully cured styrene-butadiene rubber binder and a blend or aramid and cellulose fibres. It is intended for oil and water applications with short-duration maximum temperatures up 290°C (550°F). *Nonasbestos gasket material.

What makes the difference?

• Higher material density - Our enhanced gaskets have less probability of leaking at the same pressure.
• Maximum temperature - Our enhanced gasket material will keep its sealing properties at a higher temperature.
• Minimum flange pressure- Our enhanced gaskets require less force to be applied on the metal part to seal through imperfections.
• Minimum tensile strength - Our enhanced gaskets will resist internal pressure better.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

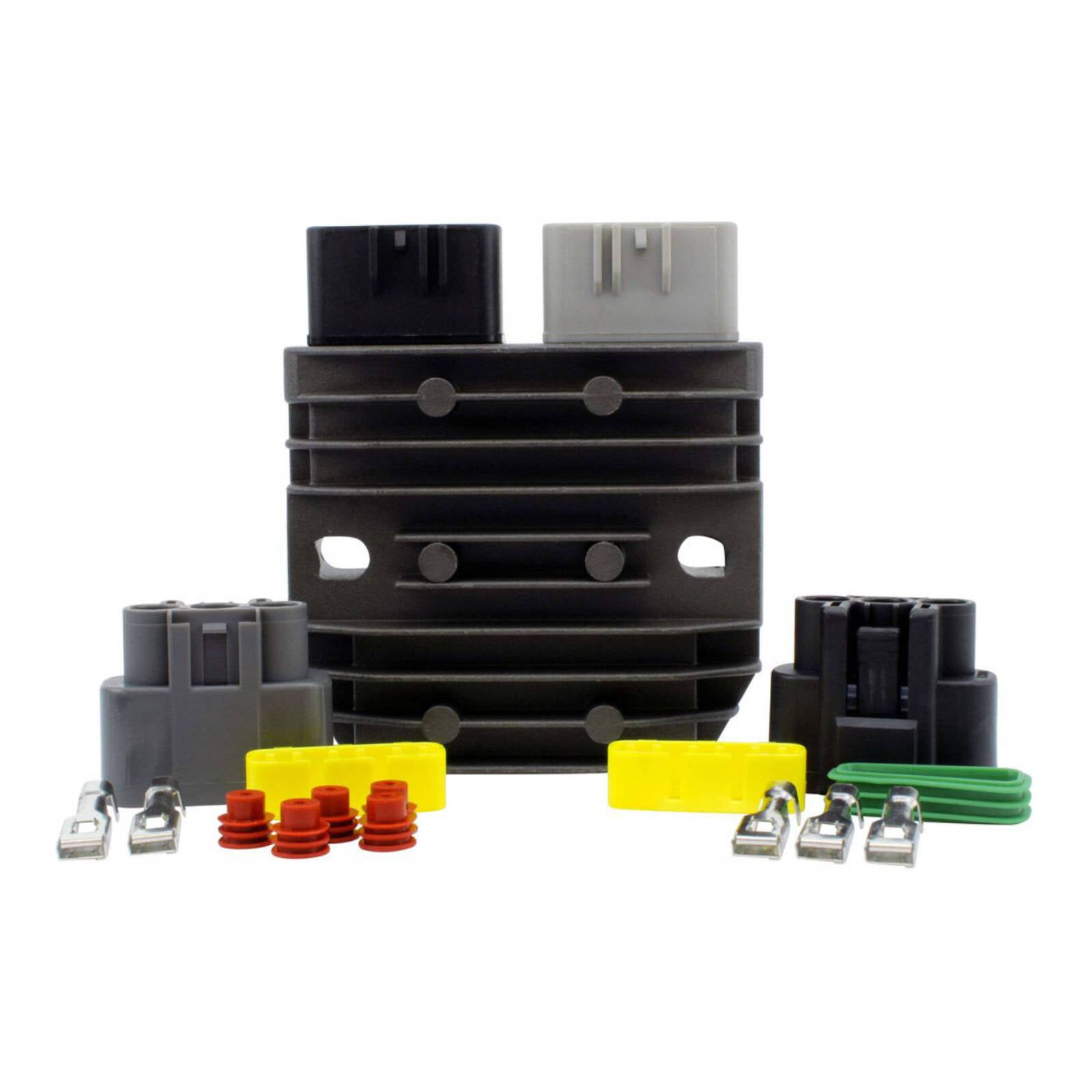

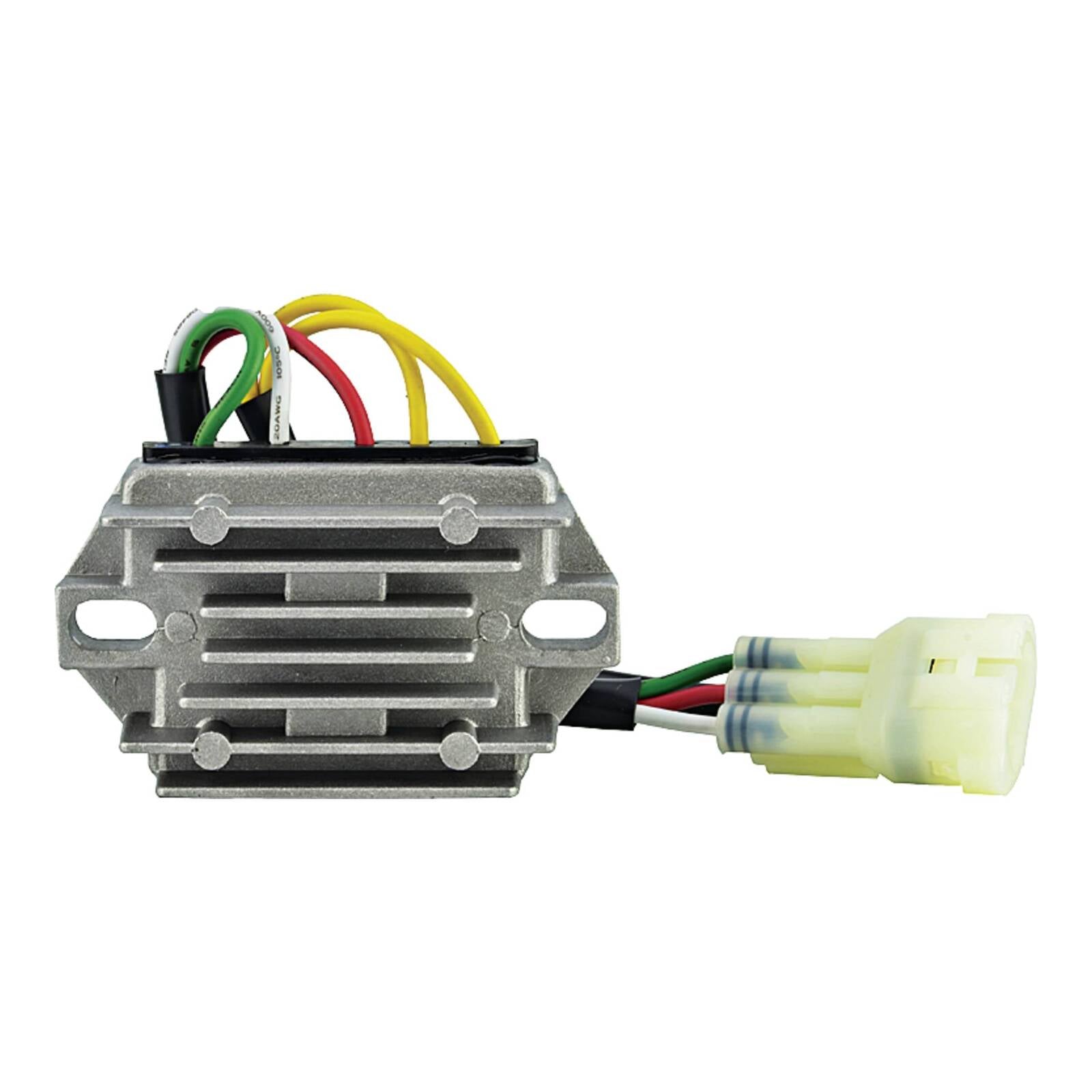

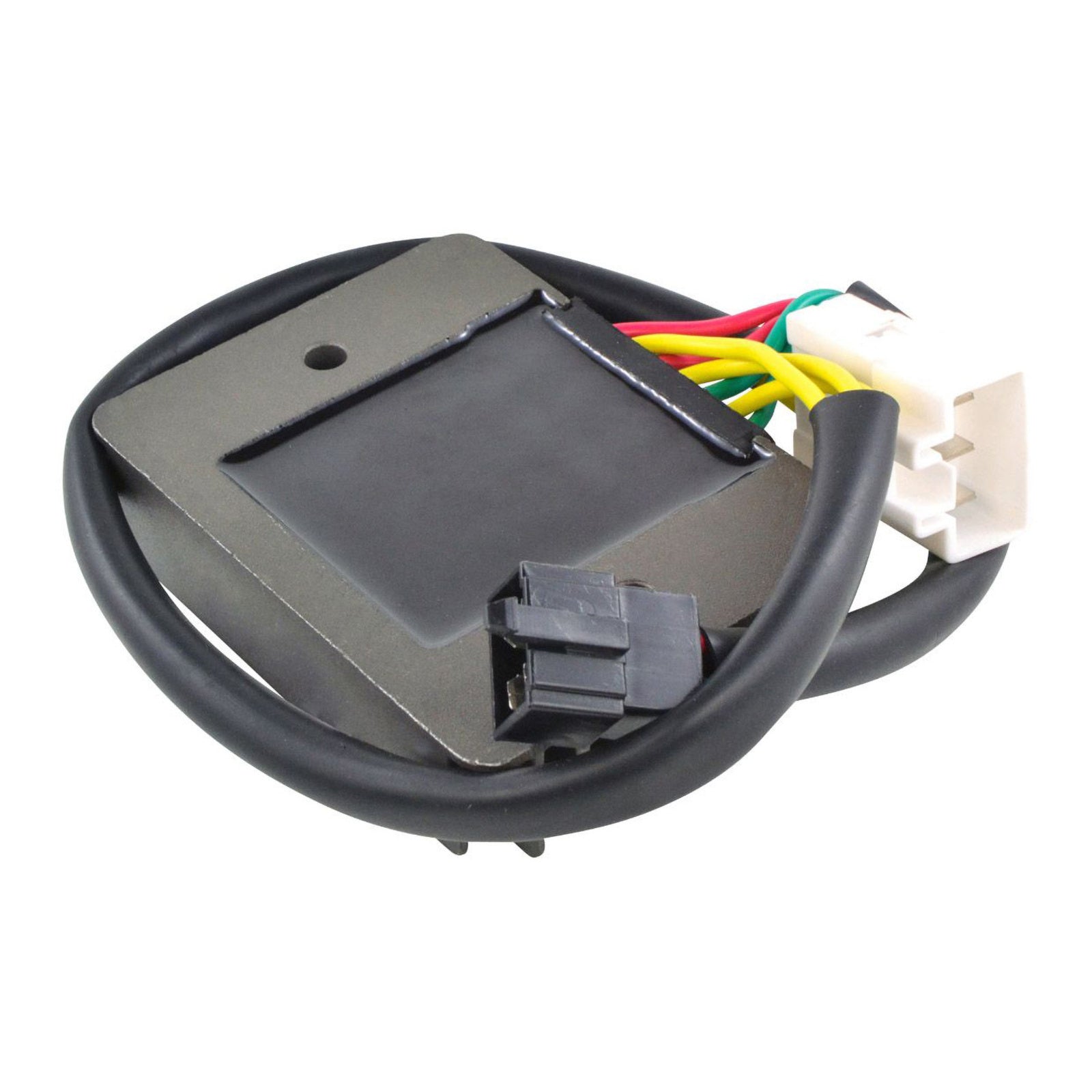

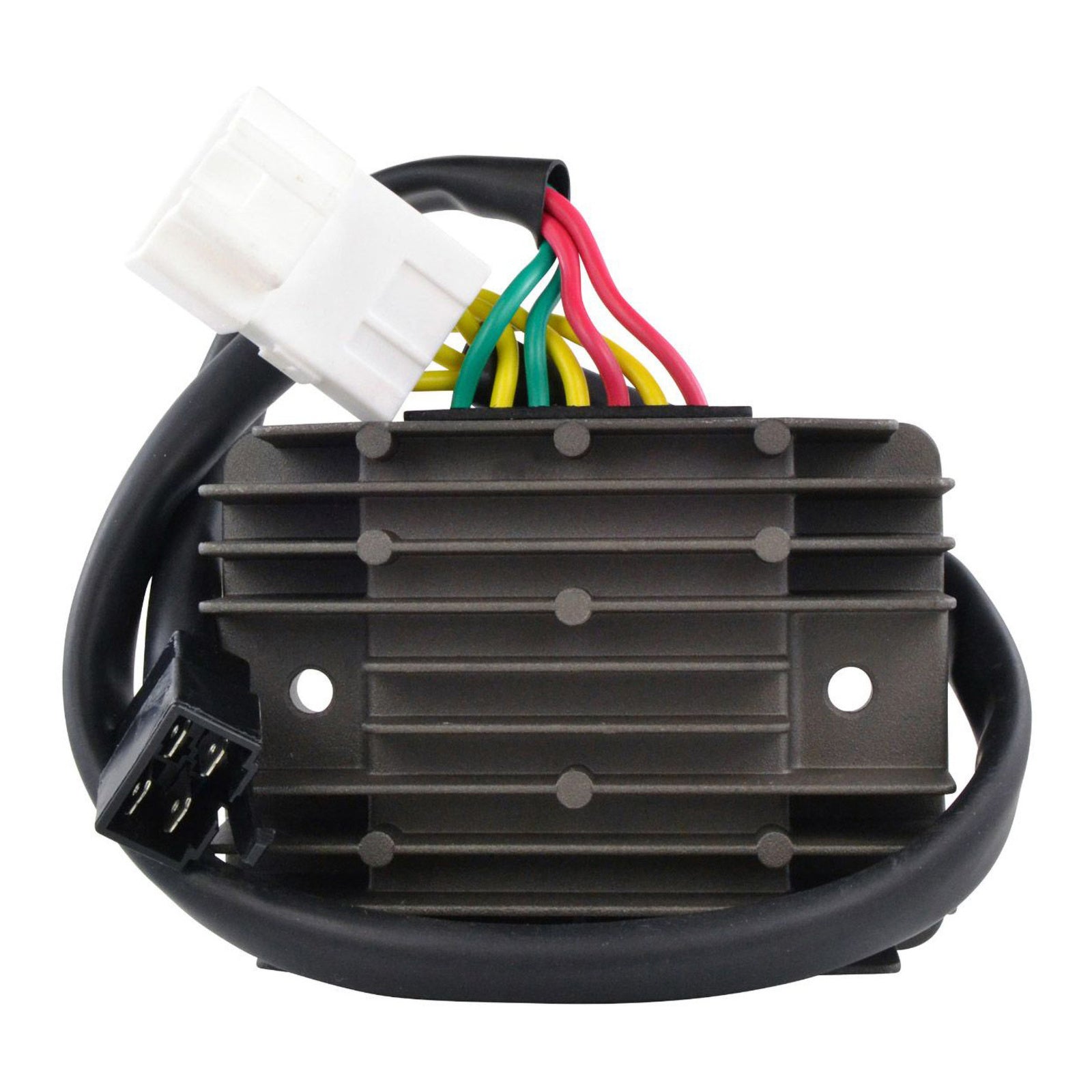

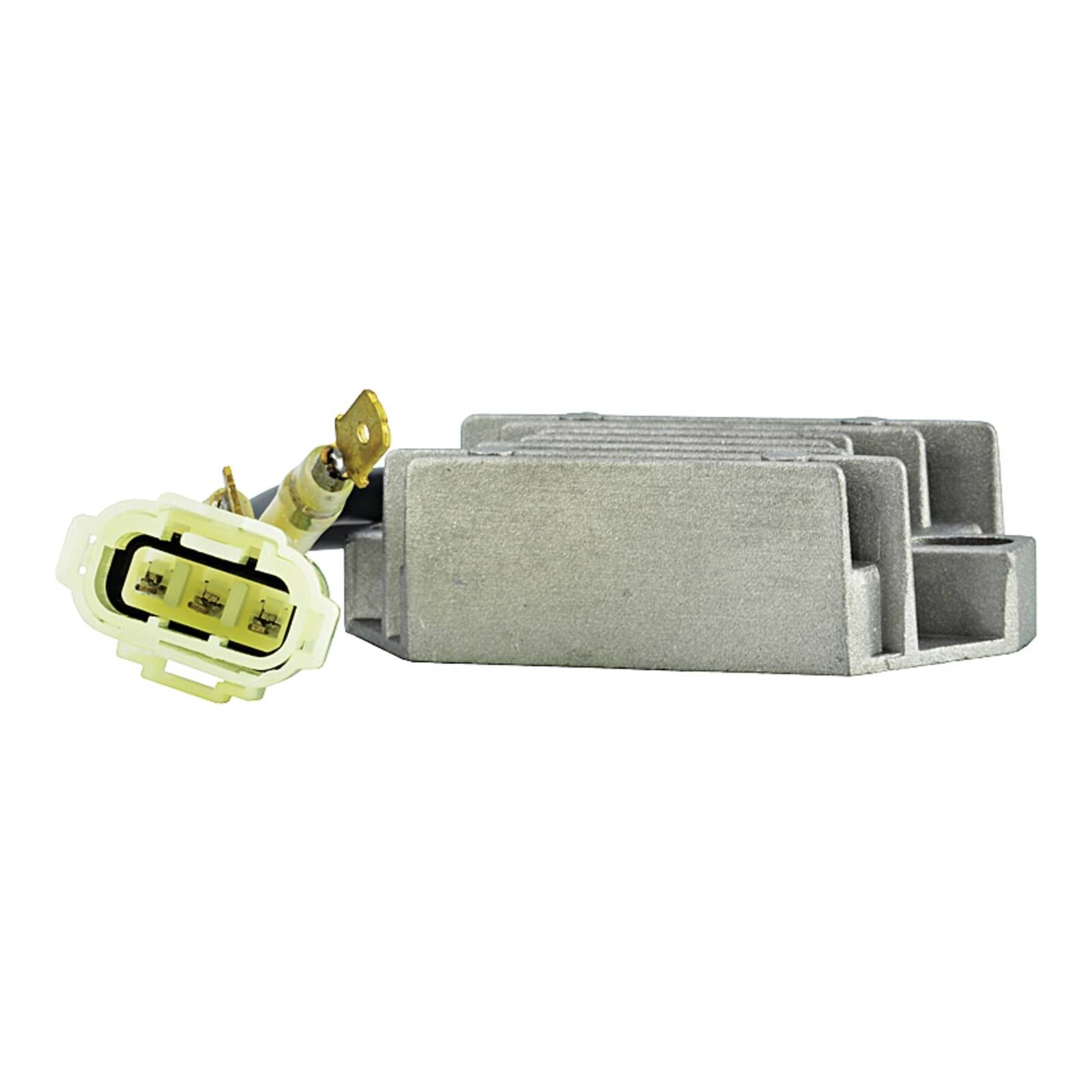

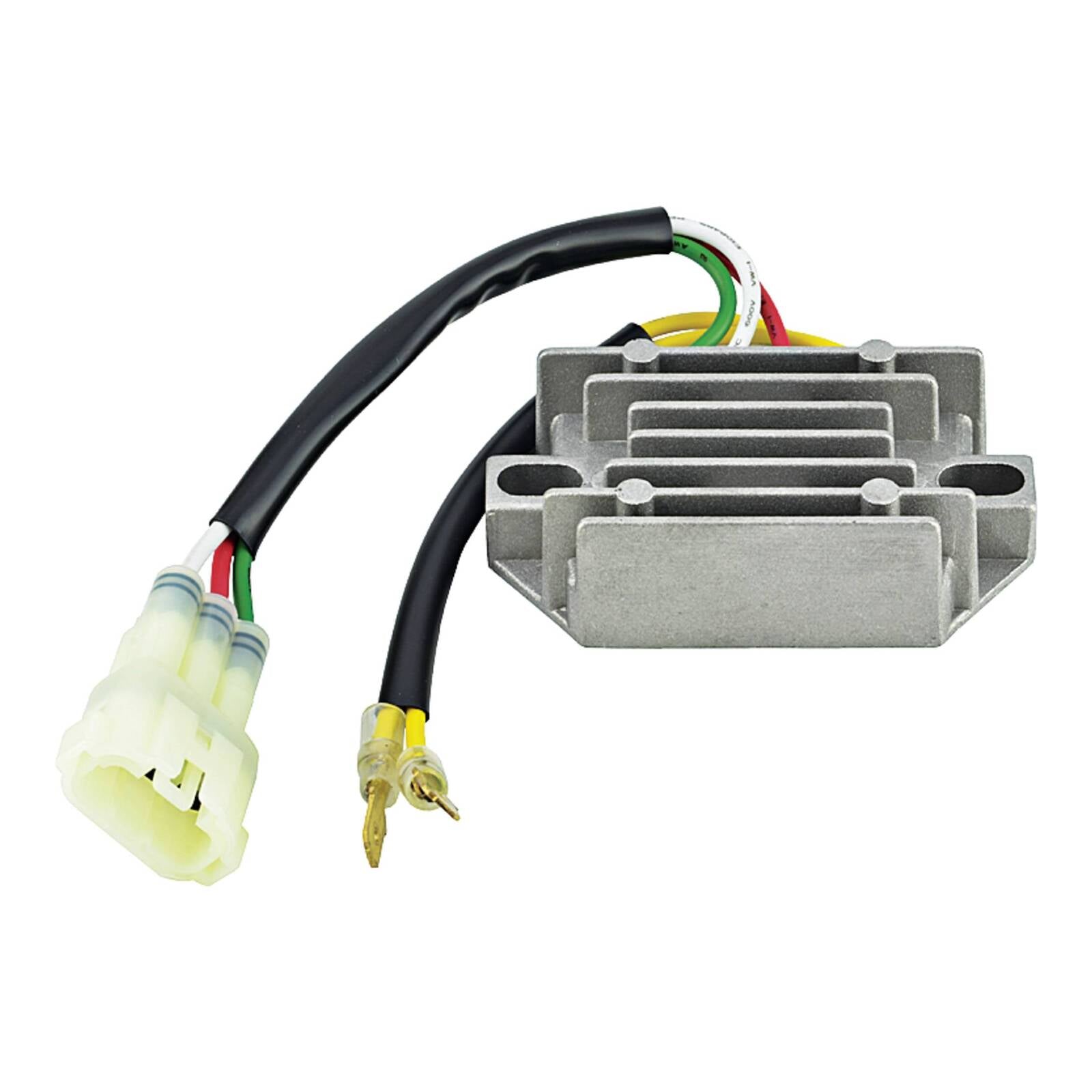

Brand new aftermarket Voltage Regulator Rectifier

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.
• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment
• All products shipped are tested

Dimensions:

• Width: 80mm
• Length: 110mm
• Height: 28mm
• Wires length: 150mm & 400mm
• Fixation holes centre to centre: 80mm

Other specifications:

• Number of plugs: 2
• Number of pins: 7
• Number of wires: 7
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: 15 V
• Operation Temperature: -20° to 85°

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Brand new Kit High Output Stator 200W + High-Performance CDI + External Ignition Coil

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All products shipped are tested

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Brand new aftermarket High output Stator 200W

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• 2 x 100W
• Connectors included
• Rubber grommet included

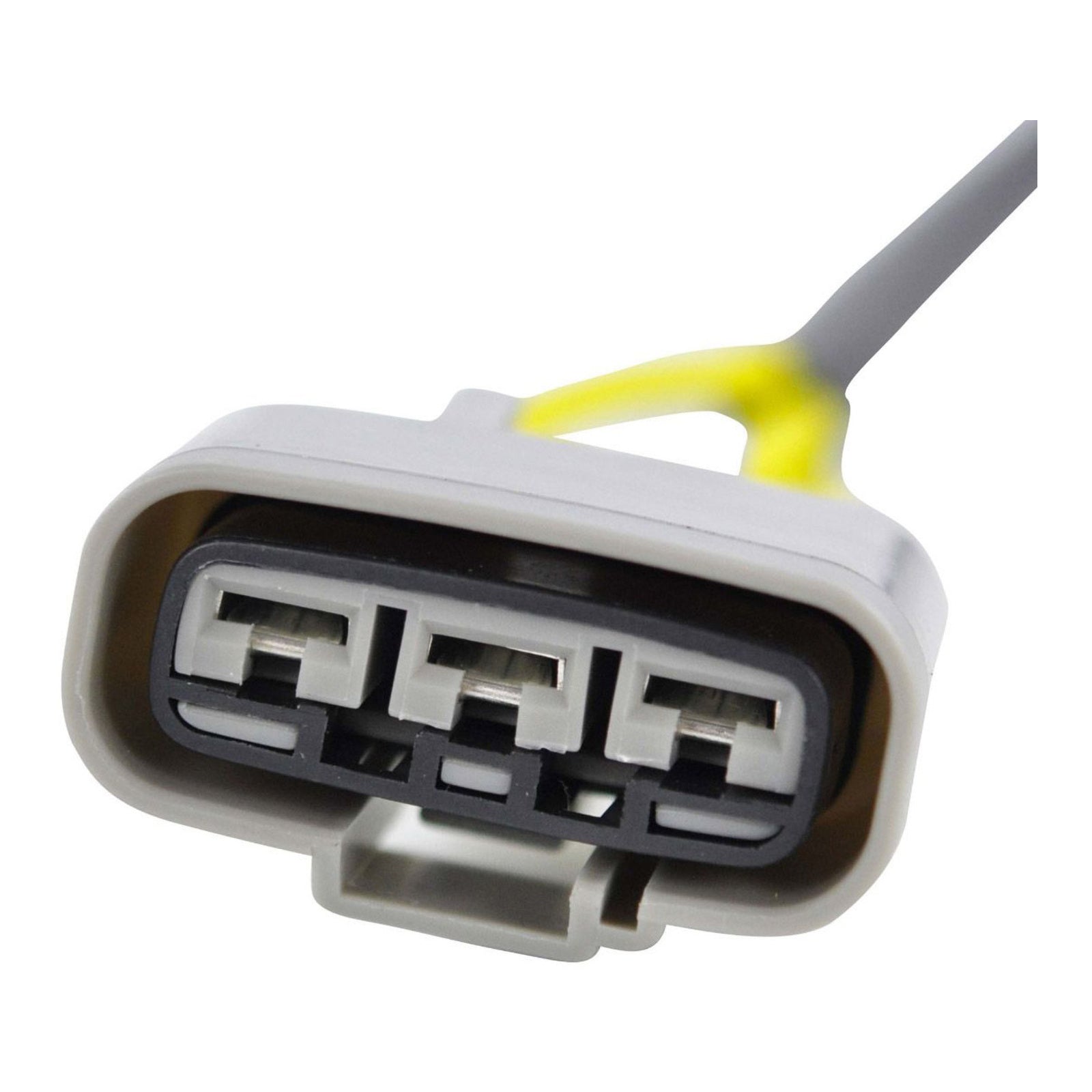

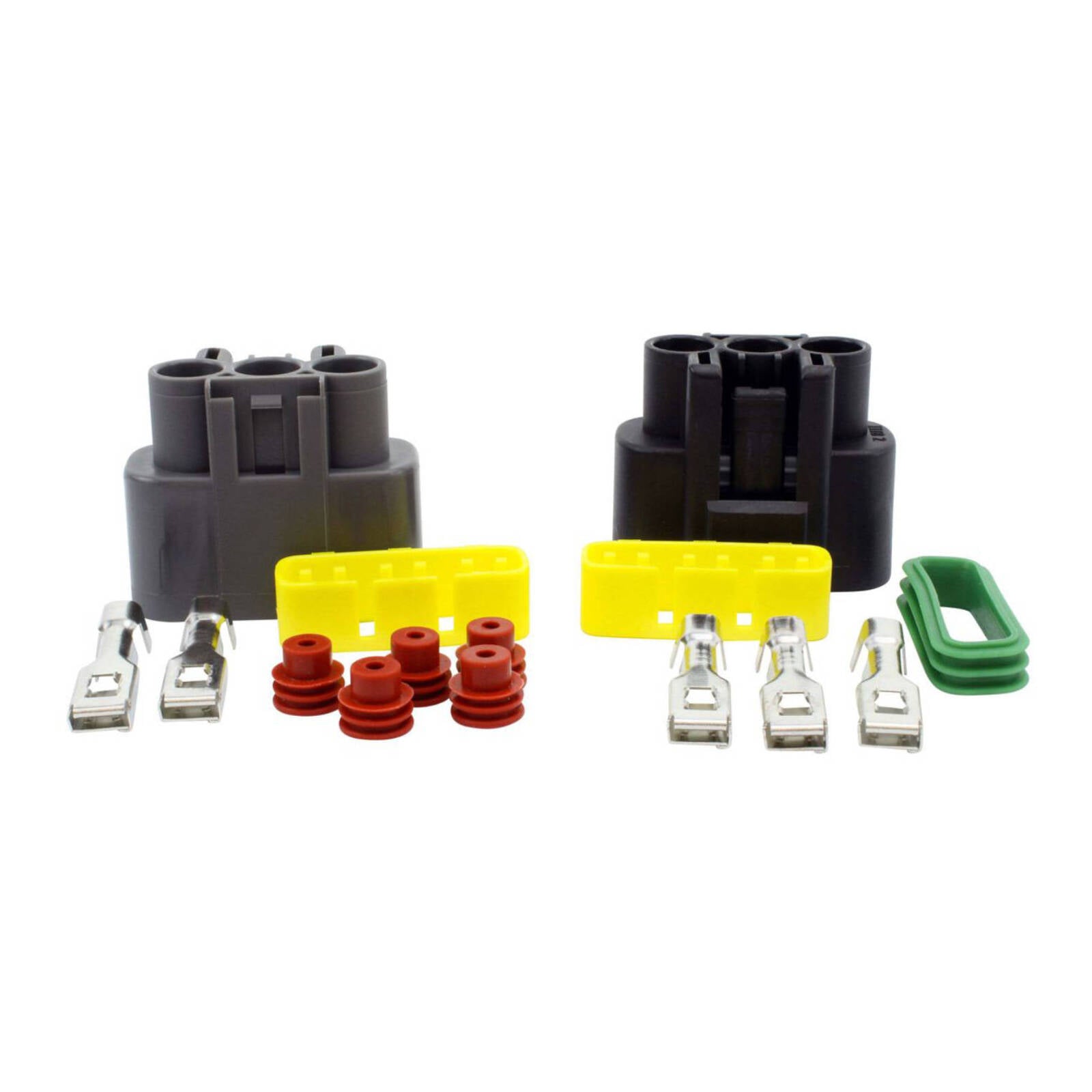

We have even included the opposite connector (main harness side) as we know these are often melted / corroded/defective and a major cause of repetitive electrical issues.

Brand new aftermarket CDI box

• Enhanced timing curve, increased rev limiter (approximately 1000 rpm)
• Higher grade of electronic components.
• The quality exceeds the OEM equipment

Brand new aftermarket External Ignition Coil

• You must re-install your OEM spark plug cap(s)
• Once your OEM spark plug cap(s) are re-installed, our part becomes a Plug- and-play unit, direct fit, and easy to install.

High output Stator 200W

• Dimensions:
  • Interior diameter: 54 mm
  • Exterior diameter: 115 mm
  • Thickness: 15 mm
  • Length of wires stator to grommet: 200 mm
• Length of wires grommet to plug: 700 mm
• Other specifications:
  • Number of wires: 5
  • Number of plugs: 5
  • Number of pins: 3
  • Number of poles: 17
  • Wire to wire resistance:
  • Alternator: White to Green = 0.4 ohms +-20%
  • Alternator: Yellow to Red = 0.4 ohms +-20%
  • Source: Black/Red to Green = 140 ohms +-20%

High- performance CDI Box

• Dimensions:
  • Height: 22mm
  • Length: 66mm
  • Width: 42mm
• Other specifications:
  • Number of plugs: 2
  • Number of pins: 6

Direct replacement to your original unit.

Features:

• Plug-and-play, direct fit, easy installation.
• Highest grade of lamination materials.
• All products shipped are tested.
• Bracket centre to centre: 80 mm

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connectors included
• Rubber grommet included
• Back Plate included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause of repetitive electrical issues.

Dimensions:

• Interior diameter: 29mm
• Exterior diameter: 88mm
• Thickness: 18mm
• Length of wires stator to grommet: 120mm
• Length of wires grommet to plug: 290mm
• Length of pickup coil's wire to grommet: 30mm

Other specifications:

• Number of wires: 5
• Number of plugs: 1
• Number of pins: 5
• Number of poles: 12

Wire to wire resistance:

• Alternator: Yellow to Yellow = 1 ohms +-20%
• Pickup: Green to Blue = 120 ohms +-20%

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Features:

• Direct OEM replacement.
• Matches OEM temperature specifications.
• Includes O-ring gasket when required.

Confirm suitability for your year, make, model prior to purchase.

The TTO Digital Temperature Gauge allows you to easily monitor your engine's temperature ensuring you that your engine is not overheating.

Features:

• Easy to read LCD display and an ultra-thin design.
• The LCD display lets you to easily view all gauge readings regardless of the angle or lighting conditions.
• Surface mount for easy install, comes with double sided VHB tape or can be bolted on
• -40°-300°C/575°F
• Black case, orange version sold separate

What's in the box:

• TTO Temperature
• Screw Caps and VHB Tape
• Temperature Sensor, M6x1 Screw Sensor

WHY USE SERIES ENHANCED TECHNOLOGY?

• Runs much cooler than the Shunt and MOSFET voltage regulator rectifier.
• Power only flows through the electrical components when the battery is charging.
• Allows the stator to have lower current flowing when not used, extending its lifetime.
• The regulator is easier to mount because it’s smaller than the OEM one.

With enhanced technology design

This product is an advanced technology that lowers operating temperatures for extended longevity and better performance than the OEM part.

THE SERIES VOLTAGE REGULATION TECHNOLOGY

RMSTATOR’s new SERIES voltage regulator brings better reliability and charging system performance. A SERIES regulator is a significant upgrade over typical shunt type voltage regulators. A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat, rather than sending it on to the battery. SERIES regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics, limiting current flow through the unit and on to the battery completely. This results in lower regulator and stator temperatures, more accurate voltage regulation, and increased reliability of your charging system components.

Brand new series voltage regulator rectifier

THE ULTIMATE SOLUTION TO YOUR REGULATOR RECTIFIER PROBLEMS!

It is time to update or replace your voltage regulator with the advanced series type. It runs cooler than all OEM, Shunt or MOSFET, diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• The quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components
• All shipped products are tested

We even include the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

Dimensions:

• Width: 84mm
• Length: 90mm
• Height: 32mm
• Fixation holes centre to centre: 69mm

Other specifications:

• Number of plugs: 2
• Number of pins: 5

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Dimensions:

• Interior diameter: 41mm
• Exterior diameter: 104mm
• Thickness: 12 mm
• Length of wires stator to grommet: 90mm
• Length of wires grommet to plug: 480mm

Other specifications:

• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3

Wire to wire resistance:

• Alternator: Between Each White = 1.1 ohms +-20%

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Don't lose your spark. Whites Sparks Plug Caps offer exceptional connection between high-tension leads and the spark plug. They are designed to reduce noise across all frequencies, ensuring engine performance isn't affected.

Features:

• Sufficient resistor length prevents internal flashover and maintains consistent resistance.
• Made with high-quality ceramic materials, resisting deterioration and offering minimal resistance variation under heavy loads.
• Plug connector constructed from tough phenolic resin, providing excellent heat resistance and withstanding high tension.
• Durable rubber material.
• Heat press insertion further strengthens the cap, making it highly resistant to vibration.
• Special rubber seals prevent moisture-caused electrical leakage.

Specifications:

• Pl ug Φ: 14mm
• For terminal type: Terminal
• Colour: Black
• Resistor: 5 kiloohms
