ELECTRICAL

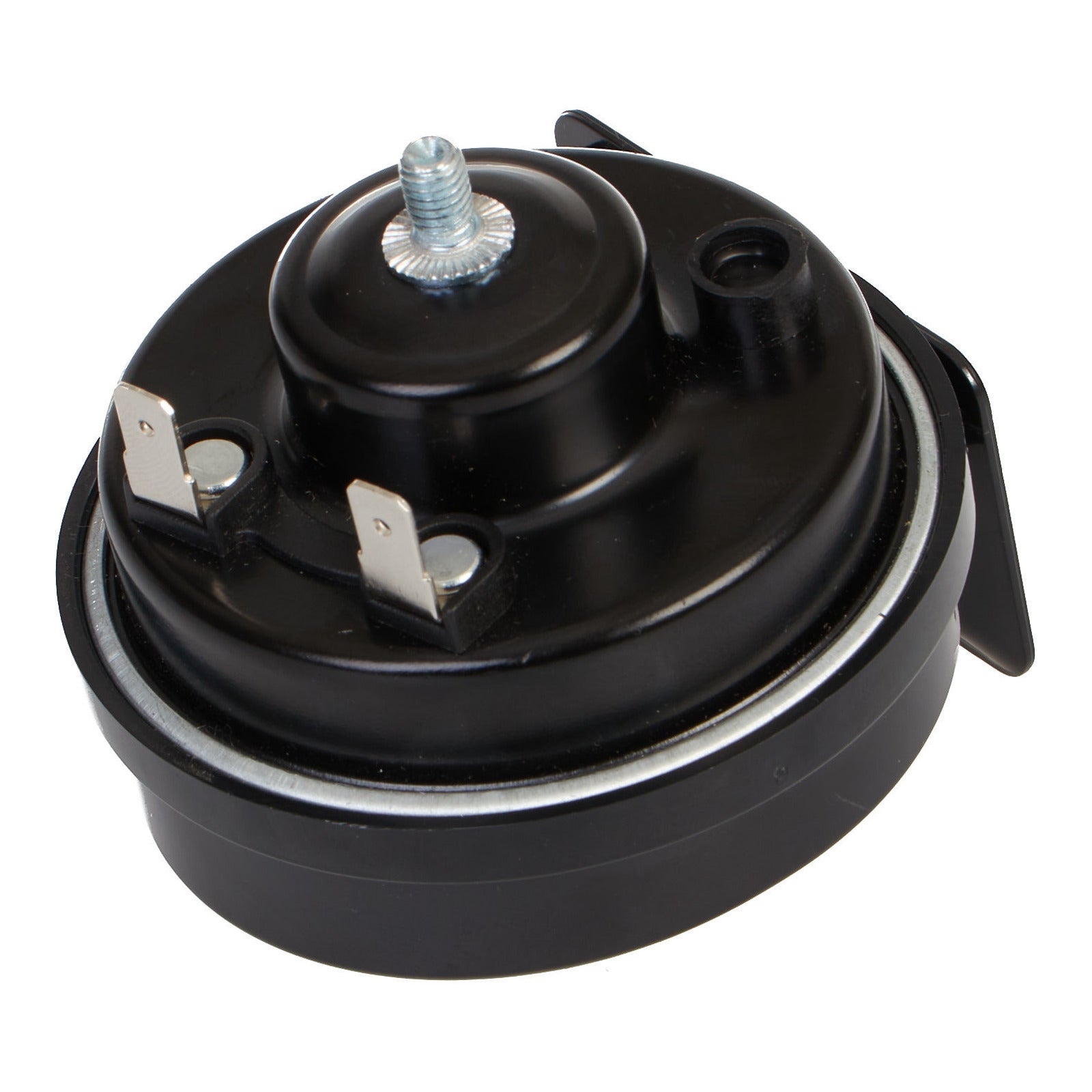

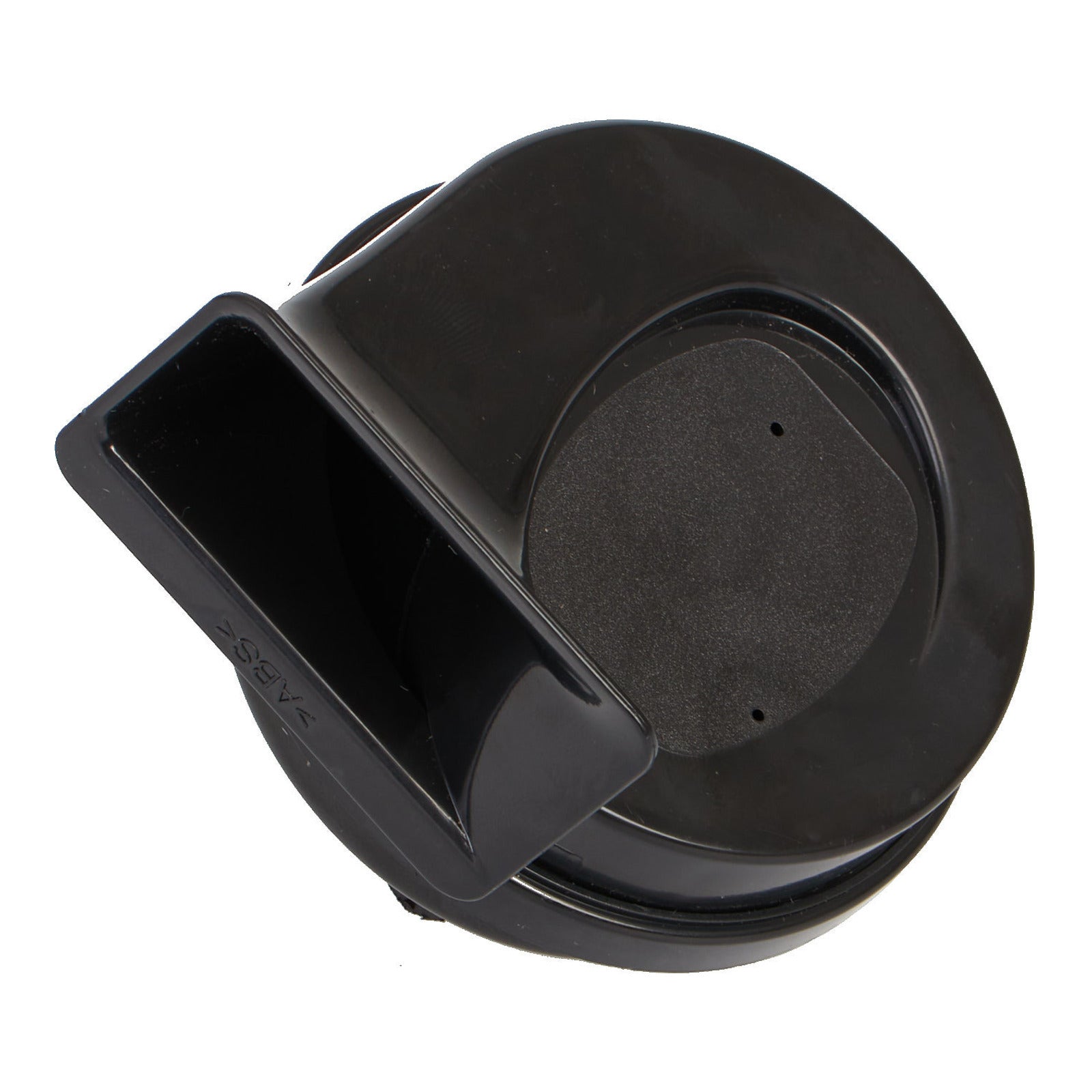

Powerful motorbike horn with a 110dB/500Hz output and 80mm diameter, providing loud, clear alerts on the road.

Specifications:

• Voltage: 12V
• 110dB output
• 80mm

DENALI Dual-Intensity Controller

DNL.WHS.11000

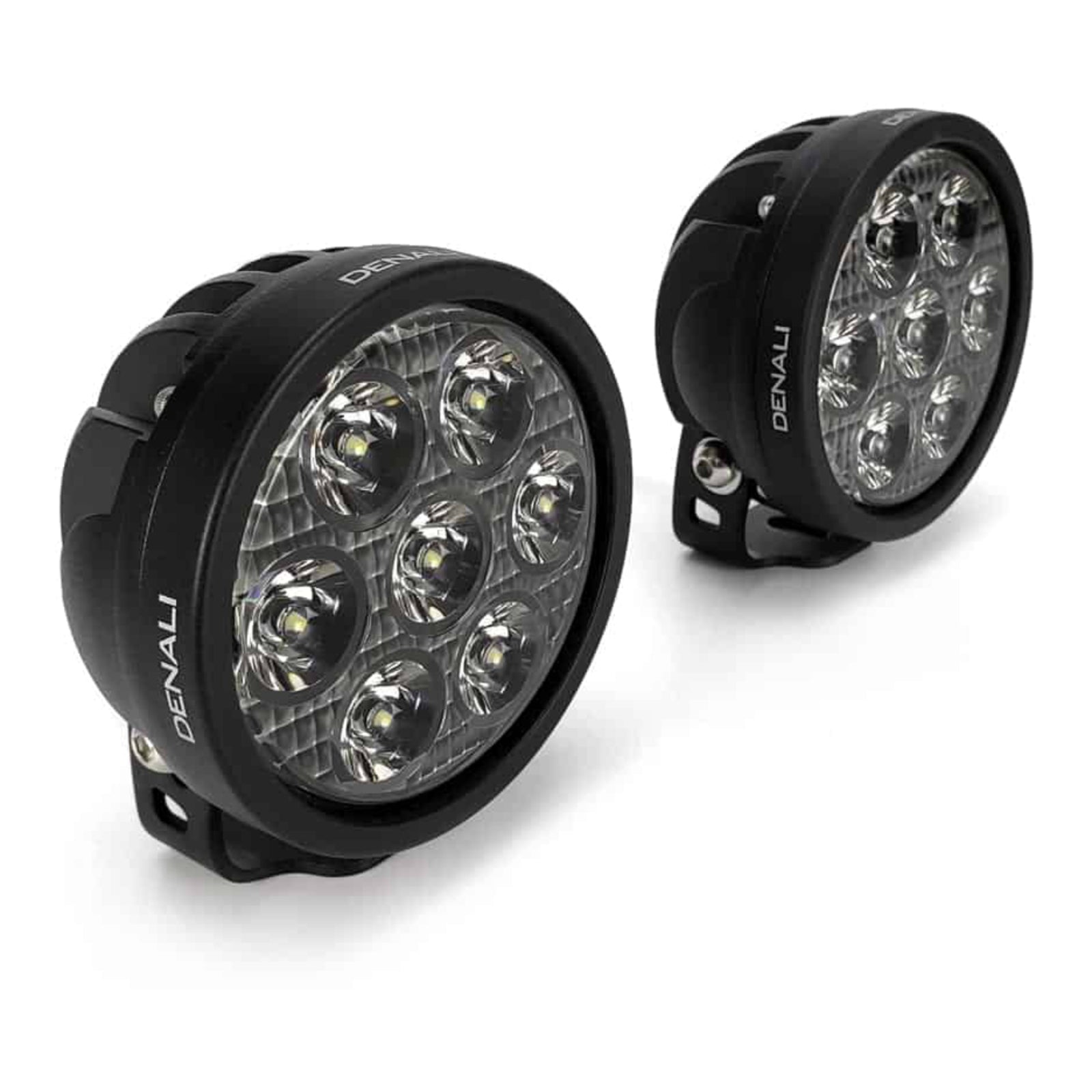

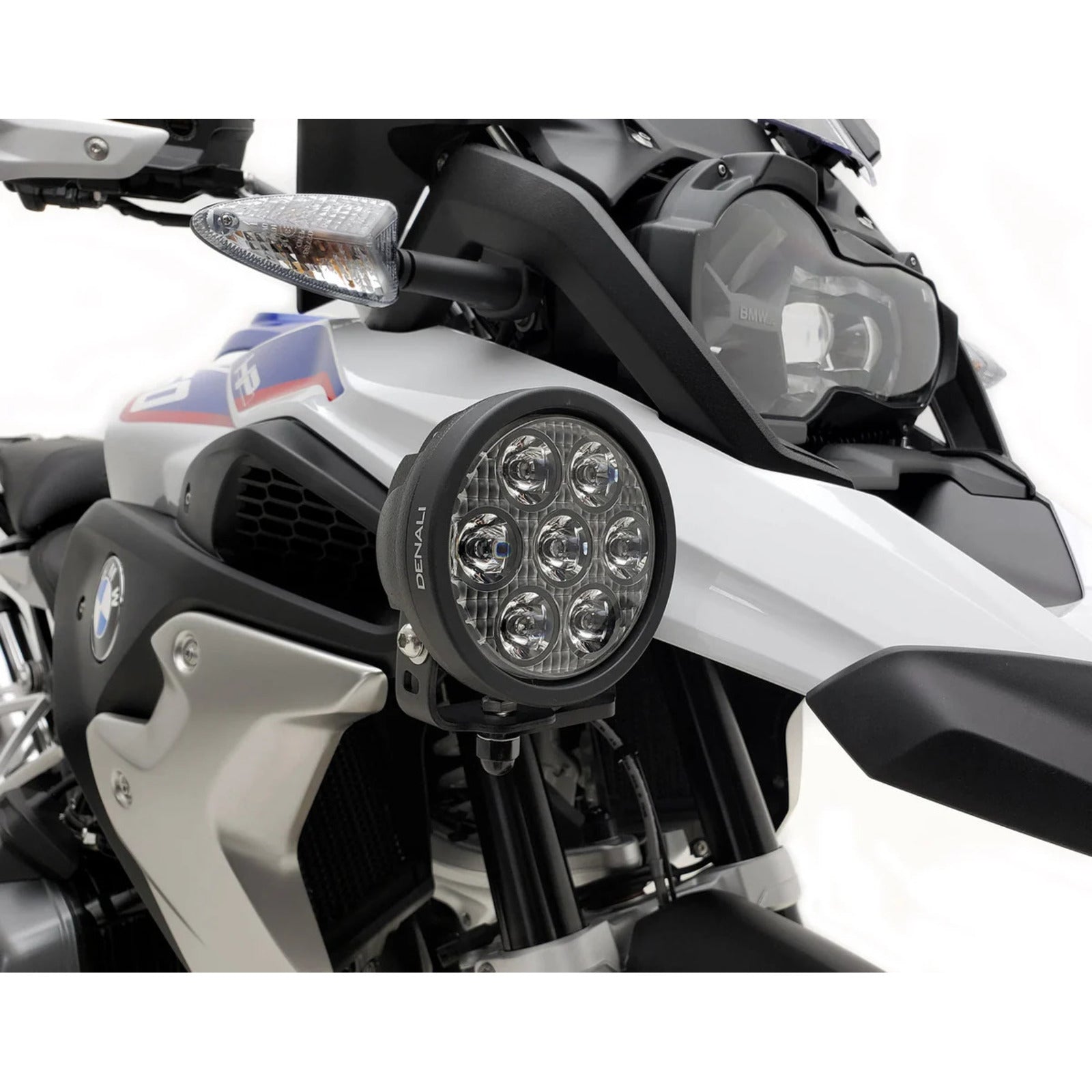

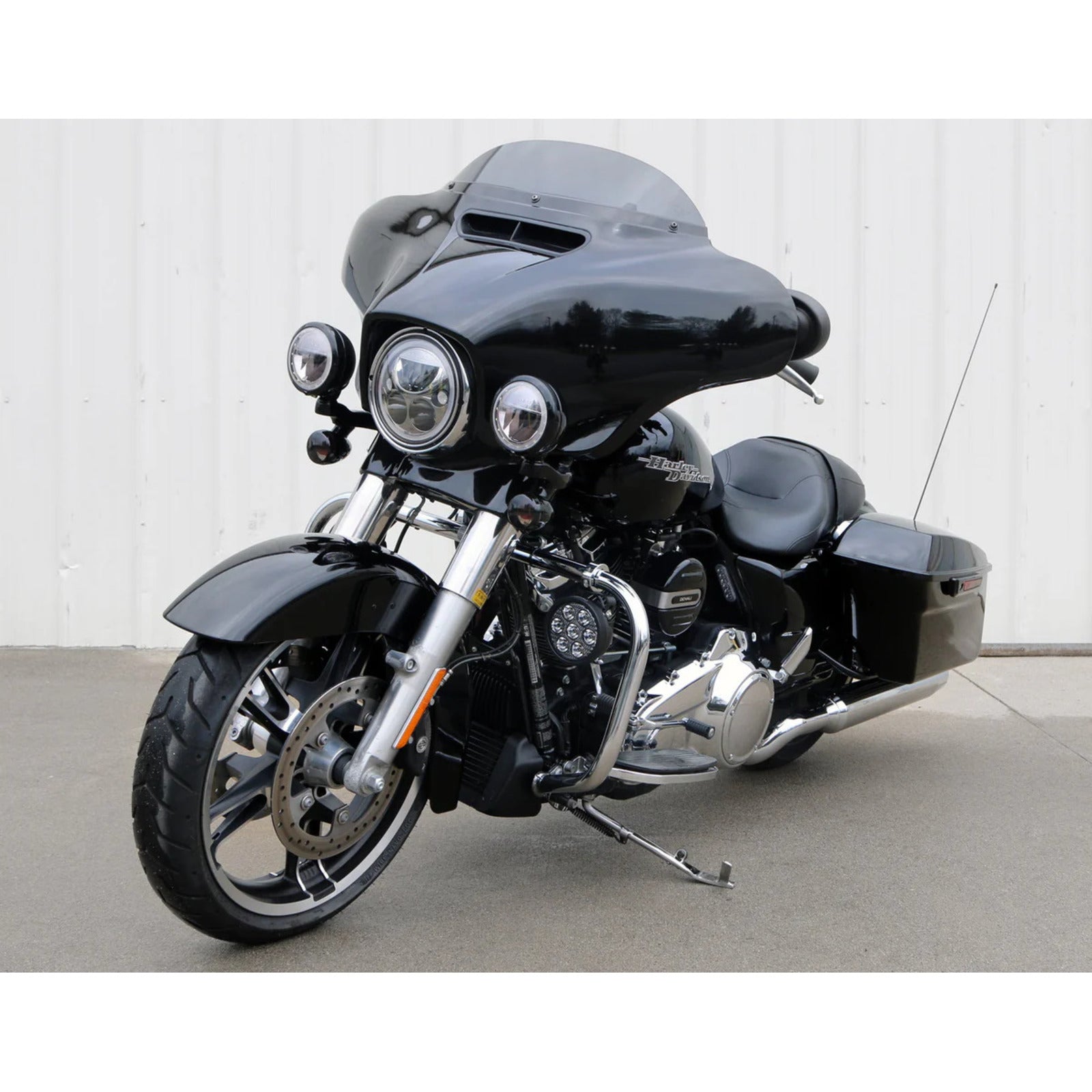

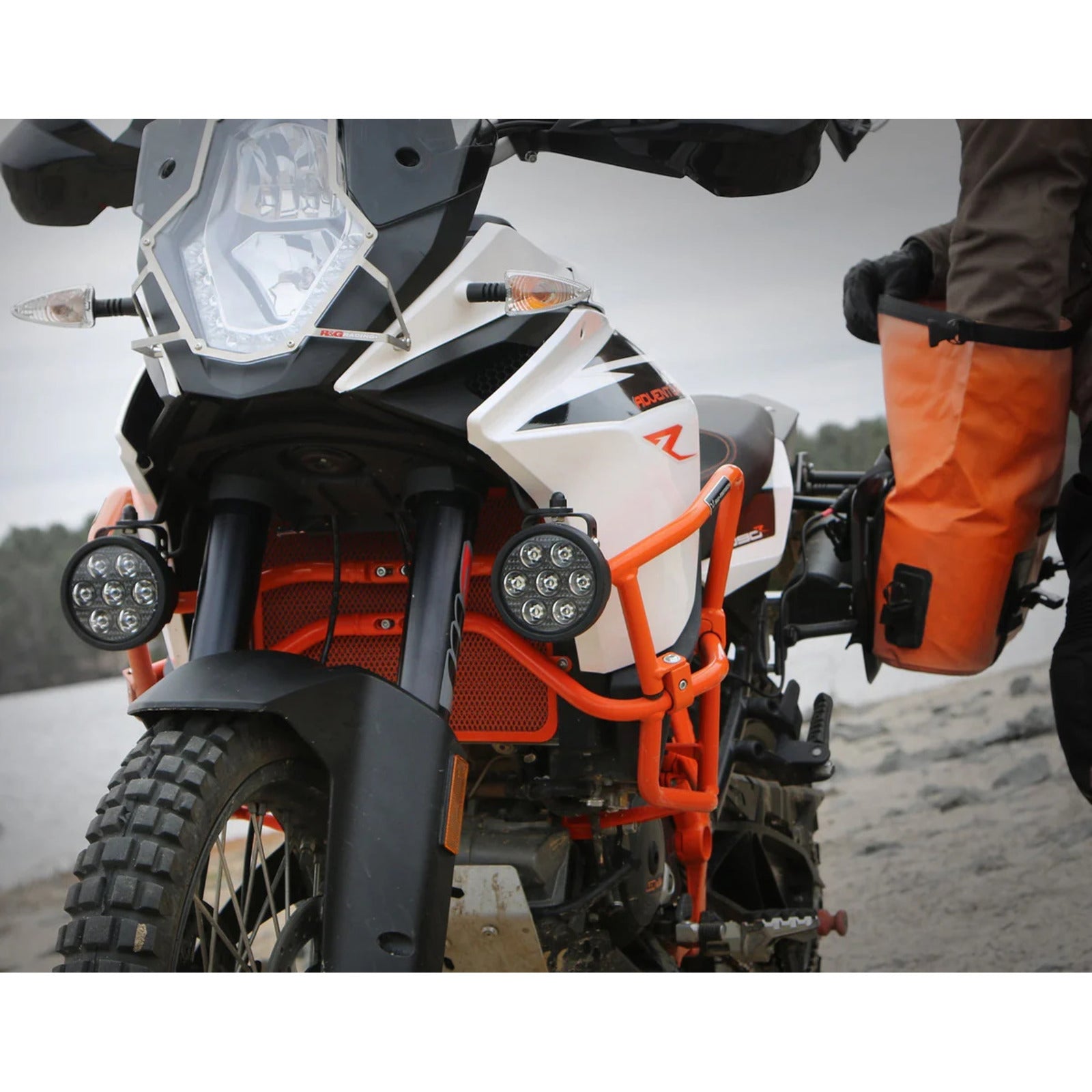

At over 7,500 lumens, the DENALI D7 light pod is one of the brightest LED lights under 4.5 inches period. The light pod features seven high-intensity 10 watt LEDs that are focused through a proprietary single-piece optic that was specifically engineered to create a full-bodied spot beam that can reach over 1200 feet at one lux.

Features:

• High-Intensity Series Cree LEDs outputting 7665 lumens per pair
• TriOptic™ Multi-Beam Lens System includes a Spot, Flood and Hybrid beam option in one pair of pods
• DataDim™ equipped light pods to enable plug and play connection, and integrated dimming, with DENALI dimming and lighting controllers.
• DrySeal™ Submersible Waterproof light housings can withstand the most extreme environments
• Impact PC™ Polycarbonate bezels won't crack, fade or corrode like traditional aluminum bezels
• LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
• Low profile mounting bracket with stainless steel hardware included

Pair Specs

• LED's: (14x) 10 Watt Cree XPL HI
• Power Draw: 10 Amps
• Raw Lumens: 15330
• Beam Distance: 1505 feet
• Beam Width: 200 feet
• DataDim™ Compatible: Yes
• Operating Voltage: 12 VDC
• Pod Size: 4.4" Round x 2.9" Deep
• Pod Weight: 1.8 lbs
• IP67 Waterproof & Submersible
• E Mark Approved Spot Lens

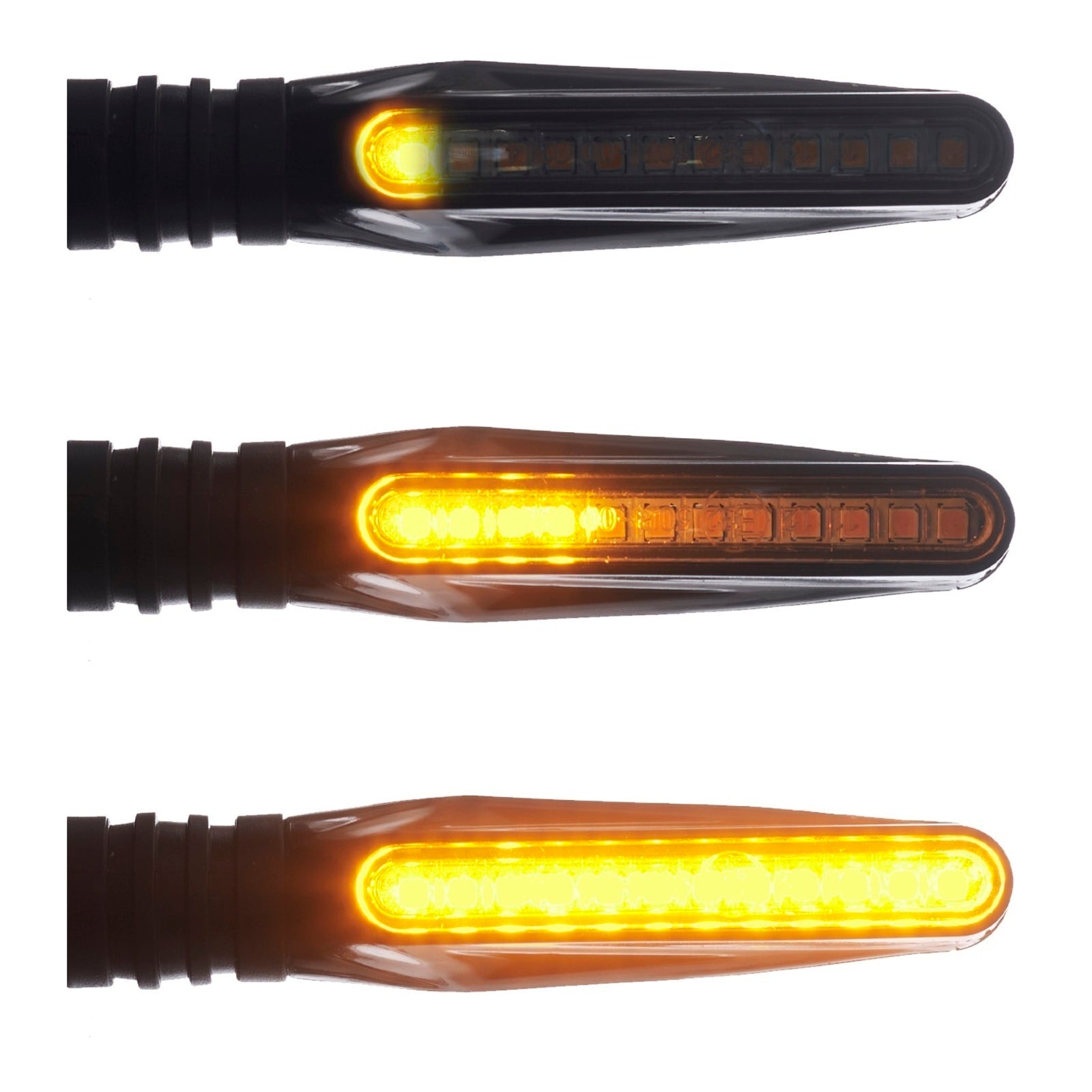

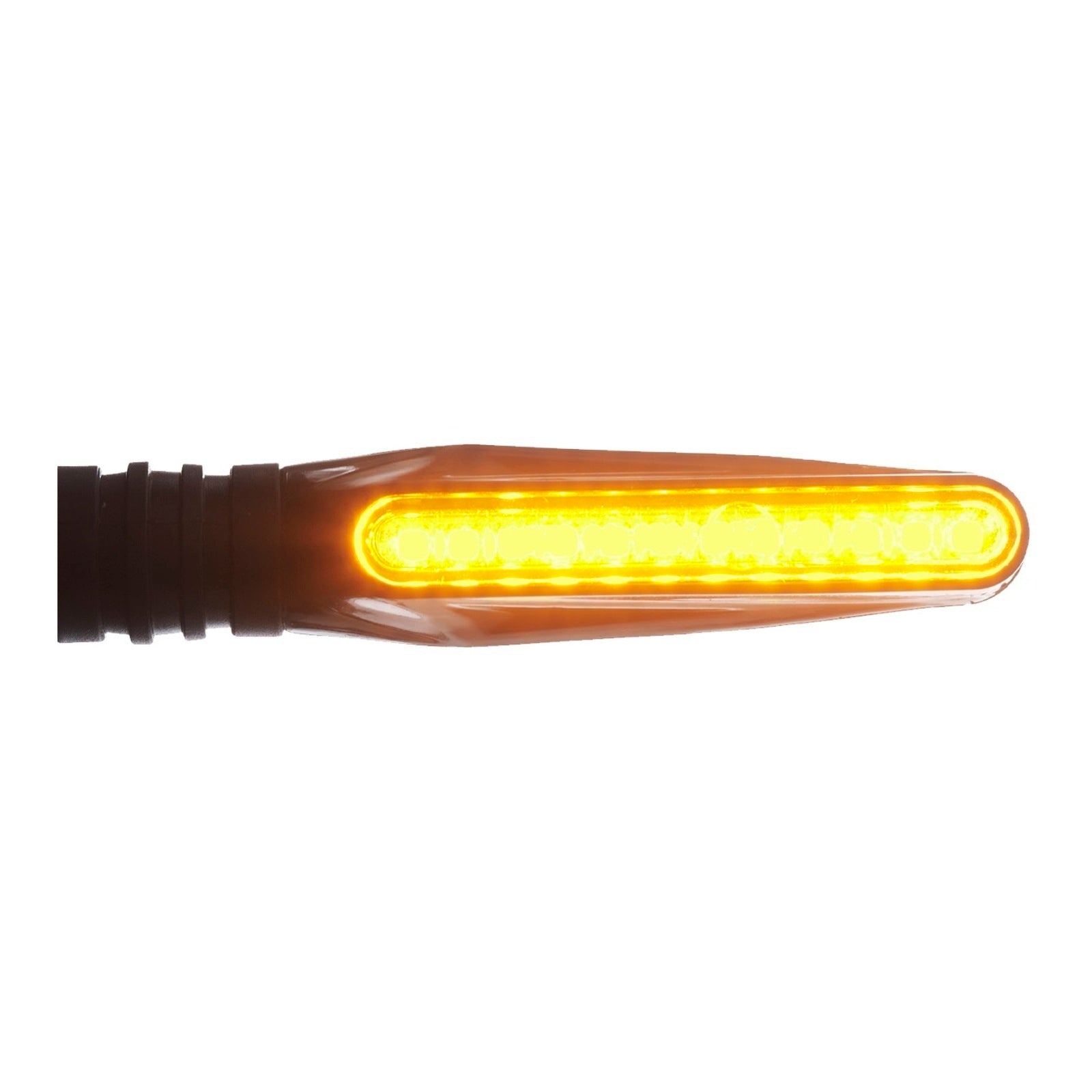

The Whites Aurora Stella Orion LED Indicator Lights are designed to provide superior illumination and reliability, whether you're on the road or trail.

These stylish and functional units feature multiple LEDs that light up in sequence from inside to outside, creating an eye-catching wipe effect.

Features:

• Sequential illumination creates an eye- catching wipe effect.
• 12 LEDs light up in sequence when turning.
• Built-in resistors, plug-and-play.
• Bullet connections.
• E Marked

Specifications:

• Voltage/Wattage: 12V / 5.5W
• Stud Length: 1.7cm
• Stud thread size: 10mm
• 2 wires, wire length 260mm
• E-mark 32

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Quality light bar bracket.

Don't lose your spark. Whites Sparks Plug Caps offer exceptional connection between high-tension leads and the spark plug. They are designed to reduce noise across all frequencies, ensuring engine performance isn't affected.

Features:

• Sufficient resistor length prevents internal flashover and maintains consistent resistance.
• Made with high-quality ceramic materials, resisting deterioration and offering minimal resistance variation under heavy loads.
• Plug connector constructed from tough phenolic resin, providing excellent heat resistance and withstanding high tension.
• Durable rubber material.
• Heat press insertion further strengthens the cap, making it highly resistant to vibration.
• Special rubber seals prevent moisture-caused electrical leakage.

Specifications:

• Plug Φ: 14mm
• For terminal type: Terminal
• Colour: Black
• Resistor: 5 kiloohms

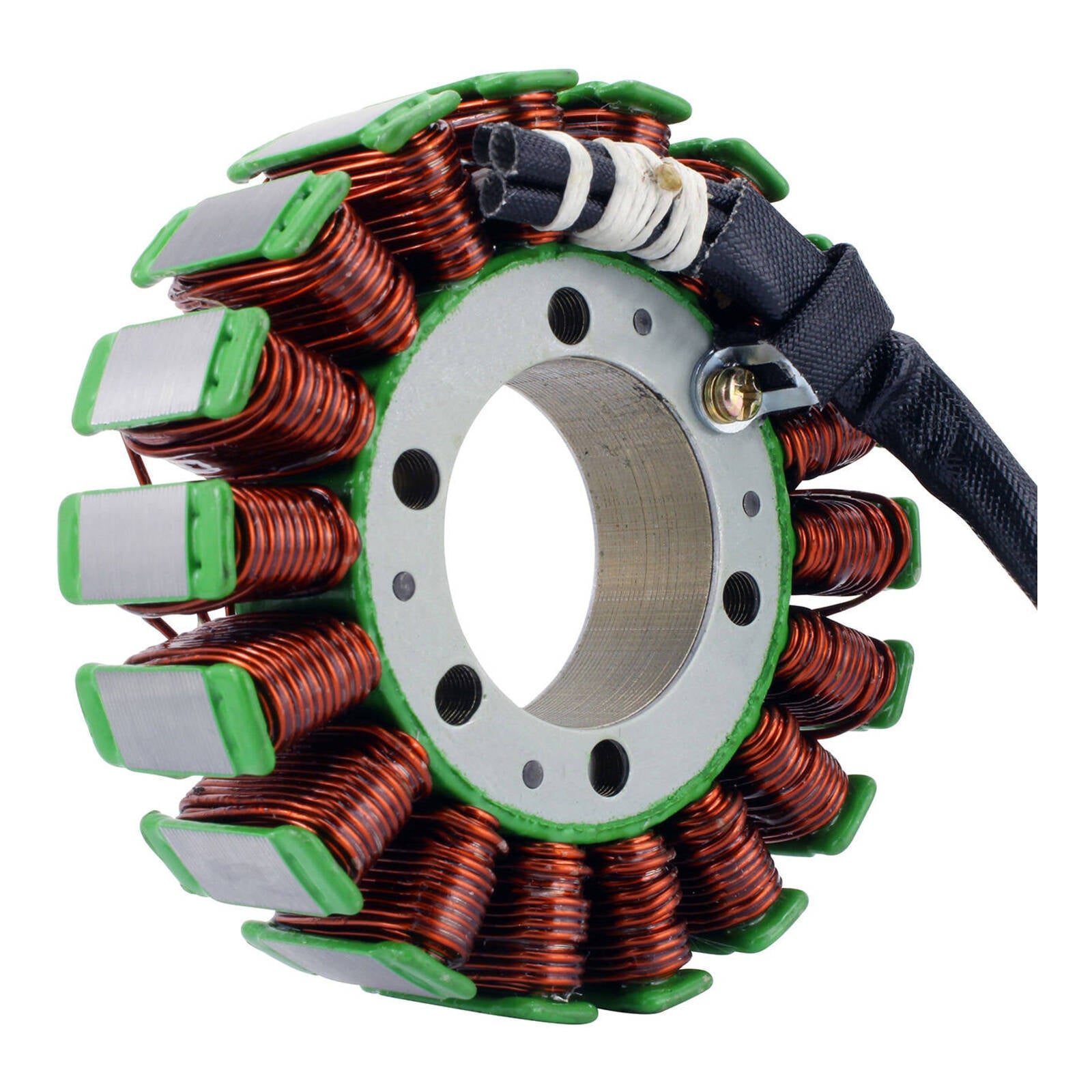

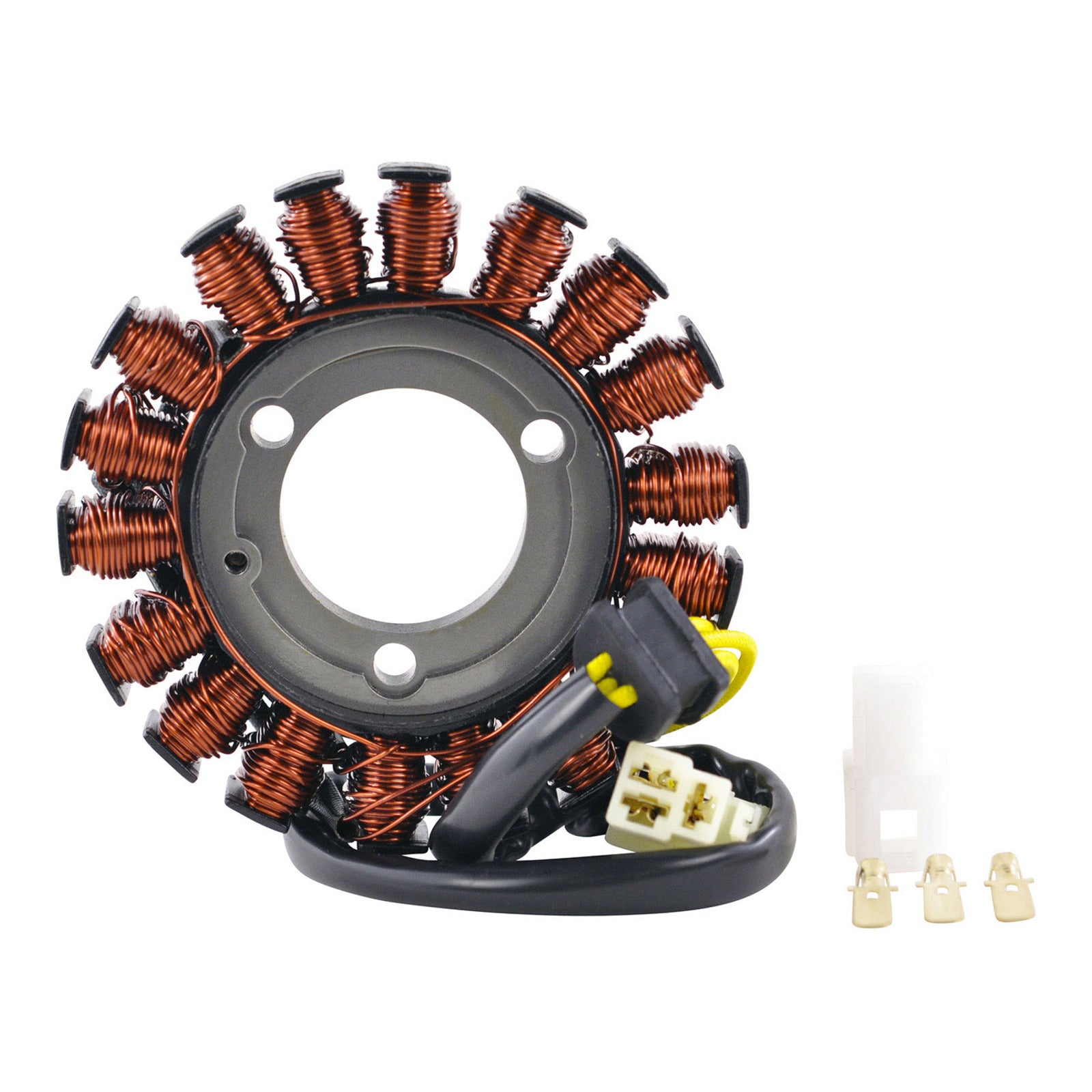

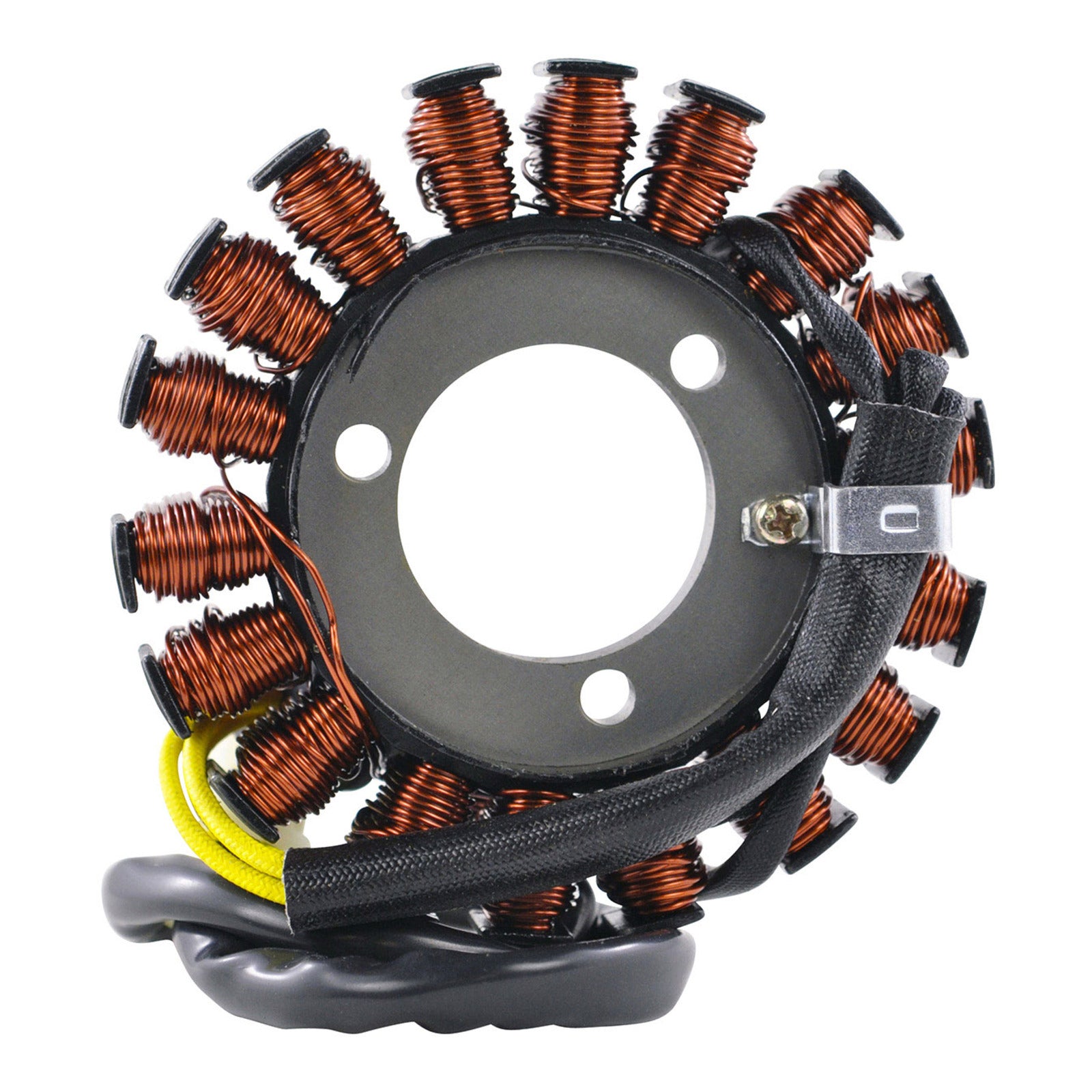

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMStator's goal is to get our customers running again, sometimes that includes long conversations over phone and email troubleshooting their problems.

Often our customers are only equipped with a common multimeter, this is a good start but useless as you cannot read peak voltage output.

Stators may fail in various ways, most common is the windings shorting to ground either directly or to the coil that interfaces with the ignition. But there are other ways. Coils can short internally which gives good resistance but essentially fewer windings giving low voltage output.

The other way a good stator cannot provide power is if the rotating magnets in the flywheel are dead.

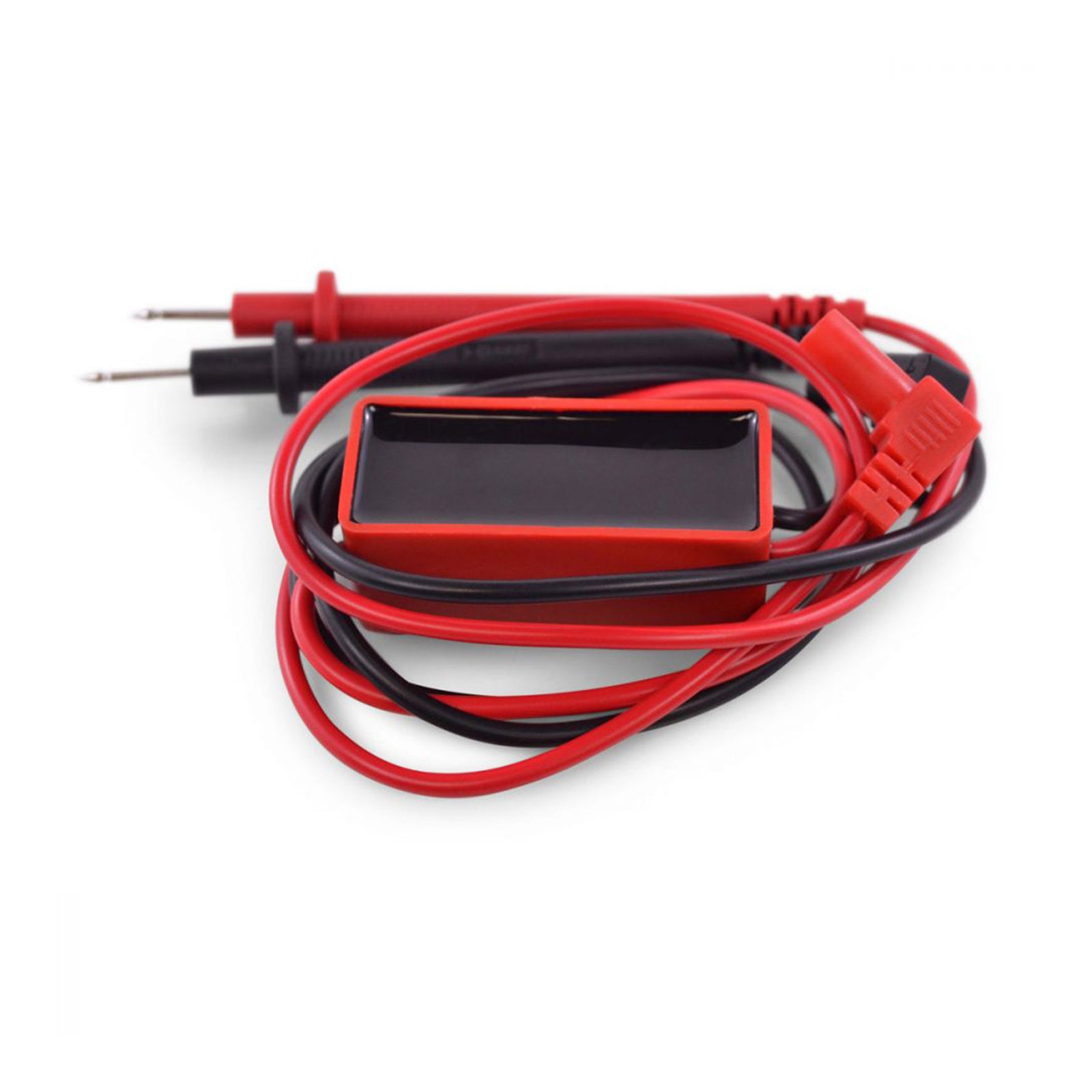

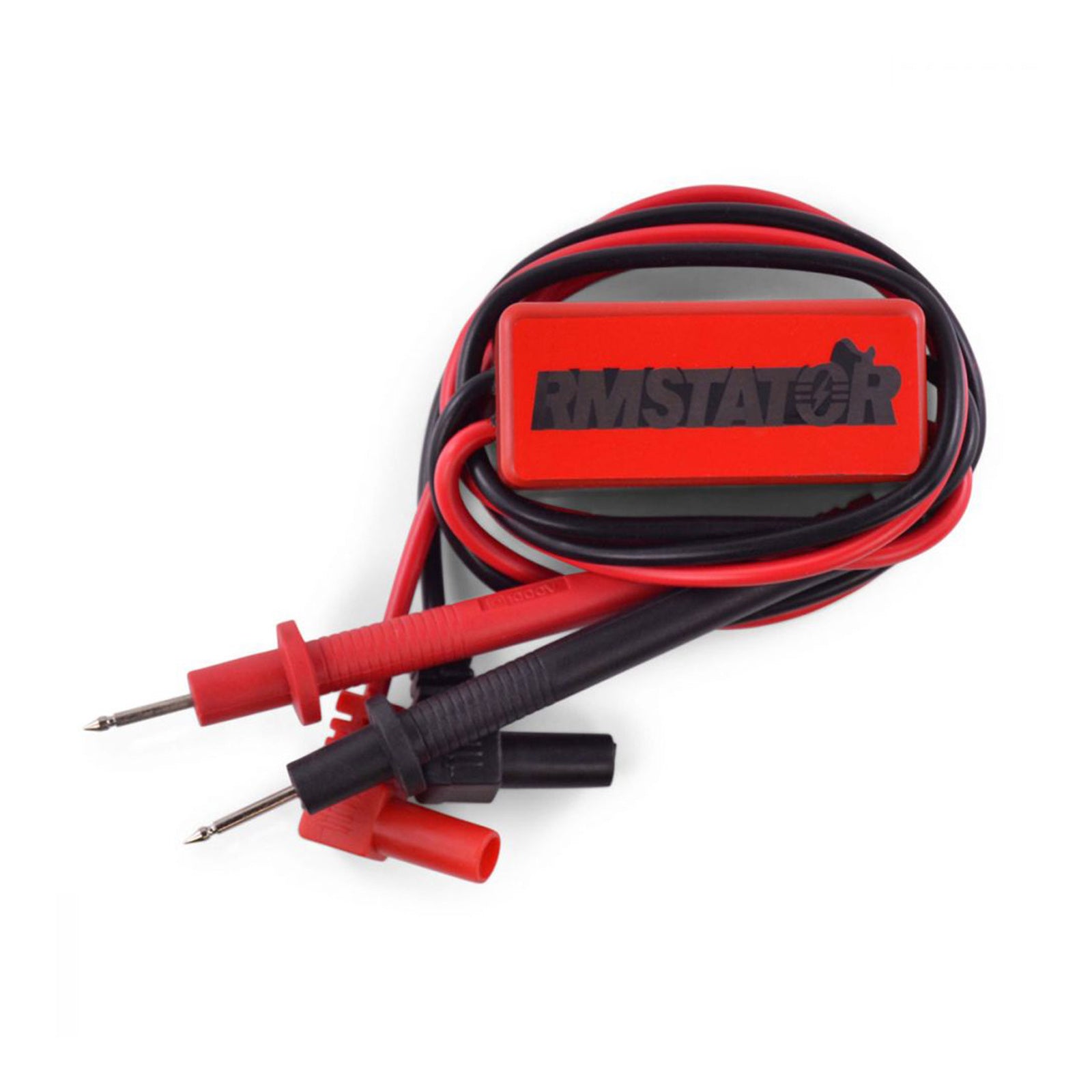

We finally have come out with the tool that you can simply attach to your multimeter and will allow you to test peak voltage with your common multimeter.

How it works

A DVA adaptor is also known as a peak reading adaptor.

Small engine ignition systems use permanent magnets to make electricity. This electricity travels down the wires very quickly and in "spikes" so to speak.

What a DVA does is capture those "spikes" and allow a standard digital multimeter to read those voltages.

Without a DVA adaptor, a multimeter will either record a low voltage, or no voltage at all.

Power sport ignition systems work on "peak" voltages, which is why a DVA is known as a "peak reading" adaptor.

Multimeters read average voltages, not peak, so that is what our adaptor allows you to do.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

Features:

• RM STATORs PeakRPM technology provide a more aggressive timing curve for increased throttle response.
• Ride at full throttle with our application-specific CDI box that raises the rev limiter by 1000 RPM.
• Enjoy fast and easy installation with our plug and play design and included dielectric connector grease.
• OEM-grade electronic components and printed circuit boards for long-term reliability and performance.
• 90% of ignition issues are caused by a faulty stator. Full test ignition components before buying.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Direct replacement to your original unit.

Features:

• Quality exceeds the OEM equipment.
• All shipped products are tested.

Specifications:

• Spa rk plug hole external diameter (bottom): 21 mm
• Spark plug hole internal diameter (bottom): 10 mm
• Length: 168 mm
• Seal Diameter: 38 mm
• Seal Length: 8 mm
• Number of plugs: 1
• Number of terminals: 3

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR specialises in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

Features:

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required.
• Higher grade of electric components.
• Improved heat sink and charging capabilities.
• The quality exceeds the OEM equipment.

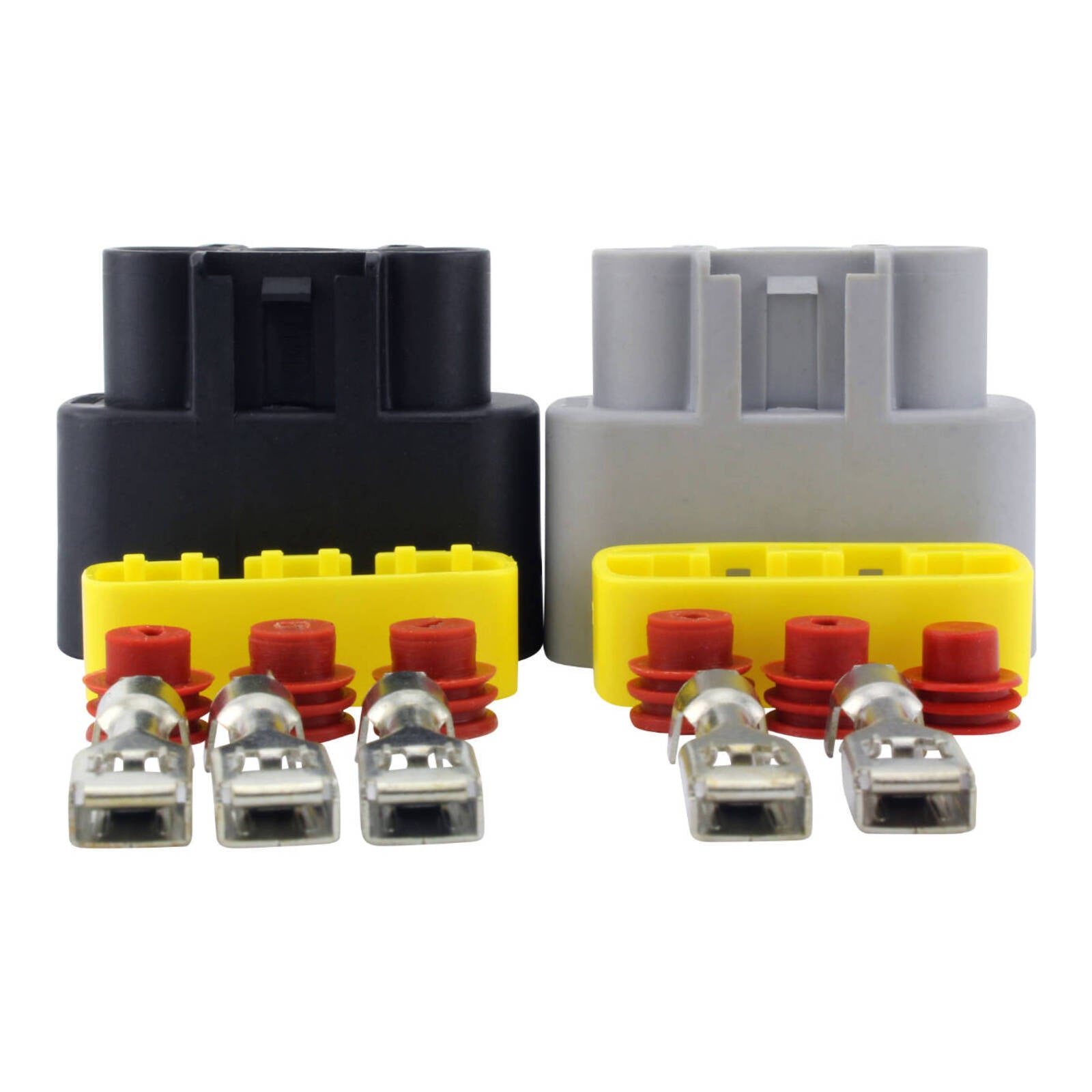

RM STATOR has even included the opposite connector (main harness side), as they know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Whites Tail Light Assemblies provide a cost-effective option when needed for your ATV or UTV.

Features:

• Available to suit many popular makes, models, and years.
• Direct "bolt-in" replacement; no modification required.

Note: Whites ATV and UTV replacement taillights are designed for off-highway applications only. The lenses on these taillights do not have E-marks, which are required for road vehicle compliance.

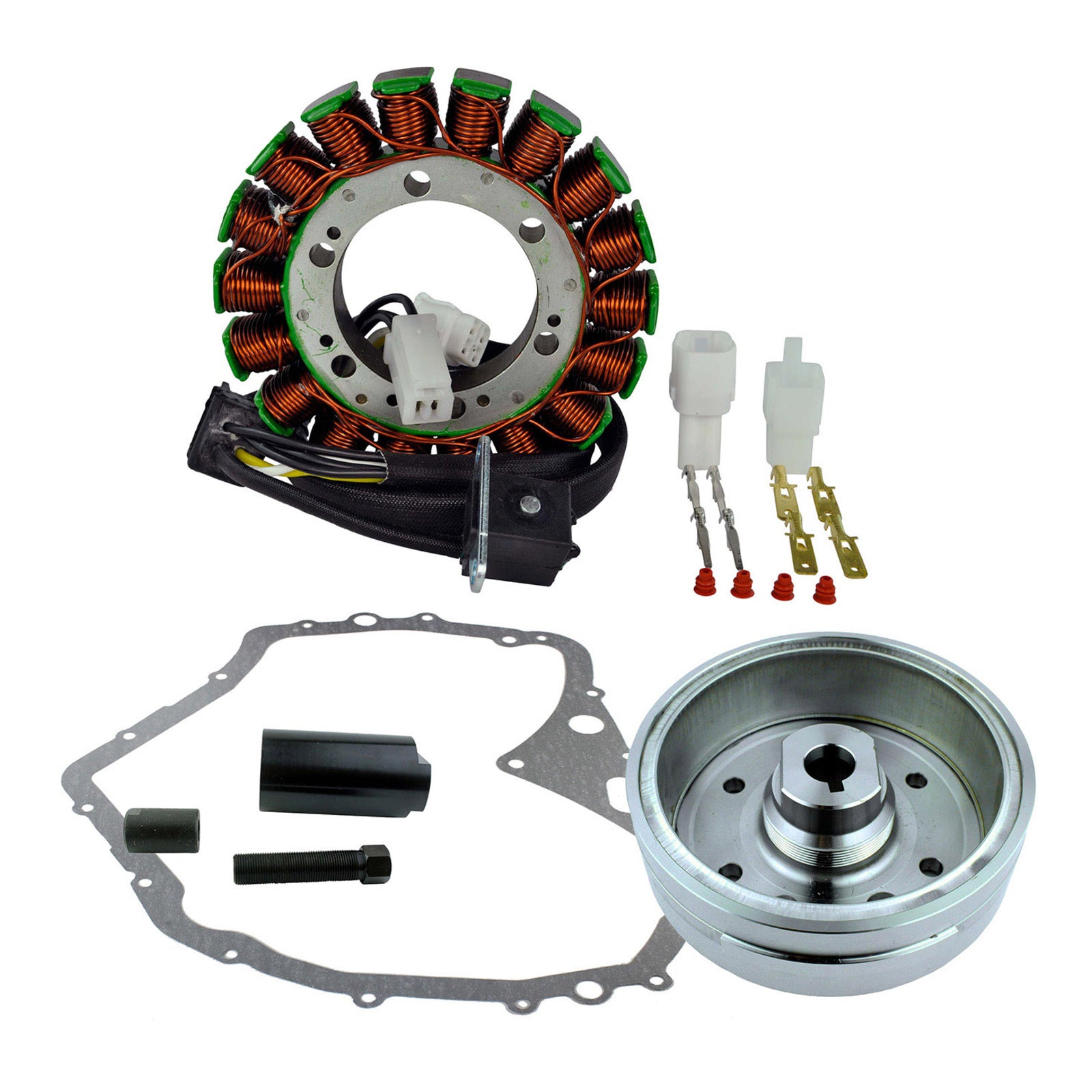

Brand New kit Flywheel + Generator Stator

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included
• Rubber grommet included
• All shipped products are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Generator Stator Dimensions:

• Interior diameter: 42mm
• Exterior diameter: 105mm
• Thickness: 17mm
• Length of wires stator to grommet: 90mm
• Length of wires grommet to plug: 300mm

Other specifications:

• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3

Wire to wire resistance:

• Alternator: Between each White = 0.4 ohms +/-20%

Flywheel Dimensions:

• Exterior Diameter: 115mm
• Interior Diameter: 108mm
• Interior Diameter Center Housing: 16mm
• Exterior Diameter Center Housing: 24mm
• Thickness (exterior): 30mm
• Thickness (interior): 33mm

Please Note: This kit is compatible with RSV4 that have an engine number equal to or lower than 3413, otherwise you will need RMS900-103848. On rare occasion, this kit will work with Tuono V4. This kit includes a MITSUBISHI flywheel.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

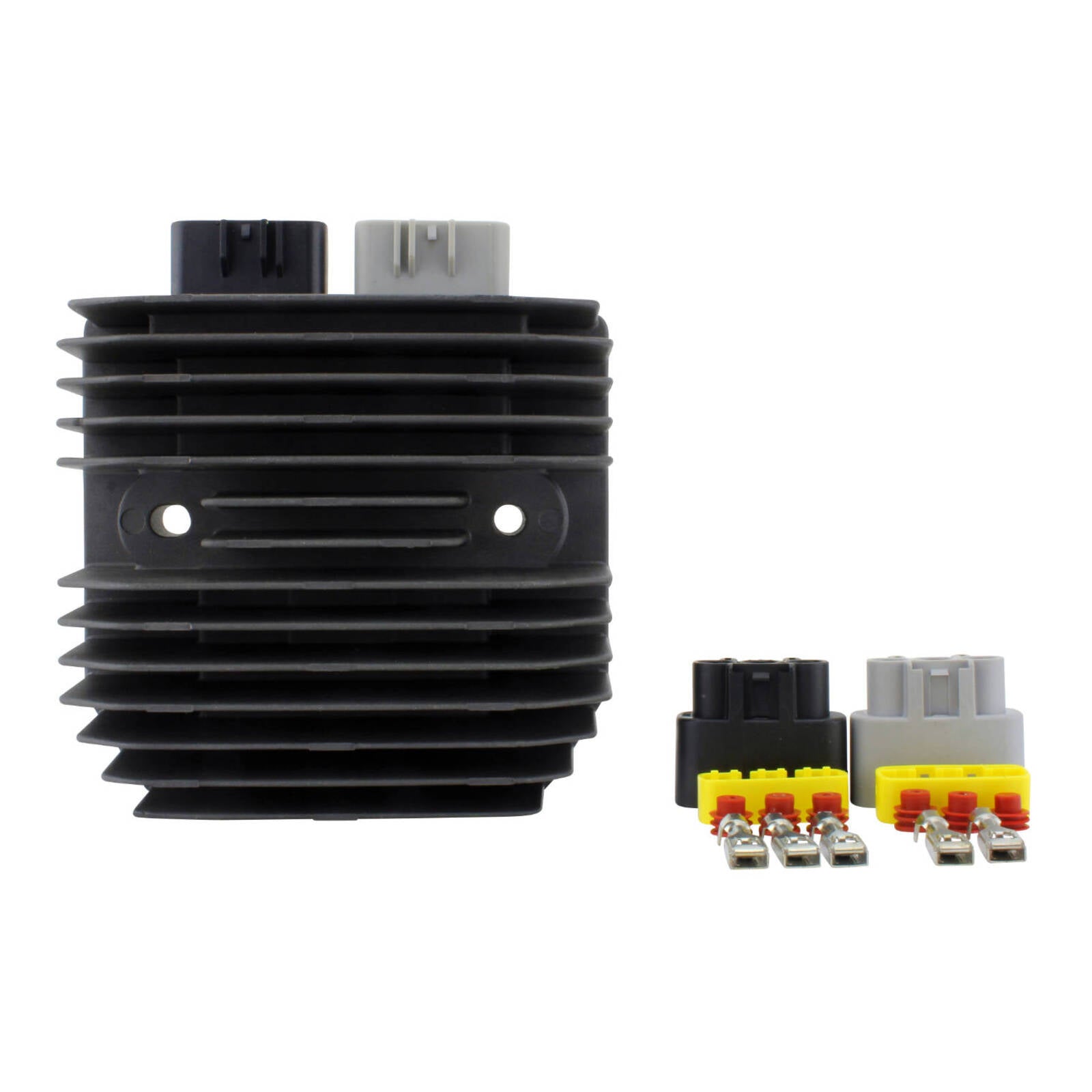

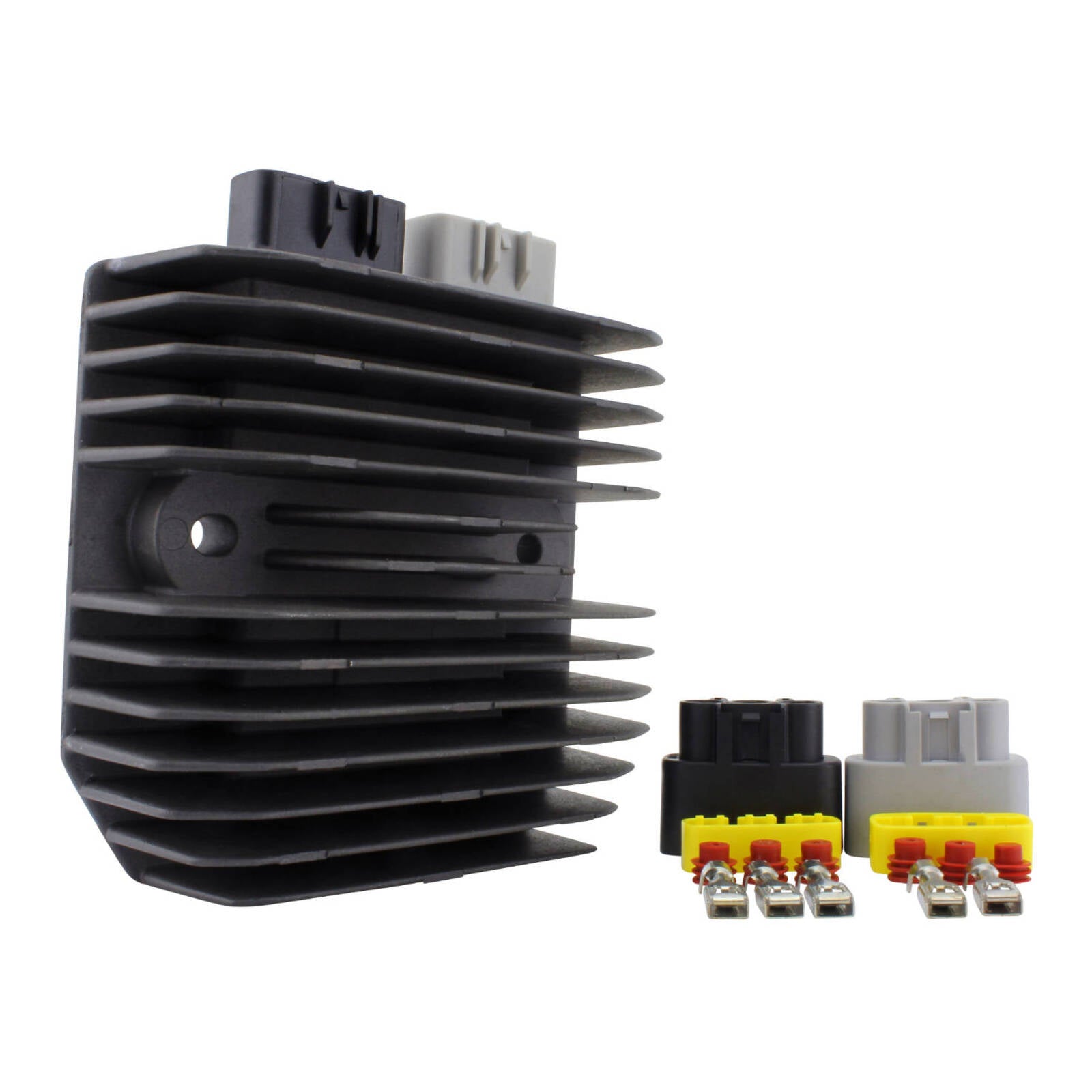

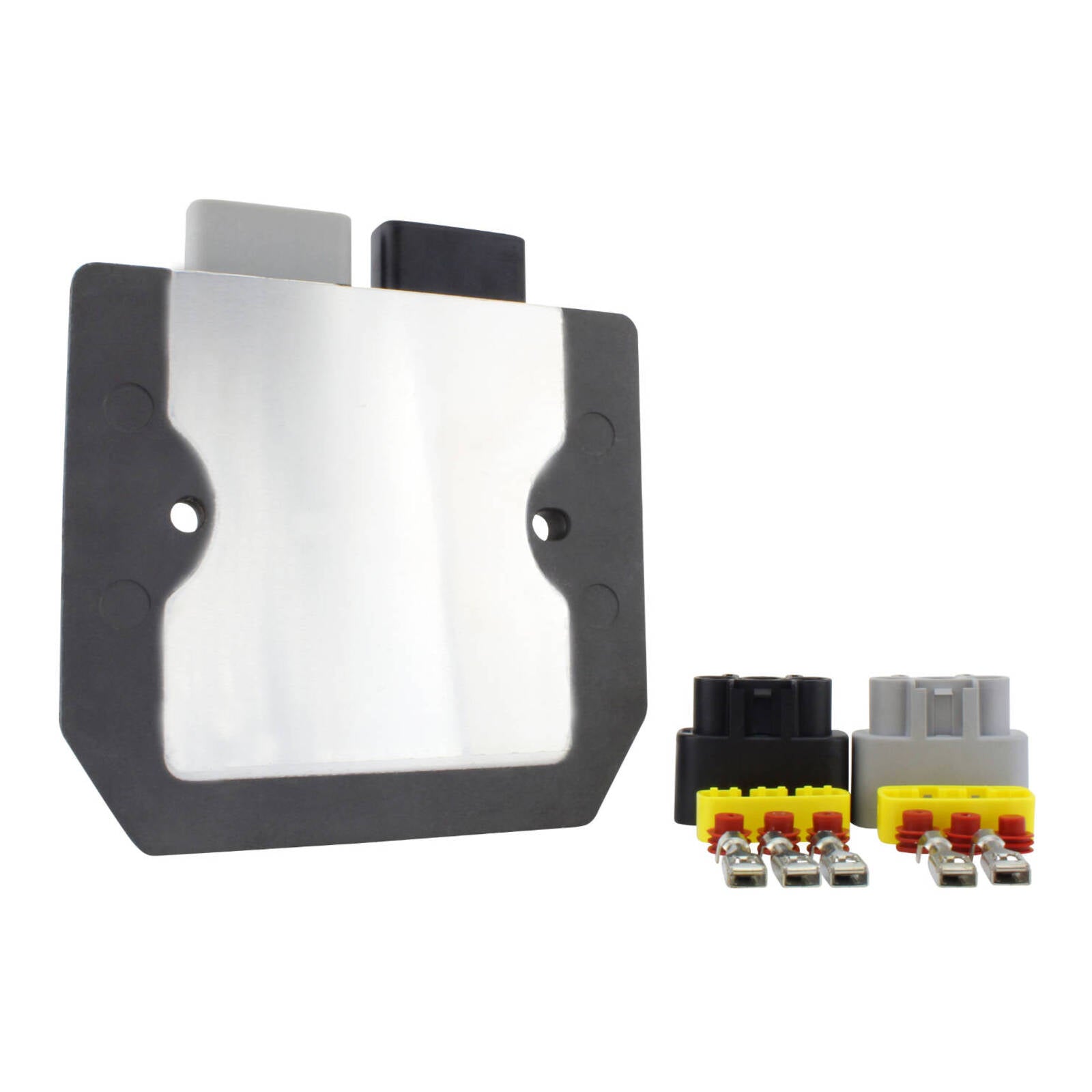

Brand new aftermarket Voltage Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• No assembly required
• Higher grade of electric components
• The quality exceeds the OEM equipment
• All products shipped are tested

Dimensions:

• Wid th: 129 mm
• Length: 120 mm
• Height: 45 mm
• Distance between fixation holes center to center: 81 mm

Other specifications:

• Number of plugs: 2
• Number of pins: 5
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20°C to 85°C

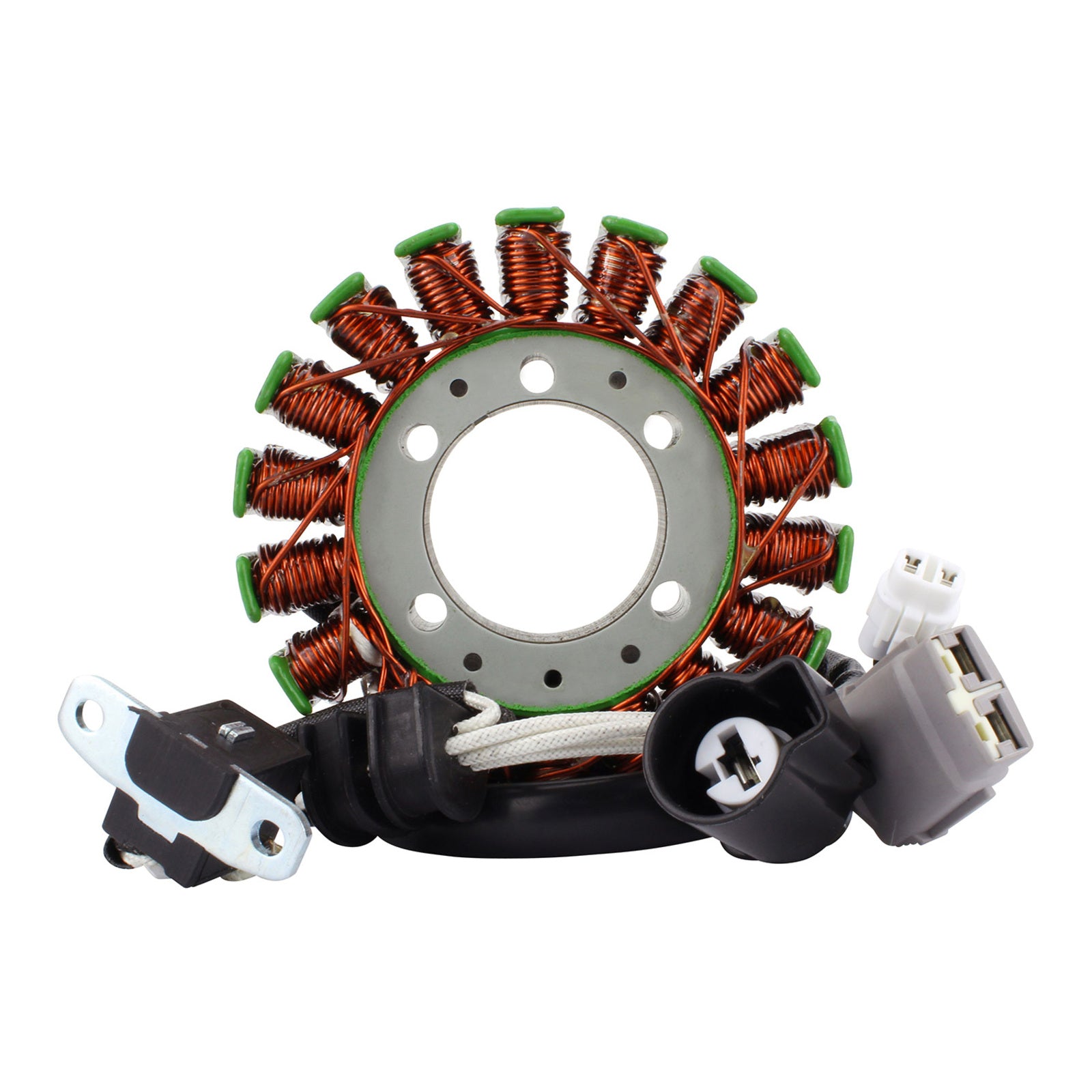

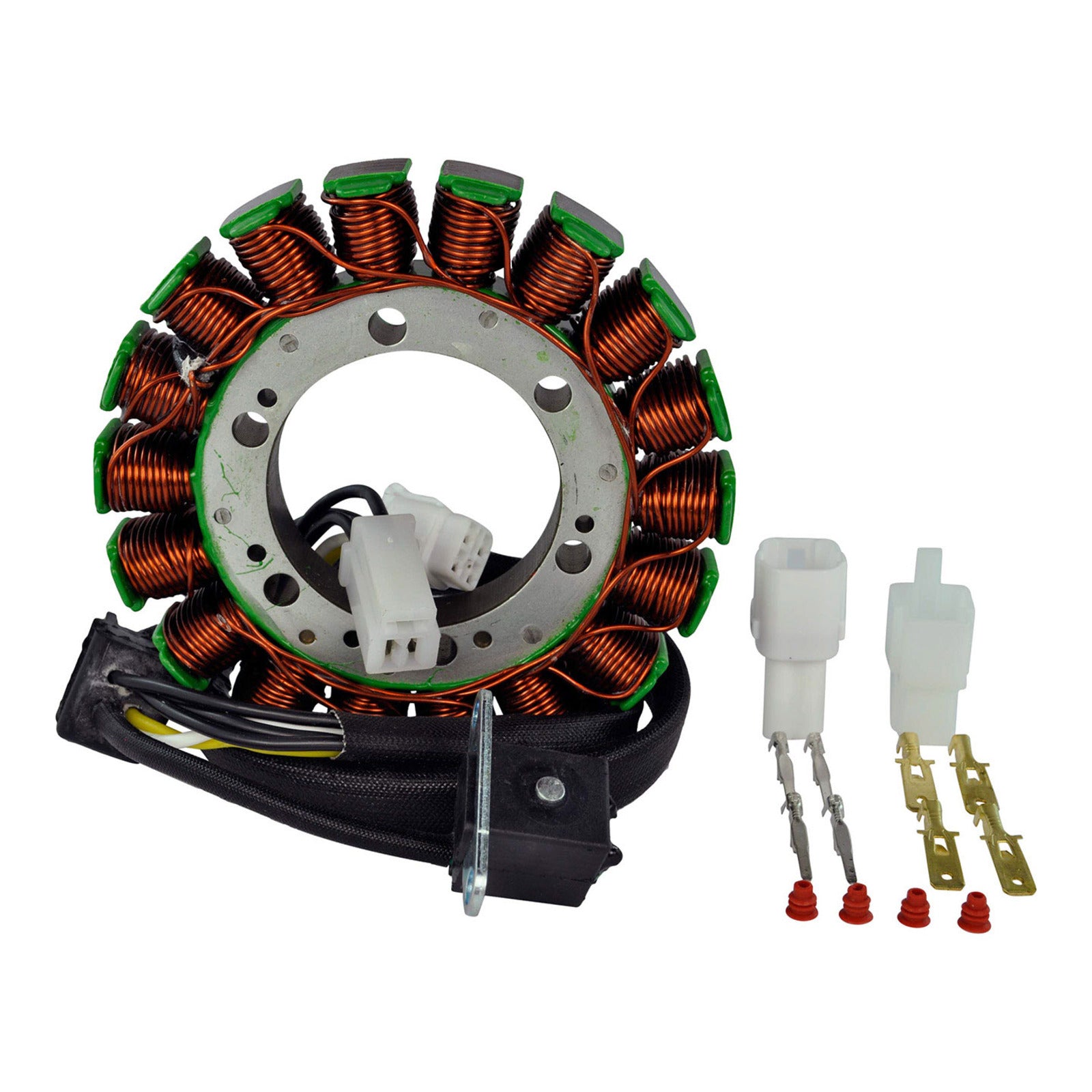

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest-grade lamination materials
• Highest-grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

Specifications:

Dimensions:

Other specifications:

• Number of wires: 6
• Number of plugs: 3
• Number of pins: 6
• Number of poles: 18

Wire-to-wire resistance:

• Alternator :Yellow between each Yellow = 0.4 ohms +-20%
• Pickup: Green/White to Yellow/White = 125 ohms +-20%
• Source: Black/Red to Ground = 210 ohms +-20%

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Whites Kill Switches are high-quality OEM styled replacement kill switches. Including the bar mount and bolt, wire it up and you're ready to rip. The fully waterproof button and heavy-duty covered wire prevent water from entering and shorting the switch. OEM style, shape and plug ensures a quick and easy installation.

Features:

• OEM replacement.
• Quick and easy installation.
• Fully waterproof.
• OEM style, shape and plug.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
