ELECTRICAL

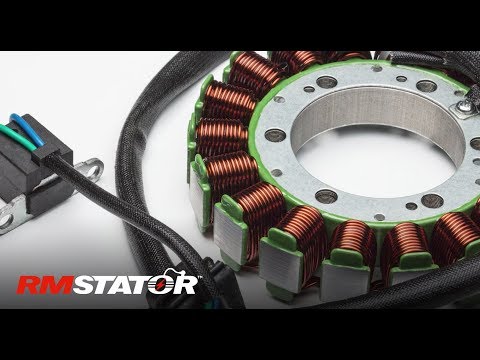

100W DC Converted Kit Stator + Voltage Regulator + Harness

• 100 Watt DC charging system
• Replace the OEM stator with 100W high output stator
• Convert your AC system into a high power DC one
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause of repetitive electrical issues.

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Brand new aftermarket Stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included
• Rubber grommet included

Brand new aftermarket Voltage Regulator Rectifier

• No assembly required
• Higher grade of electric components
• The quality exceeds the OEM equipment

Stator Specifications:

Dimensions:

Interior diameter: 29 mm
• Exterior diameter: 83 mm
• Thickness: 13 mm
• Length of wires stator to grommet: 60 mm
• Length of wires grommet to plug: 490 mm

Other specifications:

• Number of wires: 4
• Number of plugs: 3
• Number of pins: 4
• Number of poles: 8
• Wire to wire resistance:
  • Alternator: White to Yellow = 0.5 ohms +-20%
  • Source: White/Red to Black/Red = 30 ohms +-20%

Regulator Rectifier Specifications:

Dimensions:

Width: 54 mm
• Length: 80 mm
• Height: 22 mm
• Wires length: 235 mm
• Distance between fixation holes center to center: 65 mm

Other specifications:

• Number of plugs: 3
• Number of pins: 5
• Number of wires: 5
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20°C to 85°C

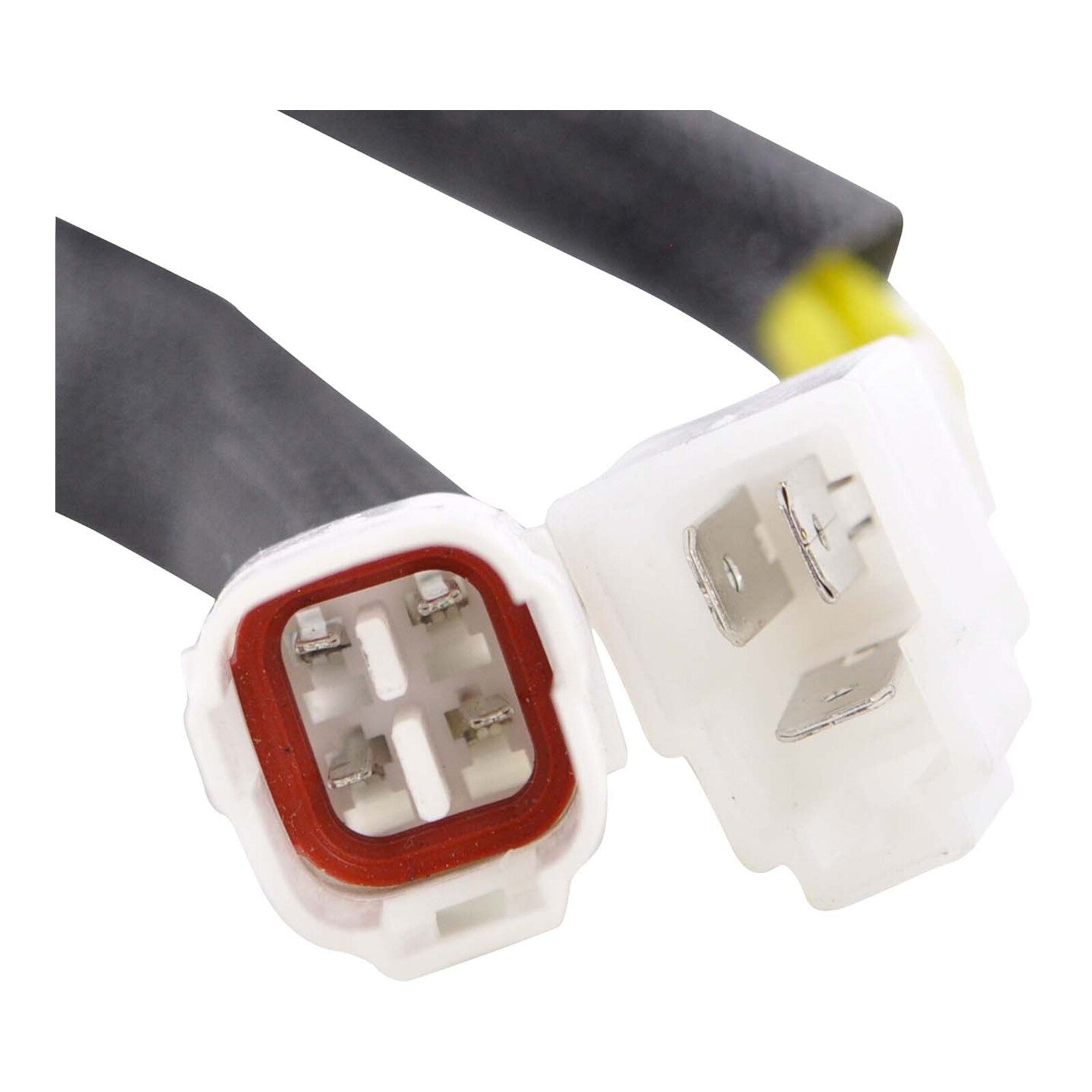

Harness Specifications:

Dimensions:

Wires length: 80 mm

Other specifications:

• Number of wires: 4
• Number of plugs: 1
• Number of pins: 4

Before installing your new Stator:

• Check the AC output of the stator
• Replace any burned or corroded connectors on stator and regulator rectifier
• Check and repair any melted wiring
• Use hi-temp dielectric grease on all connectors

Our stator might have a different wire color code than your original part.

All the wires are installed in the correct order; please do not change any of the wiring configurations.

This stator is designed as a direct plug-in replacement and should be used as such.

When bolting stator in, always use locking compound.

If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010"".

Before installing your new Voltage Regulator Rectifier:

• Check the AC output of the stator
• Replace any burned or corroded connectors on stator and regulator rectifier
• Check and repair any melted wiring
• Use hi-temp dielectric grease on all connectors

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

The TTO Digital Voltage Gauge in black allows easily monitoring of vehicle voltage 0.0V to 63.6V ensuring the battery is not being drained or over charged. In the case of a charging issue, TTO will flash the backlight on and off to alert the rider to potential issues. TTO is a must for any vehicle with added electrical accessories.

Specifications:

• Backli ght for visibility during any riding condition
• Surface mount for easy install, comes with double sided VHB tape or can be bolted on
• Customizable warnings for low voltage with flash alert alarm
• Functions on key switch for external power if battery dies
• Viewable from any angle
• Black case, orange version sold separate

What's in the box:

• TTO Volt Hour
• Screw Caps and VHB Tape, Use when not mounting with bolts
• Power wire, 48", Connect to Vehicle Battery, 1.2m

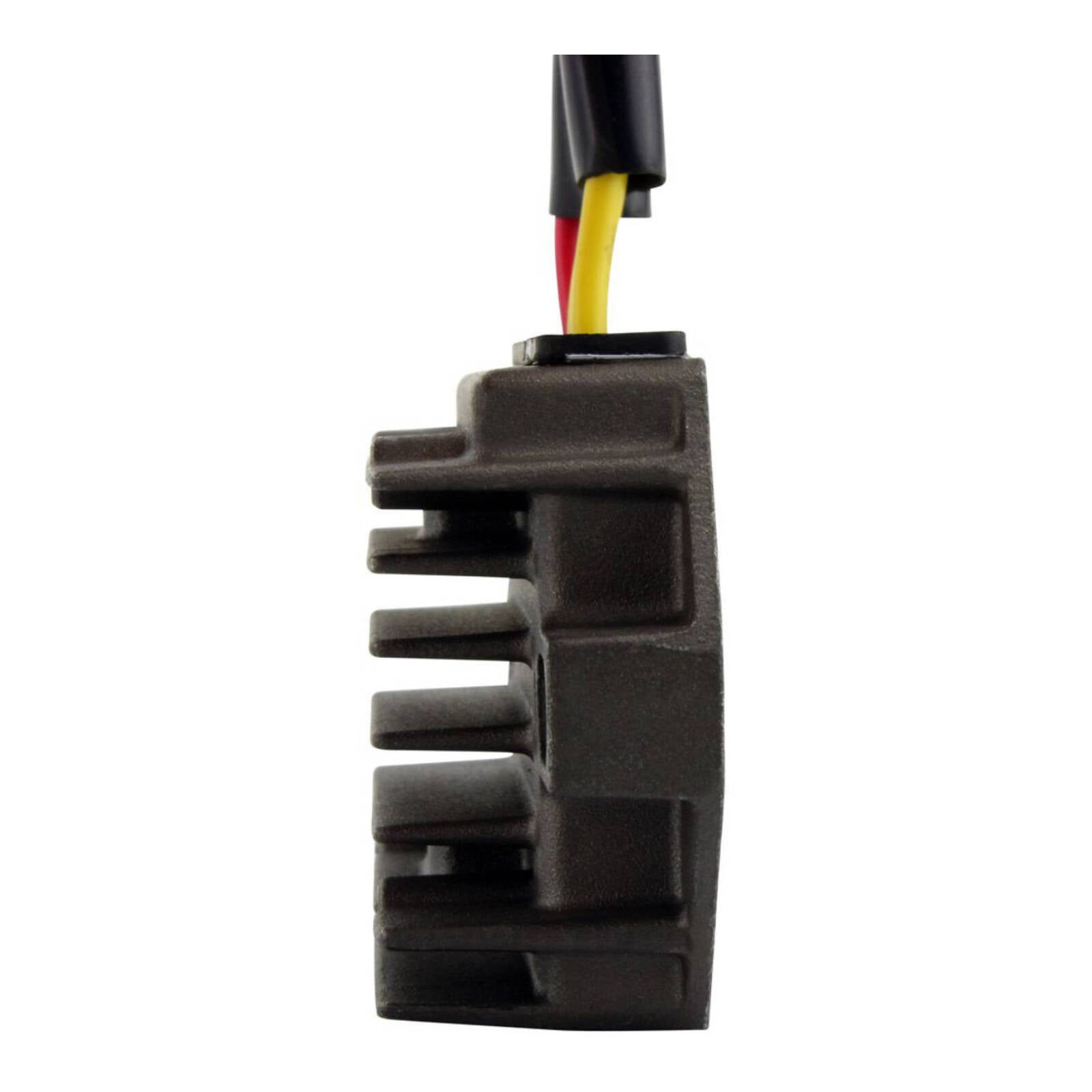

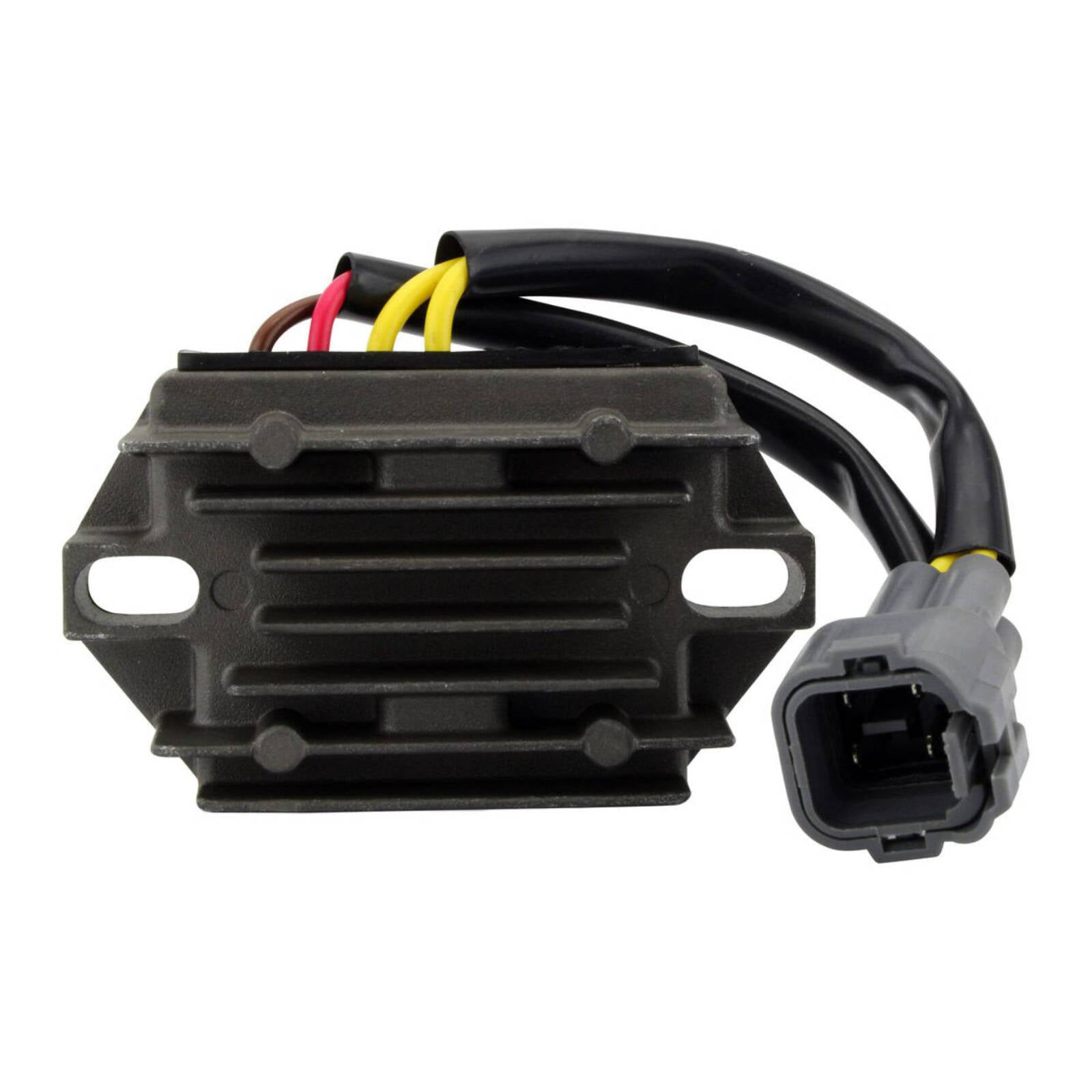

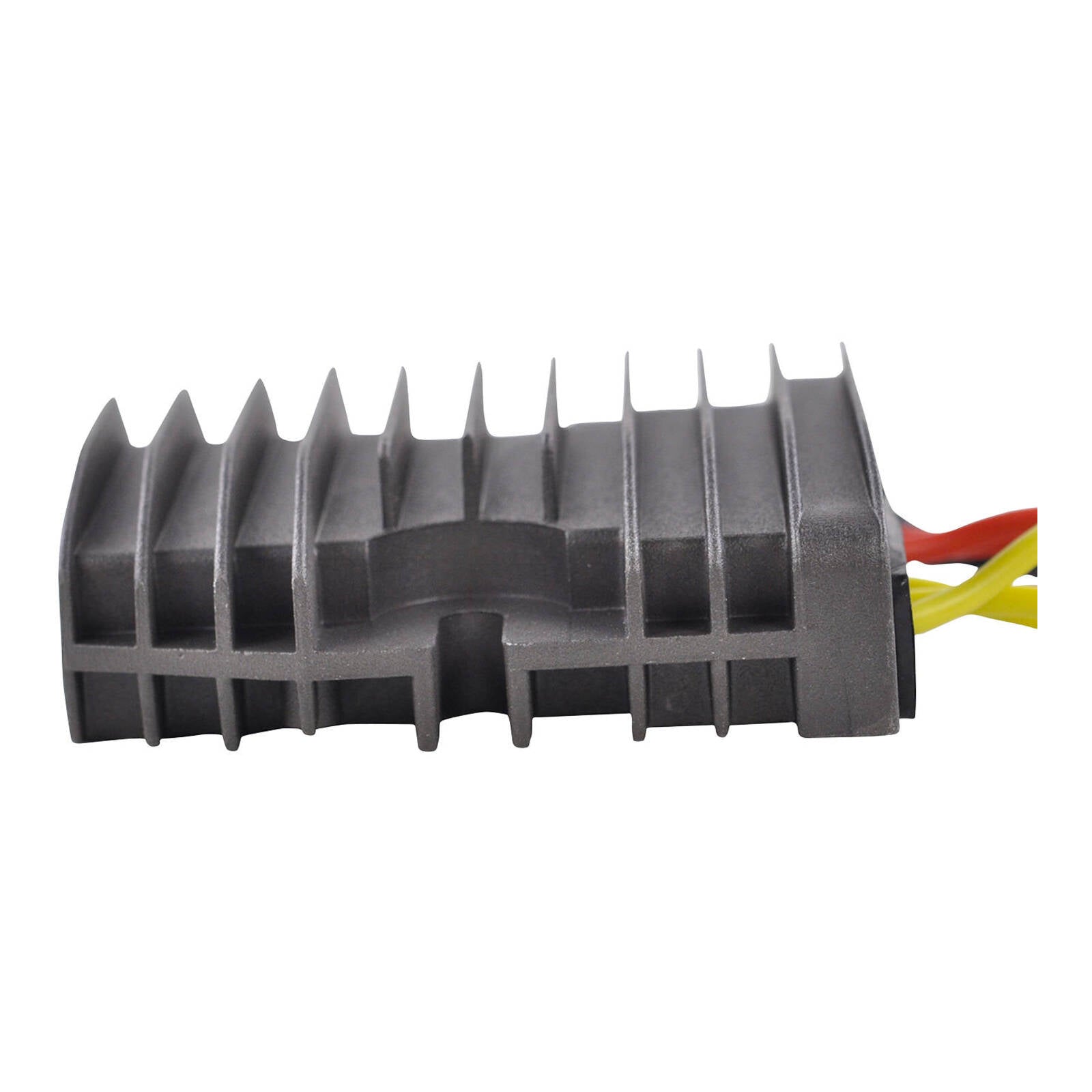

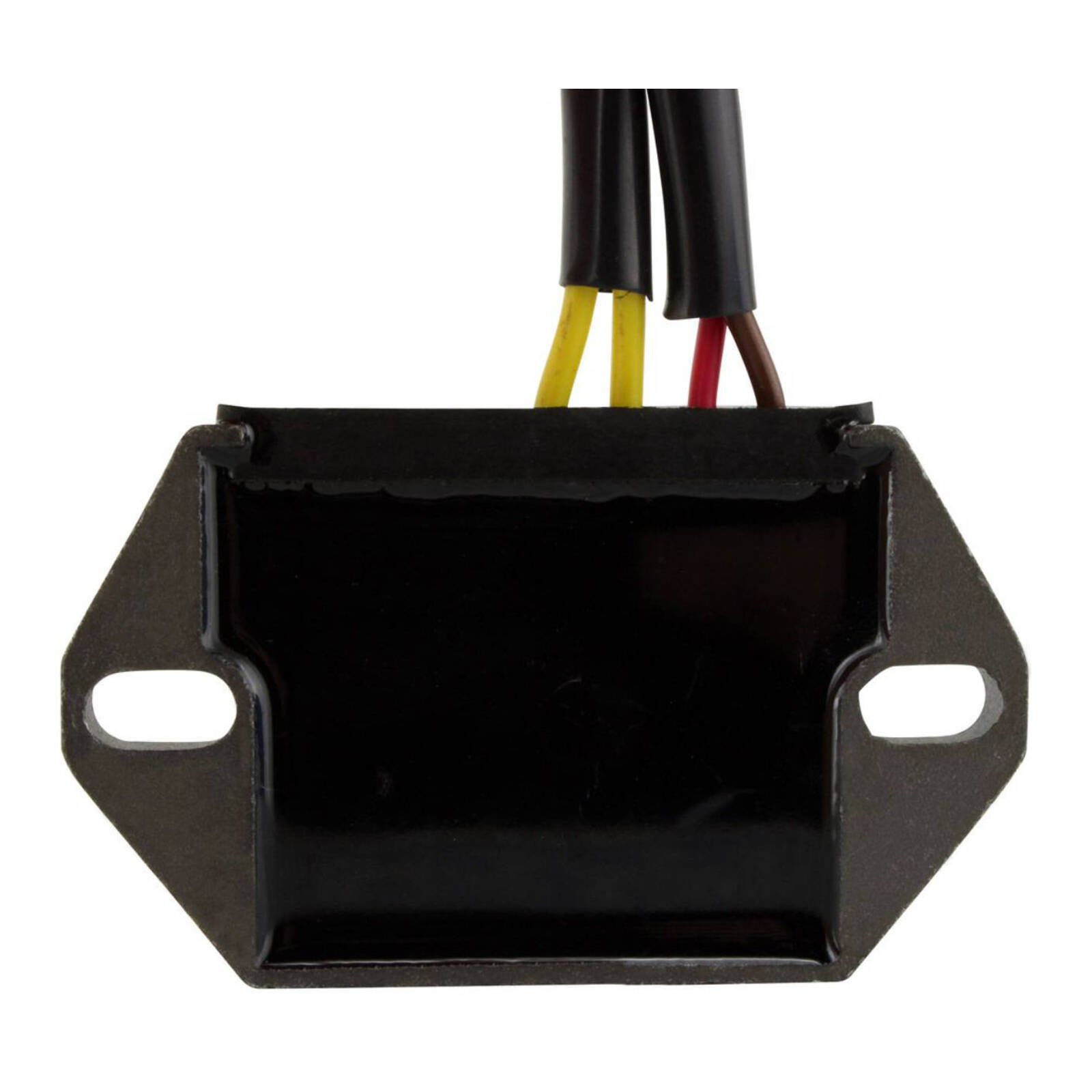

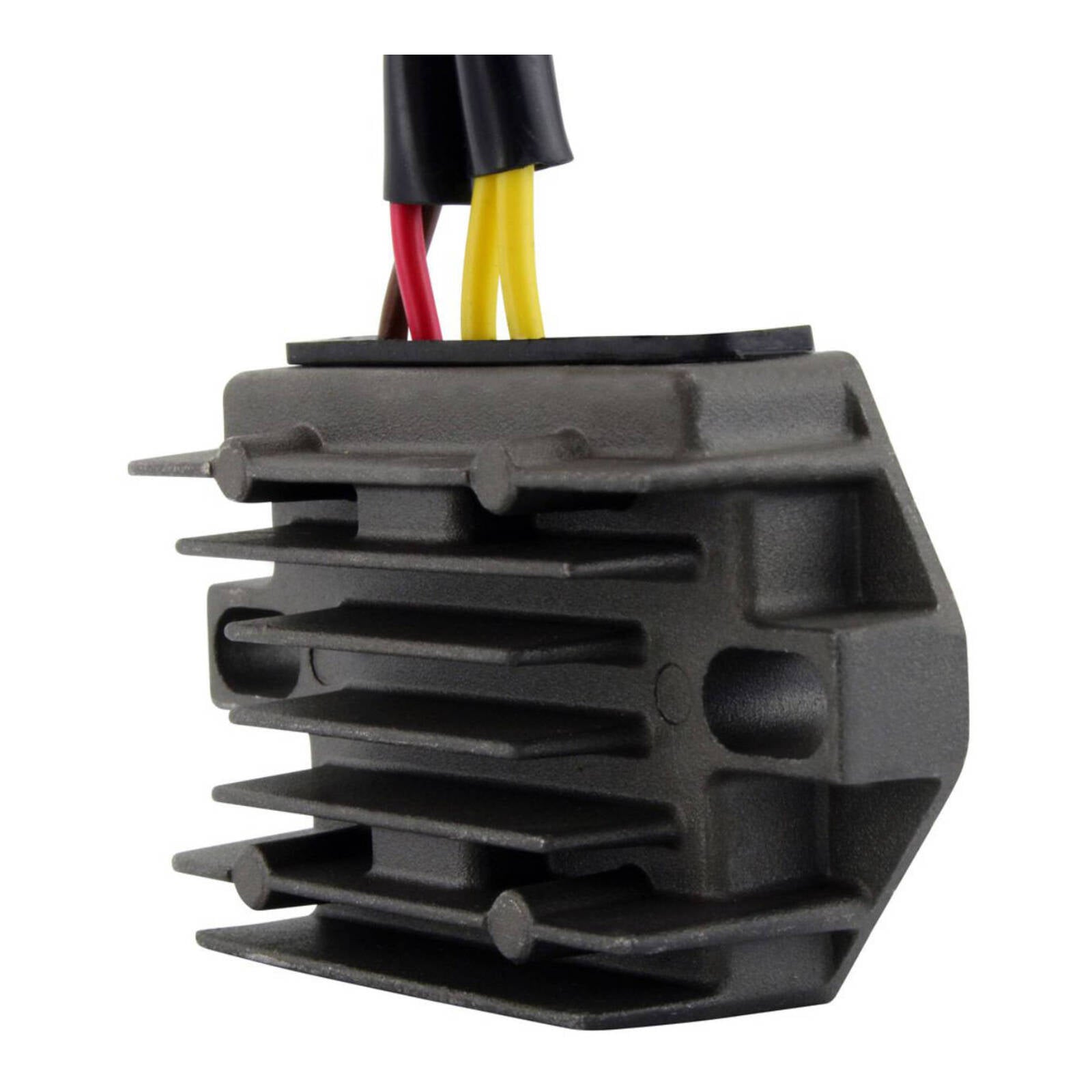

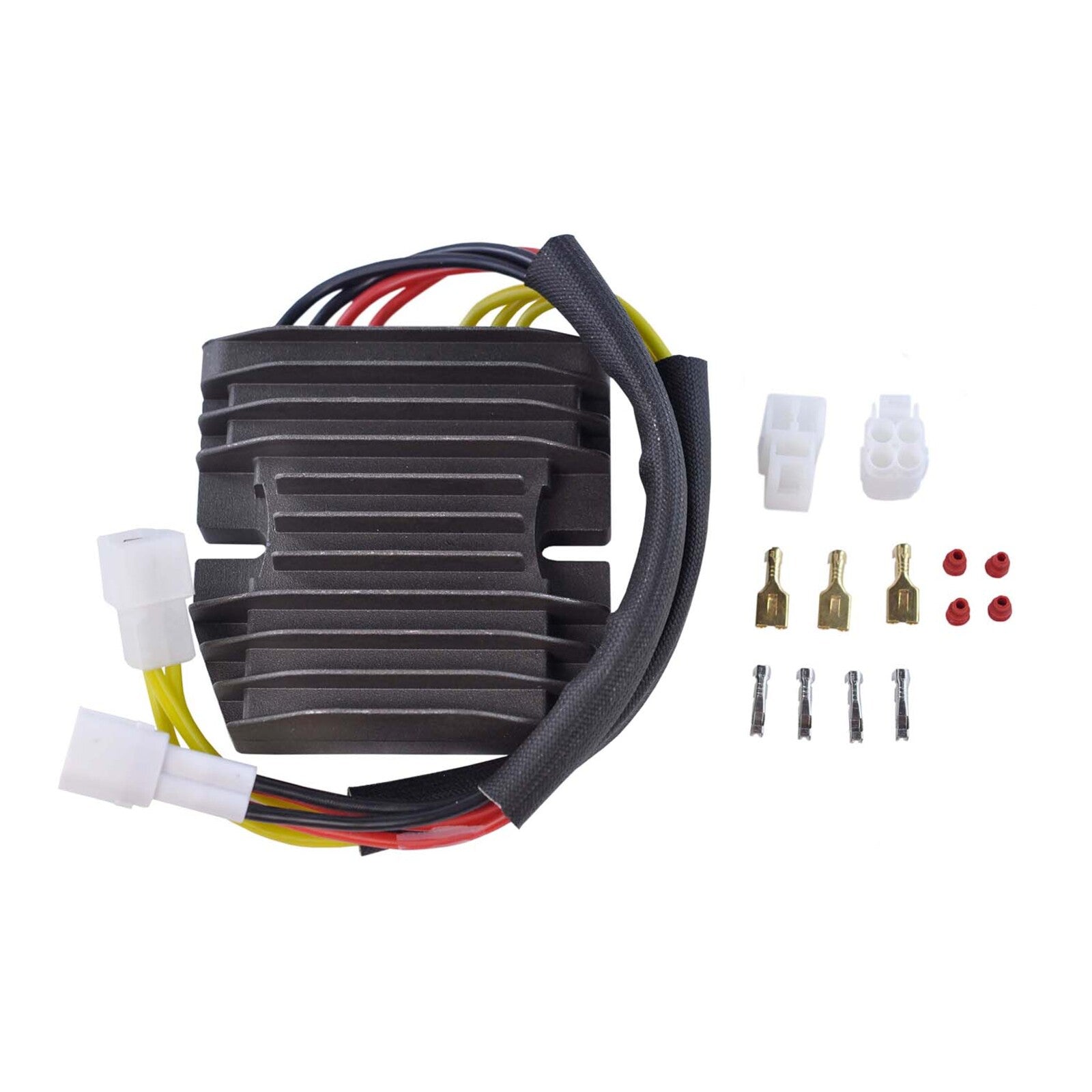

Brand new aftermarket Voltage Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• No assembly required
• Higher grade of electric components
• The quality exceeds the OEM equipment
• All products shipped are tested

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Specifications:

Dimensions:

• W idth: 44 mm
• Length: 76 mm
• Height: 22 mm
• Wires length: 90 mm
• Distance between fixation holes center to center: 60 mm

Other specifications:

• Number of plugs: 1
• Number of pins: 4
• Number of wires: 4
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20°C to 85°C

Note:

• For the model RM 450 Z 2009 two regulators are possible. Our regulator covers vehicles with Vin # JS1RL42A000504733
• Battery condition is important. No regulator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY

Put the spark back in your ride with a Whites Electrical Coil. Manufactured as a direct OEM replacement while meeting or exceeding OEM specifications, it will mount with ease and outperform that worn-out coil. Whites Ignition Coils are the perfect cost-effective alternative to OEM ignition coils, with a vast range of applications available.

Features:

• Cost-effective OEM alternative
• OEM replacement.
• Manufactured to meet or exceed OEM specifications.
• Diverse applications.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Missing oil changes, or changing too often? Not sure when that top ends going to need replacing? Well, you can keep track of it all with a Whites Hour Meter. Keep track of your regular maintenance schedule with ease, the engine run time over a weekend of riding is surprisingly less than you think. The Whites Hour Meter will tell you exactly how long the engine has been going making it simple to service the ride at the manufacturers recommended intervals. Available in Blue, Green and Red to match your ride or in Black for a sleek look.

Digital display of engine run time
Easy installation, no battery, cutting or special tools required
Compatible with any spark plug equipped engine
Screws and double-sided adhesive included for mounting

Dimensions:

• Height: 25 mm
• Length: 60 mm
• Width: 70 mm

Other specifications:

• Number of plugs: 1
• Number of pins: 8

Please note that: The only real way to test your CDI box is to swap it out with another known good unit from the same year / make / model. Because of this, we recommend that you rule everything else out before replacing the CDI box.

About RM Stator

RMSTATOR is specialised in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• RM STATORs PeakRPM technology provides a more aggressive timing curve for increased throttle response
• Ride at full throttle with our application-specific CDI box that raises the rev limiter by 1000 RPM
• Enjoy fast & easy installation with our plug & play design and included dielectric connector grease
• OEM-grade electronic components and printed circuit boards for long-term reliability and performance
• 90% of ignition issues are caused by a faulty stator. Fully test ignition components before buying

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Quality wiring terminals and hardware. Easy to connect and disconnect.

Whites lighting range is a collection of high-quality indicators (flashers), tail lamps, headlights and more. Available as direct OEM replacements and universal fitments for those one-off custom rides. Offered in a range of shapes, sizes, styles and mounting options Whites are here for your motorcycle lighting solutions.

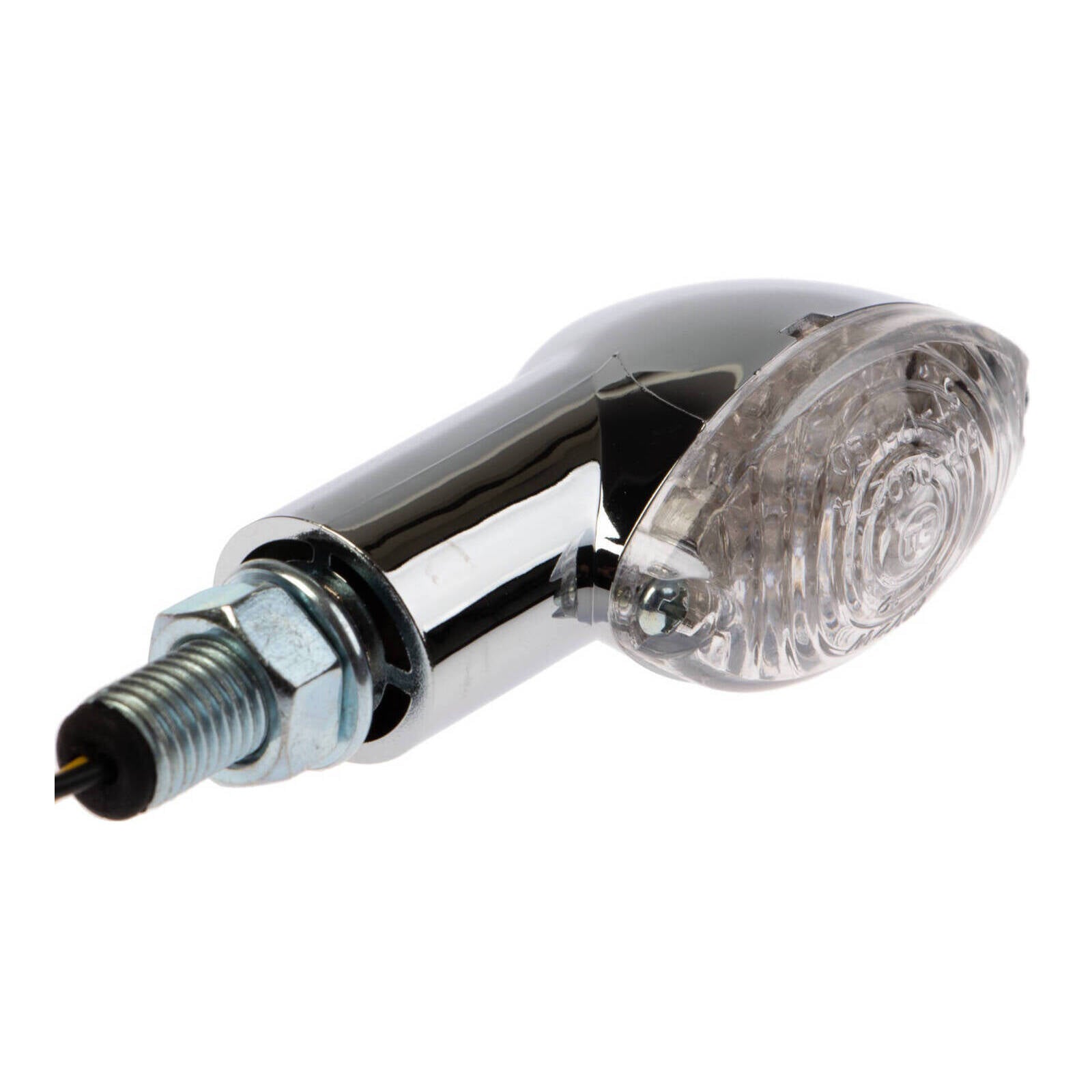

Whites Universal fitting flashers are a great alternative to pricey and boring OEM indicators. Perfect for those one-off custom rides or additional style for your off the showroom floor ride. Built to high-quality specifications with durable construction for long-lasting life..

• Universal fitment
• E-Marked
• Sold as a pair
• Great OEM replacement
• Ideal for one-off custom machines
• Shape: Mini-Catseye
• Colour: Chrome li>
• Light Type: LED

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Quality exceeds the OEM equipment

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

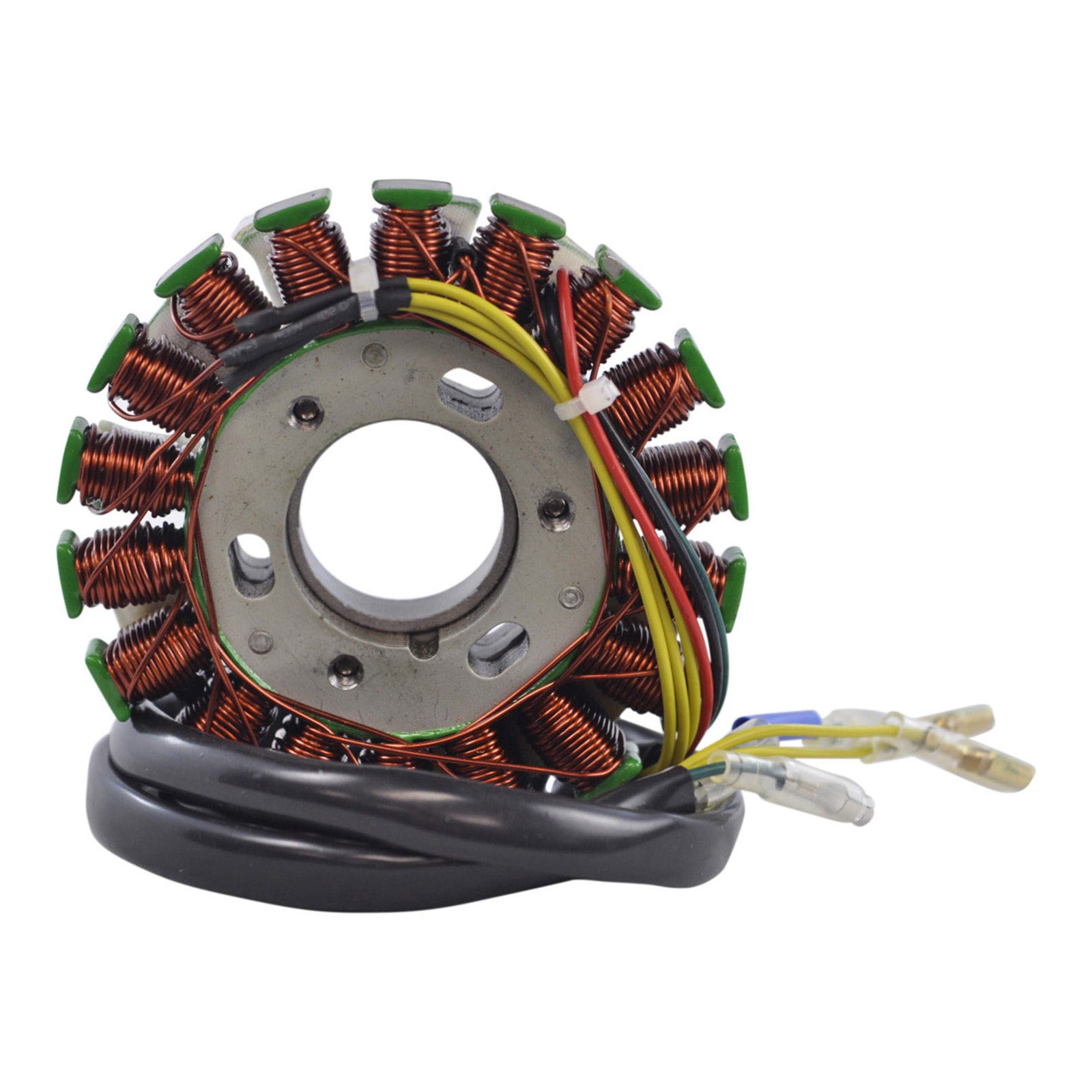

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

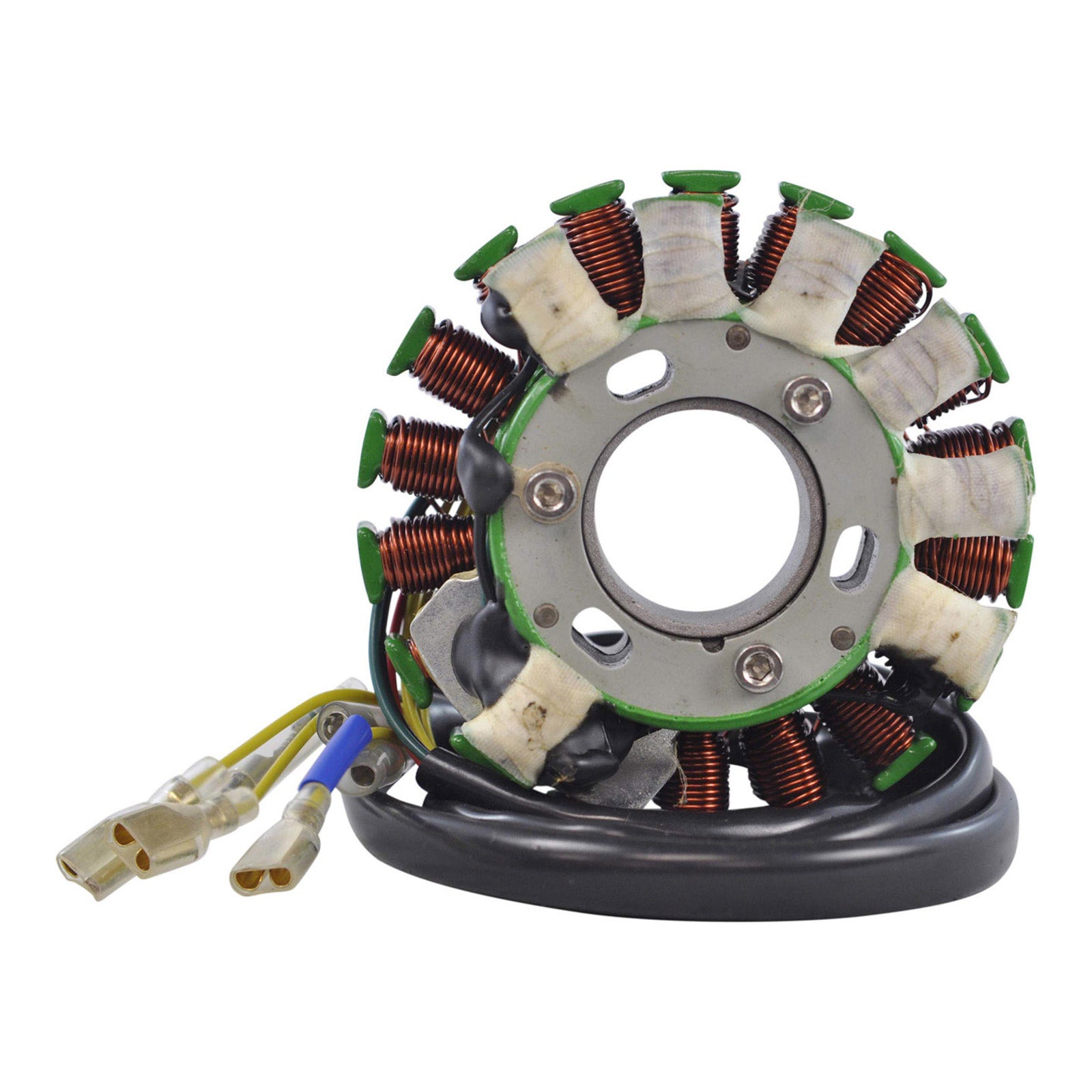

Please note: This stator ONLY fits KTM models with the SEM type ignition.

Please compare the picture of our stator to your original to be sure. The SEM stator uses 3 mounting bolts instead of 2, and has a plastic shell covering the core, usually with 'SEM Sweden' stamped into the plastic. (Please see RMS01374 for the KOKUSAN design)

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

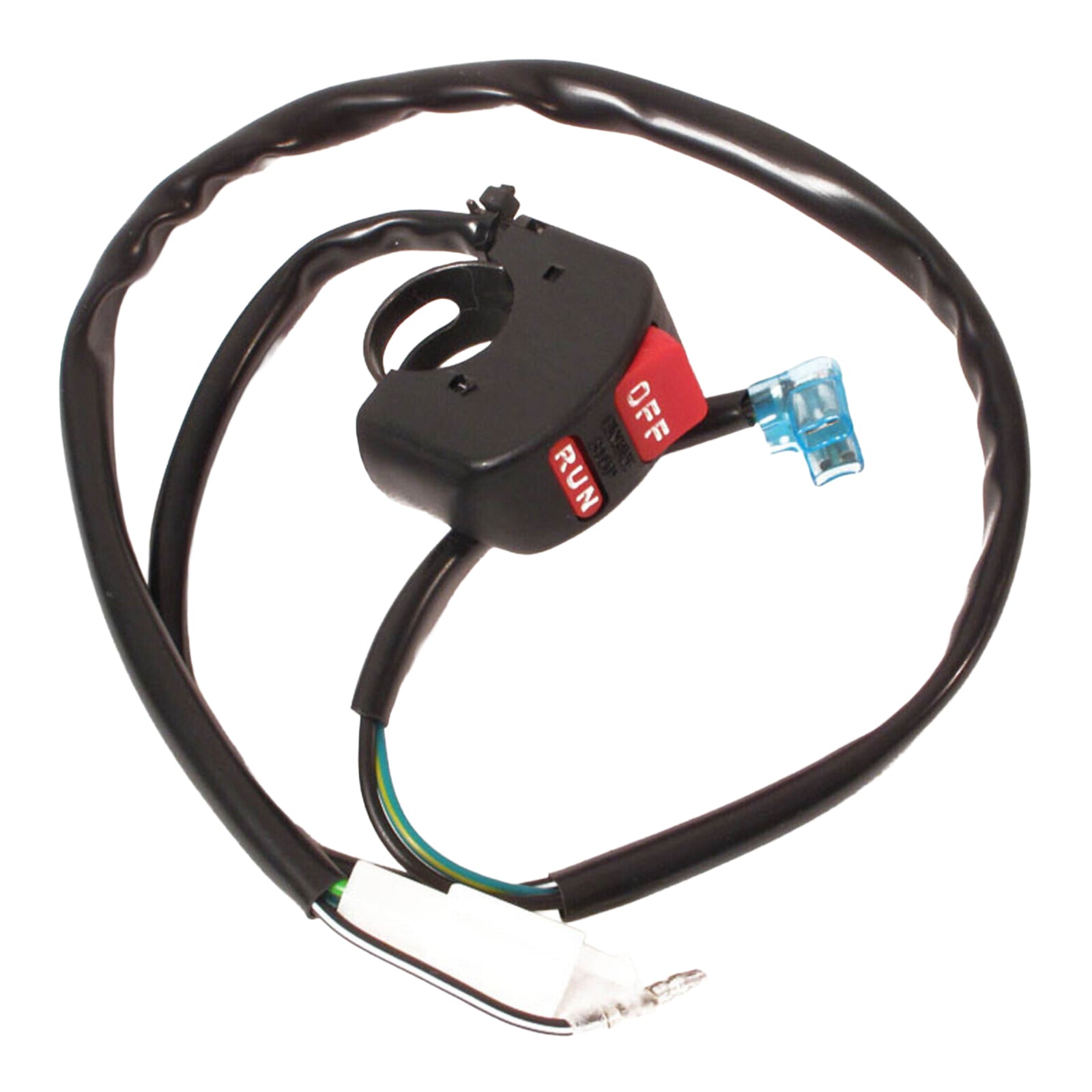

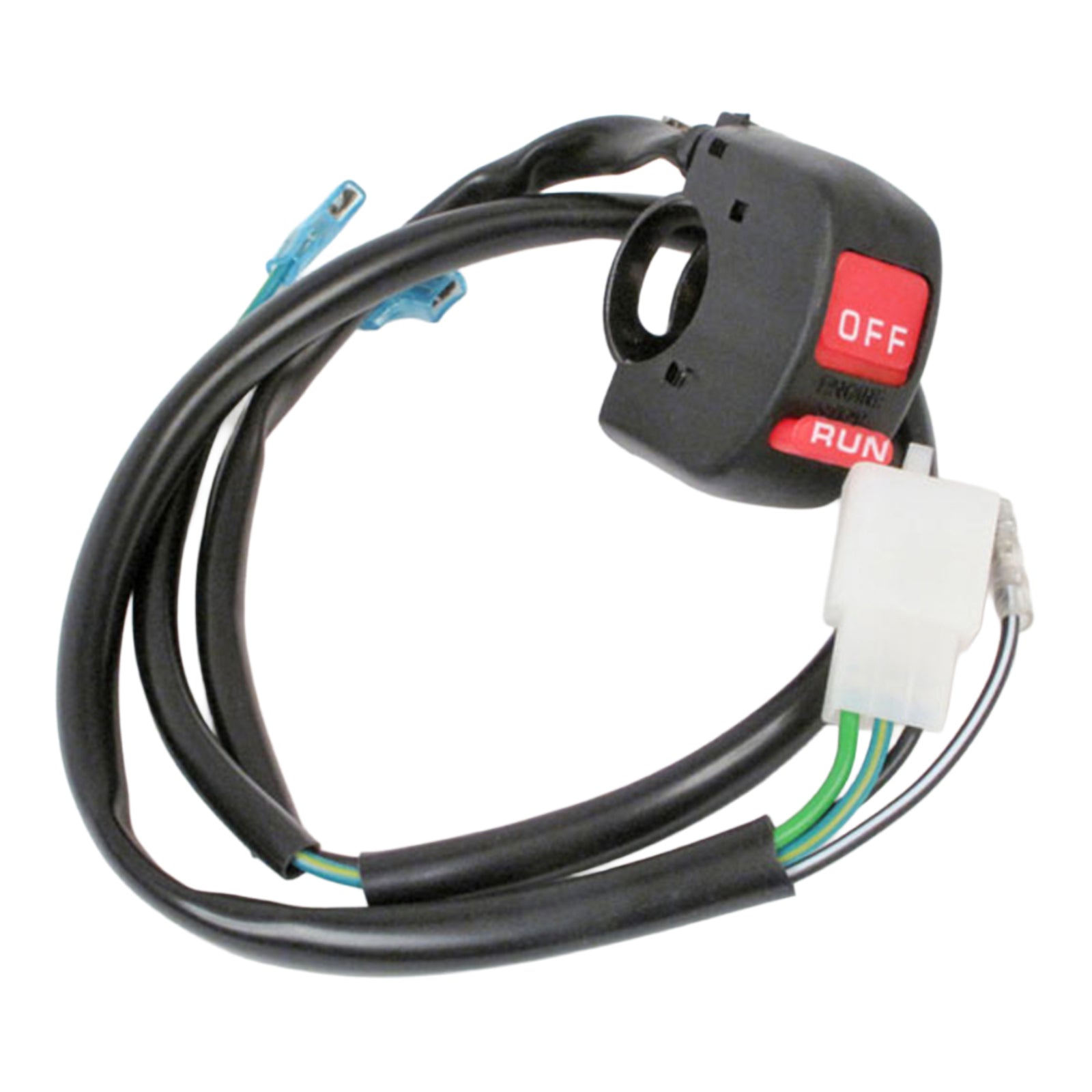

100% new aftermarket Switch Ignition built to meet OEM specifications.

Features:

• Manufactu red following strict OE standards to work like the original component.
• Engineered using the latest technology to ensure the product lasts longer in service.
• Engineered with a factory-like design for effortless installation, ensuring a perfect match with your vehicle.
• Made of high-quality components for durability, reliability, and performance.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Don't lose your spark. Whites Sparks Plug Caps offer exceptional connection between high-tension leads and the spark plug. They are designed to reduce noise across all frequencies, ensuring engine performance isn't affected.

Features:

• Sufficient resistor length prevents internal flashover and maintains consistent resistance.
• Made with high-quality ceramic materials, resisting deterioration and offering minimal resistance variation under heavy loads.
• Plug connector constructed from tough phenolic resin, providing excellent heat resistance and withstanding high tension.
• Durable rubber material.
• Heat press insertion further strengthens the cap, making it highly resistant to vibration.
• Special rubber seals prevent moisture-caused electrical leakage.

Specifications:

• Pl ug Φ: 14mm
• For terminal type: Terminal
• Colour: Black
• Resistor: 5 kiloohms

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Don't lose your spark. Whites Sparks Plug Caps offer exceptional connection between high-tension leads and the spark plug. They are designed to reduce noise across all frequencies, ensuring engine performance isn't affected.

Features:

• Sufficient resistor length prevents internal flashover and maintains consistent resistance.
• Made with high-quality ceramic materials, resisting deterioration and offering minimal resistance variation under heavy loads.
• Plug connector constructed from tough phenolic resin, providing excellent heat resistance and withstanding high tension.
• Durable rubber material.
• Heat press insertion further strengthens the cap, making it highly resistant to vibration.
• Special rubber seals prevent moisture-caused electrical leakage.

Specifications:

• Plug Φ: 10-12mm
• For terminal type: Terminal
• Colour: Black
• Resistor: 5 kiloohms

Whites Tail Light Assemblies provide a cost-effective option when needed for your ATV or UTV.

Features:

• Available to suit many popular makes, models, and years.
• Direct "bolt-in" replacement; no modification required.

Note: Whites ATV and UTV replacement taillights are designed for off-highway applications only. The lenses on these taillights do not have E-marks, which are required for road vehicle compliance.

Don't lose your spark. Whites Sparks Plug Caps offer exceptional connection between high-tension leads and the spark plug. They are designed to reduce noise across all frequencies, ensuring engine performance isn't affected.

Features:

• Sufficient resistor length prevents internal flashover and maintains consistent resistance.
• Made with high-quality ceramic materials, resisting deterioration and offering minimal resistance variation under heavy loads.
• Plug connector constructed from tough phenolic resin, providing excellent heat resistance and withstanding high tension.
• Durable rubber material.
• Heat press insertion further strengthens the cap, making it highly resistant to vibration.
• Special rubber seals prevent moisture-caused electrical leakage.

Specifications:

• Pl ug Φ: 10-12mm
• For terminal type: Threaded
• Colour: Black
• Resistor: 5 kiloohms

Motorcycles, especially higher-powered motorcycles, sometimes have trouble starting, especially in cold weather. The perfect solution for this is to replace the starter motor with a high-quality J&N Electrical motor for a quick start every time.

• Meets or exceeds OEM specification
• 100% interchangeable, no modifications required
• Durable double-sealed case for longer life
• Vigorously tested and manufactured with insulated fittings
• Provides higher torque than many OEM starter motors

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

SMARTER, BRIGHTER, MORE VERSATILE

Why Denali?

• Our LED light kits are purpose-built for motorcycles, with compact pods delivering unmatched output for their size.
• We lab test every light we engineer to fine-tune our optic and reflector designs, to ensure we're unleashing the full potential of each LED.
• We also go to great lengths to develop bike-specific mounts and wiring adapters, so you can spend less time in the garage and more time on the road.

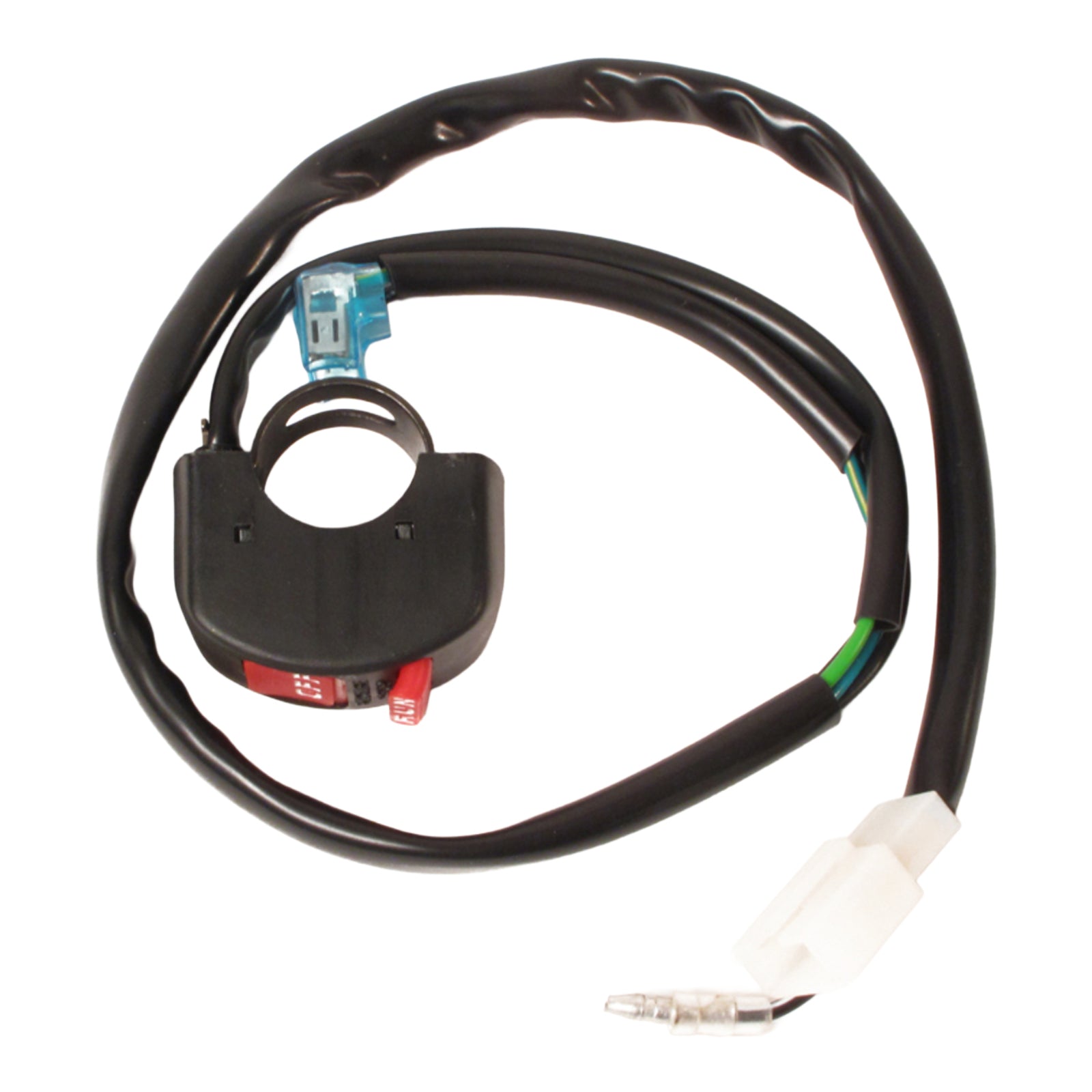

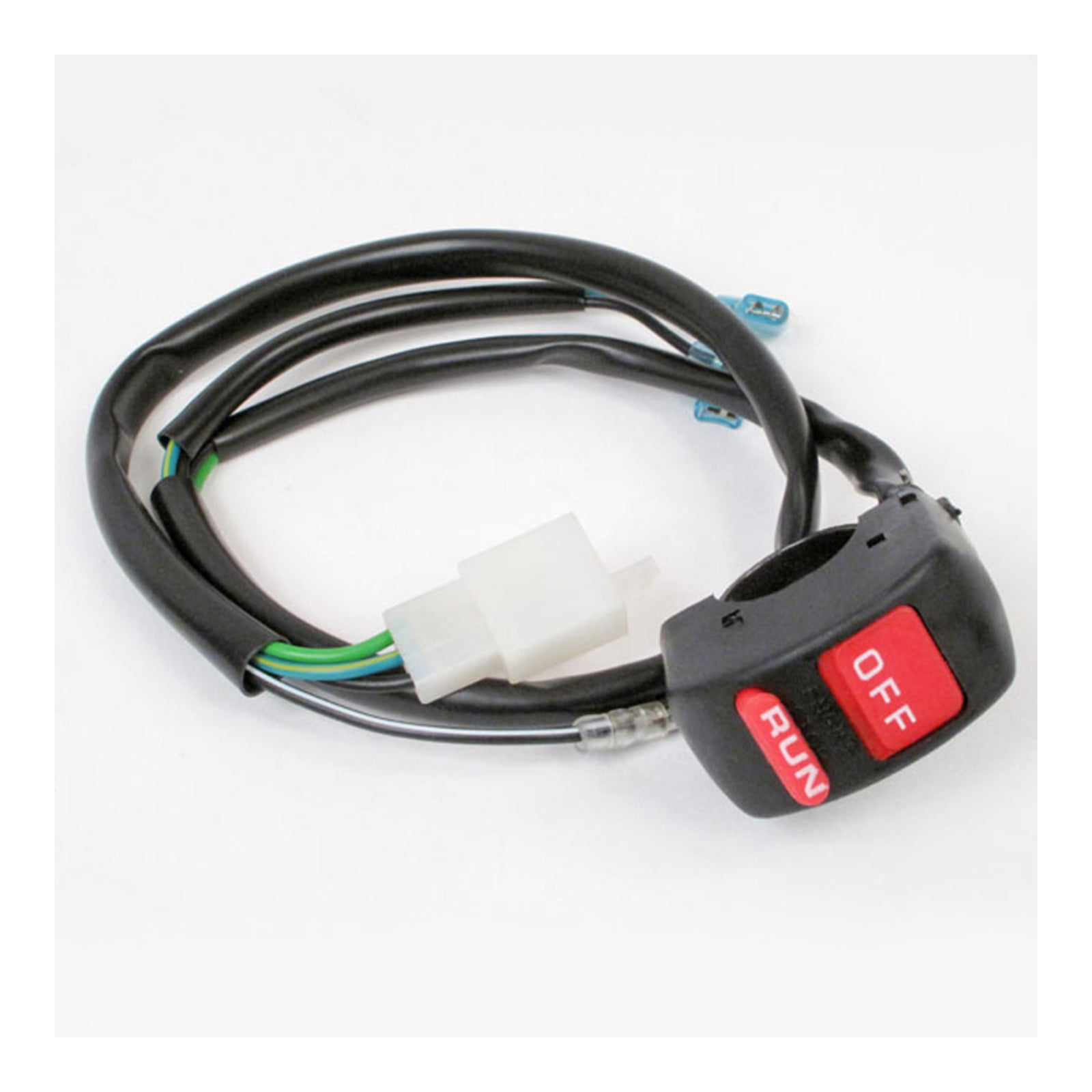

The Whites On/Off Switch Block is a two-stage on/off handlebar switch for your engine or headlight. The switch block is pre-wired in a 400mm length with a plug and bullet terminals. Constructed with an aluminium clamp for a secure hold on your handlebars without causing damage to the surface of the handlebar and is compatible with any 12V DC system.

Features:

• Plastic housing half wrap-around design.
• Compatible with 7/8" handlebars.
• Two-stage on/off switch block.
• Aluminium clamp.
• Working voltage: DC12V/10A
• Fully waterproof.
• Flip buttons make it easy for gloved hands to use.
• Width: 22mm
• Height: 46mm
• Depth: 48mm

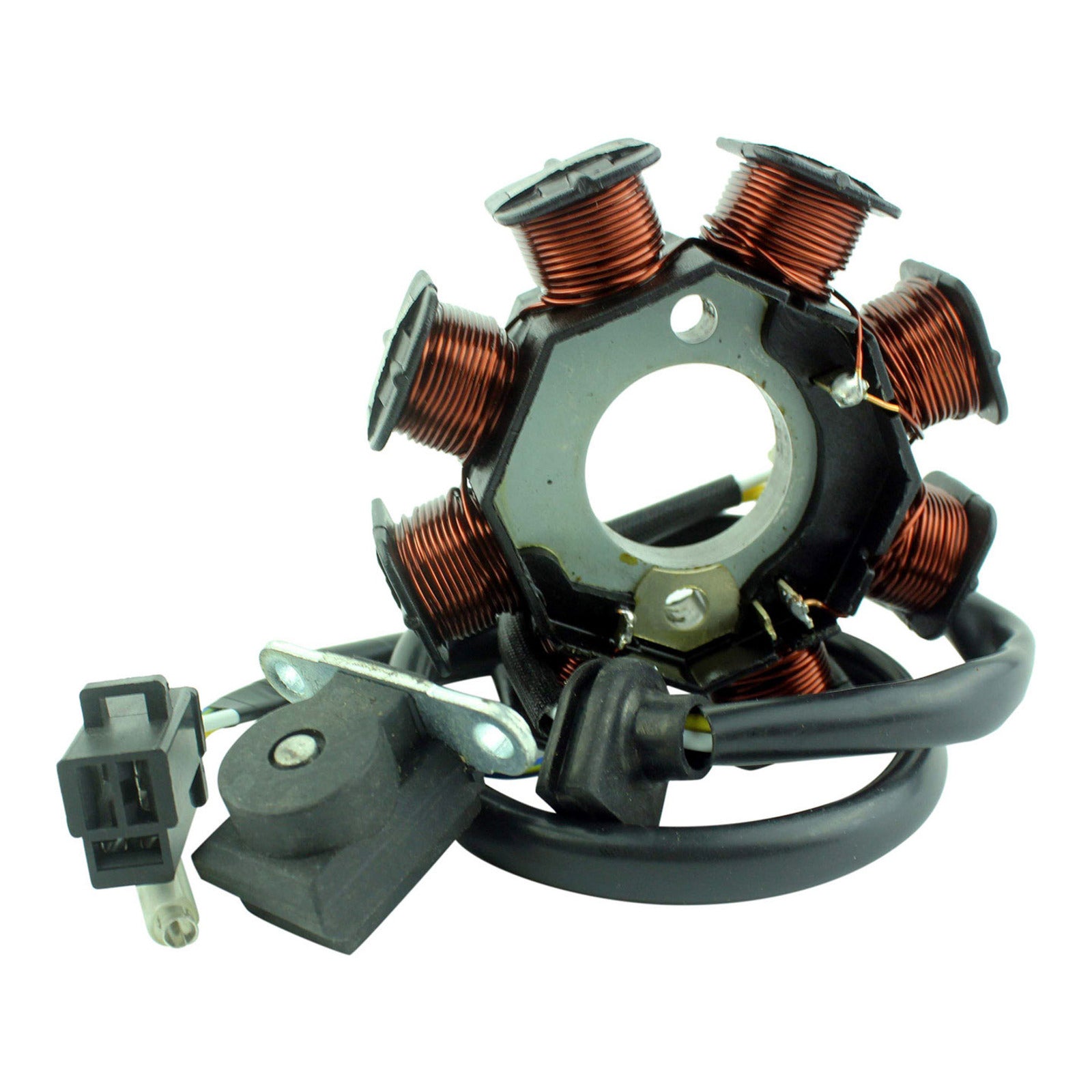

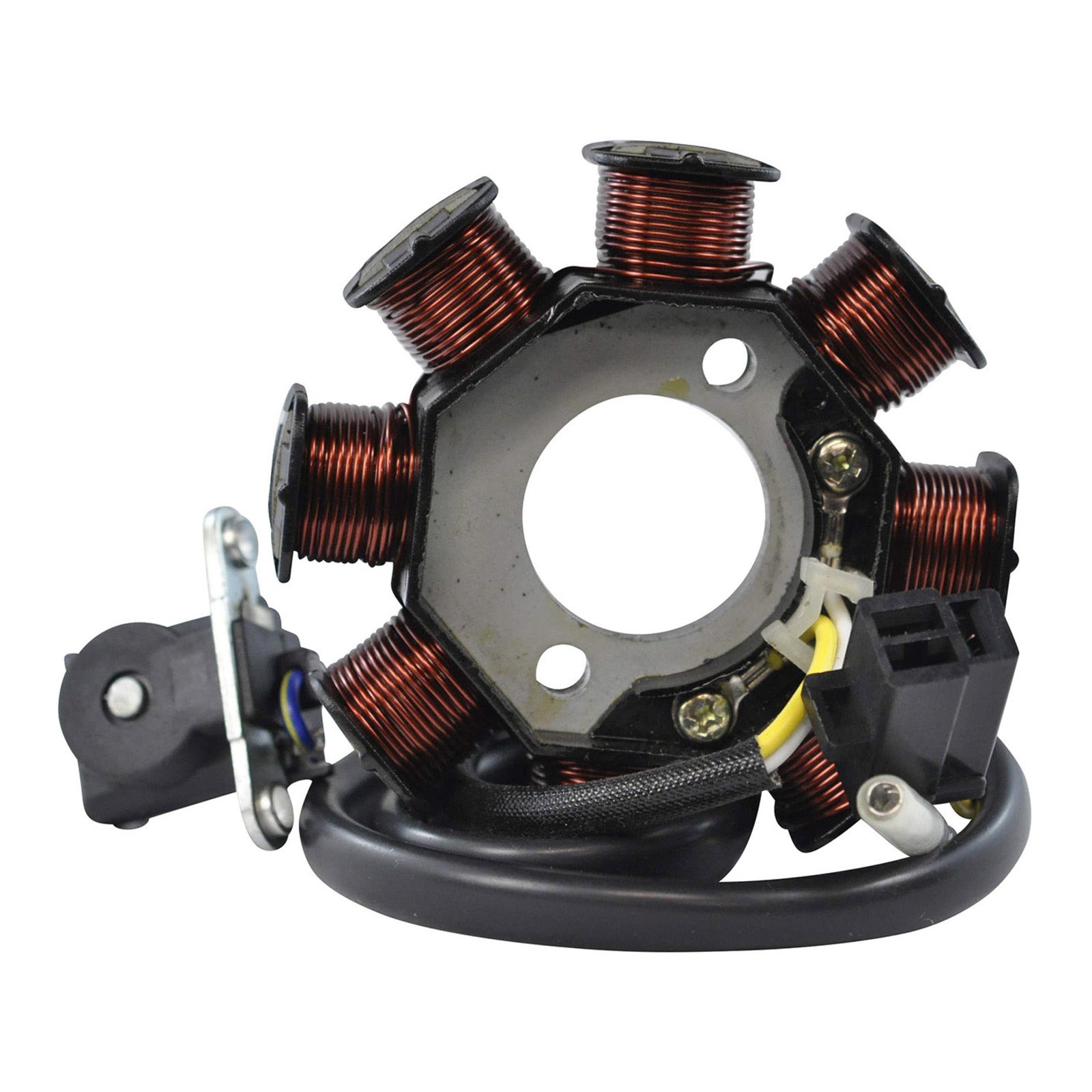

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Quality replacement Starter Motors

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

STOP BURNING YOUR REGULATOR RECTIFIER! It is time to update or replace your voltage regulator with RM STATORS advanced MOSFET technology. RM STATORS MOSFET Regulators run cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• The quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components

What are the advantages of the MOSFET Technology?

• Runs much cooler than the traditional Shunt voltage regulator rectifier
• Less load on the stator, less work, less fuel is used and you save
• The power charging your battery is steadier and smooth
• Extends the battery’s life and cold-cranking capacity
• Removes stator load resulting in more engine power
• Optimize power delivery by switching the stator coils on or off

NOTE: Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Brand new aftermarket Stator + Red Machined Aluminum Mosfet Regulator Kit

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Stator

• Highest-grade lamination materials
• Highest-grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

Machined Aluminum Mosfet Regulator

Our new red machined aluminum Mosfet voltage regulator is a great upgrade for heat dissipation in any power sports charging system. After 10 minutes of use, our billet aluminum heatsink runs cooler by 33% than standard cast regulator housings. Our new red regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.

STOP BURNING YOUR REGULATOR RECTIFIER!
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode-style regulators. In addition, this rectifier has to overheat protection, rather than burn up, it will simply turn off for a while and cool off.

• The quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher-grade electric components

We have even included the opposite connector (main harness side) as we know these are often melted/ corroded/ defective and a major cause of repetitive electrical issues.

Why use Mosfet Enhanced technology?

• Runs cooler: Runs much cooler than the traditional Shunt voltage regulator rectifier.
• Saves gas: Less load on the stator, less work, less fuel is used and you save.
• Regulated energy: The power charging your battery is steadier and smooth
• Extended battery life: Extends the battery’s life and cold-cranking capacity
• More engine power: Removes stator load resulting in more engine power
• Optimized power: Optimize power delivery by switching the stator coils on or off.

Specifications:

• Dimensions Stator:
• Interior diameter: 42 mm
• Exterior diameter: 105 mm
• Thickness: 20 mm
• Length of wires stator to grommet: 160 mm
• Length of wires grommet to plug: 950 mm
• Length of pickup coil's wire to grommet: 90 mm
• Other specifications:
• Number of wires: 5
• Number of plugs: 3
• Number of pins: 5
• Wire-to-wire resistance:
• Alternator: White between each White = 0.6 ohms +-20%
• Pickup: Green to Blue = 500 ohms +-20%
• Dimensions Red Machined Aluminum Mosfet Regulator (CNC):
• Width: 103 mm
• Length: 103 mm
• Height: 28 mm
• Fixation holes center to center: 80 mm
• Other specifications:
• Number of plugs: 2
• Number of pins: 5
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: 15 V
• Operation Temperature: -20°C to 85°C

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
