ELECTRICAL

Direct replacement ignition switch assembly with keys. High-quality replacement to the expensive factory units.

Features:

• Direct replacement.
• Includes keys.

Because of lightweight LED lights, nighttime illumination has become much easier. However, most motorcycle electrical systems need more power to make them work. This RMSTATOR kit provides the stator with the higher power needed to make starting easier and turn on auxiliary lights and other accessories.

Designed to work with the DC system, this set of parts are built-in relays that activate the switched 12V DC output line only when the motor is running. Do you often forget to turn off your lights? No more worries! This kit will be perfect for you because the adjustable shut-off delay will turn them off automatically!

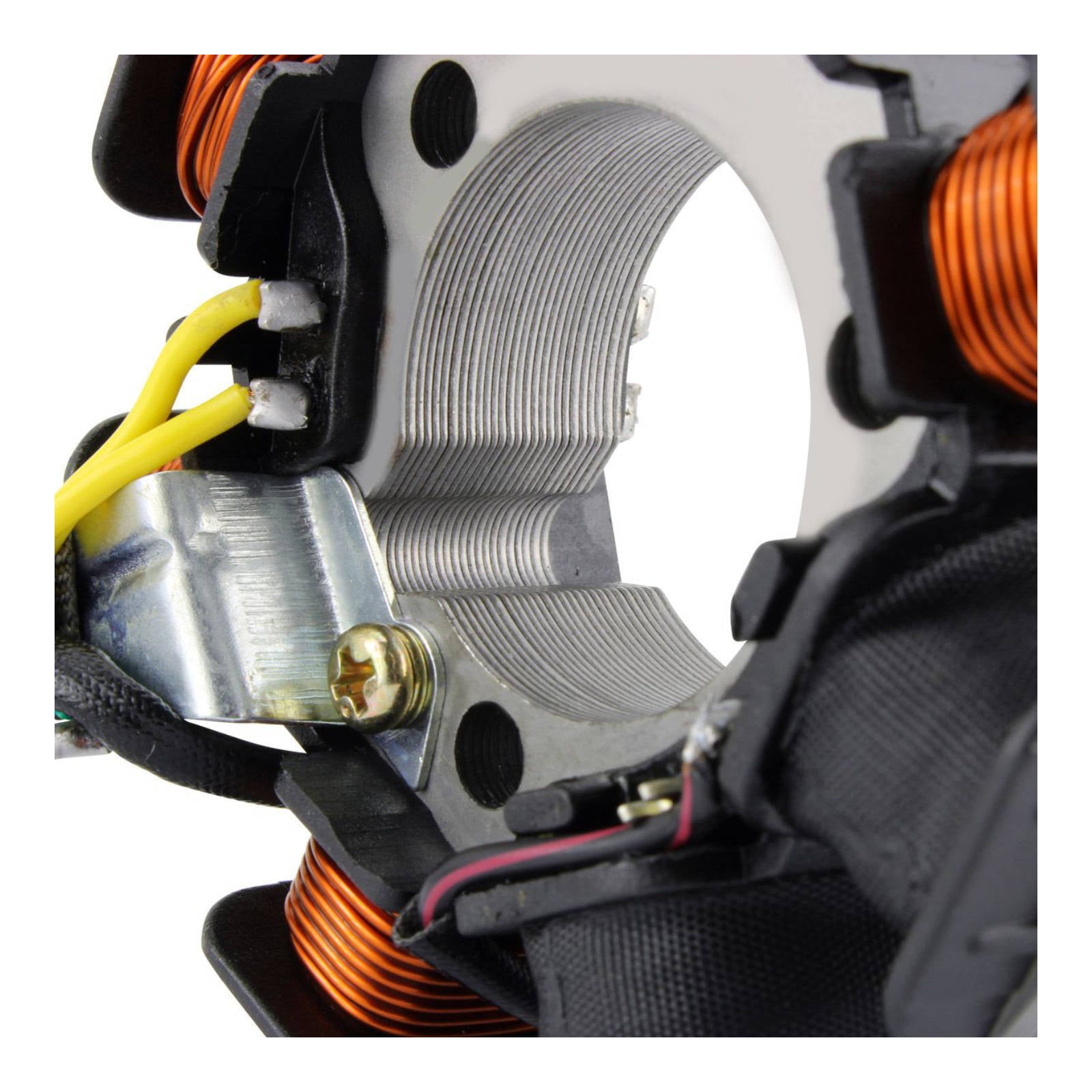

Stator:

• DC stators compatible with lighting systems of equal or less power
• Replace the OEM and increases power output significantly.
• Pick up pulsar coil included
• Connector included

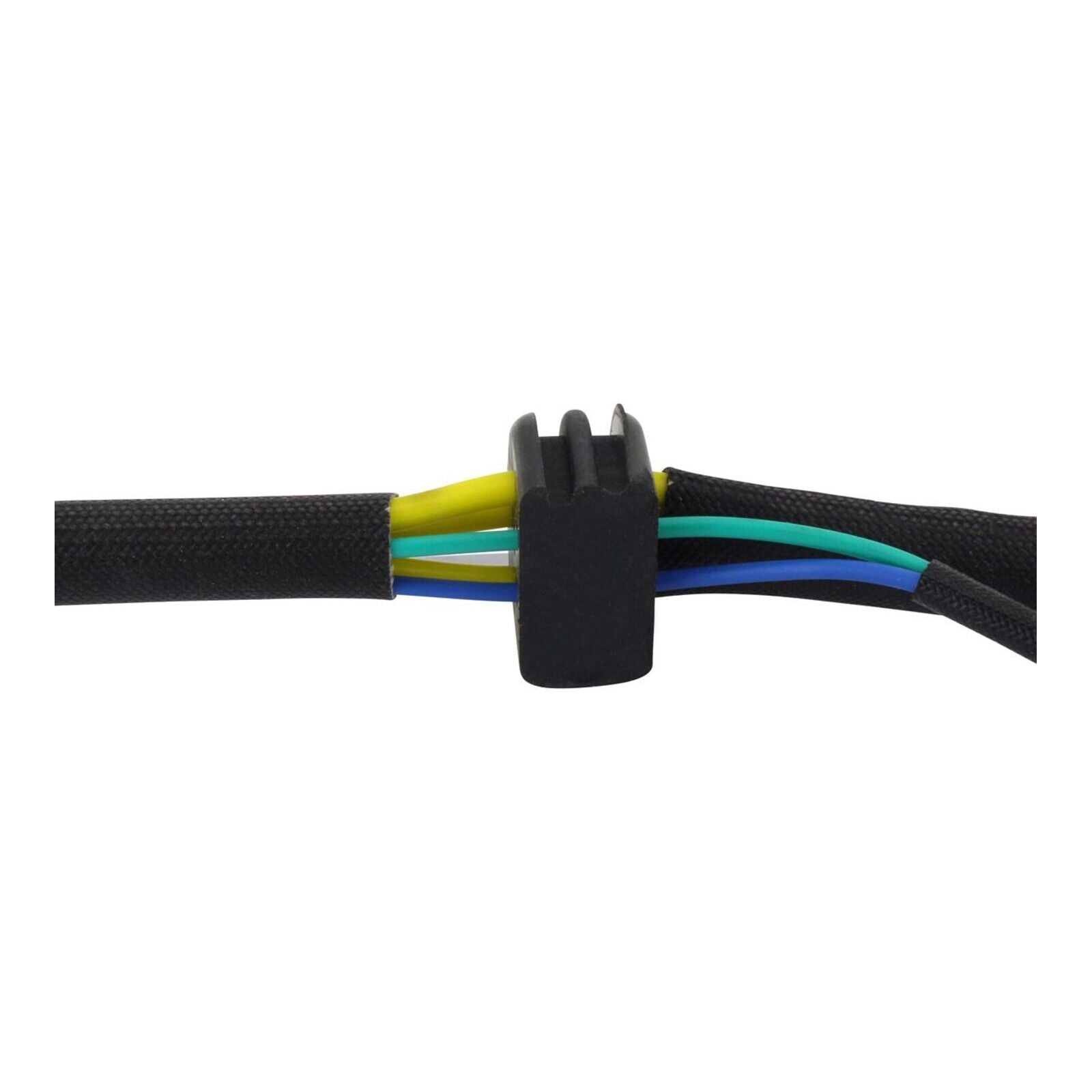

• Rubber grommet included

Voltage Regulator Rectifier:

• No assembly required
• Higher grade of electric components.
• The quality exceeds the OEM equipment

Specifications:

< strong>Stator:

• Interior diameter: 34mm
• Exterior diameter: 72mm
• Thickness: 15mm
• Length of wires stator to grommet: 80mm
• Length of wires grommet to plug: 660mm
• Length of pickup coil's wire to grommet: 60mm
• Number of wires: 6
• Number of plugs: 2
• Number of pins: 6
• Alternator : Between each Yellow = 0.4 ohms +-20%
• Pickup : Green/White to Blue/White = 260 ohms +-20%
• Source: Blue to Red = 20 ohms +-20%

Voltage Regulator Rectifier

• Width: 53.6mm
• Length: 79mm
• Height: 22mm
• Wires length: 250mm
• Fixation holes centre to centre: 62mm
• Number of wires: 5
• Minimum Charging Voltage: 14.5V +- 0.5V
• Maximum Charging Current: 50A / 500W
• Open Circuit Voltage: 15V
• Operation Temperature: -20° to 85°

Harnesses

• Wires length: 145mm

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

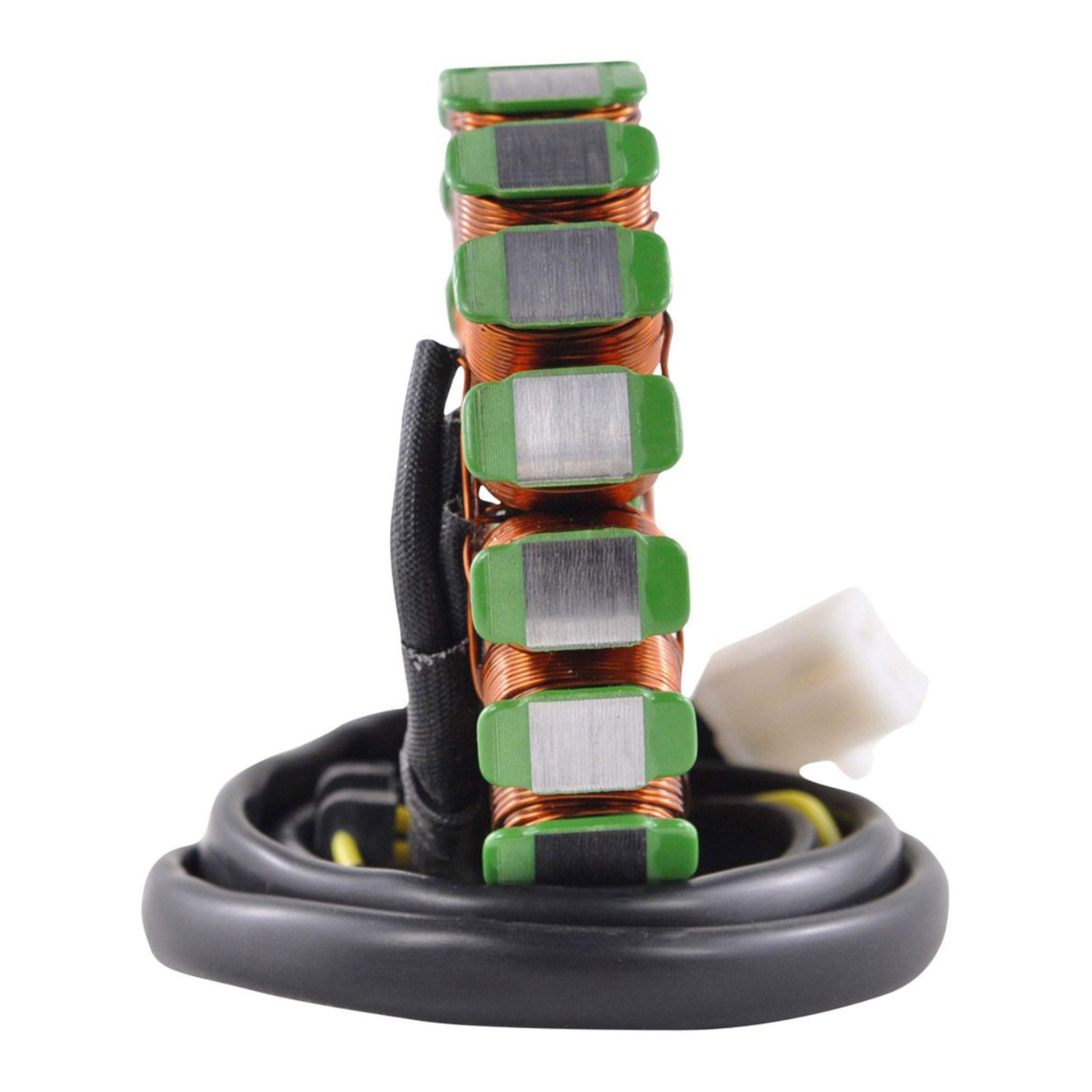

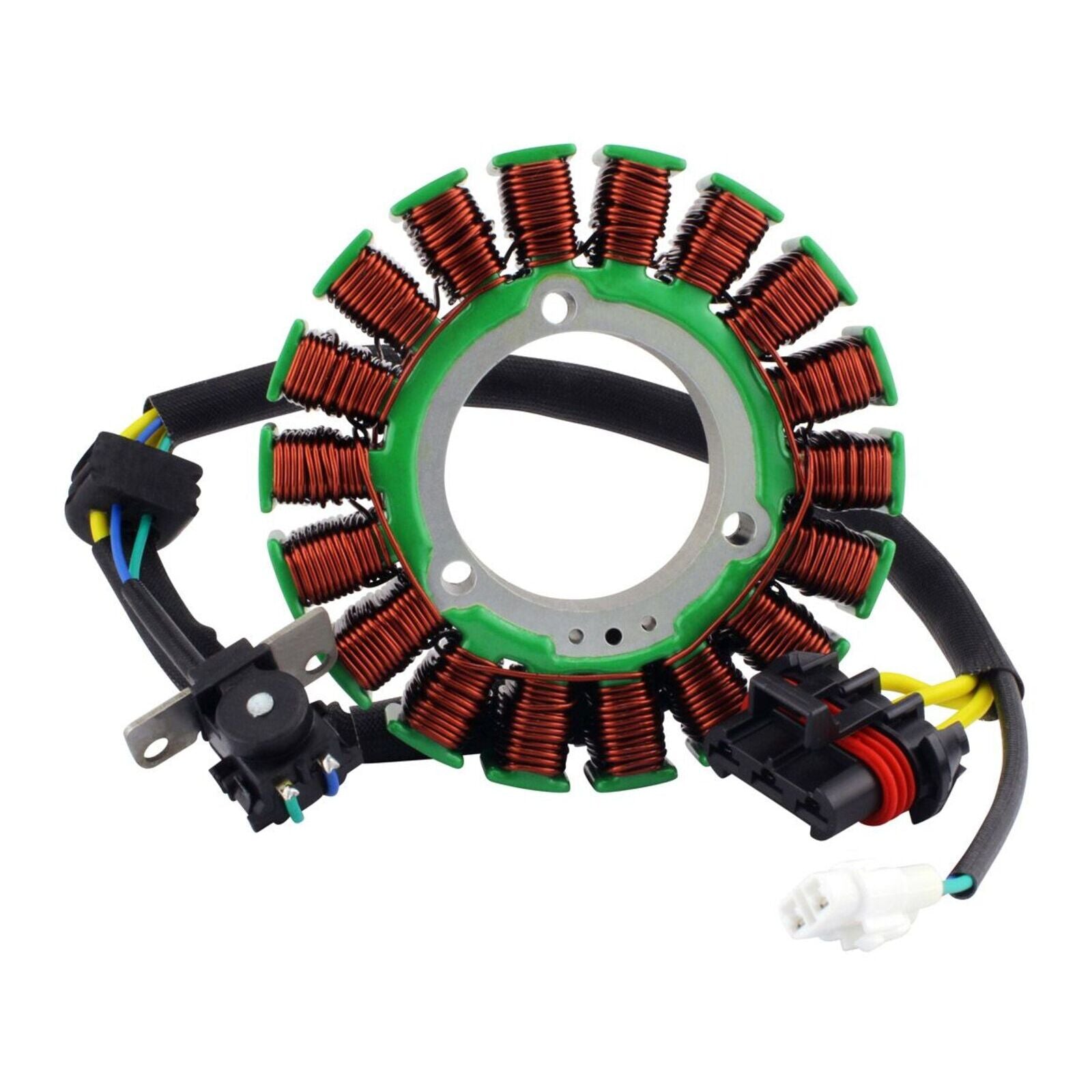

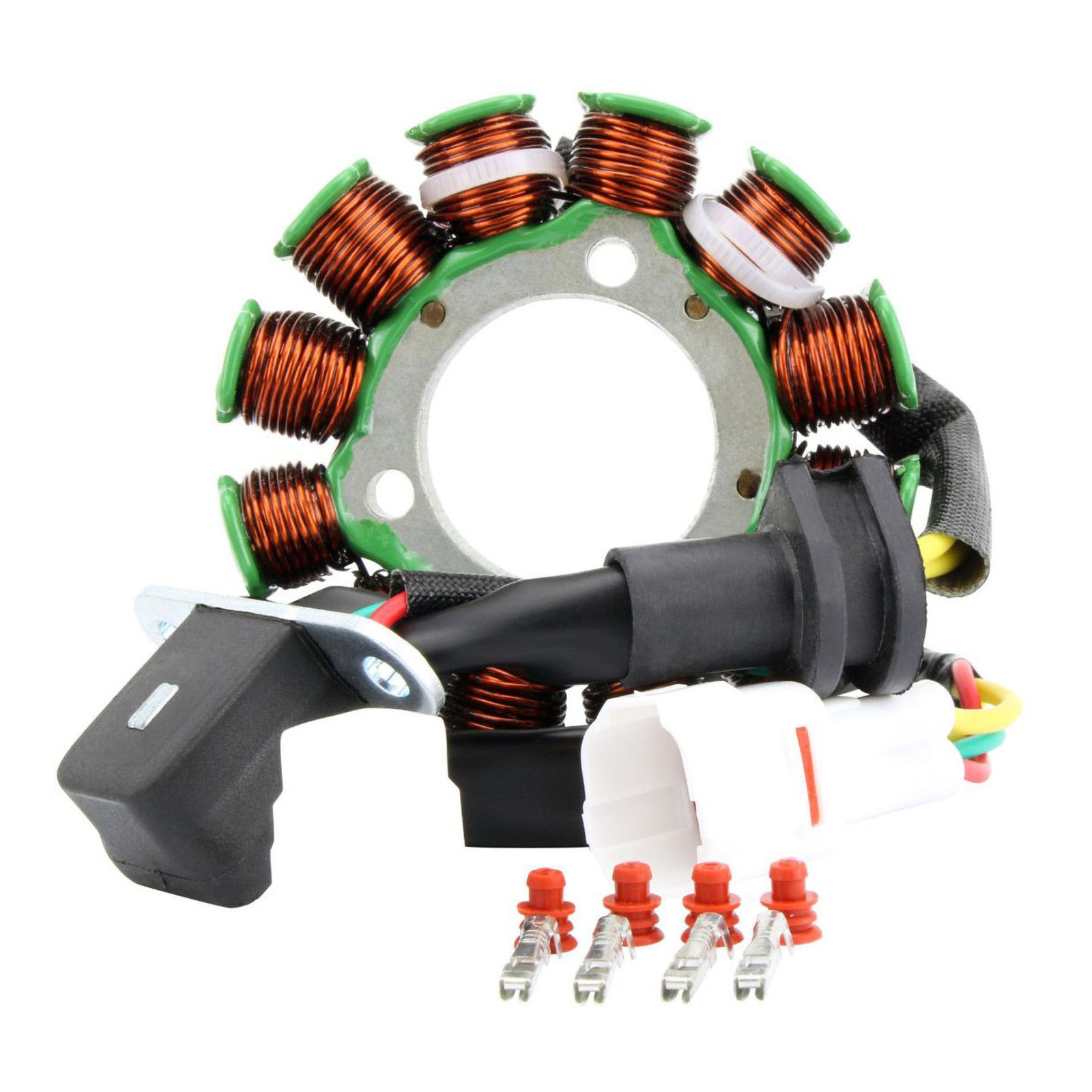

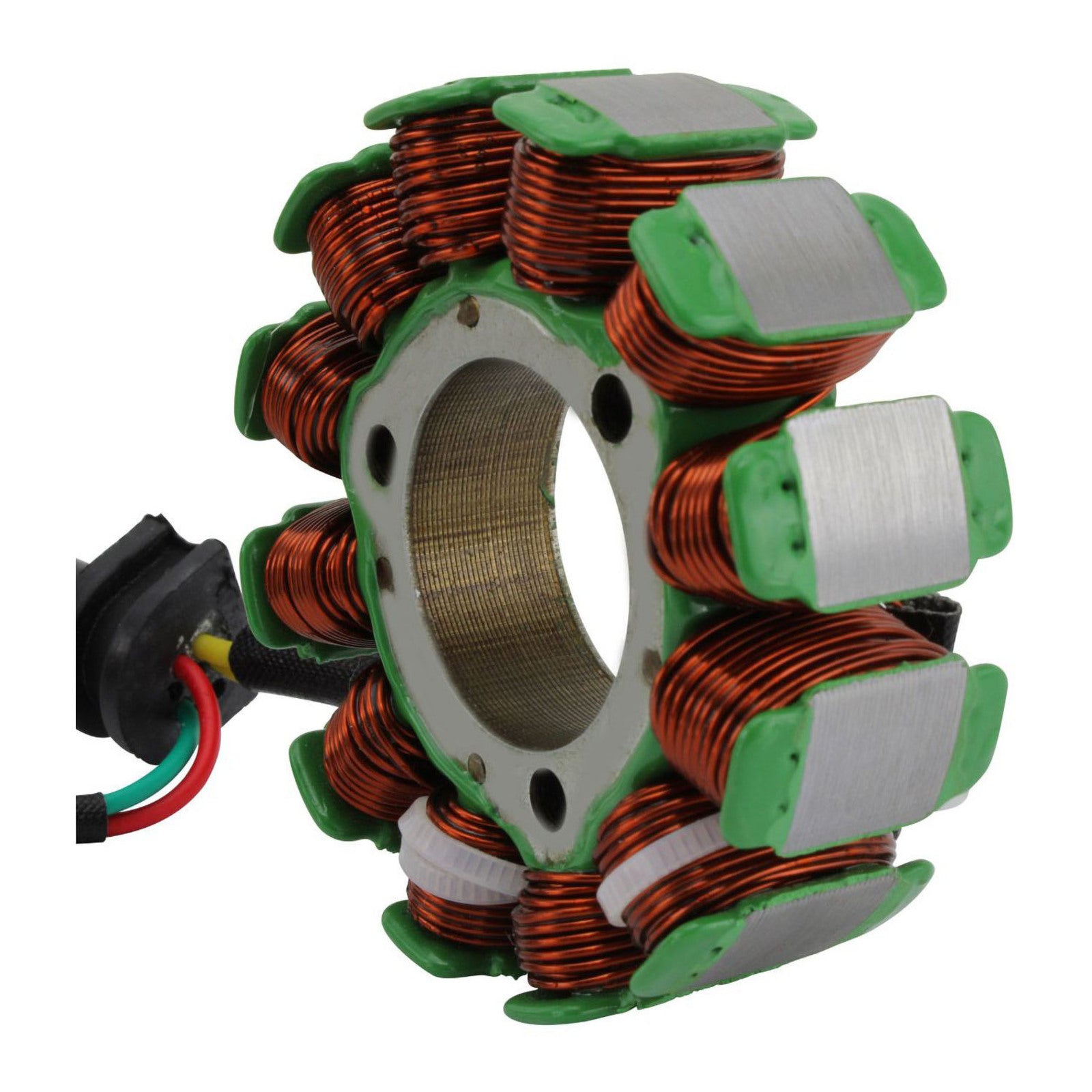

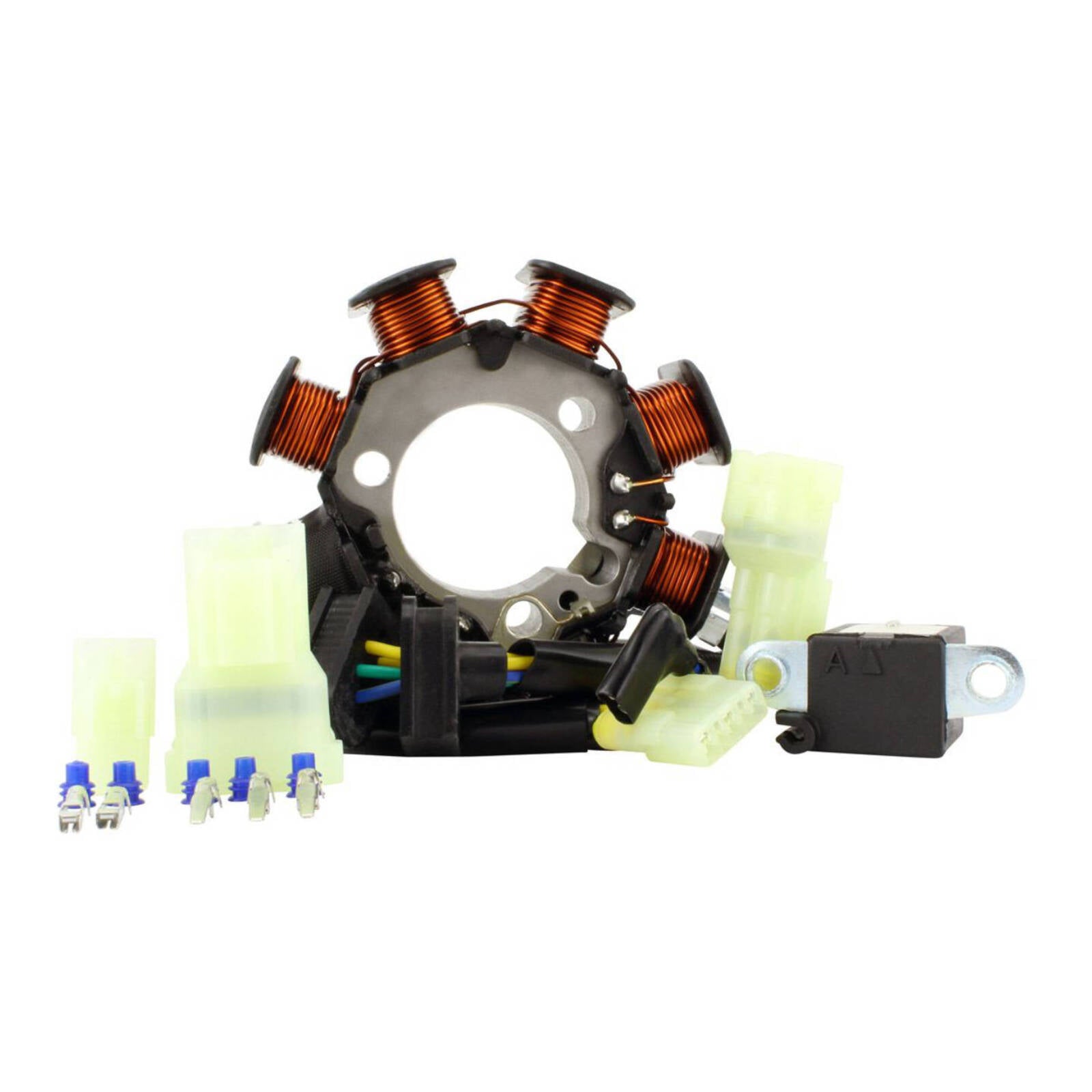

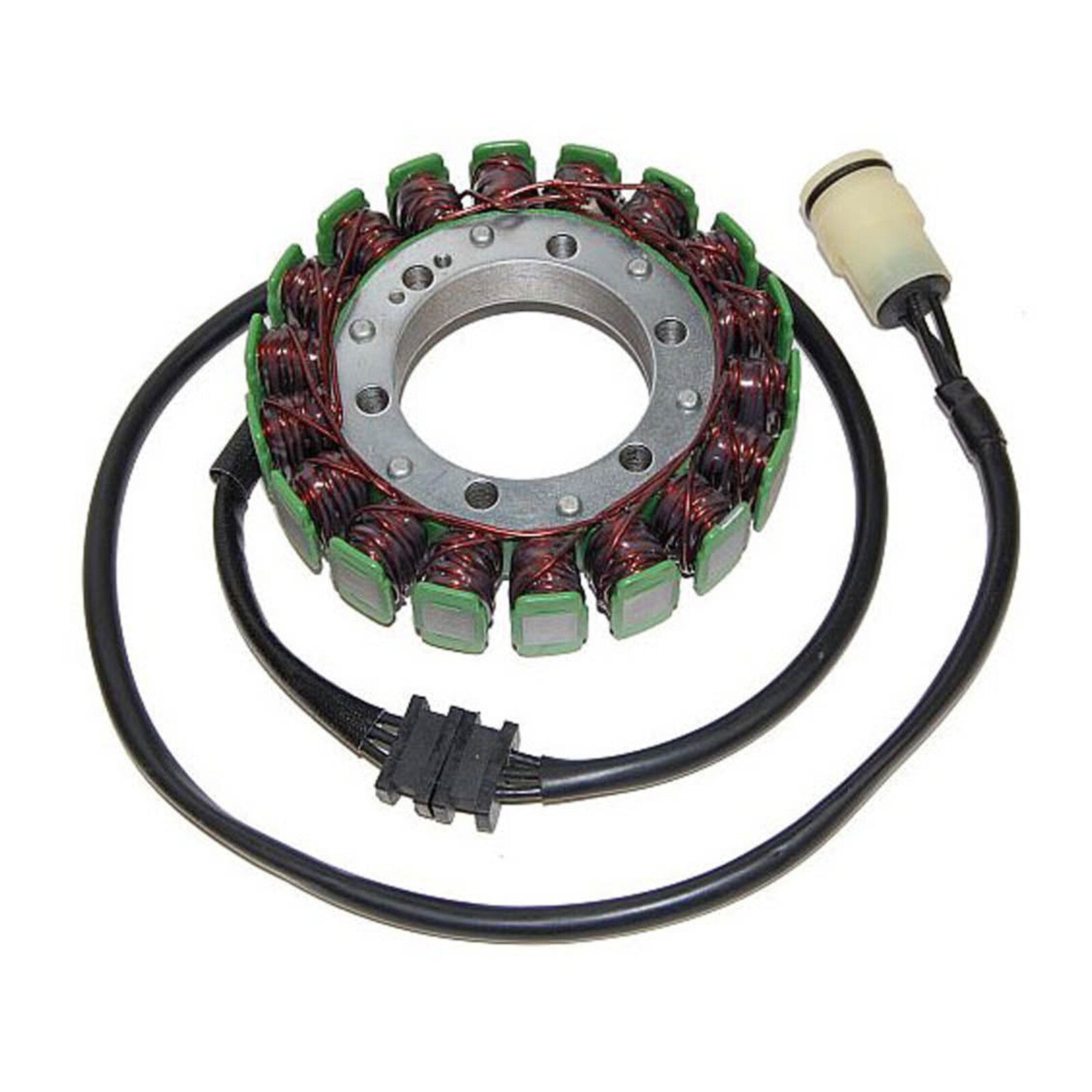

Plug-and-play replacement generator stator from RM Stator.

Dimensions:

• Interior diameter: 35mm
• Exterior diameter: 88mm
• Thickness: 18mm
• Length of wires stator to grommet: 90mm
• Length of wires grommet to plug: 140mm
• Length of pickup coil's wire to grommet #1: 330mm
• Length of pickup coil's wire to grommet #2: 370mm

Other specifications:

• Number of wires: 5
• Number of plugs: 2
• Number of pins: 5
• Number of poles: 8
• Wire to wire resistance:
  • Alternator: Between each Yellow = 0.7 ohms +-20%
  • Pickup: Blue/Yellow to Ground = 336 ohms +-20%
  • Pickup: Black/Red to Ground = 185 ohms +-20%

Details:

< li>Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connectors included
• Rubber grommet included
• All products shipped are tested

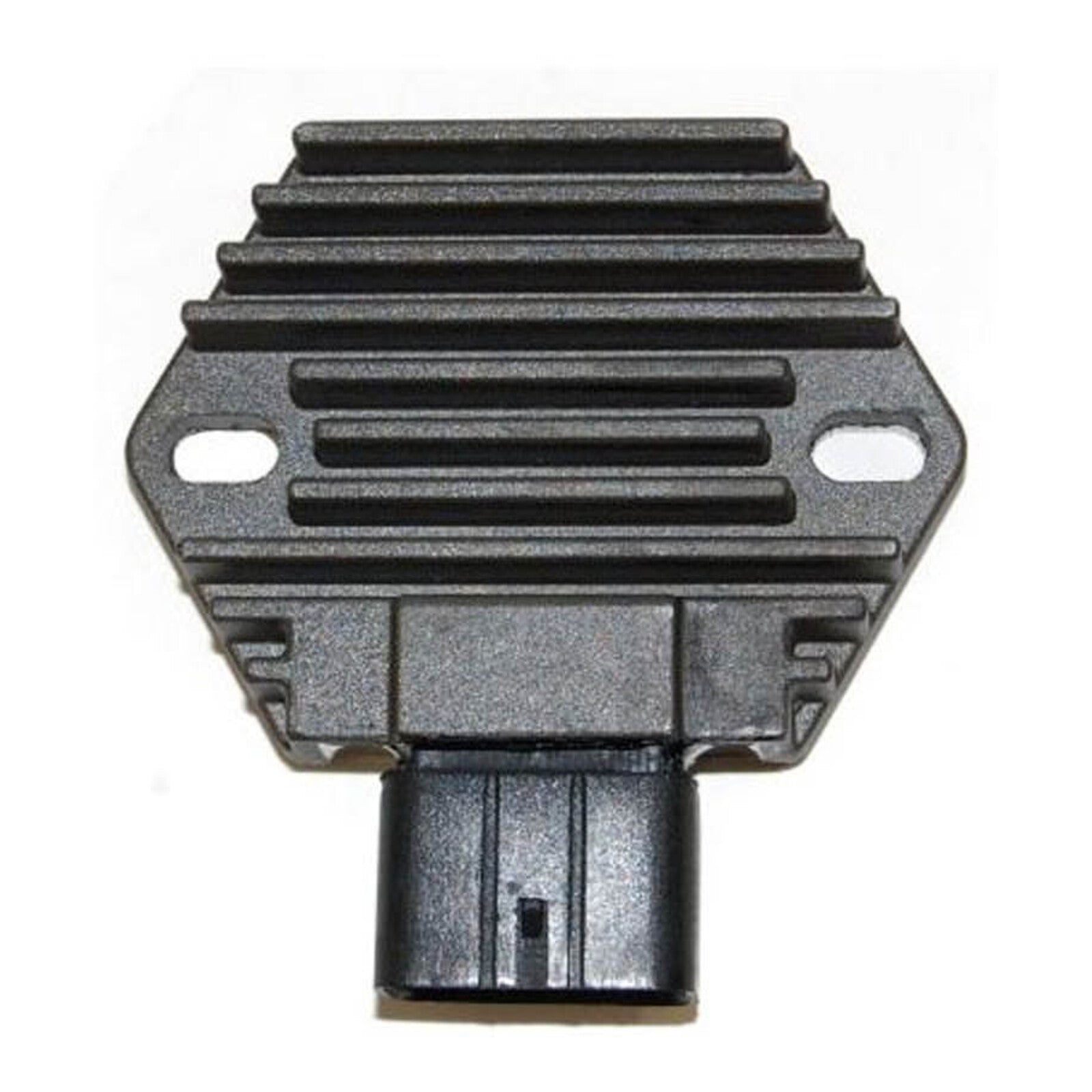

Stop burning your voltage regulator rectifier! It is time to update or replace your voltage regulator with the advanced MOSFET type.

It runs cooler than all SCR diode-style OEM regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

Top Features:

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• The quality exceeds the OEM part
• Higher grade of electric components

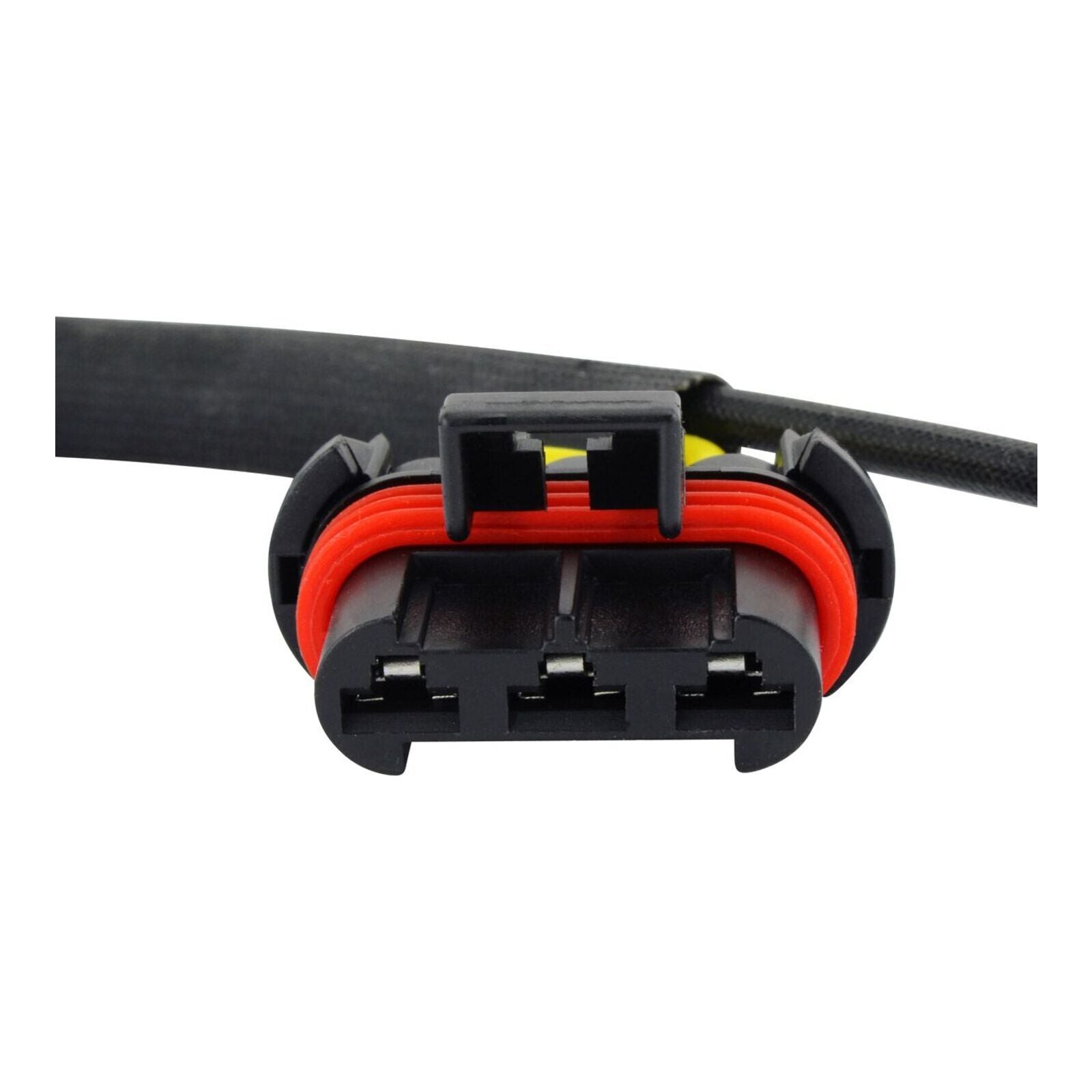

Opposite connector (main harness side) included as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

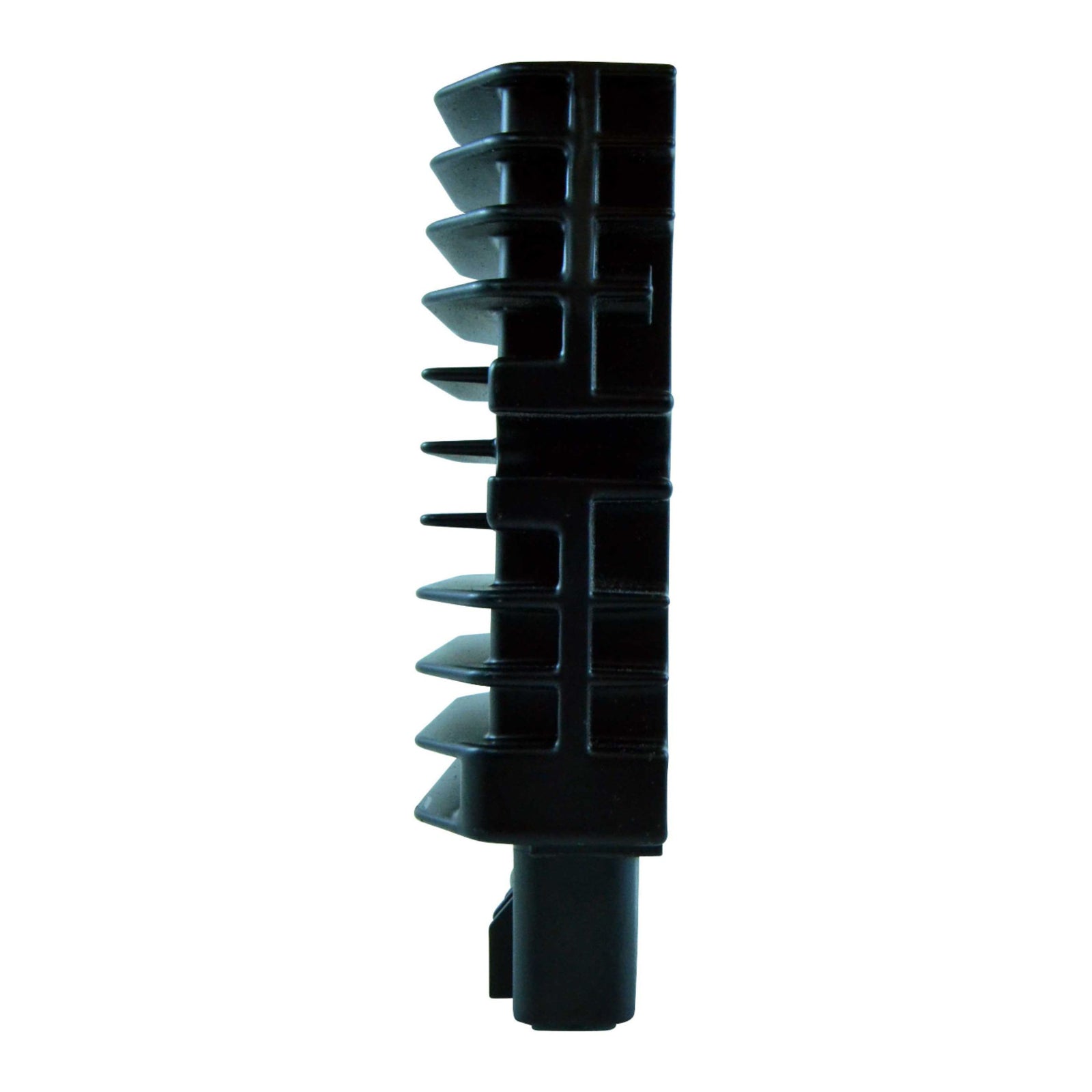

Why do you need a different voltage regulator for lithium batteries?

Lithium batteries have different charging requirements than Lead Acid or AGM batteries that can severely affect their lifespan and performance. The key factors in safe and reliable lithium battery charging are the output DC voltage ripple and average output voltage. The RMSTATOR regulator is designed around the optimal parameters for these factors.

The ripple effect is all that matters

Charging voltage ripple in a Powersports application is the difference between the highest and lowest voltages from the voltage regulator output. By nature, a common shunt style voltage regulator will have a fairly high voltage ripple due to the regulation shunt switches opening and closing frequently. Each on/off transition will cause some variation in the output voltage, this is unavoidable. Keeping this to a minimum is critical for Lithium batteries, and the RMSTATOR Lithium regulator is designed around this feature.

In a perfect world, a ripple of less than 10% of the output voltage (~1.5V for a typical regulator), would be ideal, however, is not practical for this type of regulator. The RMSTATOR Lithium regulator is able to maintain a less than 4 Volts output ripple, compared to verified test results of our competitors 8 volts. Keep in mind this ripple voltage is only seen via an Oscilloscope sampling the voltage 1000’s of times a second, and is not the same as your average charging voltage as measured by a multimeter.

Stator Dimensions:

• Interior diameter: 18 mm
• Exterior diameter: 68 mm
• Thickness: 42 mm
• Length of wires stator to grommet: 125 mm
• Length of wires grommet to plug: 500 mm

Other Specifications:

• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3
• Alternator: Between each White = 0.4 ohms +/-20%

Regulator Dimensions:

• Width: 94 mm
• Length: 114 mm
• Height: 32 mm
• Fixation holes centre to centre: 74 mm

Other Specifications:

• Number of plugs: 2
• Number of pins: 5
• Number of wires: 5
• Minimum Charging Voltage: 14.0 V ± 0.2 V DC
• Maximum Charging Current: 50 A / 500 W
• Operation Temperature: -20° to 85°

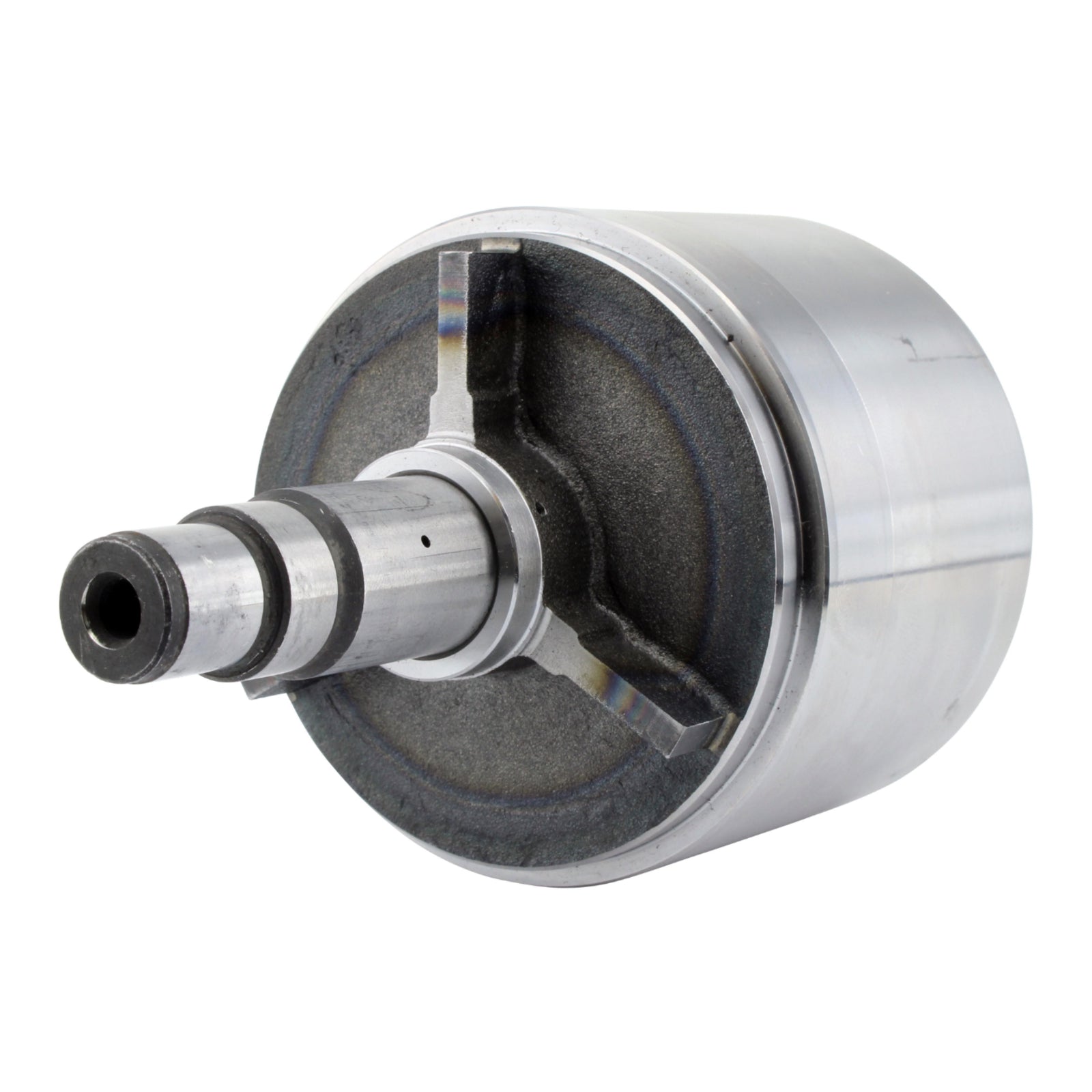

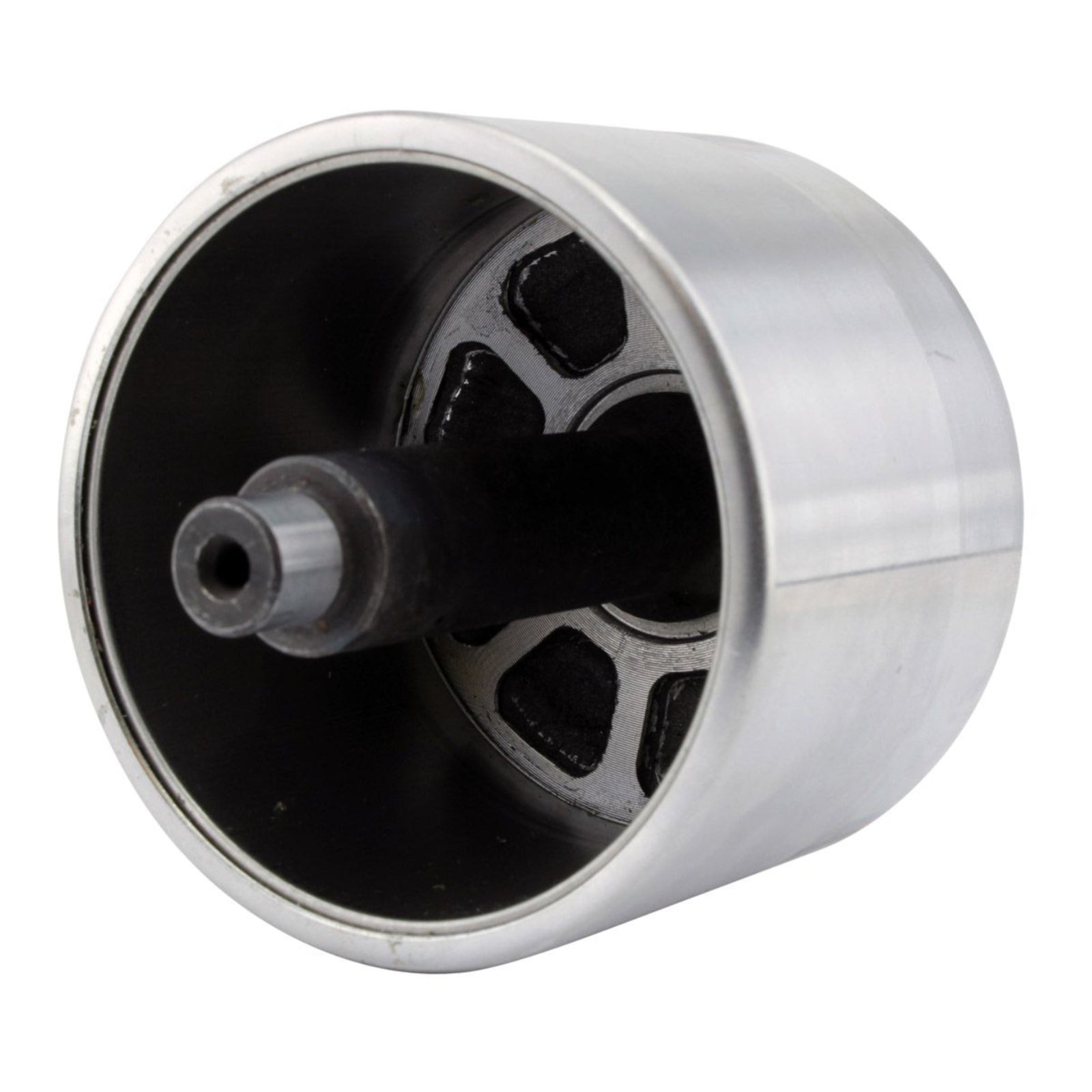

Flywheel Dimensions:

• Exterior Diameter: 80 mm
• Interior Diameter: 69 mm
• Interior Diameter Center Housing: 12 mm
• Exterior Diameter Center Housing: 18 mm
• Thickness (exterior): 11 mm
• Thickness (interior): 6 mm

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Brand new Ignition Stick Coil.

Features:

• Direct replacement to your original unit.
• Quality exceeds the OEM equipment.
• All products shipped are tested.

Dimensions:

• Interna l tube diameter: 7 mm
• Length: 138 mm
• Seal diameter: 24 mm
• Seal Length: 35 mm
• Resistance: 1-3 = 1.4 ohm

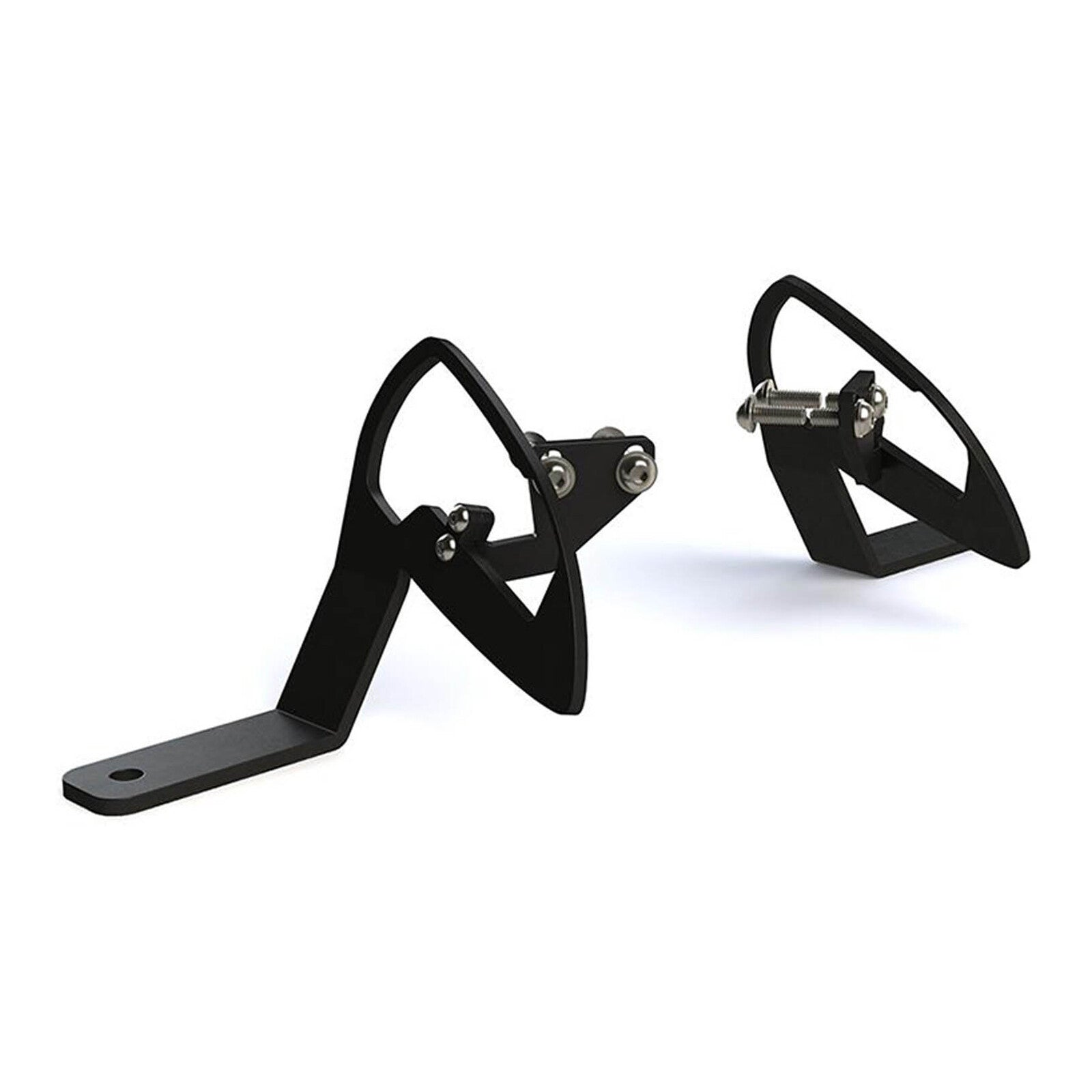

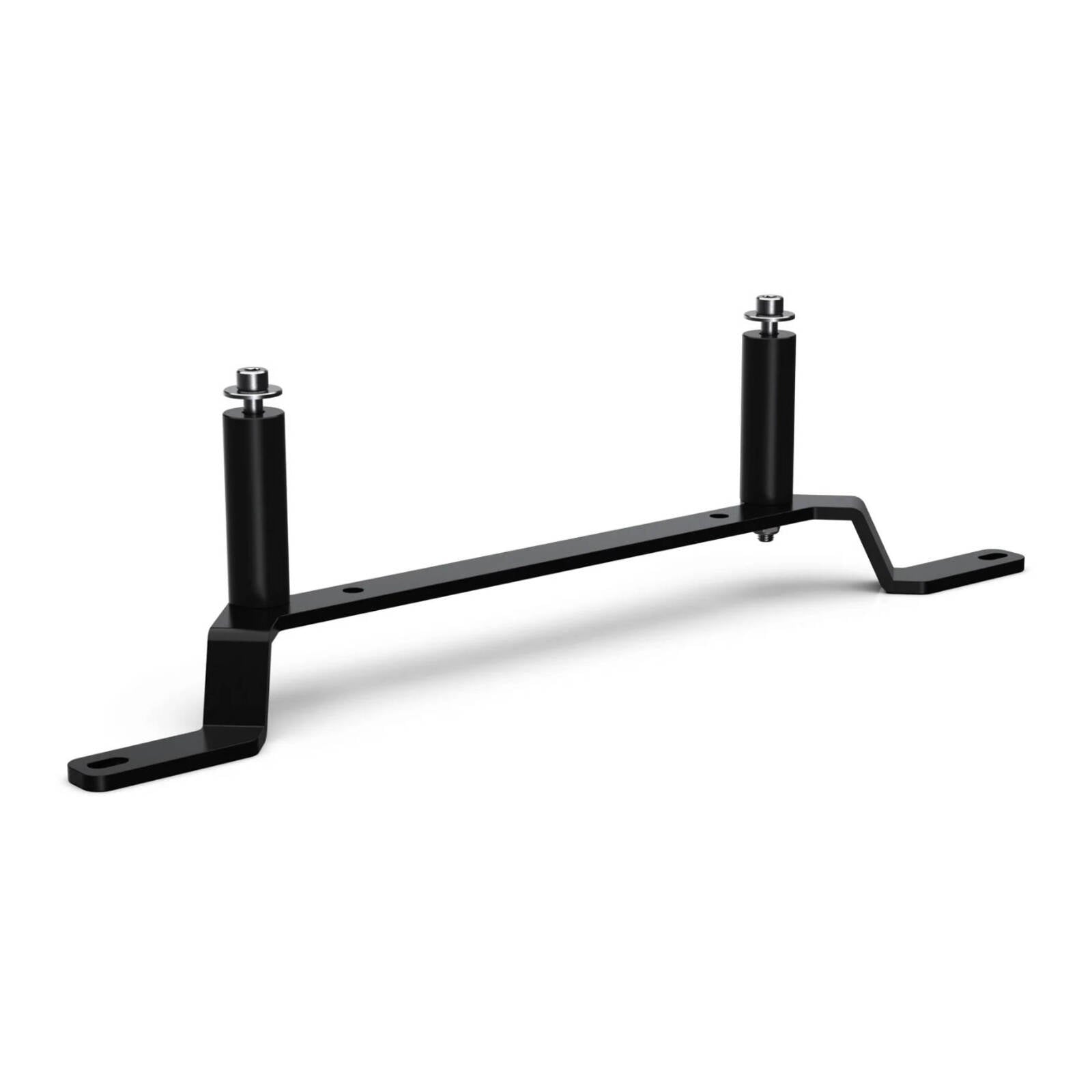

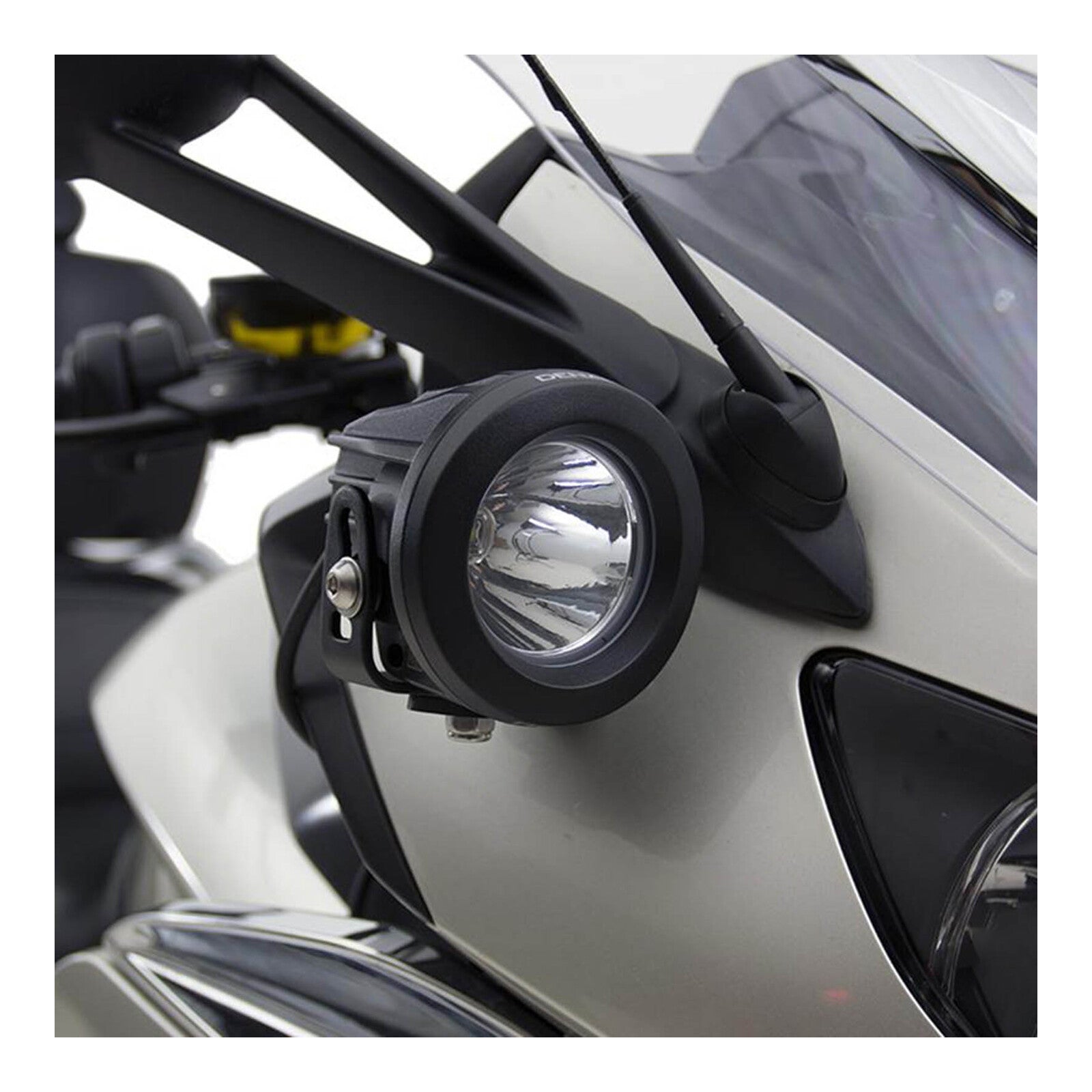

DENALI Motorcycle Specific Fairing / Fender Mounts

Available for most ADV, Cruisers and Sport Touring Models Laser cut and powder coated steel brackets either position the lights in the optimum location just below to the outside of the headlight, or create a two-point fender mount strong enough to mount our largest lights to your fender.

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

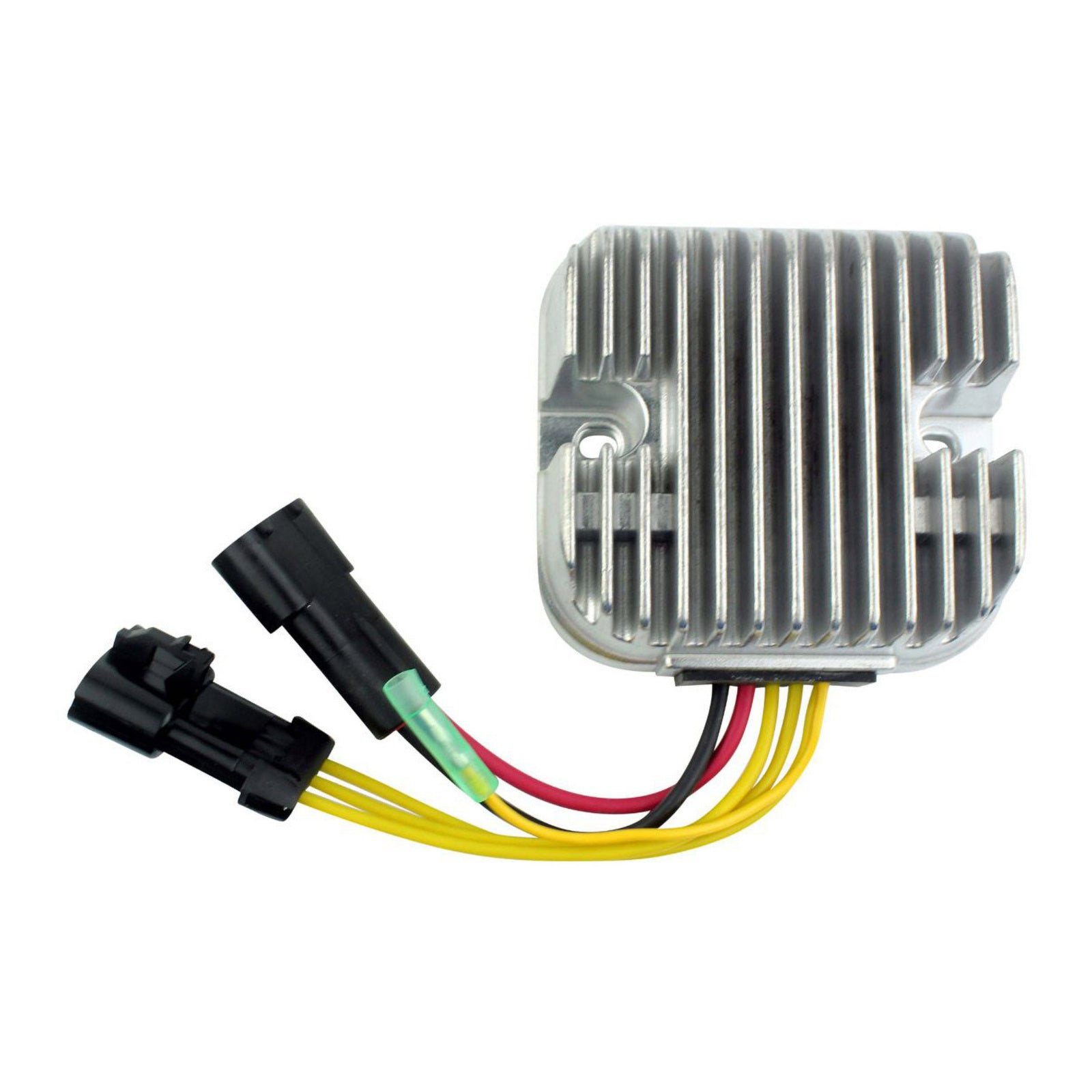

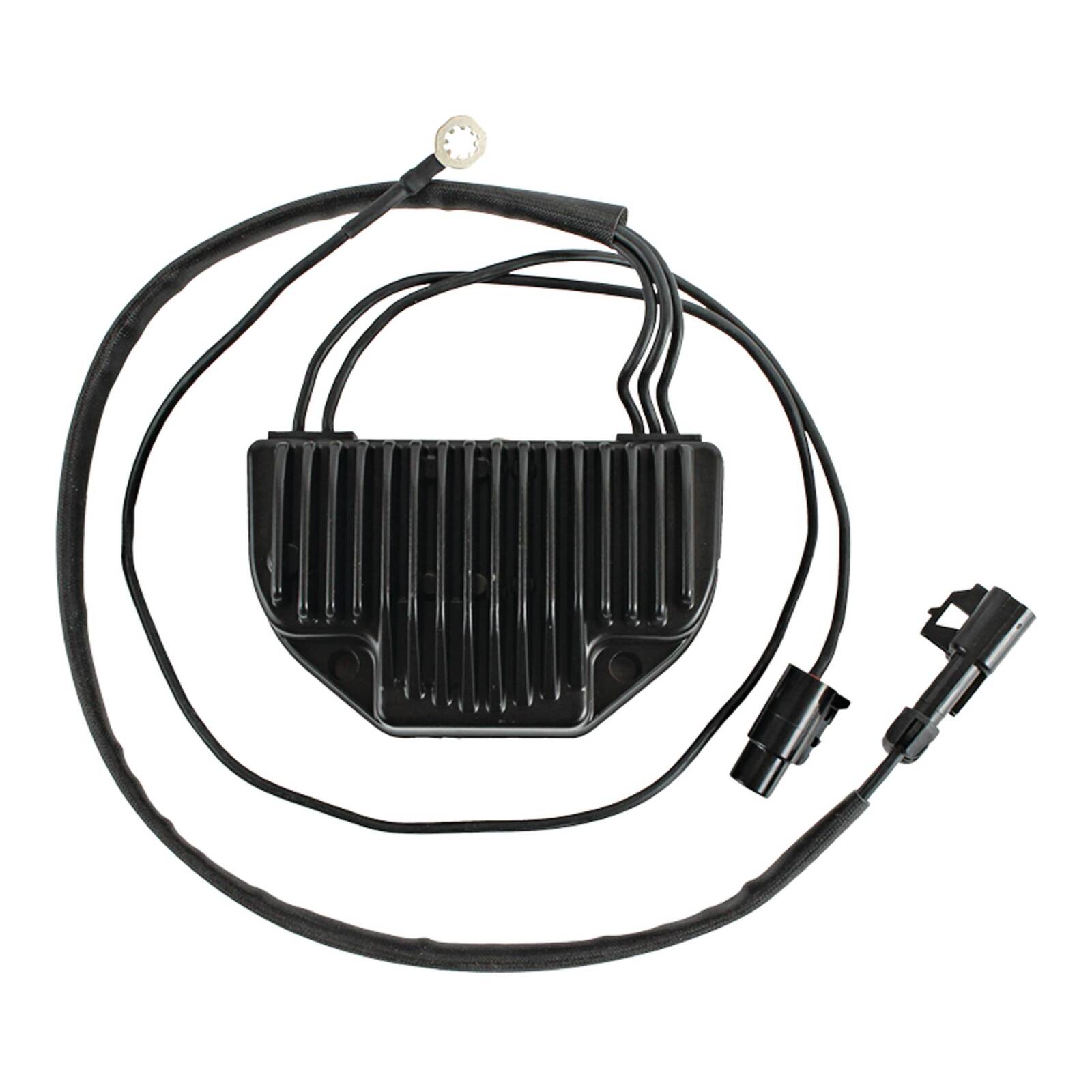

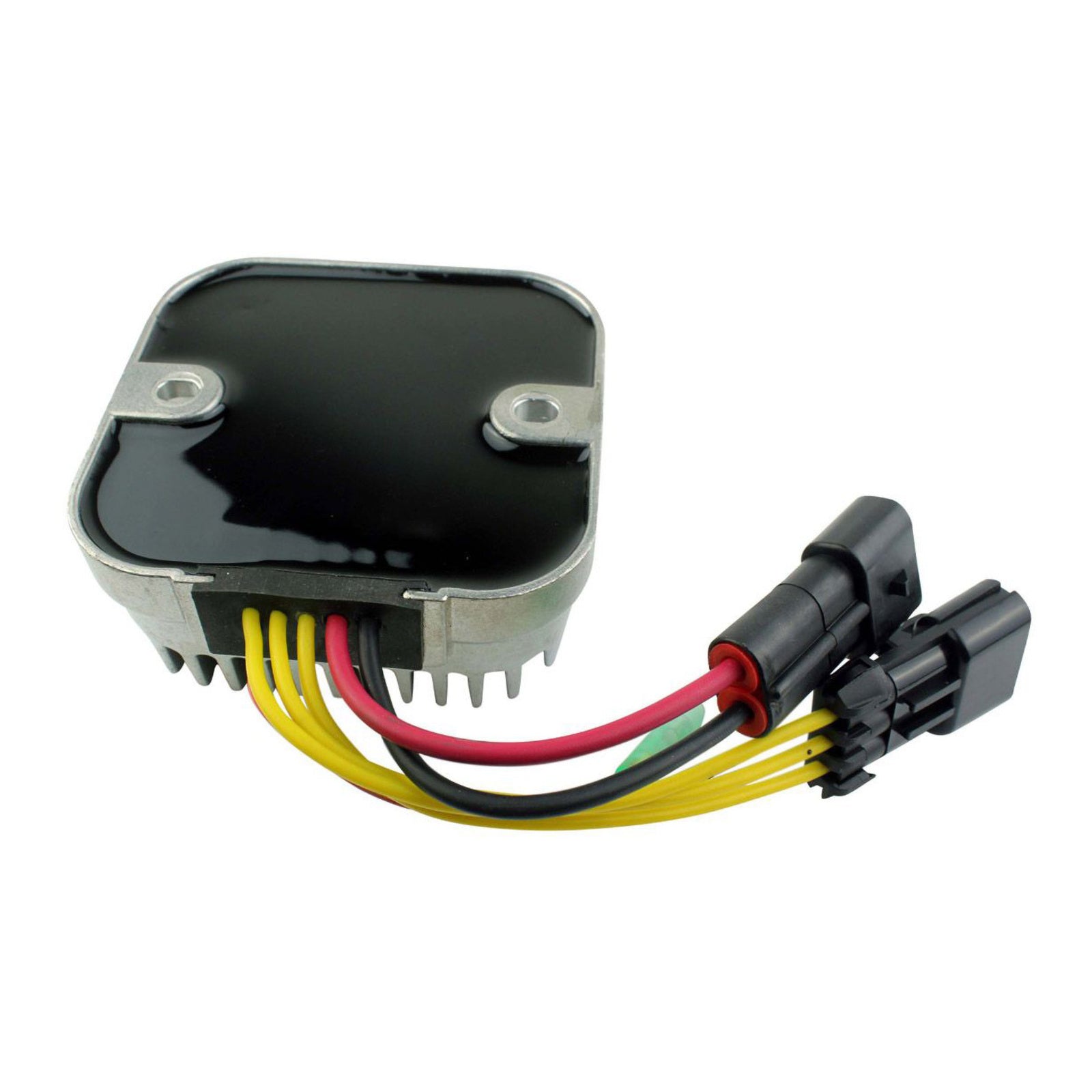

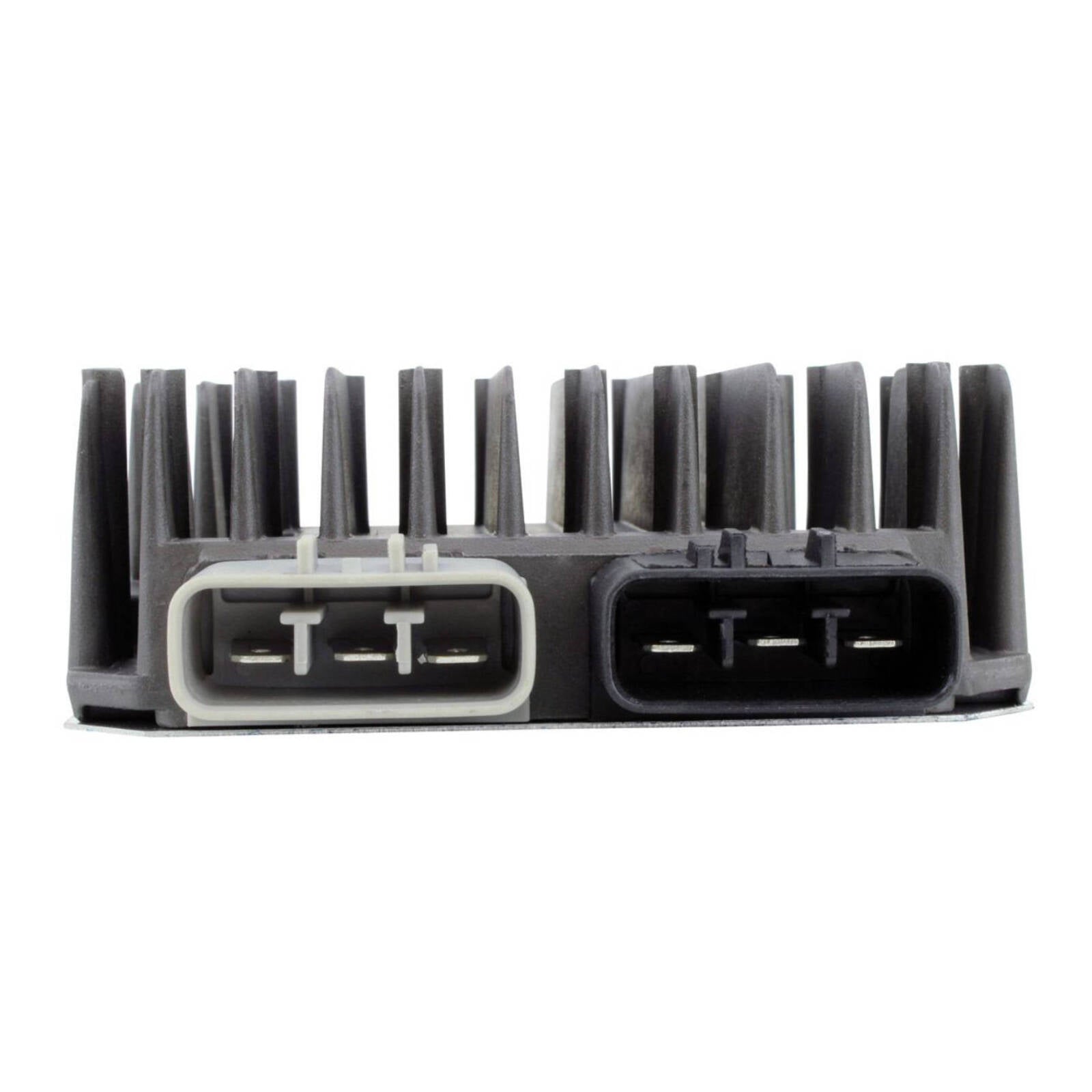

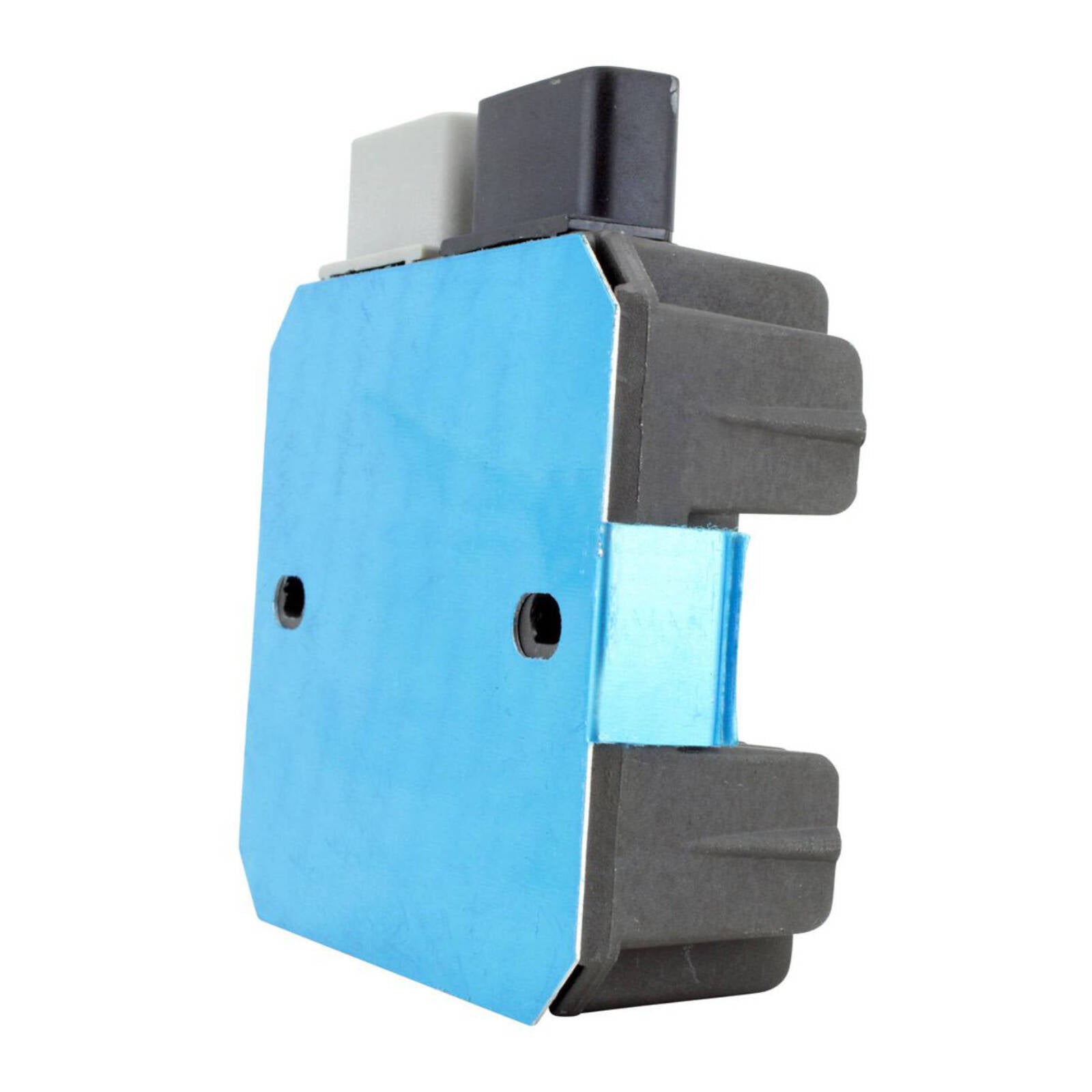

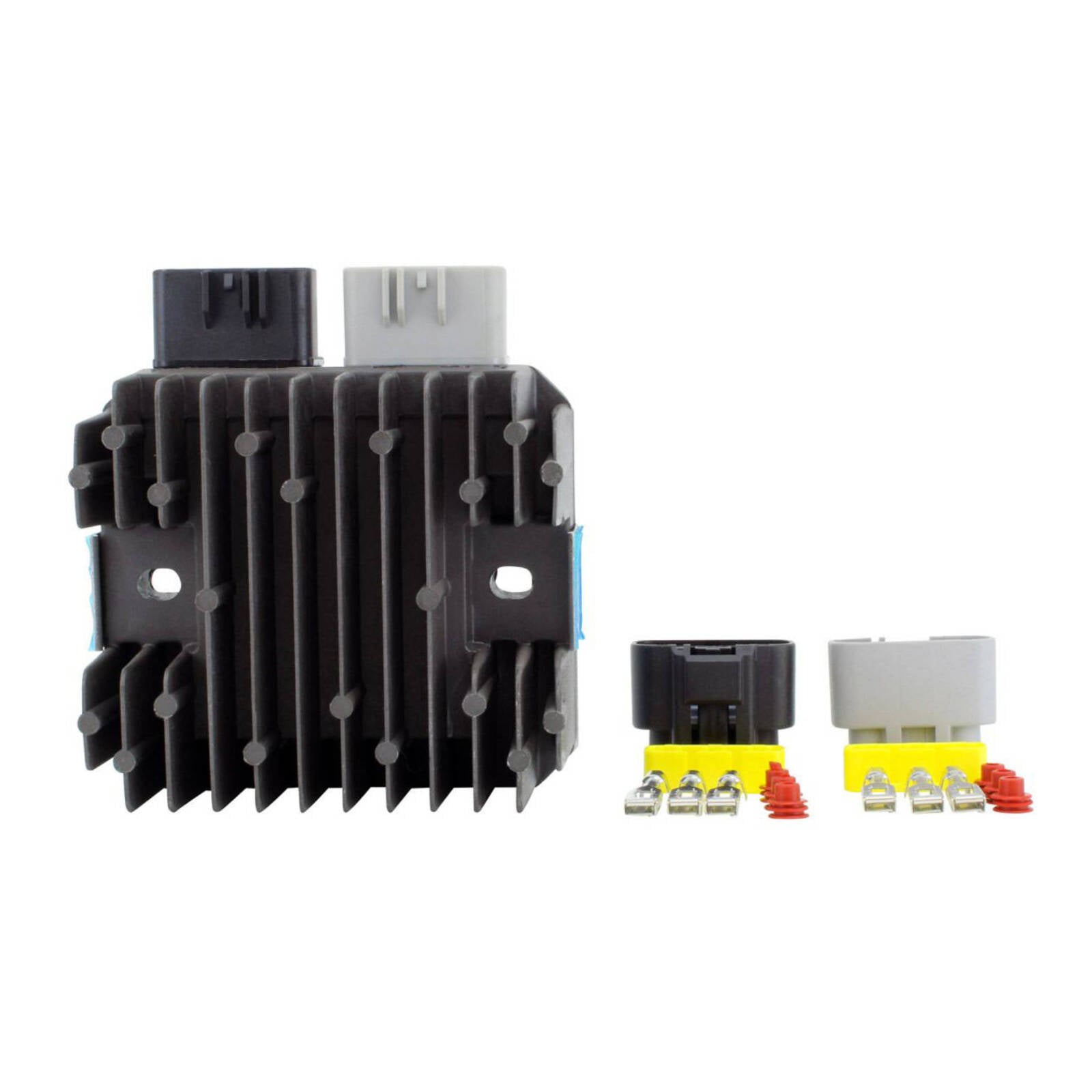

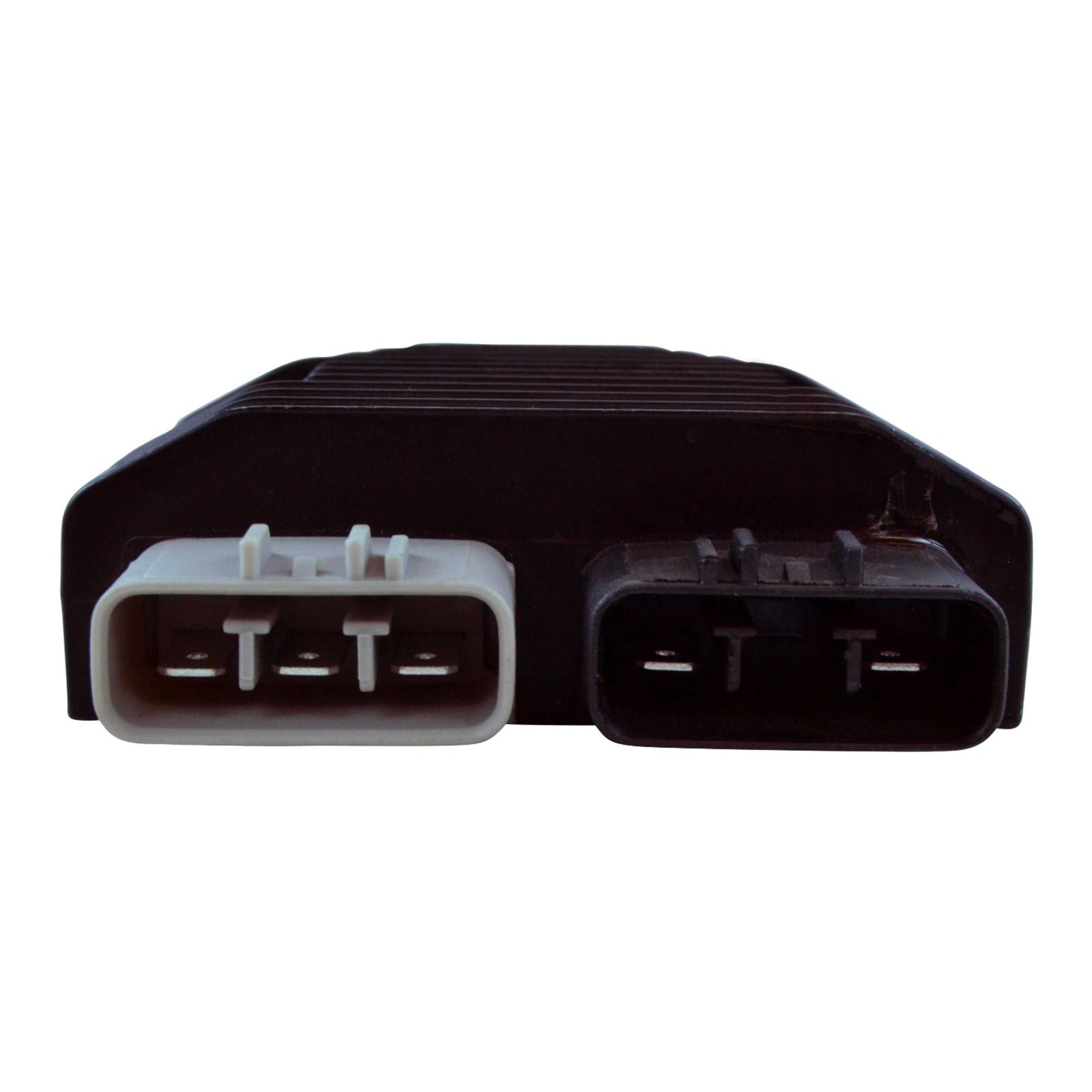

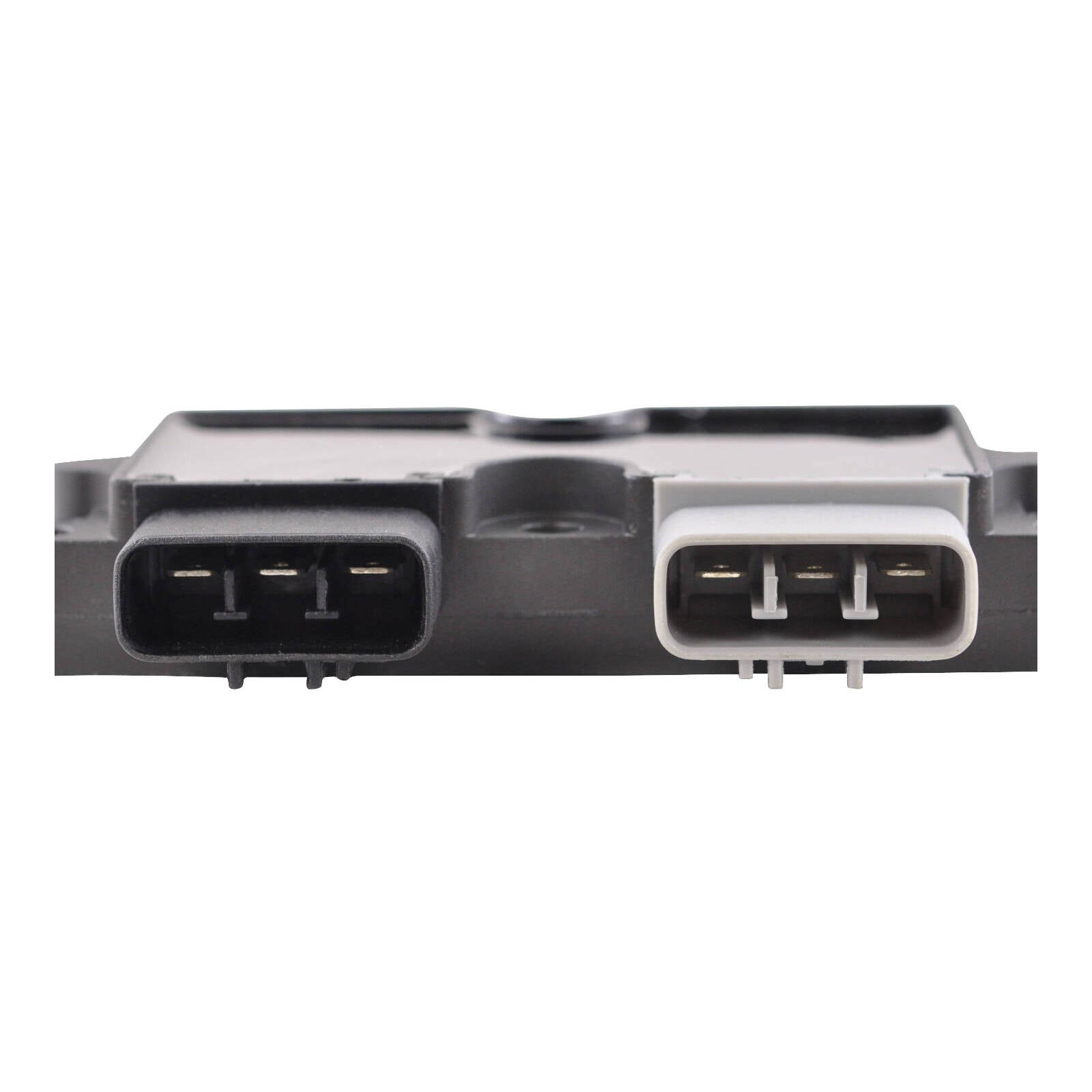

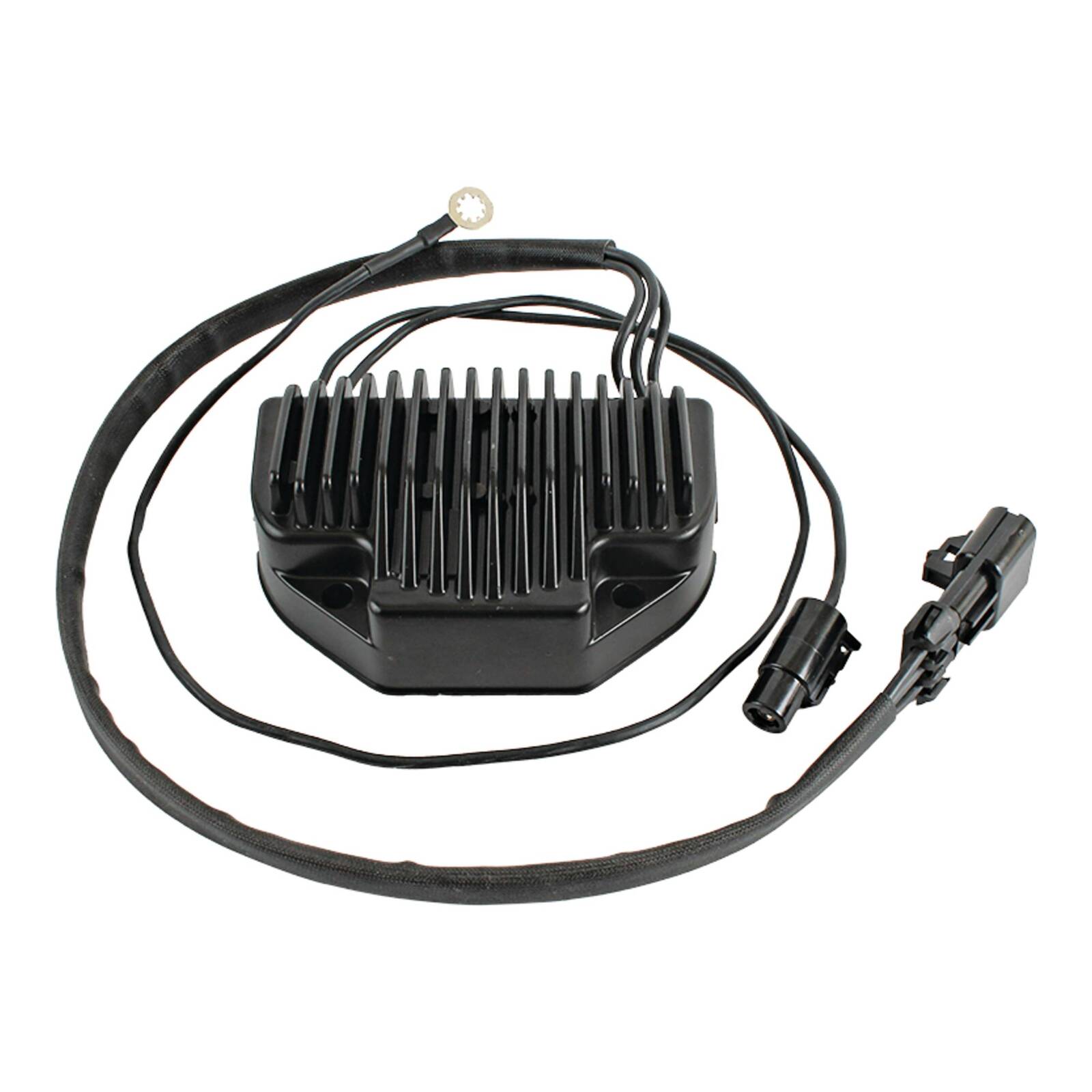

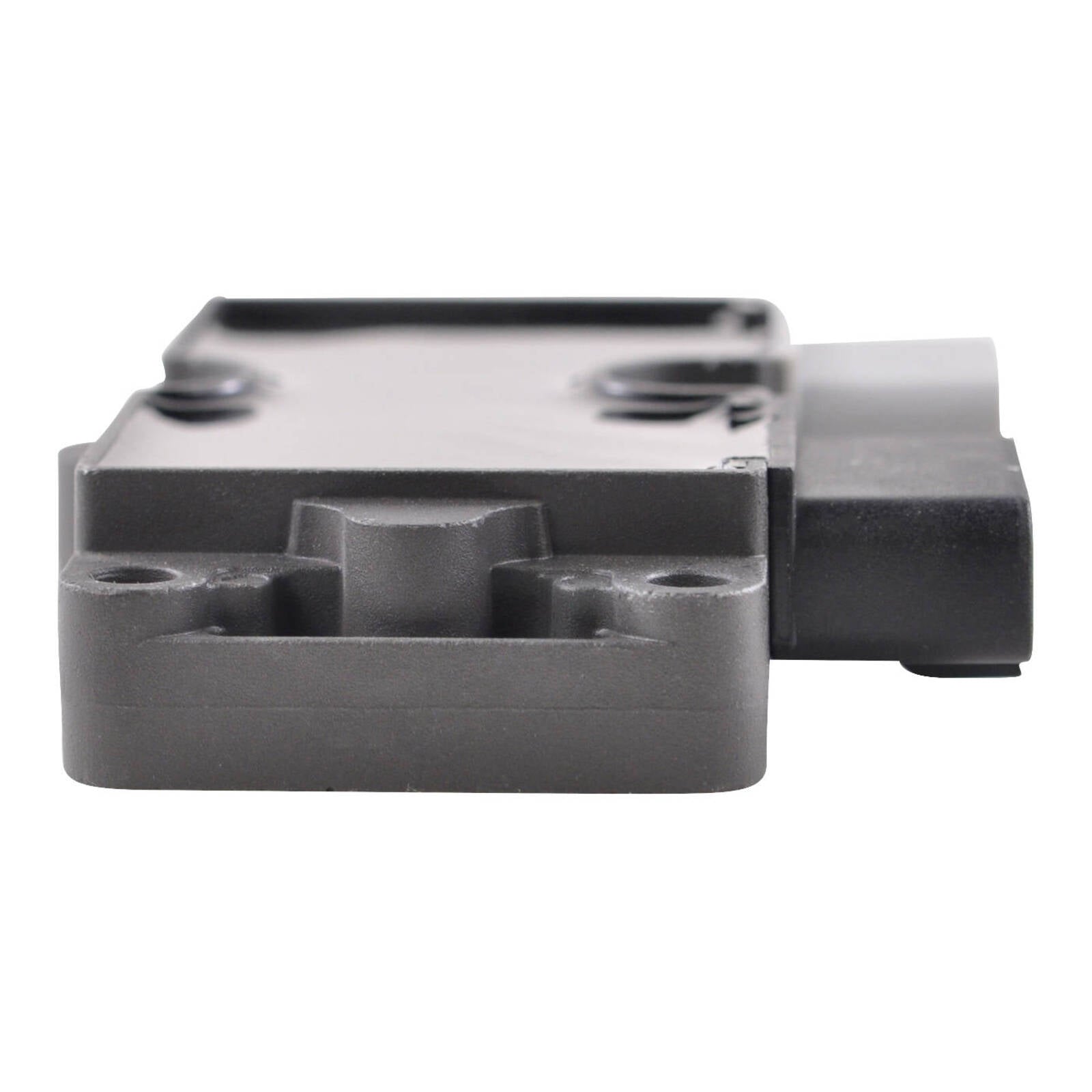

Brand new Mosfet Voltage Regulator Rectifier

STOP BURNING YOUR REGULATOR RECTIFIER!

It is time to update or replace your voltage regulator with the advanced MOSFET type. It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• The quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components
• All shipped products are tested

Dimensions:

• Width: 110mm
• Length: 111mm
• Height: 51mm
• Wires length: 157mm & 115mm
• Fixation holes centre to centre: 80mm

Other specifications:

• Number of plugs: 3
• Number of pins: 6
• Number of wires: 6
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20° to 85°

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

These 3-Pin Waterproof Blanking Caps can be used to cover and protect the unused leads of your DialDim Controller or CANsmart Controller.

What’s In The Box?

• (x2) 3- Pin Waterproof Blanking Caps

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

A faulty air temperature or pressure sensor can cause rough idling, reduced power, poor fuel economy, and increased emissions. Meanwhile, inaccurate readings can hide overheating issues, light a check engine light or even put your machine in limp mode, all putting your engine at risk of severe damage.

Replacing faulty sensor restores reliable performance monitoring, ensuring your machine runs safely and efficiently under all riding conditions.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Quality exceeds the OEM equipment

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All products shipped are tested

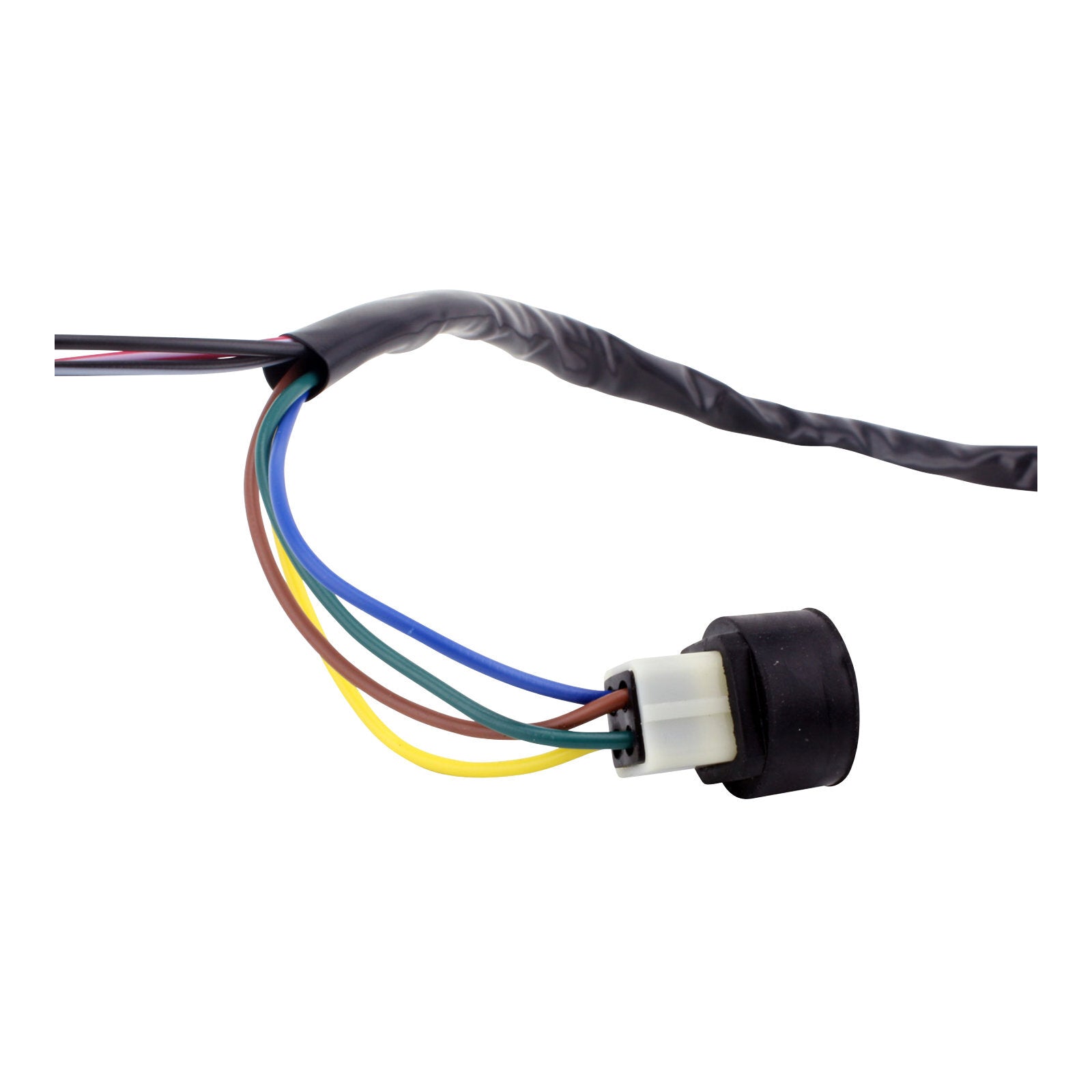

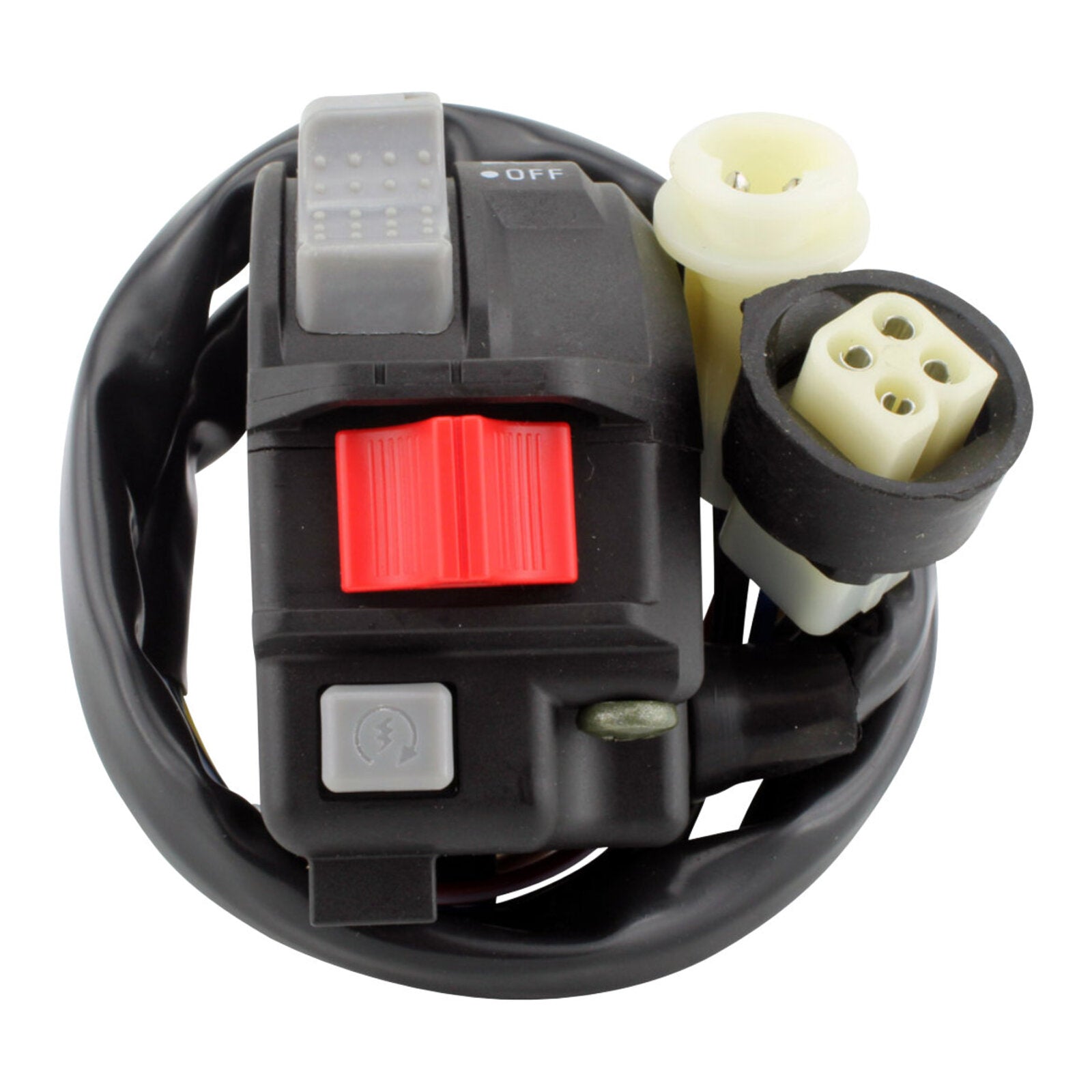

Functions:

• Lights: OFF / LOW / HI
• Kill Switch: OFF / RUN

Dimensions:

• Length: 55mm
• Width: 35mm
• Height: 60mm
• Wiring harness length: 550mm

Other specifications:

• Number of wires: 7
• Number of pins: 7
• Number of plugs: 2

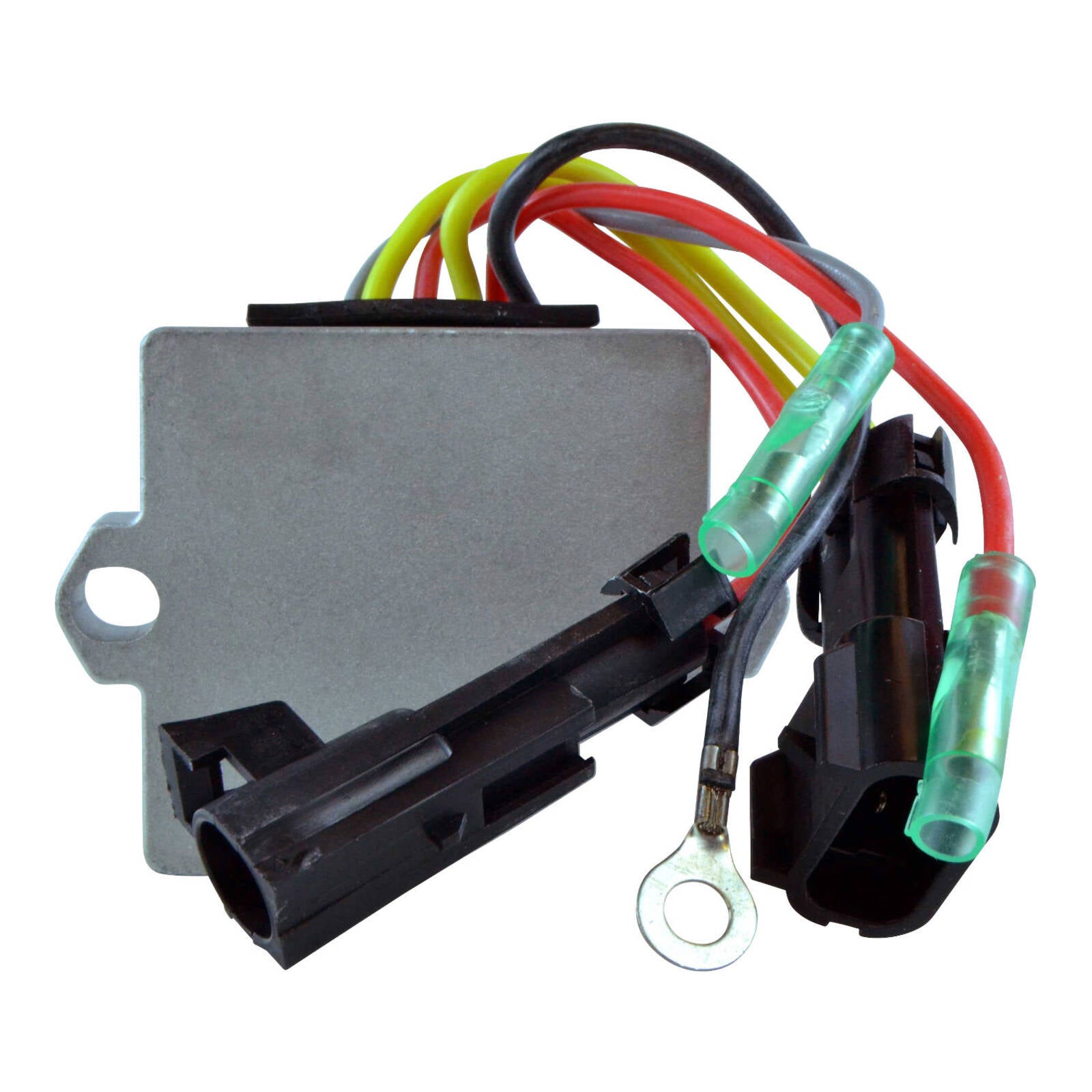

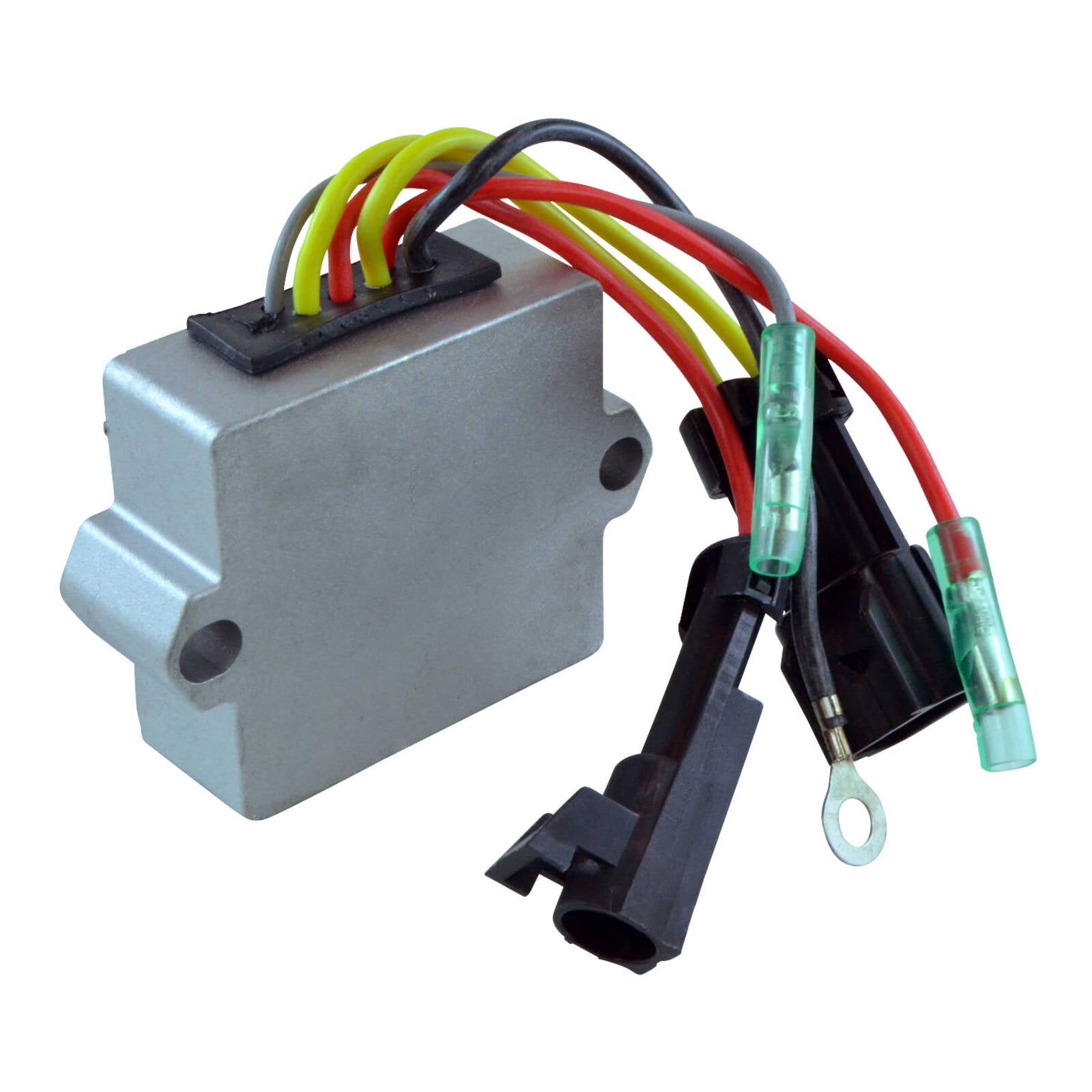

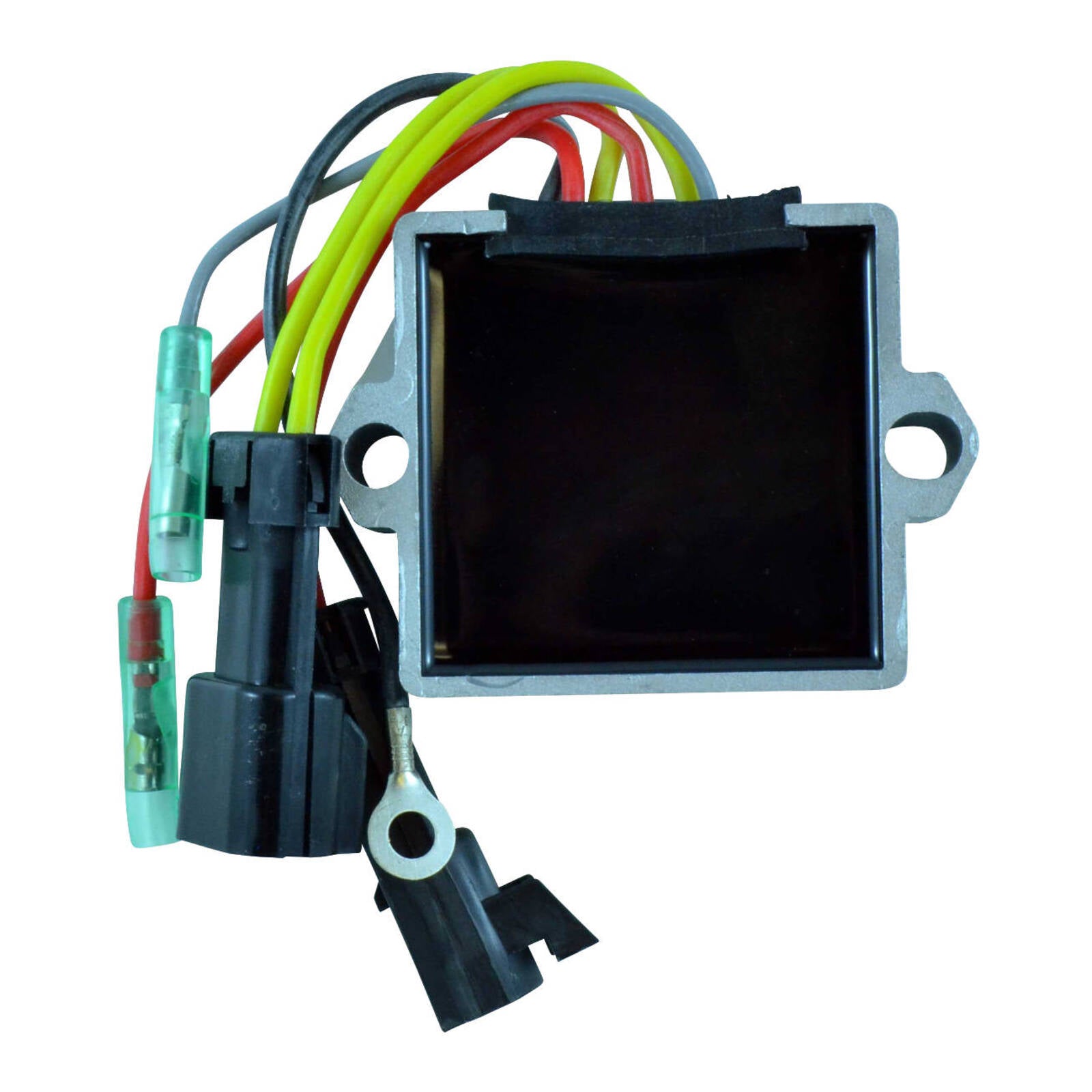

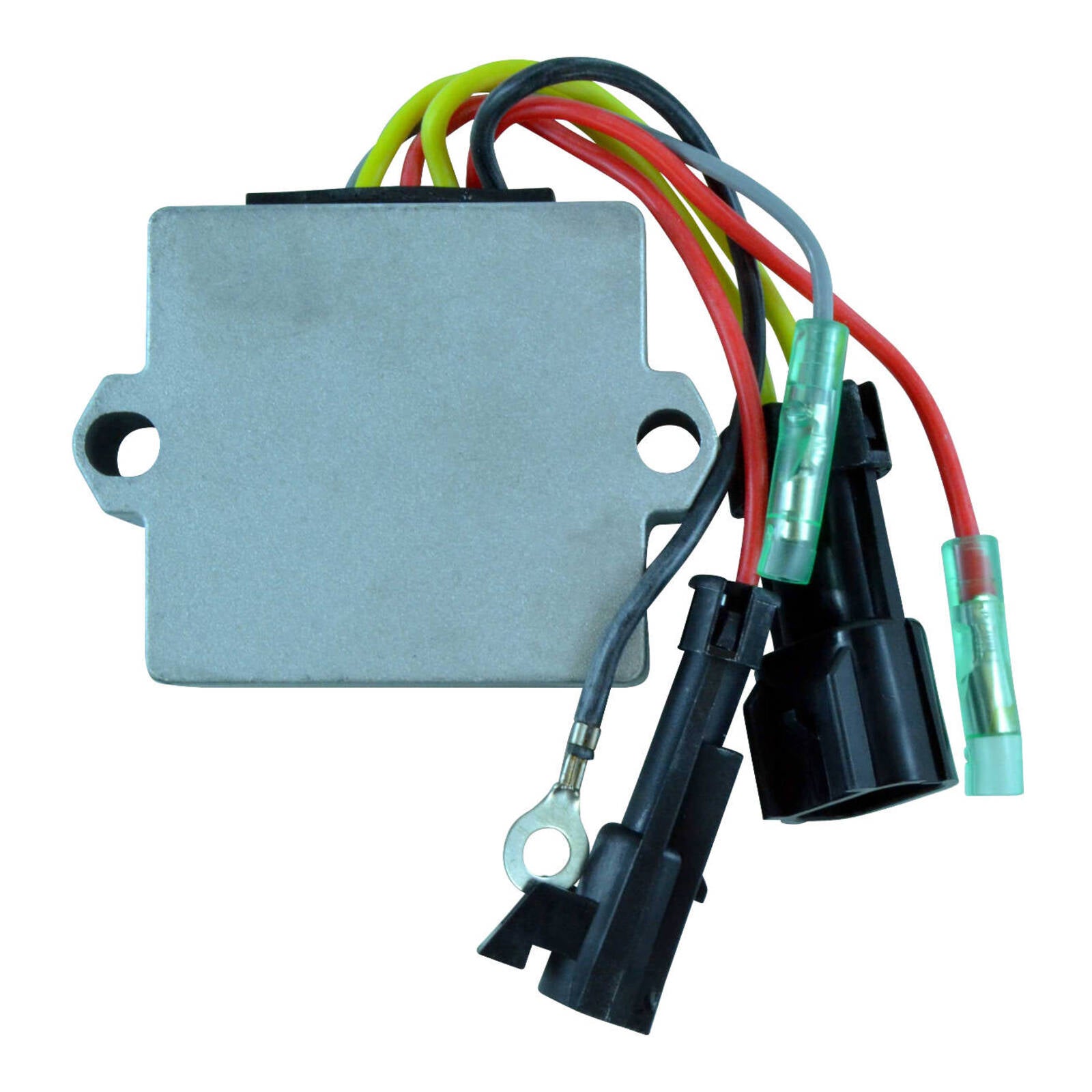

Plug-and-play, aftermarket replacement voltage regulator rectifier from RM Stator. Refer to fitment guide for models.

Dimensions:

• Width: 65mm
• Length: 65mm
• Height: 25mm
• Stator wires length: 140mm
• Battery wires length: 160mm

Other specifications:

• Number of wires: 6
• Number of plugs: 5
• Number of pins: 6
• Minimum Charging Voltage: 14.5V +- 0.5V
• Maximum Charging Current: 50A/500W
• Open Circuit Voltage: 15V
• Operation Temperature: -20° to 85°

Details:

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.
• The quality exceeds the OEM equipment
• All products shipped are tested

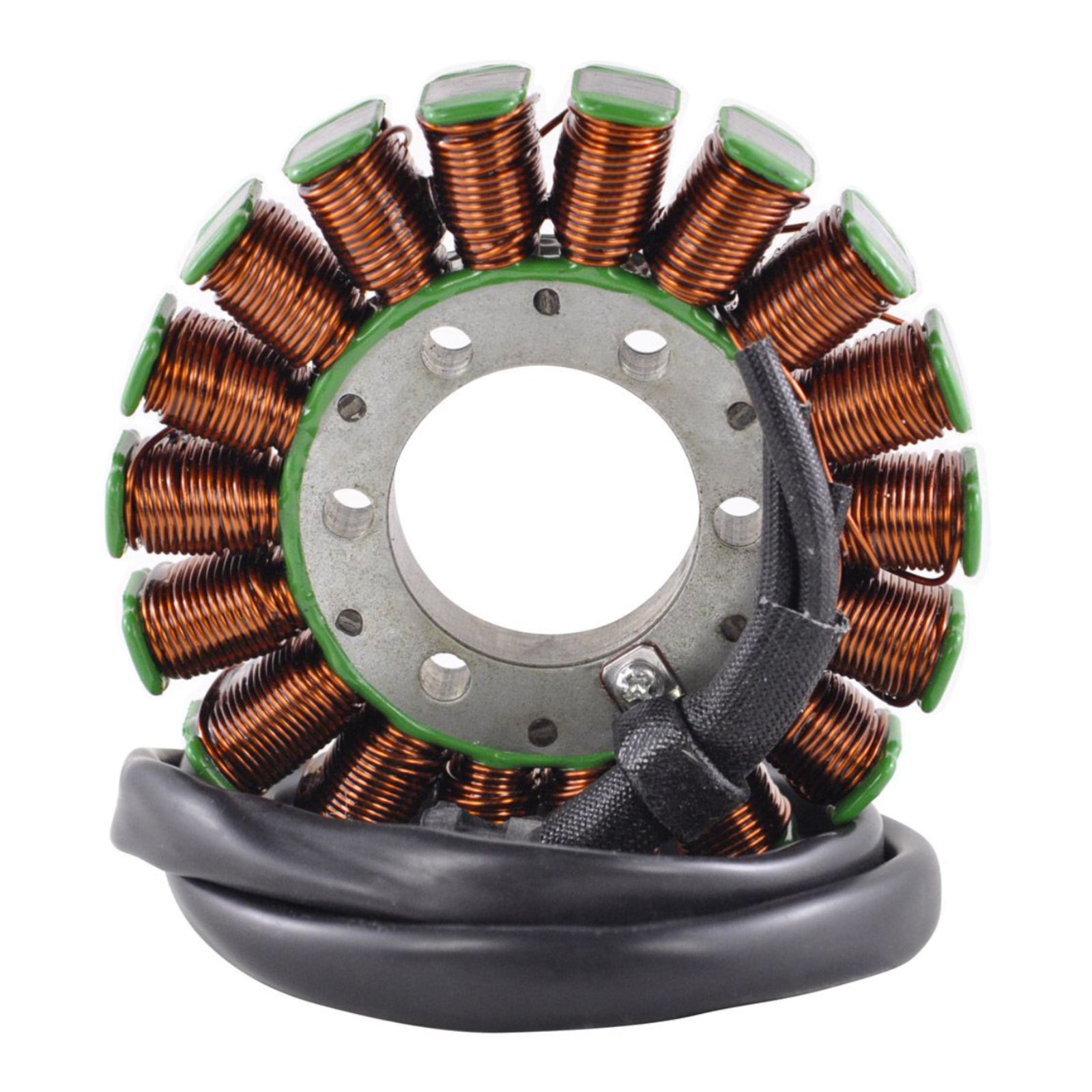

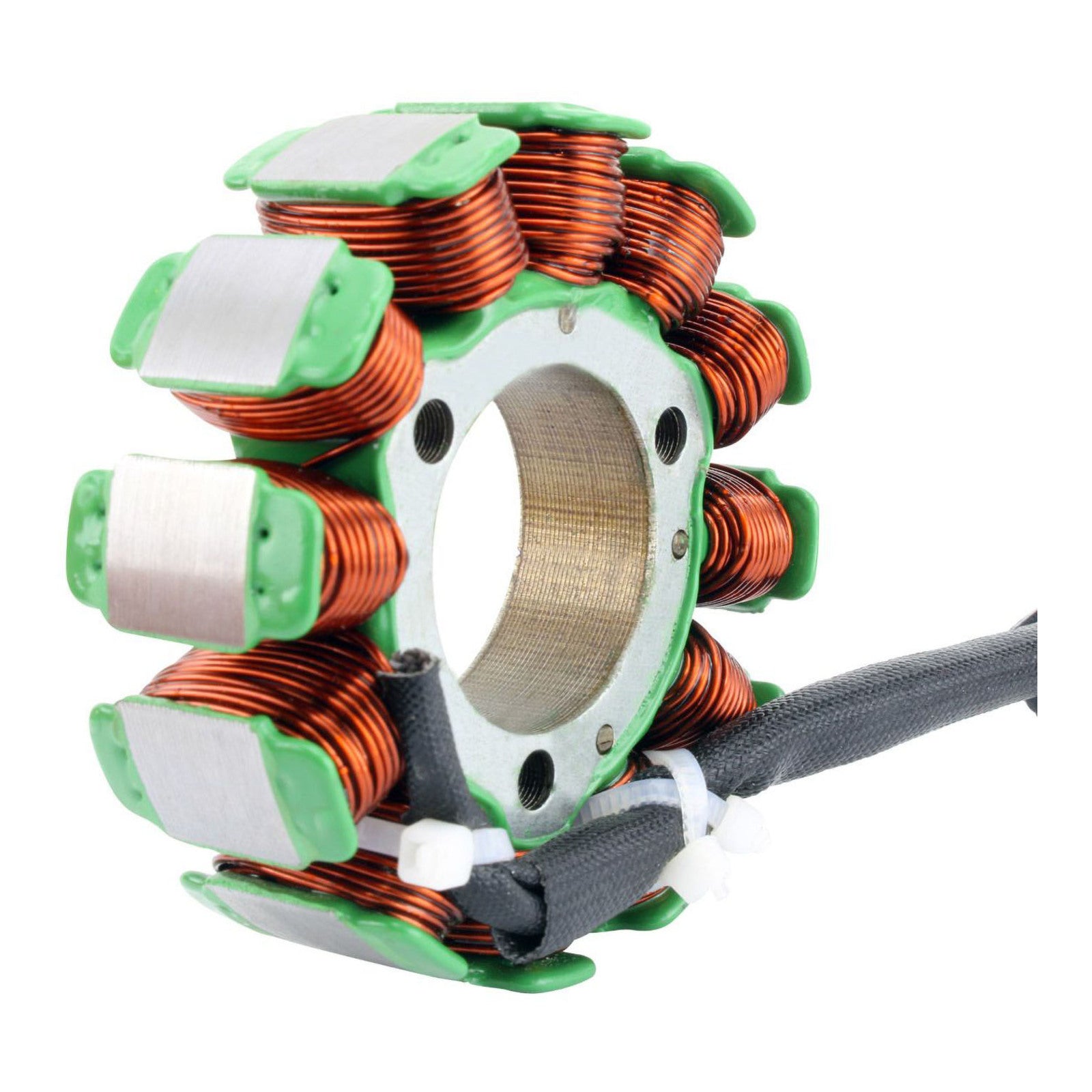

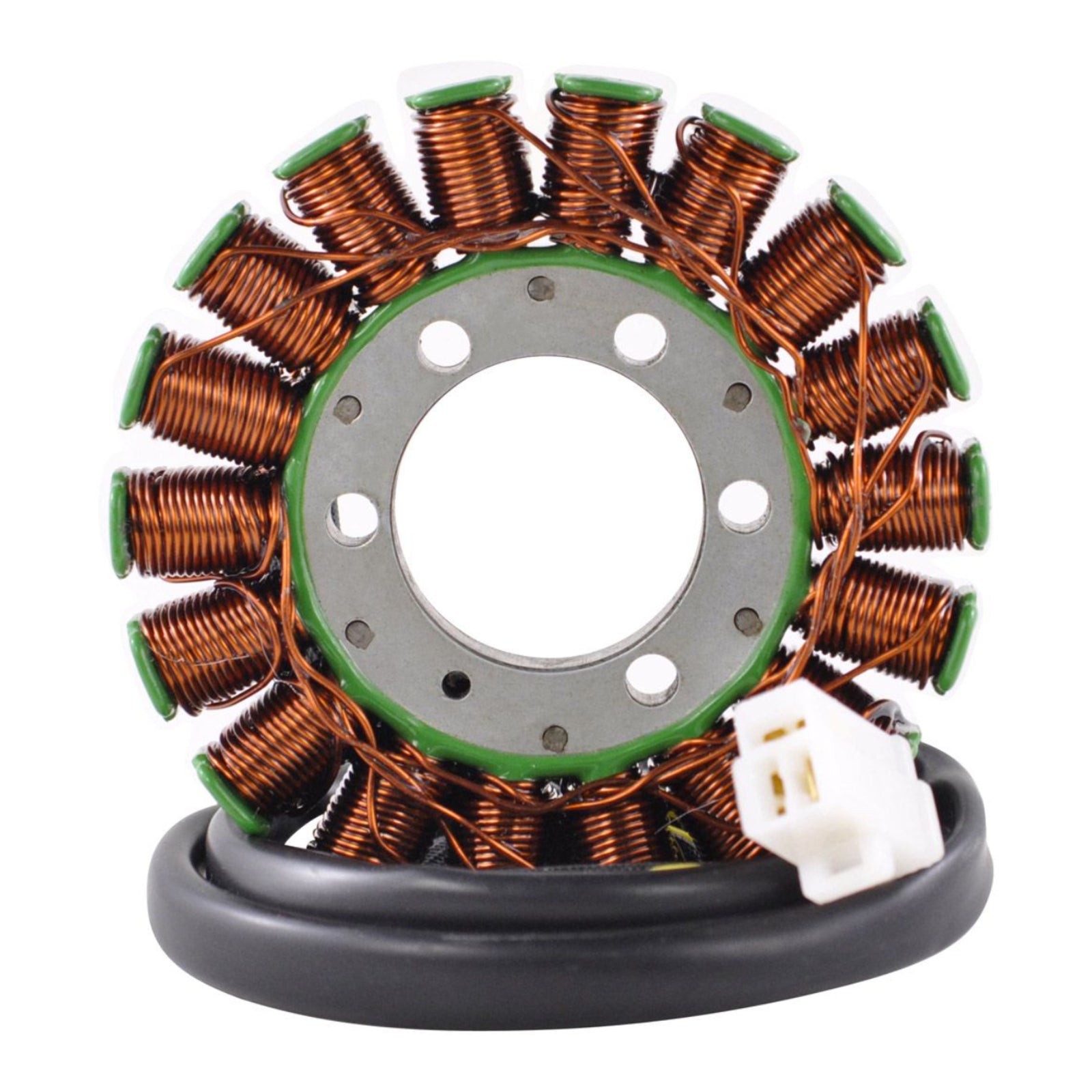

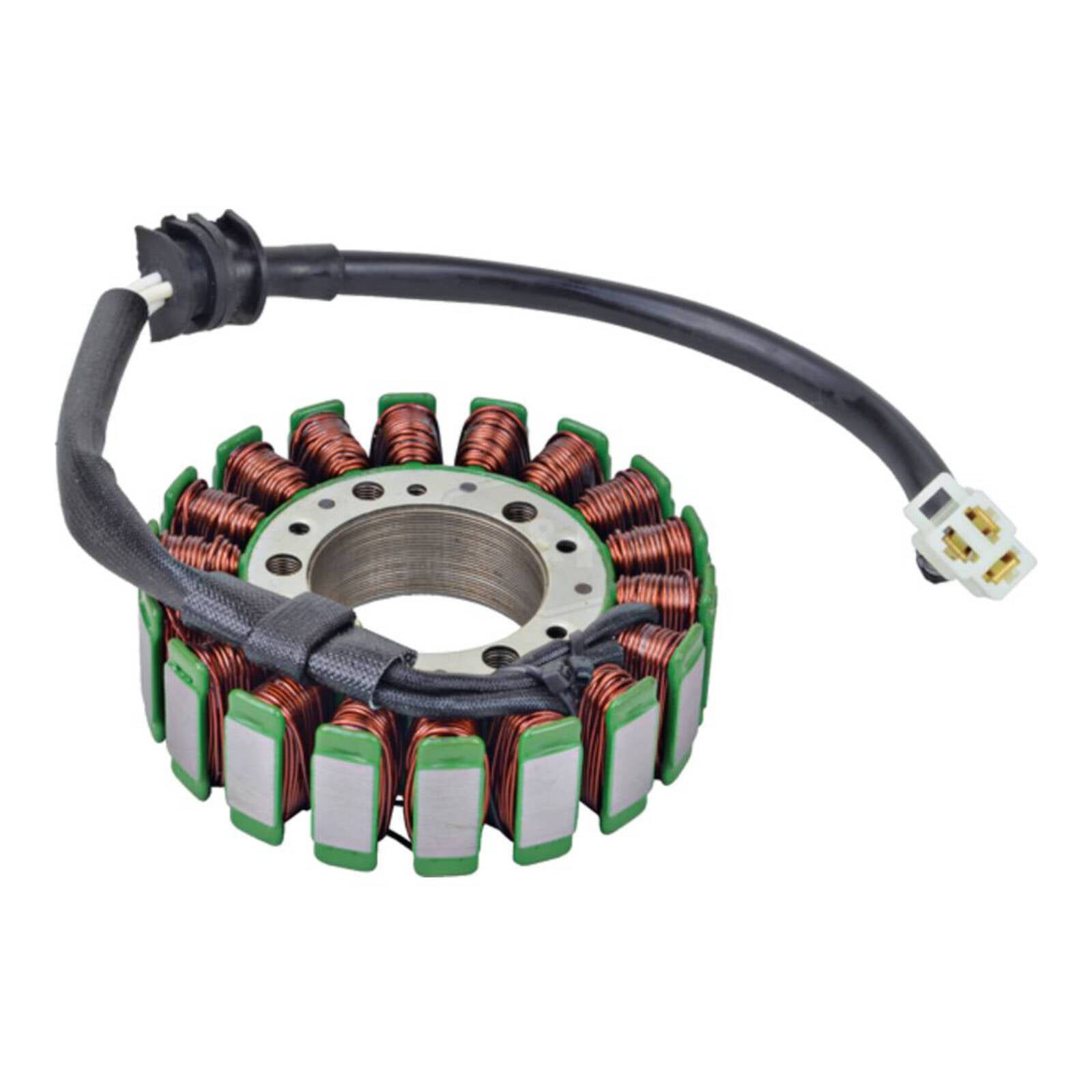

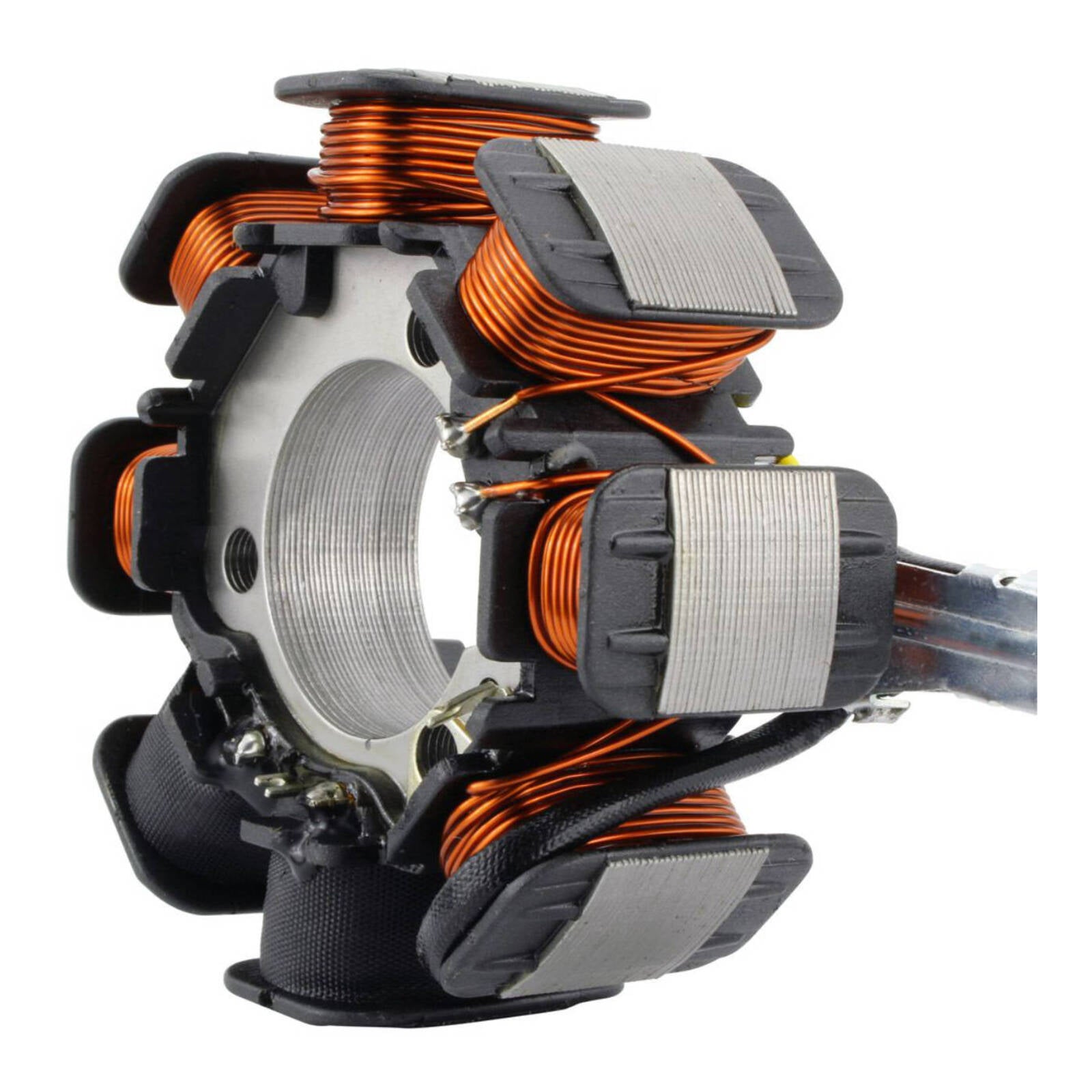

Brand new aftermarket generator stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions:

• Interior diameter: 38 mm
• Exterior diameter: 107 mm
• Thickness: 15 mm
• Length of wires stator to grommet: 180 mm
• Length of wires grommet to plug: 780 mm

Other specifications:

• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3

Wire to wire resistance:

• Alternator : Yellow to Yellow = 0.4 ohms +-20%

Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Replacement ignition key switch for your motorcycle/ATV. Direct replacement to the original unit this unit provides excellent plug-and-play, direct fit functionality providing simple, quick & easy installation. Two keys & all connectors are included.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Two keys included
• Connector included

Dimensions:

• Length : 45mm
• Diameter: 30mm
• Wire Length: 300mm

Other Specification:

• Number of wires: 4
• Number of plugs: 4
• Number of terminals: 4
• Number of keys: 2
• Number of positions: 2 (Off/On)

A faulty air temperature or pressure sensor can cause rough idling, reduced power, poor fuel economy, and increased emissions. Meanwhile, inaccurate readings can hide overheating issues, light a check engine light or even put your machine in limp mode, all putting your engine at risk of severe damage.

Replacing faulty sensor restores reliable performance monitoring, ensuring your machine runs safely and efficiently under all riding conditions.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Dimensions :

• Interior diameter: 32mm
• Exterior diameter: 76.6mm
• Thickness: 14mm
• Length of wires stator to grommet: 90mm
• Length of wires grommet to plug: 380mm
• Length of pickup coil's wire to grommet: 30mm

Other specifications :

• Number of wires: 4
• Number of plugs: 1
• Number of pins: 4
• Number of poles: 12

Wire to wire resistance :

• Alternator: Yellow to Yellow = 1.8 ohms +-20%
• Pickup : = Red to Green = 100 ohms +-20%

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Whites lighting range is a collection of high-quality indicators (flashers), tail lamps, headlights and more. Available as direct OEM replacements and universal fitments for those one-off custom rides. Offered in a range of shapes, sizes, styles and mounting options Whites are here for your motorcycle lighting solutions.

Broken your old tail light assembly in a crash, or has it slowly deteriorated over time? Either way, Whites will get you back on the bike with this complete OEM replacement tail light assembly. Made with a high-quality acrylic lens and Polyethylene casing the Whites Tail Light Assembly will out perform and out live your OEM assembly.

OEM replacement
Affordable price
Constructed from durable acrylic
Shatterproof
Resistant to UV damage

Casing Colour: Black
Lens Colour: Red

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

DENALI Motorcycle Specific Fairing / Fender Mounts

Available for most ADV, Cruisers and Sport Touring Models Laser cut and powder coated steel brackets either position the lights in the optimum location just below to the outside of the headlight, or create a two-point fender mount strong enough to mount our largest lights to your fender.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Replacement indicators in a bespoke design.

Key Features
• Universal fit, easy to install
• 3 LEDs
• E-marked
• 2 x resistors included
• Specification: Voltage 12V Power 2.4W
• M8 bolt: thread pitch 1.25
• 13mm? x 58m (L)

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

Polaris ATVs/UTVs are hugely popular vehicles. Unfortunately the voltage regulators on these vehicles are known for very poor reliability.

RM Stator's experience has shown that the amount of electrical customization, the vehicle environment and the driving style have a huge impact on the voltage regulator's ability to operate reliably.

With this in mind, they have designed a new voltage regulator with 65Amps-rated components to support more aggressive level of stress the owner puts on the vehicle's electrical system, either by adding accessories or by driving the vehicle to the edge of failure

Dimensions:

• Width: 110 mm
• Length: 121 mm
• Height: 41 mm
• Fixation holes center to center: 82 mm

Other specifications:

• Number of pins: 5
• Number of plugs: 2
• Minimum Charging Voltage: 14.5 V +/- 0.5 V
• Maximum Charging Current: 65A / 660W
• Open Circuit Voltage: < 15 V
• Operation Temperature: - 20° C to 85°C

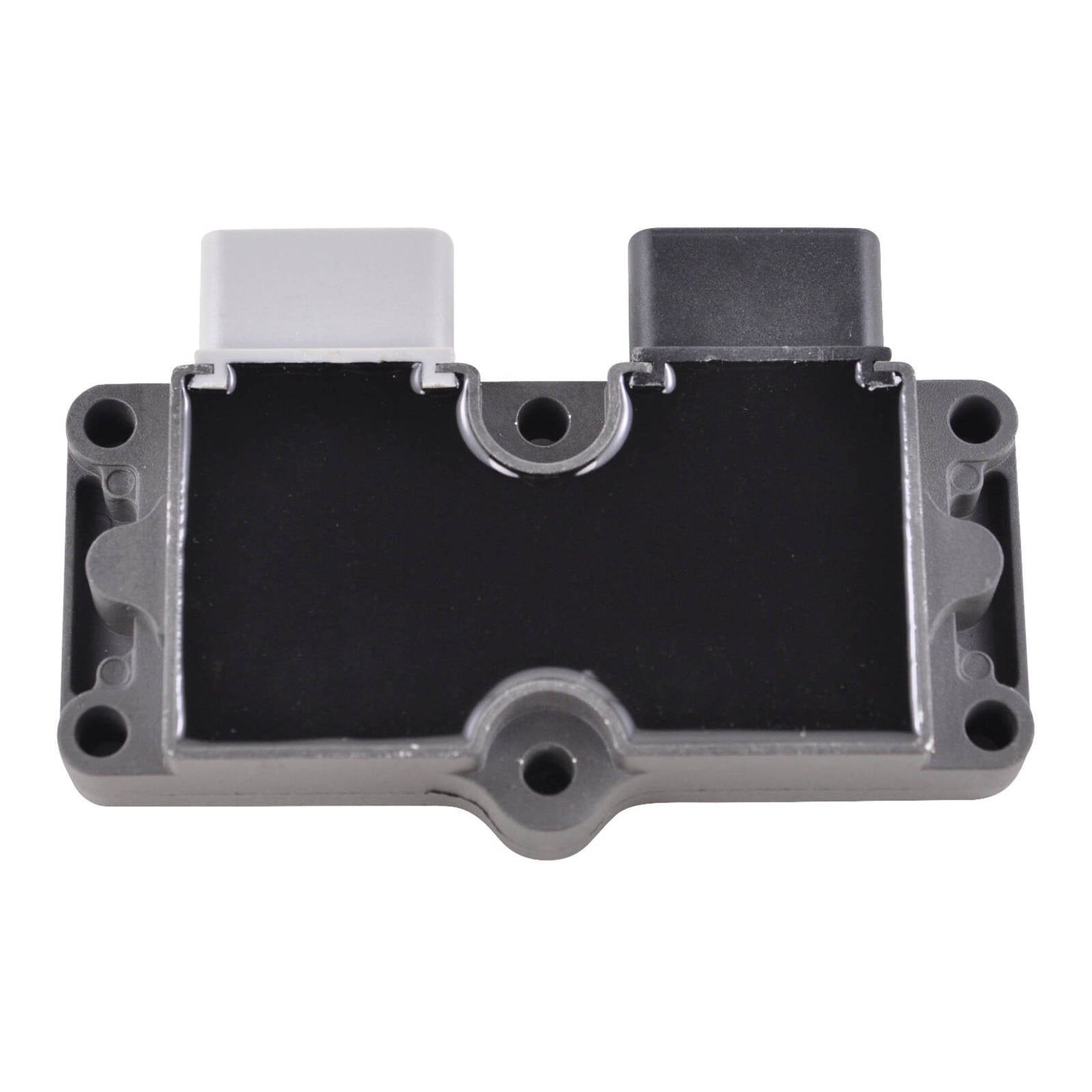

Brand new aftermarket voltage regulator rectifier

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.
• The quality exceeds the OEM equipment
• All products shipped are tested

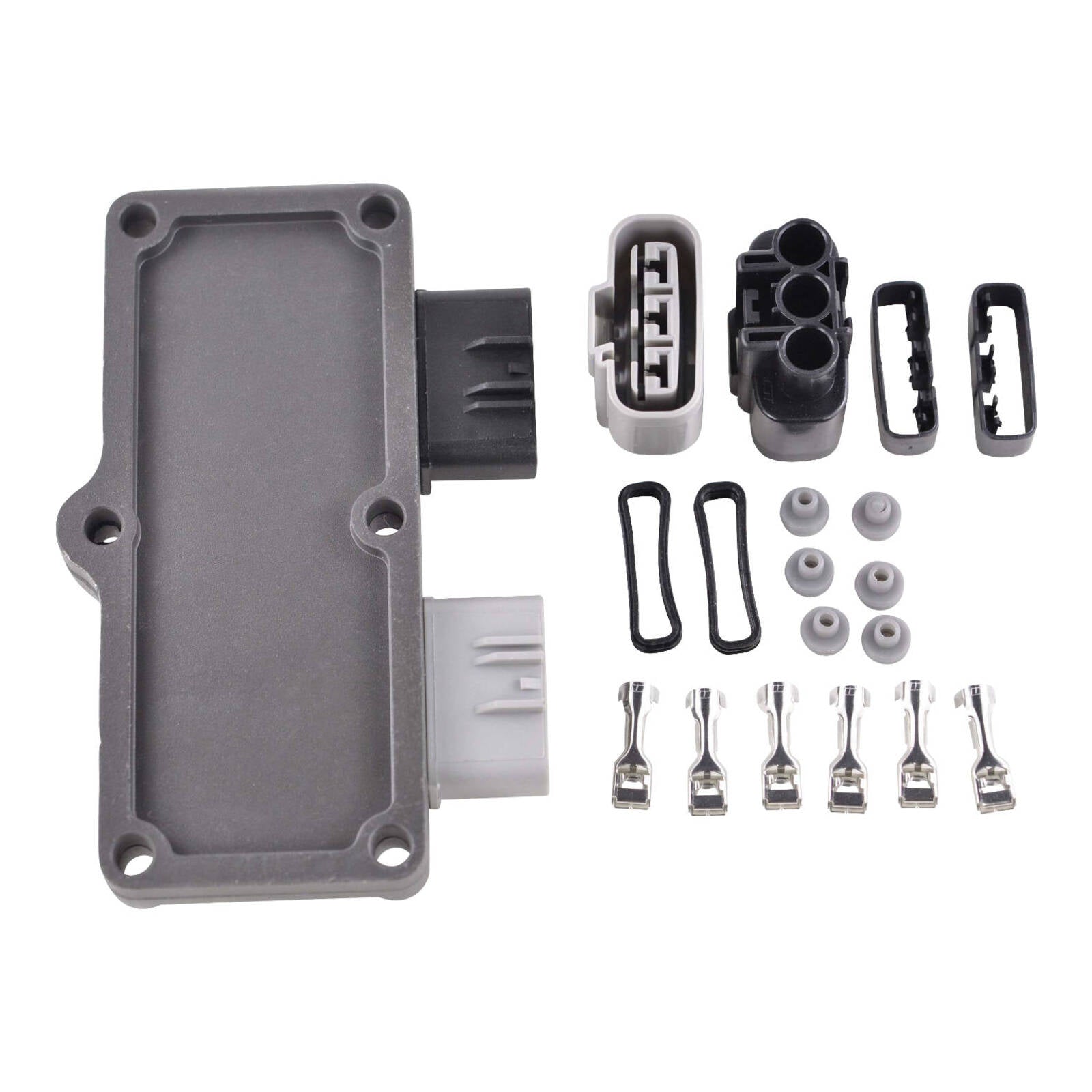

We have even included the opposite connector (main harness side) as we know these are often melted corroded defective and a major cause for repetitive electrical issues.

All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Specifications:

Dimensions:

• Width: 58 mm
• Length: 136 mm
• Height: 25 mm
• Fixation holes center to center: 46 mm, 62 mm, 125 mm

Other specifications:

• Number of plugs: 2
• Number of pins: 6

Note: Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
