Flywheels

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

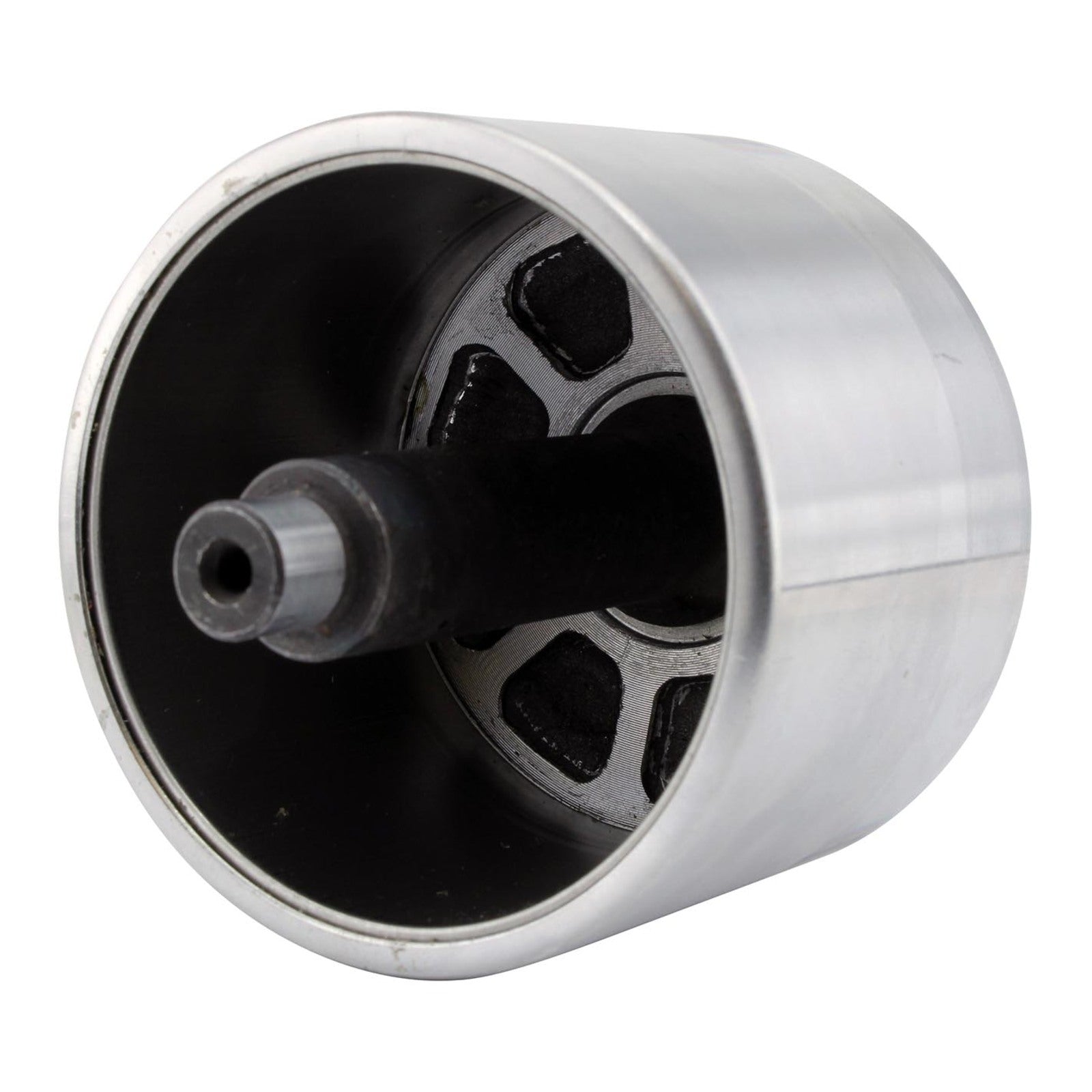

A Heavy Duty Flywheel to the rescue!

New RMSTATOR heavy-duty flywheel rotor for Yamaha Motorcycles is a well-priced solution to problems with the OEM flywheel, and an excellent alternative to all the mechanical troubles you can encounter with a repair.

• Built to OEM size: Fits precisely in your ride: install it and forget it.
• Improved epoxy: Uses high-temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment.
• High-grade steel capping: Prevents heat and friction from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.
• Precise balancing: Eliminates crankshaft vibrations for longer engine longevity.
• Shop with confidence: Two years warranty. All products are tested.

Don't waste time with temporary solutions, and start fixing your ride like a pro!

Flywheel Dimensions:

• Exterior Diameter: 80 mm
• Interior Diameter: 69 mm
• Interior Diameter Center Housing: 12 mm
• Exterior Diameter Center Housing: 18 mm
• Thickness (exterior): 11 mm
• Thickness (interior): 6 mm

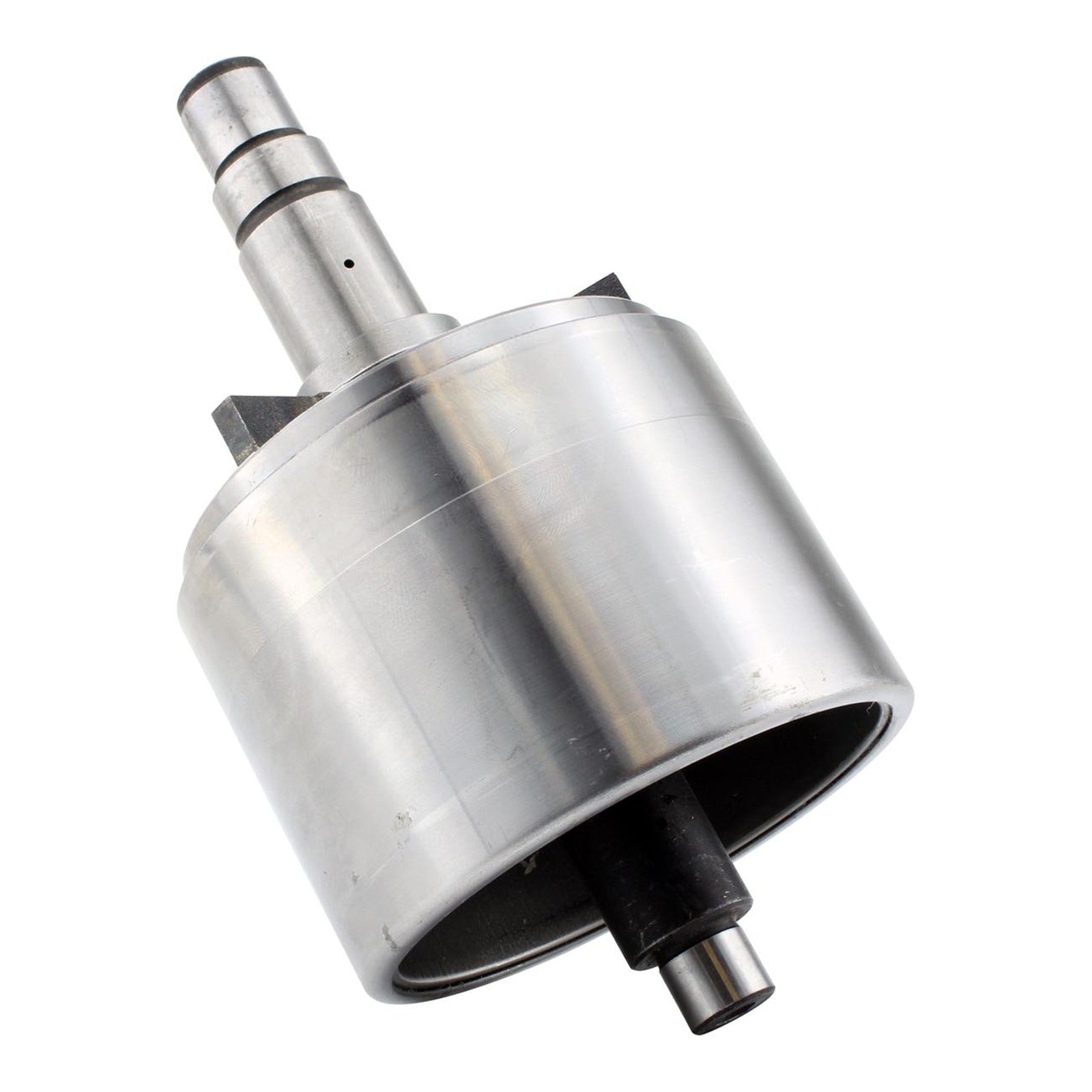

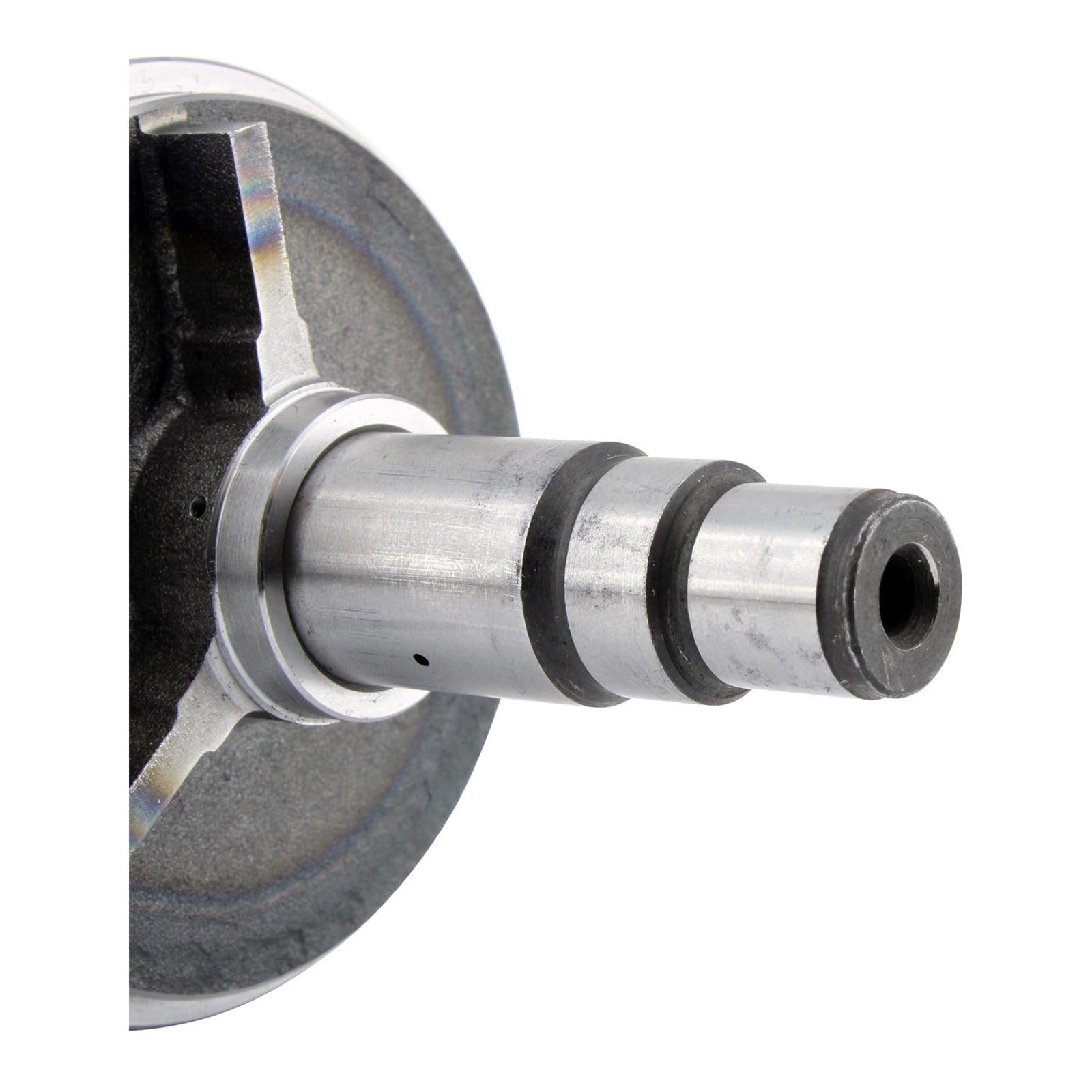

The diameter of the Shaft largest to the narrowest:

• 26 mm
• 20 mm
• 18 mm
• 15 mm

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

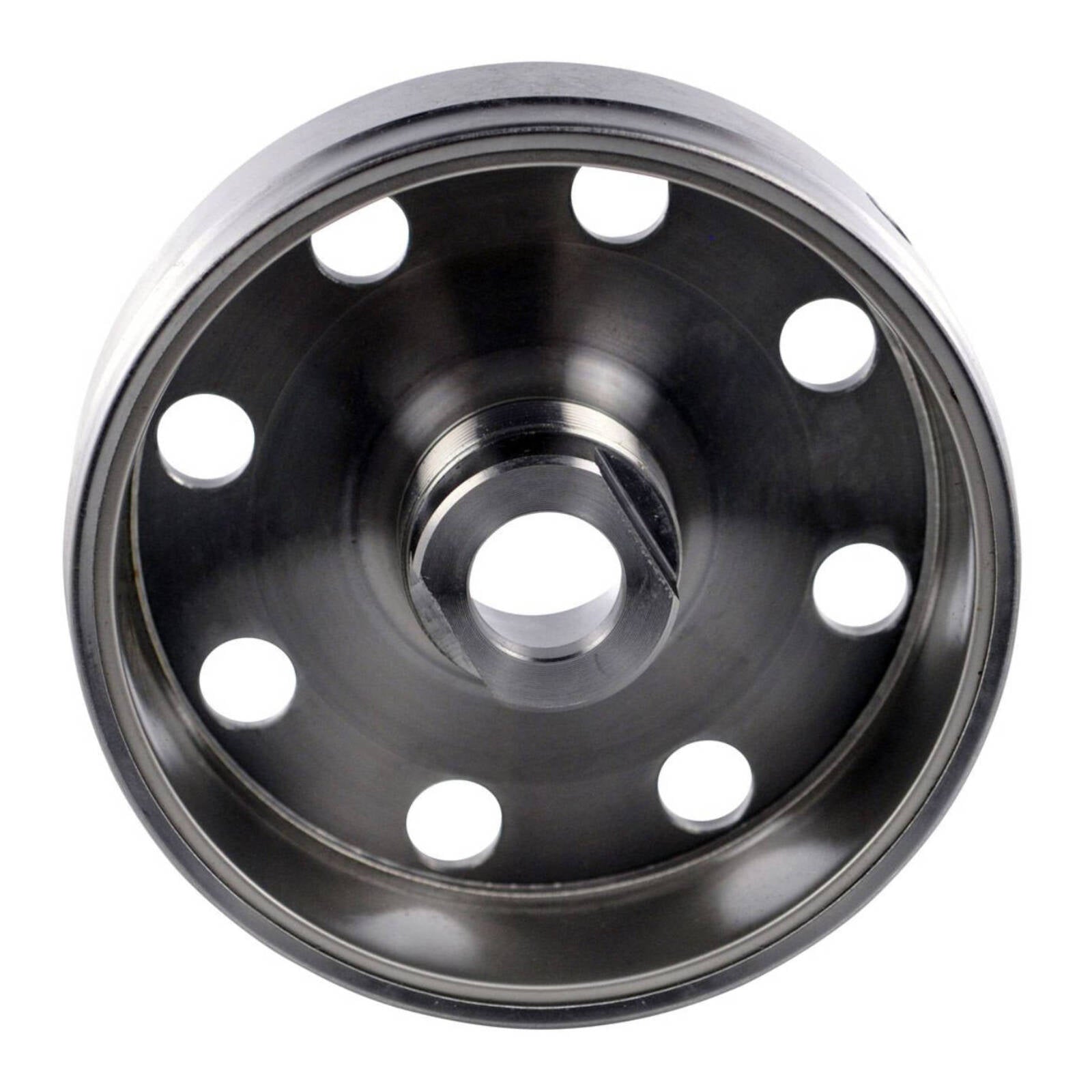

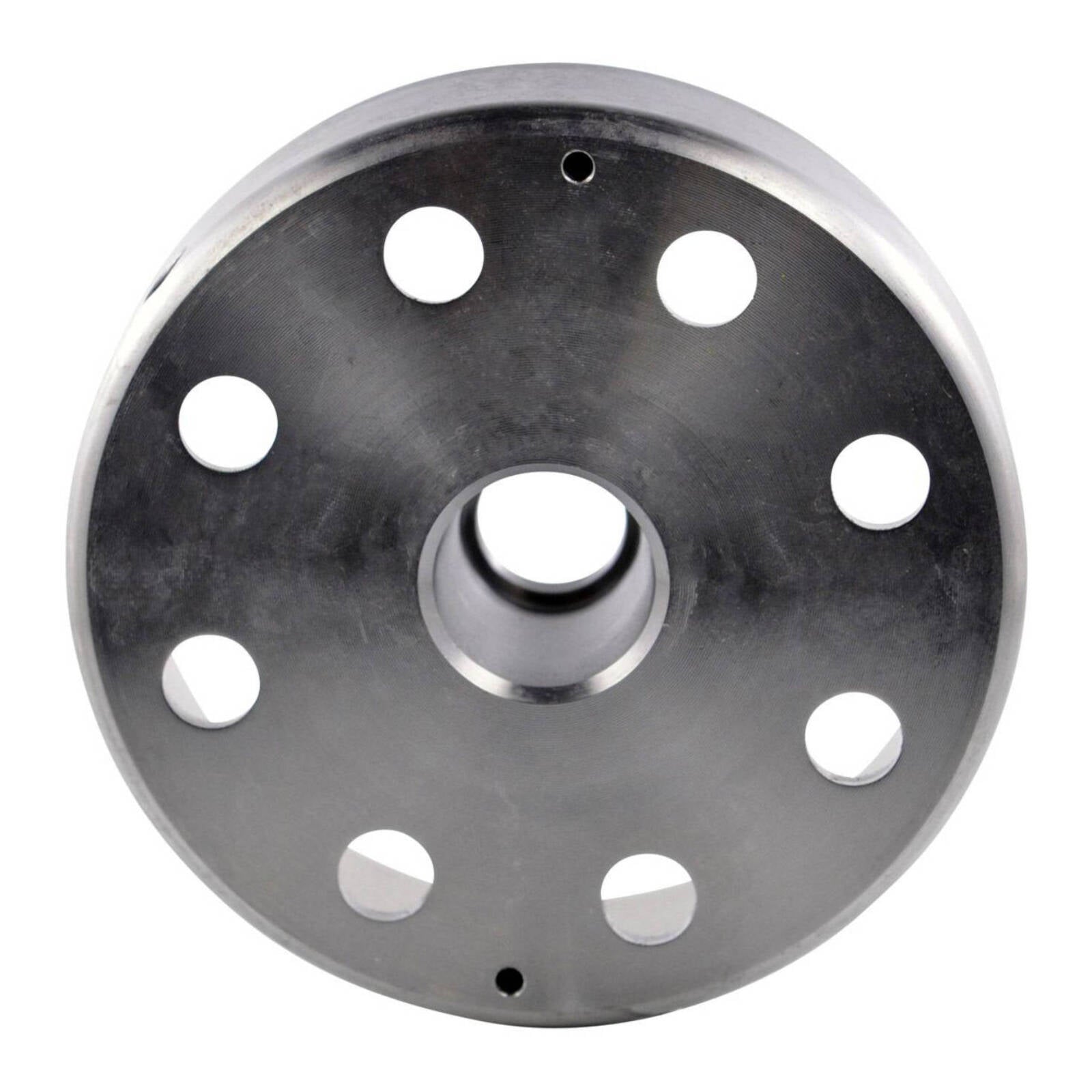

Introducing our newest heavy-duty recall-type charging system upgrade kit for Aprilia 2009-2020 RSV4 & 2011-2020 Tuono V4.

Anyone who rides or repairs Aprilia’s motorcycles is probably familiar with the stator, flywheel, and sometimes voltage regulator issues common to these models. Most of these bikes will have had at least one stator fail in their lifetime so far. The main problem was extremely strong magnets were used on the original flywheels, creating a very high power stator output, which generated excessive heat. This usually resulted in burned-up, or shorted stator winding, and often in a failed voltage regulator.

The solution was a new flywheel from Kokusan with lower-strength magnets, dropping the stator output and heat generation. This results in a charging system output perfectly matched for the bike’s electronic needs and the long-term reliability of the stator and voltage regulator.

To prevent or correct the flywheel problems, our engineers at RMS Labs have come up with a completely reliable heavy-duty charging system replacement kit for your Aprilia. Upgrade today if you haven’t already!

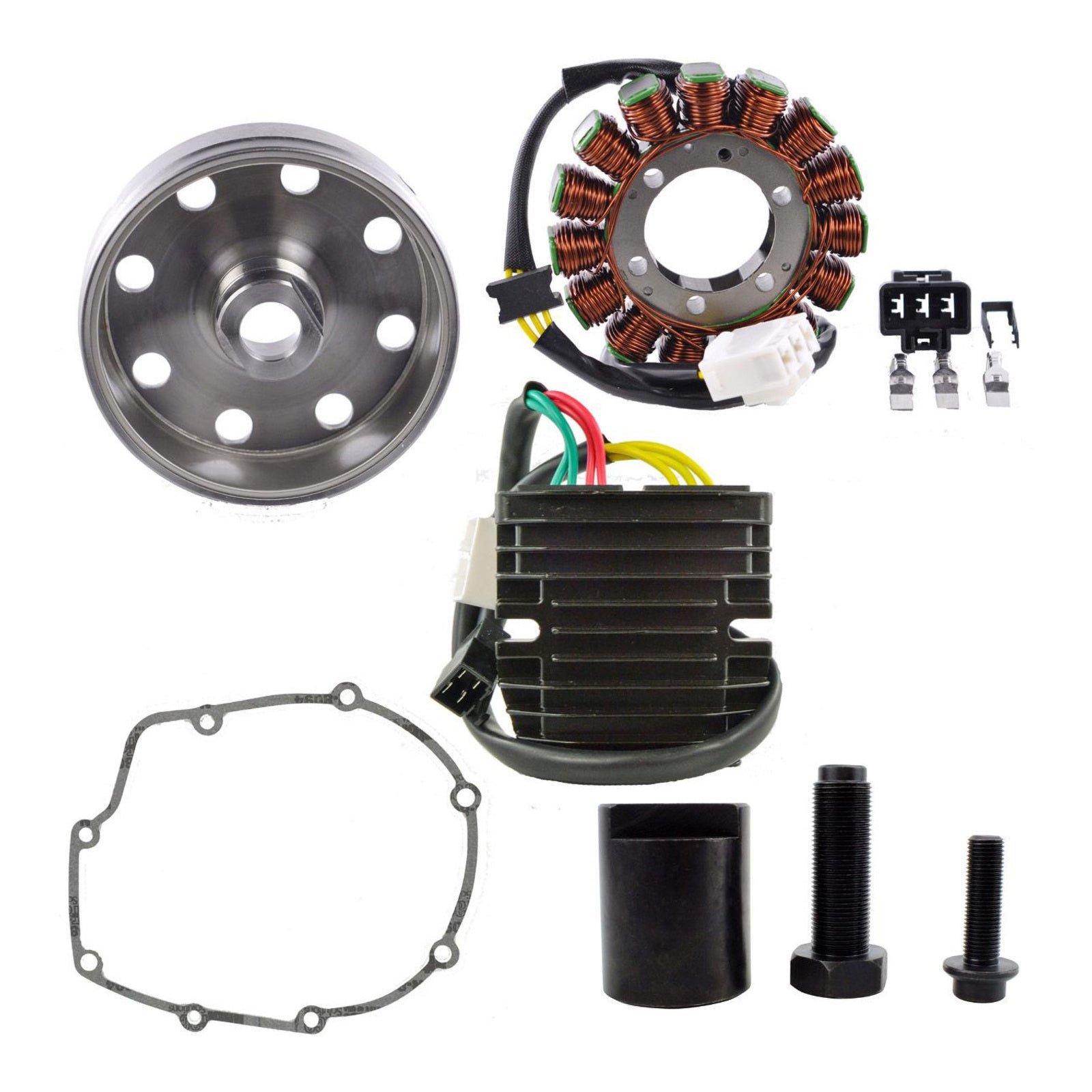

Included in this kit

• Heavy-duty Kokusan brand recall-type OEM flywheel
• Triple-tested heavy-duty stator
• Stator crankcase cover gasket
• Flywheel puller

With this kit, you will be able to upgrade your current failure-prone charging system with a heavy-duty version using the latest technologies

Features:

• Kokusan upgrade/recall type flywheel: Lower-strength magnets for correct stator output, low heat generation, and long-term reliability.
• Built to OEM size: Fits precisely in your ride: install it and forget it.
• Improved epoxy: Uses high-temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment
• High-grade steel capping: Prevents harsh additives in motor oil from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.
• Precise balancing: Eliminates crankshaft vibrations for longer engine longevity.
• Shop with confidence:
All products are tested. Don't waste time with temporary solutions, and start fixing your ride like a pro!

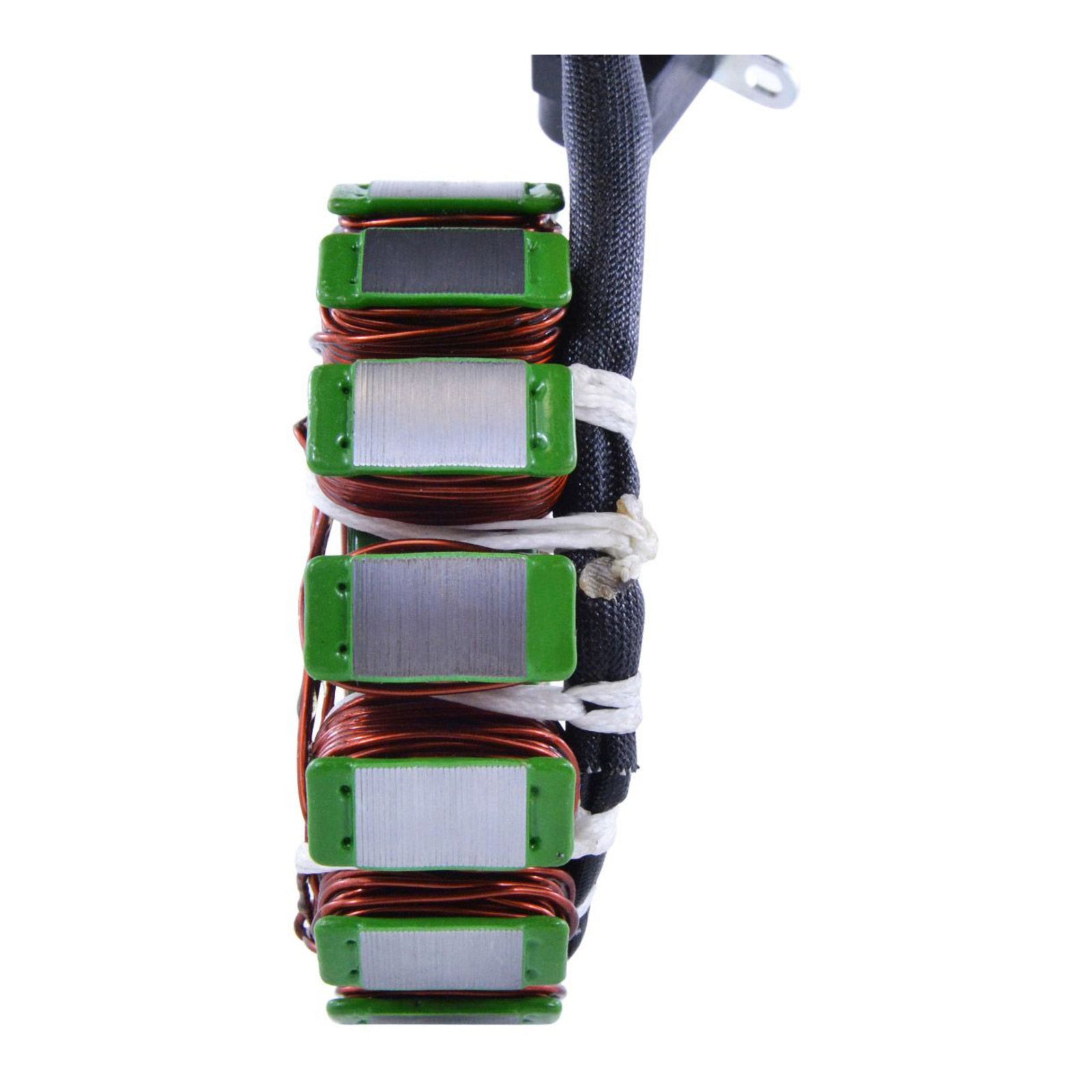

Specifications:

• Stator Dimensions:
• Interior diameter: 43 mm
• Exterior diameter: 105 mm
• Thickness: 13.8 mm

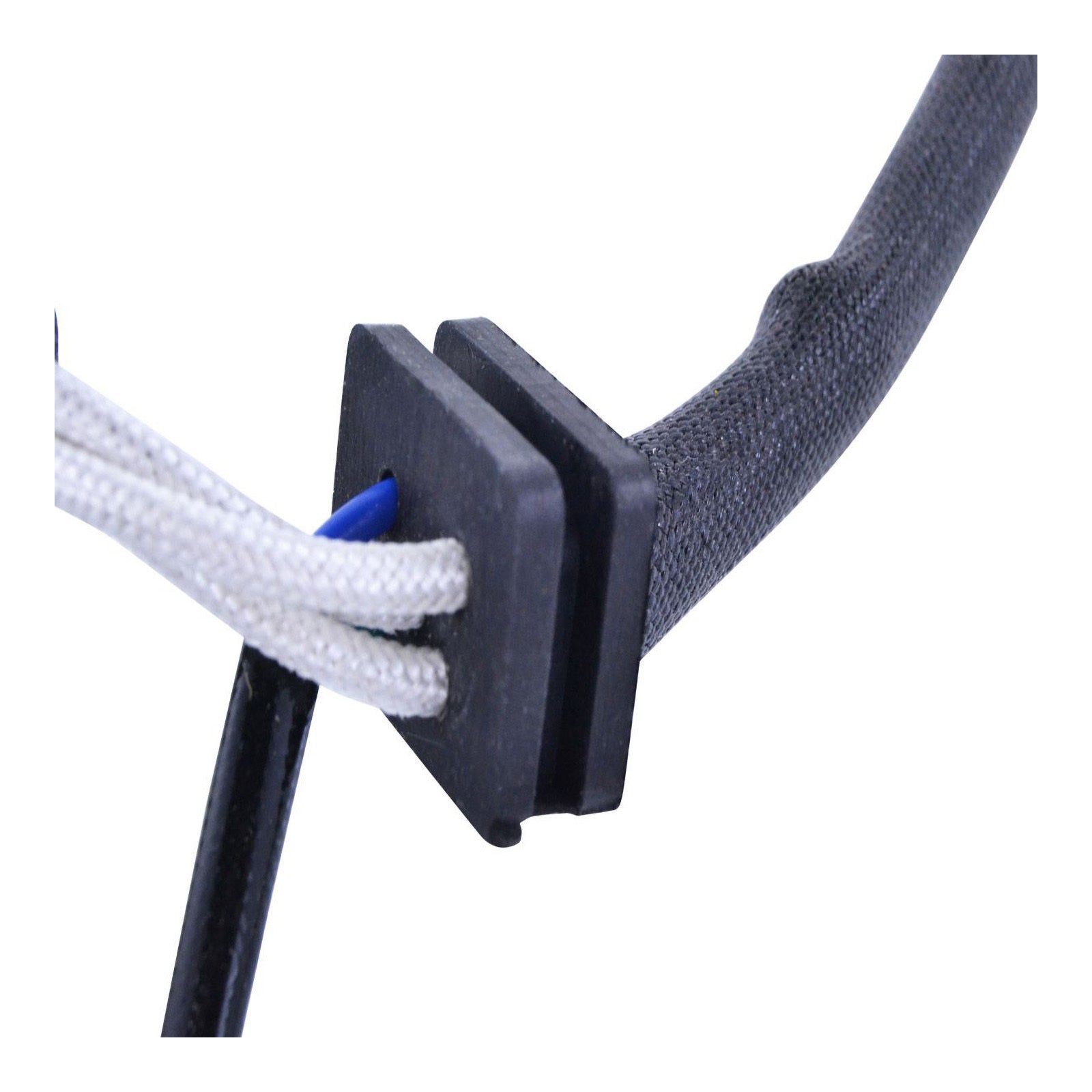

• Length of wires stator to grommet: 125 mm
• Length of wires grommet to plug: 320 mm
• Other specifications:
• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3
• Alternator: Between each Yellow = 0.3 ohms +-20%
• Flywheel Dimensions:
• Exterior Diameter: 121 mm
• Interior Diameter: 107 mm
• Interior Diameter Center Housing: 19 mm
• Exterior Diameter Center Housing: 34 mm
• Thickness (exterior): 35.3 mm
• Thickness (interior): 31.65 mm
• Flywheel Puller:
• 36 mm x 1.5 right-hand male
• Length: 60 mm
• Exterior Diameter: 48 mm
• Interior Diameter: 35 mm
• Exterior Diameter Center Housing: 37 mm

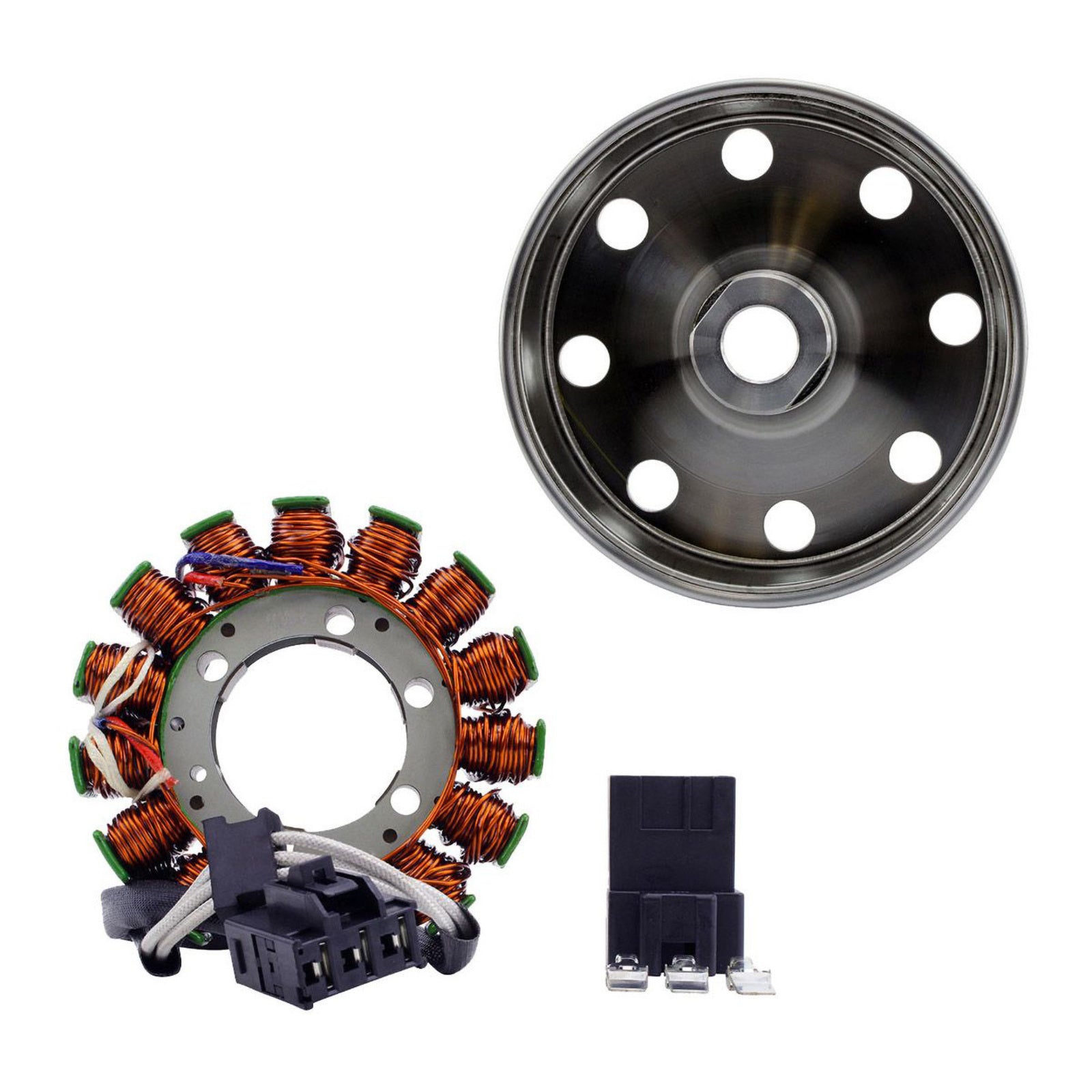

Please note: There are two possible kits for the RSV4 engine. This kit ONLY fits RSV4 engine numbers HIGHER than 3413 with KOKUSAN flywheels. Please compare our flywheel to your original.

If your RSV4 engine number is LOWER than 3413, your motor uses the Mitsubishi flywheel and will need Stator Assembly 857201. Refer to kit RMS900104929.

Introducing our newest heavy-duty recall-type charging system upgrade kit for Aprilia 2009-2020 RSV4 & 2011-2020 Tuono V4.

Anyone who rides or repairs Aprilia’s motorcycles is probably familiar with the stator, flywheel, and sometimes voltage regulator issues common to these models. Most of these bikes will have had at least one stator fail in their lifetime so far. The main problem was extremely strong magnets were used on the original flywheels, creating a very high power stator output, which generated excessive heat. This usually resulted in burned-up, or shorted stator winding, and often in a failed voltage regulator.

The solution was a new flywheel from Kokusan with lower-strength magnets, dropping the stator output and heat generation. This results in a charging system output perfectly matched for the bike’s electronic needs and the long-term reliability of the stator and voltage regulator.

To prevent or correct the flywheel problems, our engineers at RMS Labs have come up with a completely reliable heavy-duty charging system replacement kit for your Aprilia. Upgrade today if you haven’t already!

Included in this kit

• Heavy-duty Kokusan brand recall-type OEM flywheel
• Triple-tested heavy-duty stator
• Flywheel puller

With this kit, you will be able to upgrade your current failure-prone charging system with a heavy-duty version using the latest technologies

Features:

• Kokusan upgrade/recall type flywheel: Lower-strength magnets for correct stator output, low heat generation, and long-term reliability.
• Built to OEM size: Fits precisely in your ride: install it and forget it.
• Improved epoxy: Uses high-temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment
• High-grade steel capping: Prevents harsh additives in motor oil from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.
• Precise balancing: Eliminates crankshaft vibrations for longer engine longevity.
• Shop with confidence:
All products are tested. Don't waste time with temporary solutions, and start fixing your ride like a pro!

Specifications:

• Stator Dimensions:
• Interior diameter: 43 mm
• Exterior diameter: 105 mm
• Thickness: 13.8 mm
• Length of wires stator to grommet: 125 mm
• Length of wires grommet to plug: 320 mm
• Other specifications:
• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3
• Alternator: Between each Yellow = 0.3 ohms +-20%
• Flywheel Dimensions:
• Exterior Diameter: 121 mm
• Interior Diameter: 107 mm
• Interior Diameter Center Housing: 19 mm
• Exterior Diameter Center Housing: 33 mm
• Thickness (exterior): 35.3 mm
• Thickness (interior): 30.65 mm
• Flywheel Puller:
• 36 mm x 1.5 right-hand male
• Length: 60 mm
• Exterior Diameter: 48 mm
• Interior Diameter: 35 mm
• Exterior Diameter Center Housing: 37 mm

Please note: There are two possible kits for the RSV4 engine. This kit ONLY fits RSV4 engine numbers HIGHER than 3413 with KOKUSAN flywheels. Please compare our flywheel to your original.

If your RSV4 engine number is LOWER than 3413, your motor uses the Mitsubishi flywheel and will need Stator Assembly 857201. Refer to kit RMS900-104929.

All products shipped are tested.

Dimensions:

• Exterior Diameter: 115 mm
• Interior Diameter: 108 mm
• Interior Diameter Center Housing: 16 mm
• Exterior Diameter Center Housing: 24 mm
• Thickness (exterior): 30 mm
• Thickness (interior): 33 mm

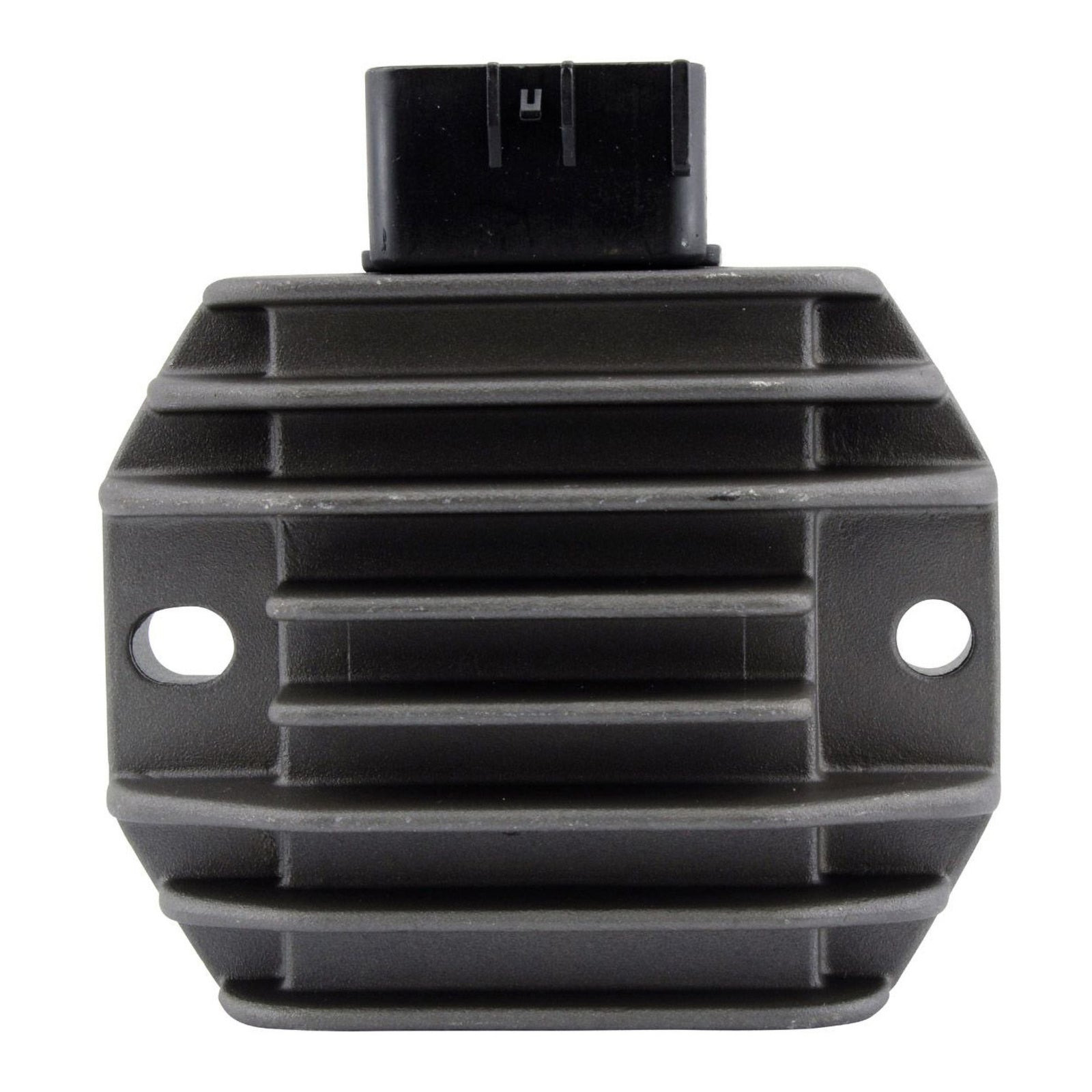

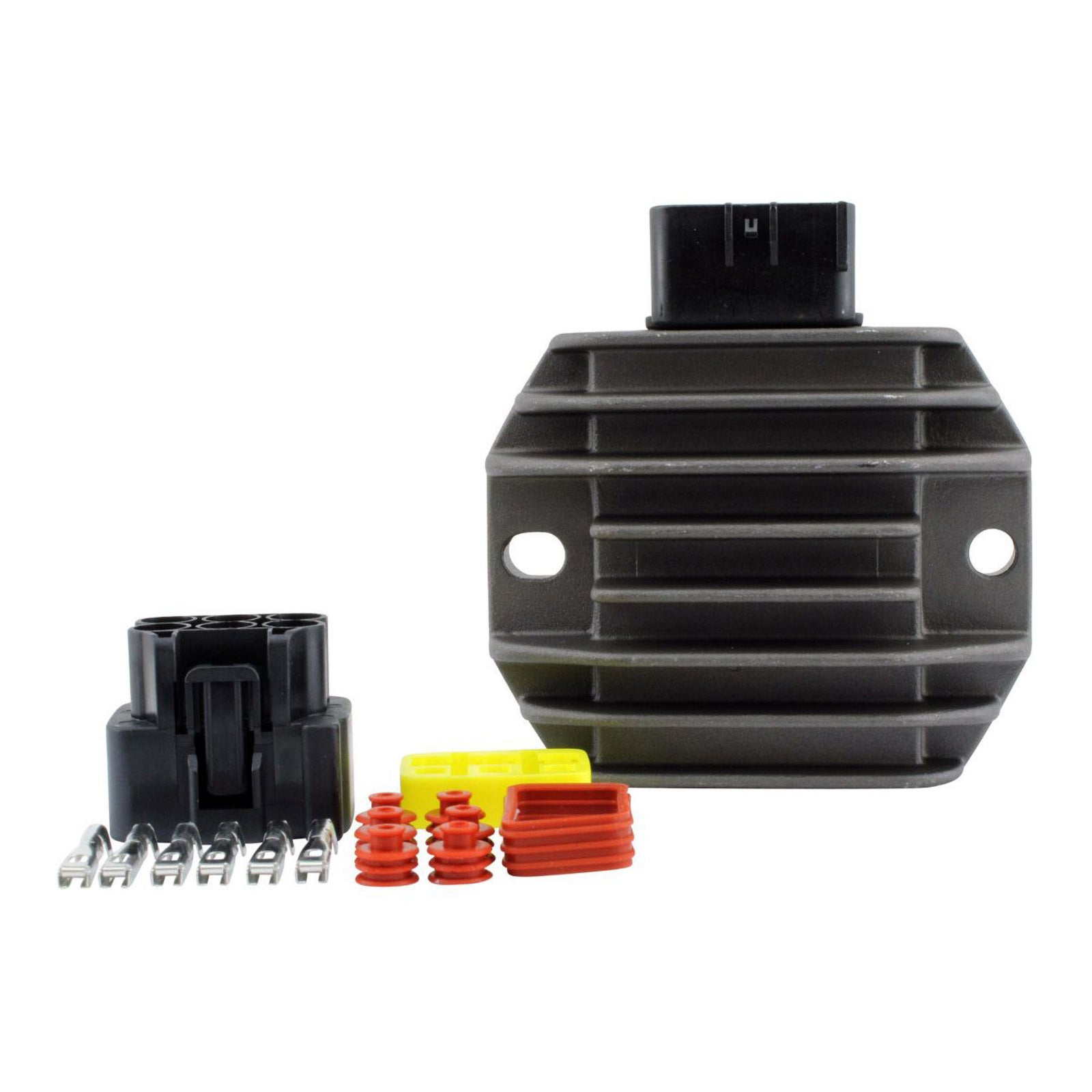

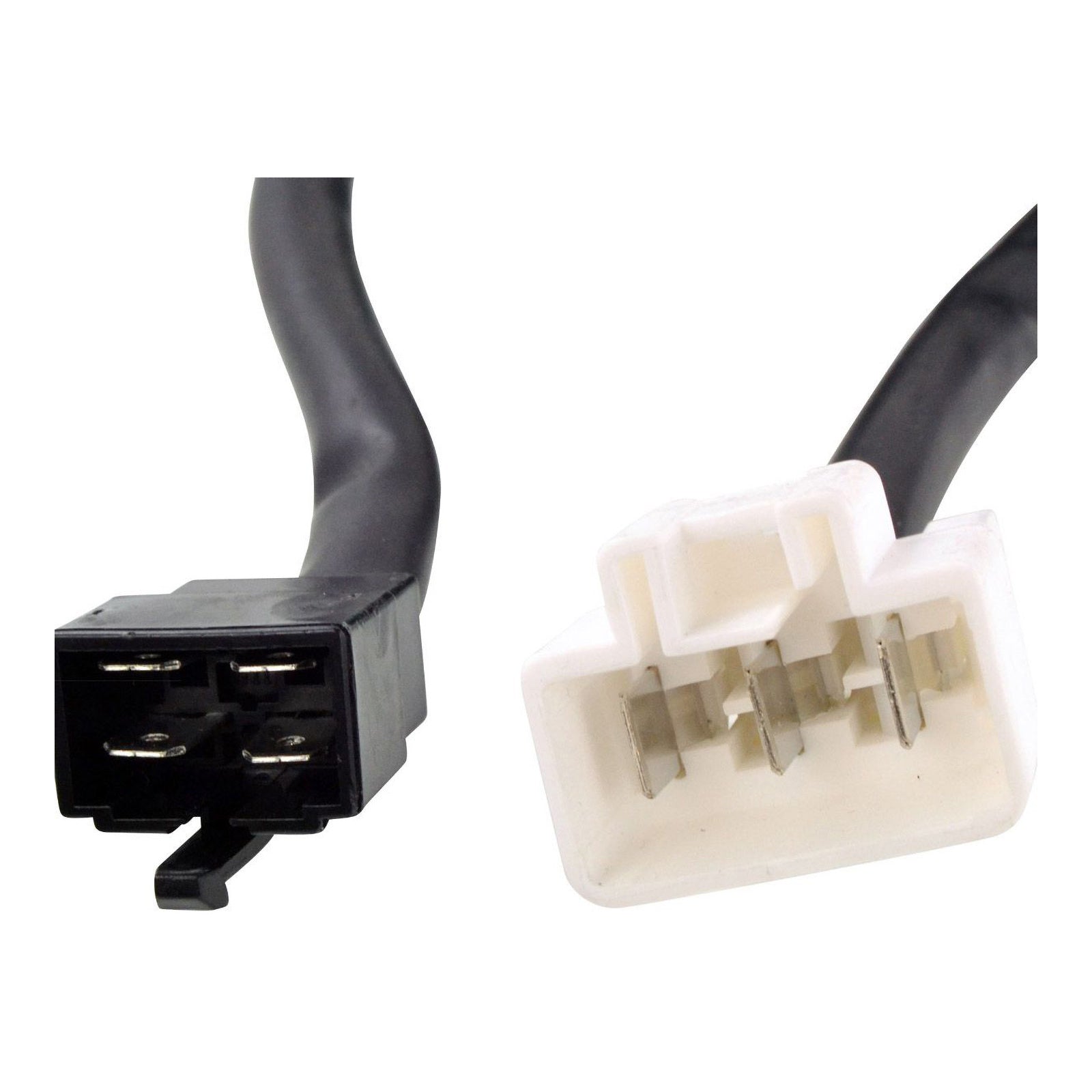

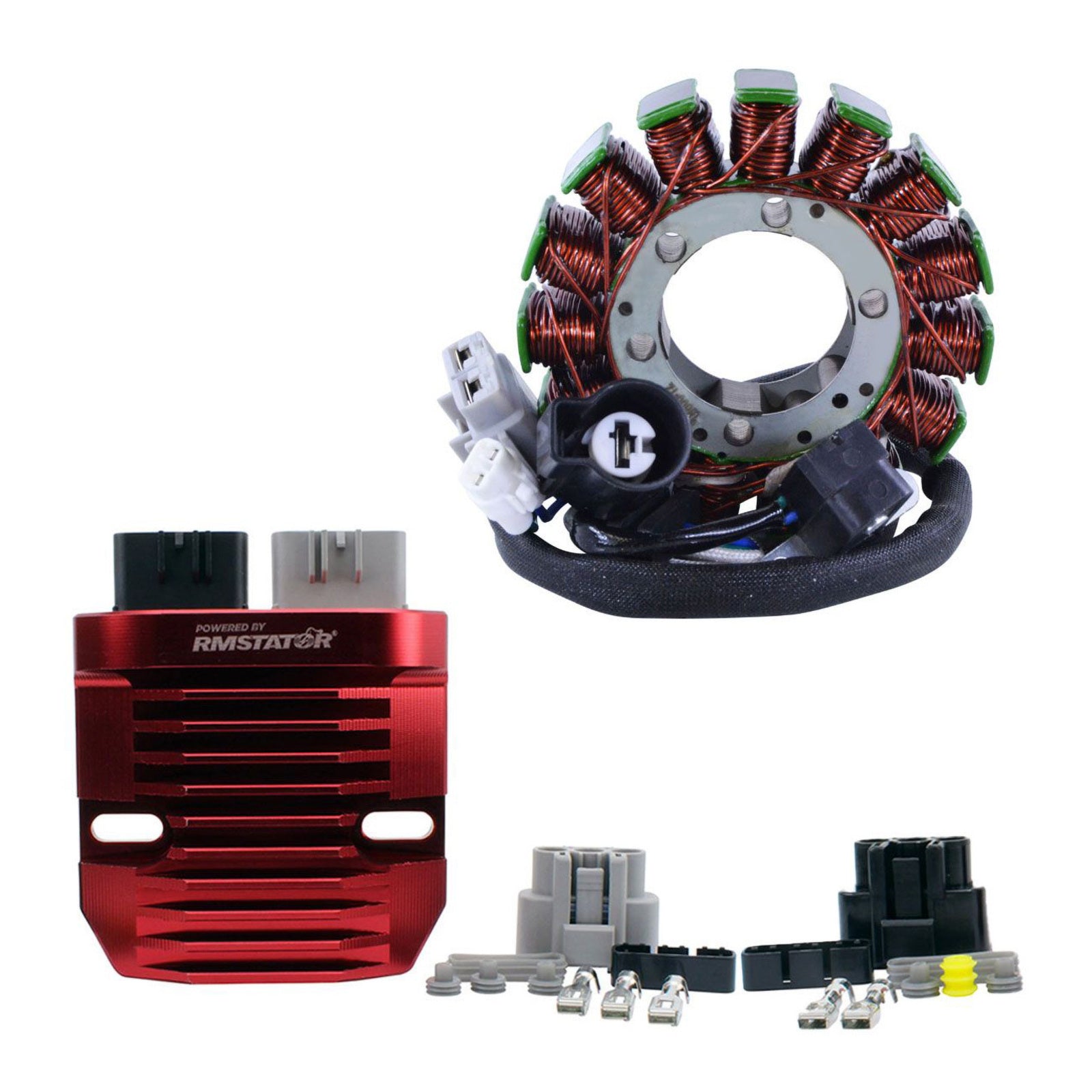

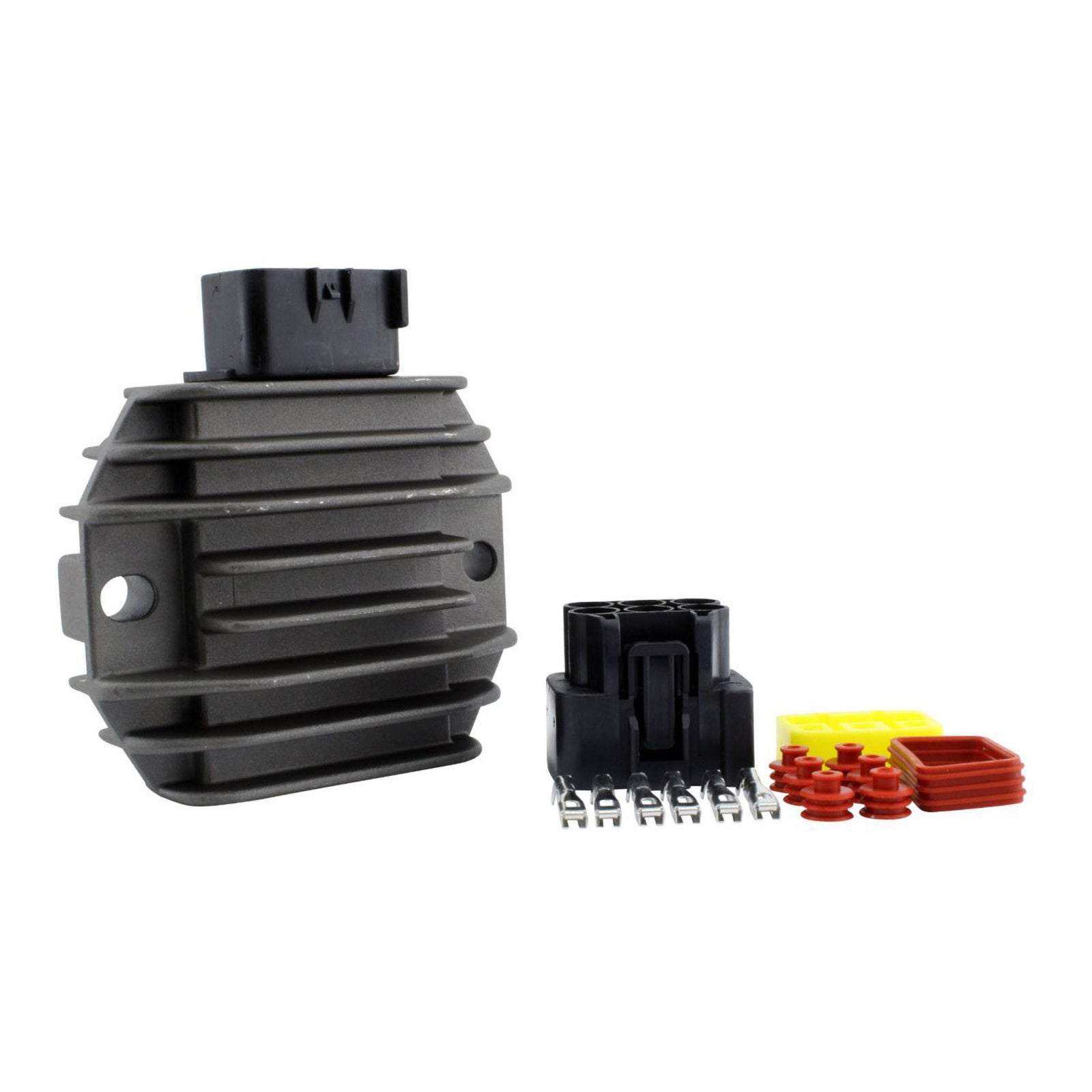

Brand new Mosfet Voltage Regulator Rectifier

STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

Dimensions:

• Width: 25 mm
• Length: 79 mm
• Height: 83 mm
• Fixation holes center to center: 60 mm

Other specifications:

• Number of plugs: 1
• Number of pins: 6
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20° to 85°

Key features:

• IMPROVED and HEAVY DUTY: OEM and most SCR type voltage regulator are known to fail more than often for these vehicles. Our RMS Labs took a best selling voltage regulator and made it tougher by using highly reliable components to regulate the voltage. The result : More than 83% less failures than a standard OEM-type voltage regulator.


• RMSTATOR RENOWNED MOSFET COMPONENTS: Significantly decreases internal operating temperature with highly efficient MOSFET transistor regulation circuit. This technology runs much cooler than the OEM silicon rectifier regulation circuit and requires much less power to operate.


• AUTOMOTIVE GRADE HEAVY-DUTY CONNECTORS: Increase contact surface for distributed voltage charge on pins & less heat generated at connectors levels

• Direct replacement to your original unit


• Plug-and-play, direct fit, easy installation


• The quality exceeds the OEM equipment


• Higher grade of electric components


• All shipped products are tested

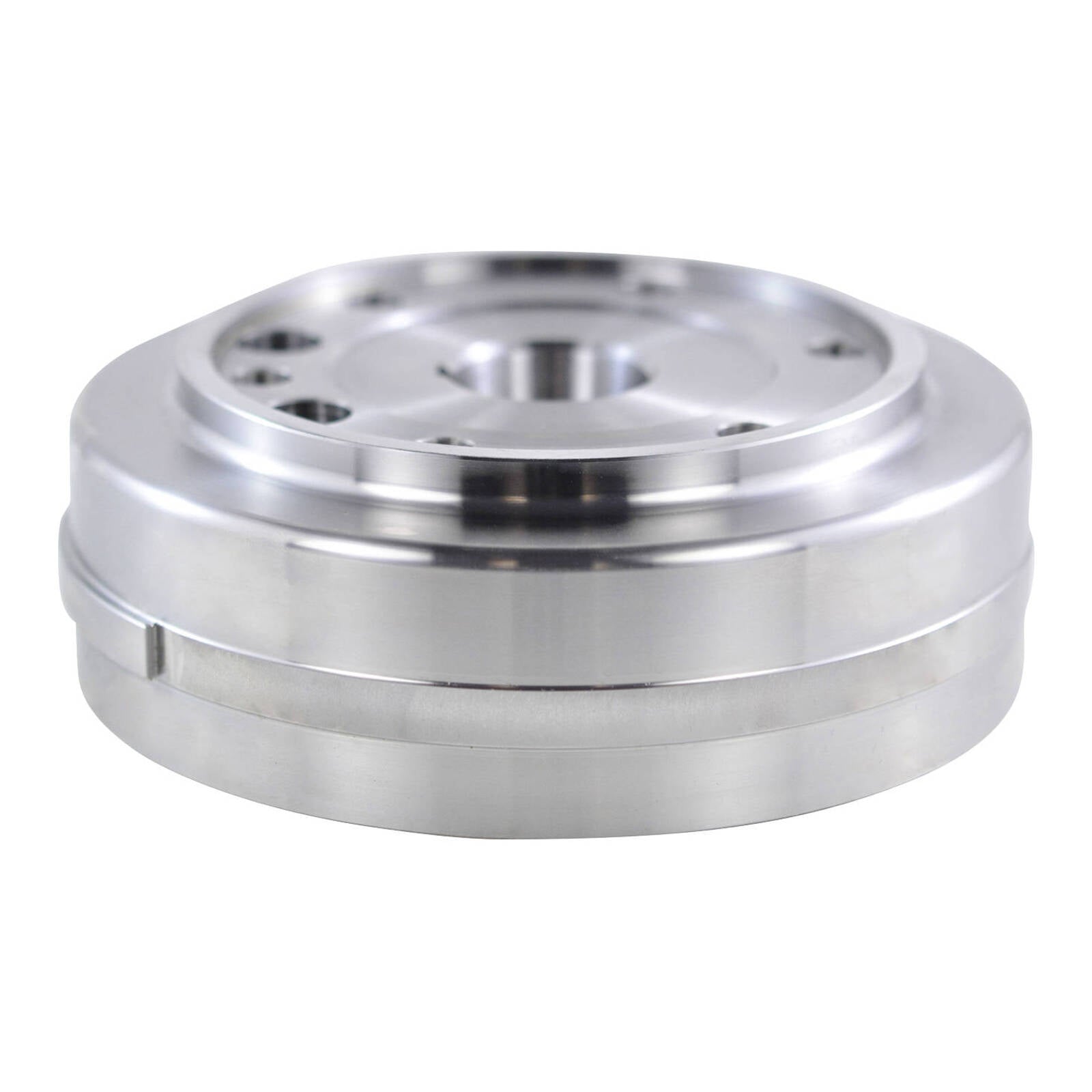

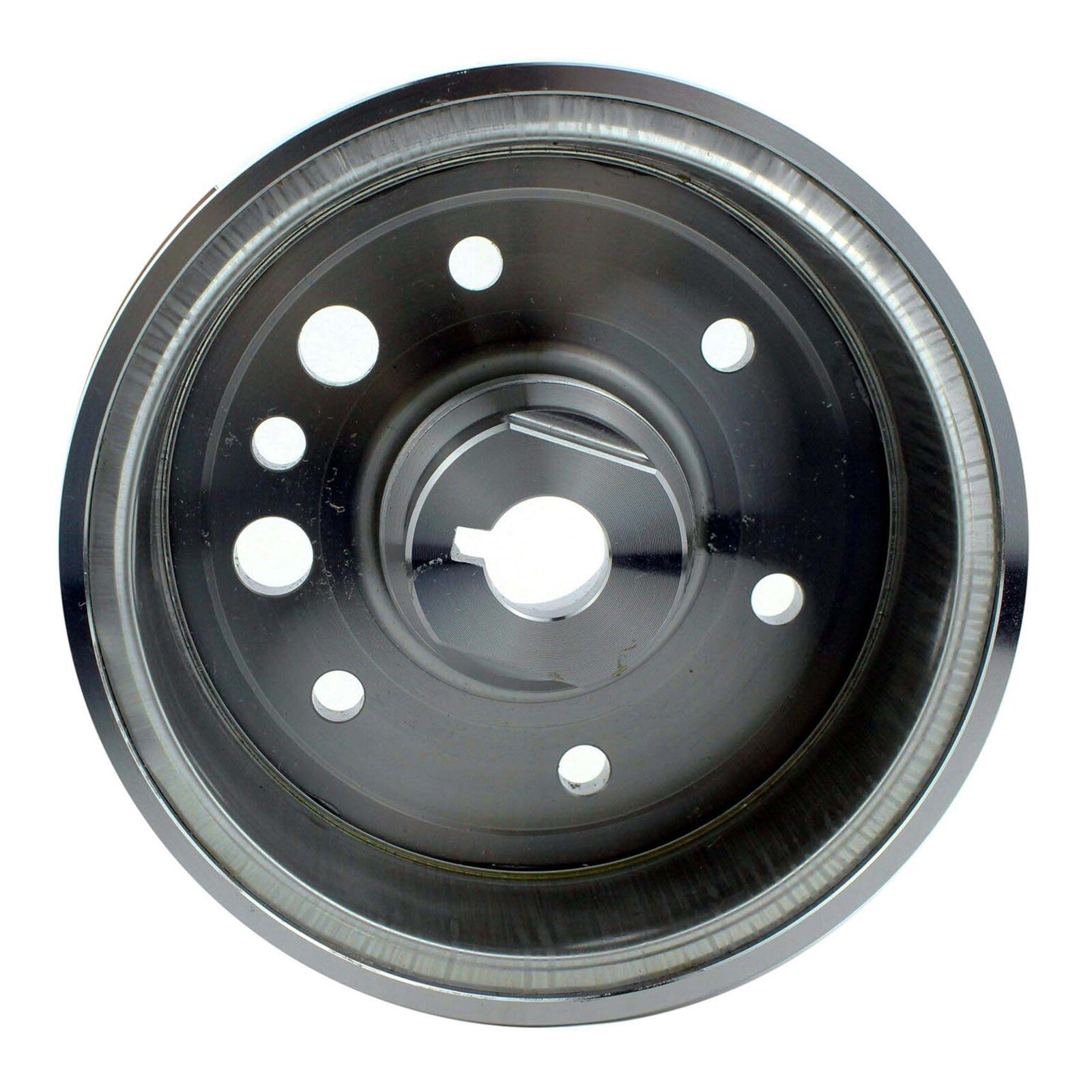

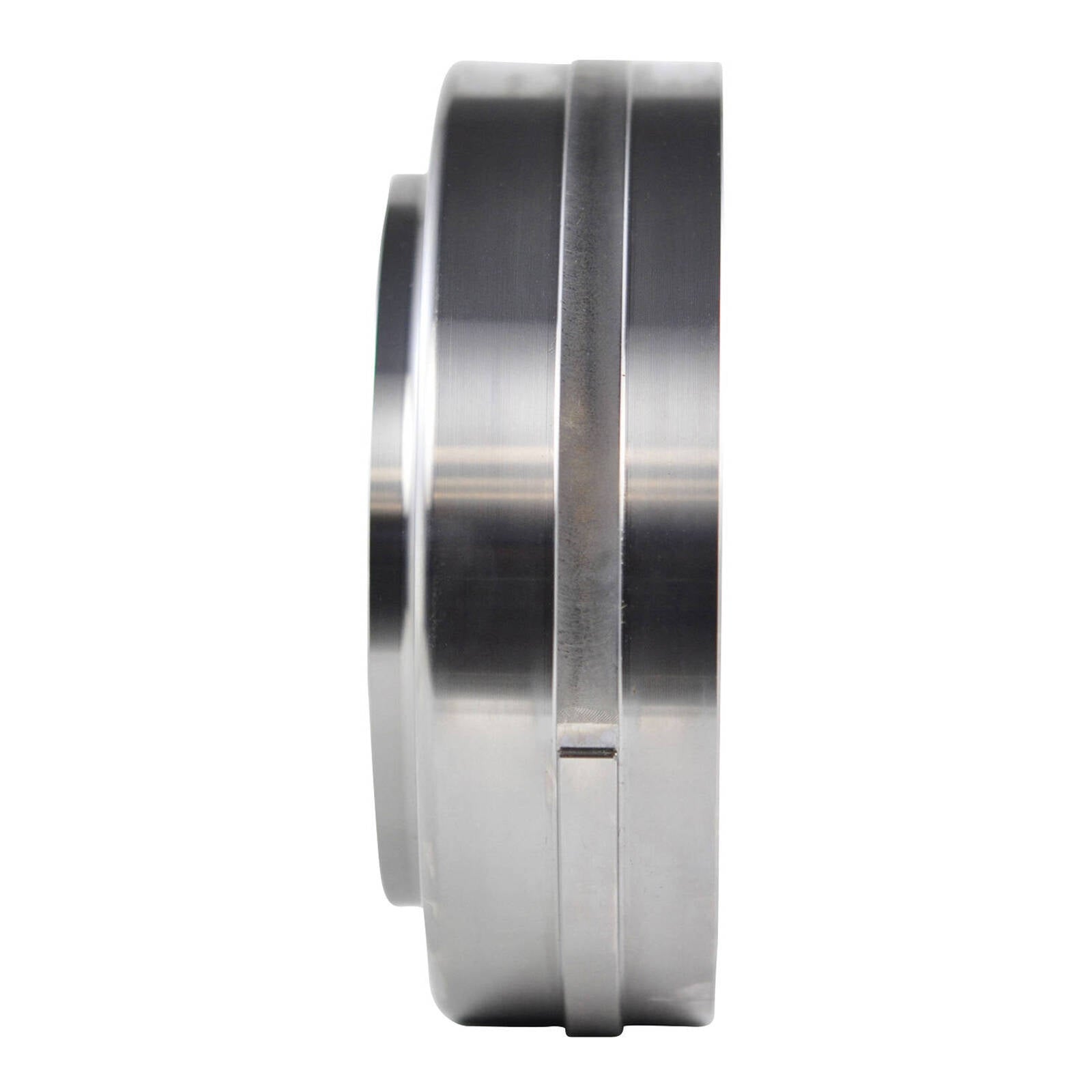

Improved Magneto Flywheel Rotor

RMSTATOR is offering a new improved replacement flywheel for your Suzuki and Arctic Cat. This flywheel can be used as a direct replacement to the OEM.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part

What is improved about the RM11502 flywheel?

2002-2007 Suzuki Eiger 400 and 2003-2008 Arctic Cat 400 ATVs are plagued with problems on the original flywheels. The additives in the motor oil were dissolving the epoxy that holds the magnets in the flywheel, causing them to detach and scatter throughout the engine.

• EXPOSED EPOXY
• DETACHED MAGNET

The bad news is that by the time the problem occurred, no manufacturer would provide warranty repairs.

The good news is that RMSTATOR has manufactured a redesigned flywheel where the magnets are sealed in the flywheel, which reinforces the epoxy and prevents them from detaching. This new flywheel configuration corrects the problem permanently.

Dealership estimates to repair this failure are over $500 in parts alone. RMSTATOR offers you a high-quality replacement part that corrects the problem for half the price. The RM11502 flywheel is not only a cost-effective way to replace your failed Suzuki or Arctic Cat flywheel, but a great investment when replaced before the failure occurs.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

Introducing our newest Heavy Duty Flywheel Rotor For Yamaha Motorcycles

Anyone who rides or repairs a Yamaha YZF R1, FZ1 or FZ8 is probably familiar with the flywheel problems common to these models. Most of these bikes will have at least one flywheel failure in their lifetime. Low-quality epoxy was used on OEM flywheels to secure the magnets to the rotor body. Over time and many heat cycles, the epoxy fails allowing the magnets to come loose and contact the stator, potentially causing catastrophic damage.

A Heavy Duty Flywheel to the rescue!

New RMSTATOR heavy-duty flywheel rotor for Yamaha Motorcycles is a well-priced solution to problems with the OEM flywheel, and an excellent alternative to all the mechanical troubles you can encounter with a repair.

• Built to OEM size Fits precisely in your ride: install it and forget it.
• Improved epoxy Uses high-temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment.
• High-grade steel capping Prevents heat and friction from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.
• Precise balancing Eliminates crankshaft vibrations for longer engine longevity.
• Shop with confidence Two years warranty. All products are tested.

Don't waste time with temporary solutions, and start fixing your ride like a pro!

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

All products shipped are tested.

Dimensions:

• Exterior Diameter: 121 mm
• Exterior Diameter #2: 119 mm
• Interior Diameter: 107 mm
• Interior Diameter Center Housing: 19.2 mm
• Exterior Diameter Center Housing: 34 mm
• Thickness (exterior): 34.8 mm
• Thickness (interior): 30 mm

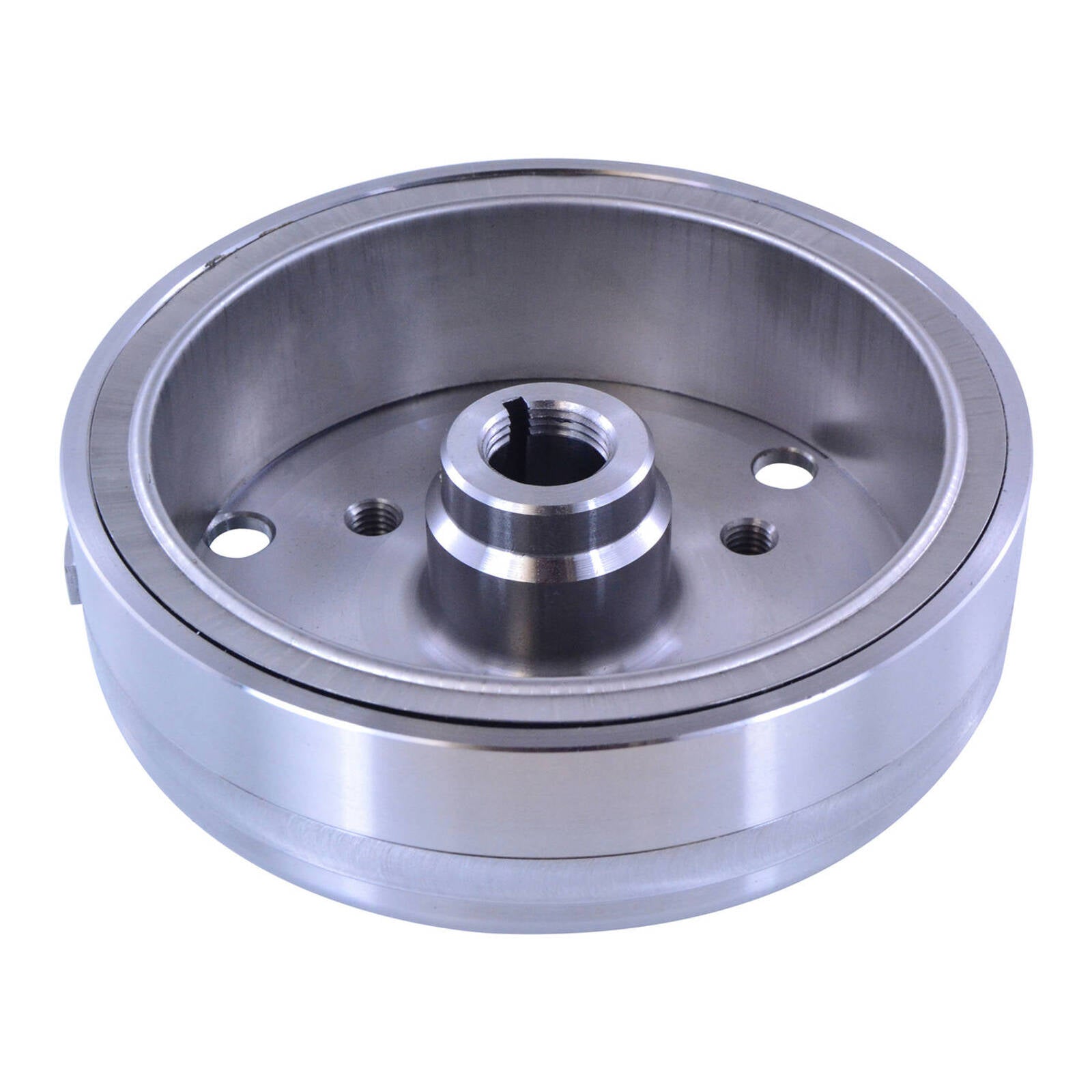

Introducing our newest heavy-duty flywheel rotor for Kawasaki 400 & 500 cc Motorcycles.

Anyone who rides or repairs a Kawasaki 400 or 500cc Motorcycle is probably familiar with the flywheel problems common to these models. Most of these bikes will have at least one flywheel failure in their lifetime. Low- quality epoxy was used on OEM flywheels to secure the magnets to the rotor body. Over time and many heat cycles, the epoxy fails allowing the magnets to come loose and contact the stator, potentially causing catastrophic damage.

For years, service shops & dealerships have offered low-cost repairs for Kawasaki flywheels. This sounds like a great idea at first, but there are some serious issues!

The common repair is using Marine Blue Epoxy to reattach the loose original magnets or to install new ones. Epoxy fixes do repair flywheels in short term if they are done correctly. However, this kind of repair can easily cause immediate problems and impact long term reliability of your ATV.

A Heavy Duty Flywheel to the rescue!

New RMSTATOR&trade heavy-duty flywheel rotor for Kawasaki Motorcycles is a well-priced solution to problems with the OEM flywheel, and an excellent alternative to all the mechanical troubles you can encounter with a repair.

Features:

• Built to OEM size - Fits precisely in your ride: install it and forget it.
• Improved epoxy - Uses high-temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment.
• High-grade steel capping - Prevents harsh additives in motor oil from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.
• Precise balancing - Eliminates crankshaft vibrations for longer engine longevity.
• Shop with confidence - All products are tested.

Don't waste time with temporary solutions, and start fixing your ride like a pro!

Why cheap repairs won't work?

Quick stronger epoxy fixes do repair flywheels in short term. It might however impair long term performance and reliability of your ride.

• Remaining OEM magnets: Original magnets remaining can still come loose at any time.
• Magnet alignment: The alignment of magnets around the flywheel is critical for proper stator operation. Even very fine misalignment will reduce stator efficiency significantly.
• Magnet spacing: Excessive epoxy or incorrect magnet spacing around the flywheel can easily affect the flywheel balance. This can cause stator contact or even crankshaft damage.
• Incorrect replacement magnets: The magnetic field strength of new magnets MUST match the originals. Stator failure can occur quickly with stronger magnets and stator output can be decreased significantly using weaker magnets.
• Wrong epoxy properties: Epoxy that is not rated to permanently handle high temperatures and oil immersion can quickly cause a serious failure.
• Oil contamination: Wrong epoxy for the application can also contaminate the crankcase oil, damaging the motor.

All these reasons make us strongly recommend that you replace your broken flywheel with our new heavy-duty flywheel.

Dimensions:

• Exterior Diameter: 129 mm
• Interior Diameter: 106 mm
• Interior Diameter Center Housing: 16 mm
• Exterior Diameter Center Housing: 25 mm
• Thickness (exterior): 42 mm
• Thickness (interior): 33 mm

Note: Before attempting to start your Kawasaki adjusting the air gap is necessary. Rotate the flywheel so the raised node is lined up with the pick up/pulser coil and adjust as close as possible but no less than 0.010".

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• 50mm x 1.5 Right hand Female
• Includes crankshaft thread protector cap

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

ATTENTION: This kit is compatible with AUTOMATIC models ONLY.

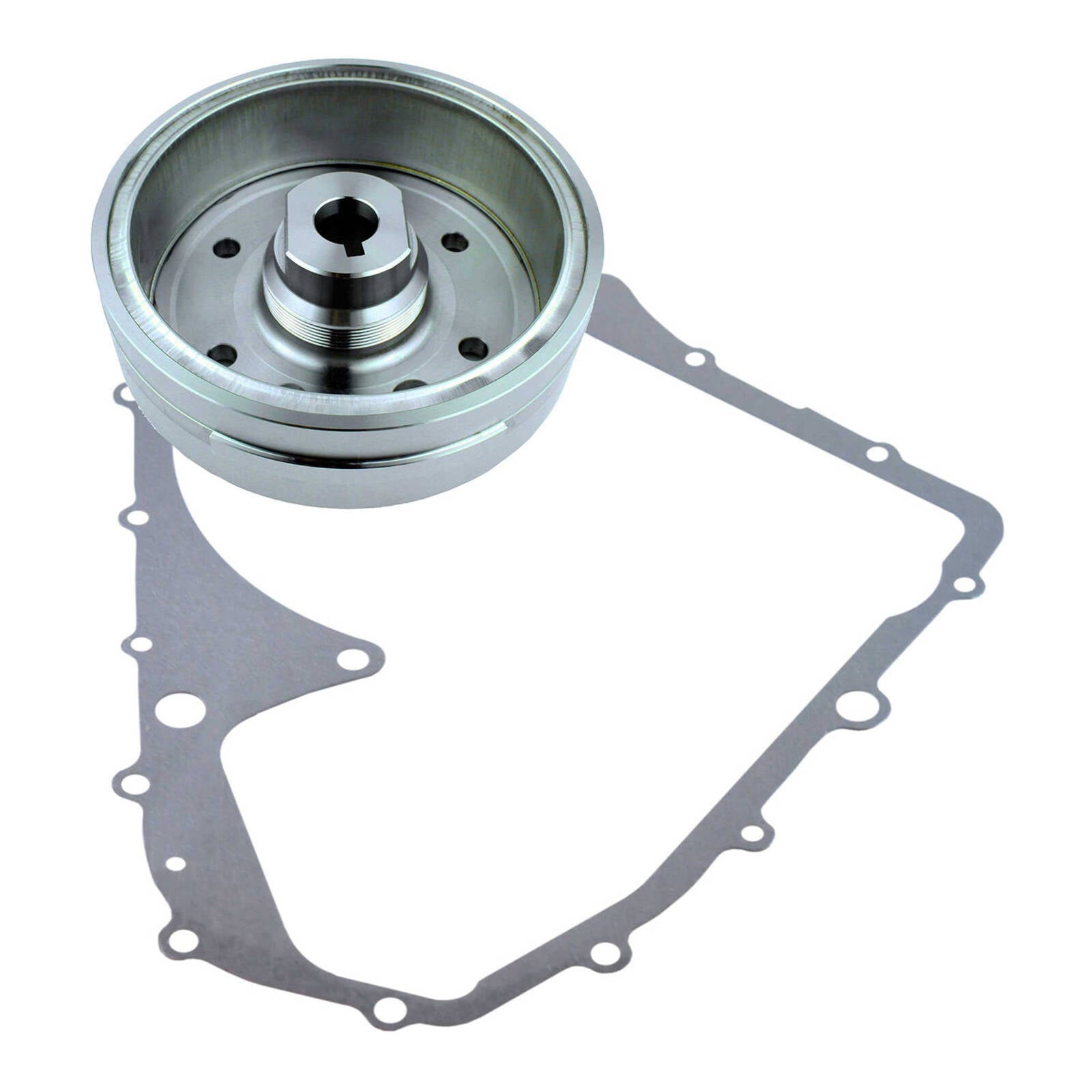

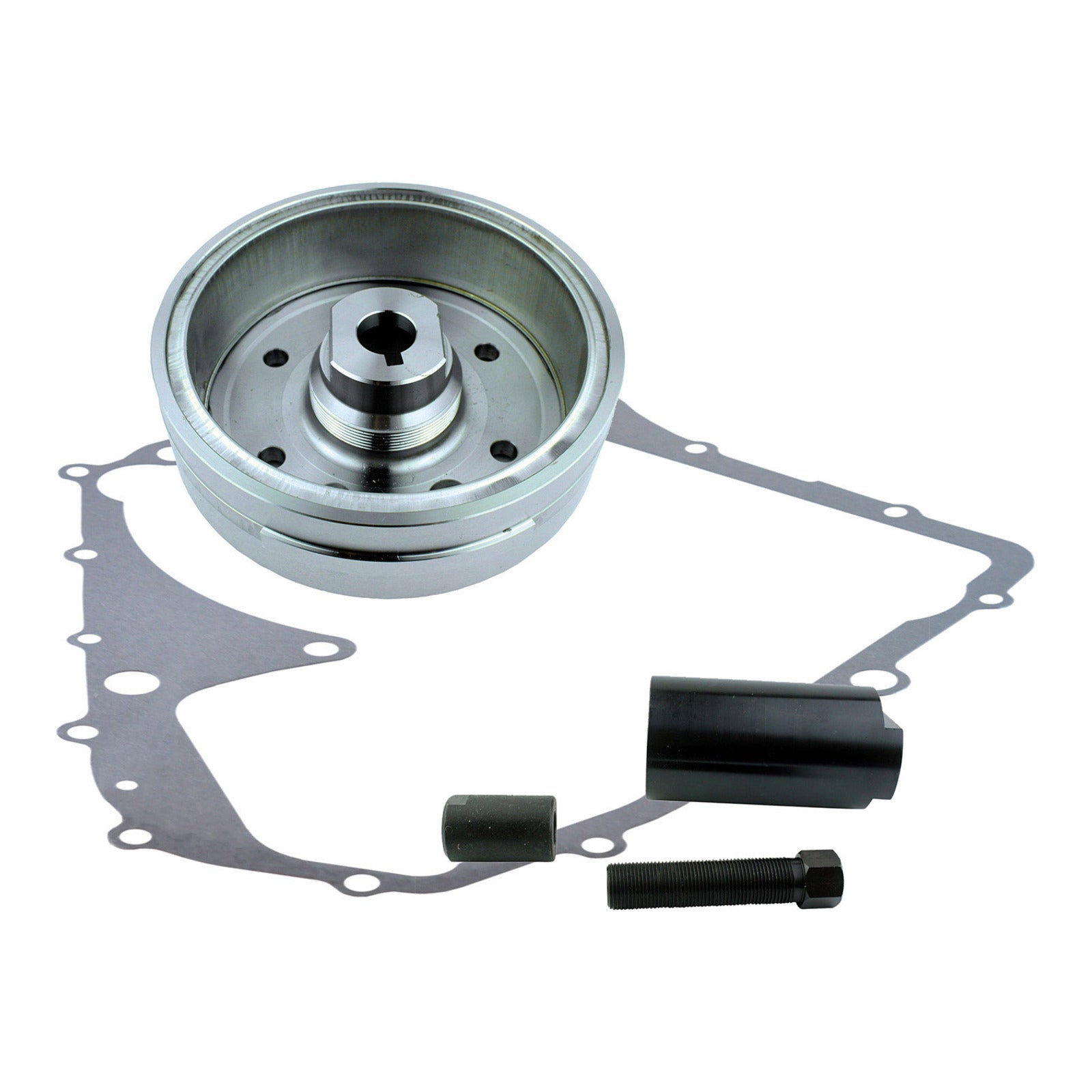

Flywheel assembly + new cover seal

• Magneto flywheel

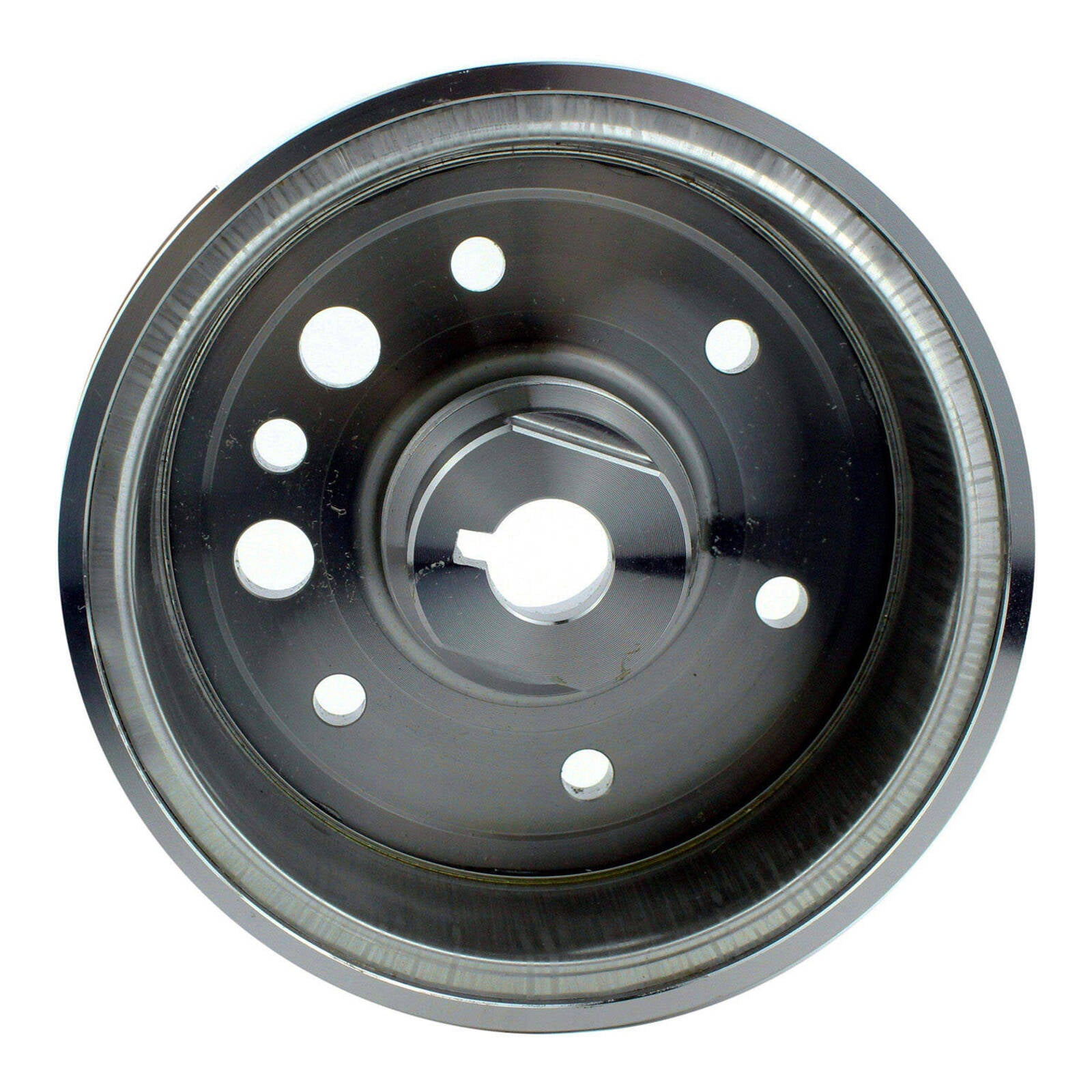

RMSTATOR offers a new flywheel with magnets for your Suzuki or your Arctic Cat. The flywheel can be used as a replacement to your original part

What is improved in our RM11502 flywheel?

The stock flywheels of the Suzuki Eiger 400 2002-2007 and Arctic Cat 400 2003-2008 ATVs have recurring problems. Additives in the engine oil dissolve the epoxy used to hold the magnets in place, causing them to loosen and disperse in the engine.

• EPOXY EXPOSED
• MAGNET DETACHED

The problem encountered by owners of these ATVs is that no manufacturer wants to guarantee this part on such old vehicles. Faced with this situation, RMSTATOR has redesigned and improved the flywheel of these ATVs. The magnets are now sealed, which prevents them from coming loose. This new configuration fixes the problem for life. We offer a high quality part that permanently eliminates the problem for half the cost of the original part. The RM11502 flywheel is not an economical way to repair your ATV, but an investment when replaced before the original part breaks.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Introducing our newest heavy-duty recall-type charging system upgrade kit for Aprilia 2009-2020 RSV4 & 2011-2020 Tuono V4.

Anyone who rides or repairs Aprilia’s motorcycles is probably familiar with the stator, flywheel, and sometimes voltage regulator issues common to these models. Most of these bikes will have had at least one stator fail in its lifetime so far. The main problem was extremely strong magnets were used on the original flywheels, creating a very high power stator output, which generated excessive heat. This usually resulted in burned-up, or shorted stator winding, and often in a failed voltage regulator.

The solution was a new flywheel from Kokusan with lower-strength magnets, dropping the stator output and heat generation. This results in a charging system output perfectly matched for the bike’s electronic needs and the long-term reliability of the stator and voltage regulator.

To prevent or correct the flywheel problems, our engineers at RMS Labs have come up with a completely reliable heavy-duty charging system replacement kit for your Aprilia. Upgrade today if you haven’t already!

Included in this kit

• Heavy-duty Kokusan brand recall-type OEM flywheel
• Triple-tested heavy-duty stator
• Mosfet voltage regulator rectifier
• Crankcase cover gasket
• Flywheel puller

With this kit, you will be able to upgrade your current failure-prone charging system with a heavy-duty version using the latest technologies

Features

• Kokusan upgrade/recall type flywheel: Lower-strength magnets for correct stator output, low heat generation, and long-term reliability.
• Built to OEM size: Fits precisely in your ride install it and forget it.
• Improved epoxy: Uses high-temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment
• High-grade steel capping: Prevents harsh additives in motor oil from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.
• Precise balancing: Eliminates crankshaft vibrations for longer engine longevity.
• Shop with confidence: All products are tested. Don't waste time with temporary solutions, and start fixing your ride like a pro!

Specifications:

• Stator Dimensions
• Interior diameter: 43 mm
• Exterior diameter: 105 mm
• Thickness: 13.8 mm
• Length of wires stator to grommet: 125 mm
• Length of wires grommet to plug: 320 mm
• Other specifications:
• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3
• Alternator:Yellow to Yellow = 0.3 ohms +-20%
• Flywheel Dimensions
• Exterior Diameter #1: 121 mm
• Exterior Diameter #2: 119 mm
• Interior Diameter: 107 mm
• Interior Diameter Center Housing: 19.2 mm
• Exterior Diameter Center Housing: 34 mm
• Thickness (exterior): 35.3 mm
• Thickness (interior): 30.65 mm

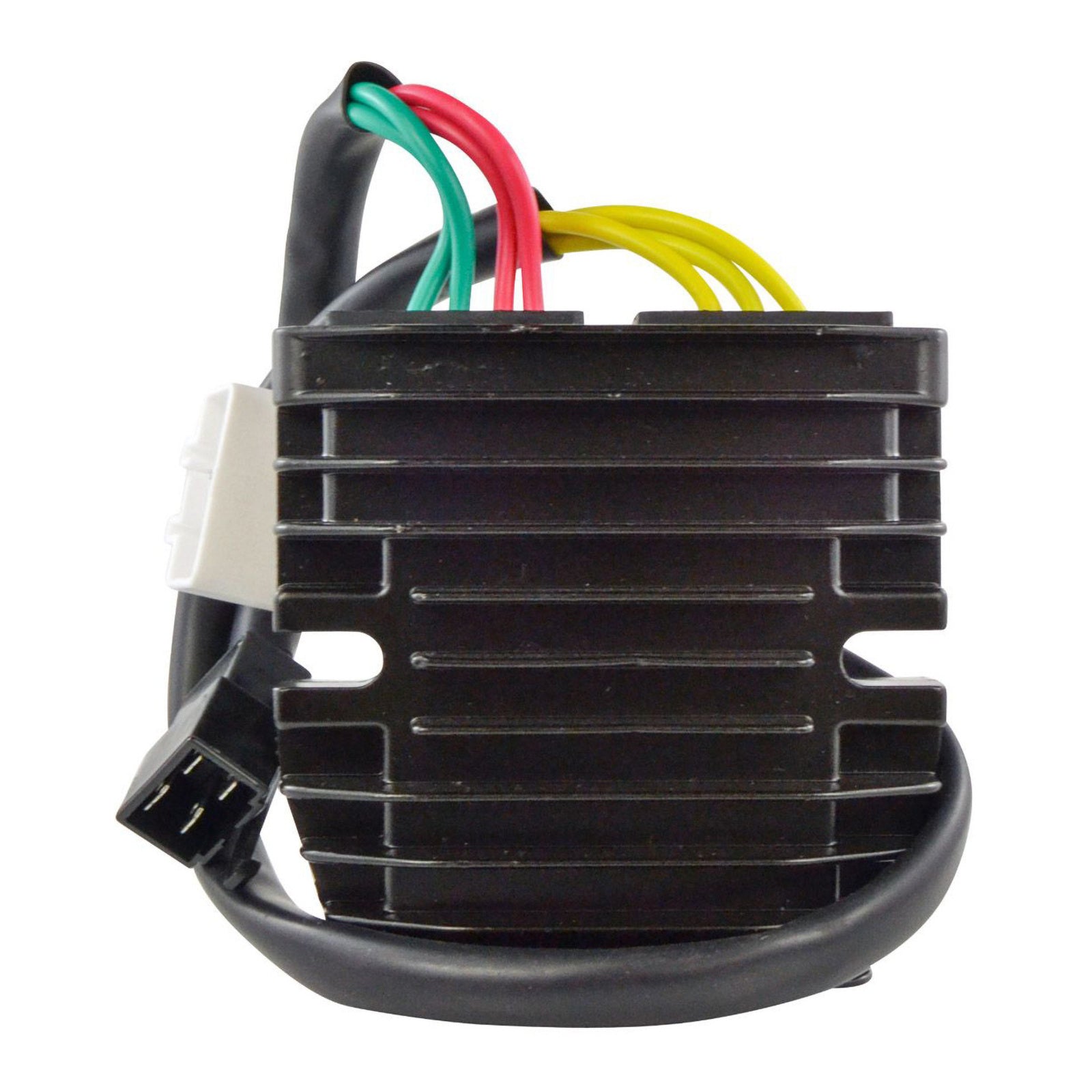

• Voltage Regulator Dimensions
• Width: 80 mm
• Length: 110 mm
• Height: 28 mm
• Wires length: 150 & 400 mm
• Fixation holes center to center: 80 mm
• Other specifications:
• Number of plugs: 2
• Number of pins: 7
• Number of wires: 7
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: 15 V
• Operation Temperature: -20° C to 85° C
• Flywheel Puller Dimensions
• 36 mm x 1.5 right-hand male
• Length: 60 mm
• Exterior Diameter: 47 mm
• Interior Diameter: 20 mm
• Exterior Diameter Center Housing: 37 mm

Please note: There are two possible kits for the RSV4 engine. This kit ONLY fits RSV4 engine numbers HIGHER than 3413 with Kokusan flywheels. Please compare our flywheel to your original.

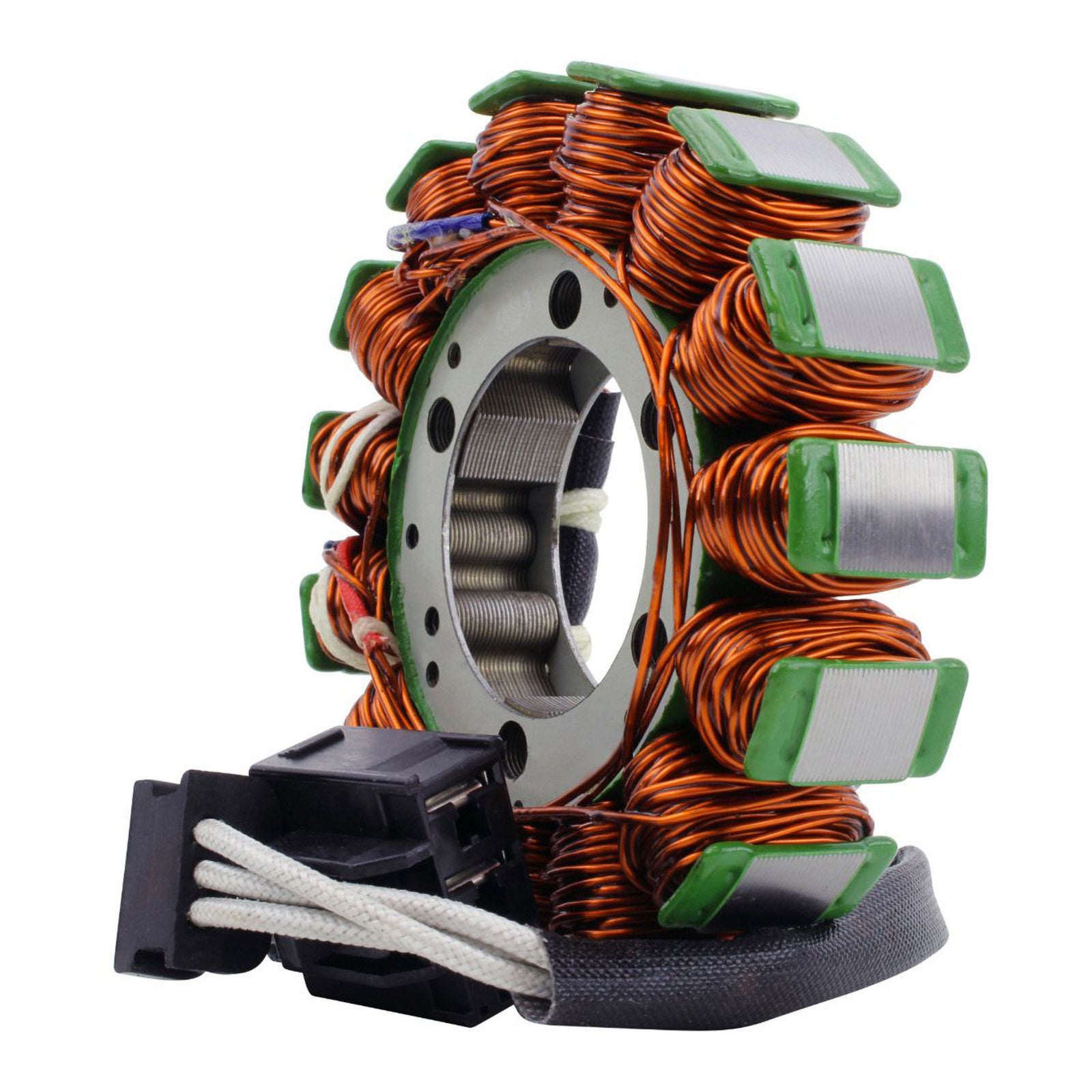

If your RSV4 engine number is LOWER than 3413, your motor uses the Mitsubishi flywheel and will need Stator Assembly 857201. Refer to kit RMS900104929.

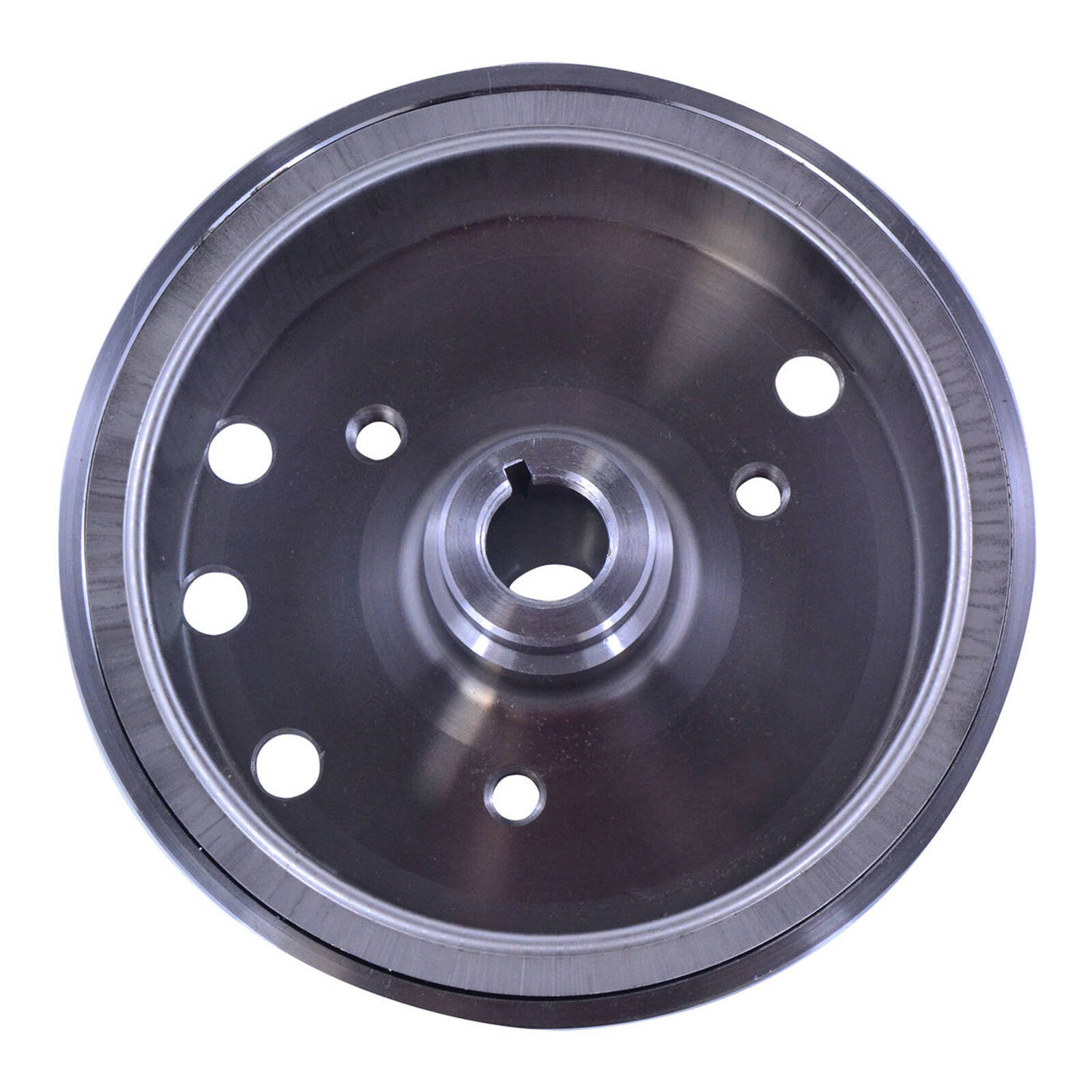

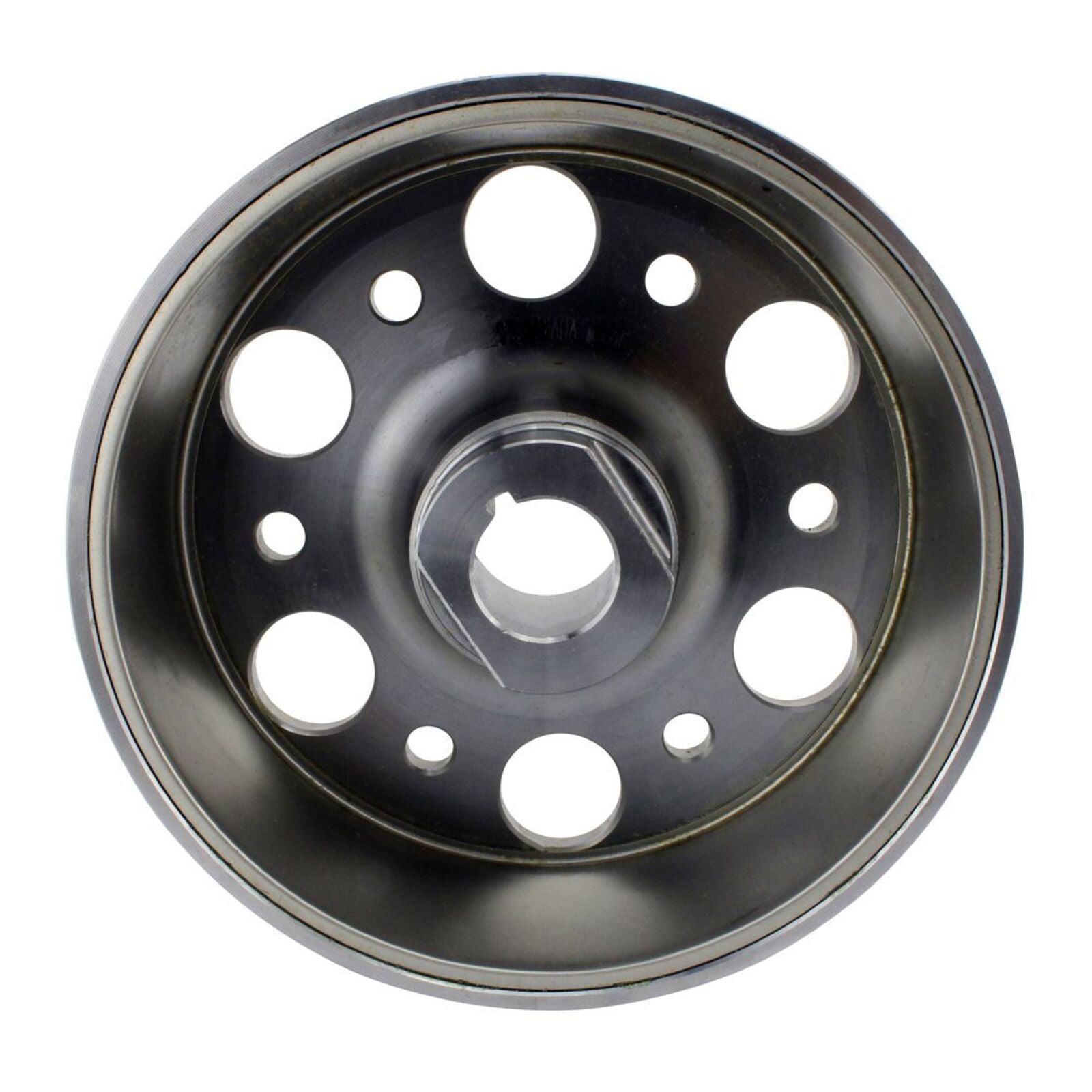

New RMSTATOR heavy-duty flywheel rotor for Yamaha 450cc ATVs is a well-priced solution to problems with the OEM flywheel, and an excellent alternative to all the mechanical troubles you can encounter with a repair.

Features:

• Built to OEM size. Fits precisely in your ride: install it and forget it.
• Improved epoxy. Uses high temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment.
• High grade steel capping. Prevents harsh additives in motor oil from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.
• Precise balancing. Eliminates crankshaft vibrations for longer engine longevity.
• Shop with confidence. Two year warranty. All products are tested.

Dimensions:

• Exterio r Diameter: 110 mm
• Interior Diameter: 99 mm
• Interior Diameter Center Housing: 30 mm
• Exterior Diameter Center Housing: 33 mm
• Thickness (exterior): 31 mm
• Thickness (interior): 38 mm

Brand New kit Flywheel + Generator Stator

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included
• Rubber grommet included
• All shipped products are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Generator Stator Dimensions:

• Interior diameter: 42mm
• Exterior diameter: 105mm
• Thickness: 17mm
• Length of wires stator to grommet: 90mm
• Length of wires grommet to plug: 300mm

Other specifications:

• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3

Wire to wire resistance:

• Alternator: Between each White = 0.4 ohms +/-20%

Flywheel Dimensions:

• Exterior Diameter: 115mm
• Interior Diameter: 108mm
• Interior Diameter Center Housing: 16mm
• Exterior Diameter Center Housing: 24mm
• Thickness (exterior): 30mm
• Thickness (interior): 33mm

Please Note: This kit is compatible with RSV4 that have an engine number equal to or lower than 3413, otherwise you will need RMS900-103848. On rare occasion, this kit will work with Tuono V4. This kit includes a MITSUBISHI flywheel.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Brand new aftermarket Stator + Red Machined Aluminum Mosfet Regulator Kit

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

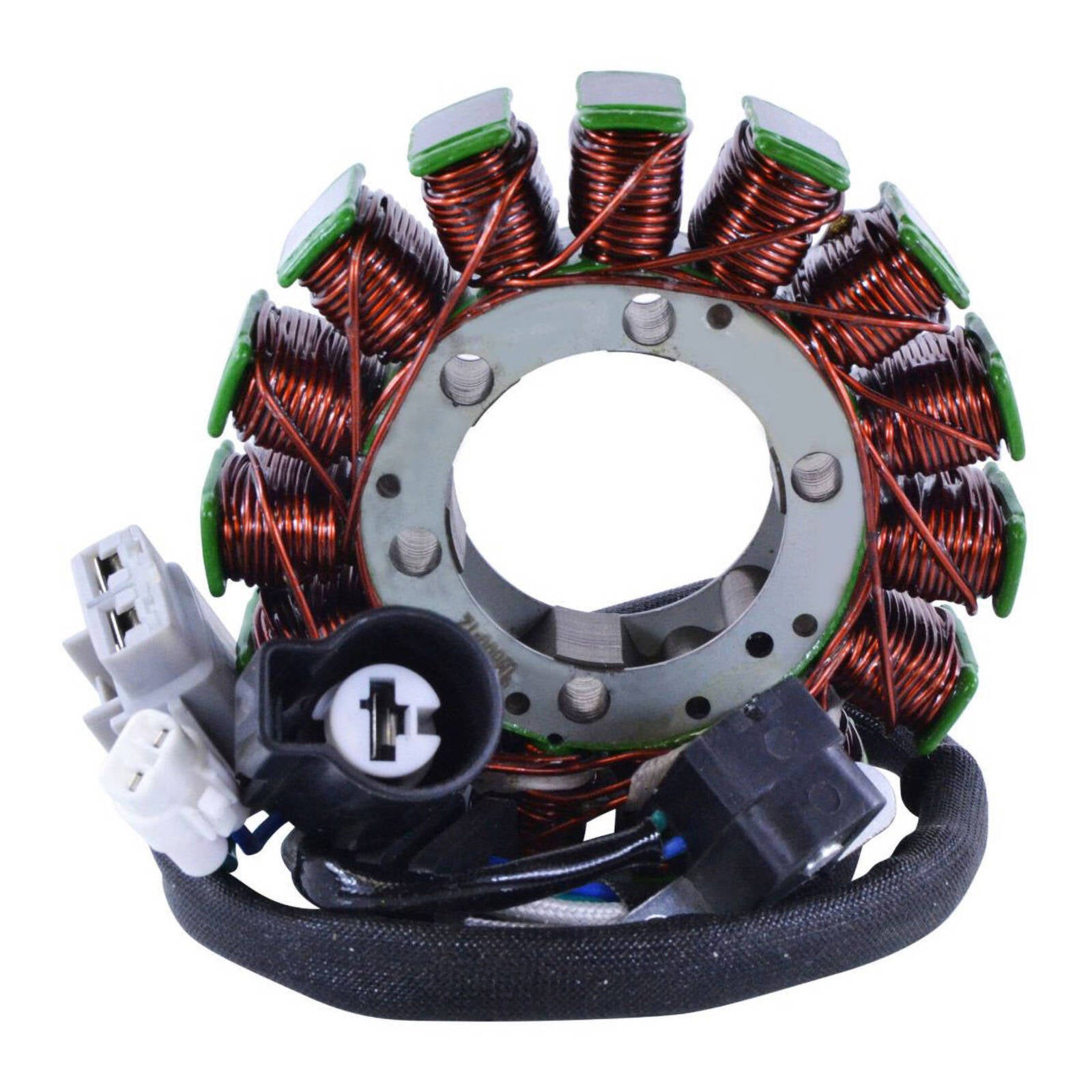

Stator

• Highest-grade lamination materials
• Highest-grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

Machined Aluminum Mosfet Regulator

Our new red machined aluminum Mosfet voltage regulator is a great upgrade for heat dissipation in any power sports charging system. After 10 minutes of use, our billet aluminum heatsink runs cooler by 33% than standard cast regulator housings. Our new red regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.

STOP BURNING YOUR REGULATOR RECTIFIER!
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode-style regulators. In addition, this rectifier has to overheat protection, rather than burn up, it will simply turn off for a while and cool off.

• The quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher-grade electric components

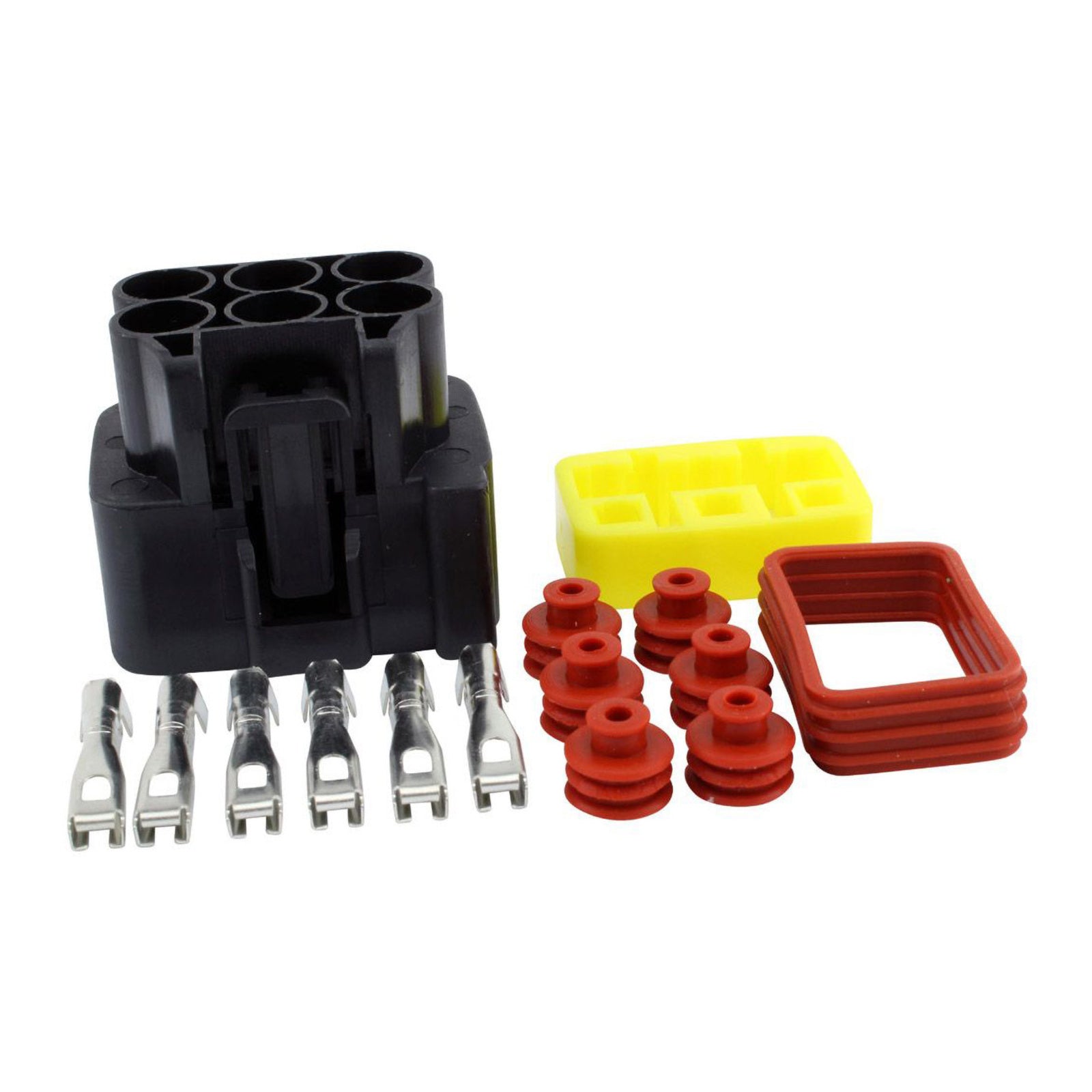

We have even included the opposite connector (main harness side) as we know these are often melted/ corroded/ defective and a major cause of repetitive electrical issues.

Why use Mosfet Enhanced technology?

• Runs cooler: Runs much cooler than the traditional Shunt voltage regulator rectifier.
• Saves gas: Less load on the stator, less work, less fuel is used and you save.
• Regulated energy: The power charging your battery is steadier and smooth
• Extended battery life: Extends the battery’s life and cold-cranking capacity
• More engine power: Removes stator load resulting in more engine power
• Optimized power: Optimize power delivery by switching the stator coils on or off.

Specifications:

• Dimensions Stator:
• Interior diameter: 42 mm
• Exterior diameter: 105 mm
• Thickness: 20 mm
• Length of wires stator to grommet: 160 mm
• Length of wires grommet to plug: 950 mm
• Length of pickup coil's wire to grommet: 90 mm
• Other specifications:
• Number of wires: 5
• Number of plugs: 3
• Number of pins: 5
• Wire-to-wire resistance:
• Alternator: White between each White = 0.6 ohms +-20%
• Pickup: Green to Blue = 500 ohms +-20%
• Dimensions Red Machined Aluminum Mosfet Regulator (CNC):
• Width: 103 mm
• Length: 103 mm
• Height: 28 mm
• Fixation holes center to center: 80 mm
• Other specifications:
• Number of plugs: 2
• Number of pins: 5
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: 15 V
• Operation Temperature: -20°C to 85°C

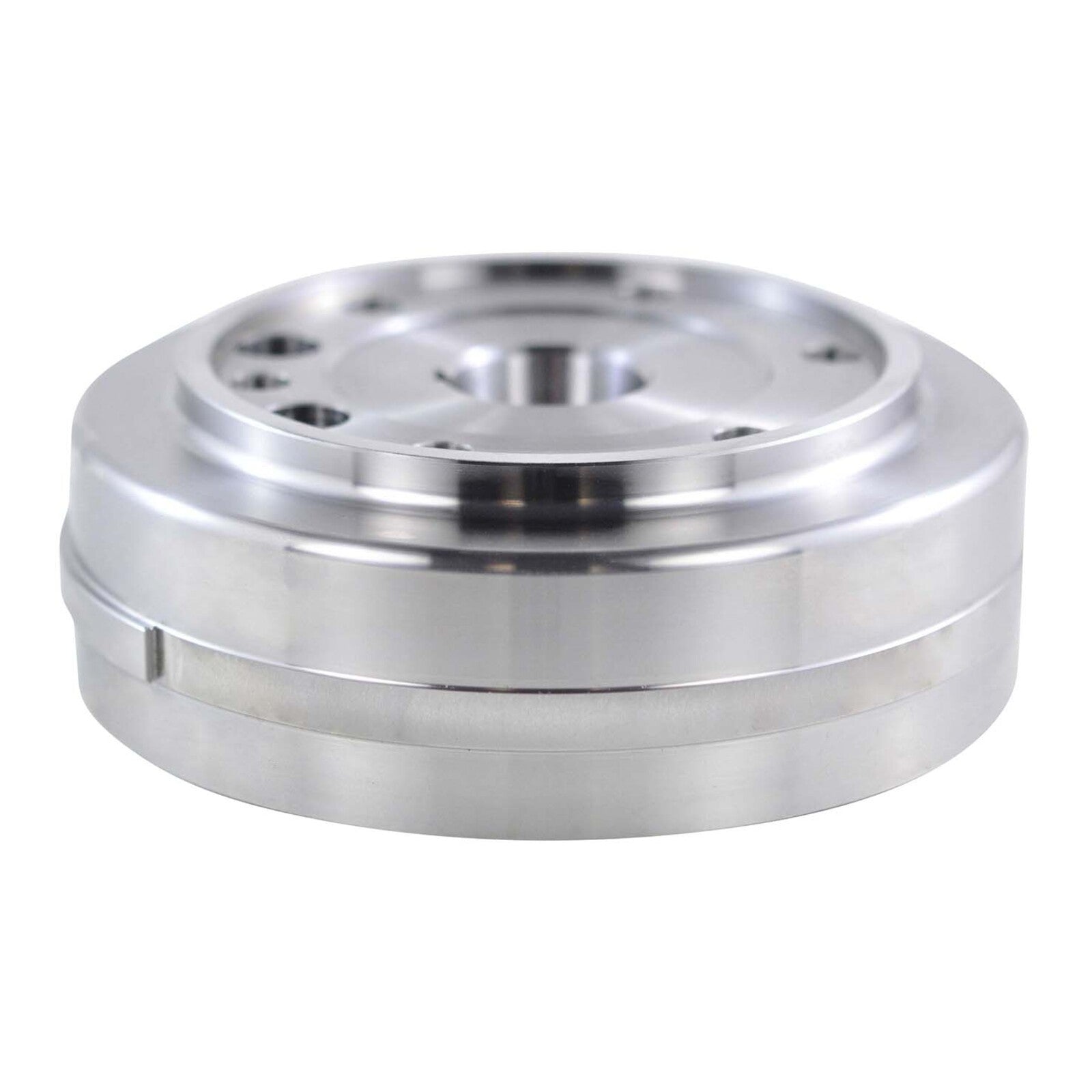

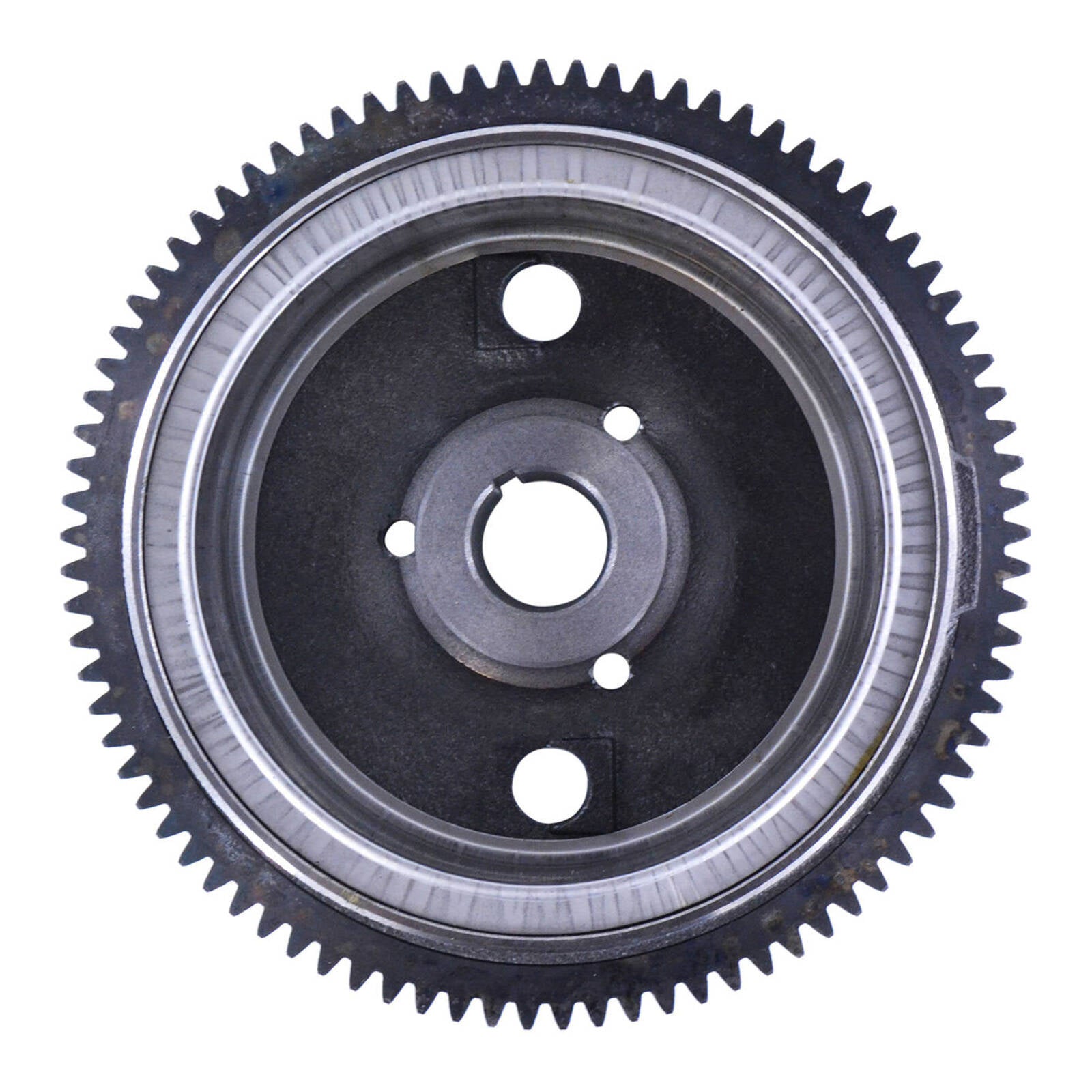

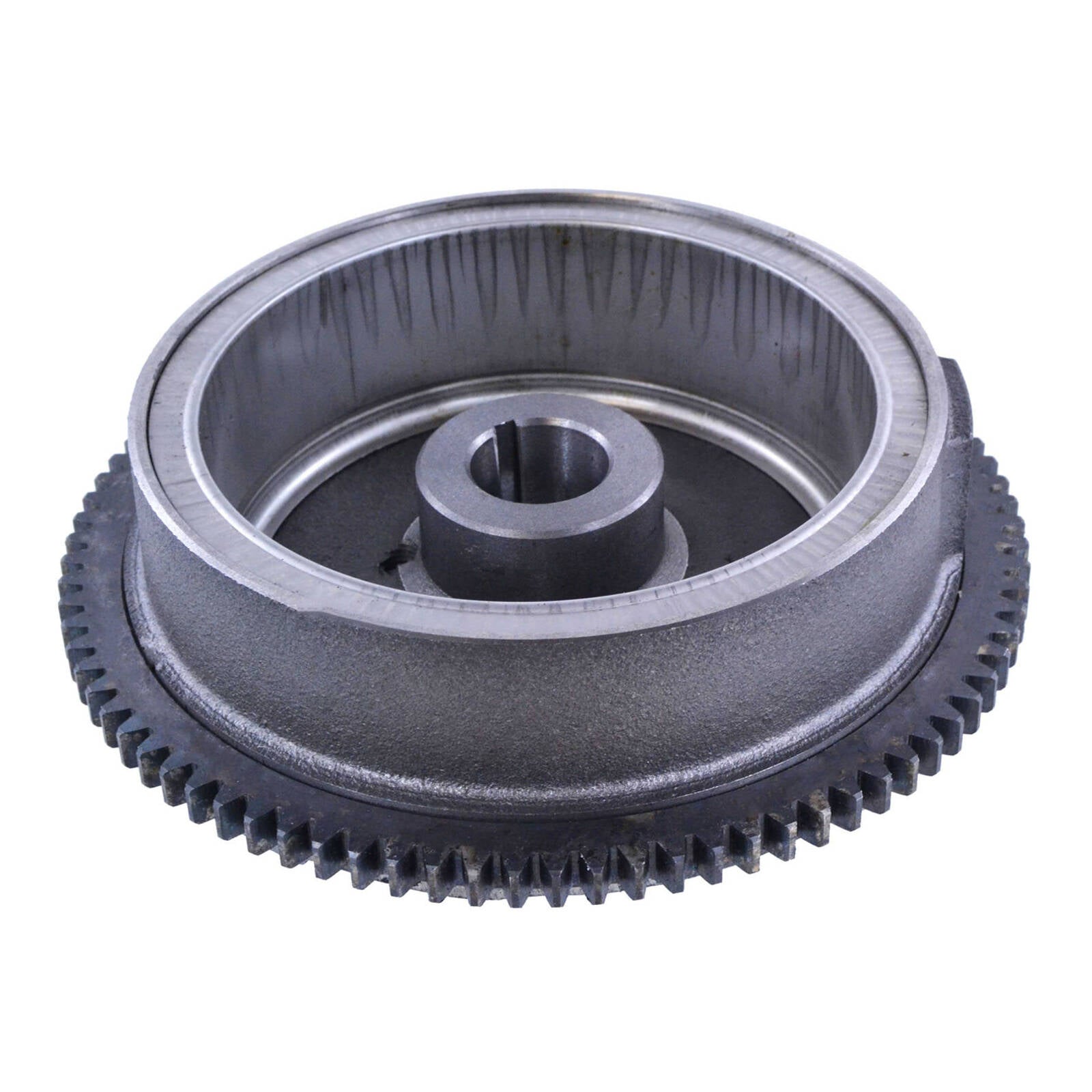

Introducing our newest Heavy Duty Flywheel Rotor For Polaris 500cc ATVs.

Anyone who rides or repairs the Polaris 500cc ATV's is probably familiar with the flywheel problems common to these models. Most of these bikes will have at least one flywheel failure in their lifetime so far. Low-quality epoxy was used on OEM flywheels to secure the magnets to the rotor body. Over time and many heat cycles, the epoxy fails to allow the magnets to come loose and contact the stator, potentially causing catastrophic damage.

For years, service shops & dealerships have offered low-cost repairs for Polaris flywheels to save the 400$+ OEM replacement. This sounds like a great idea at first, but there are some serious issues!

The common repair is using JB Weld© Marine Blue Epoxy to reattach the loose original magnets or to install new ones. Epoxy fixes do repair flywheels in the short term if they are done correctly. However, this kind of repair can easily cause immediate problems and impact long term reliability of your ATV.

A Heavy Duty Flywheel to the rescue!

New RMSTATOR heavy-duty flywheel rotor for Polaris ATVs is a well-priced solution to problems with the OEM flywheel, and an excellent alternative to all the mechanical troubles you can encounter with a repair.

• Built to OEM size - Fits precisely in your ride: install it and forget it.
• Improved epoxy - Uses high-temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment.
• High-grade steel capping - Prevents harsh additives in motor oil from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.
• Precise balancing - Eliminates crankshaft vibrations for longer engine longevity.
• Shop with confidence - One year warranty. All products are tested.

Don't waste time with temporary solutions, and start fixing your ride like a pro!

Why cheap repairs won't work?

Quick stronger epoxy fixes do repair flywheels in the short term. It might, however, impair long term performance and reliability of your ride.

• Remaining OEM magnets: Original magnets remaining can still come loose at any time.
• Magnet alignment: The alignment of magnets around the flywheel is critical for proper stator operation. Even very fine misalignment will reduce stator efficiency significantly.
• Magnet spacing: Excessive epoxy or incorrect magnet spacing around the flywheel can easily affect the flywheel balance. This can cause stator contact or even crankshaft damages.
• Incorrect replacement magnets: The magnetic field strength of new magnets MUST match the originals. Stator failure can occur quickly with stronger magnets and stator output can be decreased significantly using weaker magnets.
• Wrong epoxy properties: Epoxy that is not rated to permanently handle high temperatures and oil immersion can quickly cause a serious failure.
• Oil contamination: Wrong epoxy for the application can also contaminate the crankcase oil, damaging the motor.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
