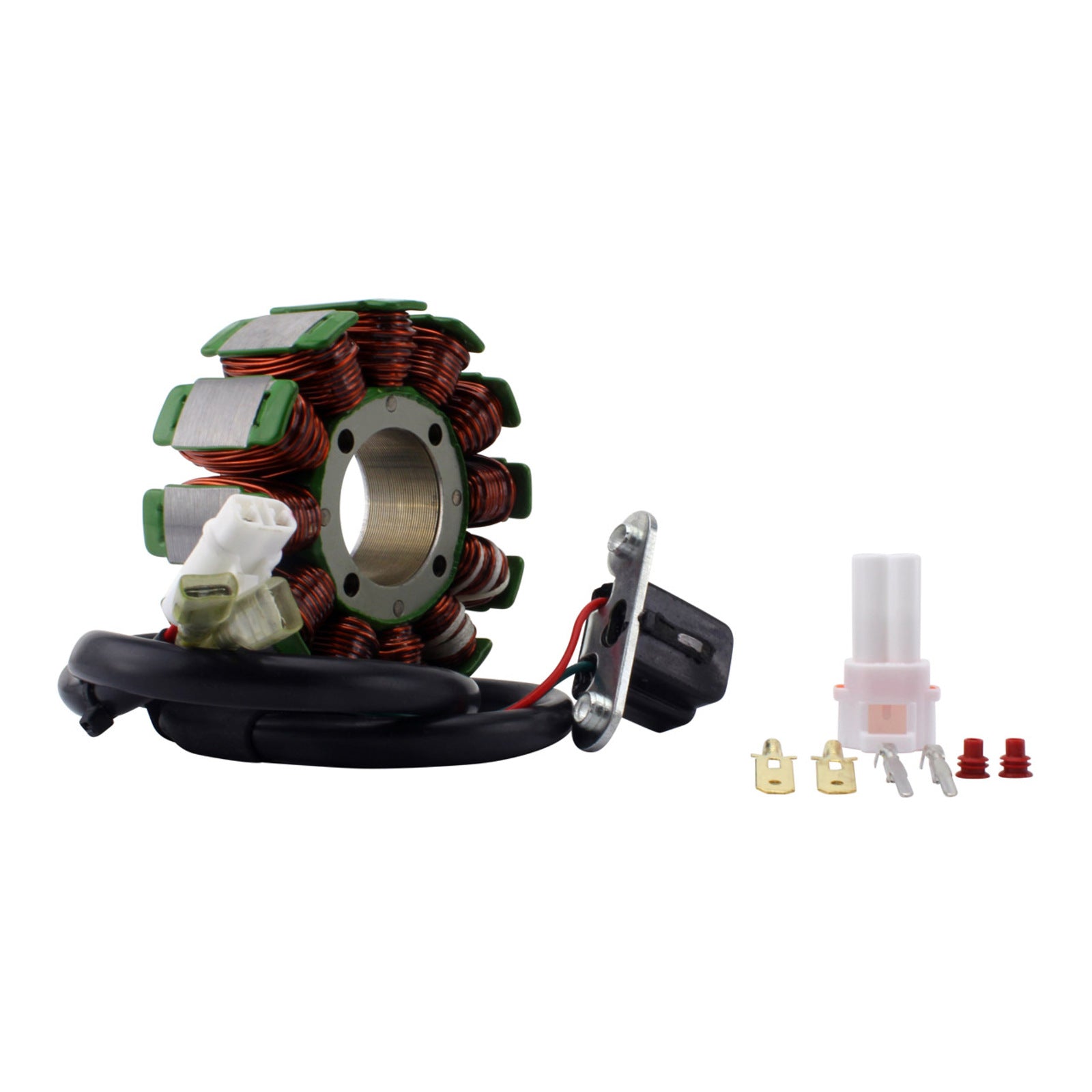

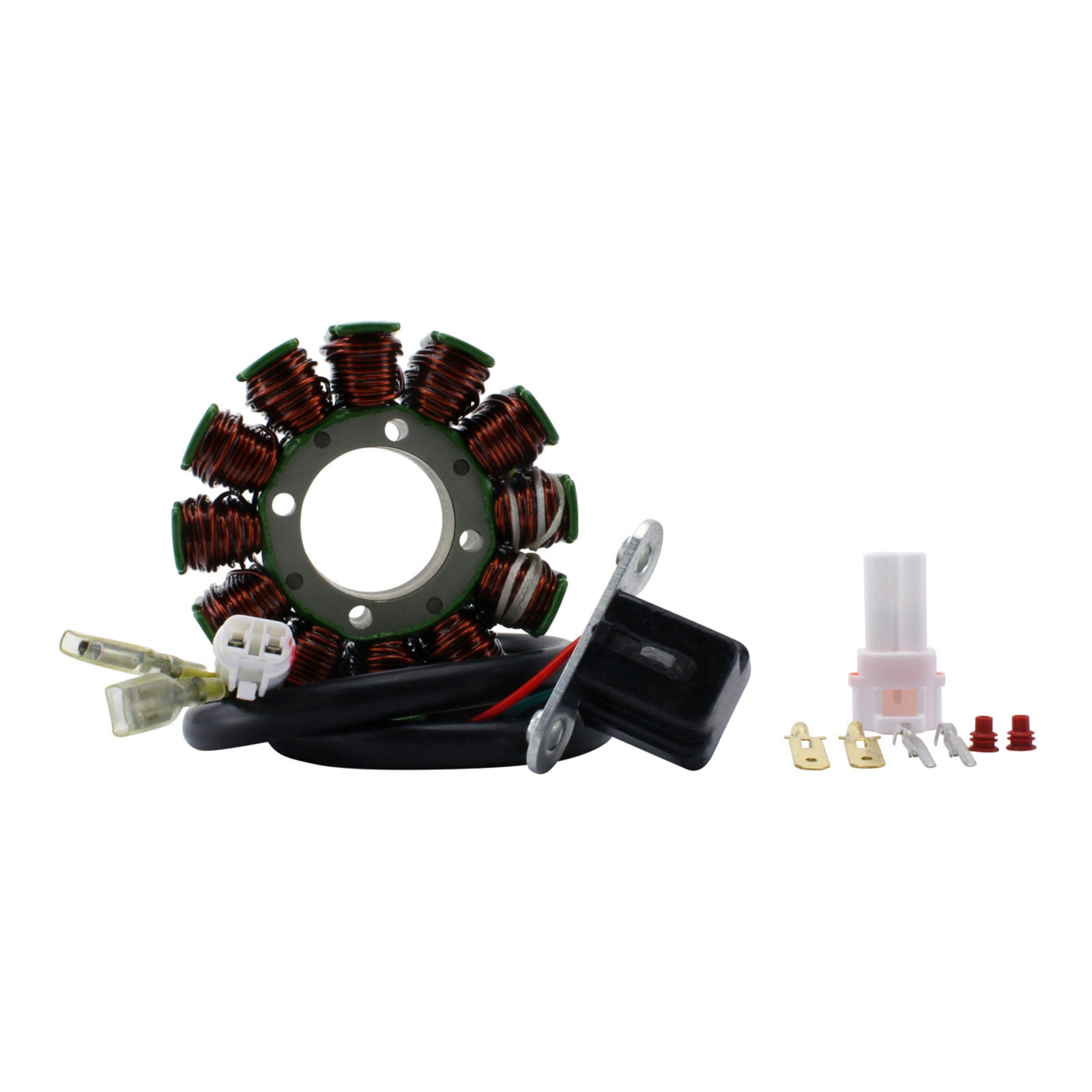

Brand new aftermarket stator.

Features:

• Direct replacement to your original unit.
• 80 watts DC.
• This stator increases power output significantly.
• Plug-and-play, direct fit, easy installation.
• Highest grade of lamination materials.
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Pick up pulsar coil included.

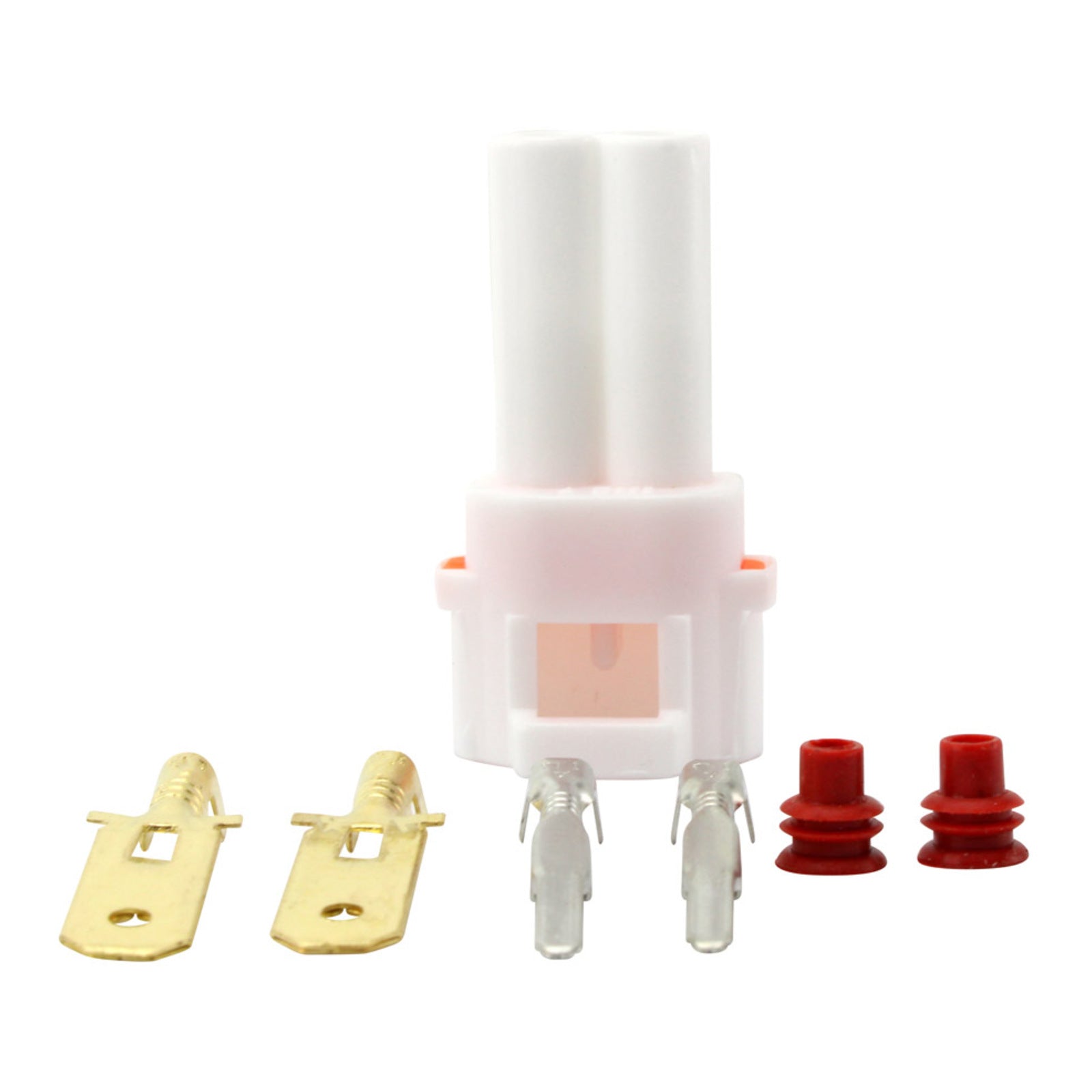

• Connectors included.
• Rubber grommet included.
• All products shipped are tested.
• 20% more output over stock, works with all other OEM components.

Specifications:

• Interior diameter: 29 mm
• Exterior diameter: 77 mm
• Thickness: 21 mm
• Stator wire length to grommet: 120 mm
• Wire length from grommet to plug: 520 mm
• Pickup coil wire length to grommet: 90 mm
• 4 wires
• 1 plug
• 4 pins
• 12 poles
• Alternator resistance (Yellow to Yellow): 0.4 Ω ±20%
• Alternator resistance (Yellow to Ground): O.L. (Open Loop)
• Pickup coil resistance (Red to Green): 130 Ω ±20%

Because of lightweight LED lights, nighttime illumination has become much easier. However, most motorcycle electrical systems need more power to make them work. This RMSTATOR kit provides the stator with the higher power needed to make starting easier and turn on auxiliary lights and other accessories.

Designed to work with the DC system, this set of parts are built-in relays that activate the switched 12V DC output line only when the motor is running. Do you often forget to turn off your lights? No more worries! This kit will be perfect for you because the adjustable shut-off delay will turn them off automatically!

Stator:

• DC stators compatible with lighting systems of equal or less power
• Replace the OEM and increases power output significantly.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

Voltage Regulator Rectifier:

• No assembly required
• Higher grade of electric components.
• The quality exceeds the OEM equipment

Specifications:

< strong>Stator:

• Interior diameter: 34mm
• Exterior diameter: 72mm
• Thickness: 15mm
• Length of wires stator to grommet: 80mm
• Length of wires grommet to plug: 660mm
• Length of pickup coil's wire to grommet: 60mm
• Number of wires: 6
• Number of plugs: 2
• Number of pins: 6
• Alternator : Between each Yellow = 0.4 ohms +-20%
• Pickup : Green/White to Blue/White = 260 ohms +-20%
• Source: Blue to Red = 20 ohms +-20%

Voltage Regulator Rectifier

• Width: 53.6mm
• Length: 79mm
• Height: 22mm
• Wires length: 250mm
• Fixation holes centre to centre: 62mm
• Number of wires: 5
• Minimum Charging Voltage: 14.5V +- 0.5V
• Maximum Charging Current: 50A / 500W
• Open Circuit Voltage: 15V
• Operation Temperature: -20° to 85°

Harnesses

• Wires length: 145mm

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

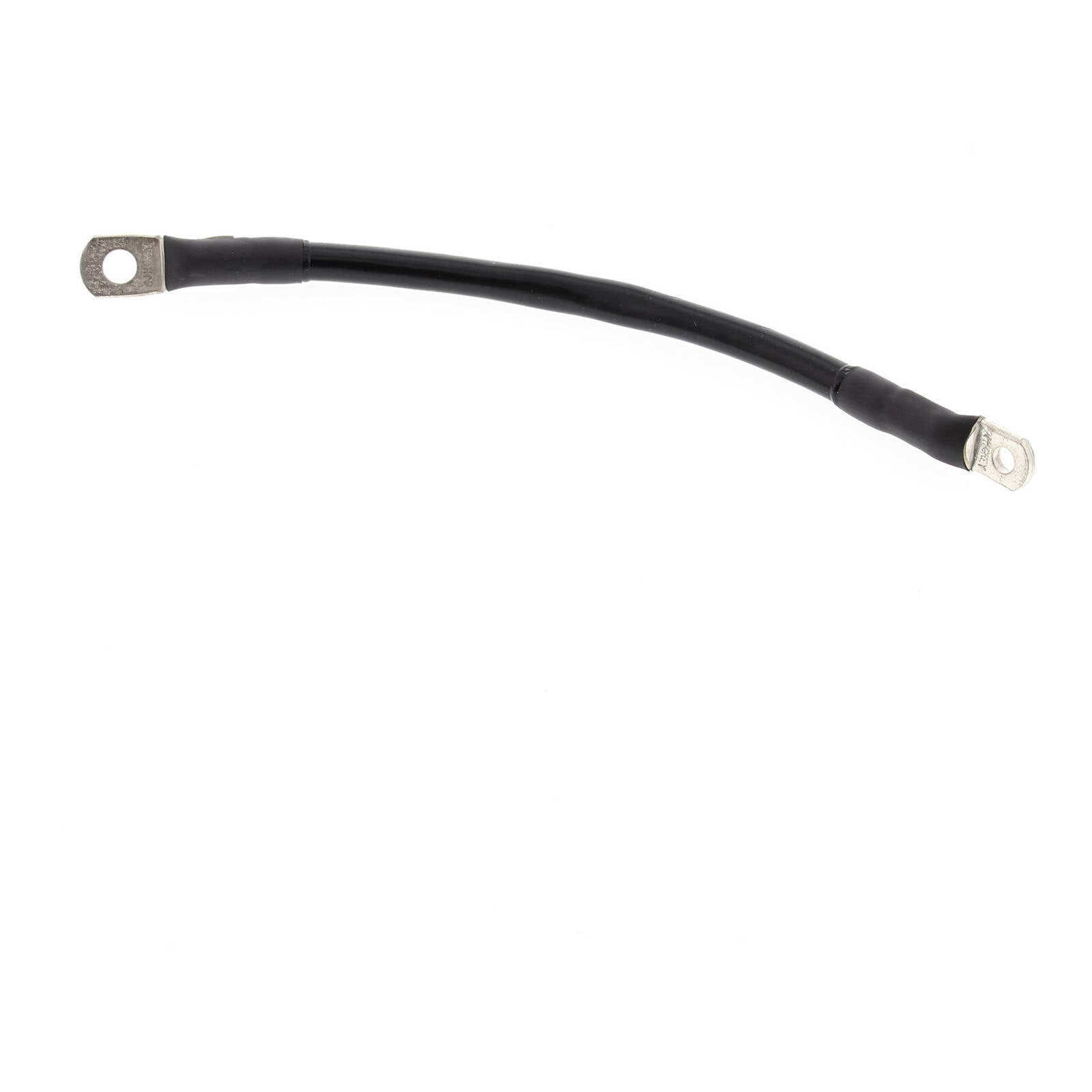

These cables will increase starter performance by reducing voltage losses from undersized cables.

• The outer jacket material is rated for 125 °C and is oil and gas-resistant.
• Meets or exceeds OEM specs for fit and performance.
• Cables will increase starter performance by reducing voltage losses from undersized cables.
• Cables are manufactured with pure electrolytic grade, 36 gauge copper wire strands.
• The 7 over 7 bundling of the copper strands maximizes current flow and the flexibility of the cable.
• The outer jacket material is rated for 125 °C and is oil and gas-resistant.

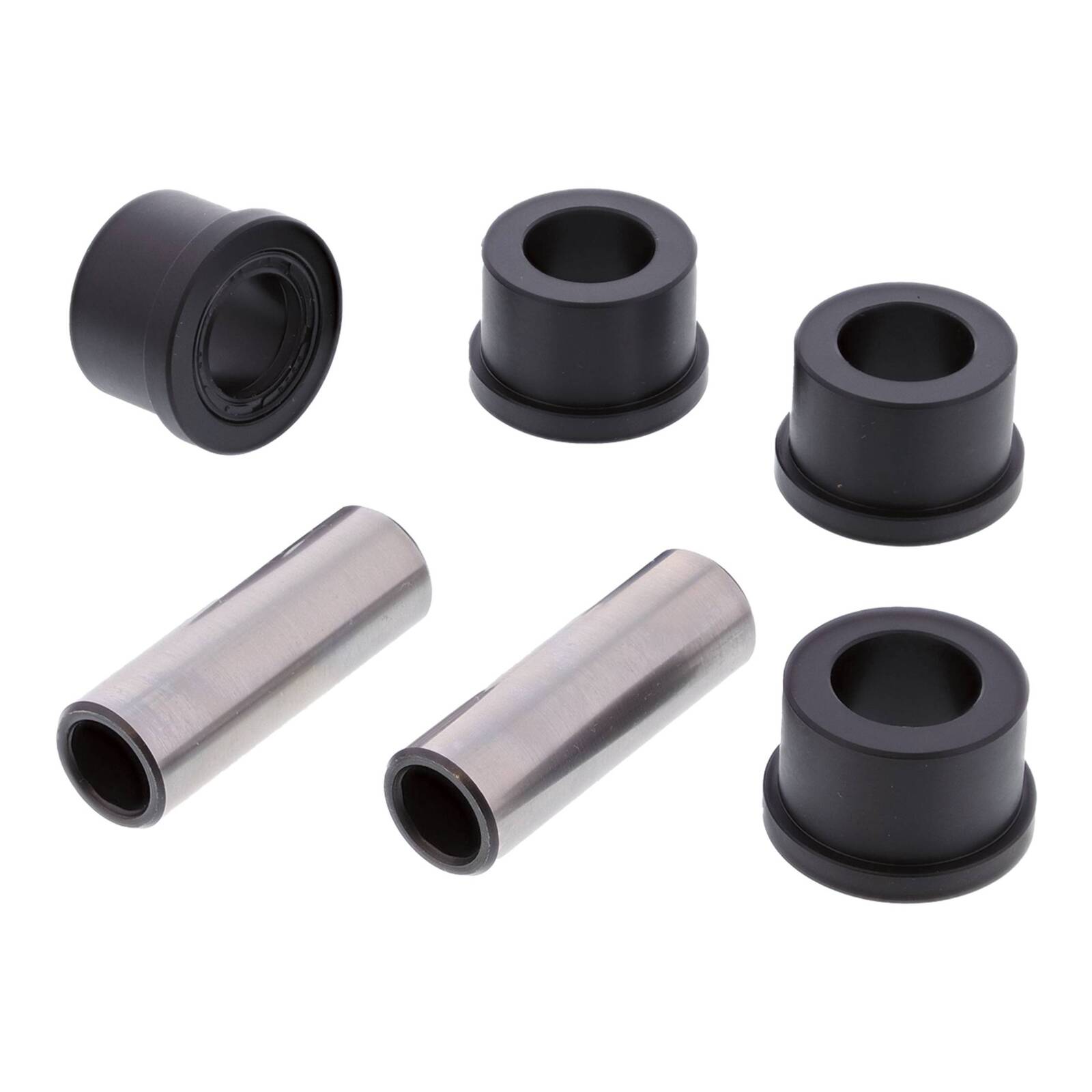

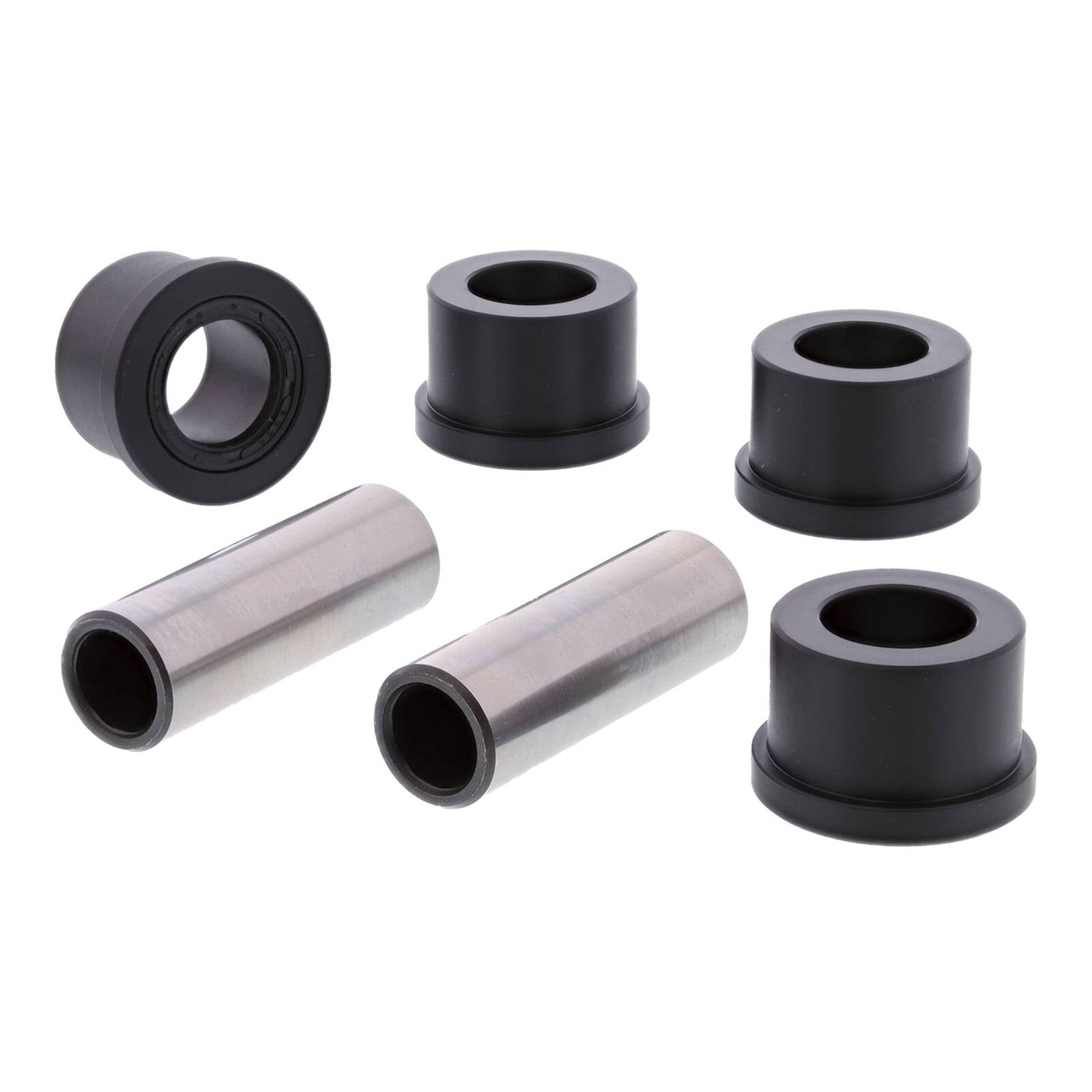

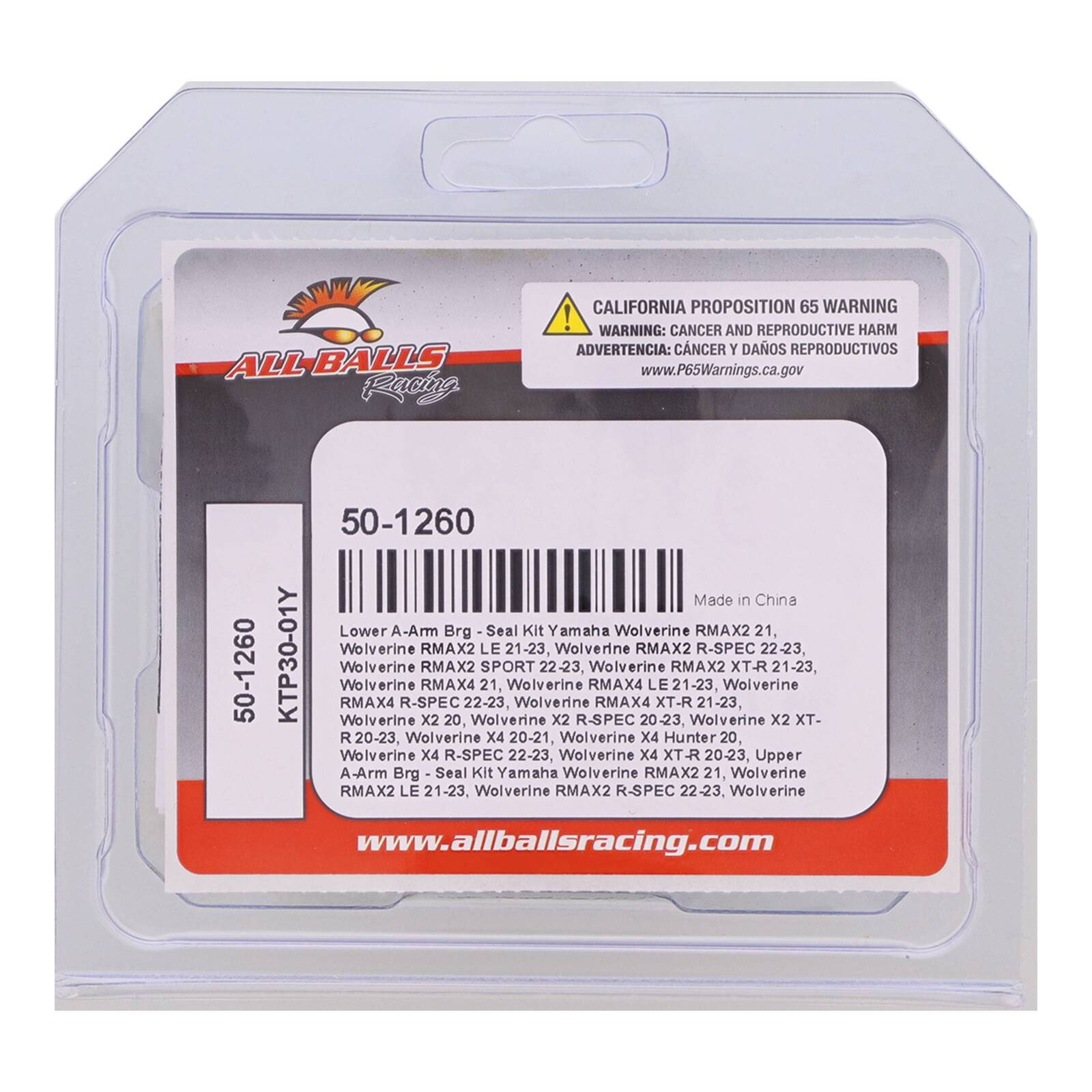

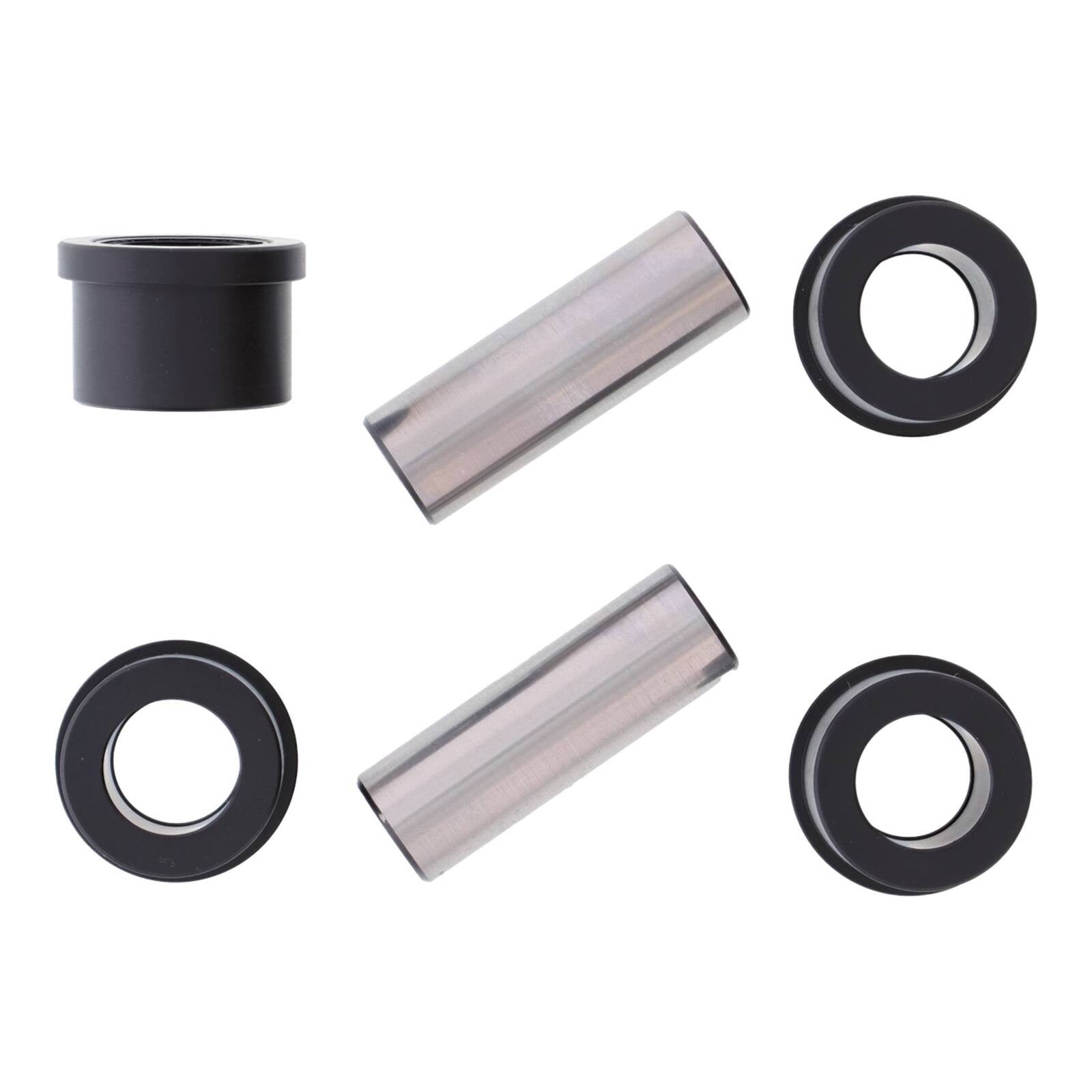

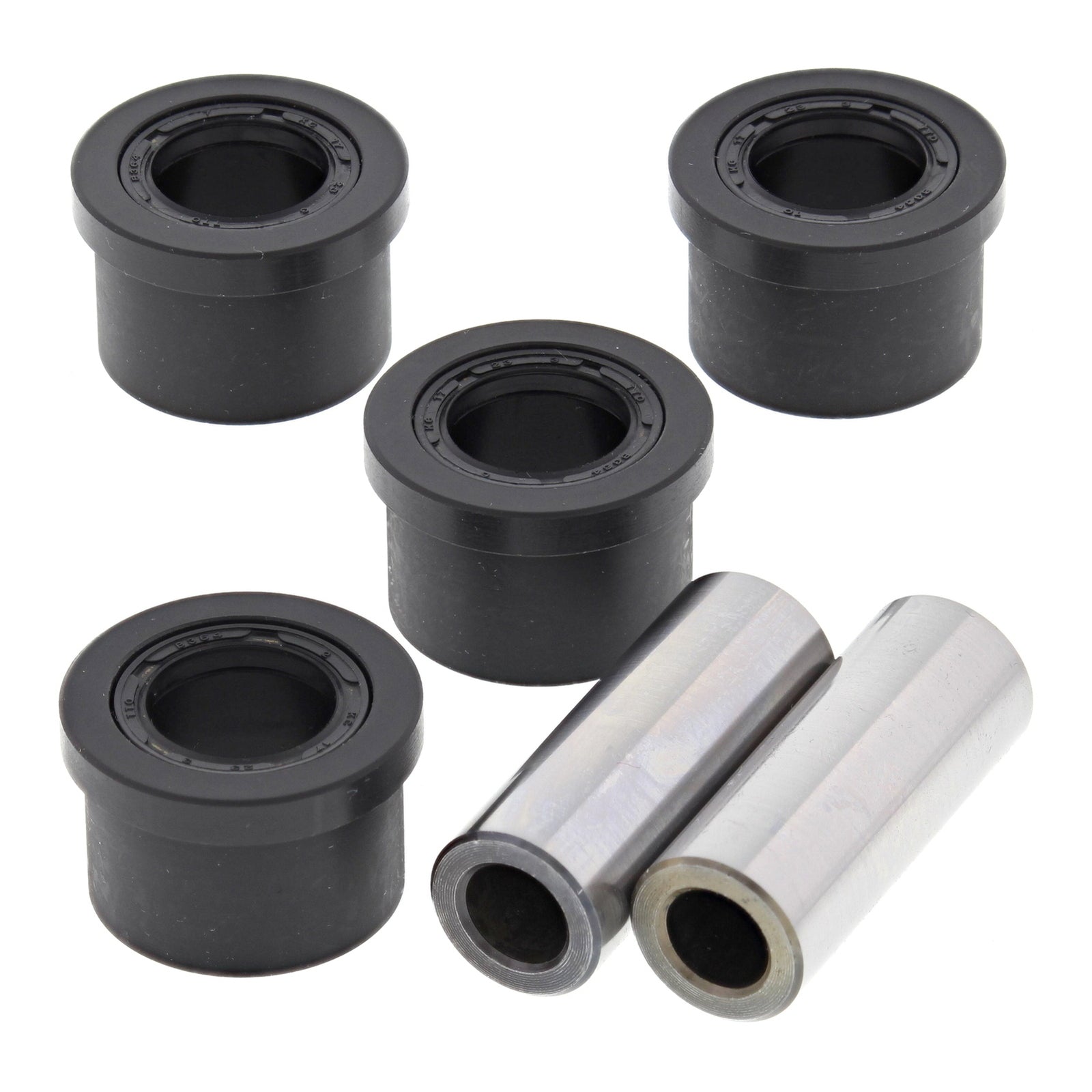

High-quality lower A-Arm bearing and seal kit from All Balls. This kit is designed to replace worn-out rubber bushings and provides greater suspension travel and performance.

Features:

• Kit contains bearings and seals for lower A-Arm.
• Upgrades rubber bushings found in Utility ATV A-Arms to redesigned HD Delrin bushings.

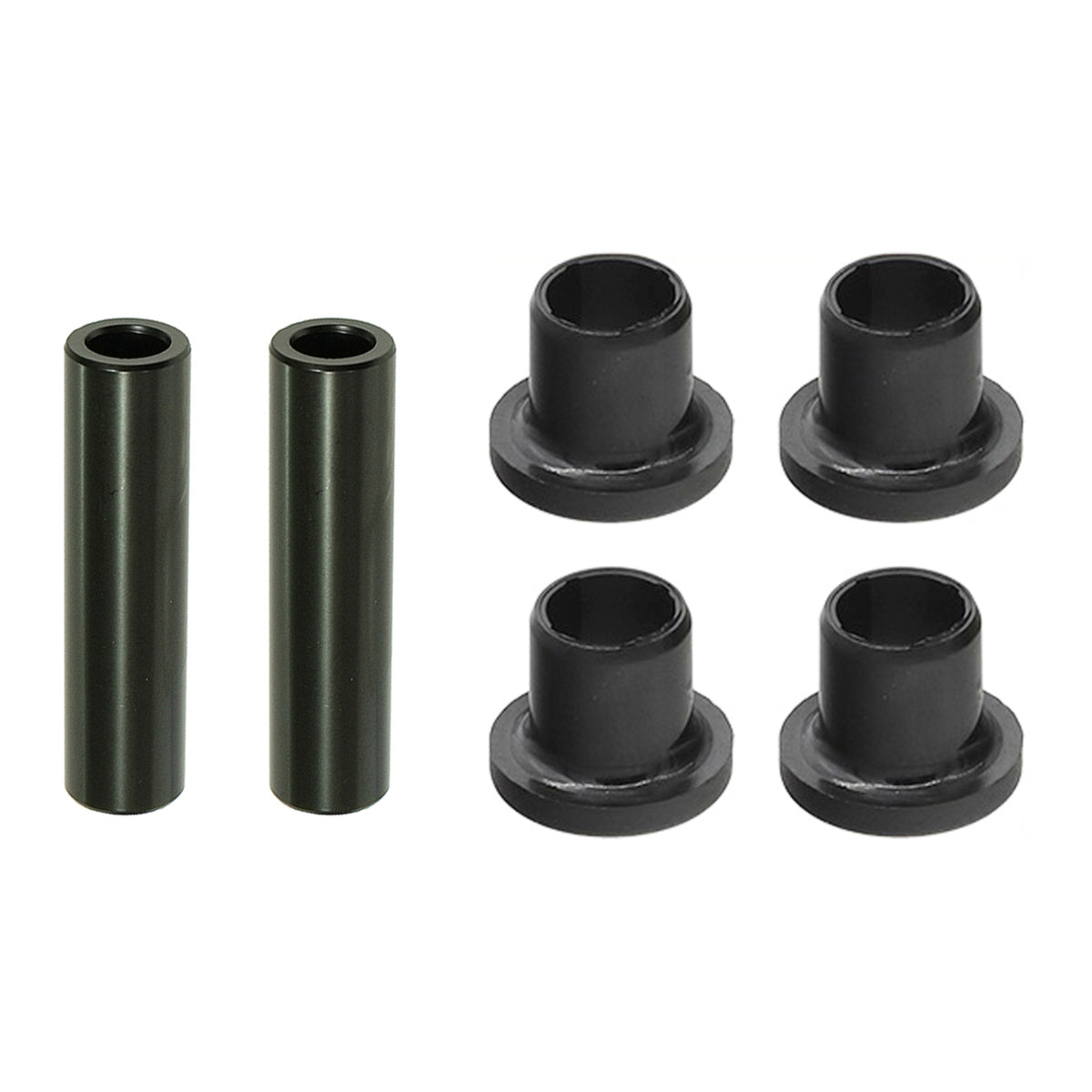

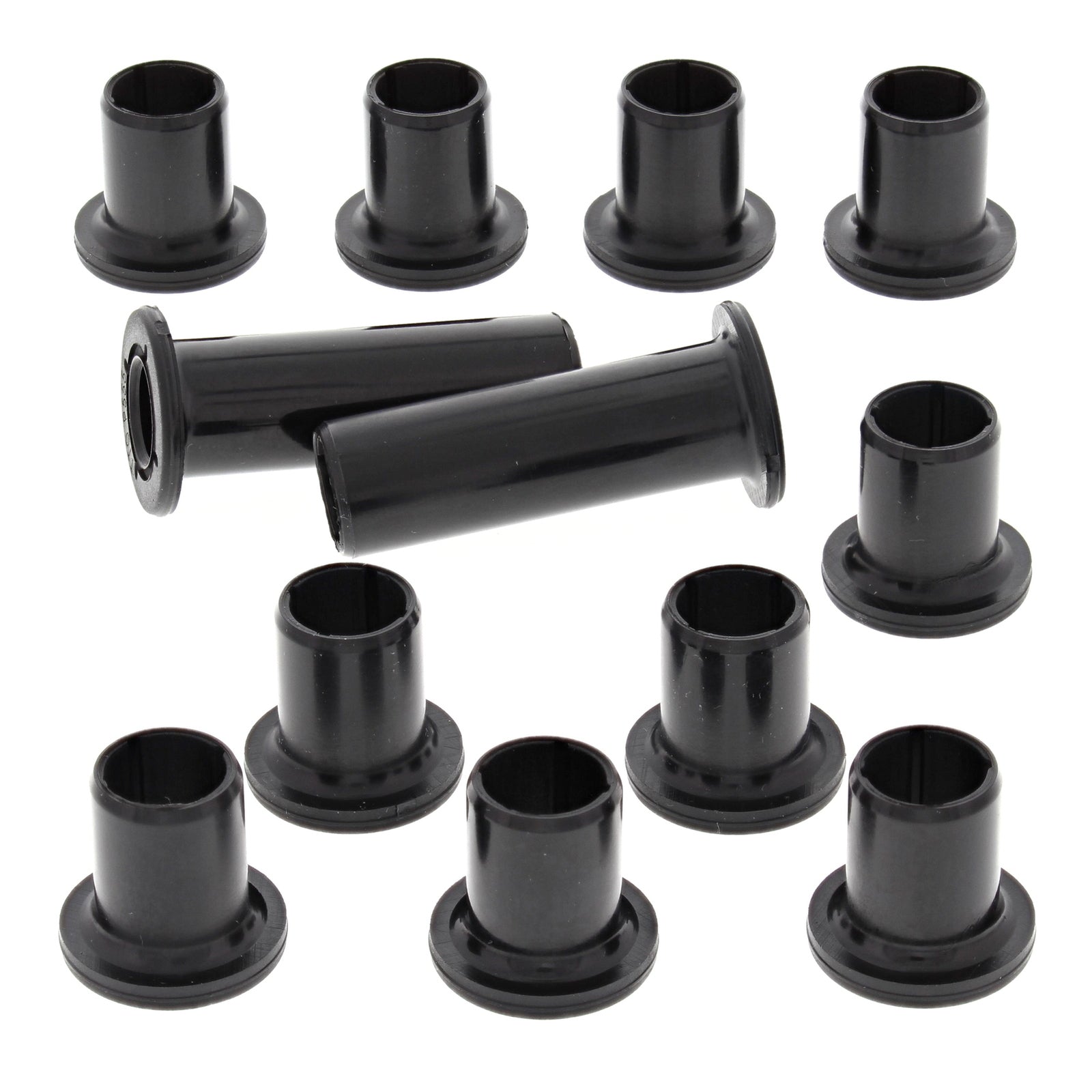

A Quality A-Arm Kit from All Balls Racing. These A-Arm kits are direct replacements for OEM. Kit includes needle bearings, shafts, thrust shims, seals - cup and double lip types.

Upgrade rubber bushings found in Utility ATV A-Arms to redesigned HD Delrin bushings. Designed to replace worn-out rubber bushings and provides greater suspension travel and performance.
