RMSTATOR

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• The Quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components.
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

*All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Specifications:

• Dimensions:

  • Width: 80mm
  • Length: 103mm
  • Height: 32mm
  • Fixation holes centre to centre: 75mm
  • Wires length: 120mm

• Other Specifications:

  • Number of plugs: 1
  • Number of pins: 5
  • Minimum Charging Voltage: 14.5V ± 0.5V
  • Maximum Charging Current: 25A-35A/300W-500W
  • Open Circuit Voltage: <15V
  • Operating Temperature: -20°C to 85°C

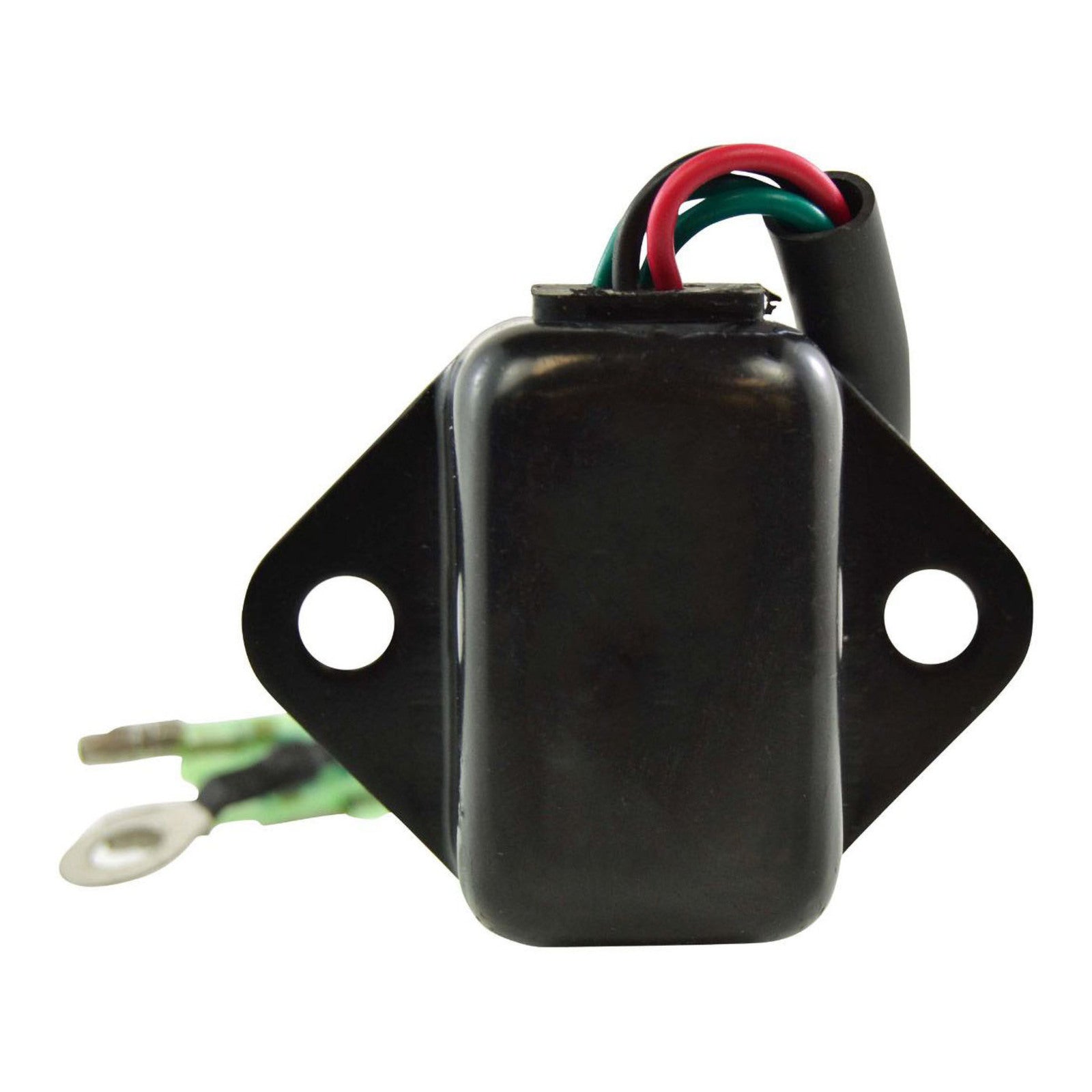

Stop burning your regulator rectifier! It is time to update or replace your voltage regulator with the advanced MOSFET type.

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

It runs cooler than all OEM diode-style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• The quality exceeds the OEM equipment
• Higher grade of electric components
• All shipped products are tested

Specifications:

Dimensions:

• Width: 62 mm
• Length: 65 mm
• Height: 25 mm
• Fixation holes centre to centre: 67 mm
• Wires Length: 158 mm and 198 mm

Other specifications:

• Number of plugs: 4
• Number of pins: 5
• Number of wires: 5
• Minimum Charging Voltage: 14.5 V +/- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: 15 V
• Operating Temperature: -20° to 85°

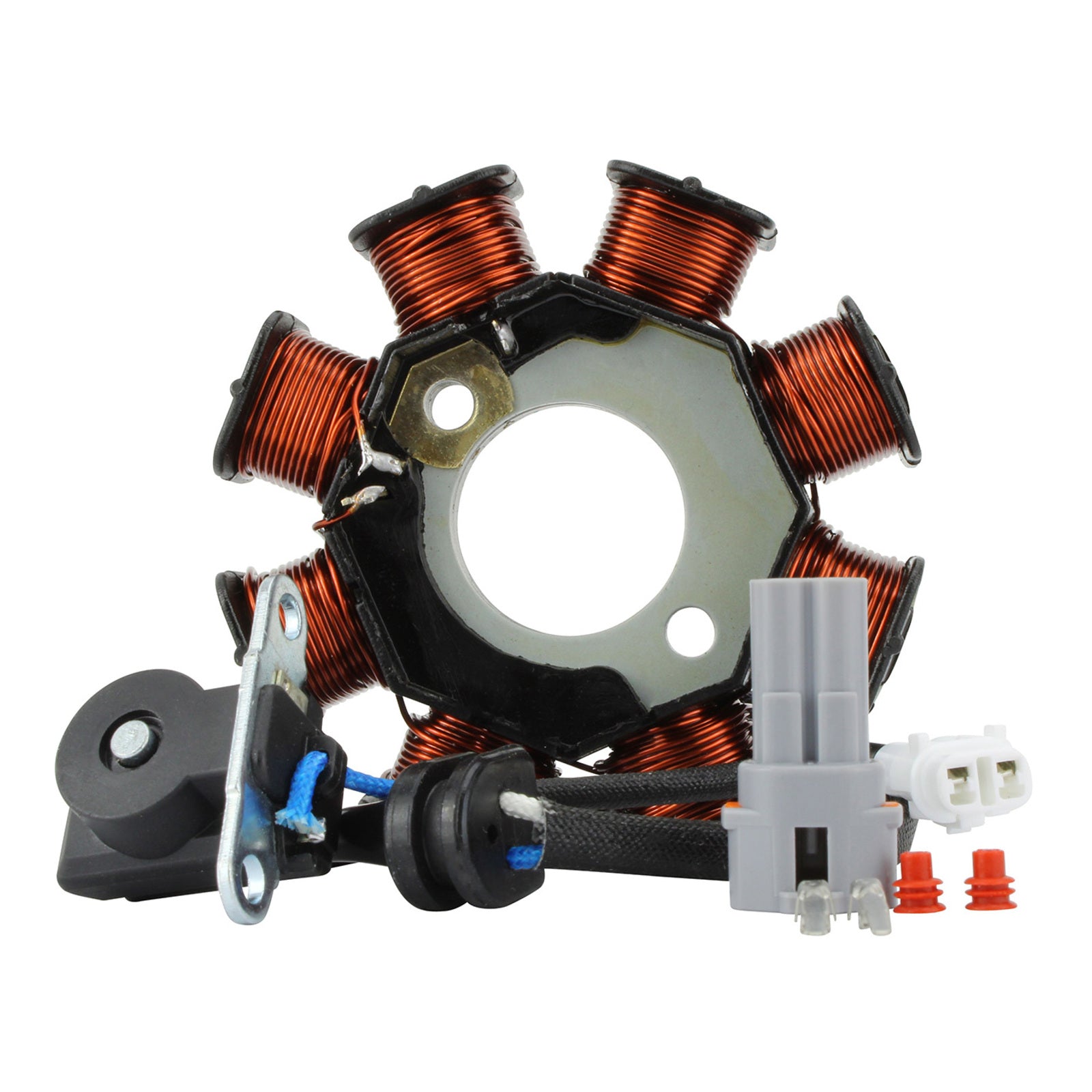

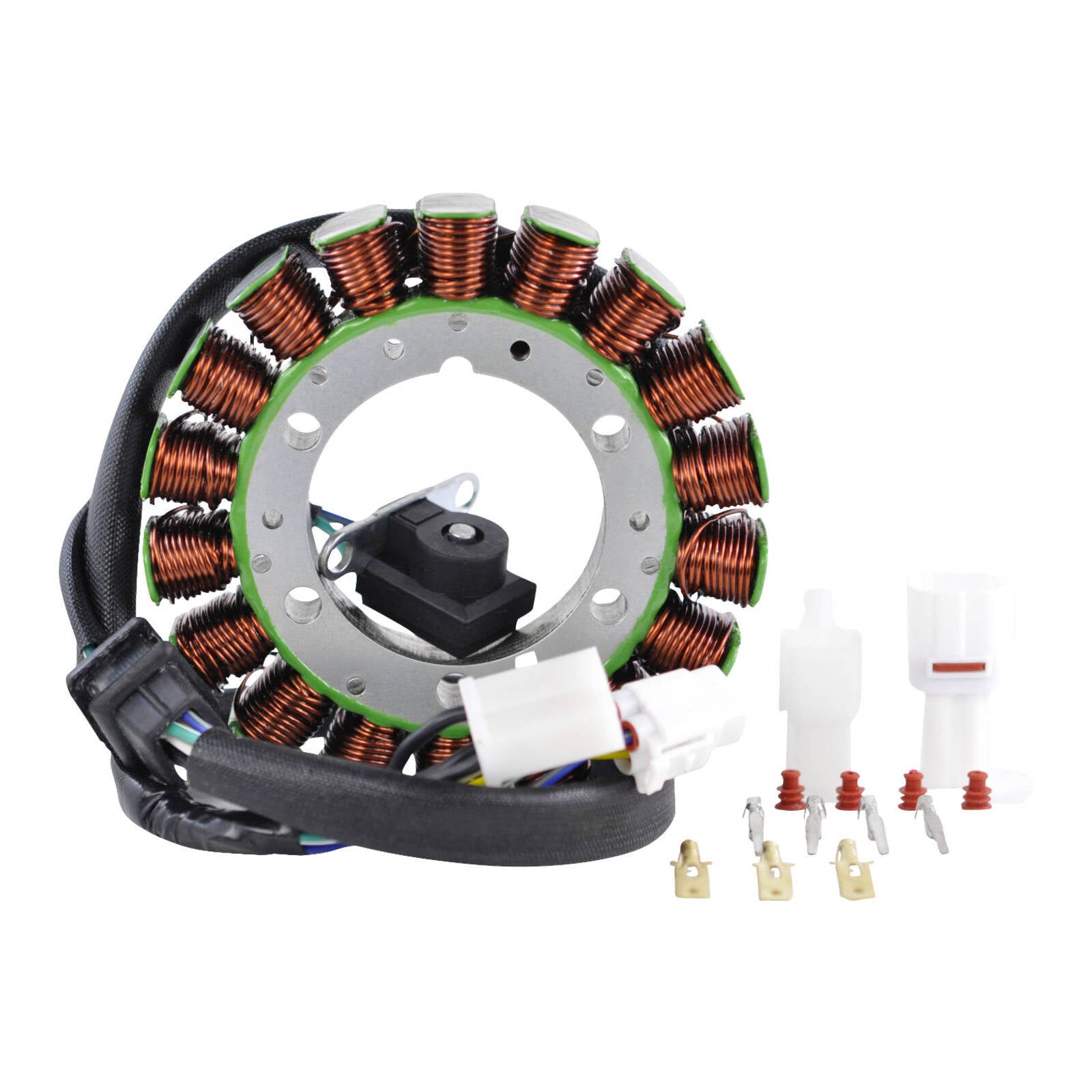

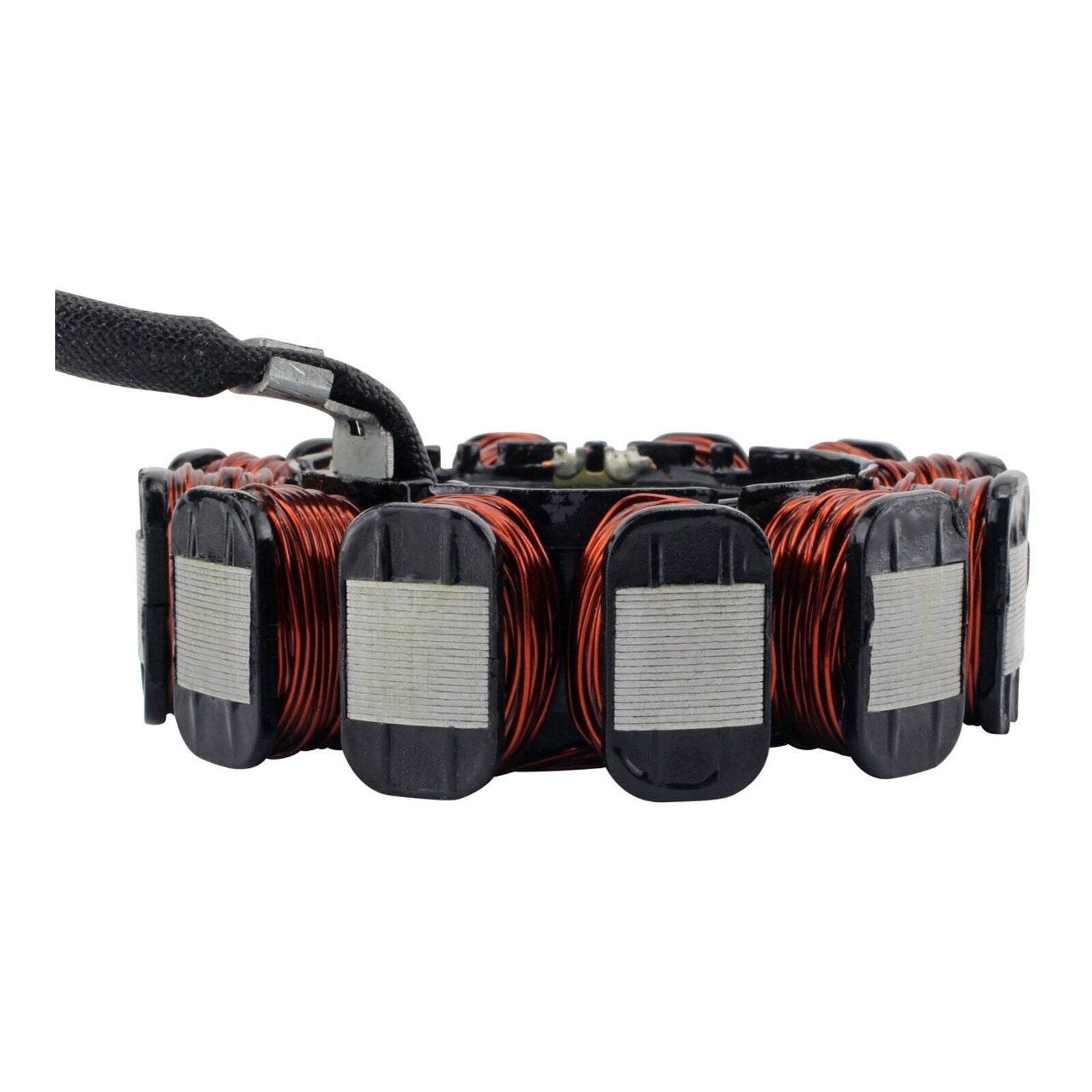

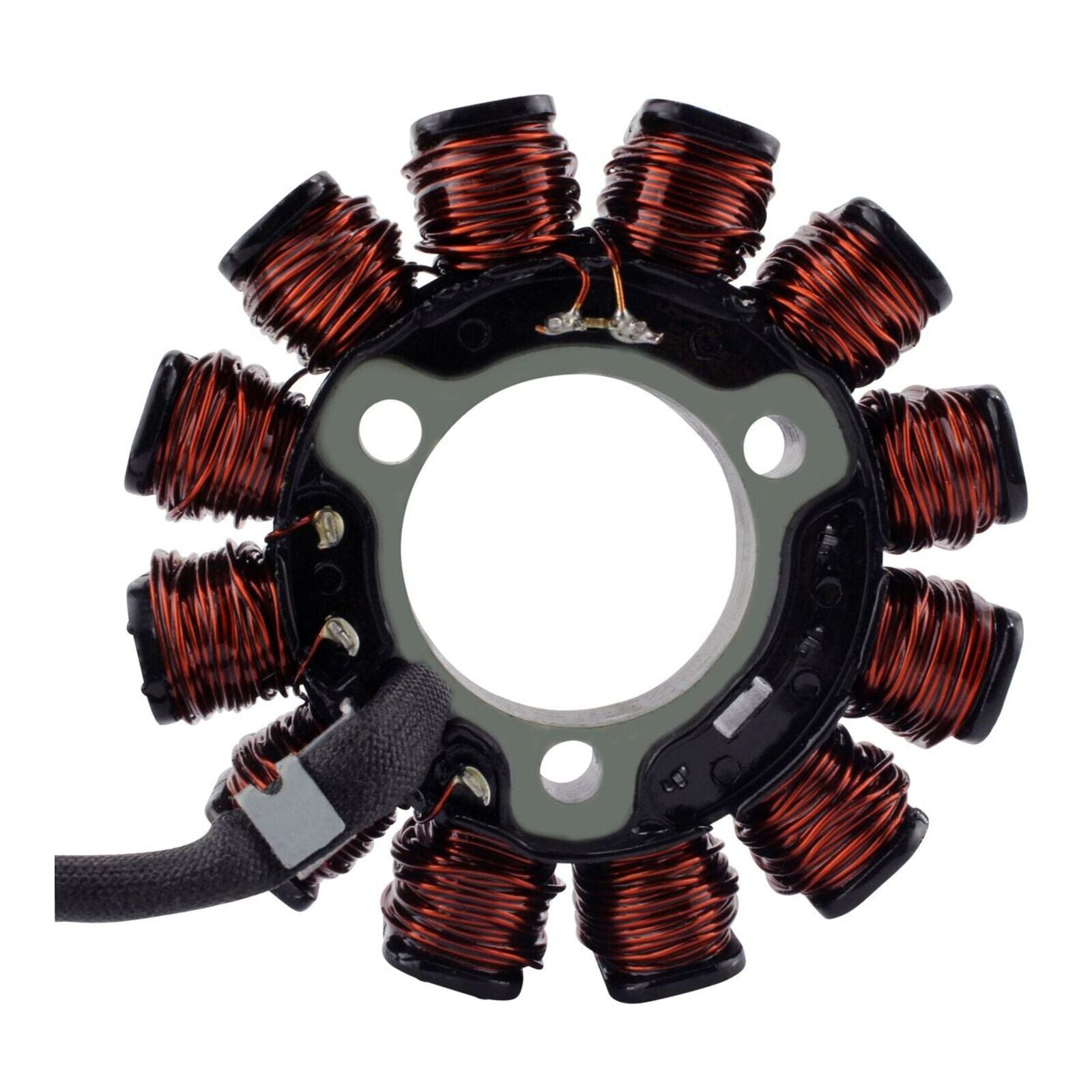

Brand new generator stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

Dimensions:

• Interior diameter: 42mm
• Exterior diameter: 106mm
• Thickness: 20mm
• Length of wires stator to grommet: 100mm
• Length of wires grommet to plug: 250mm
• Length of pickup coil's wire to grommet: 80mm



Other specifications:

• Number of wires: 5
• Number of plugs: 1
• Number of pins: 5

Wire to wire resistance:

• Alternator: Yellow between each Yellow = 0.4ohms +/-20%
• Pickup: Blue to Green = 115ohms +/-20%

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included
• Includes a two-year warranty

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

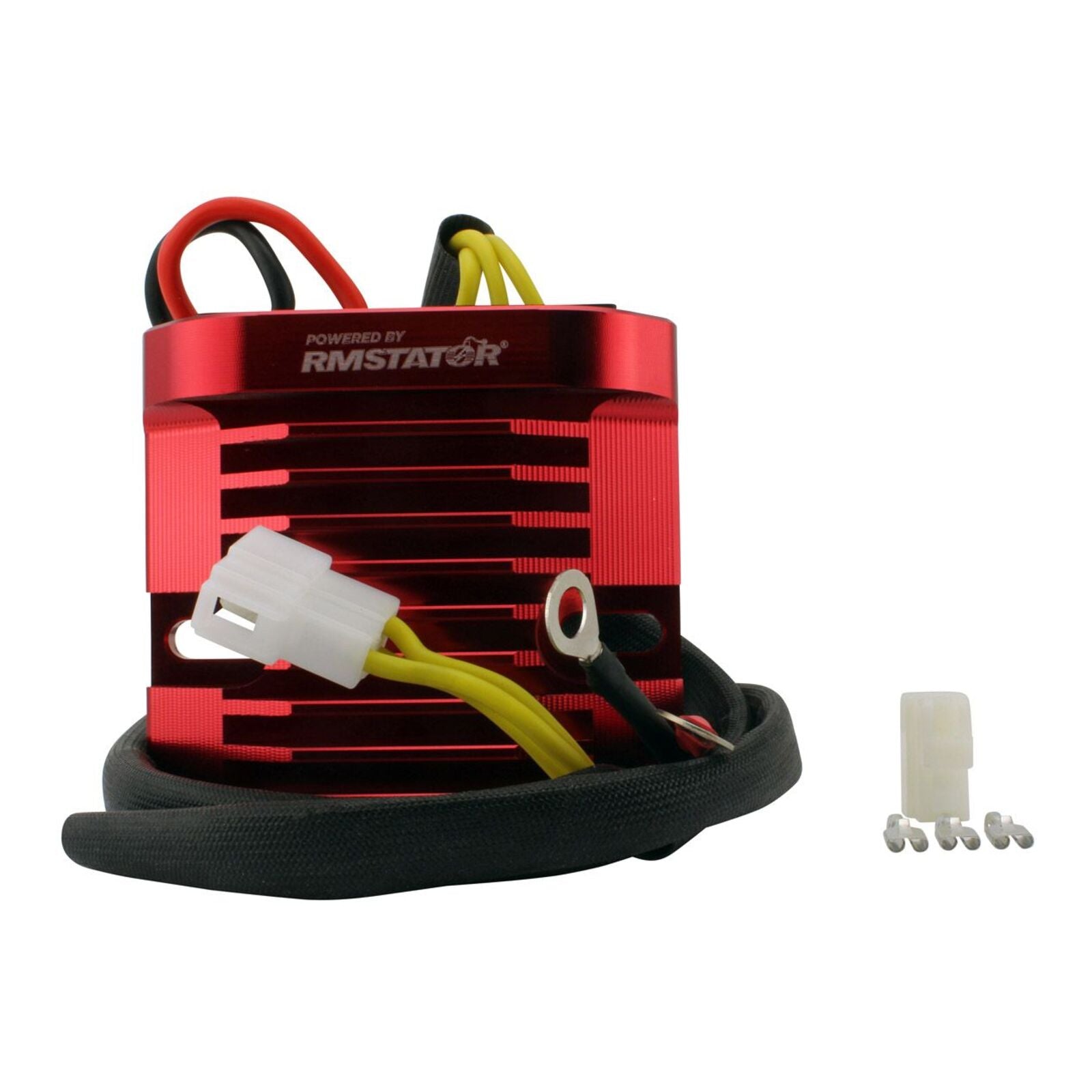

This special regulator bypasses the vehicle’s failure-prone wiring harness between the regulator and battery and instead connects directly to the battery with ring terminals for the best possible connection.

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Specifications:

• Stator:

  • Dimensions:
    • Interior diameter: 42 mm
    • Exterior diameter: 115 mm
    • Thickness: 22 mm
    • Length of wires stator to grommet: 140 mm
    • Length of wires grommet to plug: 530 mm & 590 mm
    • Length of pickup coil's wire to grommet: 155 mm
  • Other Specifications:
    • Number of wires: 5
    • Number of plugs: 2
    • Number of pins: 5
    • Number of poles: 18
    • Wire to wire resistance:
      • Alternator: Black to Black = 0.5 ohms ±20%
      • Alternator: to ground = O.L (open loop)
      • Pickup: Green to Blue = 200 ohms ±20%

• RMSTATOR Red Machined Aluminum Mosfet Voltage Regulator Rectifier:

  • Dimensions:
    • Width: 95 mm
    • Length: 90 mm
    • Height: 30 mm
    • Wires length: 811 mm and 350 mm
    • Fixation holes center to center: 75 mm
  • Other Specifications:
    • Number of plugs: 2
    • Number of pins: 5
    • Number of wires: 5
    • Minimum Charging Voltage: 14.5 V ± 0.5 V
    • Maximum Charging Current: 50 A / 500 W
    • Open Circuit Voltage: < 15 V
    • Operation Temperature: -20°C to 85°C

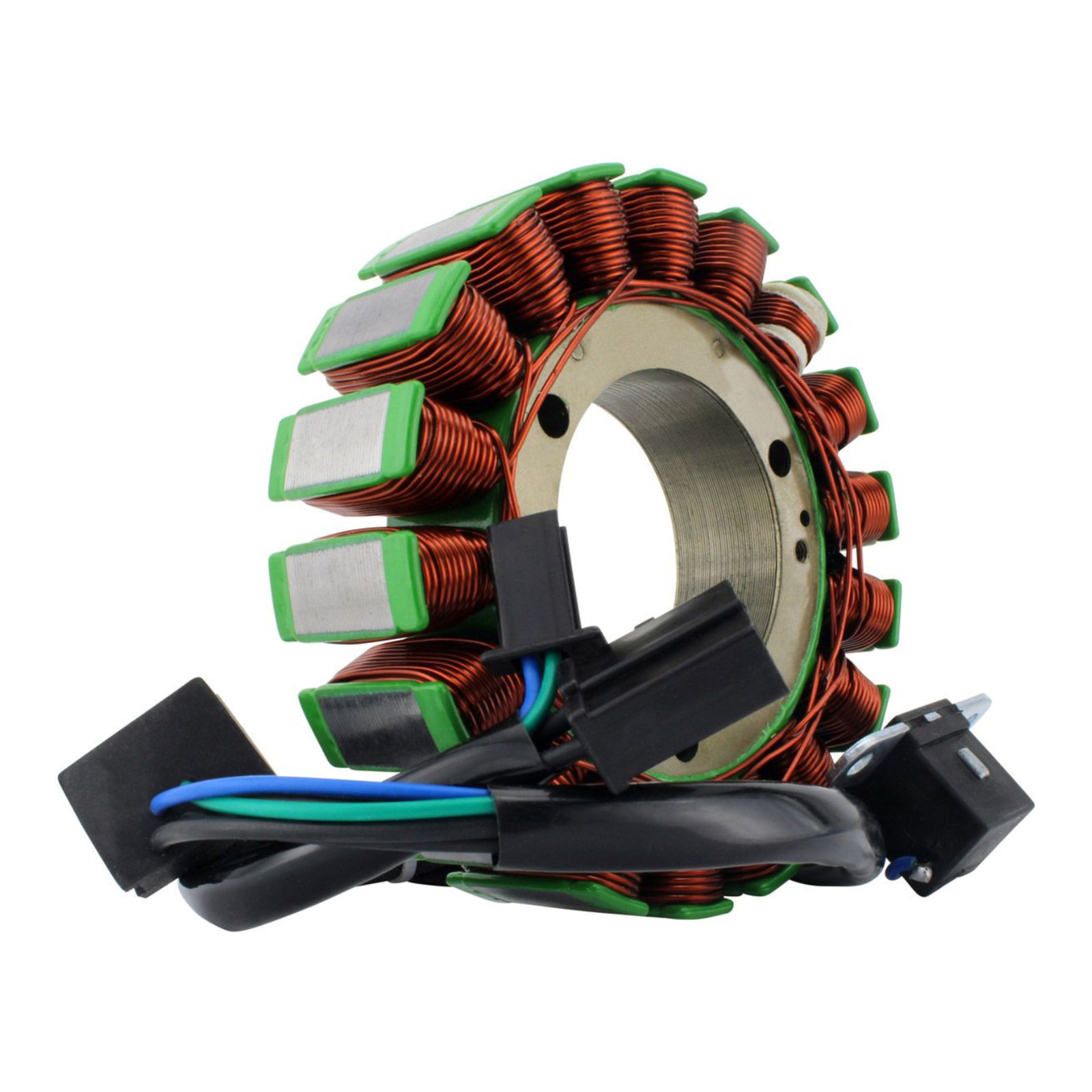

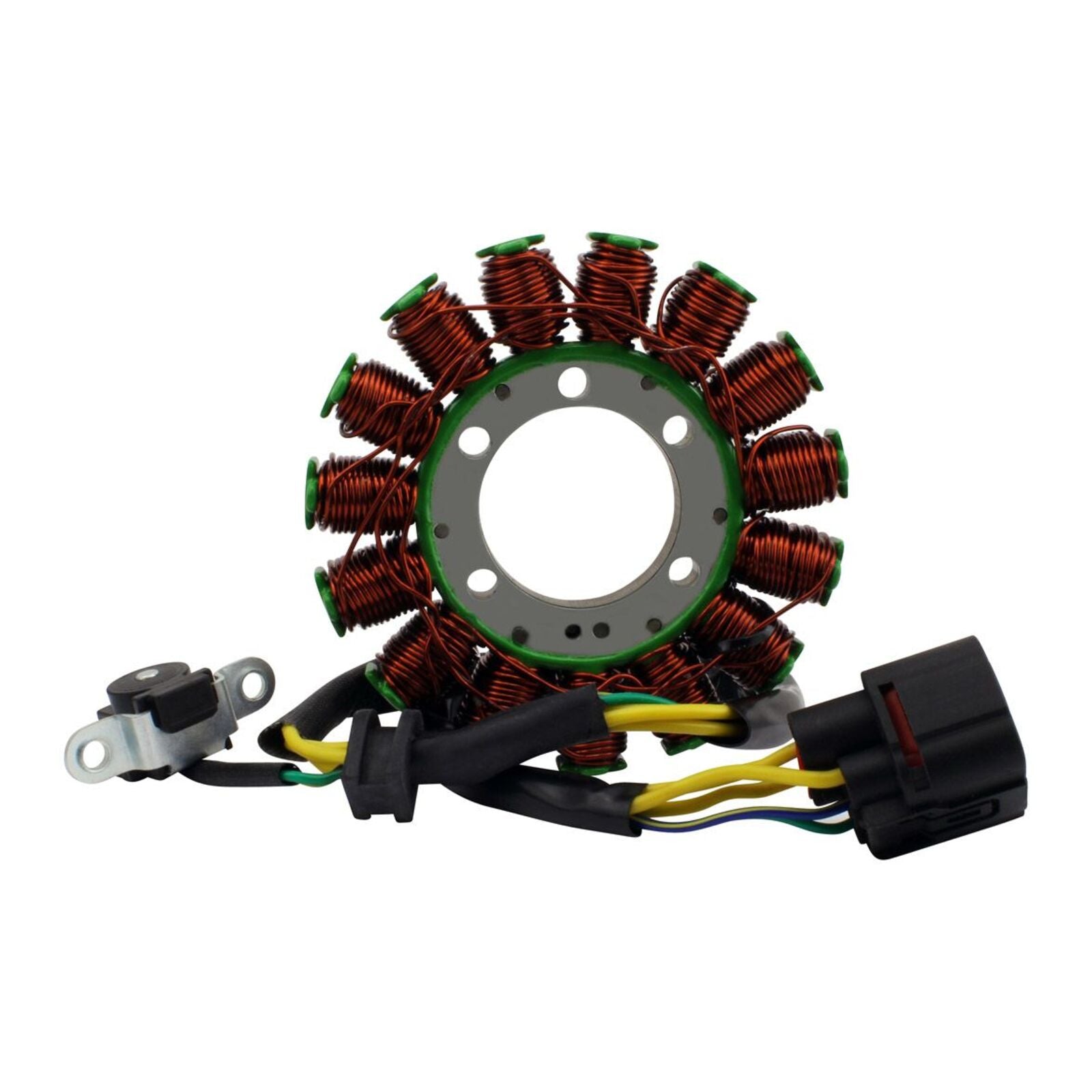

Brand new aftermarket Stator + Voltage Regulator Kit

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

Stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connectors included
• Rubber grommet included

Voltage Regulator Rectifier

• No assembly required
• Higher grade of electric components
• The quality exceeds the OEM equipment

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and are a major cause of repetitive electrical issues.

Stator

Dimensions:

• Interior diameter: 42mm
• Exterior diameter: 115mm
• Thickness: 22mm
• Length of wires stator to grommet: 120mm
• Length of wires grommet to plug: 530mm
• Length of pickup coil's wire to grommet: 150mm

Other specifications:

• Number of wires: 5
• Number of plugs: 2
• Number of pins: 5
• Number of poles: 18

Wire to wire resistance:

• Alternator 3p: Black between each Black = 1 ohm +-20%
• Pickup: Green to Blue = 200 ohms +-20%
• Alternator to ground = O.L

Voltage Regulator

Dimensions:

• Width: 82mm
• Length: 94mm
• Height: 28mm
• Wires length: 183mm
• Fixation holes centre to centre: 73mm

Other specifications:

• Number of plugs: 2
• Number of pins: 7
• Number of wires: 7
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20° to 85°

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

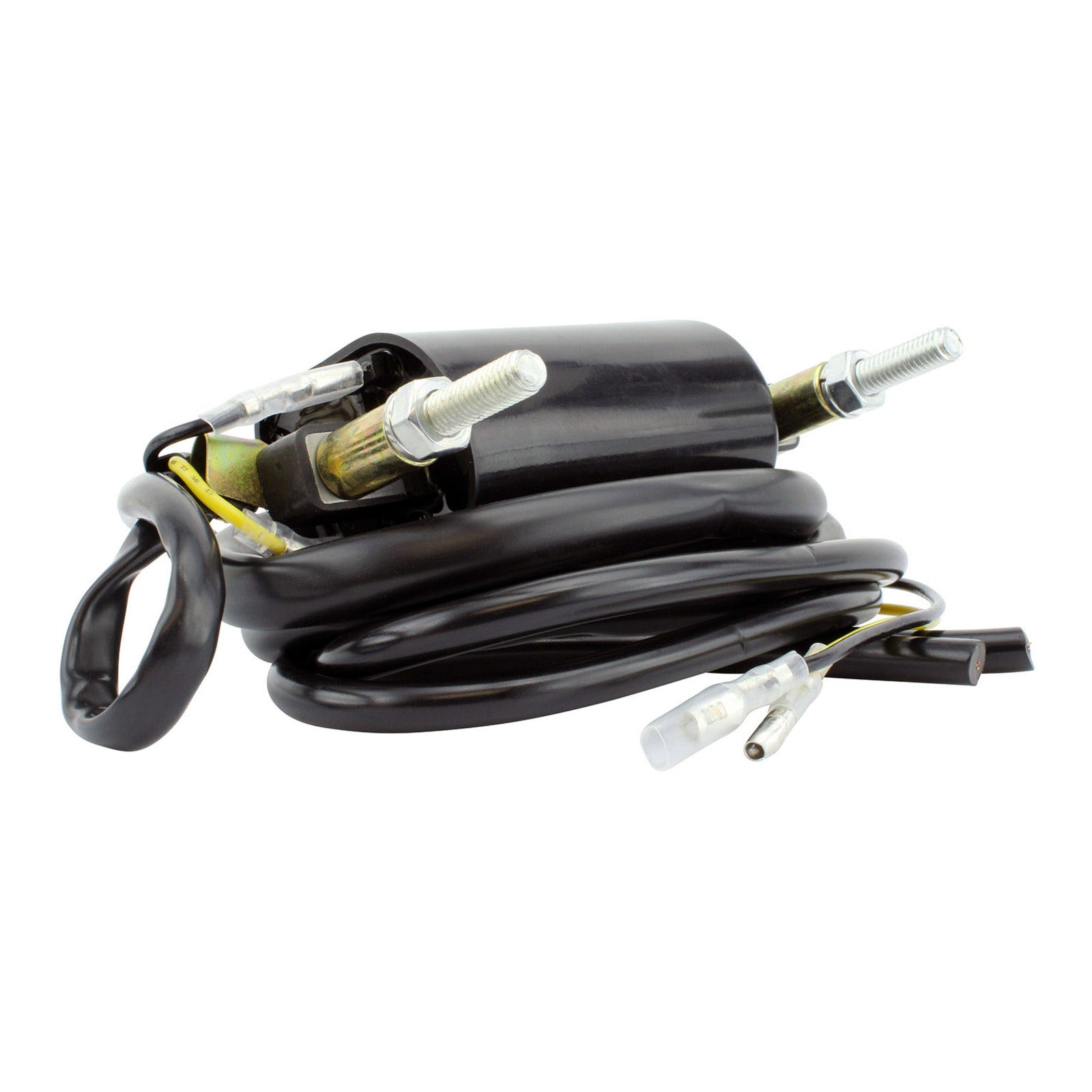

Brand new ignition cap coil.

Features:

• Direct replacement to your original unit.
• Quality exceeds the OEM equipment.
• All shipped products are tested.
• Bracket centre to centre: 100 mm

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

Features:

• RM STATOR's PeakRPM technology provid a more aggressive timing curve for increased throttle response.
• Ride at full throttle with our application-specific CDI box that raises the rev limiter by 1000 RPM.
• Enjoy fast and easy installation with our plug and play design and included dielectric connector grease.
• OEM-grade electronic components and printed circuit boards for long-term reliability and performance.
• 90% of ignition issues are caused by a faulty stator. Full test ignition components before buying.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

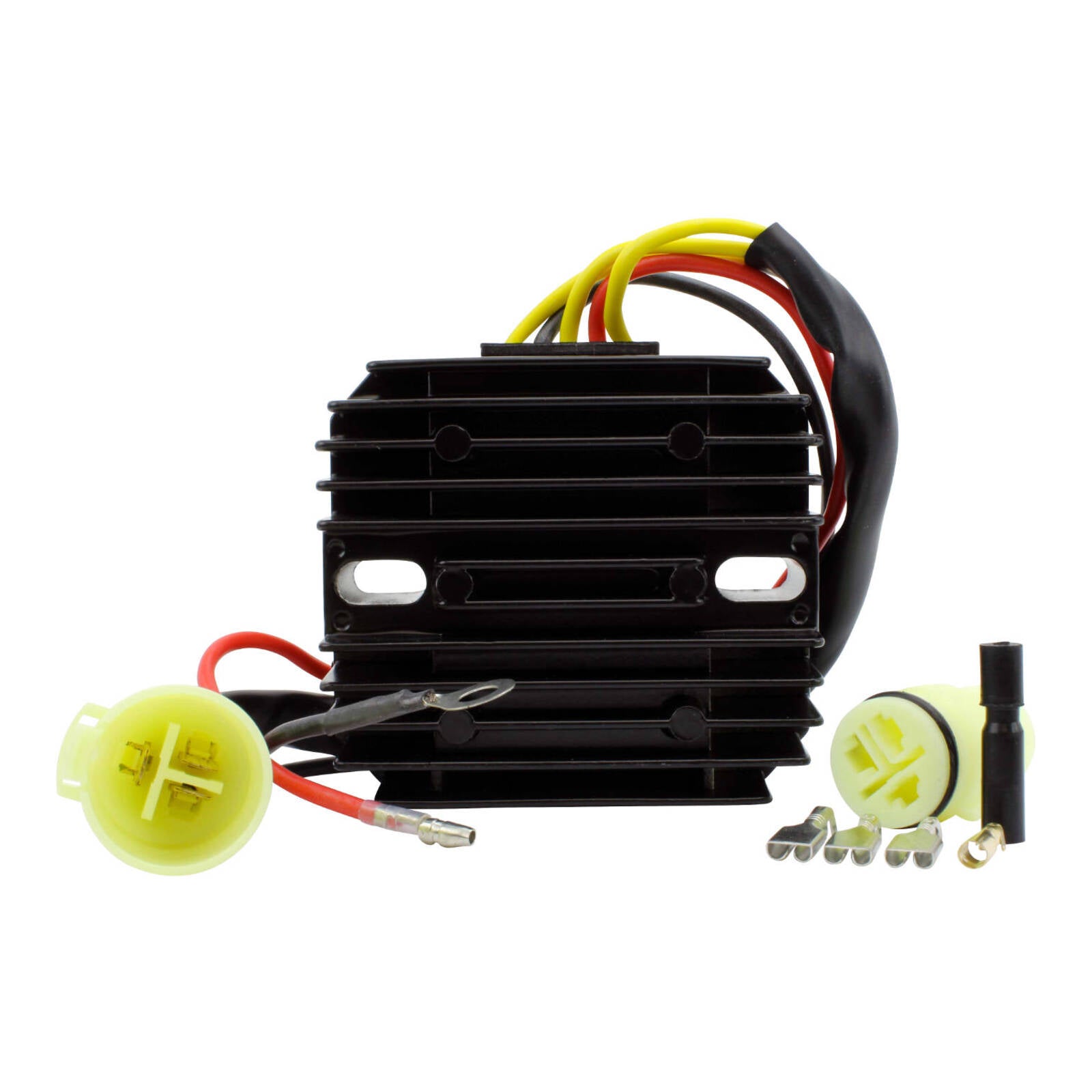

Brand new aftermarket voltage regulator rectifier

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.
• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted corroded defective and a major cause for repetitive electrical issues.

Dimensions:

• Width: 90mm
• Length: 94mm
• Height: 30mm
• Fixation holes centre to centre: 75mm
• Wires Length: 320mm & 235mm

Other specifications:

• Number of plugs: 2
• Number of pins: 7
• Number of wires: 7
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20° to 85°

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Brand new aftermarket Voltage Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• No assembly required
• Higher grade of electric components
• The quality exceeds the OEM equipment
• All products shipped are tested

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Specifications:

Dimensions:

• W idth: 66 mm
• Length: 80 mm
• Height: 28 mm
• Distance between fixation holes center to center: 68 mm

Other specifications:

• Number of plugs: 1
• Number of pins: 5
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20°C to 85°C

Note: Battery condition is important. No regulator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY

Direct replacement to your original unit.

Features:

• Plug-and-play, direct fit, easy installation.
• Highest grade of lamination materials.
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Pickup pulsar coil included.
• Connectors included.
• Rubber grommet included.
• All products shipped are tested.

Dimensions:

• Interio r Diameter: 42 mm
• Exterior Diameter: 115 mm
• Thickness: 10 mm
• Length of Wires (Stator to Grommet): 90 mm
• Length of Wires (Grommet to Plug): 40 mm
• Length of Pickup Coil's Wire to Grommet: 320 mm

Other Specifications:

• Number of Wires: 5
• Number of Plugs: 1
• Number of Pins: 5
• Number of Poles: 15
• Alternator (Yellow to Yellow): 0.4 ohms ± 20%
• Pickup (Blue/Yellow to Green): 240 ohms ± 20%

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connectors included
• Rubber grommet included
• Back Plate included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause of repetitive electrical issues.

Dimensions:

• Interior diameter: 42mm
• Exterior diameter: 115mm
• Thickness: 21mm
• Length of wires stator to grommet: 145mm
• Length of wires grommet to plug: 580mm

Other specifications:

• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3
• Number of poles: 18

Wire to wire resistance:

• Alternator: Yellow to Yellow = 0.5 ohms +-20%

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Plug-and-play replacement generator stator from RM Stator.

Dimensions:

• Interior diameter: 54mm
• Exterior diameter: 114mm
• Thickness: 18mm
• Length of wires stator to grommet: 140mm
• Length of wires grommet to plug: 320mm
• Length of pickup coil's wire to grommet: 95mm

Other specifications:

• Number of wires: 7
• Number of plugs: 2
• Number of pins: 7
• Wire to wire resistance:
  • Alternator: Black between each Black = 0.4 ohms +-20%
  • Pickup: Blue to Green = 185 ohms +/-20%
  • Position Sensor: White to Yellow = 0.2ohms +/-20%

Details:

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Replacement ignition key switch for your motorcycle/ATV. Direct replacement to the original unit this unit provides excellent plug-and-play, direct fit functionality providing simple, quick & easy installation. Two keys & all connectors are included.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Two keys included
• Connector included

Dimensions:

• Height: 50mm
• Diameter: 35mm

Other Specification:

• Number of wires: 4
• Number of plugs: 1
• Number of keys: 2
• Number of positions: 2 (Off/On)

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All products shipped are tested

Specifications:

• Number of plugs: 1
• Number of terminals: 3
• Number of wires: 3
• CPS Resistance Specification:
• Yellow to White Wire: 560 ohms +/-10%
• Black Wire to Ground: 0-0.5 ohms +/-10%

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Quality exceeds the OEM equipment

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
4. There are multiple stators possible on the 2006-2020 Triumph Daytona 675 et Dayton 675 R. Please refer to below:
• This stator replaces only OEM # T1300181 and is used on vehicles with a VIN HIGHER than 564948. For vehicles with VIN up to 381274 or VIN 381275 to 564947, you must look for RM01389.

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connectors included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions:

• Interior diameter: 54 mm
• Exterior diameter: 119 mm
• Thickness: 28 mm
• Length of wires stator to grommet: 160 mm
• Length of wires grommet to plug: 430 mm
• Length of pickup coil's wire to grommet: 150 mm

Other specifications:

• Number of wires: 5
• Number of plugs: 2
• Number of pins: 5
• Number of poles: 18

Wire to wire resistance:

• Alternator: Black to Black = 0.4ohms +-20%
• Alternator: to ground = O.L
• Pickup: Green to Blue = 200ohms +-20%

Note: Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY

Brand new aftermarket Voltage Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• No assembly required
• Higher-grade of electric components
• The quality exceeds the OEM equipment
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and are a major cause of repetitive electrical issues.

Specifications:

Dimensions: p>

• Width: 44 mm
• Length: 76 mm
• Height: 22 mm
• Wires length: 120 mm
• Distance between fixation holes center to center: 60 mm

Other specifications:

• Number of plugs: 3
• Number of pins: 5
• Number of wires: 5
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20°C to 85°C

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

Features:

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• Dimensions:
  • Width: 40 mm
  • Length: 65 mm
  • Height: 50 mm
  • Wires Length: 600 mm
  • Fixation holes centre to centre: 90 mm
  • Resistance: 1.7 ohms

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Plug-and-play, aftermarket replacement CDI box for Yamaha outboard motors from RM Stator. Refer to fitment guide for models.

Dimensions:

• Width: 150mm
• Length: 156mm
• Height: 26mm
• Fixation holes, centre to centre: 143mm

Other specifications:

• Number of plugs: 2
• Number of pins: 12

Details:

• RM Stator's PeakRPM technology provides a more aggressive timing curve for increased throttle response
• Ride at full throttle with their application-specific CDI box that raises the rev limiter by 1000 RPM
• Enjoy fast and easy installation with their plug and play design and included dielectric connector grease
• OEM-grade electronic components and printed circuit boards for long-term reliability and performance
• 90% of ignition issues are caused by a faulty stator. Fully test ignition components before buying

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Dimensions:

• Exterior diameter: 104mm
• Interior diameter: 42mm
• Thickness: 26mm

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
4. There are 2 possible stators for the model's Triumph Speed Triple 1050 2005-2010: Refer to below:
• Speed Triple 1994 to 2018 This part will only fit Speed Triple with a VIN BETWEEN 141872 and 210444 and has a engine number HIGHER than 183487 or a VIN BETWEEN 210445 and 461331 and an engine number LOWER than 356142. If your vehicle has a VIN between 141872 and 210444 and with an engine number lower than 183486, refer to RM01387S. If your vehicle has a VIN between 210445 and 461331 and an engine number higher than 356143 or a VIN between 461332 and 735437, refer to RM01390. If your vehicle has a VIN lower than 141871, refer to RM01348.

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest-grade lamination materials
• Highest-grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

Specifications:

Dimensions:

Other specifications:

• Number of wires: 5
• Number of plugs: 4
• Number of pins: 5
• Number of poles: 18

Wire-to-wire resistance:

• Alternator: White to White = 0.5 ohms +-20%
• Pickup: Black to Grey = 512 ohms +-20%

• The Quality exceeds the OEM equipment.
• All products shipped are tested.

Dimensions:

• Height: 52 mm
• Length: 49 mm
• Width: 25 mm

Other specifications:

• Number of pins: 6

Brand new aftermarket voltage regulator rectifier

• AC regulator rectifier
• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• The quality exceeds the OEM equipment
• Higher grade of electric components.
• All products shipped are tested

Dimensions:

• Width: 55 mm
• Length: 45 mm
• Height: 15 mm
• Fixation holes centre to centre: 55 mm

Other specifications:

• Number of pins: 4
• Number of wires: 4
• Minimum Charging Voltage: 14.5V +/- 0.5V
• Maximum Charging Current: 50A/500W
• Open Circuit Voltage: <15V
• Operation Temperature: -20° to 85°

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All products shipped are tested

Functions:

• Lights: OFF / LOW / HI
• Kill Switch: OFF / RUN

Other specifications:

• Number of wires: 7
• Number of pins: 7
• Number of plugs: 2
• Wire Length: 500mm

Direct replacement to your original unit.

• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested
• All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Dimensions:

• Interior diameter: 28 mm
• Exterior diameter: 58 mm
• Thickness: 12 mm
• Length of wires stator to grommet: 15 mm
• Length of wires grommet to plug: 530 mm

Other Specifications:

• Number of wires: 6
• Number of plugs: 1
• Number of pins: 6

Wire to Wire Resistance:

• Alternator: Yellow to Black/White = 0.4 ohms ±20%
• Pickup: Red to Green = 100 ohms ±20%
• Source: Black/Red to Red/White = 32 ohms ±20%

This is an AC to DC ignition conversion CDI box. It bypasses the source coil on your stator and powers the ignition system directly from the battery for improved starting, performance, and reliability.

The CDI box installs tightly in the original rubber boot and mounting location.

The connectors plug in like the OEM. There are different numbers and colour wires, but this does not affect operation.

The original Yellow/Black wire from the vehicle is not used. The Orange wire on CDI box provides battery power when the key is on. It is connected in between the horn Brown wire, and the terminal on the horn.

Dimensions:

• Height: 87 mm
• Length: 71 mm
• Width: 26 mm
• Wires length: 220 mm

Other specifications:

• Number of plugs: 4
• Number of pins: 7

Please note:

The only real way to test your CDI box is to swap it out with another known good unit from the same year / make / model. Because of this, we recommend that you rule everything else out before replacing the CDI box.

RMSTATOR specialises in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

Features:

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
