RMSTATOR

Brand new Mosfet Voltage Regulator Rectifier

STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

Dimensions:

• Width: 25 mm
• Length: 79 mm
• Height: 83 mm
• Fixation holes center to center: 60 mm

Other specifications:

• Number of plugs: 1
• Number of pins: 6
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20° to 85°

Key features:

• IMPROVED and HEAVY DUTY: OEM and most SCR type voltage regulator are known to fail more than often for these vehicles. Our RMS Labs took a best selling voltage regulator and made it tougher by using highly reliable components to regulate the voltage. The result : More than 83% less failures than a standard OEM-type voltage regulator.


• RMSTATOR RENOWNED MOSFET COMPONENTS: Significantly decreases internal operating temperature with highly efficient MOSFET transistor regulation circuit. This technology runs much cooler than the OEM silicon rectifier regulation circuit and requires much less power to operate.


• AUTOMOTIVE GRADE HEAVY-DUTY CONNECTORS: Increase contact surface for distributed voltage charge on pins & less heat generated at connectors levels

• Direct replacement to your original unit


• Plug-and-play, direct fit, easy installation


• The quality exceeds the OEM equipment


• Higher grade of electric components


• All shipped products are tested

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

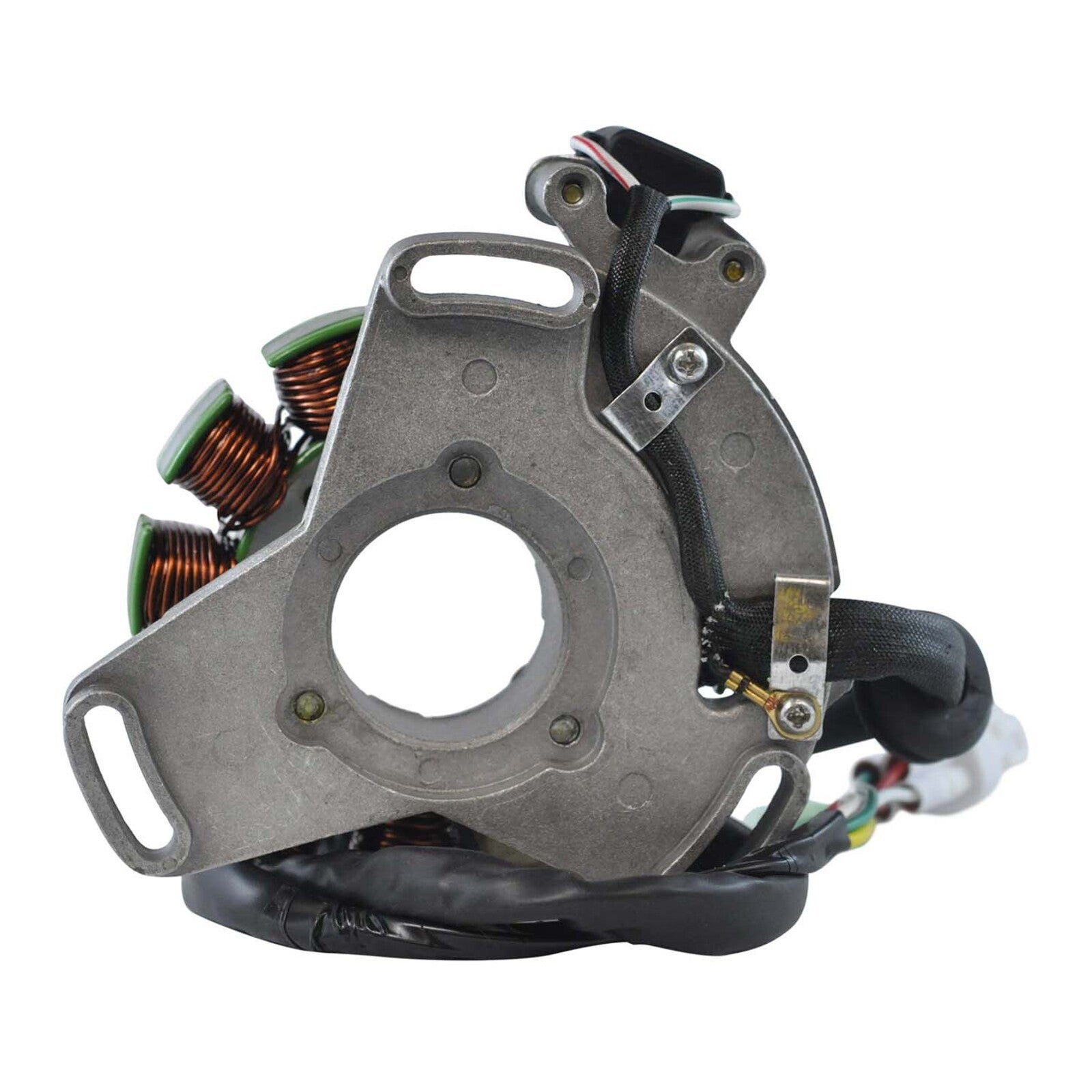

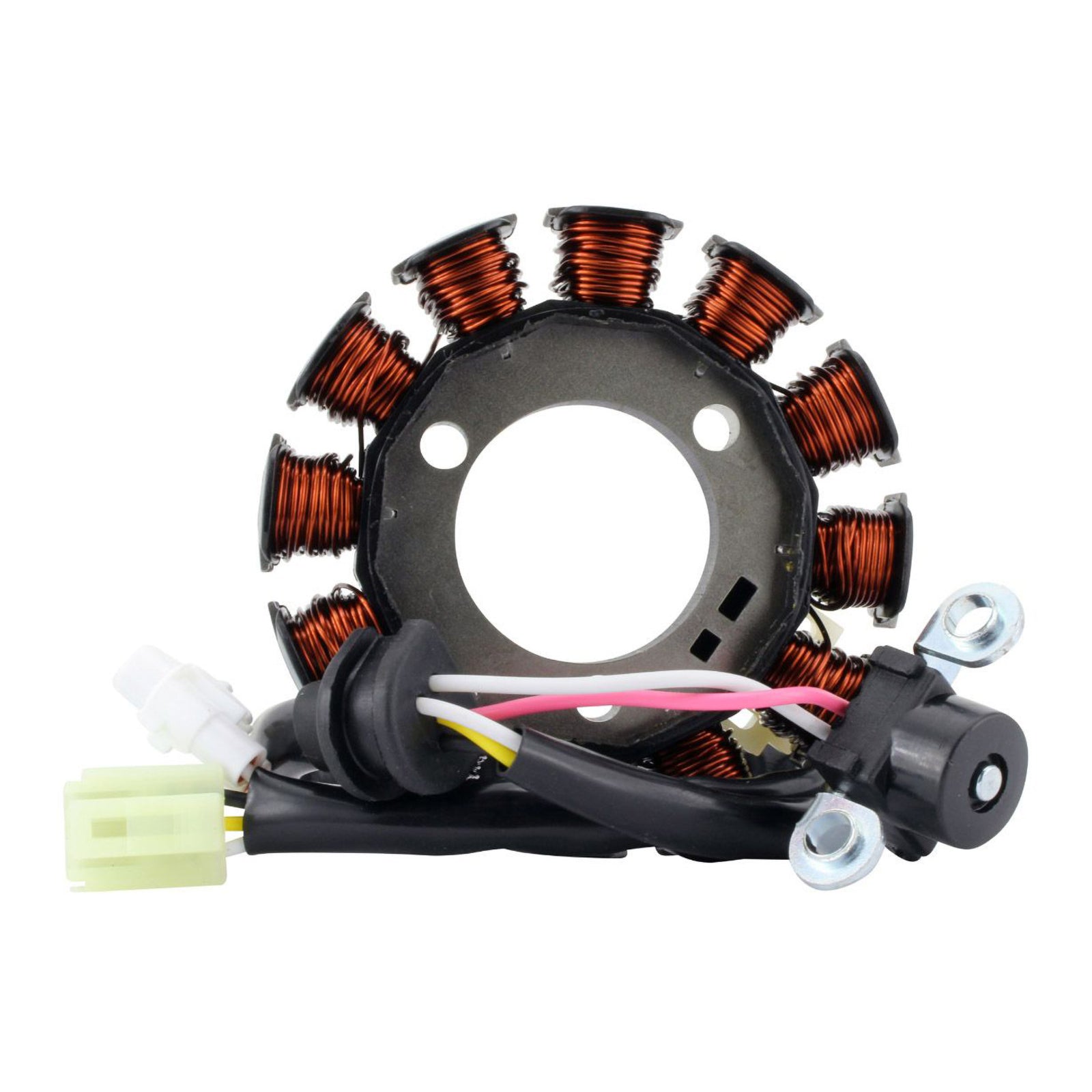

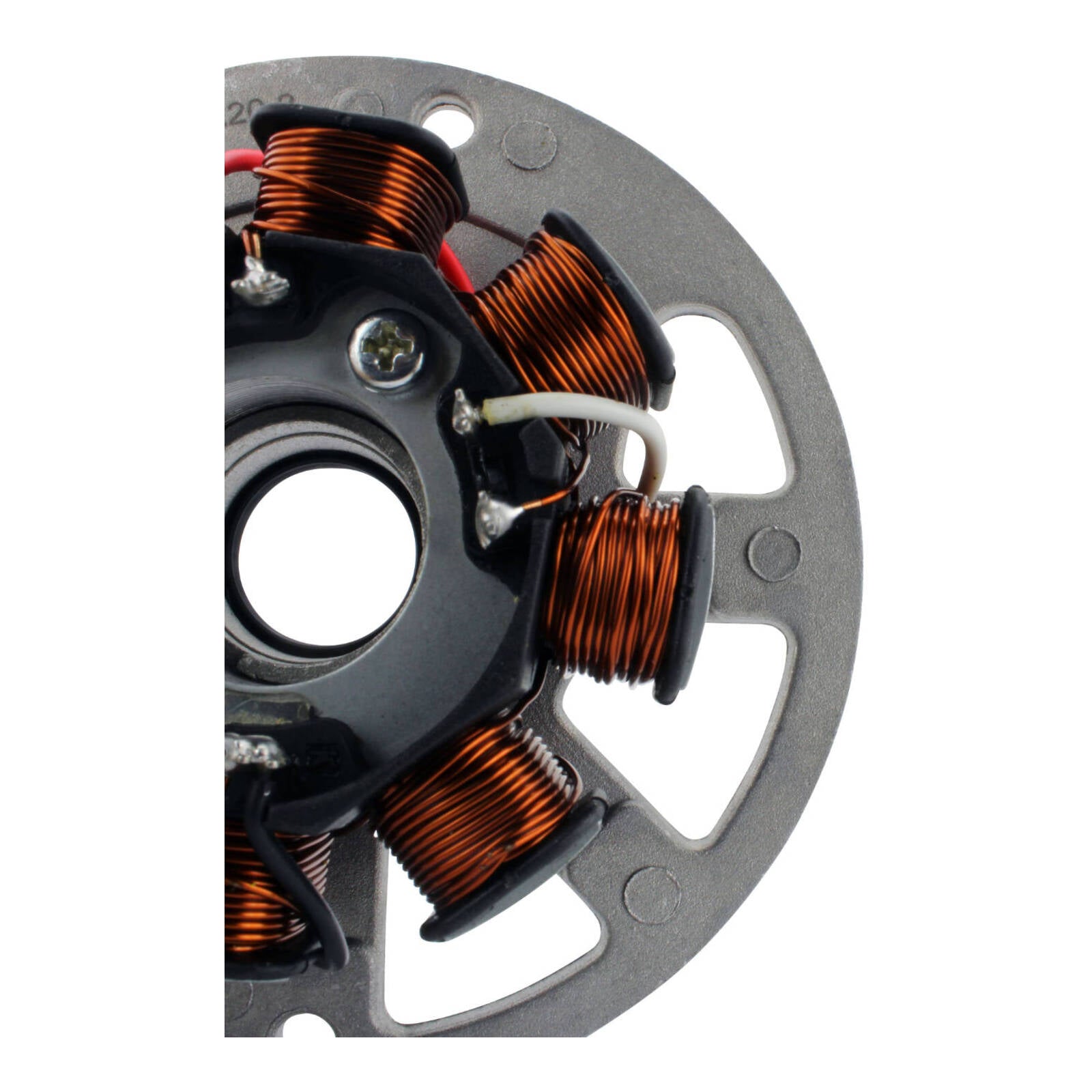

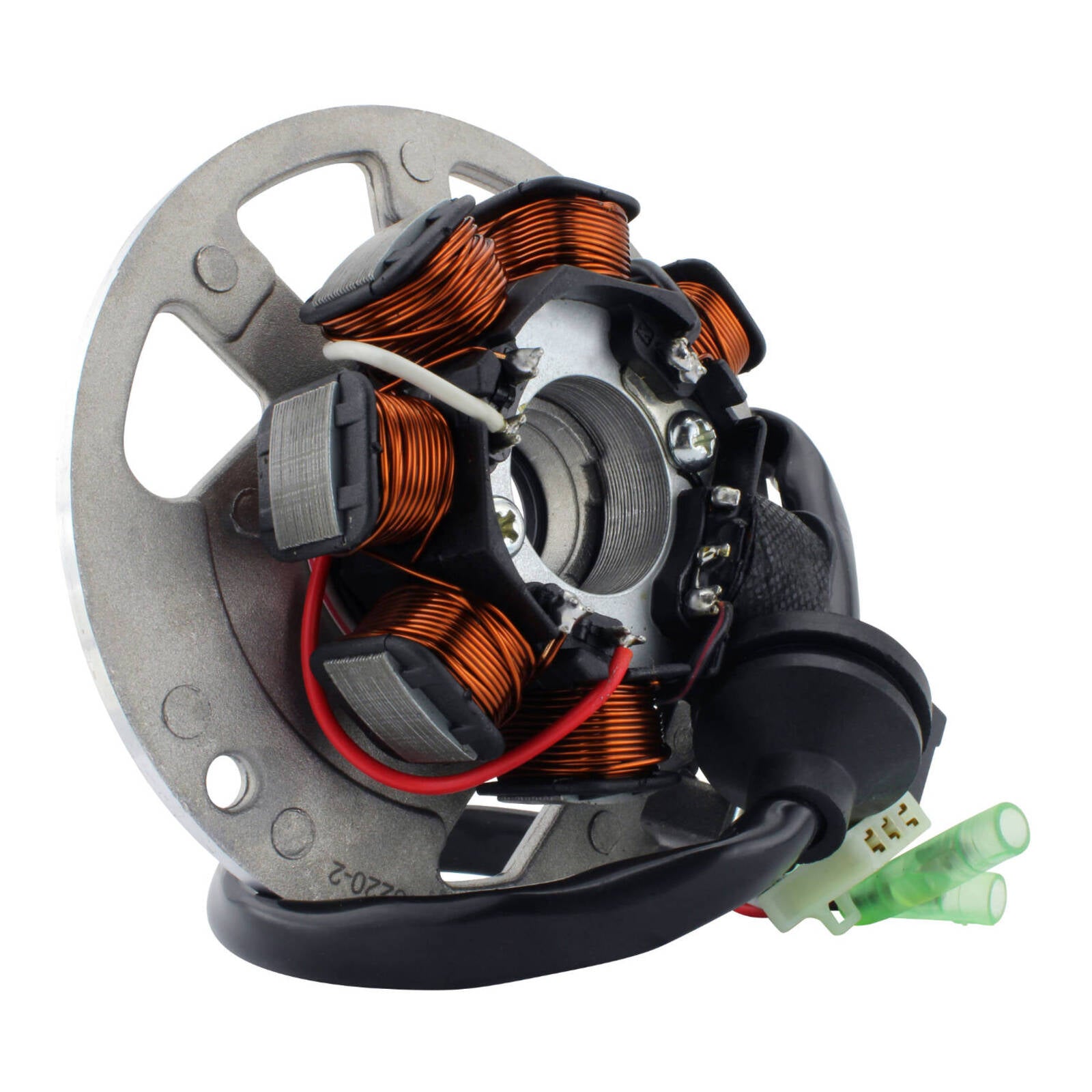

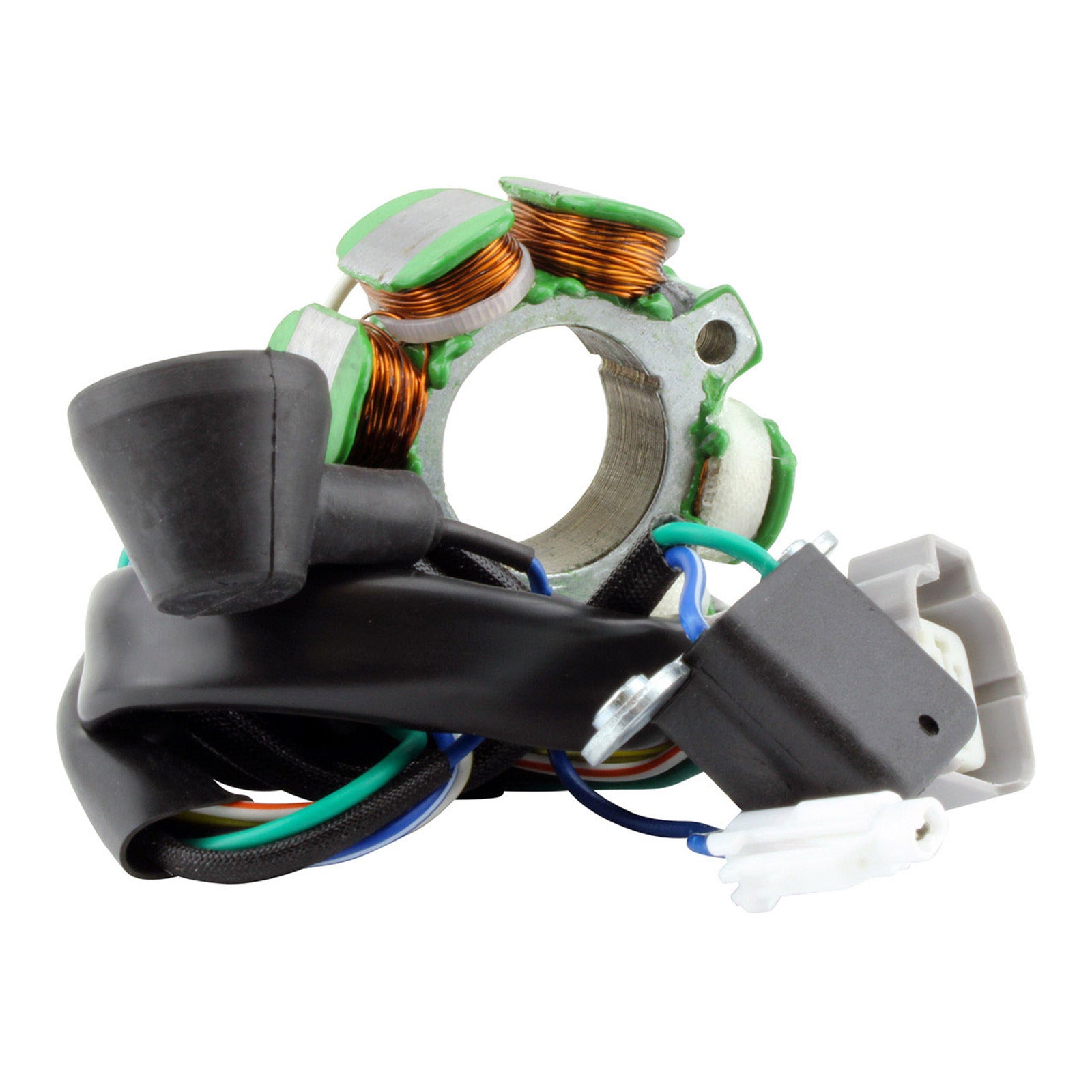

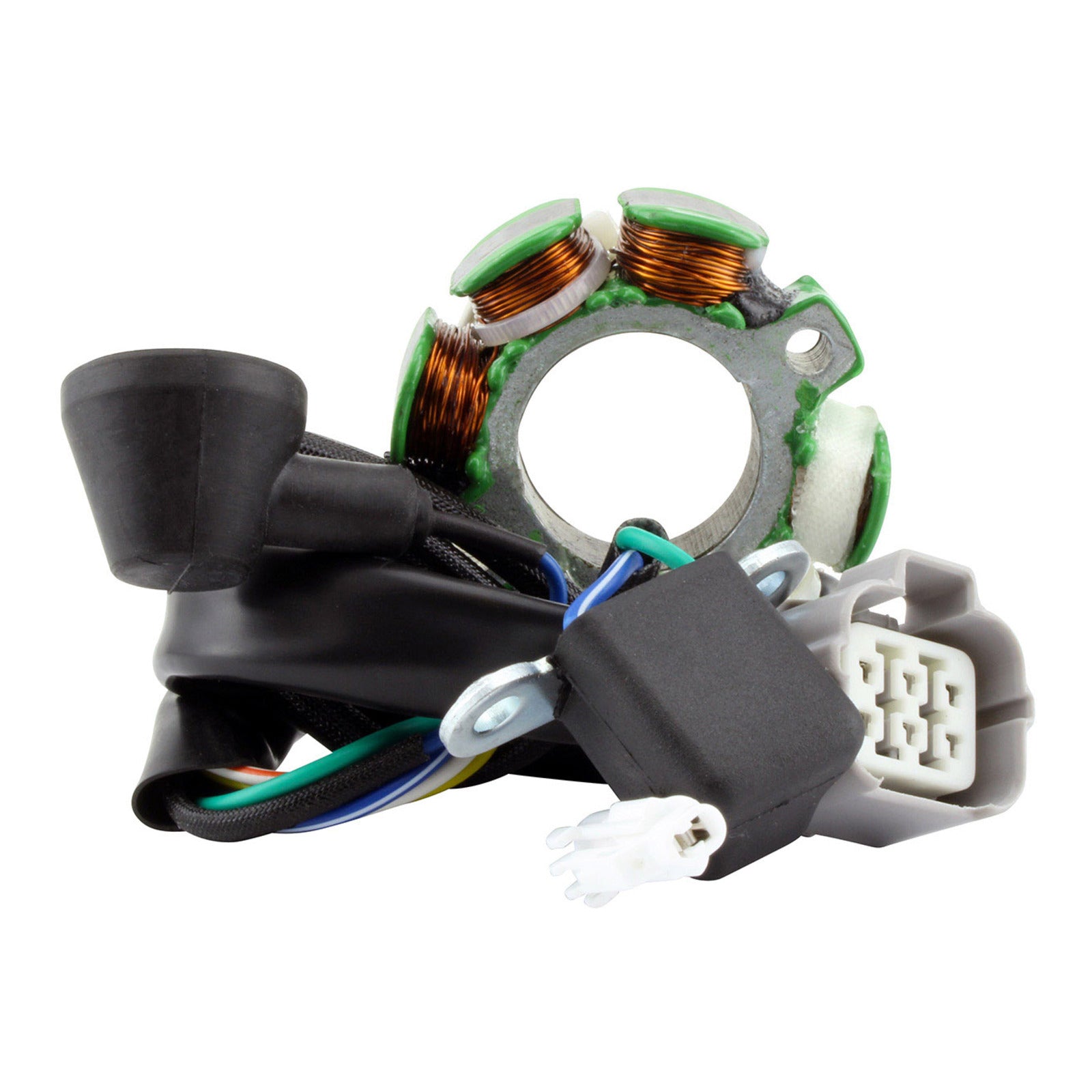

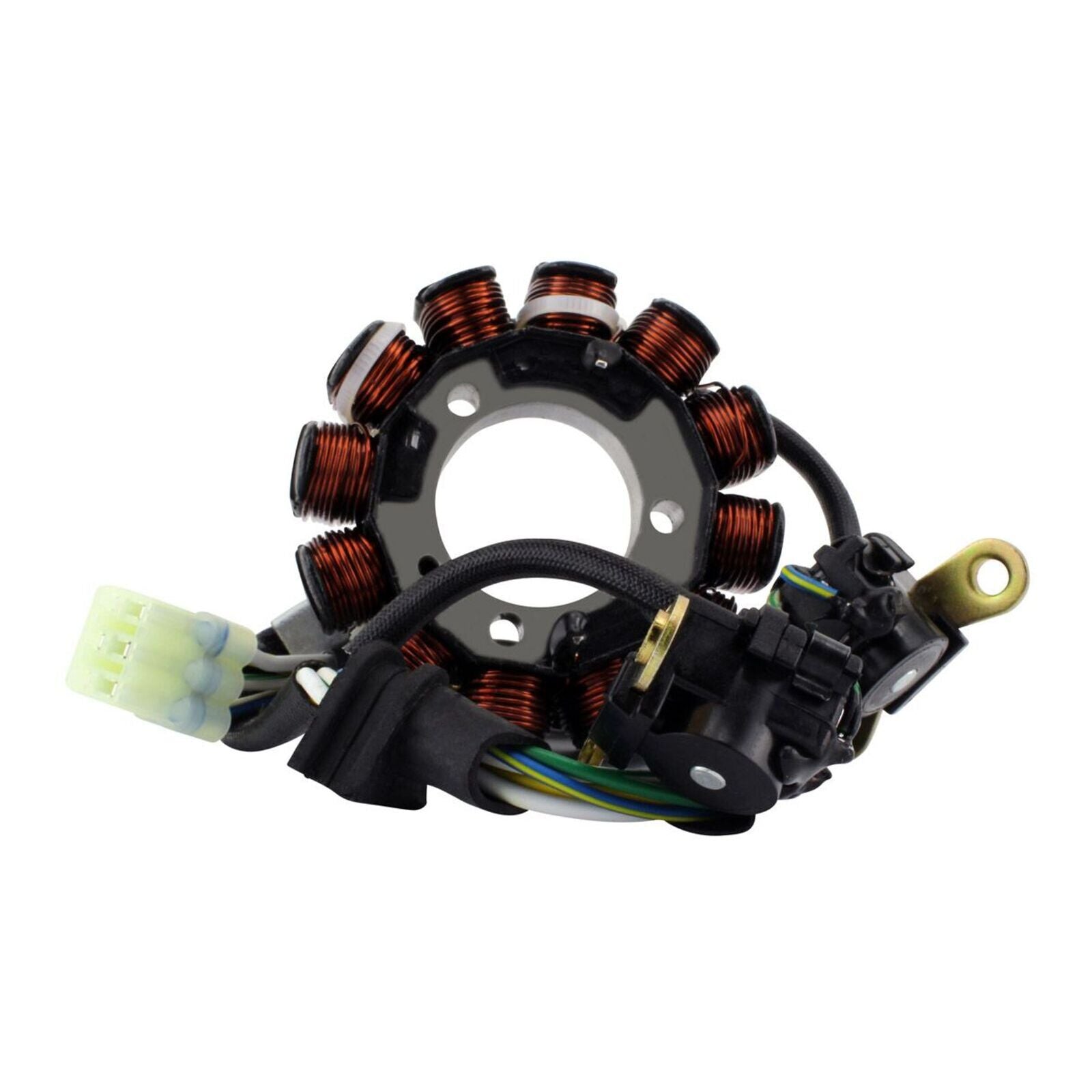

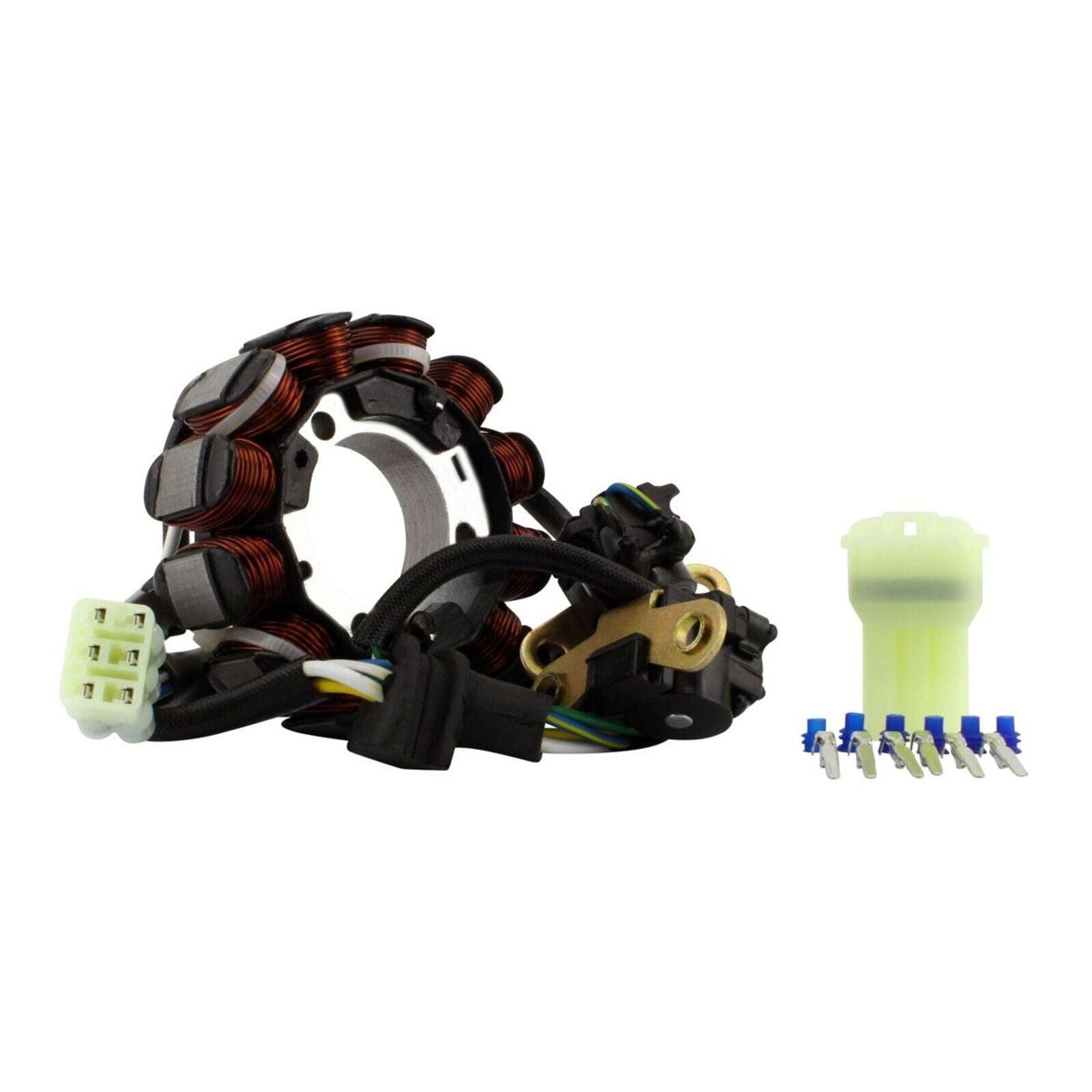

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest-grade lamination materials
• Highest-grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included

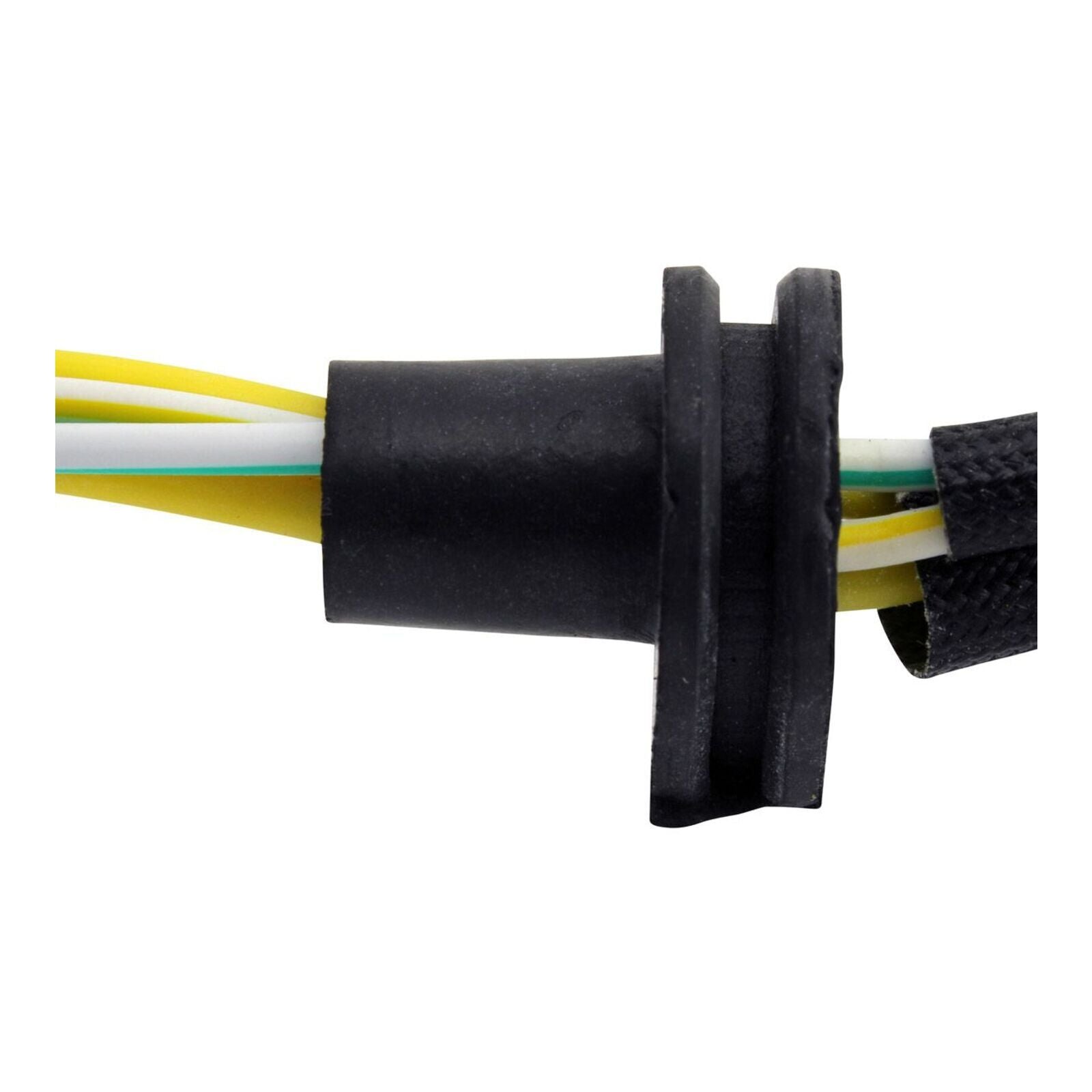

• Rubber grommet included
• All products shipped are tested

Specifications:

Dimensions:

Other specifications:

• Number of wires: 5
• Number of plugs: 2
• Number of pins: 5
• Number of poles: 12

Wire-to-wire resistance:

• All 1p winding: Black to White = 0.9 ohms +-20%
• Alternator #1: Yellow to Black = 0.6 ohms +-20%
• Alternator #2: Yellow to White = 0.8 ohms +-20%
• Pickup: Pink to White = 280 ohms +-20%

As modern UTV’s are improving every year, it is increasingly common to add accessories to them like stereos, lights, and winches. These are great upgrades, until you are stuck with a dead battery and can’t start the engine! RMSTATOR comes to the rescue with the best and most complete kit available to add a second battery to your UTV to power your accessories and monitor the charge of both batteries right from your dashboard!

The addition of a second battery to your vehicle to power your accessories allows you to safely use them all day without discharging your primary starting battery. If the voltage drops too low on your second battery, it will disconnect and isolate it from the main battery safely and automatically. When the motor is started, the secondary battery will be reconnected and recharged.

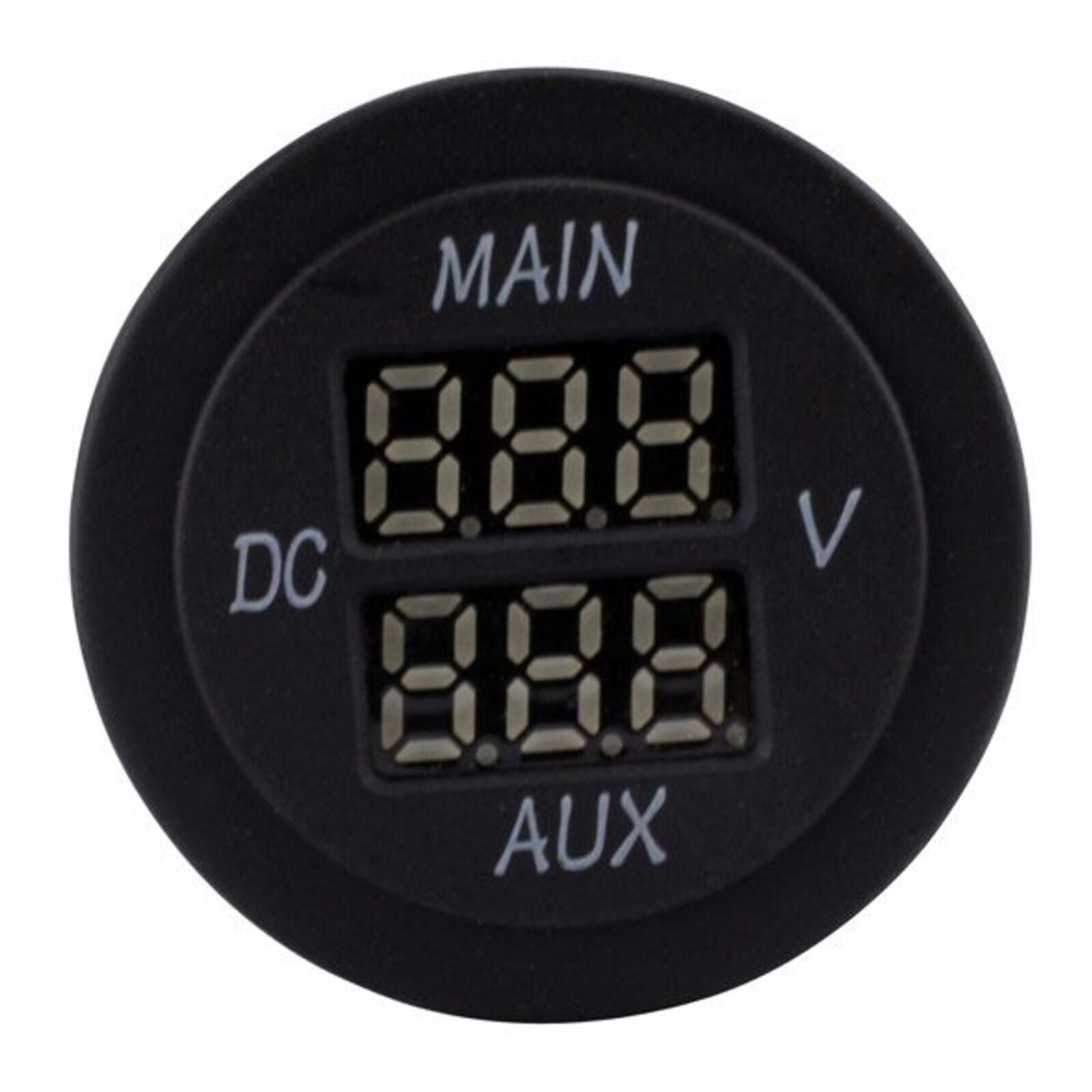

The included LED dual voltmeter installs on your dashboard, and lets you easily monitor the voltage of both batteries. The included wiring harness and relay allow the voltmeter to turn on and off with your keyswitch.

Everything you need for a complete installation is included!

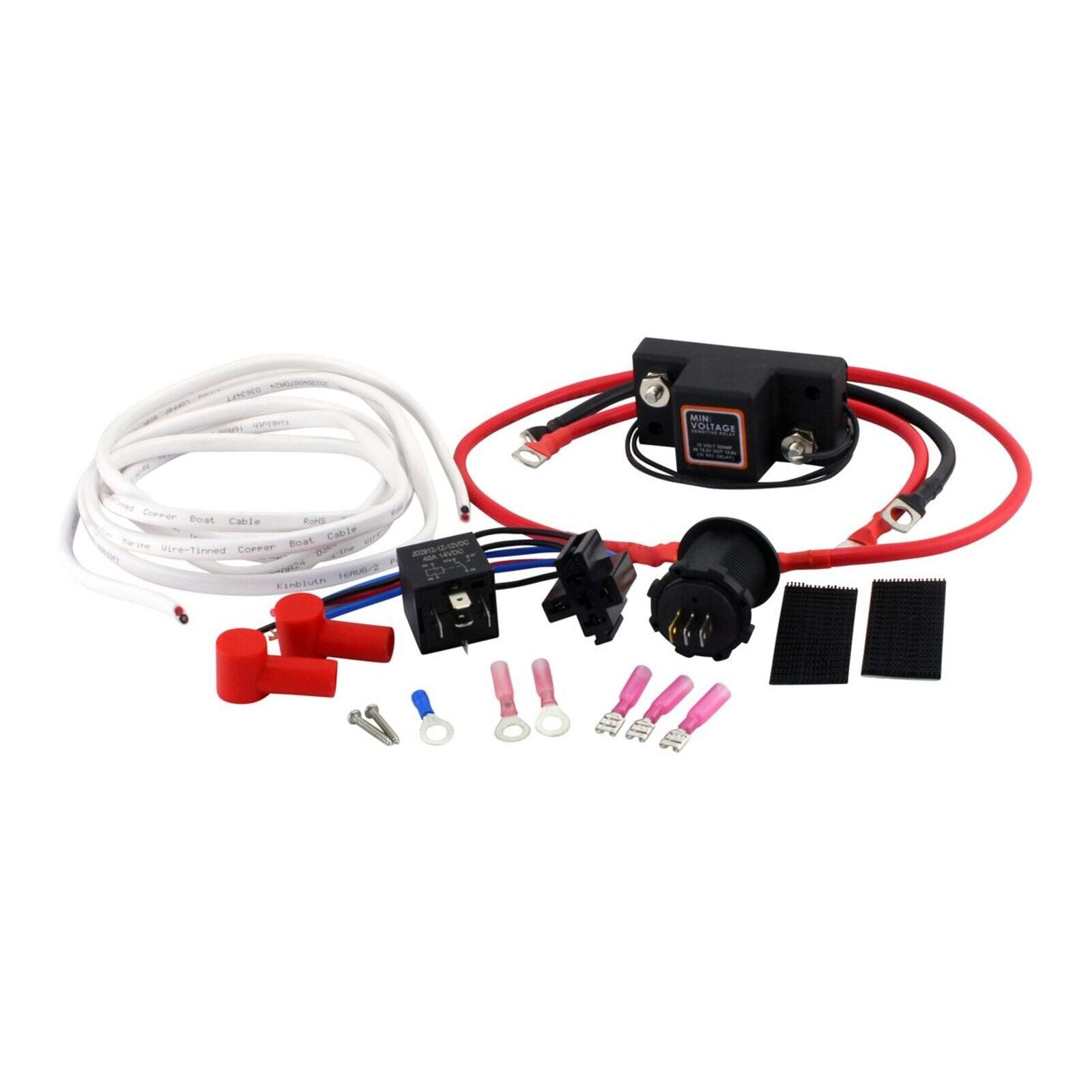

Includes:

• Dual battery isolator relay

• 12” Black ground battery cable with terminal lugs

• 12” Red positive battery cable with terminal lugs

• 18” Red positive battery cable with terminal lugs

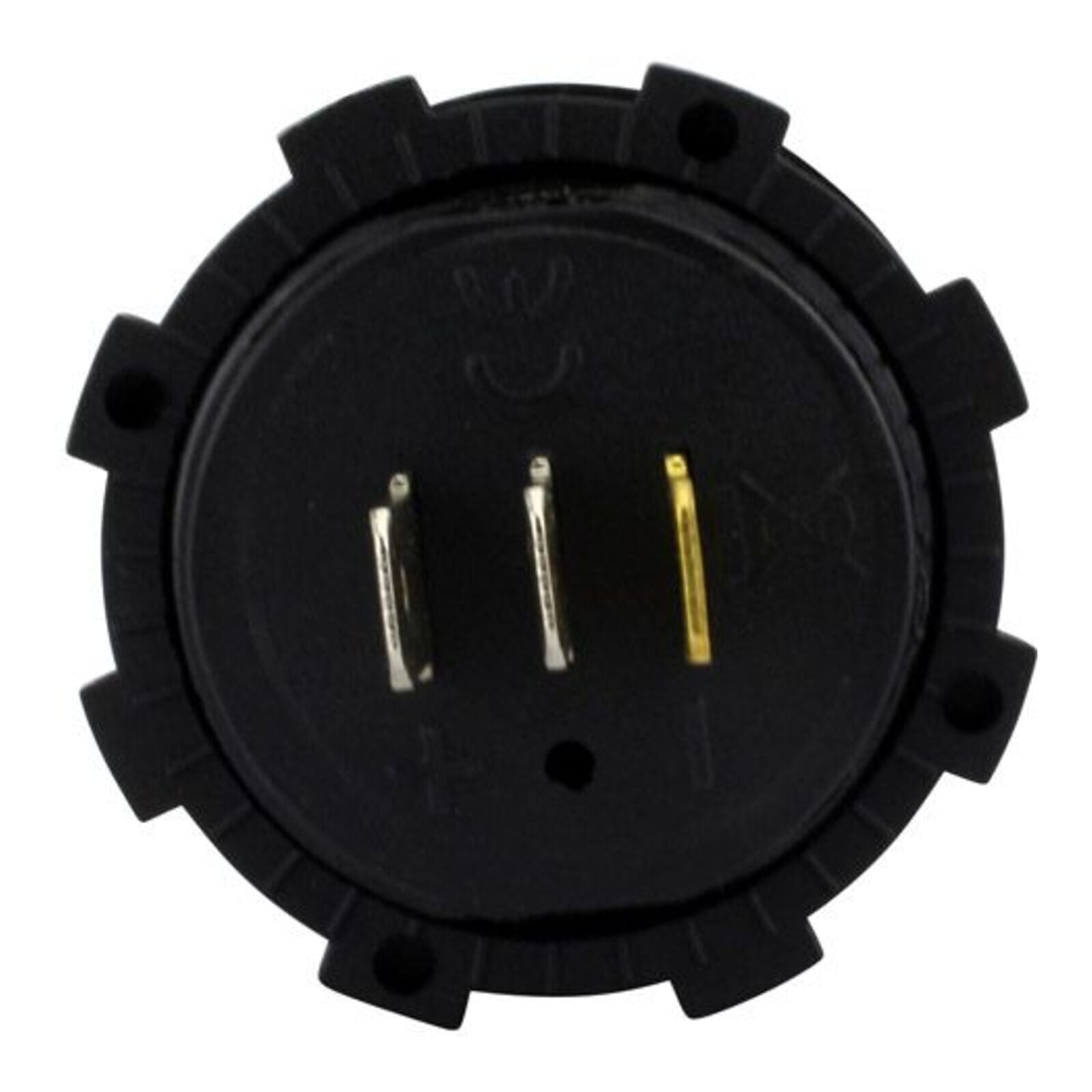

• Dual Red LED voltmeter (1.4” OD x 1” depth)

• Keyswitch voltmeter activation relay with socket and wires

• 96” wire harness for dual voltmeter connection to relay

• Terminals and connectors

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.
• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment

RM STATOR has even included the opposite connector (main harness side), as they know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Improved Magneto Flywheel Rotor

RMSTATOR is offering a new improved replacement flywheel for your Suzuki and Arctic Cat. This flywheel can be used as a direct replacement to the OEM.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part

What is improved about the RM11502 flywheel?

2002-2007 Suzuki Eiger 400 and 2003-2008 Arctic Cat 400 ATVs are plagued with problems on the original flywheels. The additives in the motor oil were dissolving the epoxy that holds the magnets in the flywheel, causing them to detach and scatter throughout the engine.

• EXPOSED EPOXY
• DETACHED MAGNET

The bad news is that by the time the problem occurred, no manufacturer would provide warranty repairs.

The good news is that RMSTATOR has manufactured a redesigned flywheel where the magnets are sealed in the flywheel, which reinforces the epoxy and prevents them from detaching. This new flywheel configuration corrects the problem permanently.

Dealership estimates to repair this failure are over $500 in parts alone. RMSTATOR offers you a high-quality replacement part that corrects the problem for half the price. The RM11502 flywheel is not only a cost-effective way to replace your failed Suzuki or Arctic Cat flywheel, but a great investment when replaced before the failure occurs.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

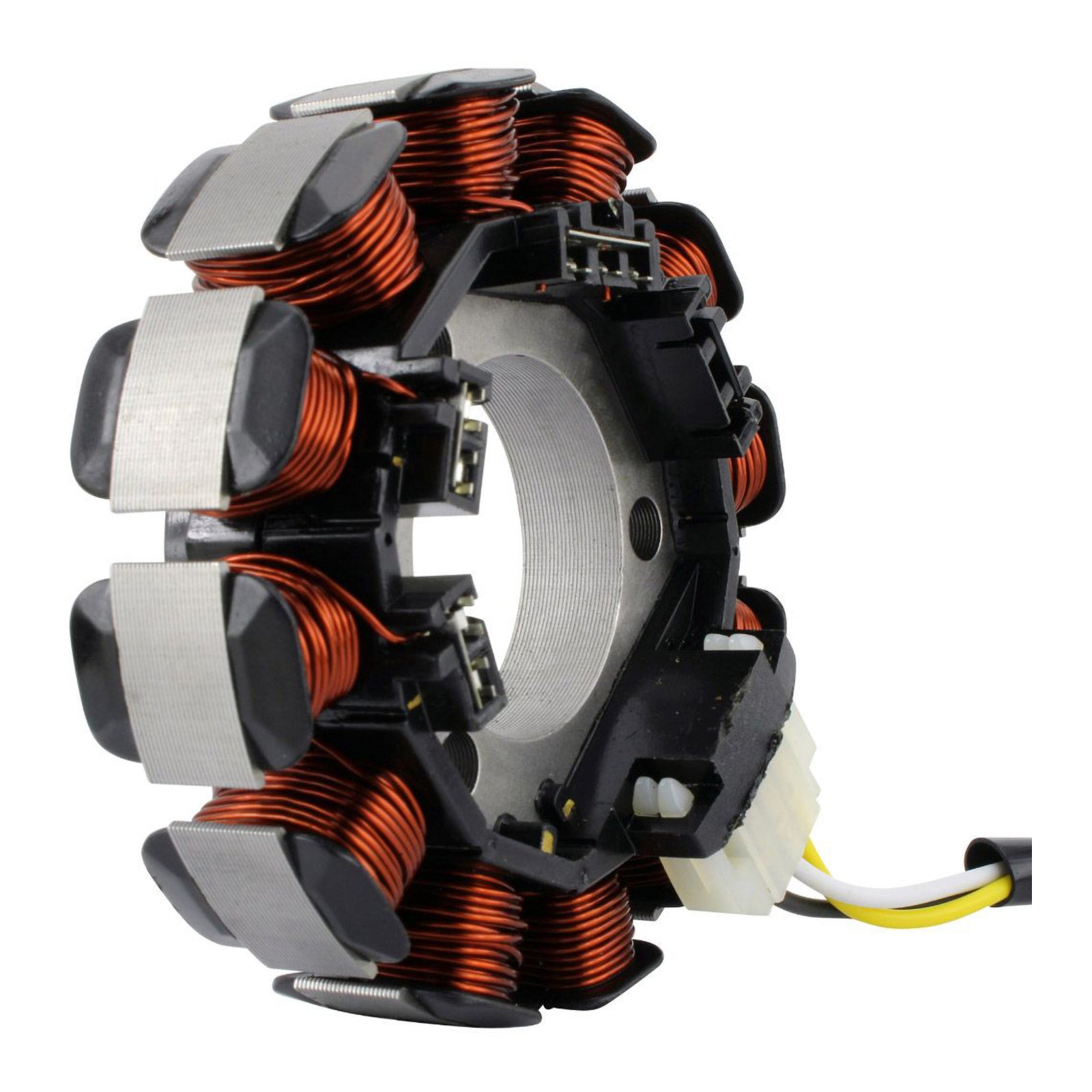

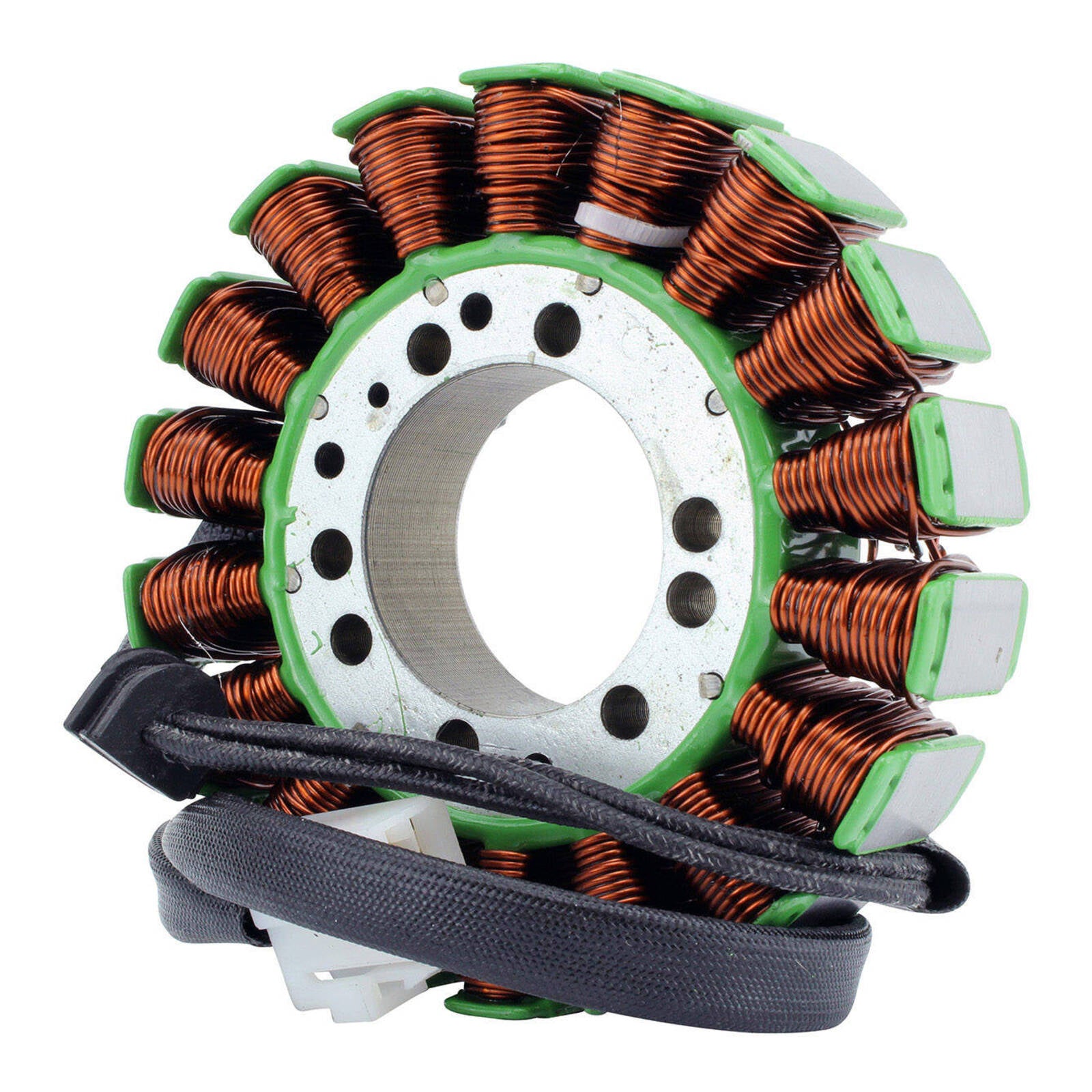

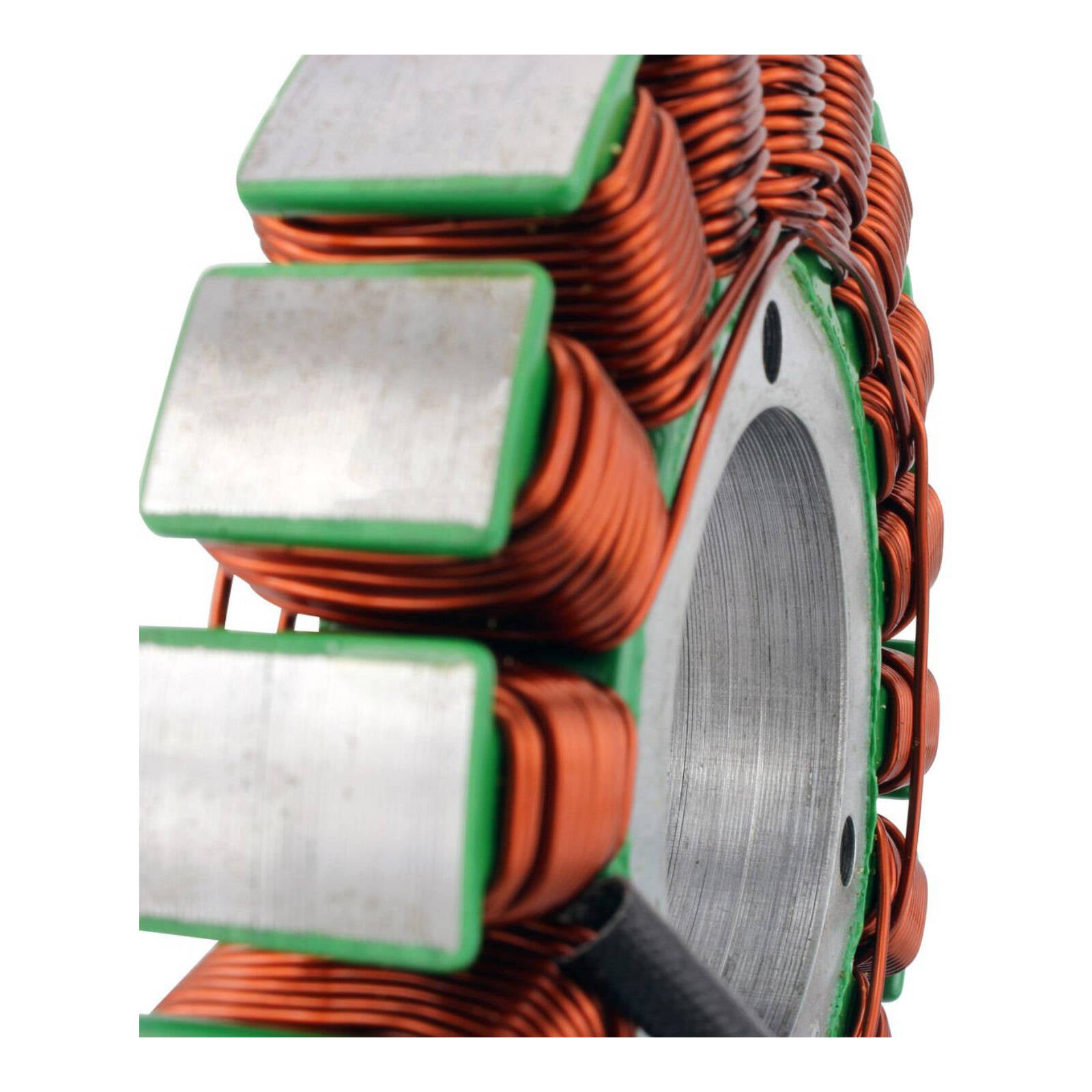

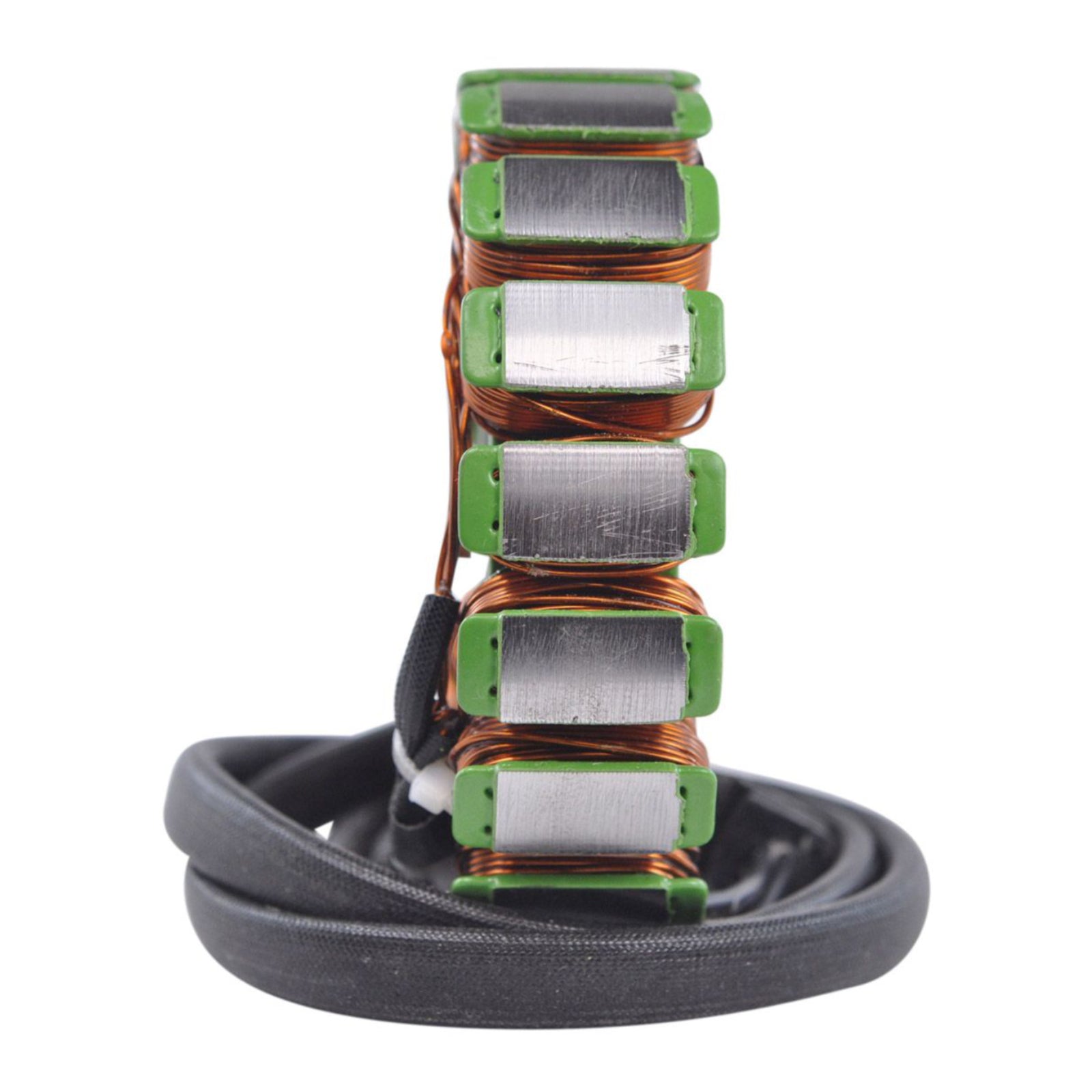

Plug-and-play replacement stator from RM Stator.

Dimensions:

• Interior diameter: 40 mm
• Exterior diameter: 106 mm
• Thickness: 24 mm
• Length of wires stator to grommet: 45 mm
• Length of wires grommet to plug: 100 mm

Other specifications:

• Number of wires: 4
• Number of plugs: 1
• Number of pins: 4
• Wire to wire resistance:
  • Alternator: Yellow to Yellow = 0.4 ohms +-20%

Details:

< li>Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included
• Rubber grommet included
• All products shipped are tested

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

For a limited time, we are including a FREE Tympanum AC regulator required to run the extra wattage supplied from our 200W stator.

• AC Regulator
• 12 Volts regulator used by Baja winners
• For use with all standard halogen and quartz lights
• Precise voltage control eliminates light burnout
• Reduce flickering and dimming
• Simple installation
• Works with all other OEM parts
• Rated at 225 watts.

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

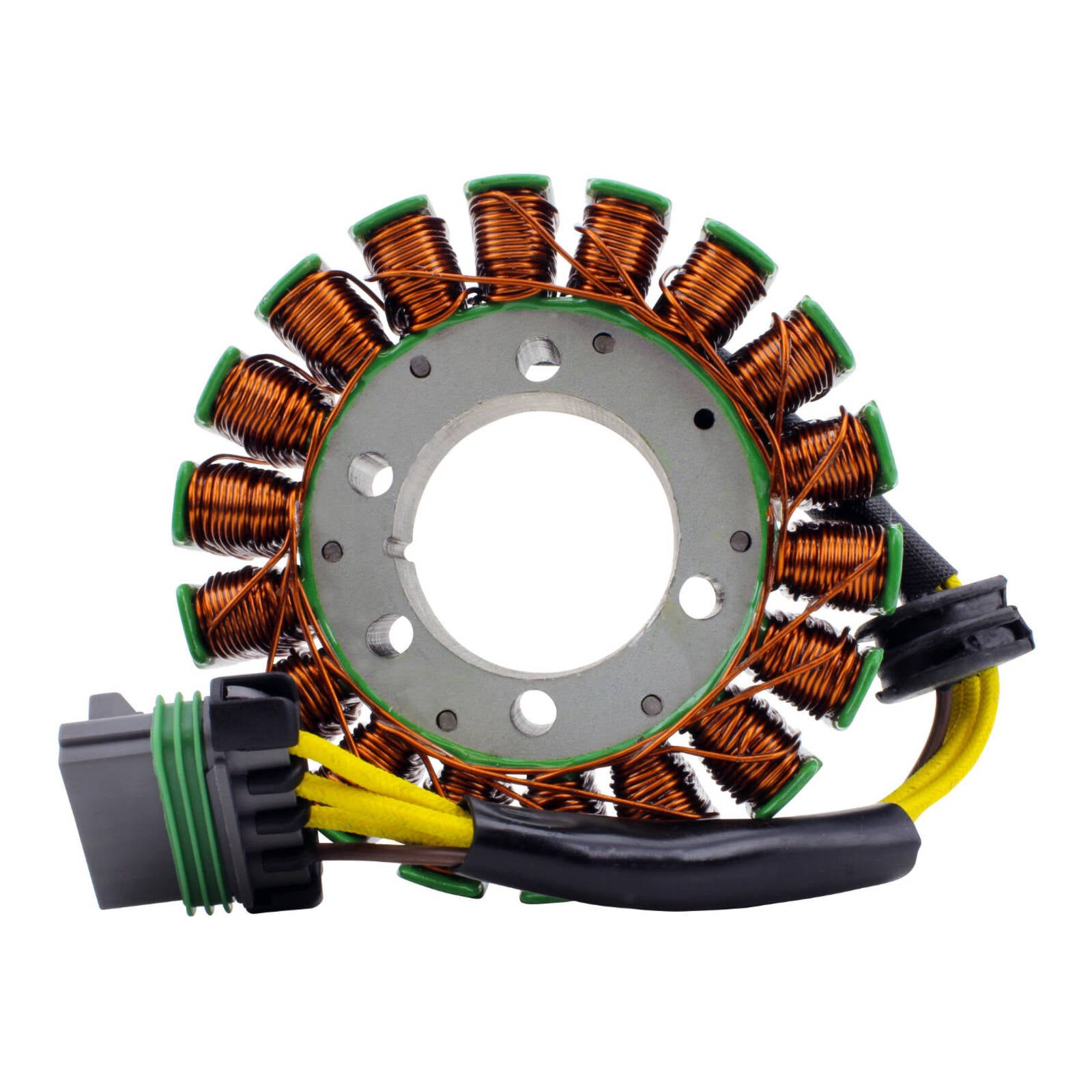

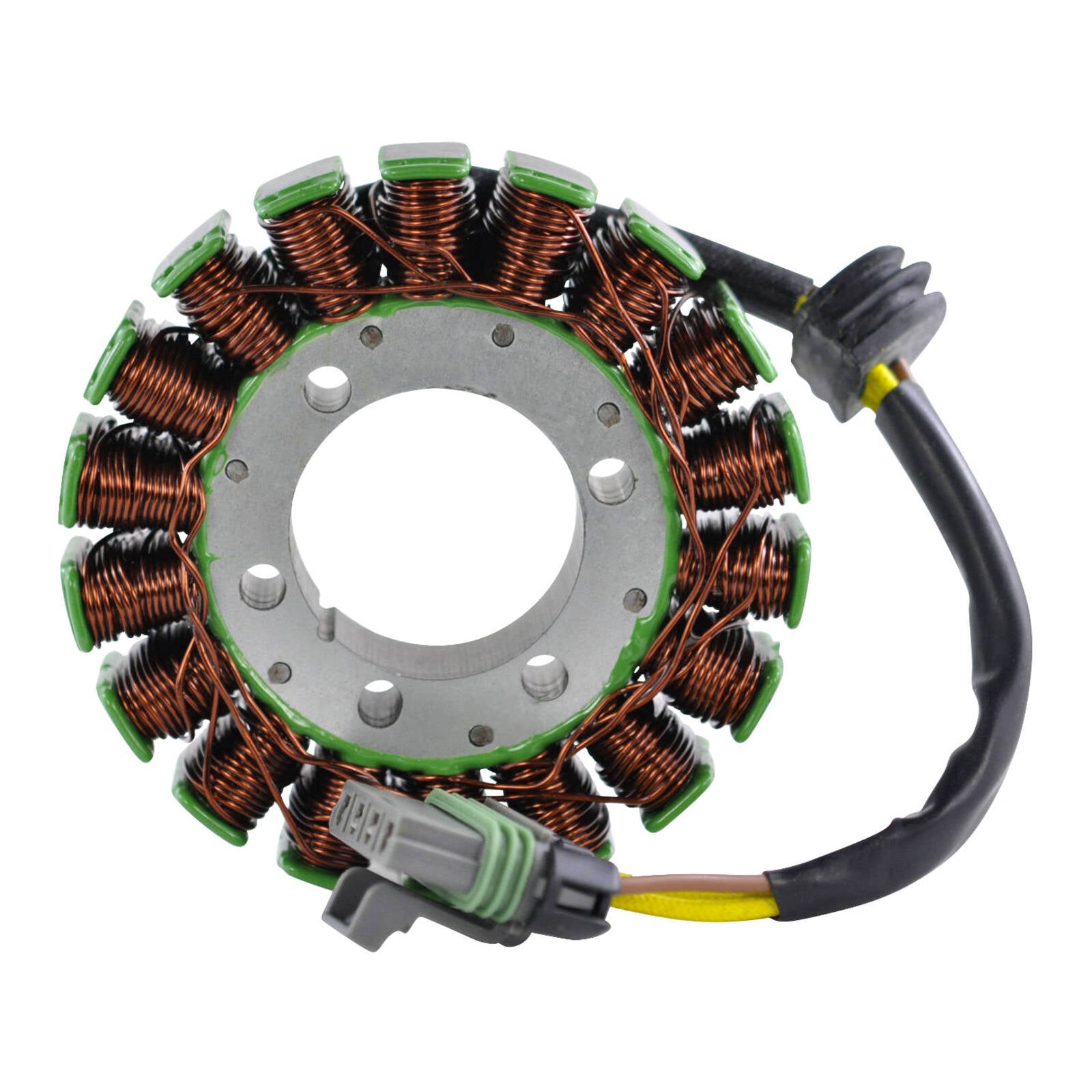

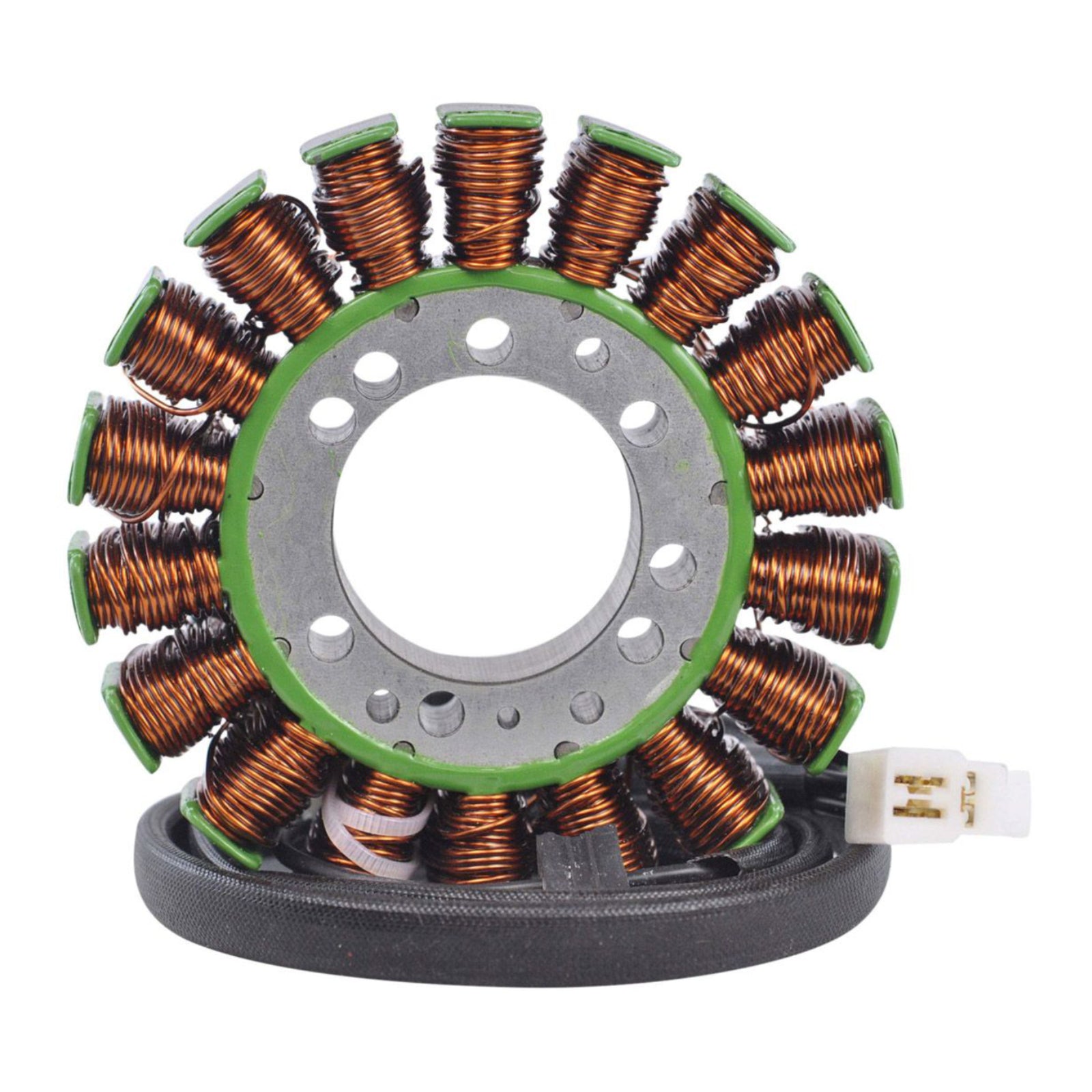

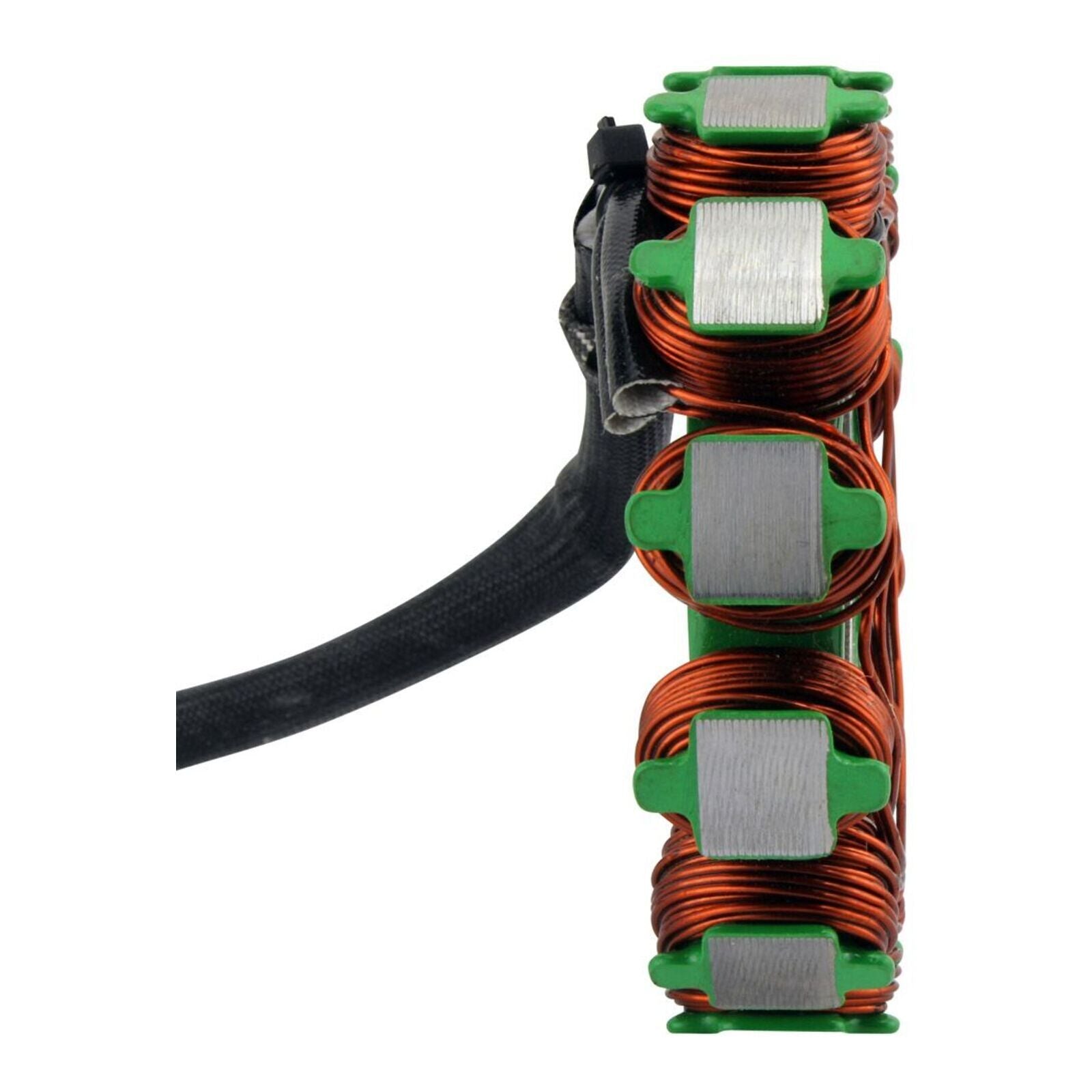

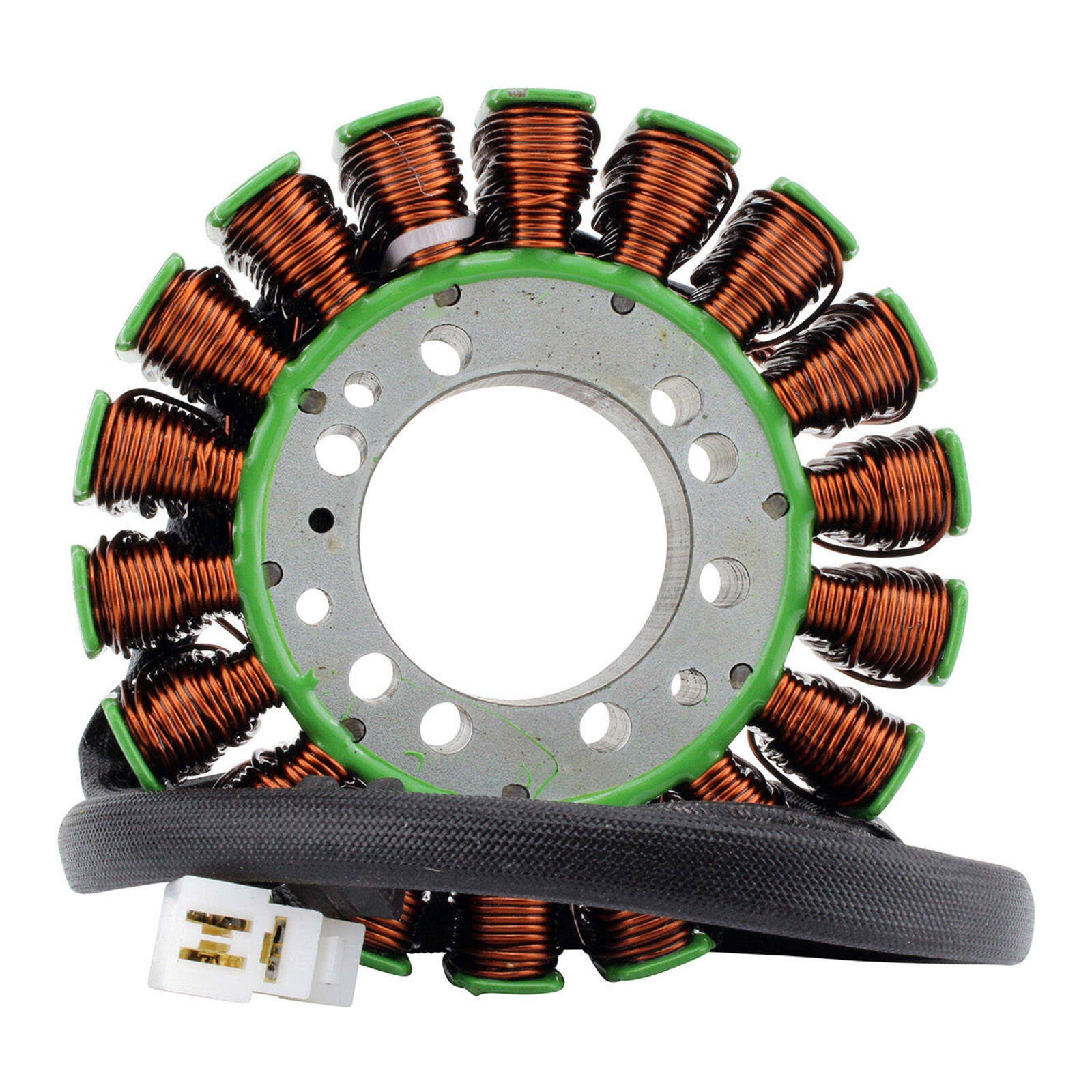

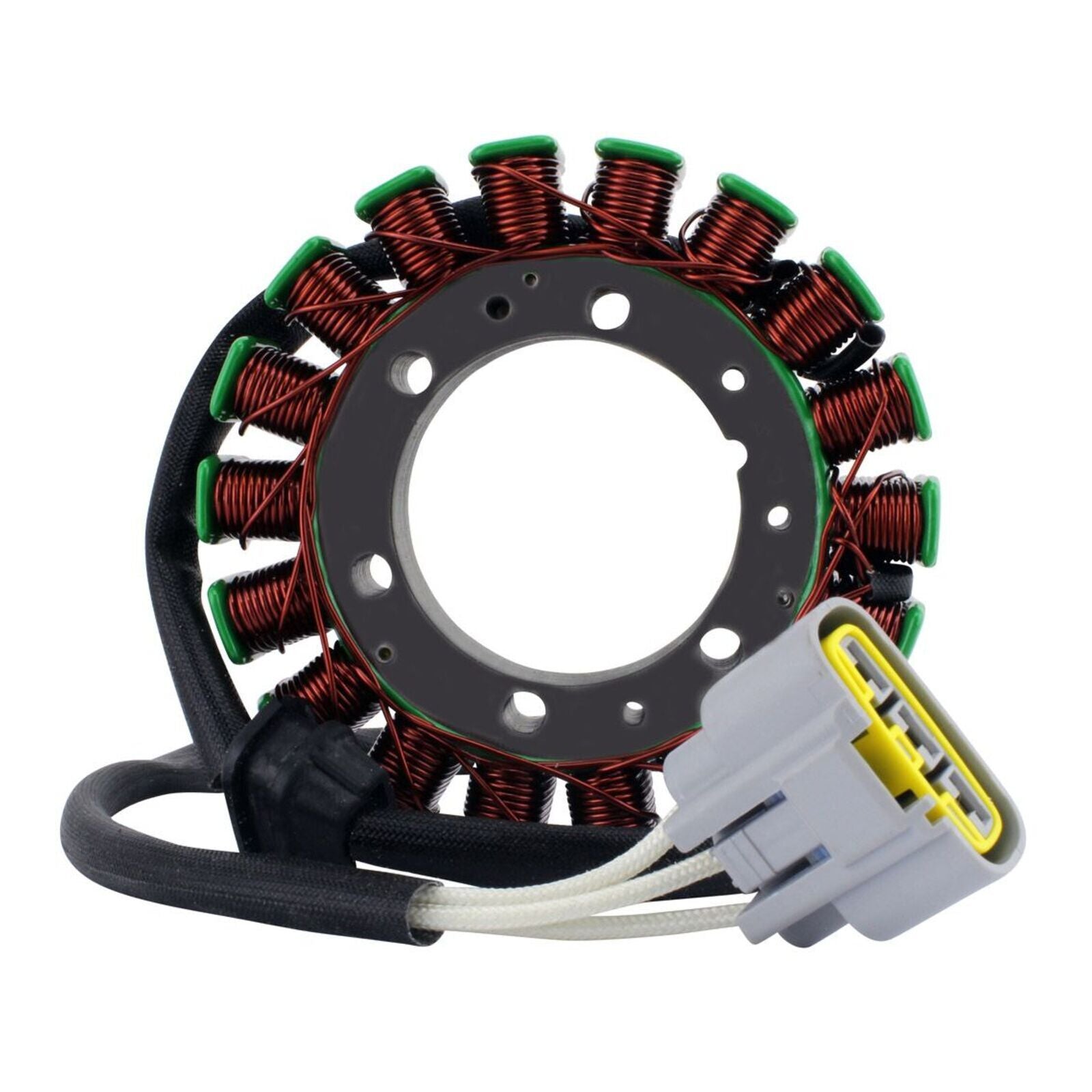

Plug-and-play replacement stator from RM Stator.

Dimensions:

• Interior diameter: 54 mm
• Exterior diameter: 126 mm
• Thickness: 21 mm
• Length of wires stator to grommet: 120 mm
• Length of wires grommet to plug: 680 mm

Other specifications:

• Number of wires: 3
• Number of plugs: 1
• Number of pins:3
• Number of poles: 18
• Wire to wire resistance:
  • Alternator: Between each Yellow = 0.6 ohms +-20%
  • Alternator: to ground = O.L

Details:

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included
• Rubber grommet included
• All products shipped are tested

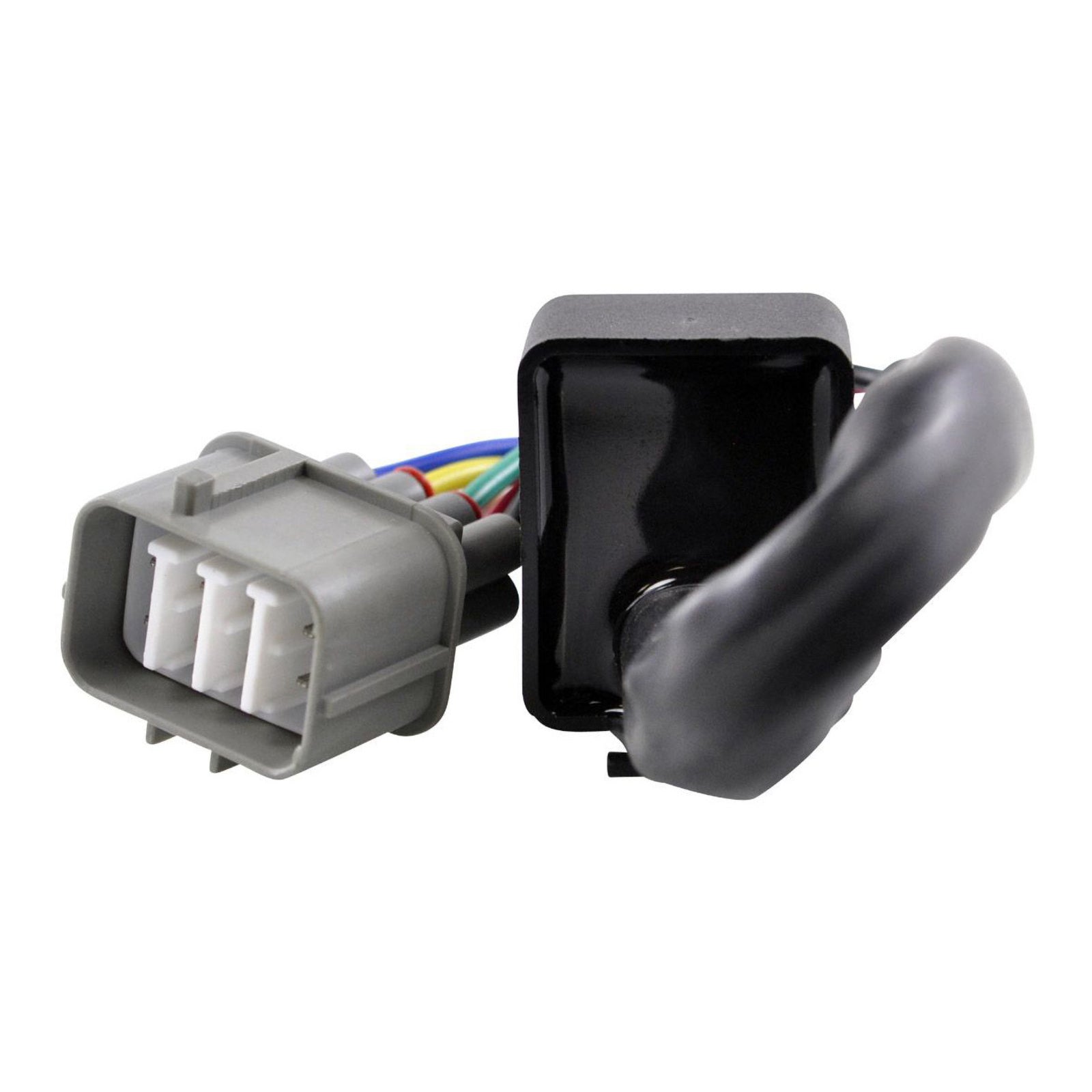

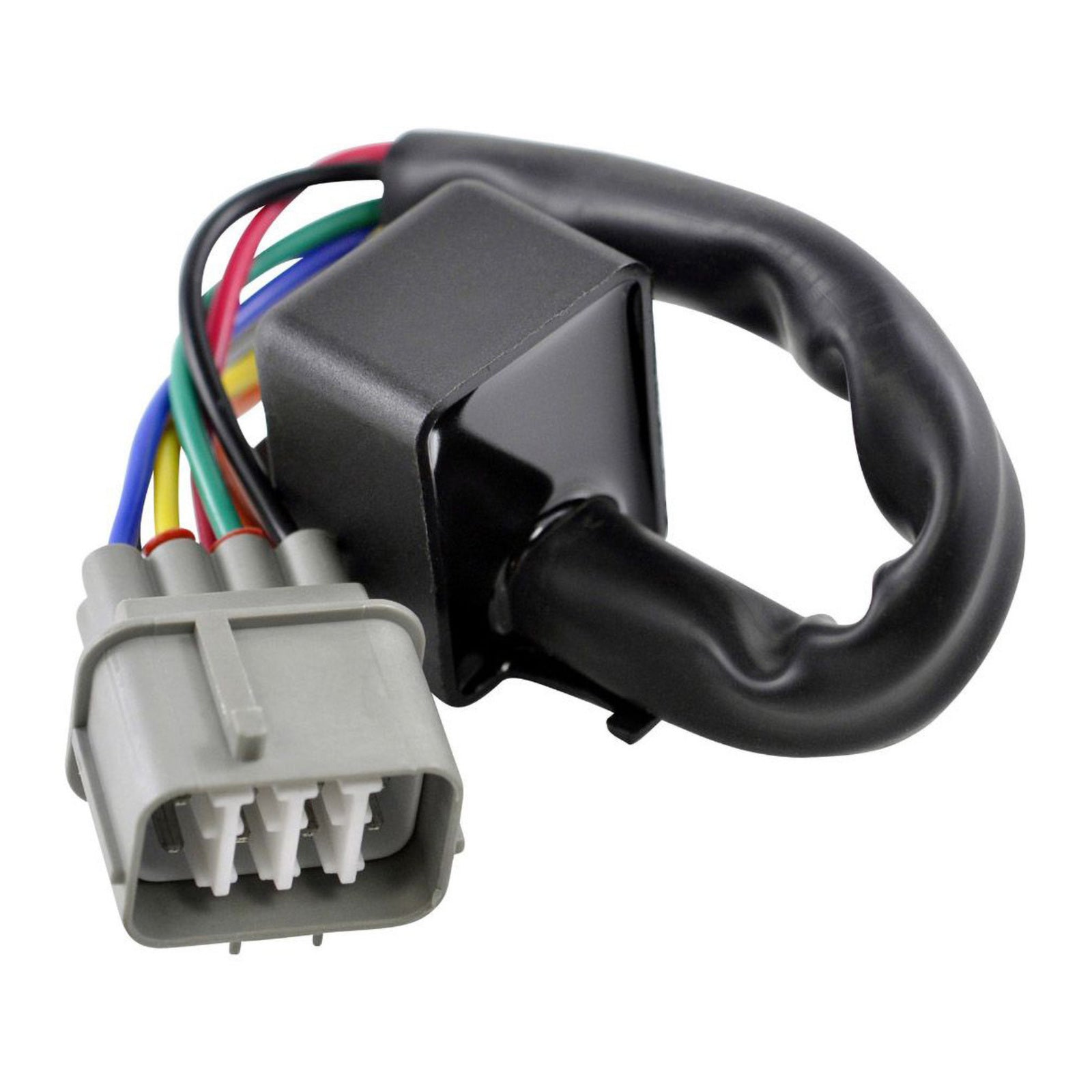

Brand new starter relay solenoid switch

• The quality exceeds the OEM equipment
• All products shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Dimensions:

• Height: 37mm
• Length: 30mm
• Width: 23mm
• Wires length: 185mm

Other specifications :

• Number of wires: 8
• Number of terminals: 8
• Number of plugs: 1

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

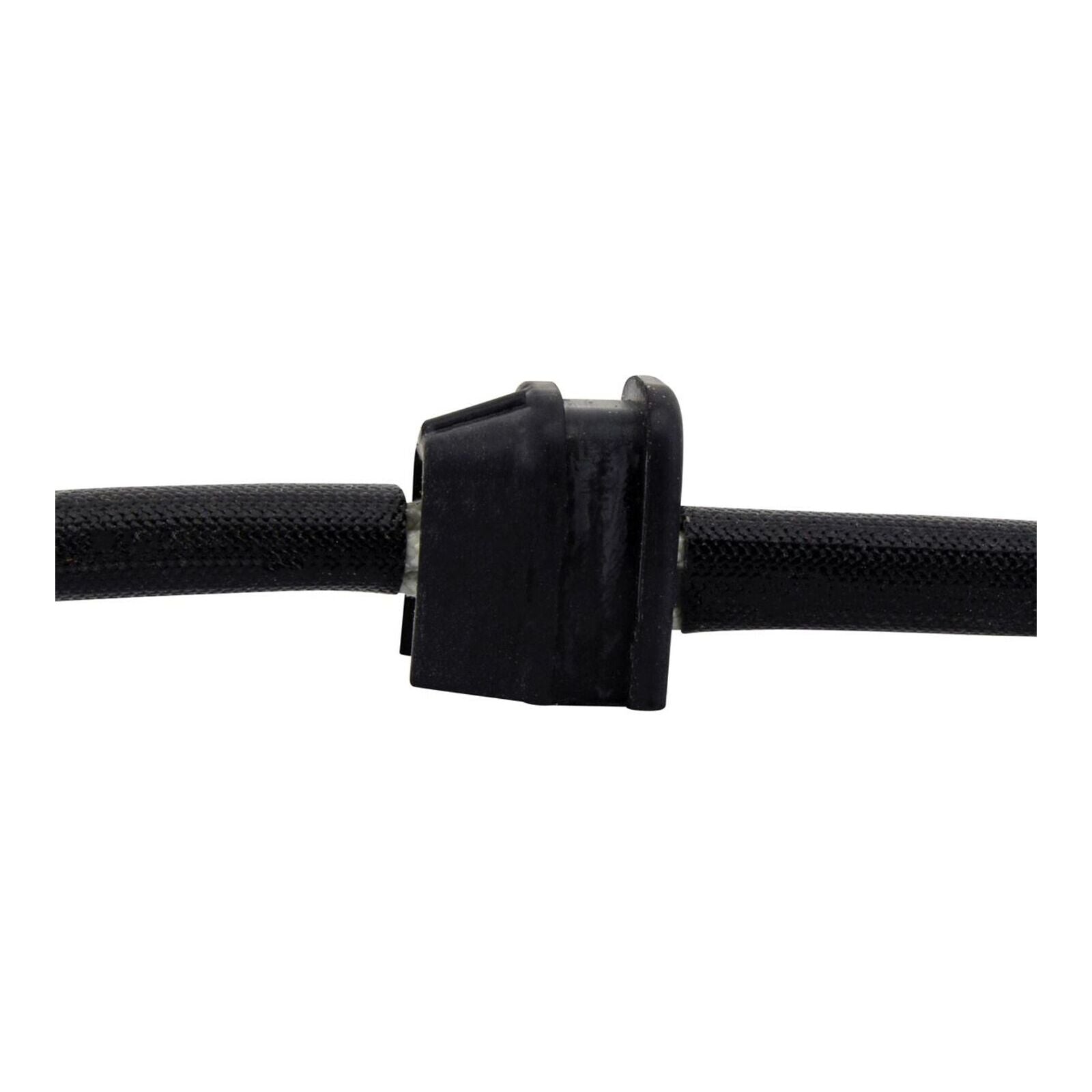

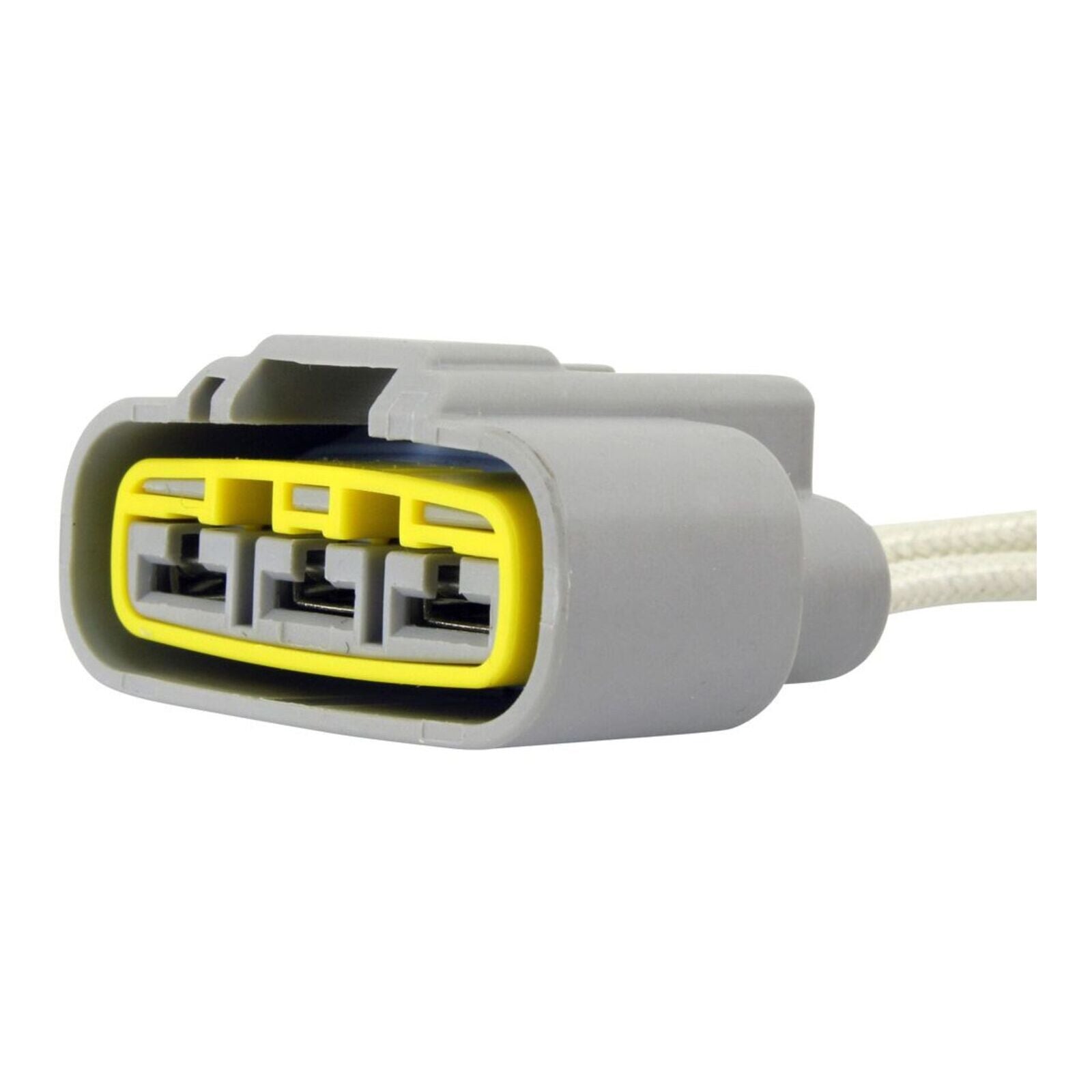

• You must re-install your original connector and grommet (see picture).
• Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install.
• Higher grade of electric components.
• Highest-grade copper windings, resistant to 200 degrees Celsius.
• All products shipped are tested.

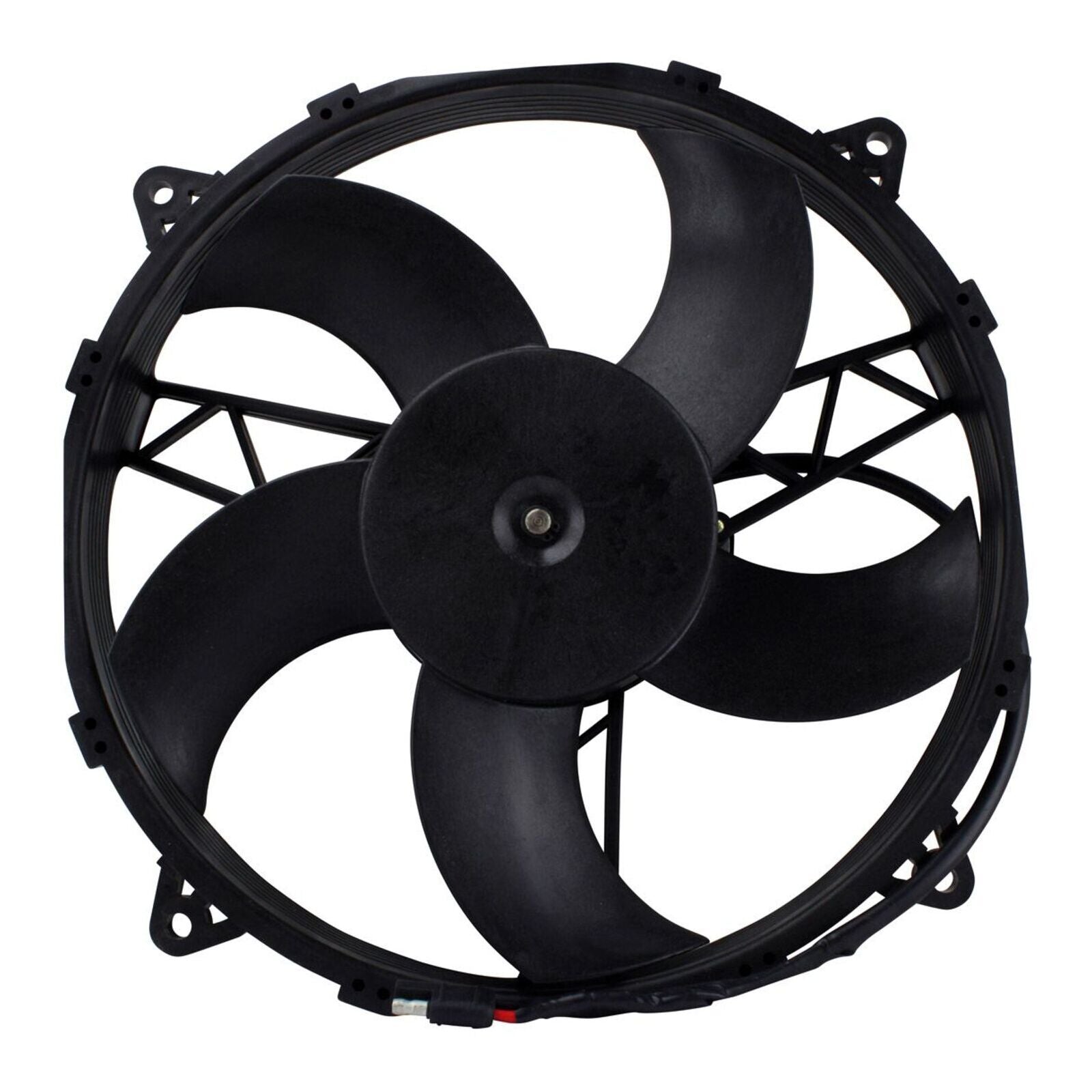

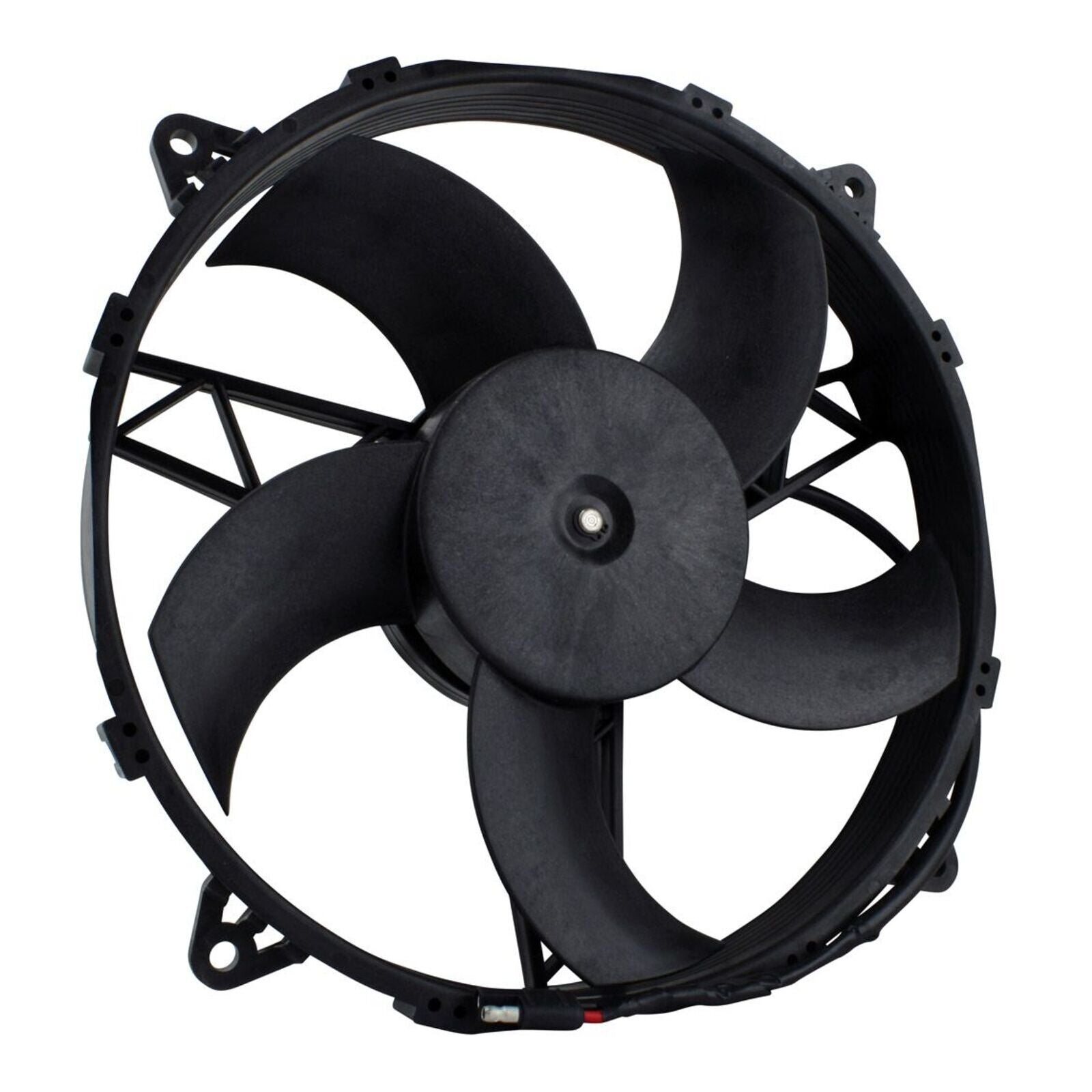

Dimensions:

• Diamete r: 310 mm
• Mounting Hole Size: 7 mm
• Mounting Holes Distance: 235 mm

Other specifications:

• Number of terminals: 2
• Number of plugs: 1

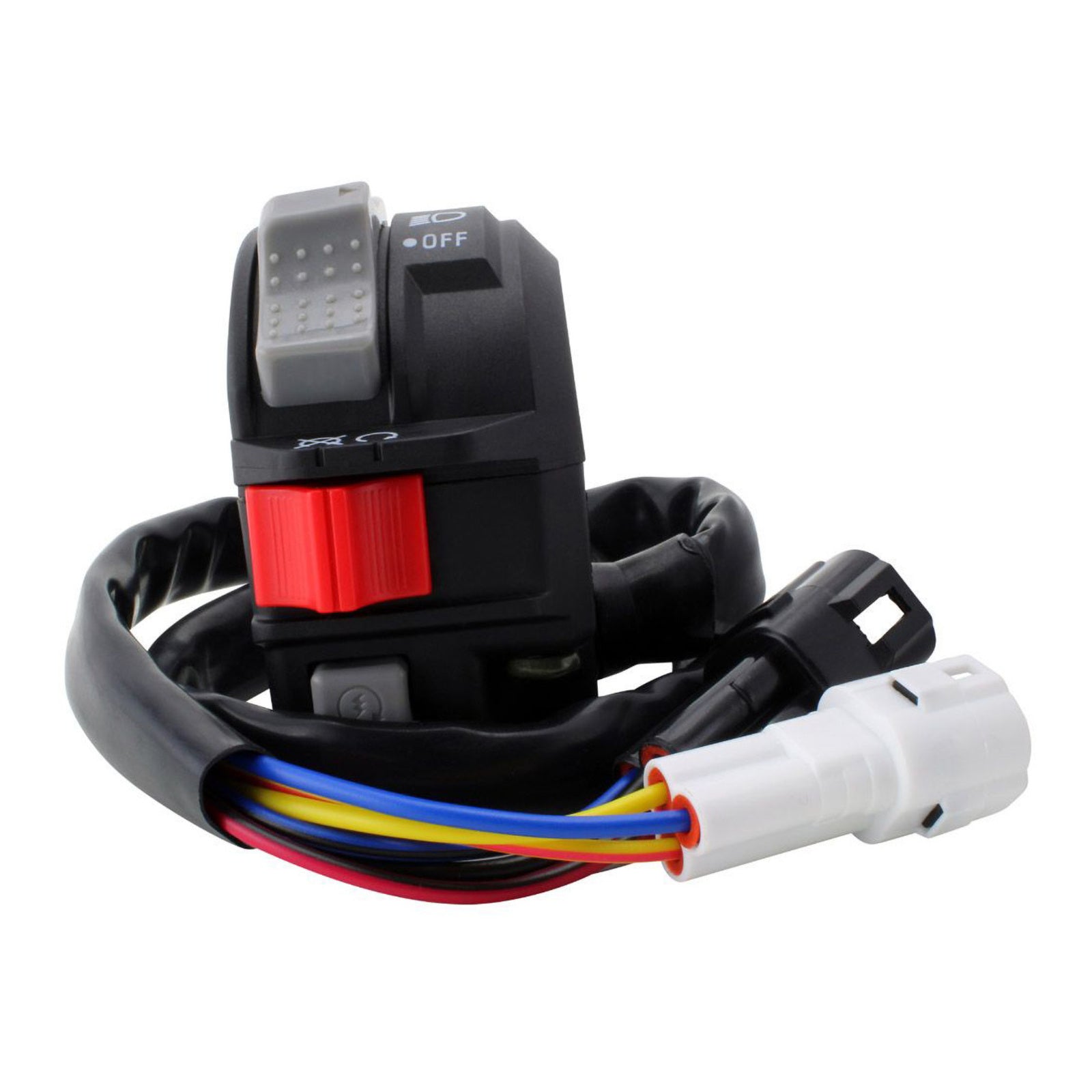

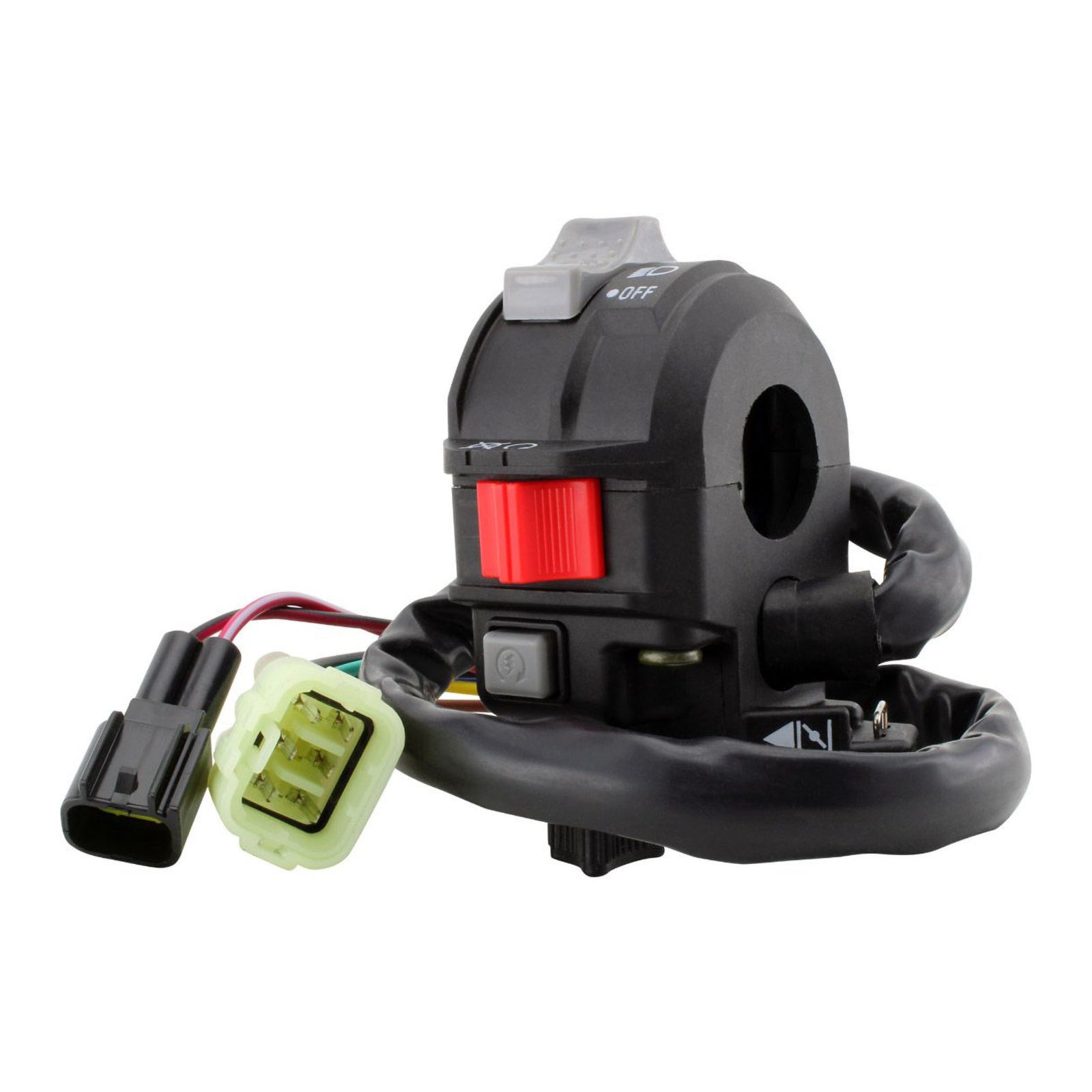

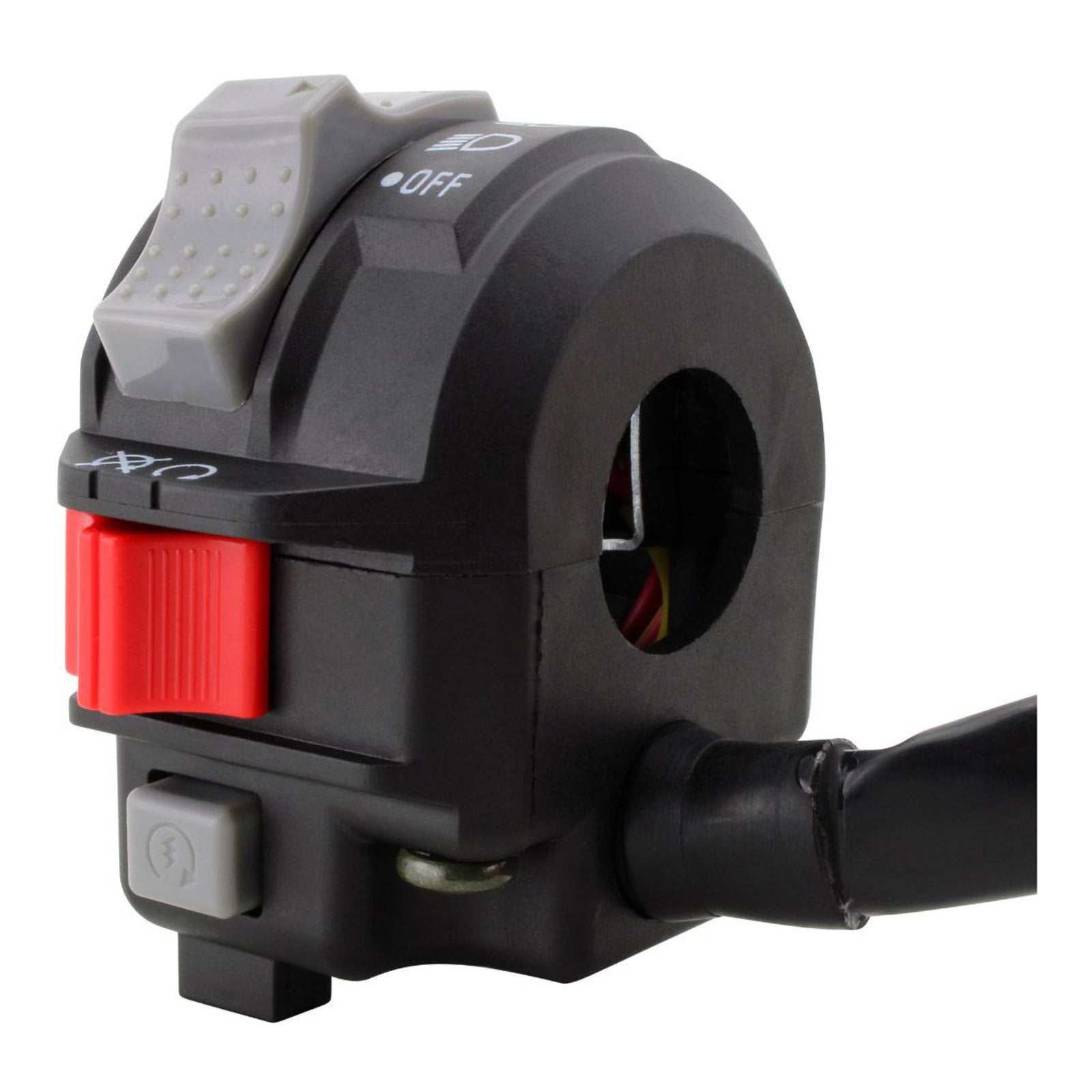

Brand new aftermarket handlebar switch

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All products shipped are tested

Functions:

• Lights: Off / Low / Hi
• Kill Switch: Off / On

Other specifications:

• Number of pins: 8
• Wire Length: 500 mm

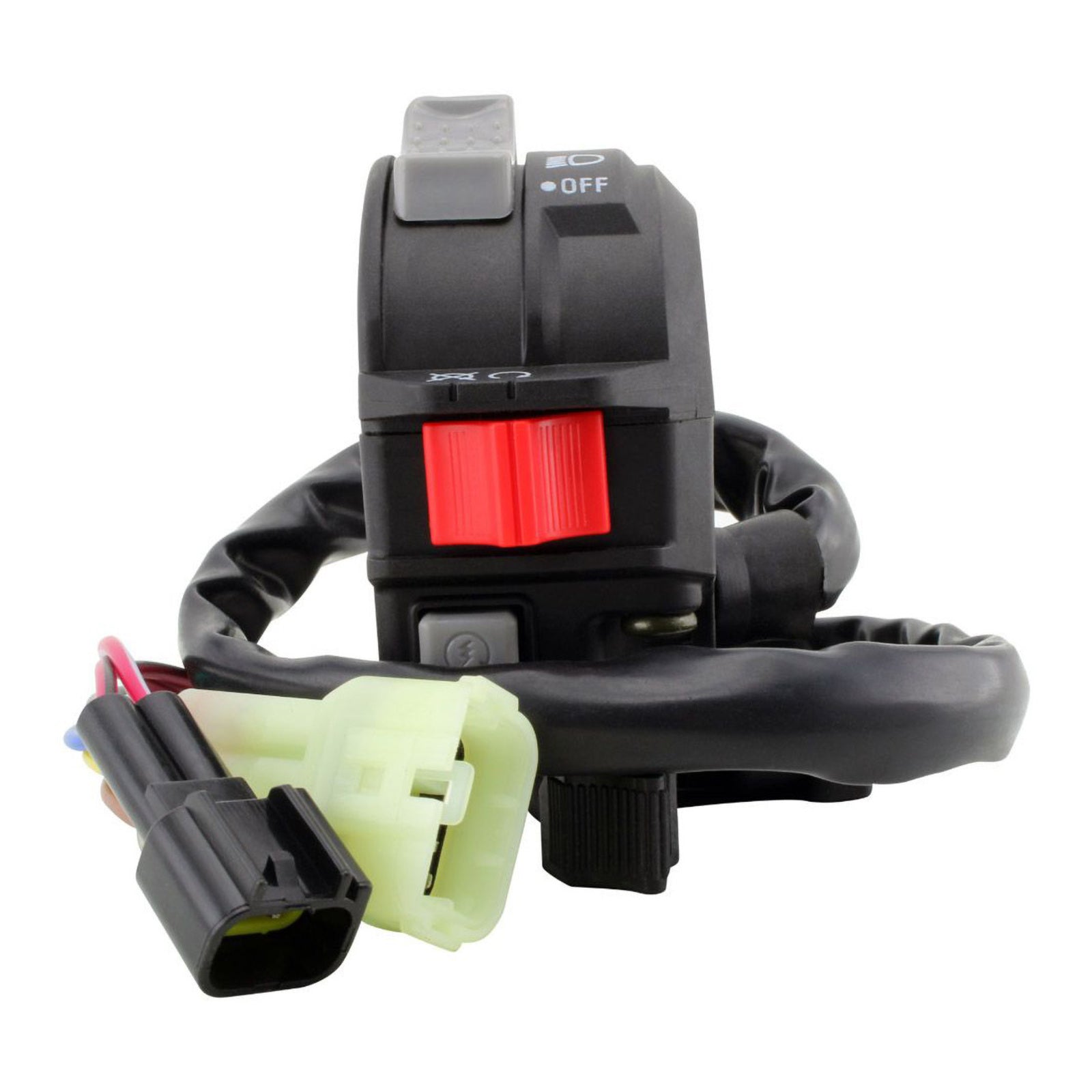

Brand new aftermarket handlebar switch

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All products shipped are tested

Functions:

• Lights: Bottom / Off, Middle / Low, Top / High
• Kill Switch: Left / Off, Right / On

Other specifications:

• Number of wires: 7
• Number of pins: 7
• Wire Length: 540 mm

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Replacement ignition key switch for your motorcycle/ATV. Direct replacement to the original unit this unit provides excellent plug-and-play, direct fit functionality providing simple, quick & easy installation. Two keys & all connectors are included.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Two keys included
• Connector included

Dimensions:

• Height : 50mm
• Diameter: 38mm
• Wire Length: 260mm

Other Specification:

• Number of wires: 2
• Number of plugs: 1
• Number of terminals: 2
• Number of keys: 2
• Number of positions: 2 (Off/On)

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Dimensions:

• Exterior diameter: 115mm
• Interior diameter: 42mm
• Thickness: 22mm

Other specifications:

• Number of wires: 3
• Number of plugs: 1
• Number of terminals: 3
• Harness length Stator to grommet: 110 mm
• Harness length grommet to plug: 600 mm

Wire to wire resistance:

• Alternator : Black between each Black = 0.5 ohms +/- 20%

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
4. Some Triumph models have multiple stators for some models. Please refer to the note below to make sure you have the right part:
• Speed Triple R from 2011 to 2017: This part will only fit on Speed triple R with a VIN LOWER than 735336. For models with a higher VIN than 735337, refer to OEM T1300118.
• Sprint ST 2019 to 2020: This part fits vehicles with VIN 208167 and up. For vehicles with VIN up to 139276, refer to part # RM01348 and for vehicles with VIN from 139277 to 208166, refer to part # RM01387S.
• Speed Triple 1994 to 2018: This part will only fit Speed Triple with a VIN BETWEEN 210445 and 461331 and an engine number HIGHER than 356143 or a VIN BETWEEN 461332 and 735437. If your vehicle has a VIN between 141872 and 210444 and has an engine number higher than 183487 or a VIN between 210445 and 461331 and an engine number lower than 356142, refer to RM01391S. If your vehicle has a VIN between 141872 and 210444 and with an engine number lower than 183486, refer to RM01387S. If your vehicle has a VIN lower than 141871, refer to RM01348.
• Speed Triple 1050 2005-2010: compare the dimension of your original product with the dimension of our product before buying.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All products shipped are tested

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.
• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment

RM STATOR has even included the opposite connector (main harness side), as they know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Dimensions:

• Width: 30mm
• Length: 95 mm
• Height: 110 mm
• Fixation holes center to center:78 mm

Other specifications :

• Number of plugs: 2
• Number of pins: 5

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
4. There are multiple regulators possible for some Triumph models. Please take a look at the list below to see if your triumph model is there, and if so if it's the right part:
• Bonneville from 2017 to 2020 with a VIN LOWER than 513325. If you have a HIGHER VIN you should look for parts # RM30405 / RMS020-103436
• Street Triple Standard 2008 to 2017 This part will only fit on Street Triple Standard with a VIN higher than 456777. For models with a VIN BETWEEN 354282 and 456776, please refer to part # RM30104, and for models with VIN lower than 354281, please refer to OEM T1300570
• Street Triple 1994 to 2018: This part will only fit on Street Triple with a VIN higher than 499574 and a Non-ABS version or higher than 499957 and an ABS version. If your vehicle has a VIN between 210445 and 461331, please refer to OEM T1304045. If your vehicle has a VIN between 461332 and 499573 and a non-ABS version, refer to OEM T1300165. If your vehicle has a VIN between 461332 and 499956 and an ABS version, refer to OEM T1301564. If your vehicle has a VIN BETWEEN 141872 and 210444, refer to part # RM30507 / RMS022-106230. If your vehicle has a VIN lower than 141871, please refer to OEM T1300021. If your vehicle has a carburetor, please refer to part # RM31000.
• Street Triple 2019 to 2020 This part will only fit on Street Triple Standard with a VIN higher than 456777. For models with a VIN BETWEEN 354282 and 456776, please refer to part # RM30104, and for models with VIN lower than 354281, please refer to OEM T1300570
• Street Triple R 2008 to 2020 This part will only fit on Street Triple R with a VIN higher than 456777. If your vehicle has a VIN BETWEEN 354282 and 456776, please refer to part # RM30104.

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

It is time to update or replace your voltage regulator with the advanced MOSFET type. It runs cooler than all OEM diode-style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• The quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components
• All shipped products are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Dimensions:

• Width: 30mm
• Length: 94mm
• Height: 82mm
• Fixation holes centre to centre: 75mm
• Wires Length: 171mm & 200mm

Other specifications:

• Number of plugs: 2
• Number of pins: 7
• Number of wires: 7
• Minimum Charging Voltage: 14.5V +/- 0.5V
• Maximum Charging Current: 50A/500W
• Open Circuit Voltage: <15V
• Operation Temperature: -20° to 85°

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
4. There are two possible regulators for the model Triumph 675 Street Triple 2009-2010, please compare the length of the original harness on your regulator with our product.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All products shipped are tested

Dimensions:

• Width: 19mm
• Length: 50mm
• Height: 37mm
• Wires length: 350mm

Other specifications:

• Number of plugs: 1
• Number of terminals: 3

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

STOP BURNING YOUR REGULATOR RECTIFIER! It is time to update or replace your voltage regulator with RM STATORS advanced MOSFET technology. RM STATORS MOSFET Regulators run cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• The quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components

What are the advantages of the MOSFET Technology?

• Runs much cooler than the traditional Shunt voltage regulator rectifier
• Less load on the stator, less work, less fuel is used and you save
• The power charging your battery is steadier and smooth
• Extends the battery’s life and cold-cranking capacity
• Removes stator load resulting in more engine power
• Optimize power delivery by switching the stator coils on or off

Dimensions:

• Width: 87mm
• Length: 179mm
• Height: 113mm
• Wires length: 240mm
• Distance between fixation holes centre to centre: 155mm

Other specifications:

• Number of plugs: 3
• Number of pins: 4
• Number of wires: 4
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20°C to 85°C

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

STOP BURNING YOUR REGULATOR RECTIFIER! It is time to update or replace your voltage regulator with RM STATORS advanced MOSFET technology. RM STATORS MOSFET Regulators run cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• The quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components

What are the advantages of the MOSFET Technology?

• Runs much cooler than the traditional Shunt voltage regulator rectifier
• Less load on the stator, less work, less fuel is used and you save
• The power charging your battery is steadier and smooth
• Extends the battery’s life and cold-cranking capacity
• Removes stator load resulting in more engine power
• Optimize power delivery by switching the stator coils on or off

NOTE: Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

Replacement ignition key switch for your motorcycle/ATV. Direct replacement to the original unit this unit provides excellent plug-and-play, direct fit functionality providing simple, quick & easy installation. Two keys & all connectors are included.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Two keys included
• Connector included

Dimensions:

• Height : 56mm
• Length: 41mm
• Wire Length: 270mm

Other Specification:

• Number of wires: 6
• Number of plugs: 1
• Number of keys: 2
• Number of positions: 3 (Off/On/Spring Return Start)

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Dimensions:

• Interior diameter: 42 mm
• Exterior diameter: 115 mm
• Width: 21 mm

Other specifications:

• Number of wires: 3
• Number of plugs: 1
• Number of terminals: 3
• Harness length Stator to grommet: 80 mm
• Harness length grommet to plug: 650 mm

Wire to wire resistance:

• Alternator: Between each Black = 0.5 ohms +/- 20%

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
4. There are 2 possibles stators for Triumph Daytona 955i 2002-2006, our product RM01388S fits on serial number #179431 and below. The other possible Stator is RM01395.

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• 50mm x 1.5 Right hand Female
• Includes crankshaft thread protector cap

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Two keys included
• All products shipped are tested

Dimensions:

• Height: 51mm
• Length: 39mm
• Width: 39mm

Other Specifications:

• Number of wires: 4
• Number of plugs: 1
• Number of keys: 2
• Number of positions: 2 (off, on)

Brand new aftermarket Voltage Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• No assembly required
• Higher grade of electric components
• The quality exceeds the OEM equipment
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and are a major cause of repetitive electrical issues.

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Specifications:

Dimensions:

• W idth: 52 mm
• Length: 72 mm
• Height: 20 mm
• Wires length: 480 mm
• Distance between fixation holes center to center: 60 mm

Other specifications:

• Number of plugs: 2
• Number of pins: 4
• Number of wires: 4
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20°C to 85°C

Note: Battery condition is important. No regulator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
